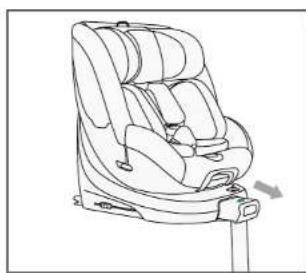

Stützfuß verstauen

INSTALLATIONSMETHODE

Line drawing of a car seat with seatbelt and seat, no text or symbols present

Line drawing of a baby car seat with a hand operating the seatbelt, plus an inset showing a hand holding a seatbelt with green and red symbols (no text or labels)

Line drawing of a car seat with adjustable seat and seatbelt (no text or symbols)

Line drawing of a car seat with a magnified inset showing the seatbelt switch (no text or symbols)

Diagram illustrating car seatbelt usage with labeled buttons and safety symbols for comfort and safety.

Diagram illustrating car seatbelting instructions with arrows and labels for safety, weight, and usage steps

Line drawing of a car seat with red location markers and two small illustrations below (no text or symbols)

PRIME 360

Sitzbezug entfernen

Illustration of a hand holding a small pink object, with an inset showing a medical device (no text or symbols present)

Line drawing of a car comfort seat with seatbelt and seat plate (no text or symbols)

EN

INSTRUCTION MANUAL

Dear Parents:

Thank you for purchasing the Car Seat.

Please read and follow all instructions before using the Car Seat.

WARNING! Read the Instruction carefully before use and keep them for future reference.

PRIME 360

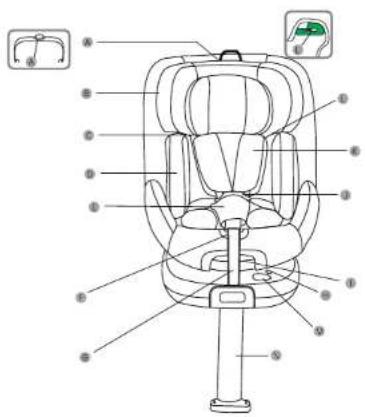

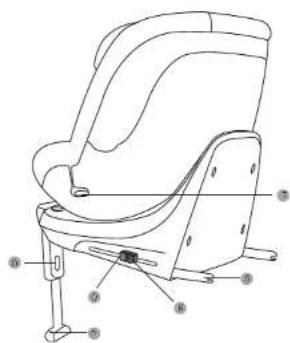

PARTS

Diagram of car seat assembly with numbered labels pointing to different seat compartments

Technical diagram of a car seat assembly with numbered labels pointing to different components.

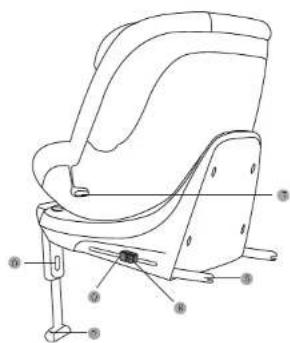

A. handle for the headrest
B. headrest
C. harness belt
D. new born cushion
E. cover for the buckle
F. button for the 5-points-harness system
G. adjustment belt
H. indicator for rotation button
1. reclining handle
J. buckle
K. shoulder pad
L. belt guider
M. rotation button
N. support leg
O. adjustable button for the support leg
P. indicator for the support leg
Q. ISOFIX attachment second lock
R. ISOFIX attachment indicator
S. ISOFIX attachment
T. belt gulder

babyGO

PRIME 360

ASSEMBLY STEP

THE USAGE OF BUCKLE ADJUST THE SAFETY BELT

Two gray plastic mechanical clamps or brackets with mounting holes, shown side by side (no text or symbols)

1. Close the left and right latches of the buckle (as shown in Figure 1) and ensure that the concave and convex structures of the left and right latches are closed

Two gray mechanical clamps with checkmark and cross symbols (no text or labels)

1. Close the left and right latches without leaving a gap. Keep the latches facing up.

Diagram of a mechanical device with a handle and lever, showing a red component being inserted into a gray handle (no text or symbols)

1. Insert the closed latches into the slot of the buckle. 4.

click...

If you hear „click“ sound, it means that the buckle has been fastened.

Illustration of a baby wearing a full-body safety harness, with a hand adjusting the seat (no text or symbols)

Illustration of a baby wearing a full-body safety harness and holding a vertical pole (no text or symbols)

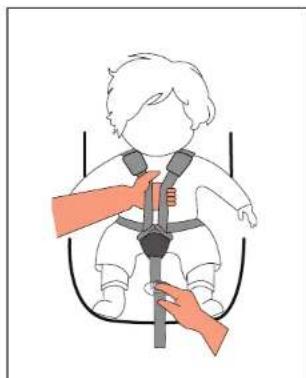

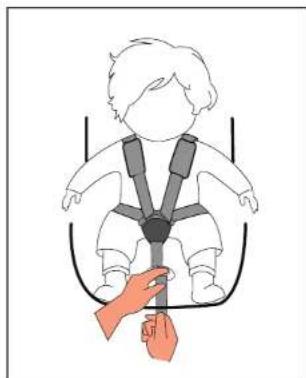

1. Tighten your baby car seat belt Pull the shoulder strap up to tighten the loose part of the leg belt. Then pull the adjustable belt to tighten the belt. Keep your seat belt as tight as possible without causing discomfort. The leg belt should be as low as possible and should be near the crotch, not the belly.

A finger space should't between the seat belt and the child.

A loose seat belt is dangerous.fiCheck that the seat belt adjuster is working properly each time when you place a child in a car seat before tightening the seat belt.

1. LOOSE THE SEAT BELT: The seat belt can be loosened by pressing the 5-point seat belt adjustment button in front of the seat. While pressing down the 5-point seat belt adjustment button, hold the two straps under the shoulder guard with the other hand and pull them in front of the child to release the seat belt

babyGO

PRIME 360

ADJUST THE HEIGHT OF HEADREST ADJUST THE ANGLE RECLINING OF CAR SEAT

Illustration of a hand pressing down on a curved object with an upward arrow and downward arrow indicating motion (no text or symbols)

1. Use the five-point seat belt adjustment button under the front of the seat to loosen the seat belt, unlock the buckle, pull the headrest adjustment handle up, move the headrest to the correct shoulder belt height, and then gently slide the headrest down to check that the headrest is properly hinged.

Diagram showing a person in a car seat with red and green checkmarks indicating cancellation or rejection options.

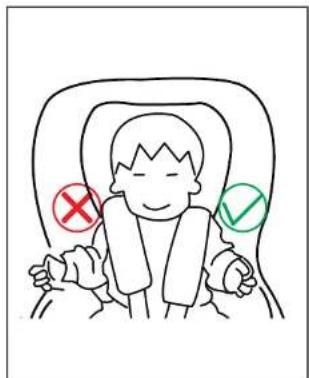

1. Correctly adjusting the headrest can ensure the best protection for your child in the car seat; The headrest must be adjusted to the position that the shoulder strap is compatible with the height of a child's shoulders or slightly higher. The straps must be located at shoulder height or slightly above the child's shoulder height. The shoulder strap should not be behind the child or at or above the ear.

Note: It is important to keep the headrest appropriate to the height of the child's head.

Line drawing of a baby car seat with adjustable armrest (no text or symbols)

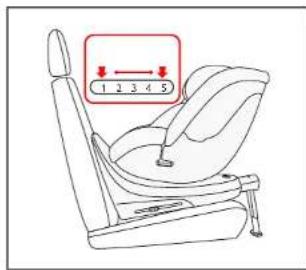

The child safety seat can be adjusted to different reclining positions. You can adjust the reclining angle of the seat even when your child is in it

1 2 3 4 5

REARWARD: Press the base part of the seat with one hand and pull the angle adjusting handle on the back of the seat with the other hand to adjust the seat to the appropriate position, 5 positions in total.

①②③④⑤

Note: when the baby car seat is rearward facing pls use 1,2,3,4,5 position

FORWARD FACING: Press the base of the seat with one hand and pull the angle adjusting handle on the back of the seat with the other hand to adjust the seat to the appropriate position, a total of 5 positions.

Note: when the baby car seat is forward facing pls use 1,2,3,4,5 position

babyGO

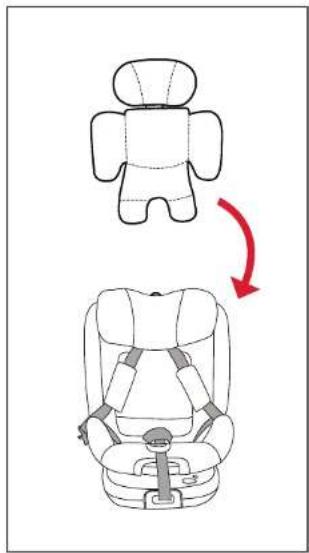

NEW BORN CUSHION

Diagram showing a toy car seat with a red arrow indicating rotation or change (no text or symbols present)

Note: When the height of baby is 40-75cm, please use the newborn baby's cushion.

Line drawing of a car seat with seatbelt and seat, no text or symbols present

Place the new born cushion in the car seat, place the two shoulder pads on the new born cushion, and finally cover the buckle cushion on.

PRIME 360

ROTATION FUNCTION

Line drawing of a car seat with two seats and a seatbelt (no text or symbols)

1. Take the supporting leg out of the storage at the bottom of the base;
2. Press the supporting leg expansion button and pull out the leg;

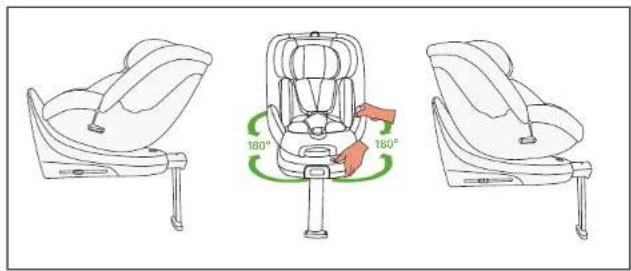

3. Press the rotation button and rotate the seat.

Attention! Before each trip, pls make sure that the seat rotation is locked by turning the seat in both directions.

Line drawing of a car seat assembly with a pull-up cable (no text or symbols)

IMPORTANT: DO NOT USE FORWARD FACING BEFORE THE CHILD'S AGE EXCEEDS 15 MONTHS (Refer to instruction)"

Attention! Before each trip, pls make sure the child seat is in the correct group and configuration.

Line drawings of a baby car seat with three views showing different seat positions and angle annotations (180°)

babyGO

PRIME 360

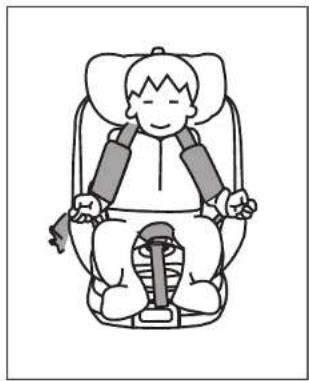

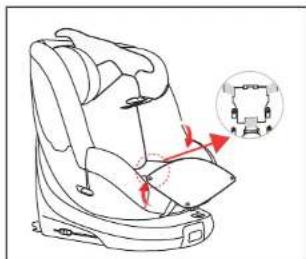

INSTALL THE 5-POINT HARNESS SYSTEM REMOVE THE 5-POINT SEAT BELT SYSTEM

Illustration of a child wearing a car seatbelt and holding a device (no text or symbols)

1. Release the safety belt to the most loosely, then unlock the buckle and place it on both sides of the seat, as shown in the picture

Illustration of a car seatbelt with a person adjusting its seat, next to a small robot figure (no text or symbols present)

Illustration of a hand using a tool to adjust or install a yellow bracket with a handle (no text or symbols present)

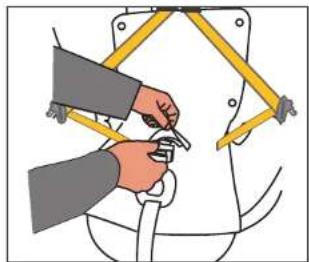

1. Remove shoulder pads, buckle cover and new born cushion from the front of the seat.

2. Pass the buckle through the hole in the cloth sleeve

Line drawing of a child wearing a car seatbelt (no text or symbols)

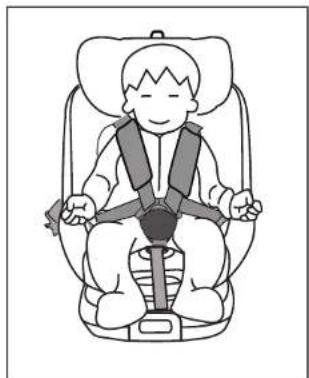

1. Insert the left and right latches into the buckle and hear a "click" sound, indicating that the buckle is fastened. Press the adjustable belt button to adjust and tighten the shoulder strap, while ensuring that the child's shoulders are comfortable (a finger space should fit between the eat belt and the child).

Line drawing of a car seat assembly with red arrows indicating seat movement (no text or symbols)

Line drawing of a car comfort seat with seatbelt and seat, no text or symbols present

1. Open the buttons of the seat cloth cover as shown. filinsert the latches insert into the buckle.fiOpen the buckle cover at the bottom of the seat, place the buckle in, and finally close the cover

2. Tidy up the cloth cover,

babyGO

PRIME 360

INSTALLING ISOFIX ATTACHMENT INSTALLATION OF SUPPORT LEG

Hand-drawn diagram showing a red arrow pointing to a container with a curved arrow above it, likely indicating direction or flow.

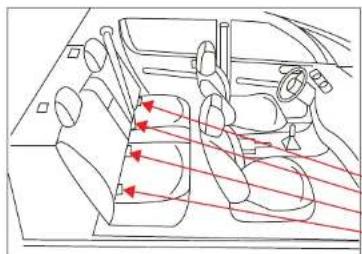

NOTICE: Child safety seats can also be used with the ISOFIX attachment guide. The installation is more convenient, please clip the ISOFIX attachment guide on the ISOFIX attachment anchor point on the ISOFIX attachment fixed point of the automobile, and the make notch faces upward

Diagram showing a hand pressing down on a car seat with red arrows labeled 'a' and 'b' indicating positions or directions.

NOTICE: If your car seat can adjust the angle, pls adjust the car seat angle to the appropriate position, it will be more convenient for ISOFIX attachment installation.

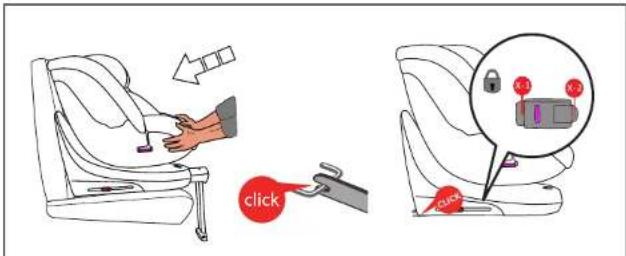

1. Press ISOFIX attachment lock released button and ISOFIX attachment 2nd lock button (as shown in Figure 21) at the same time, then push ISOFIX attachment out.

click click

1. Grab the child seat with both hands, then push the two ISOFIX into the ISOFIX guider until the ISOFIX is stuck on both sides, and hear click. When the ISOFIX is locked, pls push the child safety seat vigorously in the direction of the arrow to make it fit the back of the car seat.

Line drawing of a car seat with an inset showing a hand operating the seat (no text or symbols present)

1. Take the Support leg out from the storage bin at the bottom of the base
2. Press the expansion button to pull the support leg out
3. Place child in car seat and secure with 5-point seat belt system

NOTICE: when the Support leg touches the car surface, the Support leg indicator must be all green (as shown in the figure1)

NOTICE:

1. Check and tighten ISOFIX attachment, Support leg and 5-point seat belt system to ensure seat and child are firmly fixed.
2. The 5-point seat belt should not be twisted or wound.
3. When installing the car seat by rearward facing and children's height is less than 75cm, it must use new born cushion.
4. We recommend to install car seat with ISOFIX attachment guider.
5. The seat must be as close to (against) the back of the vehicle seat as possible
6. The child restraint system should not be installed in the position where the airbag is installed in the rearward facing position.

Line drawing of a car seat with a red X mark indicating no text or symbols on the seat structure

NOTICE: The 100-125cm I-Size Booster seat cannot use the Support leg.

babyGO

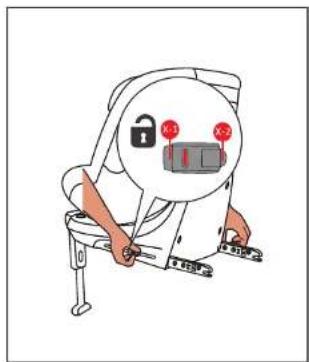

REMOVE ISOFIX ATTACHMENT AND HIDE THE SUPPORT LEG

Cartoon illustration of a robot-like device with a lock and red buttons, no text or symbols present

Removing the ISOFIX attachment

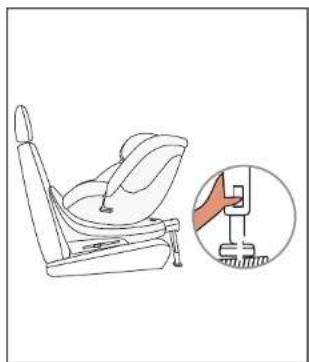

1. Press the "ISOFIX attachment unlock button", and hear "click" sound, ensure that both sides of the ISOFIX attachment are unlocked, then remove the seat

Notice: ISOFIX attachment is unlocked correctly only when the left and right ISO-FIX indicator show red.

Line drawing of a car seat with a close-up inset showing the seat structure (no text or symbols)

Hide the support leg

1. Press the supporting leg adjustment button and pull the Support leg up

PRIME 360

INSTALLATION METHOD

MAKING REARWARD FACING POSITION

Using ISOFIX attachment+ Support leg (suitable for children height from 40-105cm)

Line drawing of a car seat assembly with seatbelt and seat, no text or symbols present

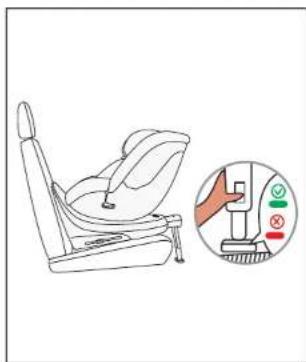

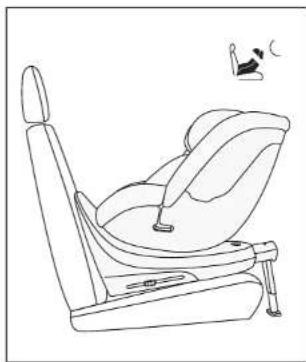

1. When installing the child safety seat in the rearward facing position, take the Support leg out from the bottom of the seat according to method "Installation fo Support leg" and then rotate the seat to the rearward position. Then according to Installing the ISOFIX attachment to the car seat firmly.

Attention! If your child's height is less than 105cm, pls use rearward facing.

WARNING: This child car seat must not be used in a vehicle seat where airbag has been activated.

Line drawing of a car seat with a magnified inset showing the seatbelt switch (no text or symbols)

1. Press the supporting leg adjustment button by your hand and pull the Support leg down until it touches the car surface

2. Place the child in car seat and secure with 5-point seat belt system

ATTENTION: When the supporting leg touches the car surface, the support leg indicator must be all green (as shown in the figure).

babyGO

PRIME 360

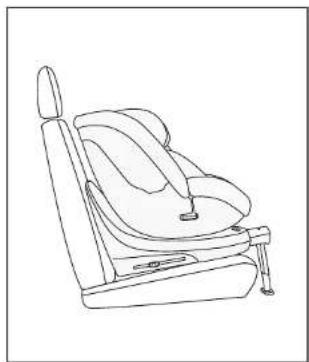

INSTALLING THE CHILD SAFETY SEAT FORWARD FACING POSITION

Using ISOFIX attachment+ Support leg (suitable for children height from 76-105cm)

Line drawing of a car seat with seatbelt and seat plate (no text or symbols)

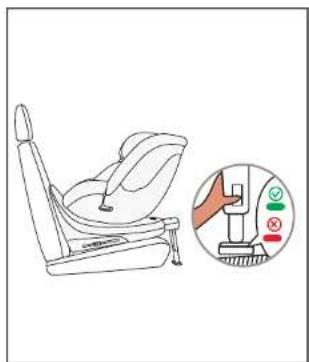

1. When installing the child safety seat in the forward facing position, take the Support leg out from the bottom of the seat according to "Installation of support leg" and then rotate the seat to the forward position. If then according installing the ISO-FIX attachment to the car seat firmly.

Diagram showing a car seat with a magnified view of the seatbelt switch mechanism with green and red symbols.

1. Press the Support leg adjustment button by your hand and pull the Support leg down until it touches the car surface

2. Place the child in car seat and secure with 5-point seat belt system

ATTENTION: When the Support leg touches the car surface, theSupport leg indicator must be all green (as shown in the figure).

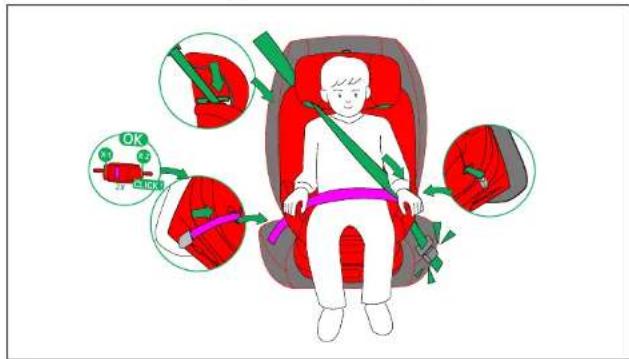

INSTALLING THE CAR SEAT FORWARD FACING POSITION

Using ISOFIX attachment+ 3-point seat belt (suitable for children height from100-125cm)

Diagram illustrating car seatbelting instructions with icons and labels for safety measures

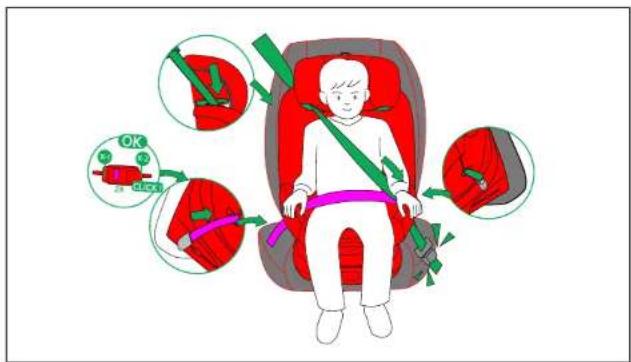

1. Remove the 5-point safety belt system before placing the child in this way
2. Fasten the car seat through ISOFIX attachment and ISOFIX attachment anchor points on the vehicle seat according to the "installing method for ISOFIX attachment".
3. Place the child seat on the vehicle seat and adjust the seat to the appropriate position.
4. The vehicle seat belt passes through the belt guider and pass the child's shoulder
5. Vehicle seat abdominal belt through the belt guider and pass the child's pelvis
6. Fasten your car seat belt

babyGO

USE 3-POINT SEAT BELT TO INSTALL THE CHILD SAFETY SEAT IN FORWARD FACING POSITION (Suitable for children height from 100-125cm)

Diagram illustrating car seatbelting instructions with arrows and labels for safety measures

1. Remove the 5-point safety belt system before placing the child in this way
2. Place the child seat on the vehicle seat and adjust the seat to the appropriate position.
3. The vehicle seat belt passes through the belt guider and pass the child's shoulder
4. Vehicle seat abdominal belt through the belt guider and pass the child's pelvis
5. Fasten your car seat belt

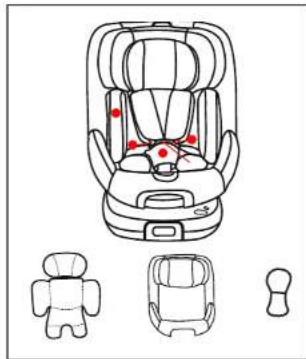

REMOVAL AND INSTALLATION OF CLOTH COVER

Line drawing of a car seat with red dots indicating points, and two small illustrations below (no text or symbols)

PRIME 360

Removal of the cloth cover

1 Adjust the shoulder straps (01)
2. Press the red button A on the buckle to open the buckle (03)
3. Take out the inner liner (02) and snap pad (04)
4. Carefully remove the headrest cover and seat cover from the seat.

Illustration of a hand holding a small pink object, with an inset showing a medical device (no text or symbols present)

Installation of the cloth cover

1. Adjust the head restraint to the highest position.
2. Install the cloth cover onto the seat carefully.
3. Take out the inner liner and snap pad.
4. Install the inner liner and buckle pad.
   Tip When installing the cloth cover, you can use the cloth cover plate R to put the cloth cover back on the seat.

babyGO

PRIME 360

IMPORTANT

READ CAREFULLY AND READ CAREFULLY AND KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE

NOTICE:

This is an I-Size Enhanced Child Restraint System. It is approved according to UN Regulation No. 129, for use in, I-Size compatible vehicle seating position as indicated by vehicle manufacturers in the vehicle user's manual. If in doubt, consult either the Enhanced Child Restraint System manufacturer or the retailer.

NOTICE

This is an I-Size booster seat Enhanced Child Restraint System. It is approved according to UN Regulation No. 129, for use primarily in "I-Size seating positions" as indicated by vehicle manufacturers in the vehicle user's manual. If in doubt, consult either the Enhanced Child Restraint System manufacturer or the retailer.

"IMPORTANT-DO NOT USE FORWARD FACING BEFORE THE CHILD'S AGE EXCEEDS 15 MONTHS(Refer to instruction)"

Only suitable for use in the listed vehicles fitted with 3 point belt which is approved to ECE Regulation No.16 Do not use them in seating positions where there is active airbag installed.

• Read this instruction manual carefully.
• The correct fitting of the ISOFIX attachment and Support leg anchoring systems of 3-point belt is of vital importance for the safety of your child.
• For the future use of the seat, it is important that you keep the instruction manual carefully.
  • Never leave your child unattended in the car.
• Do not use a child safety seat if the vehicle seat is equipped with a front airbags. This can be dangerous. This does not apply to so-called side airbags.
  • Before use our product, please read the instruction manual carefully.
• The product is a safety product and is only safe when used in accordance with the instruction manual.
• The product must only be used on a forward facing seat that is fitted with the ISOFIX attachment and Support leg.
• The product may be used on either the front or the back seat. However, we recommend that it is fitted on the back seat.
  • The product has been approved according to the strictest European safety standards (ECE R129/03) and is suitable for 40-105cm (mass limit fi18kg) with the

ISOFIX attachment and the Support leg ; 76-105cm (mass limit fi18kg) with the ISOFIX attachment and the Support leg ;100-125cm with 3-point belt; 100-125cm with 3-point belt and ISOFIX attachment.
• After an accident the seat may become unsafe due to damage that is notn noticeable immediately. It should therefore be replaced.
- The safety of the seat can only be guaranteed by the manufacturer if it issued by the original owner.
• We advise you strongly that not to use a second-hand product, because you are not sure what has happened to it.
- The harness pads are important for the safety of your child, therefore use them at all the time.
- Ensure that all luggage and objects likely to cause injury in the event of an accident are properly secured.
- The moving parts of the car seat should not be lubricated in any way.
- The baby car seat must not be used without the cover. Please use an original cover, as the cover contributes to the safety of the seat.
- The seat must be secured with ISOFIX attachment, even when it not on use. An unsecured seat may injure other passengers in the car in an urgent stop.
- The rigid items and plastic parts of a child restraint must be so located and installed that they are not liable, during everyday use of the vehicle, to become trapped by a movable seat or in a door of the vehicle.
- Ensure that the seat is not damaged by the webbing between or underneath heavy luggage, adjustable seats or slamming the car door etc.
- No alterations may be made to the product as this could affect part or the overall safety of the seat.
- In hot weather the plastic and metal parts of the product will be hot. You should cover the seat when the car parked under the sun.
- In order to prevent damage to the cover, do not remove the product's logo. - Use the seat even in a short journey, as this is when most accidents occur.
- Before the purchase, please check that the seat is properly in your car.
• Take a short break in long journey, So that your child has some time for the relaxation.
- Set a good example your child and always wear your seat belt.
• Tell your child that he/she should be never play with the harness buckle.
• Make sure that any straps is properly fastened (worn low down) and not twisted.
- Any lap strap is worn low down, to keep the pelvis is firmly engaged.

DO NOT place rear-facing child seat on front seat with airbag. IMPORTANT-DO NOT use forward facing before the child's age exceeds 15 months. DEATH OR SERIOUS INJURY can occur.

babyGO

Notice for the vehicle use

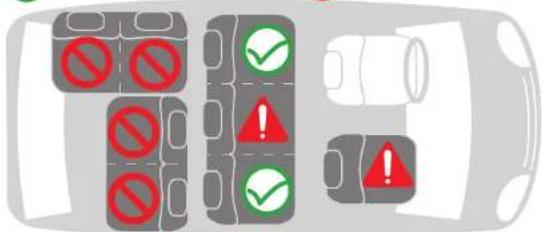

Correct installation /suitable

wrong installation /unsuitable

Diagram showing traffic lane with red prohibition signs and green checkmarks, indicating no traffic or absence of lanes.

The baby car seat must not be used into the position of a seat where there has an airbag (airbags can be fatal to children). Please read the instructions carefully in order to properly use of child safety seats.

Must not be used in the passenger seat where airbags have been activated.

Baby car seat ISOFIX attachment

Interior view of a car dashboard with steering wheel and seatbelt, showing red directional arrows indicating flow or movement (no text or symbols present)

Anchor for the ISOFIX attachment under the seat

PRIME 360

NOTICE: Read the car manual first and check whether the car seat is equipped with ISOFIX attachment fixed anchor points, and check the size of recommended ISOFIX attachment constraints on the system if it is matched our ISOFIX attachment size.

Height Size facing direction
40-105cm ISO/R2 rearward facing
76-105cm ISO/F2X forward facing
100-125cm ISO/B2 forward facing

MAINTENANCE

1. In the daily using, it is necessary to regularly check the child safety seat,
2. In case of accident, the safety seat must be replaced. When the car seat is not in use, the child safety seat should be placed in a dry and ventilated place to avoid damp and mildew.
3. If there is dust on the surface of the child safety seat, we can use a damp sponge to wipe and ventilate it to dry.
4. If food or drink drops onto the seat belt by accident, pls remove the seat belt and rinse thoroughly with warm water and ventilate it to dry.
5. To clean the entire seat cover, please refer to the washing instructions.
6. Slight fading may occur during the first washing, which it is a normal situation.

WASHING INSTRUCTIONS:

babyGO

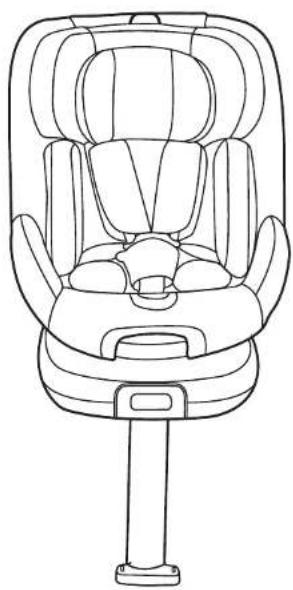

Line drawing of a car comfort seat with seatbelt and seat plate (no text or symbols)

FR MODE D'EMPLOI

Chers parents

Diagram of a car seat with labeled parts and accessories, including front seat, seatbelt, and seatbelt switch.

Technical diagram of a car seat assembly with numbered labels pointing to different components.

Two gray plastic mechanical clamps or brackets with mounting holes, shown side by side (no text or symbols)

Two gray mechanical clamps with checkmark and cross symbols (no text or labels)

Illustration of a baby wearing a full-body safety harness, with a hand adjusting the seat (no text or symbols)

Diagram showing a hand holding a small object with a red liquid inside, no text or symbols present

Illustration of a baby wearing a full-body safety harness and holding a vertical pole (no text or symbols)

Illustration of a hand pressing down on a curved object with an upward arrow and downward arrow indicating motion (no text or symbols)

Diagram showing a person in a car seat with red and green checkmarks indicating cancellation or rejection options.

Line drawing of a baby car seat with adjustable armrest (no text or symbols)

Diagram showing a toy car seat with a red arrow indicating rotation or change (no text or symbols present)

Line drawing of a car seat with seatbelt and seat rack (no text or symbols)

Line drawing of a car seat assembly with no text or symbols

Line drawing of a car seat assembly with a pull-up cable (no text or symbols)

Three line drawings of a baby car seat assembly, showing front, side, and side views with angle annotations (180°) indicating measurement or positioning.

babyGO

PRIME 360

INSTALLER LE SYSTÈME DE RETENUE À 5 POINTS RETIRER LE SYSTÈME DE RETENUE À 5 POINTS

Illustration of a child wearing a car seatbelt and holding a device (no text or symbols)

Illustration of a car seatbelt with a person adjusting its seat, next to a small robot figure (no text or symbols present)

Illustration of a hand using a tool to adjust or install a yellow bracket with a handle (no text or symbols present)

Line drawing of a child wearing a car seatbelt (no text or symbols)

Line drawing of a car seat assembly with a magnified inset showing seat structure (no text or symbols)

Line drawing of a car comfort seat with seatbelt and seat, no text or symbols present

Hand-drawn diagram showing a red arrow pointing to a container with a curved arrow above it, likely indicating direction or flow.

Diagram showing a hand using a tool to adjust or install a component, with labeled parts 'a' and 'b' indicating different states or zones.

Diagram of a car seat assembly with an inset showing safety warning symbols for lifting a seat.

Line drawing of a car seat with a red X mark indicating no text or symbols on the seat itself

Cartoon illustration of a robot-like device with a lock and red buttons, no text or symbols present

Line drawing of a car seat assembly with an inset showing the internal mechanism (no text or symbols)

Line drawing of a car seat assembly with seatbelt and seat, no text or symbols present

Line drawing of a car seat with a hand operating the seatbelt switch (no text or symbols present)

Line drawing of a car seat with seatbelt and seat plate (no text or symbols)

Diagram of a car seat with an inset showing a hand holding a switch and warning symbols.

Diagram illustrating car seatbelting instructions with icons and labels for safety measures

Diagram illustrating car seatbelt usage with arrows and labels indicating 'OK', 'SEE', and 'CLICK' functions.

Line drawing of a car comfort seat with red location markers and corresponding illustrations of a child, car, and foot (no text or symbols)

Illustration of a hand holding a small object with a pink square mark, alongside an inset showing a medical device (no text or symbols present)

PRIME 360

Diagram showing traffic lane with no signs, checkmarks, and warning symbols on a car ahead

Interior view of a car dashboard with red directional arrows indicating airflow or traffic flow (no text or symbols)

Height Size facing direction
