Product type	Car seat (booster with backrest)
Brand	BabyGO
Model	Booster
Safety standard	ECE-R44/04
Weight groups	Group I (9-18 kg), Groups II/III (15-36 kg)
Installation type	Forward-facing only
Compatible seat belt	Approved 3-point belt
Integrated harness	Yes, for Group I (5-point harness)
Adjustable headrest	Yes, height adjustable
Removable backrest	Yes, for use as booster seat only (Groups II/III)
Cover material	Removable and washable fabric
Cover care	Machine wash at 30°C, flat dry
Cleaning straps and plastics	Mild detergent and warm water, no chemicals
Approximate weight	Approximately 5 kg
Approximate dimensions	44 cm (width) x 38 cm (depth) x 62 cm (height)
Important precautions	Do not install on a seat with an active airbag; do not use a 2-point belt

Frequently Asked Questions - Booster BabyGO

How to install the BabyGO Booster seat for a child weighing 9 to 18 kg?

Place the seat forward-facing, backrest against the vehicle seat. Pass the 3-point belt through the rear belt guide, then tighten. Use the integrated 5-point harness: place the child, fasten the buckle, and tighten the straps by pulling the adjustment strap.

How to adjust the height of the harness straps?

Press the harness adjustment button, pull the straps forward to loosen them. Unhook the straps from the metal loop at the back, remove them from the current slot and insert them into the slot appropriate for the child's size. Reattach the straps to the metal loop and tighten by pulling the adjustment strap.

Can I install this seat on the front seat of the vehicle?

No, the seat must not be installed on a front seat, especially if an airbag is activated. It is reserved for rear side seats equipped with a 3-point belt.

What to do if the seat has been involved in an accident?

The seat must not be reused if it has been damaged in an accident. Replace it with a new one to ensure the child's safety.

How to clean the cover of the BabyGO Booster seat?

The cover is removable. Machine wash at 30°C and flat dry. Do not use bleach, corrosive products, or dry cleaning. Straps and plastics can be cleaned with mild detergent and warm water.

Can I use this seat without the backrest?

Yes, for groups II/III (15-36 kg). Remove the backrest by pushing it backwards, then remove it from the base. Use the base alone as a booster, ensuring the 3-point belt passes under the armrests.

What is the standard for this car seat?

The seat is approved according to the European standard ECE-R44/04, which guarantees its compliance with safety requirements.

Is the seat compatible with all vehicles?

It is only suitable for vehicles equipped with approved 3-point seat belts (UN-ECE Regulation No. 16 or equivalent). Not suitable for 2-point belts or seats with an activated airbag.

How to release the harness to take the child out?

Push the red button on the buckle upwards to unlock, then remove the harness hooks and spread the straps. The child can then be taken out.

From what weight can I remove the harness and use only the vehicle belt?

From 15 kg (Groups II and III), you can use the seat without the integrated harness. For groups II/III, the child is restrained by the vehicle's 3-point belt, passing under the armrests of the booster.

USER MANUAL Booster BabyGO

Line drawing of a car seat with a black seat and blue seat, no text or symbols present

Illustration of a baby in a car seat with seatbelt and straps (no text or symbols)

Illustration of a child wearing a seatbelt and holding a car seatbelt (no text or symbols)

Line drawing of a car seatbelt with a red circular symbol indicating no number, no text or labels present.

Diagram of a car showing two seats with no visible text or symbols, indicating restriction or absence (no text or symbols present)

Line drawing of a car seat with seatbelt and seat, no text or symbols present

Two illustrations showing a person in seat with a green checkmark and a red prohibition sign, indicating no change or restriction.

Diagram illustrating car seatbelt usage with red arrows indicating force directions and black bands for seat structure

Illustration of a hand pressing down on a mechanical component with a red arrow indicating force direction (no text or symbols)

Medical illustration showing three stages of pelvic anatomy with red arrows indicating movement or force direction.

Illustration of a baby sitting in a car seat with a belt buckle (no text or symbols)

Medical diagram showing foot positioning with red arrows indicating movement or pressure points, labeled with number 6

Diagram showing a person's seatbelt with a red arrow indicating downward motion, labeled with number 7.

Illustration of a baby in a car seat with seatbelt, no text or symbols present

Illustration of hands performing a valve or grip operation with red arrows indicating direction (no text or symbols)

Illustration of a hand holding a black curved object with a red arrow indicating direction (no text or symbols)

Illustration of a hand holding a small object with a red highlighted area, no text or symbols present

Illustration of hands performing a medical or surgical procedure with a red object on the lap and a numbered marker (no text or symbols present)

Illustration of a hand holding a small object with a red arrow pointing to it, no text or symbols present.

Medical illustration showing a hand holding a stethoscope with red markings and an upward arrow, labeled with number 14.

Illustration of a hand holding a small object with a red arrow indicating motion or force (no text or symbols)

Illustration of a person performing a physical maneuver with a red arrow indicating motion (no text or symbols)

Illustration showing a child in a seatbelt and a hand adjusting the seat with a red arrow indicating the location.

Diagram illustrating car seatbelt usage with a child and a close-up of the seatbelt with 'CLICK' instruction.

Line drawing of a seatbelt with red directional arrows indicating movement (no text or symbols)

Illustration of a person performing a medical procedure with a red arrow indicating direction (no text or symbols present)

Line drawing of a car seat assembly process showing before and after states (no text or symbols)

Illustration of a person sitting in a meditative position next to a vertical bar (no text or symbols)

Illustration of a child wearing a seatbelt with red arrows indicating motion or pressure (no text or symbols)

CLICK

Illustration of hands performing a medical or surgical procedure on a device (no text or symbols visible)

Line drawing of a hand performing a medical or manual procedure on a piece of tissue (no text or symbols)

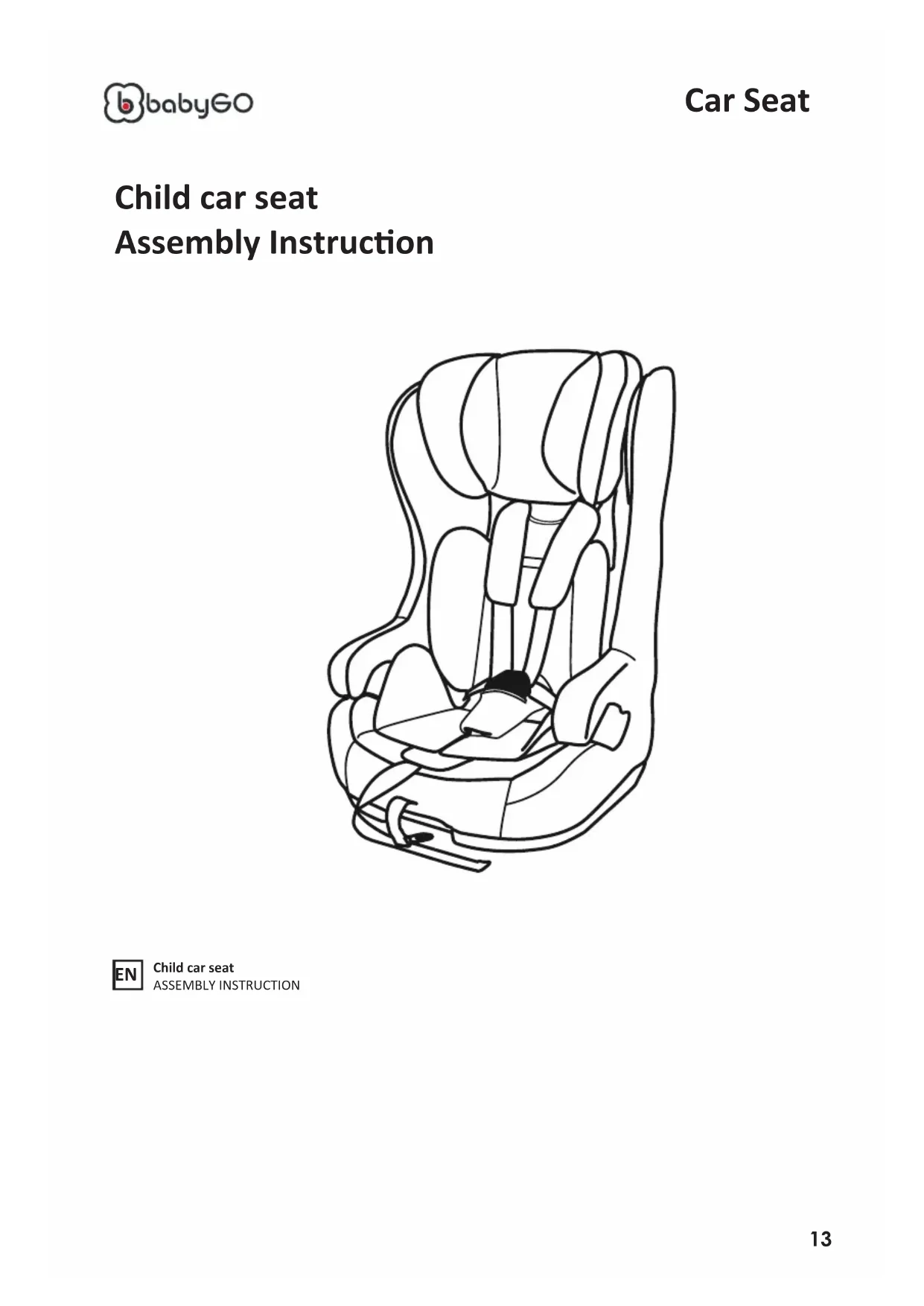

Child car seat Assembly Instruction

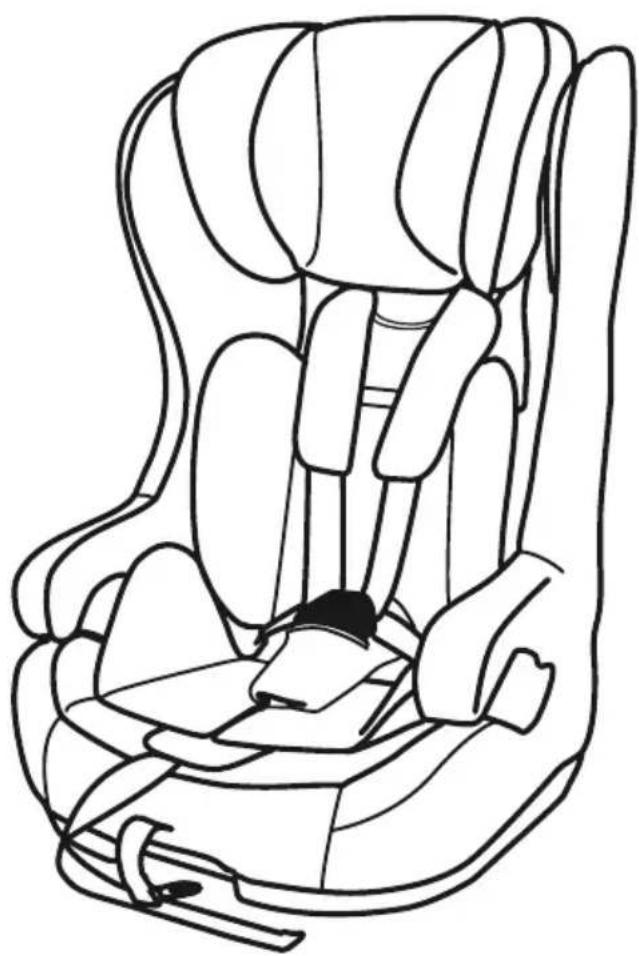

Line drawing of a car seat with a black plastic seat and blue seatbelt (no text or symbols)

Child car seat ASSEMBLY INSTRUCTION

Read carefully before installing your car seat

INTRODUCTION

Thank you for your purchasing YB704 child car seat to protect your child. This child restraint was approved in accordance with the regulation ECE-R44/04, and manufactured under a strict quality program. Please follow all instructions labeled on this child restraint and in the written instructions before installing and using this child restraint. Failure to follow all instructions can result in death or serious injury in a crash.

Safety information

1. Please read the instructions carefully before installation. Serious injury can occur if installed incorrectly. The manufacturer declines all responsibility for any risks in this case.
2. Do not make any modifications, additions or changes to the way the restraint harness of the child car seat is used; otherwise it could seriously affect the safety and functionality of the device.
3. Always keep the restraint secured in a vehicle even when it is unoccupied. A child must not be placed in the child car seat alone and should never be left unattended.
4. Never place the child car seat in a seating position fitted with an active airbag system.
5. Never place the child car seat in a seating position with 2-point car safety belt.
6. Please ensure all occupants of a vehicle use a safety belt. Any items in the car must be securely fixed; otherwise, people or goods may injure a child when in an emergency braking situation.
7. Child car seat cannot be reused if damaged as a result of an accident.
8. Keep the child car seat out of direct sunlight; otherwise high temperature can hurt your child.
9. Buckle cannot be in semi-locked position. Always make sure the restraint is locked before using. In case of emergency, the child can be taken out quickly.
10. Keep the child car seat away from any erosive articles.
11. Never use the child car seat without a cover. Never use any cover which is not recommended by the manufacturer to replace the old cover, as the cover constitutes an integral part of the restraint system.
12. Car seat surface will show signs of wear after using the child car seat on surfaces made of delicate materials, e.g. velour, leather, etc. Please use a thin blanket or a towel to prevent wearing and tearing.
13. Child car seat can be only used in a car to protect your child. It cannot be used at home as a seat or a toy.
14. The manufacturer guarantees the product's quality, excluding second-hand products.

Application

Illustration of a baby in a car seat with a red belt and seatbelt (no text or symbols)

Approved by ECE R44/04 safety standard, the child car seat is suitable for children from 9 kg to 36 kg (group I+II+III). To protect your child better, there are two ways to install the car seat, depending on the group for child restraint system:

Group I: forward facing installation (suitable for a child weighing from 9 kg to 18 kg)

Illustration of a child wearing a seatbelt and holding a neck screwdriver (no text or symbols)

Group II+III: forward facing installation (suitable for a child weighing from 22 kg to 36 kg)

Notes to vehicle application

Only suitable if the approved vehicles are fitted with 3 point safety-belts, approved by UN/ECE Regulation No. 16 or other equivalent standards.

Important: The child car seat is only suitable for vehicles equipped with 3 point safety belts.

Please read the instructions carefully to learn how to use the child car seat.

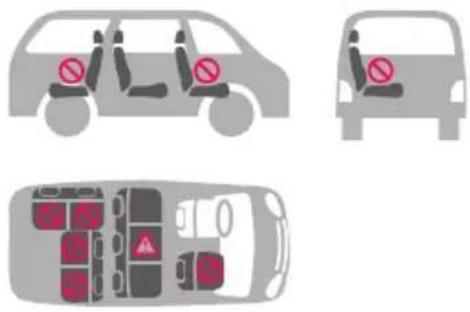

Line drawing of a car seatbelt with a red circular symbol indicating no number, no text or labels present.

The following vehicle seating positions can be used with the child car seat.

Placed in the driving direction Correct

Placed back to the driving direction Incorrect

2 point safety-belts Incorrect

3 point safety-belts Correct

Front seat Incorrect

Both sides of the back seat Correct

Back middle seat (2 point safety belts) Incorrect

Placed in the transverse seat Incorrect

Placed in the postpositive seat Incorrect

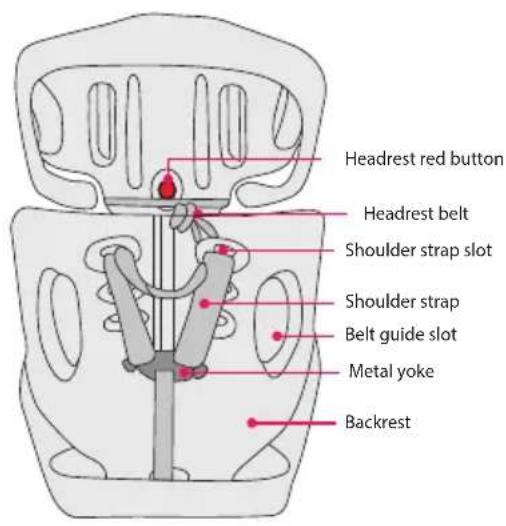

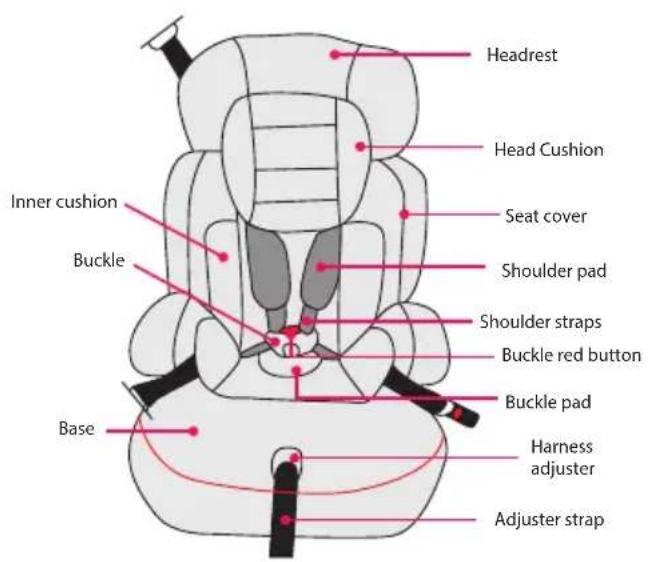

Features of the child car seat

Headrest Head Cushion Seat cover Shoulder pad Shoulder straps Buckle red button Buckle pad Harness adjuster Adjuster strap Inner cushion Buckle Base

Headrest red button Headrest belt Shoulder strap slot Shoulder strap Belt guide slot Metal yoke Backrest

User Instructions:

Adjustment of harness straps

Check the harness straps height; it must fit your child's height. If not, please adjust harness straps height.

1. Press the harness adjuster lever with one hand, then pull the shoulder belt harness forward using the other hand to loosen it (fig.1).
2. Remove the shoulder belt harness from the metal yoke on the back of the restrain system (fig. 2).
3. From the back of the restraint, pull the shoulder belt harness out of the harness slot, then push through the desired slot according to the height of your child (fig. 3/4).
4. At the back of the restraint, re-attach the shoulder belt harness onto the metal harness yoke (fig. 5).
5. Pulling the end of the harness adjust the strap towards you to tighten the shoulder belt harness (fig. 6).

Use different installing modes for different groups

Group I (for children 9 – 18 kg)

Place the child car seat on a vehicle seat without any inclination, ensuring that its backrest is firmly placed against the vehicle seat (fig.1).

HINWEISE:

a. Before placing the restraint, please make sure that the vehicle seat back is fully upright.
b. The harness strap cannot be twisted.
c. The restraint backrest must be placed firmly against the vehicle seat, without any gap.

Line drawing of a car seat with seatbelt and seat, no text or symbols present

Two pictograms showing a person in seatbelt with a green checkmark and a red no-smoking sign, indicating absence of seatbelt or no smoking.

1. Pull the 3-point belt (lap and shoulder belt) through belt guide slot at the back part of the car seat. Please make sure that the seat belt lays flat and is not twisted. Force the car seat against the back of the vehicle seat while pulling the shoulder portion of the vehicle belt to remove slack and tighten the lap portion of the vehicle belt, and then buckle it until you hear a noticeable "click" (fig.2).

Diagram illustrating car seatbelt usage with red arrows indicating force directions and black bars for seat structure

1. Press the harness adjuster lever with one hand, then pull the shoulder belt harness forward with the other hand to loosen it (fig.3).

Illustration of a hand pressing down on a car seatbelt, with a red arrow indicating the motion direction (no text or symbols present)

1. To unfasten the harness, release the buckle by sliding the red button towards. Then pull the harness clips and put the harness straps aside (fig.4).

Medical procedure diagrams showing hip joint positioning and movement with red arrows indicating movement direction

Illustration of a baby sitting in a car seat with a belt (no text or symbols)

1. Place the child in the restraint (fig.5).

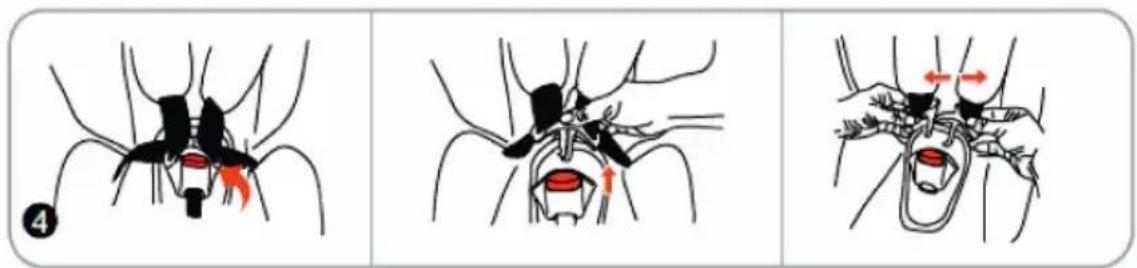

2. Slide each harness strap over the child's shoulders. Insert the buckle tongues into the buckle until you hear a noticeable "click". Pull up on the harness strap to ensure the buckle tongues are engaged (fig.6).

3. Gently pull the harness adjust straps towards you to tighten the harness for a comfortable and snug fit around the child (fig.7).
4. The harness straps must be snug against the child. A snug strap should not allow any slack. It lies in a relatively straight line without sagging and it does not press on the child's flesh or push the child's body into an unnatural position. Check the harness straps near the shoulders for slack and adjust as needed (fig.8). Press the red buckle release and remove the buckle, then take out the child.

Medical diagram showing foot positioning with red arrows indicating movement or pressure points, labeled with number 6

Illustration of a human torso with a red arrow indicating a pressure point (no text or symbols present)

Illustration of a baby in a car seat with seatbelt and seatbelt switch (no text or symbols)

Group II+III (for children 15 - 25 kg) with a backrest

Illustration of hands performing a valve or grip operation with red curved arrows indicating motion (no text or symbols)

Illustration of a hand holding a curved object with a red arrow indicating direction (no text or symbols)

Illustration of a hand holding a small object with a red highlighted area, no text or symbols present

Illustration of hands performing a medical or surgical procedure with a red object on the surface (no text or symbols present)

Illustration of a hand holding a medical device with a red arrow pointing to it, no text or symbols present.

Illustration of a hand holding a medical device with a red arrow indicating force or pressure point (no text or symbols)

Illustration of a hand holding a small object with a red arrow indicating motion or force (no text or symbols)

Illustration of a person performing a physical maneuver with a red arrow indicating motion (no text or symbols)

1. Pull out the metal yoke from the back of the restraint (fig.9).
2. Remove the shoulder pad from the metal yoke (fig.10/11).
3. From the front of the car seat, pull the shoulder straps through the harness slot (fig.12).
4. Lift the base cover, then take off the "E" style buckle from the link buckle strap (fig.13).
5. Remove the buckle from the base (fig.14).
6. Remove the metal yoke from the adjuster strap (fig.15).
7. Remove the adjuster strap from the base (fig.16). Adjust the head rest to the proper height (fig.6).
8. Place the seat on a forward-facing vehicle seat and adjust the headrest to the suitable position, then place the child in the car seat (fig.17).

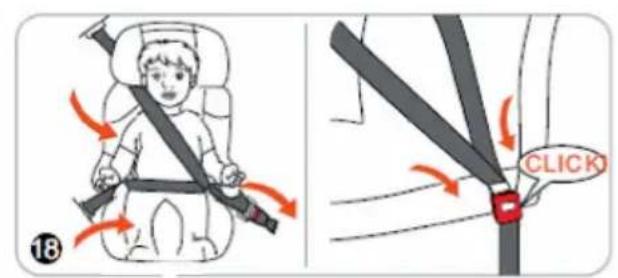

9. Pull the 3-point belt (lap and shoulder belt) through the belt guide slot at the car seat base and back part of the car seat. Please make sure that the seat belt lays flat and is not twisted. Choose proper height of the shoulder belt slot at the back part of the car seat to fit the child's body. Put the two buckle clips together, then fasten buckle and harness clips until you hear a noticeable "click" (fig.18).

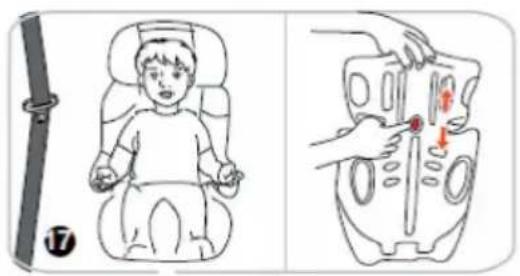

Illustration showing a child in a seatbelt and a hand adjusting the seat with a red arrow indicating a location or movement.

Diagram illustrating car seatbelt usage with a child and a close-up of the seatbelt with 'CLICK' instruction.

Group II+III (for children 15 - 25 kg) without a backrest

Line drawing of a seatbelt with red arrows indicating motion direction (no text or symbols)

Illustration of a hand performing a medical procedure on a patient's arm, with a red arrow indicating the point of pressure (no text or symbols present)

Line drawing of a seat assembly process showing before and after states (no text or symbols)

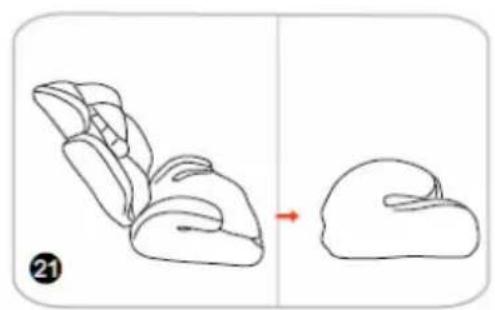

1. Hold the backrest, then push it over toward the level (fig.19).
2. Press the base with your hand, and pull the backrest out from base with your other hand (fig.20/21).

Illustration of a person sitting in a meditative position next to a vertical bar (no text or symbols)

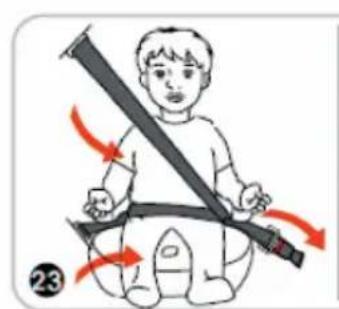

Illustration of a child wearing a seatbelt with red arrows indicating motion or pressure (no text or symbols)

CLICK

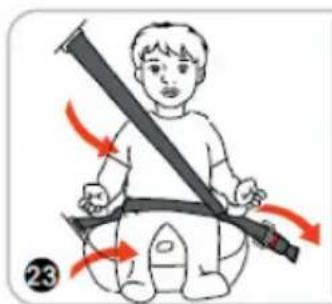

1. Place the child car seat on the passenger seat ensuring that it is firmly pressed against the vehicle seat (fig.22).
2. Sit your child in the car seat with their back against the backrest. Place the seat belt around your child positioning the lap section of the safety belt under both armrests, then harness clips until you hear a noticeable "click" (fig.23).

Illustration of hands holding a device with a circular button and a numbered label (24), no readable text or symbols present.

Line drawing of a hand holding a small object, possibly a tool or device, with no visible text or symbols.

Cleaning and maintenance of the cover

Remove the shoulder belt harness from the metal yoke. From the front of the car seat, pull the shoulder straps out of the harness slot. Remove the cover the car seat (fig.24/25).

Important

The cover is a safety feature. Never use the child seat without it. Do not put your child's safety at risk by using any other replacement covers, as they could prevent the child seat from protecting your child as well as the original cover should.

Washing instructions

The cover is removable and washable at 30 °C , line dry only. The cradle safety belts and plastic components can be washed with soft scour and warm water. Do not use any chemical scour, bleachers or corrosives.

Machine wash, cold

Do not bleach

Dry clean, any solvent except trichloro- thylene

Do not tumble dry

Do not iron

Line drawing of a car seat with seats and seatbelt (no text or symbols)

Siège pour enfant

INSTRUCTIONS DE MONTAGE

Illustration of a baby in a car seat with seatbelt and belt (no text or symbols)

Illustration of a child wearing a seatbelt and holding a car seatbelt (no text or symbols)

Diagram of a car seatbelt with a red prohibition symbol on the seat (no text or labels)

Diagram showing three car interior compartments with no visible text or symbols, including a warning sign and warning symbol.

Line drawing of a car seat with seatbelt and seat cover (no text or symbols)

Two pictograms showing a person in seat with a green checkmark and a red no-smoking sign, indicating absence of weight restrictions.

Diagram illustrating car seatbelt usage with red arrows indicating changes and black bands for seatbelt positioning

Illustration of a hand pressing down on a car seatbelt, with a red arrow indicating the motion direction (no text or symbols present)

Medical procedure diagrams showing hip joint positioning and movement with red arrows indicating movement direction

Illustration of a baby in a car seat with a belt buckle (no text or symbols)

Medical diagram showing foot positioning with red arrows indicating movement or pressure points, labeled with number 6

Diagram showing a person's seatbelt with a red arrow indicating downward motion, labeled with number 7.

Illustration of a baby in a car seat with seatbelt and seatbelt bands (no text or symbols)

Illustration of hands holding a tool with a circular component and red curved arrows indicating motion (no text or symbols)

Illustration of a hand holding a black curved object with a red arrow indicating direction (no text or symbols)

Illustration of a hand holding a small object with a red highlighted area, no text or symbols present

Illustration of hands performing a medical procedure on a patient's abdomen (no text or symbols present)

Illustration of a hand holding a small object with a red arrow pointing to it, no text or symbols present.

Illustration of a hand holding a stethoscope with a red arrow indicating force or pressure (no text or symbols)

Illustration of a hand holding a small object with a red arrow indicating motion or force (no text or symbols)

Diagram showing a hand performing a physical maneuver with a red arrow indicating direction and number 16 labeled

Illustration showing a child in a seatbelt and a car seatbelt device with a red arrow indicating the change.

18 CLICK

Line drawing of a seatbelt with red arrows indicating motion direction (no text or symbols)

Illustration of a hand performing a medical procedure on a patient's arm, with a red arrow indicating the point of pressure (no text or symbols present)

Line drawing of a car seat and its back panel, showing a change from left to right (no text or symbols)

Illustration of a person sitting in a meditative position next to a vertical bar (no text or symbols)

Illustration of a child wearing a seatbelt with red arrows indicating force or movement (no text or symbols)

CLICK

Illustration of hands holding a device with a central button and cable, no text or symbols present

Line drawing of hands performing a medical procedure on a surface (no text or symbols)

Line drawing of a car seat with straps and seats, no text or symbols present

Illustration of a baby wearing a car seatbelt and holding a device (no text or symbols)

Illustration of a child wearing a seatbelt and holding a car seatbelt (no text or symbols)

Line drawing of a car seatbelt with a red circular symbol indicating no number on the seat (no text or labels present)

Diagram showing three car safety zones with no visible text or symbols, including front, side, and rear views of a vehicle.

Line drawing of a car seat with seatbelt and seat, no text or symbols present

Two pictograms showing a person in seat with a green prohibition sign and a red prohibition sign, indicating no restrictions on the seat.

Diagram illustrating car seatbelt usage with red arrows indicating force directions and black bars for seat structure

Illustration of a hand pressing down on a mechanical component with a red arrow indicating motion (no text or symbols)

Medical procedure diagram showing three stages of pelvic implant placement with red arrows indicating movement or force direction.

Illustration of a baby in a car seat with a belt buckle (no text or symbols)

Medical diagram showing foot positioning with red arrows indicating movement or pressure points, labeled with number 6

Illustration of a person's torso with a red arrow indicating a downward motion or pressure point (no text or symbols present)

Illustration of a baby in a car seat with seatbelt, no text or symbols present

Illustration of hands performing a valve operation with red arrows indicating motion (no text or symbols)

Illustration of a hand holding a curved object with a red arrow indicating direction (no text or symbols)

Illustration of a hand holding a small object with a red highlighted area, no text or symbols present

Illustration of a hand holding a small object with red markings, possibly indicating a medical or anatomical feature (no text or symbols present)

Illustration of a hand holding a small object with a red arrow pointing to it, no text or symbols present.

Illustration of a hand holding a stethoscope with a red object inside, showing a finger placement (no text or symbols)

Illustration of a hand holding a small object with a red arrow indicating motion or force (no text or symbols)

Diagram showing a hand performing a physical maneuver with directional arrows indicating movement or pressure points.

Illustration showing a child in a seatbelt and a car seatbelt device with a red arrow indicating the change.

18 CLICK

Line drawing of a seatbelt with red arrows indicating motion direction (no text or symbols)

Illustration of hands performing a medical procedure on a patient's arm, with a red arrow indicating the point of pressure (no text or symbols present)

Line drawing of a car seat assembly process showing before and after states (no text or symbols)

Illustration of a person sitting in a meditative position next to a vertical bar (no text or symbols)

Illustration of a child sitting on a bench with a bandage and red arrows indicating motion (no text or symbols)

CLICK

Illustration of hands holding a device with a circular component and a numbered label (24), no readable text or symbols present.

Line drawing of hands performing a medical procedure on a piece of tissue (no text or symbols)

Line drawing of a car seat with a black-and-white photo of the seat (no text or symbols)

Asiento infantil

INSTRUCCIONES DE MONTAJE

Illustration of a baby wearing a car seatbelt and holding a device (no text or symbols)

Illustration of a child wearing a seatbelt and holding a car seatbelt (no text or symbols)

Line drawing of a car seatbelt buckle with a red prohibition symbol on the seat (no text or labels)

Diagram of a car showing two seats with no visible text or symbols, indicating restriction or absence (no text or symbols present)

Line drawing of a car seat with seatbelt and seat, no text or symbols present

Two pictograms showing a person seated in a seat, one with a green checkmark and the other with a red no-smoking sign.

Diagram illustrating car seatbelt usage with red arrows indicating force or movement, labeled with number 2

Illustration of a hand pressing down on a mechanical component with a red arrow indicating motion (no text or symbols)

Medical procedure diagrams showing hip joint positioning and movement with red arrows indicating movement direction

Illustration of a baby sitting in a car seat with a belt buckle (no text or symbols)

Medical diagram showing surgical procedure with red arrows indicating direction of movement or force, labeled with number 6

Diagram showing a person's seatbelt with a red arrow indicating downward motion, labeled with number 7.

Illustration of a baby car seat with seatbelt and seatbelt (no text or symbols)

Illustration of hands performing a valve manipulation operation with directional arrows (no text or symbols)

Illustration of a hand holding a black curved object with a red arrow indicating direction (no text or symbols)

Illustration of a hand holding a device with a red highlighted section (no text or symbols)

Illustration of a medical procedure with hands performing a procedure (no text or symbols visible)

Illustration of a hand holding a small object with a red arrow pointing to it, no text or symbols present.

Illustration of a hand holding a medical device with a red arrow indicating force or pressure (no text or symbols)

Illustration of a hand holding a small object with a red arrow indicating motion (no text or symbols)

Diagram showing a hand performing a physical maneuver with directional arrows indicating movement or pressure points.

Illustration showing a child in a seatbelt and a hand adjusting the seat with a red arrow indicating pressure or adjustment.

18 CLICK

Line drawing of a seatbelt with red arrows indicating motion direction (no text or symbols)

Illustration of a person performing a medical procedure with a red arrow indicating pressure point (no text or symbols present)

Line drawing of a car seat assembly process showing before and after states (no text or symbols)

Illustration of a child sitting in a meditative position next to a vertical bar (no text or symbols)

Illustration of a child sitting on a bench with a bandage and directional arrows indicating motion (no text or symbols)

CLICK

Illustration of hands holding a device with a circular component and a black clip, no text or symbols present

Line drawing of hands performing a manual task with a tool, no text or symbols present

Line drawing of a car seat with a black seat and blue seat, no text or symbols present

Autokinderstoel MONTAGE INSTRUCTIES

Illustration of a baby in a car seat with seatbelt and straps (no text or symbols)

Illustration of a child wearing a seatbelt and holding a car seatbelt (no text or symbols)

Line drawing of a car seatbelt with a red circular symbol indicating no number, no text or labels present.

Line drawing of a car seat with seatbelt and seat cover (no text or symbols)

Two illustrations showing a person in seatbelt with a green prohibition sign and a red prohibition sign, indicating no restrictions on the seat.

Diagram illustrating car seatbelt usage with red arrows indicating force or movement, labeled with number 2

Illustration of a hand pressing down on a mechanical component with a red arrow indicating motion (no text or symbols)

Medical procedure diagrams showing hip joint positioning and movement with red arrows indicating movement direction

Illustration of a baby sitting in a car seat with a belt buckle (no text or symbols)

Medical diagram showing surgical procedure with red arrows indicating movement or force direction, labeled with number 6

Illustration of a human torso with a red arrow indicating a pressure point (no text or symbols present)

Illustration of a baby in a car seat with seatbelt and seatbelt bands (no text or symbols)

Illustration of hands performing a mechanical maneuver with rotating components (no text or symbols)

Illustration of a hand holding a black curved object with a red arrow indicating direction (no text or symbols)

Illustration of a hand holding a small object with a red highlighted area, no text or symbols present

Medical illustration showing hands performing a procedure on a patient's abdomen (no text or labels)

Illustration of a hand holding a small object with a red arrow pointing to it, no text or symbols present.

Illustration of a hand holding a medical device with a red arrow indicating force or pressure (no text or symbols)

Illustration of a hand holding a small object with a red arrow indicating motion (no text or symbols)

Diagram showing a hand performing a physical maneuver with directional arrows and a numbered marker (16)

Illustration showing a child in a seatbelt and a car seatbelt device with a red arrow indicating the change.

18 CLICK

Line drawing of a car seat with red arrows indicating motion direction (no text or symbols)

Illustration of hands performing a medical procedure on a patient's abdomen, with a red arrow indicating the point of pressure (no text or symbols present)

Line drawing of a car seat assembly process showing before and after states (no text or symbols)

Illustration of a person sitting in a meditative position next to a vertical bar (no text or symbols)

Illustration of a child wearing a seatbelt with red arrows indicating motion (no text or symbols)

CLICK

Illustration of hands holding a device with a circular button and a black handle, no text or symbols present

Line drawing of a hand performing a medical or manual procedure on a surface (no text or symbols)

Line drawing of a car seat with a child seated inside, no text or symbols present

Illustration of a baby in a car seat with seatbelt and straps (no text or symbols)

Illustration of a child wearing a seatbelt and holding a car seatbelt (no text or symbols)

Line drawing of a car seatbelt with a red circular symbol indicating no number, no text or labels present.

Diagram showing car safety rules with no symbols indicating no violations, alongside a vehicle diagram with parking seats and warning signs.

Line drawing of a car seat with seatbelt and seat cover (no text or symbols)

Two pictograms showing a person sitting in a seat with a green prohibition sign and a red prohibition sign, indicating no restrictions on the seat.

Diagram illustrating car seatbelt usage with red arrows indicating changes, labeled with number 2

Illustration of a hand pressing down on a mechanical component with a red arrow indicating motion (no text or symbols)

Medical procedure diagrams showing hip joint positioning and movement with red arrows indicating movement direction

Illustration of a baby in a car seat with a belt buckle (no text or symbols)

Medical diagram showing foot positioning with red arrows indicating movement or pressure points, labeled with number 6

Illustration of a person wearing a seatbelt with a red arrow indicating force or pressure (no text or symbols)

Illustration of a baby in a car seat with straps and seatbelt (no text or symbols)

Illustration of hands holding a device with red curved arrows indicating motion or force (no text or symbols)

Illustration of a hand holding a black curved object with a red arrow indicating direction (no text or symbols)

Illustration of a hand holding a small object with a red highlighted area, no text or symbols present

Anatomical illustration of a surgical procedure with forceps and surgical instruments (no text or labels)

Illustration of a person performing a medical or therapeutic procedure with a red arrow indicating direction (no text or symbols present)

Illustration of a hand holding a medical device with a red arrow indicating force or pressure point (no text or symbols)

Illustration of a hand holding a small object with a red arrow indicating motion (no text or symbols)

Illustration of a person performing a medical or physical procedure with a tool and directional arrow (no text or symbols)

Illustration showing a child in a seatbelt and a hand holding a device with red arrows indicating the change.

18 CLICK

Line drawing of a car seat with red arrows indicating motion direction (no text or symbols)

Illustration of a hand performing a medical procedure on a patient's arm, with a red arrow indicating the point of pressure (no text or symbols present)

Line drawing of a seat assembly process showing a separate view of the seat and a close-up of the back (no text or symbols)

Illustration of a person sitting in a meditative position next to a vertical bar (no text or symbols)

Illustration of a child holding a long, segmented object with red arrows indicating motion or force (no text or symbols)

CLICK

Illustration of hands holding a device with a circular button and a black clip, no text or symbols present

Line drawing of hands performing a manual task with a tool, no text or symbols present

Line drawing of a car seat with straps and seats (no text or symbols)

FOTELIK DLA DZIECKA RĘCZNY

Illustration of a baby in a car seat with seatbelt and straps (no text or symbols)

Illustration of a child wearing a seatbelt and holding a car seatbelt (no text or symbols)

Line drawing of a car seatbelt with a red circular symbol indicating no number, no text or labels present.

Diagram of a car showing two seats with no visible text or symbols, marked with red prohibition signs (no text or symbols present)

Line drawing of a car seat with seatbelt and seat cover (no text or symbols)

Two pictograms showing a person in seat with a green prohibition sign and a red prohibition sign, indicating no restrictions on the seat.

Diagram illustrating car seatbelt usage with red arrows indicating force directions and black bars for seatbelt placement.

Illustration of a hand pressing down on a mechanical component (no text or symbols visible)

Medical procedure diagrams showing hip joint positioning and movement with red arrows indicating movement direction

Illustration of a baby in a car seat with a belt buckle (no text or symbols)

Medical diagram showing foot positioning with red arrows indicating movement or pressure points, labeled with number 6

Illustration of a person wearing a seatbelt with a red downward arrow indicating pressure or movement (no text or symbols present)

Illustration of a baby in a car seat with straps and seatbelt (no text or symbols)

Illustration of hands performing a manual task with a tool and motion arrows (no text or symbols)

Illustration of a hand holding a black curved object with a red arrow indicating direction (no text or symbols)

Illustration of a hand holding a small object with a red highlighted area, no text or symbols present

Anatomical illustration of a surgical procedure with forceps and surgical instruments (no text or labels)

Illustration of a person performing a medical or therapeutic procedure with a red arrow indicating direction (no text or symbols present)

Illustration of a hand holding a medical device with a red arrow indicating force or pressure point (no text or symbols)

Illustration of a hand holding a small object with a red arrow indicating motion (no text or symbols)

Illustration of a person performing a medical or physical procedure with a tool and directional arrow (no text or symbols)

Illustration showing a child in a seatbelt and a hand adjusting a device with a red arrow indicating the change.

18 CLICK

Line drawing of a car seat with red arrows indicating motion direction (no text or symbols)

Illustration of a person performing a medical procedure with a red arrow indicating direction (no text or symbols present)

Line drawing of a seat assembly process showing a separate view of the seat and a close-up of the back (no text or symbols)

Illustration of a person sitting in a meditative position next to a vertical bar (no text or symbols)

Illustration of a child holding a long, segmented object with red arrows indicating motion or force (no text or symbols)

CLICK

Illustration of hands performing a medical or surgical procedure on a device (no text or symbols visible)

Line drawing of hands performing a medical procedure on a surface (no text or symbols)

Line drawing of a car seat with seats and seatbelt (no text or symbols)

BILBARNSTOL MONTERINGSANVISNINGAR

Illustration of a baby wearing a car seat with a red belt, no text or symbols present

Illustration of a child wearing a seatbelt and holding a car seatbelt (no text or symbols)

Line drawing of a car seatbelt buckle with a red circular symbol indicating no number on the seat (no text or labels)

Diagram showing three car interior compartments with no visible text or symbols, including a warning symbol and safety icons.

Line drawing of a car seat with seatbelt and seat, no text or symbols present

Two pictograms showing a person sitting in a seat, one with a green prohibition sign and the other with a red prohibition sign.

Diagram illustrating car seatbelt usage with red arrows indicating force directions and black bars for seat structure

Illustration of a hand pressing down on a mechanical component with a red arrow indicating force direction (no text or symbols)

Medical procedure diagrams showing hip joint positioning and movement with red arrows indicating movement direction

Illustration of a baby in a car seat with a belt buckle (no text or symbols)

Medical diagram showing surgical procedure with red arrows indicating direction of movement or force, labeled with number 6

Illustration of a human torso with a red arrow indicating a pressure point (no text or symbols present)

Illustration of a baby in a car seat with seatbelt, no text or symbols present

Illustration of hands performing a mechanical maneuver with rotating components (no text or symbols)

Illustration of a hand holding a black cable with a red arrow indicating force or direction (no text or symbols)

Illustration of a hand holding a small object with a red highlighted area, no text or symbols present

Medical illustration showing hands performing a procedure with labeled points (no text or symbols present)

Illustration of a hand holding a small object with a red arrow pointing to it, no text or symbols present.

Illustration of a hand holding a medical device with a red arrow indicating force or pressure (no text or symbols)

Illustration of a hand holding a small object with a red arrow indicating motion (no text or symbols)

Diagram showing a hand performing a physical maneuver with directional arrows and a circled number 16

Illustration showing a child in a seatbelt and a hand adjusting a device with a red arrow indicating the change.

18 CLICK

Line drawing of a car seat with red arrows indicating motion direction (no text or symbols)

Illustration of a person performing a medical procedure with a red arrow indicating direction (no text or symbols present)

Line drawing of a seat assembly process showing before and after states (no text or symbols)

Illustration of a person sitting in a meditative position next to a vertical bar (no text or symbols)

Illustration of a child sitting on a bench with red arrows indicating motion or pressure, no text or symbols present.

CLICK

Illustration of hands holding a device with a circular component and a black clip, no text or symbols present

Line drawing of hands performing a medical procedure on a surface (no text or symbols)

Line drawing of a car seat with straps and seats (no text or symbols)

Illustration of a baby in a car seat with a red belt, no text or symbols present

Illustration of a child wearing a seatbelt and holding a car seatbelt (no text or symbols)

Line drawing of a car seatbelt with a red prohibition symbol on the seat (no text or labels)

Line drawing of a car seat with seatbelt and seat, no text or symbols present

Two safety symbols on a chair: one with a green checkmark and another with a red no-smoking sign.

Car Seat

Illustration of a baby in a car seat with a belt buckle (no text or symbols)

Medical diagram showing foot positioning with red arrows indicating movement or pressure points, labeled with number 6

Illustration of a person wearing a seatbelt with a red arrow indicating force or pressure (no text or symbols)

Illustration of a baby in a car seat with straps and seatbelt (no text or symbols)

Illustration of hands holding a device with red curved arrows indicating motion or force (no text or symbols)

Illustration of a hand holding a black curved object with a red arrow indicating direction (no text or symbols)

Illustration of a hand holding a small object with a red highlighted area, no text or symbols present

Anatomical illustration of a surgical procedure with forceps and sutures (no text or labels)

Illustration of a person performing a medical or physical procedure with a red arrow indicating direction (no text or symbols present)

Illustration of a hand holding a medical device with a red arrow indicating force or movement (no text or symbols)

Illustration of a hand holding a small object with a red arrow indicating motion (no text or symbols)

Diagram showing a hand performing a physical maneuver with directional arrows and label 16

Illustration showing a child in a seatbelt and a hand holding a device with red arrows indicating motion or pressure points.

18 CLICK

Line drawing of a seat with red arrows indicating motion direction (no text or symbols)

Illustration of a person performing a medical procedure with a red arrow indicating direction (no text or symbols)

Line drawing of a car seat assembly process showing before and after states (no text or symbols)

Illustration of a person sitting in a meditative position next to a vertical bar (no text or symbols)

Illustration of a person wearing a seatbelt with red arrows indicating motion (no text or symbols)

CLICK

Illustration of hands performing a medical or surgical procedure on a device (no text or symbols visible)

Line drawing of a hand holding a small object, possibly a tool or device, with no visible text or symbols.

Line drawing of a car seat with a black seat and blue seat, no text or symbols present

Illustration of a baby in a car seat with seatbelt and straps (no text or symbols)

Illustration of a child wearing a seatbelt and holding a car seatbelt (no text or symbols)

Line drawing of a car seatbelt with a red circular symbol indicating no number, no text or labels present.

Diagram showing three car interior compartments with no visible text or symbols, including a warning sign and warning symbol on the front compartment.

Line drawing of a car seat with seatbelt and seat, no text or symbols present

Two pictograms showing a person in seat with a green prohibition sign and a red prohibition sign, indicating no restrictions on the seat.

Diagram illustrating car seatbelt usage with red arrows indicating force directions and black bars for seat structure

Illustration of a hand pressing down on a mechanical component with a red arrow indicating motion (no text or symbols)

Medical procedure diagrams showing hip joint positioning and movement with red arrows indicating movement direction

Illustration of a baby sitting in a car seat with a belt buckle (no text or symbols)

Medical diagram showing foot positioning with red arrows indicating movement or pressure points, labeled with number 6

Diagram showing a person's seatbelt with a red arrow indicating downward pressure or force, labeled with number 7.

Illustration of a baby in a car seat with seatbelt, no text or symbols present

Skupini II+III (za otroke med 15 in 25 kg) z naslonjalom

Illustration of hands performing a valve or lift operation with red arrows indicating motion (no text or symbols)

Illustration of a hand holding a curved object with a red arrow indicating direction (no text or symbols)

Illustration of a hand holding a small object with a red highlighted area, no text or symbols present

Medical illustration showing hands performing a procedure on a patient's abdomen (no text or labels)

Illustration of a hand holding a small object with a red arrow pointing to it, no text or symbols present.

Illustration of a hand holding a medical device with a red arrow indicating force or pressure (no text or symbols)

Illustration of a hand holding a small object with a red arrow indicating motion (no text or symbols)

Illustration of a person performing a physical maneuver with a red arrow indicating motion (no text or symbols)

Illustration showing a child in a seat being lifted by a car seatbelt, with a hand adjusting the seatbelt and a red arrow indicating the pressure point.

18 CLICK

Skupini II+III (za otroke med 15 in 25 kg) brez naslonjala

Line drawing of a seatbelt with red arrows indicating rotation (no text or symbols)

Illustration of a person performing a medical procedure with a red arrow indicating direction (no text or symbols)

Line drawing of a car seat and its side view showing a change from front to back (no text or symbols)

Illustration of a person sitting in a meditative position next to a vertical bar (no text or symbols)

Illustration of a person sitting on a bench with red arrows indicating motion or pressure, no text or symbols present.

CLICK

Illustration of hands performing a medical or surgical procedure on a device (no text or symbols visible)

Line drawing of a hand holding a small object near a surface, with no visible text or symbols
