USER MANUAL M46140RX MCCULLOCH

WARNING! The machine can be a dangerous tool if used incorrectly or carelessly, which can cause serious or fatal injury to the operator or others.

Please read the operator's manual carefully and make sure you understand the instructions before using the machine.

Keep people and animals well away from the working area.

Prevent unintentional starting by removing the ignition cable from the spark plug.

Watch out for thrown objects and ricochets.

Warning: rotating cutter. Keep hands and feet clear.

Warning: rotating parts. Keep hands and feet clear.

This product is in accordance with applicable EC directives.

Noise emission to the environment according to the European Community's Directive. The machine's emission is specified in the Technical data chapter and on the label.

Never use the machine indoors or in spaces lacking proper ventilation. Exhaust fumes contain carbon monoxide, an odourless, poisonous and highly dangerous gas.

Risk of explosion

Always shut off the engine before refuelling.

Hot surface.

Explanation of warning levels

The warnings are graded in three levels.

WARNING!

WARNING! Used if there is a risk of serious injury or death for the operator or damage to the surroundings if the instructions in the manual are not followed.

IMPORTANT!

IMPORTANT! Used if there is a risk of injury to the operator or damage to the surroundings if the instructions in the manual are not followed.

CAUTION!

CAUTION! Used if there is a risk of damage to materials or the machine if the instructions in the manual are not followed.

PRESENTATION

Contents

KEY TO SYMBOLS

Key to symbols 2

Explanation of warning levels 2

PRESENTATION

Contents 3

Dear Customer, 3

WHAT IS WHAT?

What is what on the lawn mower? 4

MACHINE'S SAFETY EQUIPMENT

General 5

ASSEMBLING AND ADJUSTMENTS

General 6

Handle 6

Cutting height 6

Catcher 6

Mulcher insert 6

Filling with oil 6

FUEL HANDLING

General 7

Fuel 7

Fueling 7

Transport and storage 7

OPERATING

Personal protective equipment 8

General safety precautions 8

Basic working techniques 9

Transport and storage 9

Starting and stopping 10

MAINTENANCE

General 11

Maintenance schedule 11

General inspection 11

Spark plug 12

Adjusting the clutch wire 12

Air filter 12

Oil change 12

Fuel system 12

TECHNICAL DATA

Technical data 13

EC-declaration of conformity 14

Dear Customer,

Thank you for choosing a McCulloch product. You are thereby part of a story that started long ago, when the McCulloch Corporation started its manufacturing of engines during World War II. In 1949, when McCulloch introduced its first light one-man chainsaw, woodworking would never be the same again.

The line of innovative chainsaws would continue over the decades, and business was expanded, first by airplane and kart engines in the 1950s, then by mini chainsaws in the 1960s. Later, in the 1970s and 80s, trimmers and blower vacs were added to the range.

Today, as a part of the Husqvarna group, McCulloch continues the tradition of powerful engines, technical innovations, and strong designs that have been our hallmarks for more than half a century. Lowering fuel consumption, emissions and noise levels are of top priority to us, as is improving safety and user-friendliness.

We certainly hope that you will be satisfied with your McCulloch product, as it is designed to be your companion for a long time. By following this operators manual's advice on usage, service, and maintenance, its lifespan can be extended. If you should need professional help with repair or service, please use the Service Locator at www.mcculloch.com.

McCulloch has a policy of continuous product development and therefore reserves the right to modify the design and appearance of products without prior notice.

This manual can also be downloaded at www.mcculloch.com.

WHAT IS WHAT?

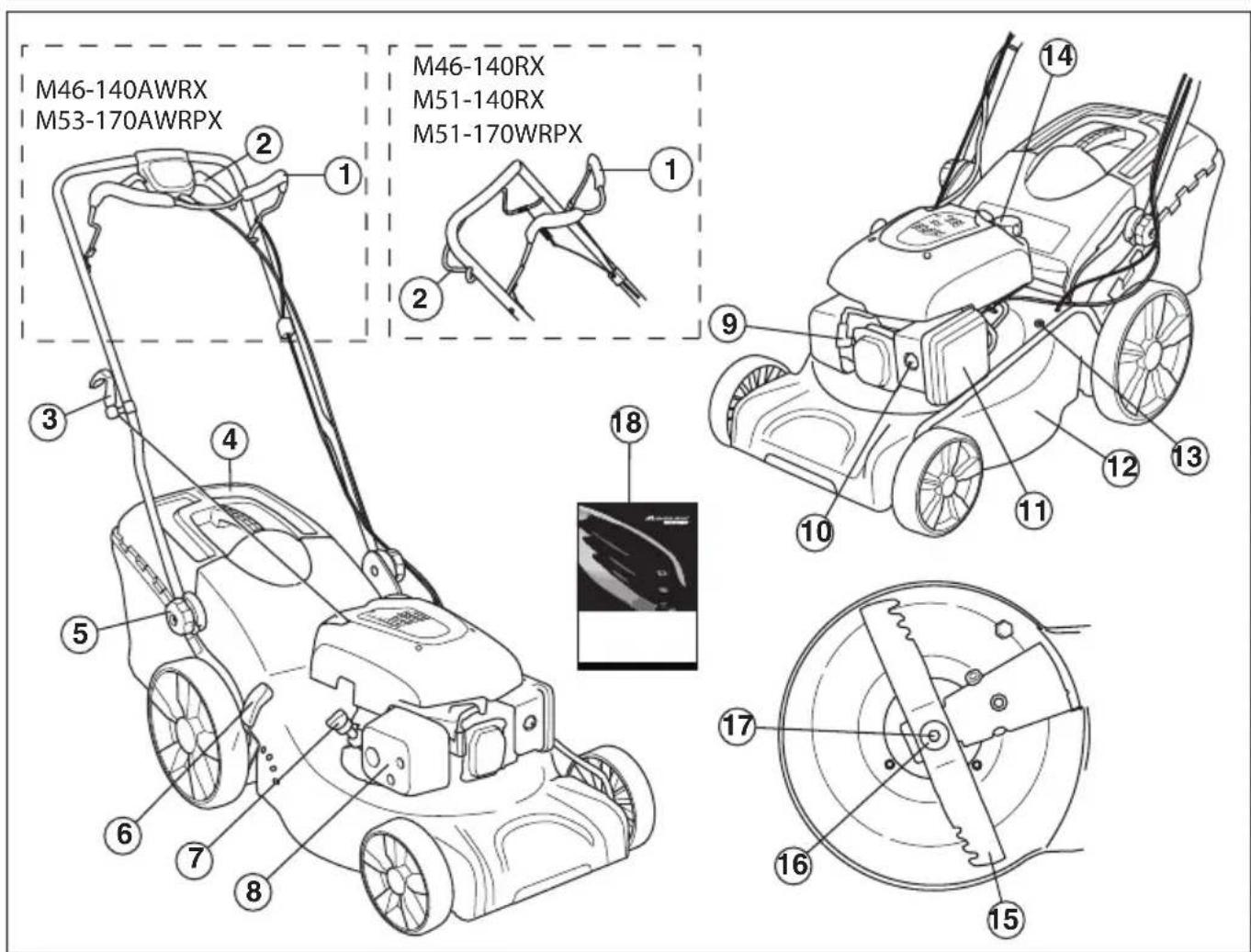

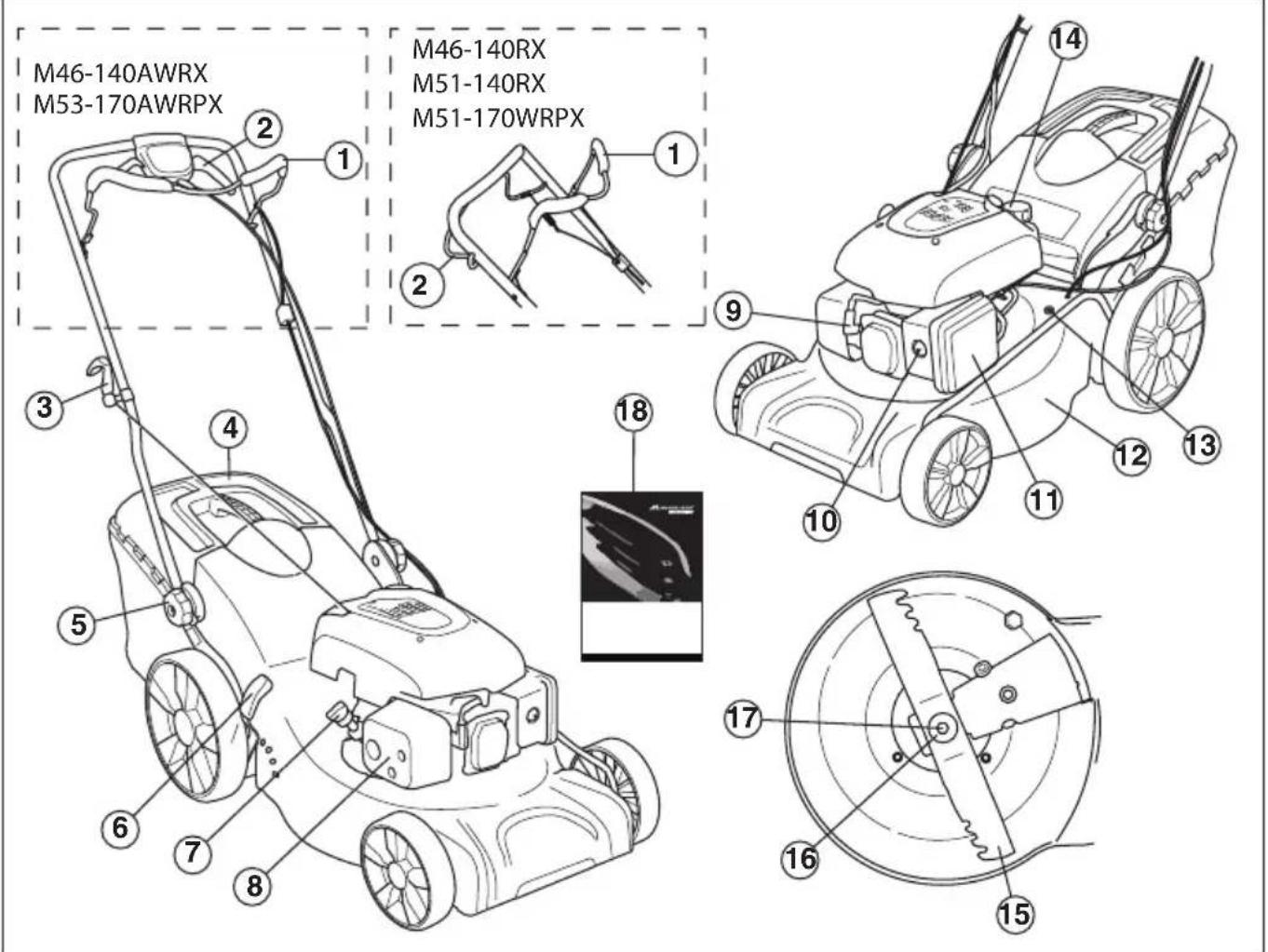

What is what on the lawn mower?

1 Engine brake handle
2 Propulsion bar
3 Starter handle
4 Catcher
5 Handle, handle height
6 Cutting height control
7 Dipstick/oil filler
8 Muffler
9 Spark plug

10 Primer diaphragm M46-140RX, M46-140AWRX, M51-140RX
11 Air filter
12 Cutting cover
13 Water connector
14 Refuelling
15 Cutter
16 Spring washer
17 Cutter bolt
18 Operator's manual

MACHINE'S SAFETY EQUIPMENT

General

This section describes the machine's safety equipment, its purpose, and how checks and maintenance should be carried out to ensure that it operates correctly.

WARNING! Never use a machine that has faulty safety equipment! If your machine fails any checks contact your service agent to get it repaired.

Prevent unintentional starting by removing the ignition cable from the spark plug.

Cutting cover

The cutting cover is designed to reduce vibration and to reduce the risk of cuts.

Checking the cutting cover

• Make sure the cutting cover is not damaged and that there are no visible defects such as cracks.

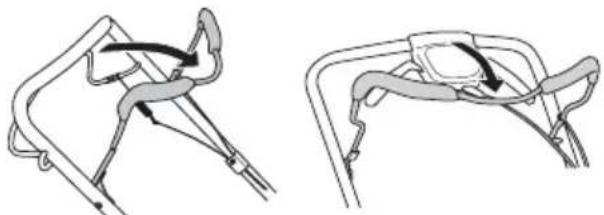

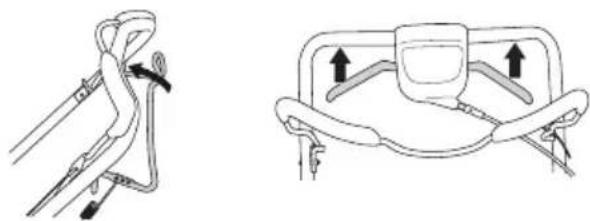

Engine brake handle

• The engine brake is designed to stop the engine. When the grip on the engine brake handle is released, the engine should stop.

Checking the engine brake handle

Apply full throttle and then release the brake handle. The engine brake should always be adjusted so that the engine stops within 3 seconds.

Muffler

WARNING! Never use a machine without a muffler, or with a faulty muffler. A damaged muffler may substantially increase the noise level and the fire hazard. Keep fire fighting equipment handy.

The muffler gets very hot during and after use. This also applies during idling. Be aware of the fire hazard, especially when working near flammable substances and/or vapours.

• The muffler is designed to keep noise levels to a minimum and to direct exhaust fumes away from the user.

Inspecting the muffler

• Check regularly that the muffler is complete and secured correctly.

General

IMPORTANT! Prevent unintentional starting by removing the ignition cable from the spark plug.

Handle

Assembly

Top handle

Place the handlebar's tubular construction in direct opposite to the lower part of the handlebar. Tighten the knobs properly.

Settings

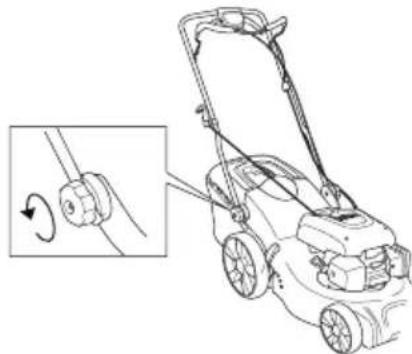

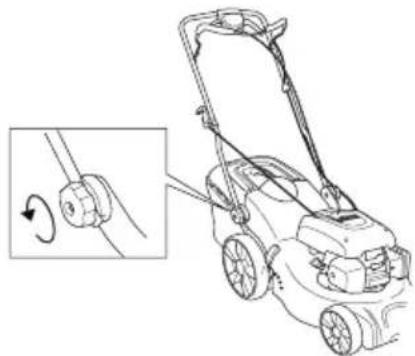

Handle height

• Loosen the lower knobs.

• Adjust the height. Tighten the knobs properly.

Cutting height

NOTICE! Do not set the cutting height too low as there is a risk that the cutters might hit ground with unevenness.

Move the lever to the back for higher cutting height and to the front for lower cutting height.

Catcher

• Fit the catcher bag.

• Attach the hooks in the upper edge of the chassis.

• Fit the dagger bottom in the discharge hole.

Mulcher insert

• Raise the discharge guard to mount / dismount the mulch plug.

Hook the spring in the frame.

Filling with oil

• The oil tank is empty at delivery. Fill the oil slowly. See instructions under the heading Maintenance. The engine oil should be changed the first time after 5 hours running time.

General

WARNING! Running an engine in a confined or badly ventilated area can result in death due to asphyxiation or carbon monoxide poisoning.

Fuel and fuel fumes are highly inflammable and can cause serious injury when inhaled or allowed to come in contact with the skin. For this reason observe caution when handling fuel and make sure there is adequate ventilation.

The exhaust fumes from the engine are hot and may contain sparks which can start a fire. Never start the machine indoors or near combustible material!

Do not smoke and do not place any hot objects in the vicinity of fuel.

Fuel

NOTICE! The machine is equipped with a four-stroke engine. Make sure that there is always sufficient oil in the oil tank.

Petrol

Use good quality unleaded or leaded petrol.
- The lowest octane recommended is 90 (RON). If you run the engine on a lower octane grade than 90 so-called knocking can occur. This gives rise to a high engine temperature, which can result in serious engine damage.
- Use low-emission petrol, also known as alkylate petrol, if it is available.

Engine oil

NOTICE! Check the oil level before starting the lawn mower. A too low oil level can cause serious damage to the engine. See instructions in the section "Maintenance".

• The engine oil should be changed the first time after 5 hours running time. Refer to Technical Data for recommendations on which oil type to use. Never use oil intended for two-stroke engines.

Fueling

WARNING! Always stop the engine and let it cool for a few minutes before refuelling.

Use a petrol can at all times to avoid spillage.

When refuelling, open the fuel cap slowly so that any excess pressure is released gently.

Clean the area around the fuel cap.

Tighten the fuel cap carefully after refuelling. Negligence may lead to the start of a fire.

Move the machine at least 3m from the refuelling point before starting it.

Never start the machine:

• If you have spilt fuel or engine oil on the machine. Wipe off the spill and allow the remaining fuel to evaporate.
• If you have spilt fuel on yourself or your clothes, change your clothes. Wash any part of your body that has come in contact with fuel. Use soap and water.
• If the machine is leaking fuel. Check regularly for leaks from the fuel cap and fuel lines.

Transport and storage

• Store and transport the machine and fuel so that there is no risk of any leakage or fumes coming into contact with sparks or naked flames, for example, from electrical machinery, electric motors, electrical relays/ switches or boilers.
• When storing and transporting fuel always use approved containers intended for this purpose.

Long-term storage

• When storing the machine for long periods the fuel tank must be emptied. Contact your local petrol station to find out where to dispose of excess fuel.

Personal protective equipment

You must use approved personal protective equipment whenever you use the machine. Personal protective equipment cannot eliminate the risk of injury but it will reduce the degree of injury if an accident does happen. Ask your dealer for help in choosing the right equipment. Always wear:

• Use ear muffs if the noise level exceeds 85 db.
• Sturdy, non-slip boots or shoes.
• Heavy, long pants. Do not wear shorts, sandals or go barefoot.
• Gloves must be worn when required, for example when fitting, inspecting or cleaning cutting attachments.

General safety precautions

This section describes basic safety directions for using the machine. This information is never a substitute for professional skills and experience.

• Please read the operator's manual carefully and make sure you understand the instructions before using the machine.
• Keep in mind that the operator is responsible for accidents or hazards occurring to other people or their property.
• The machine must be kept clean. Signs and stickers must be fully legible.

Always use common sense

It is not possible to cover every conceivable situation you can face. Always exercise care and use your common sense. If you get into a situation where you feel unsafe, stop and seek expert advice. Contact your dealer, service agent or an experienced user. Do not attempt any task that you feel unsure of!

WARNING! This machine produces an electromagnetic field during operation. This field may under some circumstances interfere with active or passive medical implants. To reduce the risk of serious or fatal injury, we recommend persons with medical implants to consult their physician and the medical implant manufacturer before operating this machine.

WARNING! The machine can be a dangerous tool if used incorrectly or carelessly, which can cause serious or fatal injury to the operator or others.

Never allow children or other persons not trained in the use of the machine to use or service it.

The machine should not be used by people with reduced physical or mental capacities or people who are unsuitable for health reasons to operate the machine, without supervision of a person responsible for their safety.

Never allow anyone else to use the machine without first ensuring that they have read and understood the contents of the operator's manual.

Never use the machine if you are fatigued, while under the influence of alcohol or drugs, medication or anything that could affect your vision, alertness, coordination or judgement.

WARNING! Unauthorized modifications and/or accessories may lead to serious injury or death to the user or others. Under no circumstances may the design of the machine be modified without the permission of the manufacturer.

Do not modify this product or use it if it appears to have been modified by others.

Never use a machine that is faulty. Carry out the checks, maintenance and service instructions described in this manual. Some maintenance and service measures must be carried out by trained and qualified specialists.

Always use genuine accessories.

Work area safety

• Branches, twigs, stones, etc. should be removed from the lawn before you start to mow.
• Objects hitting against the cutting attachment could be thrown and cause damage to people and objects. Keep people and animals well away.
• Do not use the machine in bad weather, such as dense fog, heavy rain, strong wind, intense cold, etc. Working in bad weather is tiring and can lead to dangerous conditions, e.g. slippery surfaces.
• Observe your surroundings to ensure that nothing can affect your control of the machine.
• Beware of roots, stones, twigs, pits, ditches etc. Tall grass can hide obstacles.
• Mowing slopes can be dangerous. Do not use the lawn mower on very steep slopes. The lawn mower should not be used on inclines greater than 15 degrees.
• On sloping ground you should work along the slope. It is much easier to work along a slope than it is to work up and down it.
• Be careful when you are approaching hidden corners and objects that could block your view.

Work safety

• A lawn mower is only designed to mow lawns. All other use is forbidden.
• Wear personal protective equipment. See instructions under the "Personal protective equipment" heading.
• Do not start a lawn mower unless the cutter and all covers are fitted correctly. Otherwise the cutter could come loose and cause personal injuries.
• Make sure the cutter does not hit foreign objects such as stones, roots or the like. This can make the cutter dull and bend the engine shaft. A bent axle gives imbalance and heavy vibration, which results in a great risk of the cutter becoming loose.
• The brake handle must never be permanently anchored in handle when the machine is running.
• Place the lawn mower on firm, flat surface and start it. Make sure that the cutter cannot come into contact with the ground or other objects.
  Always place yourself behind the machine. Allow all the wheels to remain on the ground and keep both hands on the handle when mowing. Keep your hands and feet away from the rotating blades.
• Do not tilt the machine when the engine is running.
• Pay particular attention when pulling the machine towards you during work.

• Never lift up the lawn mower or carry it around when the engine is running. If you must lift the lawn mower, first switch off the engine and disconnect the ignition lead from the spark plug.

• The engine should be switched off when moving over ground that is not to be mowed. For example, gravel paths, stone, shingle, asphalt, etc.

• Never run with the machine when it is running. You should always walk with the lawn mower.
• Shut down the engine before changing the cutting height. Never make adjustments with the engine running.
• Never leave the machine unsupervised with the motor running. Turn off the motor. Ensure the cutting attachment has stopped rotating.
• If any foreign object is hit or if vibrations occur stop the machine immediately. Disconnect the HT lead from the spark plug. Check that the machine is not damaged. Repair any damage.

Basic working techniques

• Always cut with a sharp blade for optimal results. A dull blade gives an uneven cut and the grass becomes yellow on the surface of the cut.
• Never mow more than 1/3 of the length of the grass. This especially applies during dry periods. Mow first with the cutting height set high. Then check the result and lower to an appropriate height. If the grass is really long, drive slowly and mow twice if necessary.
• Cut in different directions each time in order to avoid stripes in the lawn.

Transport and storage

• Secure the equipment during transportation in order to avoid transport damage and accidents.
• Store the equipment in a lockable area so that it is out of reach of children and unauthorized persons.
• Store the machine and its equipment in a dry and frost proof place.
• For transport and storage of fuel, see the section "Fuel handling".

OPERATING

Starting and stopping

Before starting

WARNING! Please read the operator's manual carefully and make sure you understand the instructions before using the machine.

Wear personal protective equipment. See instructions under the "Personal protective equipment" heading.

• Keep people and animals well away from the working area.
• Perform daily maintenance. See instructions in the section "Maintenance".
• Ensure the ignition lead sits correctly on the spark plug.

Starting

Model M51-170WRPX, M53-170AWRPX is equipped with an automatic choke.

Models M46-140RX, M46-140AWRX, M51-140RX have manual choke (primer diaphragm).

If the lawn mower is being started for the first time press on the fuel pump five times. After that you should press on the fuel pump three times when starting a cold engine.

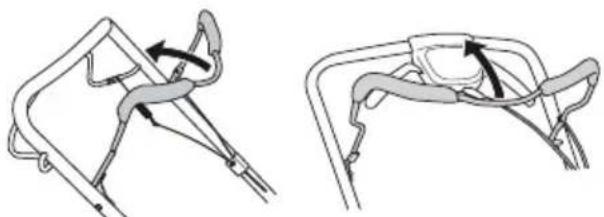

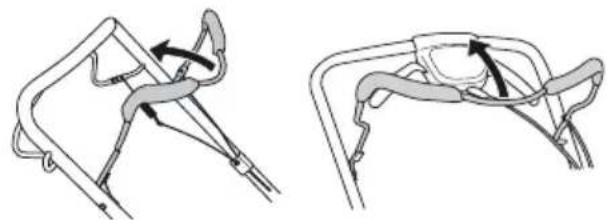

• The engine brake handle must be held against the handlebar when the engine is started.

• Position yourself behind the machine.
• Grip the starter handle, slowly pull out the cord with your right hand until you feel some resistance (the starter pawls grip). Pull with force to start the engine. Never twist the starter cord around your hand.

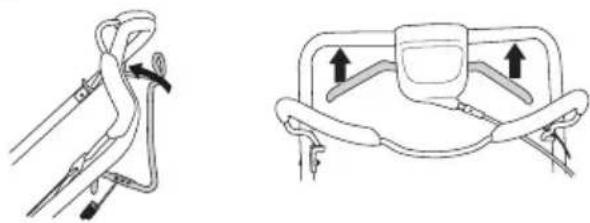

Drive

• Push the propulsion bar in towards the handle in order to start the drive.

Before pulling the machine towards you, disengage the drive and push the machine forward approx. 10 cm.

Stopping

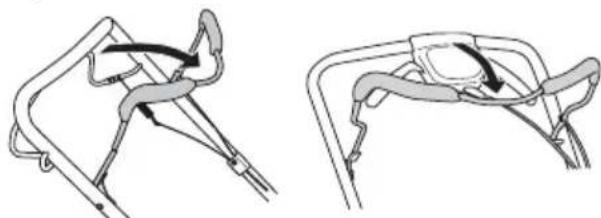

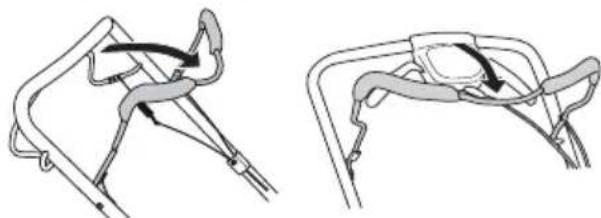

• Stop the engine by releasing the engine brake handle.

MAINTENANCE

General

WARNING! The user must only carry out the maintenance and service work described in this Operator's Manual. More extensive work must be carried out by a service workshop.

Prevent unintentional starting by removing the ignition cable from the spark plug.

The life span of the machine can be reduced and the risk of accidents can increase if machine maintenance is not carried out correctly and if service and/or repairs are not carried out professionally. If you need further information please contact your nearest service workshop.

CAUTION! When the machine is tilted, make sure the air filter always is placed in the highest position.

Always use genuine accessories.

Maintenance schedule

In the maintenance schedule you can see which parts of your machine that require maintenance, and with which intervals it should take place. The intervals are calculated based on daily use of the machine, and may differ depending on the rate of usage.

Before starting	Weekly maintenance	Monthly maintenance
General inspection	Spark plug Air filter
External cleaning M	Muffler* Fuel system
Oil level
Cutting equipment
Cutting cover*
Adjusting the clutch wire
Engine brake handle*

*See instructions in the section "Machine's safety equipment".

General inspection

• Check that nuts and screws are tight.

External cleaning

• Brush leaves, grass and the like off of the lawn mower.
• Do not use a high pressure washer to clean the machine.

• Never flush water directly on the engine.

• Clean the air intake on the starter. Check the starter and starter cord.

• When cleaning under the cutting deck, turn the machine with the spark plug upwards. Empty the fuel tank.

Oil level

The lawn mower should stand on flat ground when you check the oil level.

• Unscrew the oil cap, clean the dipstick located on the cap and insert the cap again without screwing it down. Check the oil level on the dipstick.
• If the oil level is low, fill using engine oil up to the upper level on the dipstick.

Cutting equipment

• Check the cutting attachment for damage or cracks. A damaged cutting attachment should always be replaced.
• Always ensure the cutter is well ground and balanced correctly.

CAUTION! The blades should be balanced after sharpening. Balancing, replacing or sharpening the blades should be conducted by a service workshop.

Damaged blades should be replaced when hitting obstacles that result in a breakdown. Let the service centre assess whether the blade can be sharpened or must be replaced.

Replacing the blades

WARNING! Always wear heavy-duty gloves when servicing and maintaining the cutting equipment. The cutters are very sharp and cuts can occur very easily.

Dismantling

• Unscrew the bolt holding the cutter.

• Remove the old blade. Make sure the blade bracket is free of damage. Also check that the cutter bolt is undamaged and that the engine shaft is not bent.

Assembly

• Make sure the cutter centres correctly on the shaft.

• Fit the washer and tighten the bolt correctly. The bolt should be tightened with a torque of 45-60 Nm.

• Pull the blade around by hand and make sure it rotates freely. Test run the machine.

Spark plug

NOTICE! Always use the recommended spark plug type! Use of the wrong spark plug can damage the piston/cylinder.

• If the machine is low on power, difficult to start or runs poorly at idle speed: always check the spark plug first before taking other steps.
• If the spark plug is dirty, clean it and check that the electrode gap is 0.7 - 0.8mm . Replace if necessary.

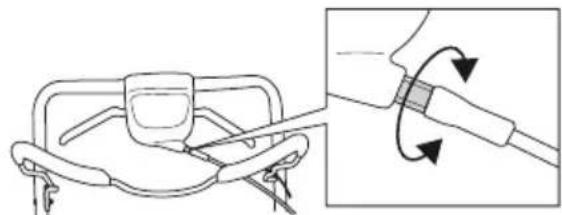

Adjusting the clutch wire

M46-140RX, M51-140RX, M51-170WRPX

• Finely adjust the wire using the adjuster screw.

• Roughly adjust the cluch wire when the fine adjustment is not enough.
• Extend the wire using the fine adjustment screw.
• Roughly adjust the clutch wire by attaching it to the different brackets on the clutch bar. Then adjust the wire finely.

M46-140AWRX, M53-170AWRPX

Finely adjust the wire using the adjuster screw.

Air filter

• Remove the air filter cover and take out the filter.
  An air filter that has been in use for a long time cannot be cleaned completely. The filter must therefore be replaced with a new one at regular intervals. A damaged air filter must always be replaced.
• When reassembling, make sure that the filter completely seals against the filter holder.

Clean the paper filter

• Clean the filter by knocking the filter against a flat surface. Never use solvent with petroleum, for example, kerosene, or compressed air to clean the filter.

Cleaning the foam plastic filter

• Remove the foam plastic filter. Wash the filter well in tepid soapy water. After cleaning, rinse the filter well in clean water. Squeeze out and allow the filter to dry. NOTE! High pressure compressed air can damage the foam. After cleaning the filter should be oiled using engine oil. Wipe away excess oil by pressing a clean cloth against the filter.

Oil change

• Empty the fuel tank.
• Unscrew the oil filler cap.
• Place a suitable vessel to collect the oil in.
• Drain the oil by tipping the engine so that the oil runs out through the filler pipe. When the machine is tilted, make sure the air filter always is placed in the highest position. Ask where you can dispose of surplus engine oil at your local petrol station.
• Fill with new engine oil of a good quality. See instructions in the section "Technical data".

Fuel system

• Check that the fuel cap and its seal are not damaged.
• Check the fuel hose. Replace if necessary.

Technical data

	M46-140RX	M46-140AWRX	M51-140RX	M51-170WRPX	M53-170AWRPX
Engine
Engine manufacturer McCulloch McCulloch	McCulloch McCulloch McCulloch
Cylinder displacement, cm³	139 139 139	173 173
Speed, rpm 2900 2900 2900 2900 2900
Nominal engine output, kW (see note 1) 2,3	2,3 2,3 3,1 3,1
Ignition system
Spark plug	Torch F6RTC	Torch F6RTC	Torch F6RTC	Torch DK7RTC	Torch DK7RTC
Electrode gap, mm 0,76 0,76 0,76 0,76 0,76
Fuel and lubrication system
Fuel tank capacity, litre 1,0 1,0 1,0 1,0 1,0
*Engine oil	SAE 30/SAE 10W-30	SAE 30/SAE 10W-30	SAE 30/SAE 10W-30	SAE 30/SAE 10W-30	SAE 30/SAE 10W-30
Weight
Machine with empty tanks, kg 31 31,5 32 33	37
Noise emissions (see note 2)
Sound power level, measured dB (A) 94 94	96 96 96
Sound power level, guaranteed LWA dB (A)	95 95 97 97 97
Sound levels (see note 3)
Sound pressure level at the operators ear, dB(A)	80 80 82 82 82
Vibration levels, a hveq (see note 4)
Handle, m/s²	3,3 3,3 2,9 2,9	4,0
Cutting system
Cutting height, mm	30-80	30-80	30-90	30-90	30-70
Cutting width, cm	46 46 51 51 53
Cutter	PX3	PX3	PX3	PX3	PX3
Bagger capacity, litre	50	50	60	60	60

Note 1: The power rating of the engine indicated is the average net output (at specified rpm) of a typical production engine for the engine model measured to SAE standard J1349/ISO1585. Mass production engines may differ from this value. Actual power output for the engine installed on the final machine will depend on the operating speed, environmental conditions and other values.
Note 2: Noise emissions in the environment measured as sound power (L_WA) in conformity with EC directive 2000/14/EC.
Note 3: Noise pressure level according to EN 836. Reported data for noise pressure level has a typical statistical dispersion (standard deviation) of 1.2dB(A)
Note 4: Vibration level according to EN 836. Reported data for vibration level has a typical statistical dispersion (standard deviation) of 0.2m/s^2 .
*Use engine oil of quality SF, SG, SH, SJ or higher. See the viscosity chart in the engine manufacturer's manual and select the best viscosity based on the expected outside temperature.

EC-declaration of conformity

(Appplies to Europe only)

Husqvarna AB, SE-561 82 Huskvarna, Sverige, tel: [phone], declares under sole responsibility that the lawn mowers McCulloch M46-140RX, M51-140RX, M46-140AWRX, M51-170wRPX, M53-170AWRPX from the serial numbers 13XXXXXX and onwards comply with the requirements of the COUNCIL'S DIRECTIVE:

of May 17, 2006 "relating to machinery" 2006/42/EC
of December 15, 2004 "relating to electromagnetic compatibility" 2004/108/EC.
of May 8, 2000 "relating to the noise emissions in the environment" 2000/14/EC.

For information relating to noise emissions, see the Technical data chapter.

The following standards have been applied: EN 836, ISO 11094, EN 55012.

Notified body: 0404, SMP Svensk Maskinprovning AB, Fyrisborgsgatan 3, SE-754 50 Uppsala, has issued reports regarding the assessment of conformity according to annex VI of the COUNCIL'S DIRECTIVE of May 8, 2000 "relating to the noise emissions in the environment" 2000/14/EC.

Huskvarna December 5, 2012

Bengt Ahlund, Development manager

(Authorized representative for Husqvarna AB and responsible for technical documentation.)

SYMBOLFÖRKLARING

Symbolförklaring

Huskvarna, 5 December 2012

Bengt Ahlund, Utecklingschef

(Bemyndigad representant for Husqvarna AB somt ansvarig for teknistk underlag.)

SYMBOLFORKLARING

Symbolforklaring

• Pasaet opsamlingsposed.

Huskvarna 5. December 2012

Attention: projections et ricochets.

Huskvarna, 5 December 2012

I nclude 107

Apreciado cliente: 107

QUE ES QUE?

Wasist was amRasenmacher? 121

	M46-140RX	M46-140AWRX	M51-140RX	M51-170WRPX	M53-170AWRPX
Motor
Maschinenbauer McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCullochMcCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McColloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCullohMcCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McColloh McCulloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McCollol h McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McCollohMcColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McCalloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McCollo

I nclude 133

Substituir as láminas

I03a6oTbTecb, YTo6bB pa6oey 3OHe He HaxoDiNIOcb JIOJe N KINBOTbIX.

IpeIoTbpaTnTe HenpeHaMepeHHbI 3aynck, cHAB Ka6eJIb 3aHHraHnco CBeuN 3aHHraHn.

BepenTecbOTcKaKNBaIOx npEIMeTOB INpKoWTeOB.

PpeDynpEeHHe: BpaaioouneecpeHuynue qactn. DepKHTe pykn HOrnB uNcToTe.

PpeynpeHnHe: Bpaauouneecyactn. IepnTe pyKn HOrn Ha6e0nacHom pacctOaHN.

3Ta npOdyKUry OToBeyaeT Tpe6oBaHnM COOTBeTCTByIOxHOpMaTINBOB EC.

Uymo3aunTHbIe 3MnCCN B OKpyHauOyIO cpeDy corlaCHO DupeKTHBb EBponEnckoro Co06ueCTBa.3MnCCnMaunHbI npNBedeHa B rIabe TexHnueckne DaHHbIe H Ha Ta6JnUKe.

HnkOrda He noJb3yItecb MaunHoB B NOMeueHN INB HnpoBeTpNBaEmbIX MecTax.B Bixlonhbx ra3ax coepnncOKNcB yIepoda--6ecUBeTHbi, JIOBtBuN KpaHne ONaChbIra3.

OnachocTb B3pbIbA

IpeEД IO3anpaBkoB BcerdaocTaHOBNTe DvraTeJIb.

Topra na nobepxHocb.

IopcHHeK ypoBnM npedynpeJdeHn

CyueCTByeT Tpr npoBn npedynpeHneHn.

PPEyPPEKDEHNE!

IPEyPENJDEHNE!NcnoJIb3yeTc, KOrda Heco6IIODeHne NHCtpyKuyn pyKoBoOcTBa MoKeT co3DaTb yrpo3y npUHHeHn cepBe3hIx TpaBM nIcMepTu onepaTopa IIN NOBpeHNeHn HaxoJaIeOcR pAOM IMyIecTba.

BAHHO!

BAHHO!NcnoIb3yeTc,Korda Heco6IIOJeHne INHCTpykUIN pyKOBoIDCTBa MoKeT co3DaTb yrpo3y npuHHeHn TpaBM onepaTopy nIN NOBpeHnDeHn HaxOJaIeROC pAOM mMyueCTBa.

O6paTnte BHHMaHne!

06paTnte BnHMaHne! NcnoIb3yeTcra, KOrda Heco6JIIOJeHne INHCTpyKUIN pyKOBoIDCTBa MoHeT CO3aTb yrpo3y NOBpeHJDeHn MaTePnaIOB IIN MaunHbI.

CoepeHHne

IPORCHENICIMBOJIOB

YcNoBhIe 06o3HaueHn1 145

PoncHHeNk ypoBnM npeDynpEnHnI ...145

PPE3EHTAUZ

CoepKaHne 146

YBaHaembl nokyntb! 146

UTO ECTb UTO?

UToecTbTuToHara3oHOKocnJIke? 147

CPEICTBA3AUHTBPE3UKA

O6uHe cBeHnra 148

C6OPKA HACTPOIKN

06nne cBeHnna 149

Pyka 149

Bbicota ctpnHKn 149

C6opHnK 149

HacaKaДЯМyIbUPOBaHnA 149

3aJIbBaHneMacJa 149

ПРавиJAOBPAUSEHINCTOПЛВOM

06uie cBeHn 150

IoproToBKa TOnJIINBHOcMecn 150

3anpaBka 150

TpaHcnopTnpoBka n xpaHeHne 150

3KCNJYATAUIN

CpeIcTBA 3aunTb onepaTopa 151

06uhe Mepb 6e3oNaChocTN 151

OchOBHbI npHHcInbI pa6oTbI 153

TpaHcnpTpObKa n xpaHeHne 153

3anyck N ocTaHOBka 153

TEXHINCHECKOE OBCJYWBAHNE

O6uine cBeJeHn 154

TpaΦnK TexHnueckoro 06cnyHHBaHnA 154

O6ua npoBepKa 154

Cbeua 3aHnraHna 155

PeryIipOBka Tpoca cIeJIeHnra 155

Bo3dyHbI ΦnIbTp 156

3aMeHa MacJa 156

ToJIINBHa cIcTeMa 156

TEXHINUCKNEXAPAKTEPNCNUK

Texnueckne xapaKtepcntkn 157

TapaHTnE C o COOTBeTCTBn 158

YBaJaembI nokynteIb!

Cnacn6o 3a To,чTo BbV Bb6paJIn npOdyKcIIO McCulloch! Tenepb Bbl cTaJIu YacTbU nCTOpHn, KOTopar Haayalacb DoBOJbHO DaBHO, BO BpeMg BtorpoM MnpoBoi BoHbI, Korda Kopnapua McCulloch Hauajla Bbnyck DBrVaTeJeB. B 1949 r. McCulloch BbBeJaHa pblHOK nepByu nopTaTNBHyU cenHyu NIIy, KOTopoM MOR ynpabJrMbOdn HeNoBek, ChTo BV KopHe NImHIo nPoUecc DepeBoo6pa60tKn.

INHnI NO npOn3BOJcTBy INHHOBaCIOHbIX CENHbIX
IIpa6oTaJaHa npToJHeHN DecaTIneTNI,JeIo
pacWnpraIOcb: cHauJaB 50-x 6bJIi N3rOToBJeHbI
nePBbIe DnIgATEJIIN JIA camOJIeTOB IN KapTOB,a
3aTeM B 60-x npoRbNJIncb MmHI NJIbl. P03Ke,B70-
X n 80-x npOyKToBYIO JInHeNky nonOHNJI
TpIMMepbI HArHeTaTeJIbHbIe Bo3DyXoDyBKn.

CeroHnMcCulloch BxOuNTB rpynny Husqvarna.3a npoWeJHne noJIBeKa KOMNaHnI Do6Nlacb 3aMeTHoro ycnexa B npoIN3BOcTBe MoUHbIX DnIraTeJe,pa3pa60TKe INHOBaUIOHHbIX npoYKTOB INpoDyMaHHbIX KOHCtpyKTHBbIX peSeHn, IN ceroHN KOMNaHn InpoIoJIHaeT NOIDepHHBaTb 3Ty TpaAnuIO. PnpOpHTbIMN 3aJaCaMn IJI KOMNaHn IBAJIOTc CHInHeHne pacXoDa TOJIINBa,Bb6pocOB uypOBHn SiyMa,a TaKHe NOBIIeHne 6eONacHocTn U yO6CTBa 3KcNJIyataUIn npoIN3BOdIMOrO eO o6OpyIOBaHnI.

Haideemc,To Bb ocTaHeTecb DoBOJbHb npOdyKUnei McCulloch, uTO oHa 6yJeT BaIIM cnTyTHNKOM Ha doJIroe Bpem. HeyKocHTeJIbHoe BblOJIHeHne Tpe6oBaHn OTHOCHTeJIbHO 3KcNlyaatauN n Texo6cJynHBaHn, N3JIOHeHHbIX B HactoIeM pyKOBoDCTBe, nomOHet 3HaunTeJIbHo yBeJIuHTb cPoK cJyX6bl 06OpdyObaHn. EcJn Bam noTpe6yeTcR TexHnueckar nomOuB B pEmoHTe N 06CJyHNBaHn 06OpdyObaHn, Bbl MoJHeTe BocNoJIb3OBAtbcg fYHKUnei Service Locator Ha caITe www.mcculloch.com.

Фирma McCulloch noctoHno pa6oTaet HaJycOBepueHCTBOBaHnEM npa3BnTneM CBOUXnpOdyKTOB nNo3ToMy ocTabIeT 3a co6oN npaBOHa BHeceHne N3MeHEnB φOpMy nDn3aH 6e3npEiBapnteJbHOro ppeDynpexdHn.

Kpome Toro,Ha caIte www.mcculloch.com TaKHe pacnoIooHeHa Konna HacToaIero pykoBoDCTBa.

UTO ECTb UTO?

YTo eCTb YTo Ha rA3OHOKOCNIke?

1PykoTka TopMo3a DnVraTeJIa
2 Cko6a npnBoHa
3PyuKa cTapTepa
4 C6opHnK
5 PykoTka, BbICoTa pykoTkn
6 NylbT peryI npOBKn BbICoTbl
7 MacNoMeHbI uyn / macNo3aINBnaI roPIOBnHa
8IywnTeIb
9 Cbeua 3aHHraHn

10 Mem6paHa nntaTeJMa M46-140RX, M46-140AWRX, M51-140RX
11 Bo3yHbI ΦnIbTp
12 KpbiKa dJa HoKei
13 MyfTa noKJIOueHnBODbl
143aJIINBaHnTOnJIINBa
15 Hox
16 Пужиннаша6a
17 BnHT HOHei
18PykoBoDcTBO no 3KcnIyatauIN

O6uine cBeJeHnIa

B daHHom pa3eJe paccMaTpNaIOTcra pa3JnUHbIe 3aunTHbIe npncnoc6JeHnaMaunHbI, IN pa6oTa, IN npBeJeHbIOCHOBHbIe npHcUNbI INpaBnJa, KOToPbIe Heo6xoJIMo co6JIOdaTb IJIa o6ecneueHna 6e3onacHo pa6oTbI.

PNEyPENHEHNE!HnKOrHa He NOJIb3yItecB MaunHO C DeΦeKTHbIMN 3aunTb. Ecln B pe3yIbTaTe 3TNx npOBepOK 6yDyT 06HapYHeHb HncnpaBHoCTn, HeMeJLeHHo Bbl3OBHTe cneUaJIncTa dJapeMOHTa.

PpeoTbpaTnTe HenpeHaMepeHHbI 3anyck, cHAB Ka6eJIb 3aHHraHna co CBeuN 3aHHraHna.

KpbIka IJIa HOKei

KpbIka dJa HOHe pa3pa6oTaHa dJa cnHKeHn Bn6paCm n yMeHbWeHn pNcKa noJyHeHn nope3OB.

PpOBePKoHyyxHaHOHei

-Проверъ,Чтобл писносоьепя 3ашты npaBoH pyKn He IMeLo noBpeHdeHи n TaKnx BnДIMbIx DeΦeKToB, KaK TpeUHHbI.

PykoTka TopMo3a DnBraTeJIa

-TopMo3 DBnraTeJI npeHa3HaueHДЯocTaHOBKn DBnraTeJI. Pn cnYcKe pyKoRTKNTopMo3a DBnraTeJIb OcTaHaBJIbAeTcJ.

PpOBepKa pyuKu TOpMo3a DvRaTeJIa

YBeJIuHbTe 06OpOToI Do MaKcImaJIbHbIX n OTnycTIne pyKoAry TopMo3a. TopMo3 IIBrAteJr Heo6xoJIMHO HAcTpoNTb TaKIM o6pa3OM, YTO6bl DBrAteJIb ocTaHaBJIbNAJIc B TeueHne 3 CeKyHd.

IynteIb

IPEyIPEHEHNE! HIKoRda He
HcNoJb3yTe MaunHy 6e3 rnyuHTeJIa
HnC deekTHbIM rnyuHTeJIeM.
PiBpeKdEHbI rnyuHTeJIb
3HaHTeJIbHO yBeJIuHBAeT wym I
pNCK noJaapa. ImeTe BcerDa noD
pyKo INHCTpyMeHT dJa TyuHeHra
noJaapa.

Iynte npn noB3oBAHn ncpa3y
nocJe ocTaHOBKn DnraTeJr OueHb
ropaH. 3To cnpaBeDnBO TaKHe npn
pa6ote Ha xOIOCTbIX 06Opotax.
PomHnte o pncKe noHapa, B
oc6eHHocTn npn pa6oTe pAOM C
JerKo BocnJaMeHReMbIM
BeecTBAM N/INr Ra3AMN.

-「IyHnTeJb npeHa3HaueHДЯ CHNKeHNYPOBHA WMa N OToBa B CToPoHy OTPa6oTaIOUero YeNoBeKa BbIXIONhIx Ra3OB.

PpOBepKa rnyuHTeTnA

-PeryIpaHno npOBepaTe rnyuHTeJIb, yTo6bl OH 6bl nCnpaBeH uXopoOo 3aKpenHe.

067ne cBeHn

BAHXO!PpeoTbpaTnTe HenpeHaMepeHHb 3anyck,CHRA Ka6eJIb 3aHHraHnco CBeu3aHHraHn.

Pyuka

C6opka

BepxHpyka

IpepeBEnTe Tpy6aTyO cKo6y pykoTKn B NOLOKeHHe CTporo HAnpoTnB HnKHeu YacTn pykoTKn. HaedHHO 3aTaNHTe fNkCaTopbl.

Hactpoikn

BbicoTa pyKoTKn

• Ocna6bTe HHHHne KcaTopbl.

• YctaHOBnTb pyKOrTkY Ha HyHHyIO BbICOTy. HadeHHo 3aTaNHTe ΦNKcaTopbl.

BbICota cTpNKKn

3AMEUAHNE! He ycTaHaBnBaIe cJInKOM Hn3Kn yPoBeHb, T.K. Ra3OHOKocNka MoKeT COnpNKacaTbcra C HepoBHbMn NOBepXHocTAMN.

IpeBnHybpbuHaaJ,HTo6bIOHnHrTbHOHN, nBnepe-TO6bOnyctntb.

C6opHnK

• YCTaHOBtB c6OpHbI Meiok.

3aKpenTe KpOKNB BepxHeuacTn waccn.

-ПомecТиь HннHIOучacTb TpaBoc6OpHnKaВ pa3rpy3OuHoe OTBepCTNe.

HacaKaДЯМьчрваня

-ПОДНИМITEIHTOKpa3rpy3KN，YTO6bI yCTaHOBNTb/CHrTB npO6Ky MyJbUHPOBaHnA.

3akpenTe npyHnHy K paMe.

3aJIbBaHneMacJa

MaSHA nocTaBnAeTcNyCTbIM MacJHbIM 6akom.3aJIbAaIteMacNoMeJeHNO.CM. yKa3aHnB pa3JeIeYxoI.MoTopHOe MacNo cJeNyET 3aMeHnTB B nePBbI pa3 noCle 8 YacOB pa60Tbl.

O6uine cBeJeHnIa

PNEyIPEXJEHNE!Pa6oTa DBnraTeJI B 3aKpbITOM NINB NINOxo npOBeTpNaBaEMOM NOMEueHIM MoKeT npNBecTN K CmepTeJIbHOMy IcXoNy B pe3yJIbTaTe yDyuSeHnN NIN 3apaJeHnY rapHBIM ra3OM.

TOnJIbBO HcnapeHne TOnJIbBa OueHb
NoJapoonacHbe N MoTy npNBecTN K
CepbE3HbIM TpaBMam npBdIbXaHN N
KoHTaKTc c KoxHe. ByIbTe noToMyc
OCTopoHHbI npN o6paUeHN C TOnJIbOBm
N o6ecNeYbTe xopoUyIO BeHTNJLauNIO
npN o6paUeHN C TOnJIbOBm.

BbIXlonHbIe ra3bl DnRaTeJI rOpauN MoTyCoepKaTb NcKpbI, KoToPbI MoTy CTaTB npuHoiNoHa pa. Po3Tomy MaunHy HkOrJa He cneJyET 3anyckaTb BHyTpNi NomeeHnra NII pAOM C JERKOBOcPiMaMeHReMbIM MaTePnaJOM.

He Kypnte HcCTaBbTe HNKaKne ropyne npedMeTbipraDc TOnJIINBOm.

PoirotobKa TOnJIiBHOJ CMEcN

3AMEUAHNE! MaunHa KOMnJIeKTyEeTcra TcybtpexTaKTHbIM DnBraTeJem. Heo6xoIIMO nocToaHHo npoBepeTb ypoBeHb MacJa.

Beh3HH

ПользуТecь ВсICOKOKaueCTBeHHbIM 6eH3nHOM,ВTomЧИСЛЕ He3TNJInpoBaHHbIM.
- PeKOMeHnyeMOe MHNIMaJIbHOe OKTaHOBOe YncIoo 90 (RON). EcIIN DnBURAteJIb 6yJeT pa6oTaTB npN 6OJIee Hn3KOM OKTaHOBOM YncJIe Yem 90,To DnBURAteJIb MoHeT DaBaTb CTo TTo npINBOODNT K yBeJIuNeHIO TemNepaTpby I DBURAteJIY, YTO B CBOIO OUpeEJa MOHeT PnINBeCTNI K eRO cepBε3HbIM NOJOMKaM.
Pn BO3MOHOCHT NoJIb3yITecb 3KoJIoRnueckm,T.H. ⅢeJIOuHbIM 6eH3nHOM.

MaCNoДЛЯДВИгаTeJIa

3AMEUAHNE! Npeed 3anyckom ra3oHokocnIkpOBeBte ypoBeHb Macna.CnIuKOM Hn3KnyoBeHb Macna MoKeT npNBecTN K cepbe3hBMNoBpeHdeHnM DnRaTeJ. CM.yKa3aHnBpa3dJe "TexHuecKoe o6cLyHHBaHne".

MoTopHoe MacNo CneJeYe T3aMeHHTB nepbIpa3 nocJIe 8 yacOB pa6oTb. PeKOMHeAun noBb6Opy Tnna MacJa CM.B pa3JeJe"TexHueckne DaHHbe". HIKoTa He npIMeHryTe MacNo DJIa DByxTaKTbIX DBNraTeJei.

3anpaBka

PPEyPENHEHNE!Pepe3anpaBkoCneJeT063aTeJbHO BbIKJIOHTbDINrAteJIbNdaTb eMy OXJaNTbcB TeueHHe HeCKoJIbKnx MInHyT.

YTo6b npeDoTbpaTntb pa3JINB TOnJIbBa, Bcerda nCNoJIb3yI Te CneUaJIbHbI NO.DOH.

Pn3a npabKe Kpbikky TOnNIBHO 6aka cJeNyEt OTKpbBaTb MeJLeHHO, UTo6bl NocTeeneHHo CtpaBtB n36blTOuHoe daBHeHne.

OuHCTte 06JIacTb BOKpyr TOnJIINBHoro 6aKa.

IocJe 3a npabKn IIOToHo 3aTaNHTe KpbIshky TOnNIBHO6aka. He6peHHocTb MoKeT cTaTb npuHoi noHaapa.

Ipeed 3anyckom OTHeCnTe MaunHy KaK MHNMyM Ha 3 M O T MeCTa 3anpaBKn.

HkoIa He BkIoUaIte MaunHy:

EcNn Bbl npoJInn TOnJIbNO nIN cenHoe MacNo Ha MaunHy. BbTpnte npoJInTOe TOnJIbNO nIN MacNo n daTe octaTkAM TOnJIbNA uCnapUTbcra.
EcJIN Bbl npOJIIN TOnJIINBO Ha ce6a HcBIO OeHdy, CMeHNTe OdeHdy. NOMoTe Te YacTn TeJa, KToOpBle 6blN B KOHTaKTe C ToJIINBOm. NoJb3yIteCbMbIOM N BOIoN.
EcJnHaMaunHe npOnCxOuNT yTeUka TOnJIbBa. PeryIpaHNo npOBepaTe KpbIbKy ToNJIbHBOrO 6aka n UJahrHa Na ppeMMe TpoTeKaHna.

TpaHcnpTnpoBka n xpaHeHne

CJIeIyET XpaHnTb I TpaHCnpTnpoBaTb MaunHy N TOJINBO TaKIM O6pa3OM, YTO6bI He 6blno pncKa KOHTa KaT a NOITeKOB INI napOB c NCKpAMN INI OTKpbITbM ORHeM, HApPIMep, y 3JIeKTpOMaUNH, 3JIeKTpoDBuRatTeJeN, 3JIeKTpuYeCKNX IN CINIObBX INpeEKJIIOUaTeJeN/ HarpeBaTeJeN KOTIOB.
ToIINBO BcerIa cJIeIyET XpaHITb IN TpaHCnOpTnpoBaTb CneIuaJIbHbIX EMKOCTeX, npedHa3HaueHHbIX JIA 3ToI YeJI.

ДЛNTeJIbHoeХpaHeHne

IpeTeM, KaHanpaBnTb yCtpoNCTBO Ha IInTeJIbHoe xpaHeHne, CJeDyeT onOpOHHITb TOnJIINBHy 6aK. BbIcHTe Ha MeCTHO 6eH303anpaBOuHoi cTaHcN, KyDa Bbl MoJHeTe cJIInTb OTPa6OTabWee TOnJIINBO.

CpeicTba 3aunTbI onepatopa

Bo Bpempa60Tb c MaunHOB bdoJHHb
ncnoJIb3oBaTb cneuaJIbHbIe OIO6peHHbIe CpeIcTBa 3aunTb.CpeIcTBa JInuHOJ 3auNTbHe MoYr T
NOJHoCTbIO NCKJIIOUHTb PnCK NIOJyHeHJr TpaBMbl, Ho
npn HeCuaCTHom Cnyue OHN CHINKAIOT TJeecTb
TpabMbI. O6paauTeCb 3a nomouBIO K DInIepy npn
noI6ope cpeIcTB 3auNTb.

Bcerda ncoJb3yITe:

• EcIy ypoBeHb IyMa npEByICnT 85 neu6eI, nCnoJIb3yIte HayuHNKn.
  -UCToHnBaaNHeckoJIb3aJaaO6yBb.
• PpoHbIe IJIINHbIe 6pIOKn. He HocHTe yKpaSeHnA, OoPTbI INI caHdAInN, He XoJNTe 6ocNKOM.
• Pn Heo6xOIMOCt N OJIb3yTecb 3aunTHbIMN nepuATkAMn, HAnpIMep npn MOHTnpoBaHn, ocmOTpe nIIN uNCTke peHyuJero o6OpdyoBaHn.

O6uIe Mepb6e3oNaChocTn

B 3TOM pa3dJe paccMaTpnaIbOTcO cHOBHbIe npaBnla 6e3onacHocTu npu pa6oTe c MaunHOJ. OdaHko daHHa INHΦOpMaUry HNKOrJa He MoKHe 3aMeHHTb NOrTOBKN I npaKTNUeCkOr OnbTa npoΦecCnoHaJIbHOrO NOJIb30BaTeJIa.

-Преничимпсгтунькрабо te mашино BнмаTeЛьно рочитай Te nHcTpkyUHO y6eNTecb,уTO Bam BCE noHrTHo.
-ПOMHInTe O TOM,чTo onepaTop Hecet OTBeTcTBeHHocTb 3a Bo3MOHHbIe HecuactThbIe cJyauN IIN aBapN, KoTOpbIe cTaJI npUHHoI TpaBM IIN nopCu INMJuEcTBA dpyrNX IIOJeI.
MaHnHy Heo6xOIMo coepHaTb B uNcToTe. 3HaKn Hn KaJIeKN DoJHbI 6bTb XopoW OuHbI.

Bcerda pykoBoDcTByntecb 3npaBbIM CMBICJOM

HeBO3MOHHo npeBnDcTb BCE cHTyaLm, KOToPbIe MOryT Bo3HKnHyTb nepe BAmn. Heo6xoJIMo Co6JIOaTb ocTopOHnOCTb npyKOBODCTBOBaTbc3dpaBBIM CmblcIOM. EcNn Bbl B KaKoJ-Ni6o CNTyaUIN NOUYBCTByeTe ce6n HeyBepenHO, 06paTInTEcb 3a COBeTom K cneuaJIncTy. Cnpocnte BaWero DNJIePa, CNpOCHTe COBtA B CNeuNAIN3nPOBaHHo MaCTepCKo NnY onblTHoro NoIb30BaTeIa. N36eraIte IcNOBJ30BaHHa, JIA KOTOPORo Bbl He cHTaTe Ce6n IOCTaTOUHO noIroTobJIeHHbIM!

PNEUINPEHJENHE!MaunHaBoBpeMa
pa60Tbco3daet3JeKTPomarHHTHOe
noJe.BonpeJeHHbIXo6ToTeJIbCTBax
3TO NOJIe MoHeT Co3DaBaTb NOMEXI JIa
naccNBbIXNAKTBBHXMeUNCINCKNX
IMPaHTaHTOB.YTO6bI N36eKaTb PNCa
cepBe3HOrO NOBpeHJDeHNAJIN CmepTN,
JNcAM C MeiUnHCKMIM IMPaHTaHTaMI
peKOMeHNyETcN pOKOHcyJIbTnpoBaTbcR
CBpaQOM IN3ROTOBtJEMe
IMPaHTaTa, npeHJde Yem npCTynaTb K
pa60Te c 3ToMauHoH.

PNEUYPENHEHIE!Pn HnpaBnblHom Nn He6peHHOM nCNoJIb3OBaHm MaunHa MoHeT 6bIb OanChbIM INHCTpyMeHTOM, KOToPbMoHeT npuHHTbc cepBe3HbE NOBpeHDeHNA nn TpaBMy Co CMepeJIbHbIM nCXoDm dJIa POJIb3OBaTeJIa NN DnA pyrNx.

3anpeaaetcanyckaTb KynpaBneHIO
Nn peMOHTy MaunHb DeTei NNI
B3pocIbIX, He IMeOuNX
cooTBeTCTByUoSei NoDroTOBKN.

JaHHyo MaunHy 3anpeeHo
NCNoB30BaTb JIuam C Hn3nueckmN
JINyMCTBeHHbIMn HapyeHnA M, JIN
JIuam, He cnocobHbIM ynpaBnTb daHHo
MaunHO NO COCTOHNIO 3doOpOBb.
KcnnyatauMaunHb DaHHbIMn
JIuam pa3peaaetc ToIbKO nOi
PnncMOTpOM JIu, OTBeTCTBeHHbIX 3a INX
6e3onacHoctb.

He donyckaTKe K noJIb3OBAHIO MaunHoi nocTopoHHNX JInu, He y6eINBUNcB HauaJe B Tom, UTO OHN NOHJIu coJepHaHne INHCTpyKlUH.

HnkOrda He pa6oTaIe C MaunHo, ecJn Bby ycTaN, BbInnn aNkoTb, nIn npHnMaete JeKapcTb, KoTOpBie MoTy OKa3bBaTb BnnaHHe Ha 3peHne, peaKUIO nn KoopDnHaCIO.

PNEUYPENKDEHNE!IIO6bIe MoNnOuKaLm N/INn NcNoJIb3oBaHne 3aNaChbIX YacTe, Hepa3peSeHHbIX npOn3BoDInTeJIeM, MoHeT npNBecTN K cepBe3HbIM paHeHnM INJLeTaJIbHOMy NCxOy KaK NoJIb3oBATeJIe, TaK n OKpyKaHouX JIODeH. Hn npi KaKxO6cToaTeJIbCTBax He DOnycKaeTcR BHeceHne N3MeHeHn B nepBOHaJaIBHyIO KOHcTpkyUIO MaunHb6e3 pa3peSeHn I3rTOBHTeJIa.

HnkOrda He MoNnHcnpyTe MaunHy HacToIbko, YTo6bEe KOHcTpkyKuHa 6oJIbSe He COOTBeTCTBOBaJa opnHaJIbHOMy NcNoJIHeHIO, IN He noJIb3yItecB eI, ecJIN Bbl noD0peBaTe, yTO OHa 6blMaOnnHcnpoBaHa dpyrMn.

HnkOrda He NcnoJb3yIte DeeKTHyU MaunHy. PpOBoIte peryIaRhBle OcmToPbI, yXoN o6cLyHnBaHne B COOTBeTCTBnC daHHbIM pyKOBOdCTBOM. HeKoTopbIe onepaUN no yxOdy n 06cLyHNBaHIO BbINOJIHrIOTc TOLbKO noIroDObJIeHHbIM CneuJaNCTAmN.

Iolb3yItecToJIbKOOpnHHaJIbHbIMN 3aIyactMn.

БezonaHocTb pa6oeryo Mecta

-Перд Началов pa60ть Heo6xOДИМо удаJIntb CУЧАСТКAВETKи,КAMниT.D.
MaunHa MoKeT Bbl6paCbIbTaHapHy NOCTOpOHnE PpeMTebl, OKa3aBwneecr NOI HOKaMn, YTO MoKeT CtaTB npuHOn TpaBM IINIOBpeKHeNr MyueCTBa. He IcNoJIb3yInTe MaunHy, ecn pRdOM HaxoJrTcI JIO, INI INI XHBOTHbIe.
- He pa6oTaIe c pe3uKOM B nIoXn noToDhBix ycNoBnx. TaKnx, KaR rycToI TymaH, cnIbHbI IOxDb, pe3Kn BeTep, CNIbHbI XOLOd, N T.D. Pa6oTa npn nIoXoI noToDe yToMHTeNbHa I MoKeT npVBecTn K BO3HKnHOBeHIO OnaChbIX CNTyaU, HApPIMep, CKoJIb3KNX NOBepxHocTei.
-ПpoBepbTe,чTo6blno6Jn3OcTnHe 6blNo HnUero TaKOrO,чTo MoKeT nobJIaTb Ha BaWy pa6OToY c MaunHoi.
-Пи рабоTe c Maшинов оррашайTe BнманHe Na KopHn, BeTKn, KaMHn,ЯMbI, KaHaBbI npOuHne npenЯTcTBnR.ВБblcoKoI TpaBe npenЯTcTBnMOryT 6bITb He3aMeTHbI.
- CkaunBaHHe TpaBbHa cKJIOhax MoKeT 6bITb onaChbIM. He IcnoJIb3yIe Ra3oHOKocNkCy Ha ouEhb KpyTbIX cKJIOhax. HeIb3ra NoJIb3oBaTbcr Ra3oHOKocNlKoHa nOBepxHocTEx c yKJIOHOM, npEByIaIoUIm 15 rpaIycob.
Ha cKJHOH nYb cJeDyE T npOKJaNbBaTb noI npAMy yrLoM K cKJHO. Iopa3do Jerepe pa6oTaB nonepek cKJHOHa, Yem noDnHMaRcB n onycKaarcb no cKJHOHy.
-Пи npn6JIHHeHnK 3aKpbITbIM nobOpOtaM nIIN 06BeKTam, KOTOpBIE MOryT 3aTpYdHЯrTB 063Op, cJeDyET 6bTb OcO6eHHO OCTOpOHbIM.

TexHnka 6e3oNaChOCTN

• CenHbIe NJIbI npeHa3HaYeHbToJbKO JJIpe3Kn IpeBecnHb. 3anpeaetcNcNoJb30BaTbMaunHy He no Ha3HaueHIO.
  -NoIb3yItecb 6OpdyOBAHnEM JIJIaIaIITbI IIOJe. Cm. pa3IeJI 3aIuNTHOe 6OpdyOBAHnE.
  HnKoIa He 3anyckaTe MoTOpHyu Nlly 6e3 HINbI NIIbI, cENI NIIbI IN BcEx KOJNaKOB npaBnIbHo ycTaHOBNeHHbIX. CuenJeHne B npOTnBHom CJyuae MoXe TbICBOIoNTbcN npuynHtB TpaBMy.
• Y6eINITb, yTO B HOHn He nonaJI IN oCtOpOHnHe npEIMTebl, HApnpMep, KaMHN, KopHN I T.d. 3To MoJHe 3aTyIINrB HoHn IN npNBecTn K NCKpNBLeHn BOHa. Pn Crn6aHn OcH HapyuaeTc8 bJaHcnPObKa n yBeJIuHBAeTc8 ypoBeHb BN6paUH, yTO MOHeT npNBecTn K CHHXHeHIO HaJeHHOCtN KpepeHa DeTaJIeR Ra3OHOKOCNJK.

3anpeaetcHa npoJIOHHTeJIbHoe Bpem3akpenTb pyky TopMo3a npn pa6oTaoueMaunHe.
3anycntTe MoTOpHyIO NnIy I NOLOKHTe ee Ha cTa6nJIbHoe OCHOBaHne. IpOBePbTe, YTo6bl Cenb He KacaJacb rpyHTa nn JIO6oRrDpyrOro 06bekTa.
- Pn pa6oTe c MaHHoH cJIeDyET BcERda HaxoNTbcra c3aDi. Pn BBIOJIHeHN pa6oT BCE KOJeca DOJIHKHb HaxoNTbcra Ha 3eMJe. PyKoRTky cJIeDyET depHaTb o6eIMn pyKaMn. He np6JIHKaTb pyKnIIN HorN K BpaauOuImcra Je3BnAM.
- HeIb3a onpOKnIbBaTb MaINHy noka IbnrataJIb pa6oTaet.
-БудьTe oc6o BHNMaTeJbHbI npi nepeBnHeHn Ra3OHoKocNlKn B CBOIO cTopoHy.
Hikorda He noDHMaIte H He nepeHocnte ra3oHOKocnky npa pa6oTaOuIeM dBVaTeJe. TTo6bNoHrTb ra3oHOKocnky,OTKJIIOUHTe DBVaTeJb N oTcoeINHITe npoBOd, cEN 3aHHraHNAOT CBeuN 3aHHraHNA.
Ipn nepemeeHn no yacTkY, He nOJIeHaSeMy cKaunBaHIO, Heo6xoDIMO oTKJIOUaTb DBrarTeJIb. HanpIMep, IopOHKn, NocbInaHHbIe rpaBneM, KaMHn, raJIbKa, acfaJIbT n T.D.
- He 6eraTe c pa6oTaIOSeI ra3oHOKOcNJkoI.
PpI pa6oTe c ra3oHOKOCNJKO BceIa XoJNTeMeJIeHHO.
OTKJIOUHTe DBNrATeJIb, npeHJe Yem N3MeHnITb BBcOToY cKaaUNBaHn. HNKOrJa He BbINOJHnIte peRyInpOBKy npn pa6oTaIoUeM DnBraTeJIe.
He octabIyTe MaunHy c pa6oTaIoUIM DnIraTeIeM 6e3 npncMoTpa. BbIKJIOuHTe DnIraTeJIb. Heo6xoImmo y6eIITbc8, YTO peKyuza HacaIka ocTaHOBUNacb.
- EcJIN nonaTe nocToPOHHn npEIMeT, INI npIn CNJIbHOB BV6paUHN, HeMeJLeHNO OCTaHOBNTe MaunHy. Chmnte cBeuHO Ka6eJIb CO CBeuN. IpoBepbTe HeT JIn Ha MaunHe NOBpeKdEHNI. Ipn HAJInuHn NOBpeKdEHNI, ycTpAHnTE INX.

OchOBHbIe npHcInbI pa60TbI

-Дя onTImaJIbHOro pe3yIbTaTcNeIyET nCNoJIb3OBArB ocTpoe Je3BVe. 3aTyINBWeecra Je3BVe 6yJeT cTpnuH HepOBH0, IN MeCTe cpe3a TpaBa 6yJeT HeJIrTeTb.
He ckaaBaiTe 60Jee 1/3 Bcei IINHb TpaBbl. 3To KacaetcB, B nepByo oupepeB, 3acyuIIBoro BpemeHrOda. BbinoHNITE nepBoe ckaaBAHne Ha 60JIbwei Bbcote. 3aTeM npOBepbTe pezylbTaT i CKocNTE TpaBy Do Heo6xOIMOrO ypoBnE. EcnI TpaBa BbICKa, nepeDbnraTe ra3oHoKocNky MeJeHHO n, npn Heo6XoDnMoCTn, nCnoJIb3yIte ra3OHokocNky Dba pa3a.
- EcIb BbXoTHe N36eHaTb 06pa3OBAHn noJoc Ha BaWeM rA3OHe, HxHHO KaHdb pa3 cTpNpy erO B pa3HbIX HanpaBJIeHNyx.

TpaHcnpTnpOBka n xpaHeHne

HaTeHHo 3akpenIte o6OpyIOBaHne Bo BpeMraTpaHCnOpTnpOBKn BO n36eHaHne IOBpeHKeHn I HeCuaCTbIX cJyAaeB.
XpaHnTe 60bpyIOBaHHe B3aKpbIbAeMOM Ha 3aMOK NOMeIeHIn, He IocTynHom IJIa DeTei IN oocTopoHHnx.
XpaHNTe INCTpyMeHT BCyXOM TENJOM NOMeueHn.
- PeKoMeHdauCn no TpaHcnpTIpOBKe n xpaHeHIO ToNJIbA npNBeDeHbI B pa3JeNe "O6paueHne c ToNJIbOM".

3anyck n octaHOBka

Ipeen 3anyckom

PNEyPENHEHIE！PpeJe cem npCTynTbKpaOtecMaunHOBHNMaTeJbHo npouHTaTe INCtpkUHO y6eNTecb,yTO BaM BCE noHrTHo.

IoiB3yIeScb 6OpDIOBaHHeM IJIa 3aunTbI IIOJe. Cm. pa3JeI 3aunTHoe 6OpDIOBaHne.

-03a6oTbTecb, yTo6bI B pa6oey 3OHe He HaxoHIOcB JIOeN KINBOTHbIX.
BbinoJHnTe eHeIHeBHOe 06cJyHnBaHne. CM. yKa3aHnB pa3Je "TexHueckoe 06cJyHnBaHne".
-6eITecbB npaBnIbHoi yCTaHOBe npoBoHa Ha cBeu 3aKnraHna.

3anyck

MoeIb M51-170WRPX, M53-170AWRPX
6OpyObaHa aBTOMaTnueckm peRyJrTopoM
Bo3dyuHoi 3acNoHKn.
MoJeI M46-140RX, M46-140AWRX, M51-140RX
6OpyObaHb pyuHbIM peRyJrTopoM Bo3dyuHoi
3acNoHKn (MeM6paHo).

Pn nepBOM 3anycke ra3oHOKOJIKNI PA Tb pa3 HAnMITE Ha TOJINBHyI HAcOC. NocJe aTOrO He06xOIMMO HAnTaB Ha TOJINBHyI HAcOC eIe TpN pa3a B Cnyae XoIoDHO 3anycka.

-ПиллусkeДВигаTeЯpyKу TopMo3a cIeIyEe T BbITaHyTb B CToPOHy pyKOaTKn ynpaBJIeHn.

• BCTaTb 3a MaunHoi.
  B3aTbCya pyky cTape, npaBoi pykoI MeJeHNo notaHyTb Ha ce6a Tpoc, noKa He NouyBcTByeTc coPOTnBJIeHne (CTapTeBxOHT B 3aCenJeHne). Pe3Ko nToaHyTb Tpoc, YTO6bl 3aBeCTn DBrTaTeJb. HIKoRda He HaKpyuBaYTe cTapTObBmHyp BoKpyr pyKn.

Pa6oTa

HaHMMTe Ha cKO6y npNBOda B HAppaBJIeHN pyKoRTKn, UTo6bI Haatb DnHeHne.

-ПпсдчemNotHyTb arperat Ha ce6a, Heo6xoIMO OTKJIOHTb npINBOI N TOJIKNHYb arperat Bnpeepnp6Jn3nteJbHo Ha 10 cm.

OctTaHOB

• OctahOBIne IuBraTeJIb, OTnycTINB pyKoAryTopMo3a IuBraTeJIa.

O6uine cBeJeHnIa

PNEUYPENHEH!NoIb3oBaTeIb MoHeT BbIOJNHaTb ToJIbKO TaKne pa60TbI NO6cJyHKuBAHNIO H cepBnCy, KoTopbIe ONiCaHbIB DaHHOM pykoBOOCTBe No pa6oTe. Bce npouhe pa60TbI DOJIHHbI BbIOJNHaTbCra ABTOIN3oBAHHoM MacTepCKoI no 06cJyHKuBAHNIO.

IpeIoTbpaTHeHneJaHaMepeHHbI 3anyck,CHRAKabeJIb3aHnraHnco CBeuN3aHnraHn.

Cpok cnyh6bl MaunHb MoHeT 6blb yKopoueH n pnc aBapn yBeJIuYe, ecn o6cnyHbAHne MaunHb He BbINOJHReTc npaBnIbHbIM o6pa3OM n ecn cepBnC n/nn peMOHT He 6bln BbIOJHHe bnpoeeccnHaJIbHo. Ecn Bam Tpe6yeTc dOnOJIHNTeJIbHna HfOpMaUra, 6paTntecb B 6JIHauWyMoCTepCKyU no 06cnyHbAHNo.

06paTHe BnMaHne! EcJn Heo6xOIMO
HaKIOHNb MaunHy, y6eINTeCb, YTO Bo3yHbI
fNtbp HaxoNTcB B BepxHem noIoKeHH.

-ПовьуTecbToJbKO opuHaJIbHbIMN 3aunactrMn.

TpaΦnK TexHnueckoOro 06cnyHnBaHn

B rpaΦke 06cLnyHbAHy yKa3aHo, KaKne YacTn MaINHb Tpe6yIOT TexHnueckOrO 06cLyHbAHnry, nC KaKIMN INTEpBaJAmN OHO IOnHHo npOn3BOIDtbcR. 3TN INTEpBaJIb paCCuHTaHb INCX0rN3 eKeDHeBHOrO NCNoJB3OBaHNrMaINHbI, NMOyTMeHrTbcR B 3aBNCmOcTn OT YaCTOTbl NCNoJB3OBaHNr.

(ToIbko IJIa EBponbl)

Husqvarna AB, SE 561 82 Huskvarna, Sverige, Telen.: [phone], zaBnTc noJHo oTBeTCTBeHHocTbIo, UTo ra3oHokosnMcCulloch M46-140RX, M51-140RX, M46-140AWRX, M51-170WRPX, M53-170AWRPX c cepinHbIMn Homepamn 13XXXXXXN i daJe, coOTBeTCTByIOTpe6oBaHnM dInePektNBbl COBETA:

-ot 17 Ma8 2006 roa, "OTHocntcK MexaHueckomy o6opydoBaHIO" 2006/42/EC
-ot 15 deka6pra 2004 roda 'o6 3JeKToMaHHTHOcOBMeCtUMocTu" 2004/108/EEC.
-ot 8 Maia 2000 rOa o6 mncn yMa B Okpyhaioyio cpeNy" 2000/14/EG.

DonoHnTeIbHaN HOpMaun no 3MnccnM Wyma npNBedeHa B pa3Je TexHnueckne xapaKTepcntKN.

Hnkora He cTapTupaTe MaunHaTa:

Ako cTe pa3JIeJIr TOpNBo UJIMoTOpHO MacJIO Bbpxy MaunHaTa. N3TpNIte pa3JIaNoTo ce TropNBO UJIMacJIO UOCTaBeTe ocTaTbUInTe OT TropNBOTo da Ce n3napaT.
Ako cTe n3JIeJn rOpNBo Bbpxy ce6e cn nnI npexNTe Cn Ce npeo6JeueTe. N3MnIte Te3n YacTN Ha TAnTo Cn, KOnto ca 6NJB KoHTaKT C rOpNBo. N3noJ3BaIte canyH BOda.
- Ako MaunHaTa NMa Teu Ha rOpNBo. IpoBepaItepeIOBHO 3a TeUOb eOT KanaKa N MapKyuHTe 3a rOpNBOTo.

TpaHcnpT n cBxpaHeHne

CbxpaaBaIe TpaHcnpTnpaIte MaunHaTa n ropnbTo TaKa, Ye Da Hma OnacHocTebeHTyaJIeH TeU Nn N3napEnJa BJIa3aT B KOHTaKT C NCKpn Nn OTKpIT NlaMbK, HanpImepOT eJNeKtpNecKn MaunHn, eJKeTPOBnraTeJI, eJKeTpNueeCKn/CnIOBn IpeBkJIIOuBaTeJI Nn HaPeBaTeJI.
-TopnBoTo Tp86Ba Da ce CbXpaH8Ba N TpaHCnpTnpa B CneUmaIHo npeHa3HaueHn 3a Ta3n UeJn Odo6peHn Ty6n.

PpoIbJIHKeTIeHcBxpaHaBaHe

AkoMaunHaTaIe Ce cBxpaHra 3a no-npOdbJIHHTeJIeH nepIOcJIeBa rOpNBnTpe3epBoap Da 6bIe N3npa3HeH.ObbPheTe ce KbM 6eH3NHOCTaHuaTAtcN3a INΦopMaUKbIe Da I3JIeeTe N3JIuBka OTo rOpBO.

JInuHa 3auntHa eKnnpOBka

Pn pa6oTa c MaunHaTa Tpr6Ba BnHa rna Ta no3BaTe
NnHa 3aunTHa eKnnpOBKa oO6peHa OT
cBoTBeTHoTo BeIOmCTBO. NnHaTa 3aunTHa
eKnnpOBKa He n3KJIouBa pNCk O T TpaBMn, Ho
HamaJbBa cepno3HocTt Ha TpaBMta npn
3IonoLyka. Nomone Te CBOy IncTp6yTop 3a nomoi
pnu n36opa Ha noXoJaHa eKnnpOBKa.

Heo6xoDIMOeBnHaRn da n3noJ3BaTe:

-ИлтБаTe TAnu 3a yUIn, aKo HnBOTo Ha WyMa NaBnBa85 db.
Kopabn 60Tuyn nn o6yBkn, KOnTo He ce XJb3rT.
-Дьги naHTaJOnH O T 3dpaB nJaT. He HocTe Kbcn NaHTaJOnH, caHaJI N He pa6oTe 6ocN.
-Пин Нжда ТябВа Да ce Hocrt pБКaBUN, HanpIMeP npu MoHTaH, orJIeN JIN noUcTbaHe Ha peKeuNTe npucnOco6JeHn.

OcHOBn npeIpa3Hm MepKn nToTexHnKaTa 3a 6e3oNaChocT

To3n pa3dien onncBa oChOBHnTe npenopbKn 3a 6e0anacha pa6oTa c MaunHaTa. Ta3n HOpMaun He MoHe Da 3aMeHN pOoecnoHaJHaT a KBaJIuNkAunr N OINT Ha eINH CneUNaJInCT.

-Ппдддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддд徳н ТрочTeВHIMaTeJHo pБKOBoIcTBoTo 3a eKcNlOaTaUngn ce y6eJeTe, ue ro pa3bnpaTe tpaBnJIHo.
He 3a6paBraTe, Ye onepaTopbTe oTROBopeH npn HeuacTHN cJyauH uIN onachocTH, cJyUuIn ce Ha dpyrN xopa NIN TAXHO IMyueCTBO.
MaHnHaTa Tp6Ba Ia ce noIbIbpka YIcTa. 3HaLInTe n CTnKePnTe Tp6Ba Ia 6bDaT HAnBnHo YeTmN.

BnHa n ce ocJaanHrTe Ha 3npaBnCmncbJ

HeBnHaH MoHe Da ce npedyraN BcKa Bb3MoHnCaTyaUa, KOrTo MoHe Da ce c6JIbckaTe. BnHarpa6oTeTe C NOBnIeHO BHIMAHne N Ce OcJaHnTe Ha 3dpaBnCn pa3ym.AKO ce OKaHeTe B CNTyaUa, BKOrTo CyBCTBaTe HeyBepeHocT, npeycTaHoBTe pa6oTa N ce nocBBeTBAInTe Cbc CneLnaJIncT.

CbpeTe ce c BaWnJa nnBp, cepBn3eH areHT nJIn C onNTeH noTpe6nteHa HnCTpyMeHTa 3a p3aHe.

I36yBaIe pa6oTa, 3a KOrTo CMrTaTe, Ye He CTe DocTaTbUHO KBaJIHnIuPaH!

PNEyPENDEHNE！Ta3MaunHa
cB3daBa eJKeKtpoMarHHTHO NOJe no
BpeMe Ha pa6Ota.Pn HAKON
OBCTOReTBA TOBa NOJe MOHe Da
INTePepnpa C AKTNBHN JINn NacNBHN MeNCHKN MmNaHTaHTN.3aJa
HaMaJIte PnCKa OT cepNo3HO JINn
ΦaTaJIHO HapaHbAHe, Hne
PnOpBvBame NlCaTa C MeNCHKN
IMPaHTaNc KOHCyTTnpaT C
JIeKApCn IN pOnI3BOIDNTeJI Na
MeNCHKN IMPaHTaHT, PpeDN da
3anoHAT Da pa6OTc Ta3MaUNHa.

PNEyPENHEHNE! MaunHaTa MoHe Da ce OKaHe onaceH INHcTpMyeHT aKO ce N3NoJ3Ba HnPaBnJIHo Nn 6e3rpnHHo, KOeTo MOHe Da DoBeDe Do cepno3Ho Nn PhaTJIHO HapaHbAHe Ha onepaTopa Nn DpyrN LInca.

Hnkora He no3BoJbAaTe Ha Deca nnI npyn Xopa Da n3noJ3BaT nnO6cnyKBaT MaunHaTa, 6e3 da ca 6oyehn npedBapntelHo.

MaHnHaTa He 6nBa Da ce N3noJ3Ba OTo Xopa C NOHHeHN HN3NuYeCK NmYMCTBHeN Bb3MOXHOCTN NmXopa, KOnTO He e NoDxOJaIO da pa6oTATc MaHnHaTa nopaAaN 3dpaBOcNobHn npuHn, 6e3 Ha6IIOJeHne ot YOBek, OTROBOpEH 3a TxAHATA 6e3onacHOCT.

Hnkora De donyckaIte pyruHa da
n3no3BaT MaunHaTa 6e Da CTe ce
y6eInu, ye Te ca pa36paN
cbIbpcKaHneTo B HcTppyKUInTe 3a
eKcnloaTaUra.

Hnkora He n3noJ3BaIe MaunHaTa aKo cTe yMopeHN, aKO cTe yNoTpe6BaJIaIKoxOJI nnAko B3MaTe MeNkAmEHTN, KOInTO Bb3JeCtBA Tn 3peHHeTo BN, npEChKaTa BN nn KoopDnHaUra Ta BN.

IPEJYIPENHEDEHNE! Hepa3peeHn H3MeHeHn I/II npncnoc6JeHn Moat Da IOBeDAt Do cepno3Ho HapaHbAne IIN CmBpTHN CnyaHn HnOte6ntJI NIN dpyrN JInca. PnHnKaKbN 06ctoTeJIcTBA He 6nBa da Ce BHaCrt N3MeHeHn B nbpBOHaJaHaTa KoHcTppyKUHa MaunHaTa 6e3 pa3peHne Ha npOn3BOdNTeJI.

Hnkora He npomHeT Ta3n MaHHa no Haun, KOTo He CbOTBeCTBa Ha opnHaJIHaTa KOHcTpKUry, H He n3noJ3BaIe KOraTO Ce BnJa, Ye e 6nla npomHeHa oT HkOJ dpyr.

He pa6oTe c Hen3npaBHa MaunHa.
N3BbPwBaIte OnncAHnTe B TOBa
pBkoBOdCTBO 3a eKcnloaTaun
peoBHN pOBePK, noDpBkKa n cepBn3. OnpeJeHn onepaun no
noDpBkKaTaN cepBn3a ce
N3BbPWBaT eINHCTBeHo OT
KBaJINoHnPaHn CneUaJIncTn.

NoJ3yBaIte cAmo opnHaJIHn npncnoc6JeHn.

БezonaHocT ha pa6oTHaTa o6JaCT

KJIOHOBe,BeiKn,KaMbHnIpyrN Tp8BaJa 6bDat npemaxHaTOnOT MopabaTa, npen Da 3anoHeTe Da Kocnte.
- PpeMeTn, ydprau npKeHTo o6OpyDbAHe, MoaT da 6bDaT n3XBpJeHN I da npNHyT BpeHn Ha xopa n ppeMeTn. Ha6JIn3o He 6nBa Ia IMa BbHsHn Xopa n HINBOTHN.
- He pa6oTeTe npn lown KJImaTnUH yCJIOBn. HanpIMep npn nIbTHa MbIa, cnJeH dIbHd, cnJeH BArTpBp, cnJeH cTyd n T.H. Pa6oTaTa B Ioo BoPeMe e N3MOpHTeJIHa n MoJe da Do BoDeDo Bb3NkBaHe Ha onachn cNTyaCIN, HanpIMep Do NoBaTa Ha Xlb3raBn yAcTbU.
Ha6IIOdaBaTe OKOHaTa CpeJa, 3a Da cTe cnrypHn, Ye HNIO HMa Da nonpeuHa pa6oTaTa Bn C MaunHaTa.
BHNMaBaIe 3a KopeH, KaMbH, BeiKN, rMn, DynKu N T. H. BucKaTa TpeBa MoHe Da Kpne npenrTcTBn.
KocHeTo no cKNoH MoHe Da 6bDe onaCHO.He N3noJI3BaIte KocayKaTa Ha MHoro cTpBMn ICKIOHOBe. KocayKaTa He 6uBa da ce n3noJI3Ba Ha cKIOHOBe, No-CTpbMHN O T 15 rpaDyca.
BHaKJIoHeH TepeH CJIeDBA npoxoHaTa nTbTeKa Da ce npokapa Hnnpa KaHO HaCKJIOHa. 3HaunTeJIHO NO-JIeCHO eJa Ce DBNHITe HAnpKaHO Ha CKJIOHa, OTKOJIKOTo Da ce N3KaUBaTe n CIn3aTe No CKJIOHa.
BHMaBaITe, KOrATo npu6JIuHaBaTe cKpNTn TgJIn nPpeMTeN, KOITo MoRaT da 6JIoKnpaT 3pHTeJIHOTo BN noJe.

БezonaHocT npa6oTa

KocaykaTa e czbdaHa cAmo 3a KoceHe Ha Mopabn. BcnyKn npyr nuNoTpe6n ca 3a6paHEn.
-ИзnoЛЗвай Te ЛчHaТа 3aUnTHa ekInnupOBka. Bнь уka3aHЯТа b pa3deJлЧHa 3aUnTHa ekInnupOBka.
He cTapTnpaTe Kocayka,OCBeHaKOpe3eTn BCnUKN Kaanu ca nocTaBEn npaBnIHO. B npoTnBEH cnUyau pe3eT MoHe da ce paXla6n n Da npeDn3BnKa TpaBMn.
- YBepTe ce, Ye pe3eT HЯMa Da yДapn DpyrN 06eKTH, KaTo HApnMep KAmbHn, KopeHn NJIu Dpyr. Toba MoHe Da 3aTbHn pe3eua n da OByceKUHOHHBaJ Ha DBVraTeJy.Ako eOrbHaT, OCTa MoKe Da npuHn Dnc6aIaN CInHn Bn6paun, KoETo Da DoBeJe Do rOJaM PnCK 3a ocBo6oHdaBaHe Ha pe3eua.
PbukTa 3a cnIpaKaTa HIKora He 6nBa da 6bJe nepMaHeHTHO 3actOnopeHa,IOkATO MaunHaTa pa6OTn.
- NocTaBeTe KocauKaTa Ha cTa6nHa, nIocka noBbpxHocT Ia CTapTupaIte. YBepeTe ce, Ye

pe3eT He MoHe Da BJIe3e B KOHTaKT CbC 3emrTa Nn npyn 06kTN.

BnHar6bTe3aMaunHaTa.No3BoJeTe BCnUKNKoJIeJa DaocTaHaT Ha 3emrTa IN dpbHTe NDBeTe CNpLHe Ha pKoXBaTKaTa, KOraTO KOCITE. DpbHTe PbIeTe N KpaKaTa Cn daJeO T BbPTaUNTE ce ocTpneTa.
- He Na Ka Hny Te MaunHaTa, KoraTo eJeKtpoDbnraTeJrT pa60Tu.
Oco6eHO BnMaBaTKe, KOraTo IbPnaTe MaHHaTa KbM ce6e cn no BpeMe Ha pa6oTa.
HInKora He BInrAaTe NIn HocTe KocayKaTa,doKaTo dBnraTeJrpa6oTu.Ako ce HaIar aBdHHeTe KocayKaTa, npBoN3KJIIOUeTeDnRaTeJrN3KJIIOUeTe Ka6eJa 3a3anaJIbHaHETo OT 3anaJIInTEJHaTa CBeu.
-ДВИгаТелЯТРЯ6ВаДа 6Бдe ИЗКЛЮЧЕН, KOraTo ce npIuBnHbTe npe3 noBbpxHocT, KOrTo HЯMaДа 6Бдe KoceHa. HanpIMep, nbTeKc c YaKbJ, KaMbK, peuHn KaMbHn, acФaNTИдр.
- HNkora He TnayaiTe c MaunHaTa, DoKaTo Ta pa6oTn. BnHaru Tpr6Ba da B'bpBNTe c KocauKaTa.
-ИЗклочeteДВигаTeJIЯ,пpeДиДа npomehITE BIncoUHaTaHa p3aHe.HNKOra He perylnpaIte,ДOKaTOДВиrgaTeJIaTpa6OTn.
Hikora He ocTabraIte MaunHaTa 6e3 Ha3Op,doKaTo DBVaTeJrPa6oTu.N3KJIouyeteDBVaTeJr.YBepeTeCe,Ye peKeJeTO o6OpyDbAHe e cnpJIo Da ce BbptN.
AkoHraKaBcTpaHueH 6eK7 6bJe yIapeH nnCe noLyuAT Bn6paun, BeHa rCaPeTe MaunHa. Pa3KaueTe HT-ka6eJa ot 3anaJIteJIHaTa CBeU. PpOBepTe MaunHaTa daJH He e NobpeDeHa. NOnpaBeTe BCa Ka NobpeJa.

OchOBHn npHcHn Ha pa6oTa

BunHarppeHeCocTpOocTpne3aonTmMaJIHN pe3yJITaN.HTbNeHOToocTpneDBA HepaBeH cpe3n TpeBaTaCTaBAKbJITaNO NOBbpxHOCTTa Ha cpe3a.
Hikora He KocTe noBce oT 1/3 ot IbIHHaHa Ha TpeBaTa. ToBa ce OTHacr oc6eHO 3a cyxn nepnoi. IIpbBO KocTe npn BucOuHa Ha pR3aHe, 3aJaEHa Ha BucOka. CJeI TOBa npoBepTe peyJtTa n HamaJIte Do cbOTBeTHaTa BucOuHa. Ako TpeBaTa e MHO rIbIra, KapaIte 6abHo I - aKO e Heo6xoIMo - OKocTe DBA nTn.
- PeKHeBCEKNnB Ta3JNUHINOCOKN,3a Da n36eHHeTJeHHN B Mopabata.

TpaHcnpT n cBxpaHeHne

-06e3onaceTe o6opyuBaHeto no BpeMe Ha TpaHCnOpTnpaHe, 3a Ja n36erHeTe noBpeJa n HUdEHTN.
CbxaHbAte 06OpyDbAHeTo B3akJIOUBaO ce MAcTo, TaKa Ye Da 6bIe N3BbN DoCTbNa Ha DeLa NNI HeynbHOMoSeH JNuca.
CbxaHbAaTeMaunHaTaNo6OpyDbHeTo Ha cyxoN3auntetoOTCKpeMrcTo.
-3a TpaHcnopTnpaHe n 3apeKdaHe c rOpNBO B. pa3deJa r3apeKdaHe c rOpNBO".

Статуше И堕КлочаHe

PpeiIa 3anouHeTe

PNEyPENHEHIE！PpeNda 3anoHeTe pa6oTa c MaunHaTa npoYeTe BnMaTeJHo pBKOBoIDCTBOTo 3aeknloaTaUH nCe y6eJeTe, ye ro pa3bnpaTe npabNJHo.

I3noJI3BaIte JInuHaTa 3aunTHa eKnnpOBKa.BIN yKa3aHnra Ta B pa3JeI JInuHa 3aUnTHa eKnnpOBKa.

B30HaTaHa pa6Ota He 6nBa Da nMa BbHnHn Xopa.
ИЗВьршваite BCEKNДHeBHOТexHnuecko 06слунbaHe.Б.уKa3aHnraTbpa3deI rNoДрьнka".
- YBepete ce, ye Ka6eJbT 3a 3anaJbHaHeTo e npabNJHO NOCTaBeH B 3anaJIHTeJHaTa CBeU.

CTapTnpaHe

MодeЛ M51-170WRPX, M53-170AWRPX e o6opуdBaH c aBtOMaTnueH 3arLnyuNTeJ.

Mодел M46-140RX, M46-140AWRX, M51-140RX pa3noJaraT cpbueH 3aIyWnteJ (OCHOBnIcenapaTop).

Ako cTapTnpaTe KocayKaTa 3a nbpBn nbT, HaTncHeTe rOpNBHaTa nomna neT nbTu. CJeD ToBa HaTnCKaIe TropNBHaTa nomna no Tpu nbTu npn CTapTnpaHe cOxJaDeH dBVaTeJ.

PbkoxbatkataHa cnnpaKaTa Ha DBVaTeJr Ta6Ba Da ce DbpHn Cpeu rOpHTo ynpabLeHne npn CTapTnpaHe Ha DBVaTeJr.

-3actaHeTe 3aMauHHaTa.
XBaHeTe DpBHKaTa Ha CTapTepa Nn3TerIe Te 6aBHO cTapTepHna Whyp C DaChTa pKa Do noLoJeHne, KOraTo yceTnTe CbnpoTNBa (3b6uTe Ha cTapTepa 3aenBAt).NdbpNaTe cnlnHo Whpya,doKaTo DBnraTeJrT 3ana. He 6nBa HnKora Da HABnBaTe cTapTepHna Whyp OKoJo PbKaTa cn.

3aDnBnBaHe

HaTnCHeTe IocTa 3a 3aDbNnBaHe KbM pKoXBaTKaTa, 3a Da cTapTnpaTe 3aDbNnBaHETo.

-ПпeДи Да пИдьрпаТе МашинагаКьм ce6e cn,ocBo6OJeTe 3aДВиЖBaHepTo И пИдьижeteMaшинагаТа HanpeД Ha пИбЛиЗnteЛно 10cmpa3cToJHHe.

N3KJIIOUBaHe

CnpeteIbIraTeJIa,kaToOTnycheTeIpBHKata Ha cnnpaKaTaHa IbIraTeJIa.

OcHOBn npHcHnI

PNEUYPENDEHNE! NToTpe6nteJrTp6Ba Da n3BbPwBa cAmo pa6oTaTa noNoDpBHKKaTa N o6cLyHBAHeTo,ONncaHN B To3n HApbYHKn HaonepaTopa. No-KpyNHTe peMOHTN Tp6Ba da ce n3BbPWBat B cepBN3.

IpeoTbpaTe HeHeJaHo cTapTnpaHe, KaTo n3BaJnte 3anaJIteJIHHa Ka6eI OT 3anaJIteJIHaTa CBeu.

EknoaTaOnHnT cok Ha MaunHaTa MoKe Da 6bDe HamaJeH, a PnCKbT OT Heuactn CnyuYyBeNueH, aKO TexHnueckoTo 06cJyXBaHe Ha MaunHaTa He ce npoBeHKda npaBnIHO n aKO 06cJyXBaHeTo N/UNpeMOHTHnTe DeHocTu He ce N3NbJIHBAr TnpoFecNoHaJIHo. Ako Imate HyJa oT OSe INHOpMaUra, MoJra, 06bPheTe ce KbM H-6Jn3Kn cepBn3.

BHIMAHHE!PnHaKJaHHe Ha MaunHaTa BnHaN ce yBepaBaiTe,Ye Bb3DyHnT FInIe pa3noJIOKeH Bb3MOHHO HAI-BNCOKO.

-ПолуБаite само opиннанлни npucnoc6JIeHЯ.

TexHnuecko 06cIyXBaHe

Uzemanayagkeverek 178

Tankolas 178

Huskvarna, 2012 December 5.

Bendri principal 234

Prieziurosgrafkas 234

Bendroji patikra 234

Zvake 235

Sankabos laido derinimas 235

Oro filtras 235

Alyvos keitimas 235

Kurosystema 235

TECHNINIAI DUOMENYS

Techninai duomenys 236

EB patvirtinimas del atitikimo 237

Dékojame, kad pasirinkote Husqvarna" gamin! Tokiu buduprisijungiate prie istorijos, kuri prasidejo seniai, kai McCulloch Corporation" pradéjo varikliu gambya Antrojo pasaulinio karometu. 1949-aisias metais, kai McCulloch" pristaté savopirmaji lengvaji vieno Žmoga valdoma grandinini pjukla, medzio apdirbimas pasikeite visiem laikams.

SIGURNOSNA OPREMA STROJA

Opencito 254

MONTIRANJE I PODESAVANJA

Opencito 255

Rucek 255

Visina rezanja 255

Sakuplajc 255

	M46-140RX	M46-140AWRX	M51-140RX	M51-170WRPX	M53-170AWRPX
Motor
Proizvodač motora McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCullochMcCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McColloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloch McCulloh McCulloch McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCullohMcCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McCulloh McColloh McCulloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McCollol h McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McCollohMcColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McCalloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McColloh McCollo

Napomena 1: Navedena nazivna snaga motora je prosjechna neto izlazna snaga (pri navededenom broju okretaja u minuti) tipicnog proizvodnog motora za odredeni model mjerena prema standardu SAE J1349/ISO1585. Vrijednost se moze razlikovati za motore za masovnu proizvodnju. Stvarna izlazna snaga motora ugradenog na konacnom uredaju ovisit ce o brzini rada, radnom okruzenju i ostalim vrijednostima.
Napomena 2: Stvaranje buke prema okolini izmjerena kao zvučni tlak (LWA) prema EC-uputi 2000/14/EC.
Napomena 3: Razina zvučnog tlaka prema normi EN 836. Podaci o razini zvučnog tlakaPokazuju tipicnu statisticku disperziju (standardna devijacija) od 1,2 dB (A).
Napomena 4: Razina vibracije prema normi EN 836. Podaci o razini vibracijePokazuju tipicnu statisticku disperziju (standardna devijacija) od 0.2m / s^2
*Koristite motorno ulje kvalitete SF, SG, SH, SJ ili bolje. Tablice viskoznosti potražite u korisničkom prisuručniku proizvodaca motora i odaberite najbolju viskoznost s obzirom na očekivanu vanjsku temperaturu.

Povolte spodnmatice.

nVnVnVnVnVnVnVnVnVnVnVnVnVnVnVnVnVnVnVnVnVnVnVnVnVnVnVnVnVnVnVnVnVnVnVnVnVnVnVnVnVnVnVnVnVnVnVnVnVnVnV

Γηνικός ἐλήγχος

Bnbaowbnitnt oTa Ta moulaovia kal ta naEiuaia niva
