USER MANUAL Latte Premio LP16 ILLY

Perfect frothed milk within seconds

GB

Operating Instructions

NCI

Cappuccino 9
Caffe Latte/Hot milk 9
Latte macchiato 9
Increasing capacity 9

1. Programming the fill up level / default time 10
   Heating 10
   Frowning 10
   Reset to factory settings 10
2. Energy saving mode 10
3. Protection function 11

7.Cleaning the Appliance 11

Before the cleaning process 11
Cleaning programs 11

1. Descalng 12
   Decalcification 12
2. Troubleshooting 13
3. Storage / Disposal 13
4. Technical data 13

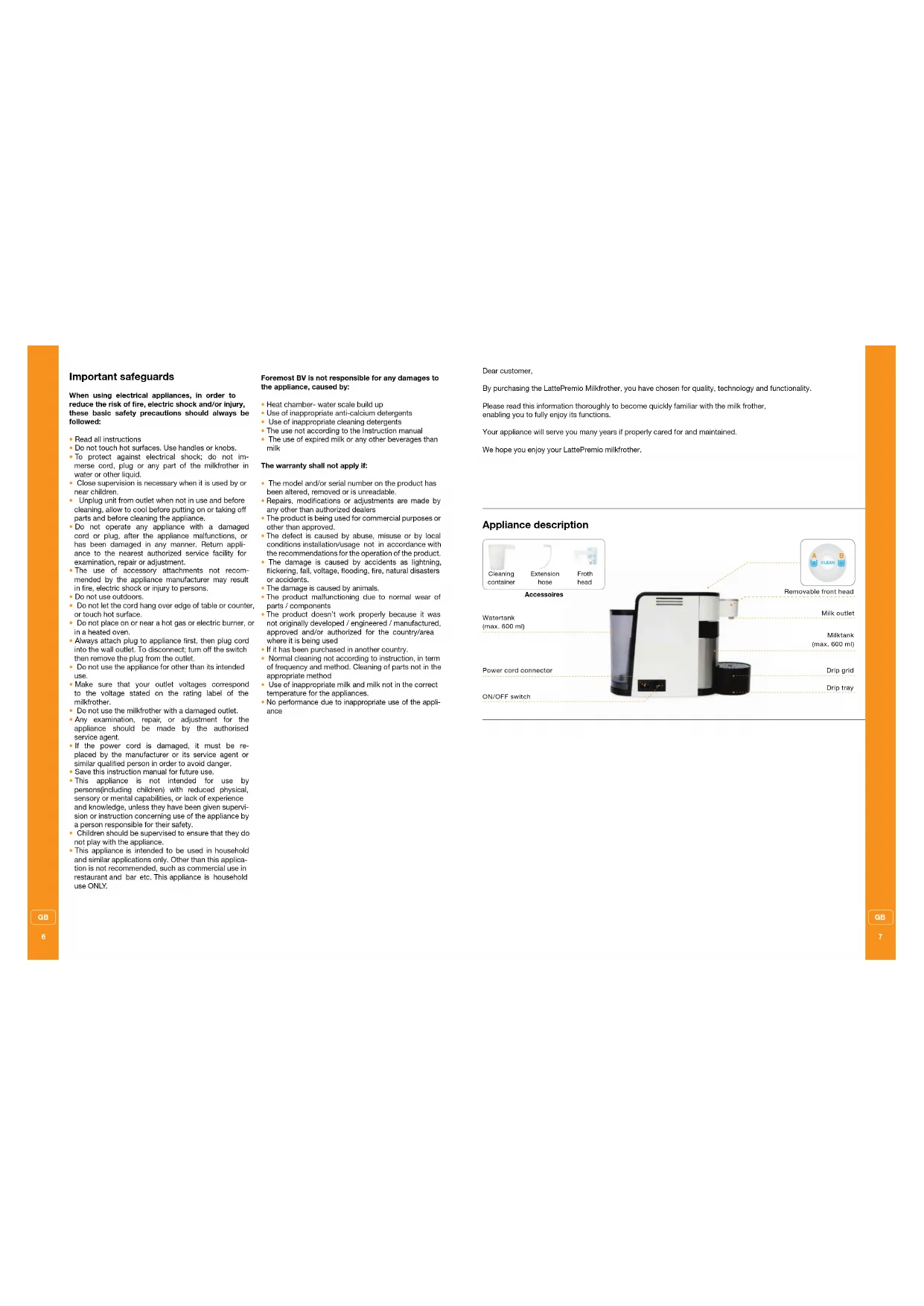

Important safeguards

When using electrical appliances, in order to reduce the risk of fire, electric shock and/or injury, these basic safety precautions should always be followed:

Read all instructions
- Do not touch hot surfaces. Use handles or knobs. - To protect against electrical shock; do not immerse cord, plug or any part of the milkbrother in water or other liquid.
- Close supervision is necessary when it is used by or near children.
- Unplug unit from outlet when not in use and before cleaning, allow to cool before putting on or taking off parts and before cleaning the appliance.
Do not operate any appliance with a damaged cord or plug, after the appliance malfunctions, or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair or adjustment.
- The use of accessory attachments not recommended by the appliance manufacturer may result in fire, electric shock or injury to persons.
Do not use outdoors
Do not let the cord hang over edge of table or counter, or touch hot surface.
Do not place on or near a hot gas or electric burner, or in a heated oven.
Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect; turn off the switch then remove the plug from the outlet.
- Do not use the appliance for other than its intended use.
Make sure that your outlet voltages correspond to the voltage stated on the rating label of the milkfrother.
- Do not use the milkbrother with a damaged outlet. - Any examination, repair, or adjustment for the appliance should be made by the authorised service agent.
- if the power cord is damaged, it must be replaced by the manufacturer or its service agent or similar qualified person in order to avoid danger.
- Save this instruction manual for future use. - This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
This appliance is intended to be used in household and similar applications only. Other than this application is not recommended, such as commercial use in restaurant and bar etc. This appliance is household use ONLY.

Foremost BV is not responsible for any damages to the appliance, caused by:

Heat chamber- water scale build up
- Use of inappropriate anti-calcium detergents - Use of inappropriate cleaning detergents
The use not according to the Instruction manual The use of expired milk or any other beverages than milk.

The warranty shall not apply If:

The model and/or serial number on the product has been altered, removed or is unreadable.
* Repairs, modifications or adjustments are made by any other than authorized dealers
The product is being used for commercial purposes or other than approved.
- The defect is caused by abuse, misuse or by local conditions installation/usage not in accordance with the recommendations for the operation of the product. - The damage is caused by accidents as lightning, flickering, fall, voltage, flooding, fire, natural disasters or accidents.
The damage is caused by animals.
- The product malfunctioning due to normal wear of parts / components

• The product doesn't work properly because it was not originally developed / engineered / manufactured, approved and/or authorized for the country/area where it is being used

If it has been purchased in another country.
Normal cleaning not according to instruction, in term of frequency and method. Cleaning of parts not in the appropriate method
- Use of inappropriate milk and milk not in the correct temperature for the appliances.
No performance due to inappropriate use of the appliance

Dear customer,

By purchasing the LattePremio Milkrother, you have chosen for quality, technology and functionality.

Please read this information thoroughly to become quickly familiar with the milk frother, enabling you to fully enjoy its functions.

Your appliance will serve you many years if properly cared for and maintained.

We hope you enjoy your LattePremio milkfrother.

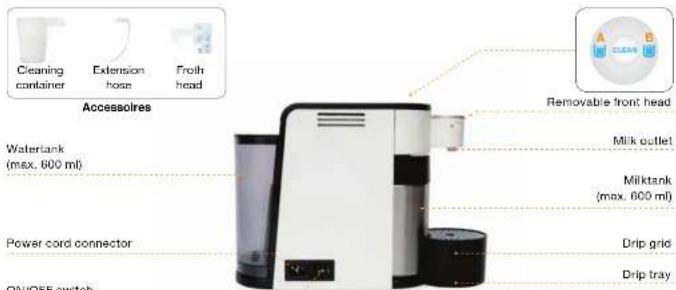

Appliance description

Before the first use or after a longer period of non-use

Fill water tank with fresh water (max. 600 ml)

Place cleaning cup

Plug into mains & switch the appliance on

Run cleaning program (see chapter: cleaning)

Heating up
Ready

NOTE

• Do not use sparkling water or distilled water in water tank. Use ordinary tapwater, or still bottled water when living in a hard water area.
• Do not place the appliance in direct sunlight, near oven or other hot surfaces to prevent the millettemperature in the milktank to increase.

Daily, before use

Fill water tank with fresh water (max. 600ml )

Fill milk tank with cold fresh Switch the appliance on milk (min. 200 ml / max. 600 ml)

Switch the appliance on

NOTE

• Milk must be stored in the refrigerator at 4^ before use.
  In order to keep the milk fresh we recommend to refresh the milk in the milktank every hour.
• For best frothed milk performance we recommend to run the appliance once in frothing function with milk in order to remove any air and water out of the frothhead

Preparation

Cappuccino Caffe Latte / Hot milk
Place cup on drip tray

Press button B Place cup on drip tray Press button A
drip tray Press button A

Latte Macchiato
Replace high drip tray for low drip tray

Place a Macchiato glass underneath the milk outlet.

Press button B

NOTE

If not in use: store milktank into refrigerator
Temperature: Hot milk: approx. 50^ , Milkfoam: approx. 60^

Increasing capacity
Remove front cover

Attach extension hose Place extension hose in external container / milkcarton

Programming the fill up level / default time

Heating (default time 30 sec./approx.120 ml hot milk)

Press A for approx. 3 seconds until it flashes

Press A again to set the cup volume

Setting range cup volume 5 - 60 seconds

Frothing (default time 20 sec./approx.100 ml foam & milk)

Press B for approx. 3 seconds until it flashes

Press B again to set the cup volume

Setting range cup volume 5 - 30 seconds

4.3 Reset to factory settings

Press both buttons simultaneously for 3 seconds

Energy saving mode

After 5 minutes of NON using the appliance, the appliance will automatically switch into energy-saving mode. The buttons will light up alternately.
- By pressing either one of the buttons, the appliance will resume in normal function mode.
- The energy-saving mode time can be changed from 5 minutes (factory default time) to 30 minutes.
- For 5 minutes setting: press and hold button A and switch on power until all buttons light up.
- For 30 minutes setting: press and hold button B and switch on power until all buttons light up.

Protection function

The CLEAN button will flash fast when the front cover or the milktank will be removed from the appliance.

Cleaning the appliance

Before starting the cleaning process

Fill water tank with fresh water (max. 600 ml)

Take out the milktank and place cleaning cup

Fill the milk tank with water for thorough cleaning (min. 200ml / max. 600ml )

This appliance has two cleaning programs: short clean & long clean

The application is as follows:

Long clean x2 Short clean

Before the first use
After long period of non-use
- When appliance not in use

Before the first use every day

• Between each cup if the then 30 minutes.

Press the button once for a short program (30 seconds)

Hold the button for

2 sec to start a lang program (60 seconds)

NOTE

• It is compulsory to clean the front cover and the froth head in water after the LONG CLEAN program, for hygienic purposes. The milk tank and suction pipe must be cleaned after use. It is recommended to immerse them in warm water overnight.

Cleaning the outside of the appliance

Remove the plug from the outlet before cleaning the appliance.

Wipe outside with a soft, dry cloth, after the appliance is cooled down. Never use metal polish!

The removable items are NOT dishwasher safe

Dscaling

NOTE

• Run decalcification every 3 months or after 300 cycles.
  Total run time is 5 mins at a water temperature of 65^
• Start the decalcification program only when the appliance is COLD (CLEAN button lights up). Decalcification program will not start if appliance is HOT (All buttons light up)

Preparation

Switch off the appliance and remove all accessories

Fill water tank and add decalater to recommended ratio on box

Place large glass or container underneath the milkoutlet

Decalcification

Hold down the clean button and switch on power until all buttons light up

When CLEAN button lights up the appliance is ready for decal cycle Press CLEAN button

After decalcycle clean and refill water tank (keep appliance switched on)

Press CLEAN button once for 5 min, run with tap water. Run 2 times

NOTE

Make sure there is no descaler left in water tank.
After decalcification & rinse process, switch off the appliance to exit the decalcification mode.

Switch appliance off, remove water tank and froth head

Clean the water tank and froth head under tap water

Attach froth head and cleaning cup and switch appliance on

Run the 'Long clean' program at least 2 times. After this the appliance is ready for use

Troubleshooting

Faults Possible cause Repairs

Indicator lights do not flash after switching on the appliance No milk flow · Water tank empty

not in socket or power card sector

• Front cover not attached properly

Connect plug

• Suction pipe from milk tank lid not assembled

• Connect suction pipe to lid from milk tank

Button B flash fast - The appliance is overheated - Switch appliance off until it is

Button A flash fast - Environment is too cold.

Less than 5 degree ^ C

• Place the appliance to room temp environment. If button A still flashes fast contact service center.

NOTE

If you cannot solve the problem following the steps outlined above, please contact the customer service.

SUNSET guster screw!

Storage / Disposal

图

If you do not need the appliance for an extended period of time, allow it to cool down and clean the appliance as described in the chapter Cleaning and Care to prevent mould formation. Mould fungus represents a health risk and stains may develop on the unit which can no longer be removed. Electric and electronic end-of-life appliances often still contain valuable materials. However, they also contain hazardous substances which were required for their proper function and safety. If disposed of with regular household waste or treated incorrectly they can pose a risk to human health and the environment.

NOTE

• Use the collecting station in your municipality to return electrical and electronic end-of-life appliance for recycling. Obtain the information required, if necessary, from your city hall, your waste disposal company or your dealer.
• Render the appliance unusable before disposal. Make sure your end of life appliance is stored safely away from children until hauled away.

Technical data

Dimensions (W x H)	254 x 360 mm
Approx. weight	3.34 kg
Operating voltage	220-240 V
Frequency	50 - 60 Hz
Power consumption	1000 W
Length of cable	1,5 m
Watertank	600	ml
Milktank	600	ml
