Brisk - Stroller Joie - Free user manual and instructions

Product Type	Stroller
Brand	Joie
Model	Brisk
Maximum Child Weight	22 kg (birth - 48 months)
Materials	Plastic, fabric
Safety Standards	EN 1888-2018
Number of Recline Positions	5 angles
Safety Harness	5-point (shoulders + waist + crotch)
Brake Type	Brake pedal
Front Wheels	Removable, swivel with lock
Rear Wheels	Removable
Canopy	Yes, with extension
Footrest	Adjustable
Storage Basket	Max load 4.5 kg
Folding	Yes, with storage latch
Carry Strap	Yes
Usage	Walking only (no jogging or skating)
Included Accessories (depending on model)	Rain cover, foot muff, bumper bar, head support
Fabric Care	Cold wash, no bleach, dry without creasing
Frame Care	Mild soap or warm water, no harsh detergent
Wheel Lubrication	Light oil (silicone, anti-rust, sewing machine)
Brake System Cleaning	With clear water if necessary

Frequently Asked Questions - Brisk Joie

How to open and close the Brisk stroller?

To open: unlock the storage latch, lift the handle, then press the foot plate until you hear a click. To close: press the folding button, turn the handlebar upwards, then push the stroller forward. Lock with the storage latch.

How to adjust the backrest recline?

The backrest offers 5 angles. To recline: squeeze the adjustment button located at the back, then adjust the backrest to the desired angle. To raise: simply push the backrest upwards.

Can I use the Brisk stroller for jogging?

No, the Brisk stroller is designed for walking only. Do not use it for jogging or skating.

How to attach a Joie car seat to the stroller?

First, set the backrest to the lowest position. Attach the car seat (compatible Gemm, i-Snug models) according to the seat manual instructions. Do not fold the stroller with the seat attached.

What is the maximum weight supported by the stroller?

The stroller can accommodate a child up to 22 kg (from birth to approximately 48 months). Never exceed this limit.

How to clean the stroller fabric?

The removable cushion can be washed in cold water, without bleach. Dry it without wringing. For the frame, use mild soap or warm water. Avoid harsh detergents.

What to do if the wheels squeak?

Apply a light oil (silicone, anti-rust, or sewing machine oil) to the axles or wheel system. If the brake is stiff, first clean the mechanism with clear water, then lubricate.

How to use the rain cover?

Place the cover over the stroller and secure the Velcro straps. Ensure the canopy is in the low position and the child seat is removed. Check ventilation. Do not fold the stroller with the cover on.

How to adjust the safety harness?

Use anchors A or B depending on the child's size. Adjust the shoulder strap height to the shoulders. The belt should be comfortable, with a palm's thickness gap between the child and the strap.

Does the stroller come with accessories?

Depending on the model, accessories such as a rain cover, foot muff, bumper bar, and head support may be included. They may also be sold separately depending on the region.

USER MANUAL Brisk Joie

IMPORTANT - READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

Accessories (not included in purchase) Rain Cover A

Rain Cover B

Detach Soft Goods
FIGURE 37-41

7
8

NOTE

Welcome to Joie

Congratulations on becoming part of the Jole family! We are so excited to be part of your journey with your little one! While traveling with the Joie BRISK® you are using a high quality, fully certified stroller, approved to European safety standards EN 1888-2:2018. This product is suitable for use with children weighing under 22 kg. Please carefully read this manual and follow each step to ensure a comfortable ride and best protection for your child.

IMPORTANT - READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

Visit us at joebaby.com (to download manuals and see more exciting Joe products!) For warranty information, please visit our website at joebaby.com

Contents

Figures 1-9

WARNING 13

Stroller Assembly 14

Open Stroer 14

Assemble Front Wheels 14

Assemble Rear Wheels 14

Assemble Hood 15

Stroller Operation 15

Adjust Backrest Angle 15

Use Buckle 15

Use Shoulder & Waist Harnessed 15

Adjust Calf Support 15

Use Front Swivel Lock 16

Use Brake 16

Use Hood 16

Fold Stroller 16

Use Carry Strip 16

Accessories 16

Detach Soft Goods 17

Care and Maintenance 18

Emergency

In case of emergency or accident, it is most important to have your child taken care of with first aid and medical treatment immediately.

Product Information

Read all the instructions in this manual before using this product. If you have any further questions, please consult the retailer. Some features may vary depending on model.

Product Briak Stroller

Suitable for Child weighing under 22kg(birth - 48 months)
Materials Plastics, metal, fabrics
Patent No. Patents pending
Made in China Brand Name:
Brands Name 301
Manufacturer Allison Baby UK Ltd.

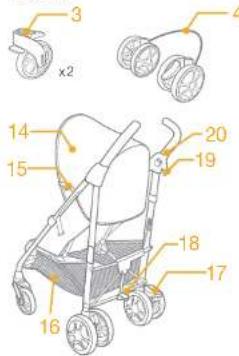

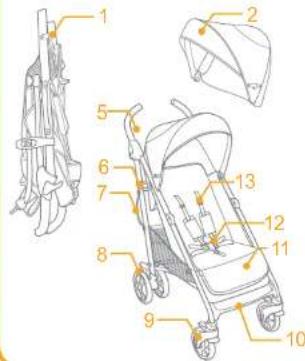

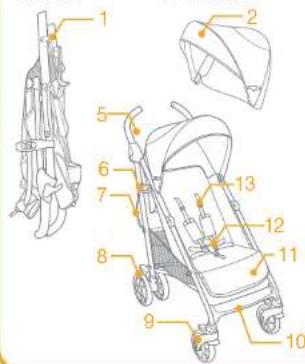

Parts List

Make sure all parts are available before assembly. If any part is missing, please contact local retailer. No tools are required for assembly.

1. Strangler Frame
   2.Hood

2. Front Wheel (x2)
   4 Rear Wheel
   Assembly
   5 Handle

3. Storage Latch

4. Carry Strap
   8 Bear Wheel
   8 Front W
   10 Footrest
   11 Calf Support

5. Buckie
   13 Safety Harness
   14 Hard
   15 Hood Mount
   15 Storage Basket
   17 Brake Lever

18.Foot Plate
19. Folding Handle
20. Ficking Button

Accessories (Non-included)

1. Rain Cover
   2 Footmuff
2. Ambar Cover
3. Head Support

WARNING

WARNING Always use the restraint system.
WARNING Always use the crotch combination with the waist belt. It is suggested that the shoulder harnesses should be used as well.
WARNING Ensure that all the locking devices are engaged before use.
WARNING Do not let the child play with this product.
WARNING Check that the pram body or seat unit or car seat attachment devices are correctly engaged before use.
WARNING To avoid injury ensure that the child is kept away when unfolding and folding this product.
Adult assembly required.
Do not use the stroller with a child weighing more than 22kg . It will cause damage to the stroller with an unfitted child.
To prevent a hazardous, unstable condition, do not place more than 4.5 kg in the storage basket.
WARNING Never leave the child unattended. Always keep child in view while in stroller.
Use the stroller with only one child at a time. Never place purses, shopping bags, parcels or accessory items on the handle or hood.
Only replacement parts supplied or recommended by the manufacturer/distributor shall be used.
Please read all the instructions in the manual before using the product. Please save instruction manual for future use. Failure to follow these warnings and instructions may result in serious injury or death.
To avoid serious injury from falling or sliding out, always use seat belt.
Make sure your child's body is clear from the moving parts when adjusting the stroller.
Child may slip into leg openings and be strangled if the harness is not used.
: Never use stroller on stairs or escalators.
1 Keep away from high temperature objects, liquids, and electronics.
Never allow your child stand on the stroller or sit in the stroller with head toward front of stroller.
Never place the stroller on roads, slopes or dangerous area.
Do make sure all mechanisms are fixed before using the stroller.
Avoid strangulation,do not place items with a string around your child's neck,suspend strings from this product,or attach strings to toys.
Any load attached to the handle and/or on the back of the backrest and/or on the sides of the vehicle will affect the stability of the vehicle.
Do not lift stroller whilst child is in it.
Do not use storage basket as a child carrier.
To prevent tipping, never let child climb the stroller. Always lift the child in and out of the stroller.

1 Avoid finger entrapment, use care when folding and unfolding the stroller.
1 Be sure the stroller is fully open or folded before allowing child near the stroller.
To ensure your child's safety, please make sure all parts are assembled and fastened properly before using the stroller.
Avoid strangulation,do make sure your child is clear from the hood.
Always engage the brakes when parking the stroller.
Discontinue using your stroller if it is damaged or broken.
Stroller to be used only at walking speed. This product is not intended for use while jogging.
To avoid suffocation, remove plastic bag and packaging materials before using this product. The plastic bag and packaging materials should then be kept away from babies and children.
For infant child restraints used in conjunction with a chassis, this vehicle does not replace a cot or a bed. Should your child need to sleep, then it should be placed in a suitable pram body, cot, or bed.
This product is not suitable for running or skating.
1 Pushchair designed to be used from birth shall recommend the use of the most reclined position for new born babies.
The parking device must be engaged when placing and removing children. Never use accessories, parts or components not produced or approved by the manufacturer.
1 Do not attach items to the handle, seat back or sides of the stroller. Any additional load will affect the stability of the stroller and could cause the stroller to tip.
Extra Care is needed if used on moving vehicles and child should not be left unattended, even with brakes engaged.

Stroller Assembly

Please read all the instructions in this manual before assembling and using this product.

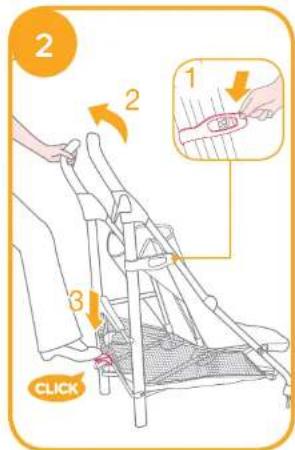

Open Stroller

Separate storage latch from storage mount 1, and then lift the handle upwards -2, push the footplate

downwards with foot 3 . a click sound means the stroller is on

Check that the stroller is completely open before continuing.

Assemble Front Wheels

Assemble front wheels to front legs. Check that wheels are securely attached by pulling on wheel assemblies.

The front wheels can be disassembled by pulling the release buttons backward.

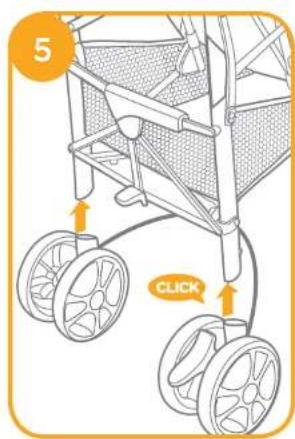

Assemble Rear Wheels

Assemble rear wheels to rear legs. Check that wheels are securely attached by pulling on wheel assemblies.

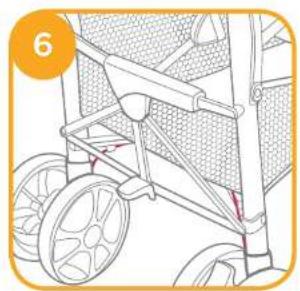

Snap the brake cable into the fixing tabs under square tubes to fix it.

Assemble Hood

Insert the hood pivots into hood mounts to assemble the hood, and stick the velcro to attach the rear hood to backrest.

The completely assembled stroller is shown as

Stroller Operation

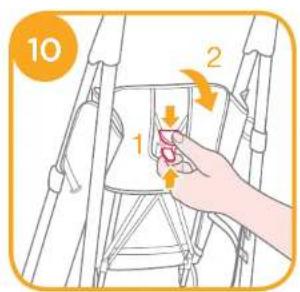

Adjust Backrest Angle

The Backrest has 5 angles.
!Make sure the backrest angle is set properly for use.

Recline Backrest

Squeeze the adjust button 19 - 1, and then adjust the backrest to a desired angle. 19 - 2

Raise Backrest Just push to raise the backrest.

Use Buckle

Release Buckle

Press the center button to release the buckle.

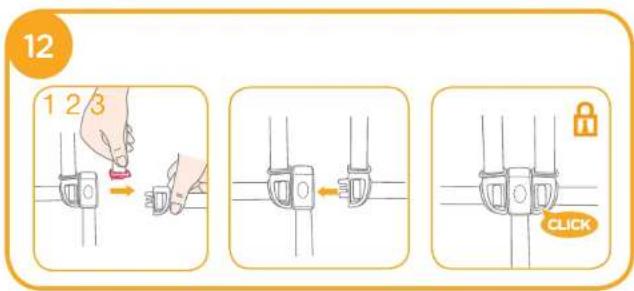

Lock Buckle

Match the waist belt buckle with the shoulder buckle 1, and click into the center buckle.
A click sound means the buckle is locked completely.
To avoid serious injury from falling or sliding out, always secure your child with harness.
Make sure your child is snugly secured. The space between the child and the shoulder harness is about the thickness of one hand.
Do not cross the shoulder belts. This will cause pressure on child's neck.

Use Shoulder & Waist Harnesses

In order to protect your child from falling out, after your child is placed into the seat, check whether the shoulder and waist harnesses are at proper height and length.

Shoulder harness anchor

Shoulder harness anchor B

-3 Slide adjuster

For larger child, use shoulder harness anchor A and the highest shoulder slots. For smaller child, use shoulder harness anchor B and the lowest shoulder slots.

Use either shoulder harness anchor in the slots that are closest to child's shoulder height.

Use slide adjuster to change the harness length.

Press the button 2, while pulling the waist harnes to proper length -3.

Adjust Calf Support

Raise Calf Support

To raise the calf support, just push it upwards.

Lower Calf Support

Press the adjustment buttons on both sides of the calf support 1, and rotate the calf support downwards, 10-2

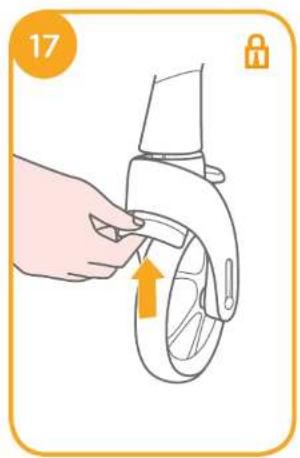

Use Front Swivel Lock

Pull up the front swivel locks to maintain the moving direction.
Tip It is recommended to use swivel locks on uneven surfaces.

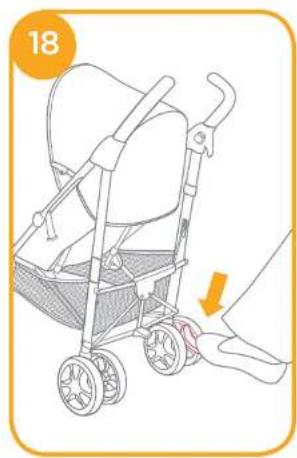

Use Brake

To lock wheels, step the brake lever downwards.

To release wheels, just lift the brake lever upwards.

The brake must be engaged when placing and removing children.

Tip Always apply brake when stroller is in stopped position. To ensure brake is fully engaged, gently rock the stroller backwards and forwards before releasing the handle.

Tip Clean brake system regularly to ensure fully functional. See care and maintenance section.

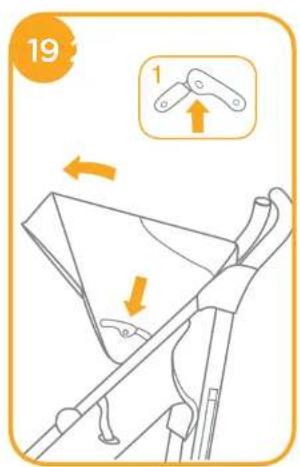

Use Hood

To open the hood, pull hood forwards and press stretchers down on both sides.

To fold the hood, pull up the stretchers on both sides - 1 and pull hood forward back.

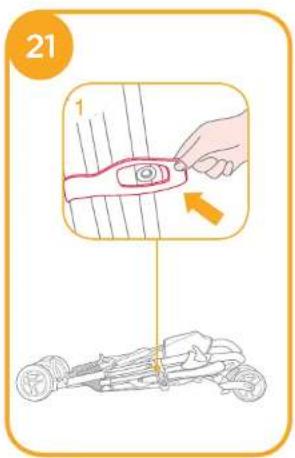

Fold Stroller

Press the folding button -1 and rotate the folding handle upwards -2, push the stroller forward to fold -3. Lock the stroller by licking storage latch onto the storage mount -1, then the stroller is folded and locked completely.

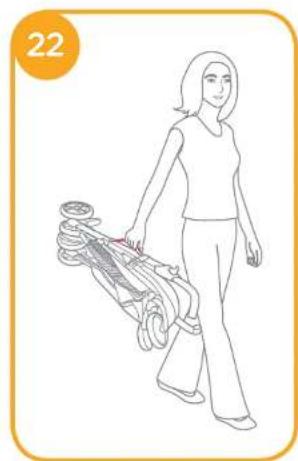

Use Carry Strap

You can carry the stroller with ease by lifting the carry strap.

Accessories

Accessories may be sold separately or may not be available depending on region.

Use with Joie Child restraint

Not all accessories are included on some models. When using with Jole infant child restraint gemm. I-Snug please refer to the following instructions.

Adjust the backrest to the lowest position.
If you have any problems about using the child restraint, please refer to their own instruction manuals.
Please don't fold stroller when attaching the child restraint.

Models can be:

used with Gemm.1-Snug

S1102Axxo000V
81102Dxxxxx000V
S1102Gxxxxx000
S1102Cxxxxx00C X
S1102Exxxx000
81102Fxxxx000
S1102Hxxxxx000X

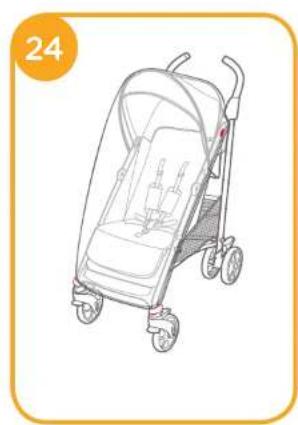

Use Rain Cover

To assemble the rain cover A, place it over the stroller, and then attach the 4 pairs of hook and loop fasteners on the rain cover.

To assemble the rain cover B, place it over the strolier, and then attach the 10 pairs of hook and loop fasteners on the rain cover.

! Before using the rain cover, please make sure the backrest has been adjusted to the lowest position and the infant child restraint has been fastened.
When using the rain cover, please always check its ventilation.
When not in use, please check the rain cover has been cleaned and dried before folding.
Do not fold the stroller after assembling the rain cover.
Do not place your child into the stroller assembled with rain cover during hot weather.

Use Footmuff

The soft footmuff can provide your child with a warm and comfortable environment. Assemble the footmuff by following these steps.

1. Place the footmuff over the seat after unzipping it, thread the shoulder harnesses, waist harnesses and crotch harness through respective slots.
2. Stick the hook and loop fasterers.
3. Place baby into the footmuff, look the safety buckle, and then rezip the footmuff. The assembled footmuff is shown as
   For the using method for restraint system, please refer to the relevant section in the instruction manual.

Use Armbar

see images 4 - 6

Use Head Support

see images -

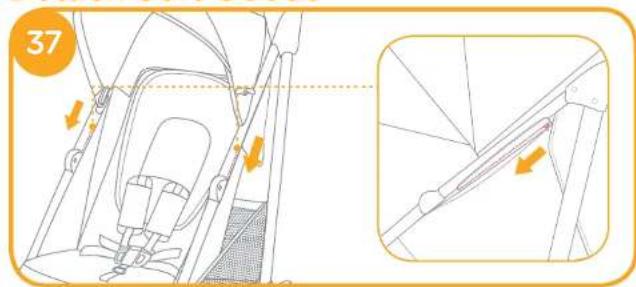

Detach Soft Goods

see images 17-18

1. Follow steps to detach soft goods.
2. To re-attach the soft goods please repeat the above steps in the reverse step.
   The removed parts should be properly kept for convenient installation and use later.

Care and Maintenance

Removable seat pad may be washed in cold water and drip-dried. No bleach. Please refer to the care label for instructions on cleaning the fabric parts of the stroller.
To clean stroller frame, use only household soap and warm water. No bleach or detergent. Periodically wipe clean plastic parts with a soft damp cloth. Always dry the metal parts to prevent the formation of rust if the stroller has come into contact with water.
From time to time check your stroller for loose screws, worn parts, torn material or stitching. Replace or repair the parts as needed.
Excessive exposure to sun or heat could cause fading or warping of parts.
If stroller becomes wet, open hood and allow to dry thoroughly before storing.
If wheels squeak, use a light oil (e.g., Silicon Spray, antirust oil, or sawing machine oil). It is important to get the oil into the axle and wheel assembly.
If brake pedal stiff/hard to fully engage, flush any debris from brake system with clean water first before lubricating.
When using your stroller at the beach or areas of high dust/sand, completely clean your stroller after use to remove sand and salt from brake mechanisms and wheel assemblies.

Bienvenu à Joie™

Brewer on costs and agreements

Punjab

1

Non de la marque

www.joiebaby.com

Fabricant

Allison Baby UK Ltd.

Listedescomponents

Bac npnbetctByeT kOmnaHnJa Joie

IopnappnnBam Bac TmTb Bt CnBt NcHctyKoBem JolE MtOuyhpeDpNbBtBactHo nyteeeBnBaewero Manha.Bo apmR nyeeeCTeHN C Joie BrkT,bl Bcydete HcnoH3aepn. BlBCOKOCHETBHyHO,NOHCTHO CEPTHOUPOBHNYC BOOTBHTR,bl CpBNAHM EN 1888-2 2018XnKHY,3TOI npdyKT pNOxADT DnR HCNObOBHNN DaTe BEcOMdo 22Hr. IIOKAYNTA BMMATINHIO pOHTHg 3TO PkyoOoDcTb,TO6bI oSeCNHbYbXMOOPHTHO yTNBECTHE HnHnyuoyu 3aBHTN DaBue OpeHbN.

PoxanyIcTa, xpaHnTe pyKOBoDCTBO no 3Kcnnyataaun nn daNbHeWero nCnonb3ObaHH.

NocTeTae carIeJoo baby.com, 10705 cnaeeh hncjyHnHnHnHnHnBcHnHnHnHnCbxHnTOaepo Joid JINONYUENH HNCpOmaJIeNoRrAeHHn, NIOHAnyHcN, nocTeTae Hauu cJoJeJoo baby.com

Copepkanhe

Hs06paenn 1-9

Pepoectepekhen 77

C6opka konacky 78

Oxpybme koncn 78

C6opka napeHnx konec 78

C0aKa a3nHk KOe6 78

Cucpa dawiepe 75

McnoB3OBAHHeKoNRAckn 79

PerynpoKa Haknoa cnHn79

mnonbaahe npx79

VononooBaeHneueoHnnochopeem 79

Perynpobka HAKHOH CNHH 79

VcnbbaHnne Kcatape nepdNix 80

B Cnayh 2b3yauhno CHITZAHIN HIN ABAPIN, CAMO rnaHNOE, YTO6uI BAOMO pe60HKY 6uJNA OKA3HAN CBOE8PENMEHN KMBNIMDNKAN NOMOUE.

HhOpMaunO KOJaCke

PepnHJHNNOMXIOJIIOO00HHN6OB3AOTyBHOIOPTHTe BCCNTHpyKUONBCTBE.EcHmYBAC 80BHINHIOIIOHNHTHbHe BOPObS,OBaauNTeK PnpDAuY. HekOTOpSe (DyHKINMOTY OTNtA-ATCB BY 3ABNOVMOCTOIT MOnEi

HaMHmHOBaHn

Pnroho P6

MATEPNI NACTIK, METAN, TEKCTINB

Patent No. BOKHADAHN nateHTA

CdenanB Krtae

BpeHd

Beb-cant

IpoH3BODHTAN

Kunacka Brisk

PepbEHa 22k (OT poXeHnA do 48 mecueB)

Пл actik,metan,tekctnE

BOKUDAHUM nateHTA

KNTAE

Jorie

www.jiessab.com

Allison Baby UK Ltd

Cxema

Ponanyhctnepedc6pckoyy6dnttecb,ytocecoctaiaKoHneBkomiNekeNOBpaTMEbX npodayu.

1. Kongsfjorden
2. Kamouon

3. Diederemyka Kocca
   （x2）
   4 3aHnne koneca
   5 Pyka

4. 10000000
   0000
   7.08VHb
   NEPEHOCKM
   8 3aHnVKeKoNaCa
   0 Npeedne koneca

1D.
1.1Longenawa
12.087k
13.PBMH
680nachoctn

1. POMMERS
2. KOPAYAHA
3. TopMOnH OH DnHar
   18.ⅡaHOKKB
   19 CknaaHn py
   20 CknaHnKhONK

I Peped npoonKeHem, yOCTOBepbTecb, YTO KONa nonHOCTbO tKpTa.

C6opka nepednix konec

BCTABTE nepaHnKoneca BOTBPCTHA.Y6eDITcB,TO Koneca HAdEKNs AaxpenneHb,notHyB Xx cbpatHO 3 TCHBNEpHnHEKoneca,poCTO HAKMNTe KOnkny.4

C6opka 3aDnHex Konec

Bctabte 3aHne koneca botaepctra. Y6bntec, HTO koneca HadkHo 3akpenhbl, notarybix o6patHO.

C6opka 6aMnepa

CoepHHTe KpaB SaMnepa COTBepTHe M NOpNOKOTHKe 7, H BCTABBe Tdo ZaHka.

TnnooctbocobpaanhaonkraaonaaanaKaHaPwC

IcnoJb3ObaHne KOJIaCKn

Otperynpyte yron cnHkn

YcHnHa 5yPbBHe HAKNoHa.

1YbEHTeC,TOHAKHOH CnHHM YCTAHABINBAETc DOJHKHM OOPa3CM DnAICN0B3OBAHIA

Onyctntb cmmnky

CCHNTB KHONKY PERYNMPOEKN 1-1, a 3aTeH NACTPONb CnNHYKHO DYHKOHOYNA.

IIOHNHTCINHKY

PpOCTo HANMMTe,StOgBt NnHHTb CmNHy

Icnojbl3oBaHne npraKn

PaccTeHryTb npxkxy

HaxmteuehpanbHykHonky,HTobpaaccerHyb npxk.

3acteHcyTH 1

CoedHHHTe norCHyIO nIeHcEeyIO npKsA 1, H3aJIeKNHITb Hx C eHTpAnbHON npKXo.

Hnok 034aet, rto npma nonnoctio c6pa7a.1-3

1 Tc6bna6eMaTcBpe3hX Tpaam npn naehHm, 0a3aTeNbHO 3aKpennrte Bauero pa6eHka pemHIM
Besonachocn.
Y6BbTeCb, YTO BAI p66BHXO XPOLOA 3BHNHIN. NPOCTPAHBO M2KZy p56BHOM H P6EHM 6E0ANCHOITIOI DHOOTCHOTBGTBDN TONHNIIE OJHNO pykRACFOH NOHNEBA
He npBcBnBaIe pMH 630nCHOHT OH MOrT DABNT Ha uEIC pe6HKA

HcnoJIb3OBAHHe nIneyeBOrn noIaCHoro peMHei

10ncn toro kax bbl npcterhyp6bEHa, npoepebte BcCote H nnHy pemHe 8baonchoCTK.
1-1Kopb nneBcpoemHBe3oAchoctnA
-2 1nopb mueyepo pemna6e3nachoctnB
-3 Perynrop
Ia KpyHIOHO p6eBHK, HNOONJy3e JIKOPb A h CAMBI BvCOBn CNT. DJI MIAHNEHBOE POeBHK, HcNtOByTKe IJKOB, B h CAMBI HNkMn CNT.
Nnonbnyte kopb n cnot, kotopbe 6nna Bcero K bicote rneha pehka
Inonb3yIpe peryntop nn mMeHeHn nnHn peHne.
3xHxH0y16-2, HactpoTe HyxHyDnHHy noCHOrO pMaHr 8eONachOCT.15-3.

PerynipOBKa nOndHoxKn

TobnnoHnnoHoxky

npocTo tonkaTe ee

TtobnyctntnoNDHOK

HAHMAHTE HAHONKNOO6CTCPOHOI NOHOKN 1-1,IVcNYCTe EeEH3.2

HcnoB3ObaHHe HkcaTopa nepeDnK KoneC

HroBb3a#mncapopobatx koneca, noHMMte fMkcatop bepx

PekCMBHyTc PHKPOBbI KONECA HA HApOBHO NOBpXHCTN.

HcnoB3OBAHHe TopMo3a

TcBb saeKncpobn nepeHne TOpMo3a, HaxMMTe Ha nepaTbpMosa.

IopHmrrnre npab, rrobbl ocbobdytb nx. TopMo3 pOJhen 6bTy 3aKt npn paMauehen peBekk a Kpecne.

Nonma Bcerna hnonbsyTe TOpM03. korda konraKCTOHT

TnDcAaH TRObI npOeepntyTO TOPMOsA NOHcTbXaM, MAno TOnKHTe KONKcy Bnepeu Haa.

Pepck340178 10dEePAHn HcPiBpHOro CoCTOHnR DpyrHnPHO BnONHnT OCHNTY TOPMOnHO CHT9ML

Icnonb30aHnne c aTRO-IONbKoJoiie

B KOMTIOKIOKTOKHNOHKOTOPHOKMOJENKO KIOHOTI HNCPOHIAHIOKCTO. IPOI HNIOHIOKOBARRC CCRCTEOE BESONACOHTHN ANAIDAHUEJ OJIe GEMm, I-Snug COoHAgATE CNGyUaQHEMHTCPYKu

YCTAHOBATE CHIKHKy a CAMOE RANKHOENONOHREH
3Brye TpyHcTc CCHIOHOAHEHmCHTMb BcHIOHOCTOHN HnHnHnHcEa CM. COOTIOCTHYIOOcPxyoBDCTA
HeckabaiTe KcHcy cTahHOBENHCHTEMONbeOnaCHOCTnIyMaNaeHueB

ModenKOTOpBie

MOXHO MCNOB3OBaBc Gemm,1-5nug

S1102Axxxx000V
S1102DxxxxDDG V
S11020xxxx000V
S1102Cxxxx000X
S1102Exxx000X
S1102Fxxxxx000X
S1102Hxxxxxx000X

Hcnoh3OBAHne doxdeBnka

Turob 3aXepenntbdoKdBnK A , HataHNTe ero Ha KcNkcy N 3aXepennte 4 npbl nIpyek Ha KcNkce.

Tc6b3akpenntbdoKDbBnB .HataHHTe eRo Ha konrcky H zakpenitte 10 nap nnnuekHa konrke.

Pocne tora, KAK Bn npkpenHdoxpeBHK, MoHo noctabMb pcndteBckn nqHoc.
PnOanyHCTra, npOBepaTe BEHTMnAuaIO npri WcNOnb3oBaAHn DoKdEBHnA.
IpeepemKAKCNOKHTBDOJKDEBVK,yBeDNTecbTOOHCHTmHcyxO
HcXnabBnTbKJnckyCDOKDBNOMHHeN
He nomewaiepebEHKB KONKcy cYCTAHOBHNNBIM DOXDBHxOM B HAPKO norOy.

Mcnonb3oBaHne Footmuff

Marx foat mutt MaKeT oBecnueHb Hauemy peBekHy Tena n yK.

Cobepurte footmuff. banyonHnre cneayoune deactbna

1. NIOOKHTE qoxon HA HOM HA KONcIy, npDpaPantbHp paCCTrenHy eru. PpOeHbTe pemHn
   0301AHOCHOCHEPOEOTBepCn840NO
   2.Пнркрпгсдбсгккркн netn
2. PasmeCTe pefeHK B foollnuf, 3x6atne 3actey Boaonachocn, n 3aym nobTOPO 3acthenrte foollnuf

IINMOTOaHcNIOb3OBAHyycIpOACBa,noXanyCTa,CpaHTNEcKCOoBETcyOuEHNCHPTyLIM.

HcnoJb3yIte noapbB

NOCMOTPHTe H3O6paXKeHNA -

McnoJIb3yIteIOIgROIobHnK

NOCMOTPHTe H3O6paXKeHMa

CHRTNE TkaHeBbIX DeTaNEn

NOCMOTPNTe N306paXeHm7-

1.BbnonnHte warr 4Tc06bi CHRTaHHeBBe datann.
2. T06bH CHOBHAeBt TaHeBBte Detan, BInonHnTe npBaedeHHBe BWe WAn B oBpaTHCM nopAke.
CHHbte detaa crdyet akypatno xpaHnt bIy yioobctba nocnepyouuoyyCTAHOBKn HNCNcB3oBaHH.

06cnyXnBaHne n yxOa

Pnykuy CnHbN MHO HO CTnHbT B XNOHJHO BnO H cyuHbT, He bKmAa 6E. He KcnHb3yBeT 06BnHbTeT.
I Oboa OHIOKHTb, pamy KOANsH, hONb3yTe MnHO HENYIO SOHe. He hONb3yTe orbeHNBaTeB, HINMOIOe CPOECTBO.
I Bpme 10eMnH, npepepe KneK HA ppepeepackpyuHxuXuG GTOA, HauHauHauHauHauHauHauHauHauHauHauHauHauHauHauHauHauHauHauHauHauHauHauHauHauHauHauHauHauHauHauHauHauHauHauHauHauHauHauHauHauHauHauHauHauHauHauHauHauHauHau Hua Hua Hua Hua Hua Hua Hua Hua Hua Hua Hua Hua Hua Hua Hua Hua Hua Hua Hua Hua Hua Hua Hua Hua Hua Hua Hua Hua Hua Hua Hua Hua Hua Hua Hua Hua Hua Hua Hua Hua Hua Hua Hua Hua Hua Hua Hua Hua Hua Hua HUA HUA HUA HUA HUA HUA HUA HUA HUA HUA HUA HUA HUA HUA HUA HUA HUA HUA HUA HUA HUA HUA HUA HUA HUA HUA HUA HUA HUA HUA HUA HUA HUA HUA HUA HUA HUA HUA HUA HUA HUA HUA HUA HUA HUA HUA HUA HUA HUA HUA HAU HA UAAU HA UAAU HA UAAU HA UAAU HA UAAU HA UAAU HA UAAU HA UAAU HA UAAU HA UAAU HA UAAU HA UAAU HA UAAU HA UAAU HA UAAU HA UAAU HA UAAU HA UAAU HA UAAU HA UAAU HA UAAU HA UAAU HA UAAU HA UAAU HA UAAU HA UAA
1BoeepctncnneHxnyeennnnnaepmoennpnoectnnxabpaetannoynnndpopmaaamndarie
Ecnn konra KaHMOKa,TO OTKPOHTe KAnIOOH N DaIte e HbCOxHyTb,NEpA TEM KAK ee ybpTaB.
EeKoNcKa eKpnnT, nOcNtBtYHxKdOcMoAe (NaHpMep; KcNcKoHbOsC npEn, aHTKOpoppa3Hoe Maocn HIO MACn DIO for BuaHbNtXuMaH) . BaHko, TTObM Macn PtoHNO Hs CbKoNAe.
1 Ene npn Tnpnoe kctn Tpyo npcoedHcTPOmote Tnpnoe Hcy tmy CHTO BDO, a 2008 CMN5KATE.
1 PTHNCHNADKSHH NOKRKH H NIKKINB NH B MECTX C BOKHOH CMGDPKHRMMIHN INCKA NNOHCTMO CHUHBEF TEPOMDHTK MEKHBMSHAI KOTCESA O NTCKB N OCHN

Vitejte v JoieTM

Gratuljeme, pravl'ye sate sta coustci rodiny Jolai;Jaame sate stali caste vakevo zvota FI cestovani is kocarni Jole Brisk, budete yuvzival vysoce kvaltnho, pne certifkovanho kocaru, schvalenho die CSN 1888-2:2018. Tento prodit ye hovdny pro dita vizni mene nez 22kg.Prosim plectei at peilivte tanto manuai a postupite pranie de zdo uvedyich krokui, pro zajleteni komfortinho cestovani a maximalinho bazpadi pro vase dl.

For at have gaegstatten, skal den trykkes opad.

Sanklaegstoten

Tryk pa jusleringsknapperne pa begge sider af leegtolen 1og drej derefter leegtolen nedad.12

a + b = 110

aeg ydiag yu wuyd yduy duiy u

j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j

plssuul jpsolgagaae aes 1sabla abll aoa o

.

a j 1000

y 1

sul 11 11 11 11

y 1

e 11111111111111111111111

Jabby Jcayo Lao jia aaiyol gag cuiu

gill g jol wol

Suaa 100g) aolauwuy gwiWg 00g no pluocu waae

S_ AOB = 12 · OB · AB = 12 × 10 × 5

1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1.

g 1/3 gabll jao gabll oall g/3 jauall de gagg ayd 0g j

A. 2018 C. 2017

aalaa aalaa jia oolaoi gaiyai puiuugai gai yai

Jgolol Jao gl Jabi jgl gdoal yab gl aolly

4.1.3.1 1

100jao jabll 0j pue cagooLs.2paaill cJyall gipuauuill uoe aae

1

zjgl 2000

gai 1

y

（）
