Product type	Professional speaker system
Brand	Bose
Model	FreeSpace 3
Components	Acoustimass bass module series II, flush-mount and surface-mount satellite speakers
Bass module dimensions (diameter × depth)	391 mm × 190 mm
Flush-mount satellite dimensions (diameter × depth)	157 mm × 123 mm
Surface-mount satellite dimensions (W × W × depth)	77 mm × 77 mm × 149 mm (with bracket)
Net weight of bass module	6.4 kg
Net weight of flush-mount satellites	0.9 kg
Net weight of surface-mount satellites	0.8 kg
Power	70 V / 100 V or 6 Ω direct coupled
Bass module power (adjustable)	25 W, 50 W, 100 W or 200 W
Impedance	Module: 6 Ω (mono direct); satellites: 6 Ω
Main functions	Professional sound reinforcement for fixed installation, various mounting options (ceiling, suspended, surface), adjustable integrated transformer
Care and cleaning	Clean with a dry cloth only; do not use chemicals
Safety	Installation by professional required; use safety cable; avoid water and humidity; do not block ventilation
Certifications	UL, CE; compliant with UL1480, UL2043, NFPA 70, NFPA 90A
Warranty	Limited warranty (details at PRO.BOSE.COM)
Country of origin	Manufactured by Bose Corporation, USA

Frequently Asked Questions - FreeSpace 3 BOSE

What is the maximum power of the FreeSpace 3 bass module?

The Acoustimass bass module series II can be set to 25 W, 50 W, 100 W or 200 W via the transformer tap. The factory setting is 200 W.

Can I install the FreeSpace 3 speakers myself?

No, installation must be performed by a professional technician. The manual emphasizes that incorrect installation can cause damage or injury.

What cables to use to connect the FreeSpace 3 speakers?

Use cables of size 18 AWG (0.8 mm²) to 14 AWG (2.1 mm²). The connection terminals are accessible according to the speaker type: remove the back plate for the module and flush-mount satellites, or insert the cable while holding the button for surface-mount satellites.

How to adjust the power of the FreeSpace 3 bass module?

Remove the jumper connected to the 200 W tap and connect it to the desired tap: 100 W, 50 W or 25 W. For direct coupled operation (6 Ω), remove both jumpers.

Are the FreeSpace 3 speakers suitable for outdoor use?

The bass module and flush-mount satellites can be used in damp locations with the PC-FS3B and PC-FS3F enclosure covers. Surface-mount satellites are not UL certified for damp environments. Avoid direct exposure to water.

How to clean the FreeSpace 3 speakers?

Use only a dry cloth. Do not use soap, detergent, alcohol or other chemicals, as they can degrade the plastic and cause cracking.

Can I connect other brands of speakers to the FreeSpace 3 bass module?

Yes, you can connect other Bose speakers (FreeSpace, DesignMax, Panaray) or other brands, provided you use separate amplifier channels and appropriate bandpass filtering. The module should only be directly connected to FreeSpace 3 satellites.

What are the mounting options for the FreeSpace 3 bass module?

The module can be mounted in a drop ceiling (with mounting or reinforcement plate), suspended (suspension mounting kit), or surface-mounted. An enclosure cover is available as an option.

How to install a safety cable for the FreeSpace 3 speakers?

For the bass module, remove the M6 screw from the back plate and attach the cable to the hole. For flush-mount satellites, attach the cable to the opening on the metal tab of the back plate. The safety cable is required by some building codes.

Where to find the CE declaration of conformity for the FreeSpace 3?

The full declaration of conformity is available at www.Bose.com/compliance/. The product complies with all applicable European directives.

USER MANUAL FreeSpace 3 BOSE

Product photo of a black Bose-branded audio speaker module with multiple speakers and a circular head cover (no text or symbols visible)

FreeSpace 3

Series II Acoustimass Bass Module

Flush-mount Satellites Surface-mount Satellites

Installation Guide....2

Please read and keep all safety and use instructions.

This product is intended for installation by professional installers only! This document is intended to provide professional installers with basic installation and safety guidelines for this product in typical fixed-installation systems. Please read this document and all safety warnings before attempting installation.

Do not attempt to service this product yourself. Refer all servicing to authorized service centers, installers, technicians, dealers or distributors. To contact Bose Professional or to find a dealer or distributor near you, visit PRO.BOSE.COM.

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produces heat.
9. Only use attachments/accessories specified by the manufacturer.

WARNINGS/CAUTIONS

This product contains magnetic material. Consult your physician on whether this might affect your implantable medical device.

• All Bose products must be installed in accordance with local, state, federal and industry regulations. It is the installer's responsibility to ensure installation of the loudspeakers and mounting system is performed in accordance with all applicable codes, including local building codes and regulations. Consult the local authority having jurisdiction before installing this product.
• Unsafe mounting or overhead suspension of any heavy load can result in serious injury or death, and property damage. It is the installer's responsibility to evaluate the reliability of any mounting method used for their application. Only professional installers with the knowledge of proper hardware and safe mounting techniques should attempt to install any loudspeaker overhead.
• Do not mount the product in locations where it may be exposed to water or condensation.
• This product is not intended for installation or use in indoor water facility areas (including, without limitation, indoor pools, indoor water parks, hot tub rooms, saunas, steam rooms and indoor skating rinks).
• Do not mount on surfaces that are not sturdy, or that have hazards concealed behind them, such as electrical wiring or plumbing. If you are not sure about installing the bracket, contact a qualified professional installer.
• Use only the hardware and accessories included or specified by Bose. Hardware for securing the mounting bracket to the mounting surface is not supplied. For information on compatible accessories, see the product's technical data sheet at PRO.BOSE.COM.
• Do not place or install the product near any heat sources, such as fireplaces, radiators, heat registers or other apparatus (including amplifiers) that produce heat.
• Keep the product away from fire and heat sources. Do not place naked flame sources, such as lighted candles, on or near the product.
• Do not make unauthorized alterations to this product.
• Do not expose loudspeaker or mounting components to any chemical substances that are not specified by Bose, including but not limited to lubricants, cleaning agents, contact sprays, or other hydrocarbon-based solvents. Exposure to such substances can lead to degradation of the plastic material, resulting in cracking and creating a falling hazard.
• Clean speakers using only a dry cloth. Do not expose loudspeaker to soap, detergent, mineral oil, alcohol or other cleaning agents or chemicals.

Product Ratings
Input Voltage Impedance Current/Power

Series II Acoustimass Bass Module	70V/100V 6 Ω mono direct,transformer bypassed	25W, 50W,100W, 200W
Flush-mount Satellites	Not applicable 6 Ω Not applicable
Surface-mount Satellites	Not applicable 6 Ω per channel(4-satellite system);5 Ω per channel(2-satellite system)	Not applicable

Regulatory Information

This product conforms to all applicable EU directive requirements. The complete declaration of conformity can be found at: www.Bose.com/compliance.

This symbol means the product must not be discarded as household waste, and should be delivered to an appropriate collection facility for recycling. Proper disposal and recycling helps protect natural resources, human health and the environment. For more information on disposal and recycling of this product, contact your local municipality, disposal service, or the shop where you bought this product.

China Restriction of Hazardous Substances Table

Names and Contents of Toxic or Hazardous Substances or Elements
	Toxic or Hazardous Substances and Elements
Part Name	Lead (Pb)	Mercury (Hg)	Cadmium (Cd)	Hexavalent (CR(VI))	Polybrominated Biphenyl (PBB)	Polybrominated diphenylether (PBDE)
PCBs	X	0	0	0	0	0
Metal Parts	X	0	0	0	0	0
Plastic Parts	O	0	0	0	0	0
Speakers	X	0	0	0	0	0
Cables	X	0	0	0	0	0
This table is prepared in accordance with the provisions of SJ/T 11364.O: Indicates that this toxic or hazardous substance contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572.
X: Indicates that this toxic or hazardous substance contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.

Taiwan Restriction of Hazardous Substances Table

Equipment name: Type designation: FreeSpace 3 Series II Acoustimass Bass Module 040147, 040148 FreeSpace 3 Flush-mount Satellites 040150, 040149 FreeSpace 3 Surface-mount Satellites 040144, 040143
	Restricted substances and its chemical symbols
Unit	Lead (Pb)	Mercury (Hg)	Cadmium (Cd)	Hexavalent chromium (Cr+6)	Polybrominated biphenyls (PBB)	Polybrominated diphenyl ethers (PBDE)
PCBs	-	○	○	○	○	○
Metal Parts	-	○	○	○	○	○
Plastic Parts	○	○	○	○	○	○
Speakers	-	○	○	○	○	○
Cables	-	○	○	○	○	○
Note 1: “○” indicates that the percentage content of the restricted substance does not exceed the percentage of reference value of presence. Note 2: The “-” indicates that the restricted substance corresponds to the exemption.

Date of Manufacture: The eighth digit in the serial number indicates the year of manufacture; "7" is 2007 or 2017.

China Importer: Bose Electronics (Shanghai) Company Limited, Part C, Plant 9, No. 353 North Riying Road, China (Shanghai) Pilot Free Trade Zone

EU Importer: Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, The Netherlands

Mexico Importer: Bose de México, S. de R.L. de C.V., Paseo de las Palmas 405-204, Lomas de Chapultepec, 11000 México, D.F. For importer & service information: [phone]

Taiwan Importer: Bose Taiwan Branch, 9F-A1, No. 10, Section 3, Minsheng East Road, Taipei City 104, Taiwan. Phone Number: [phone]

Bose Corporation Headquarters: 1-877-230-5639

Bose, Acoustimass, DesignMax, FreeSpace, and Panaray are trademarks of Bose Corporation.

©2019 Bose Corporation. No part of this work may be reproduced, modified, distributed or otherwise used without prior written permission.

Warranty Information

This product is covered by a limited warranty. For warranty details, visit PRO.BOSE.COM.

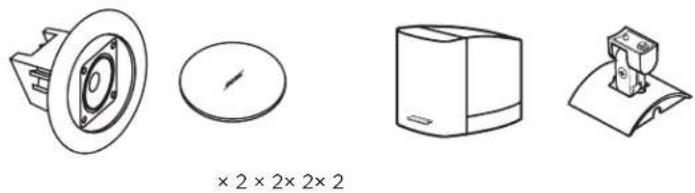

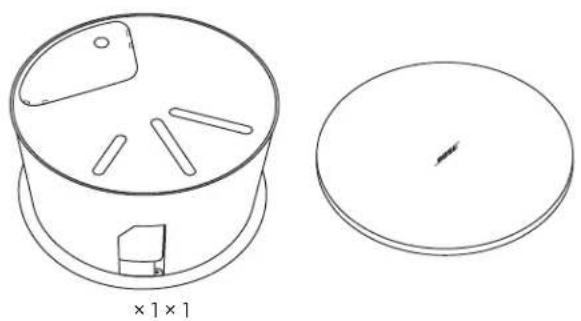

Package Contents

Series II Acoustimass Bass Module

Technical line drawing of a cylindrical device with internal components and a separate circular component (no text or symbols)

Flush-mount Satellites

Technical drawing of a mechanical component with two views: top shows circular housing, bottom shows oval plate (no text or symbols)

Surface-mount Satellites

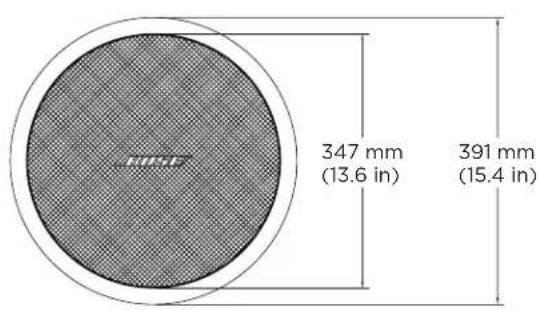

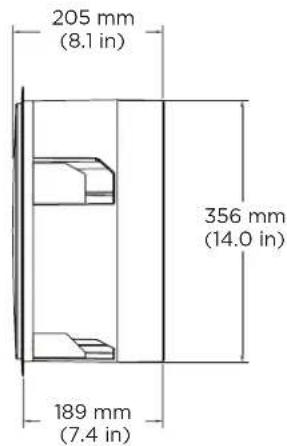

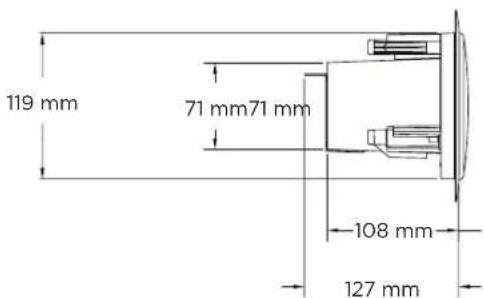

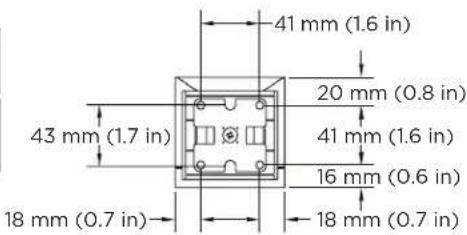

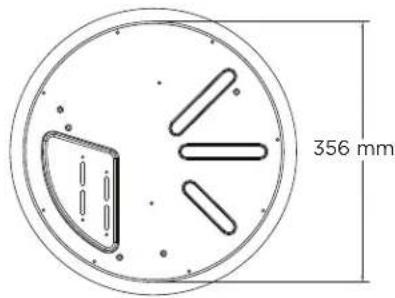

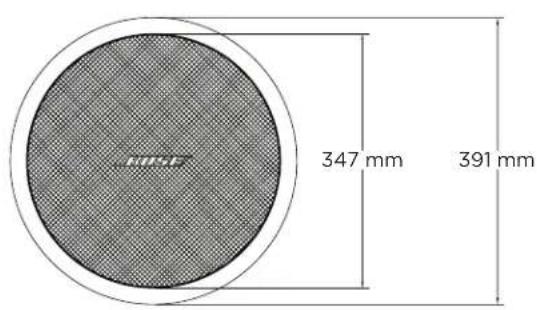

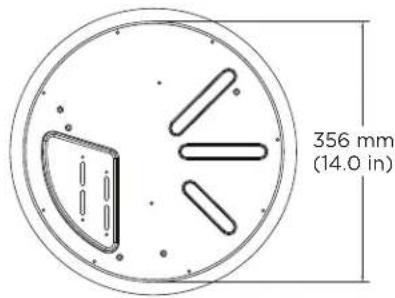

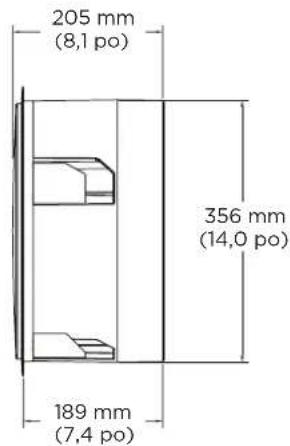

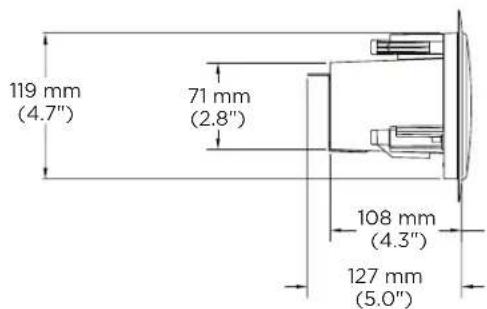

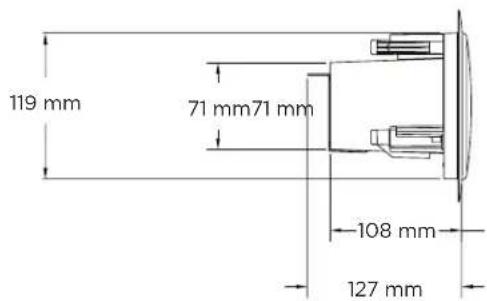

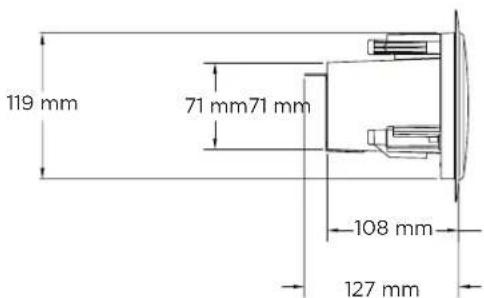

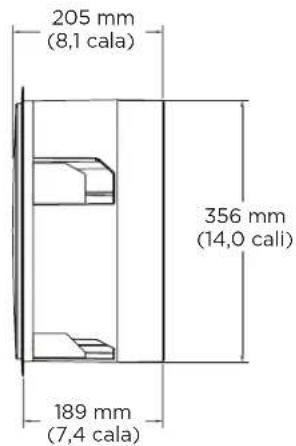

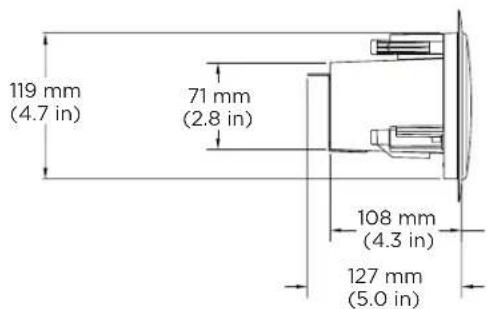

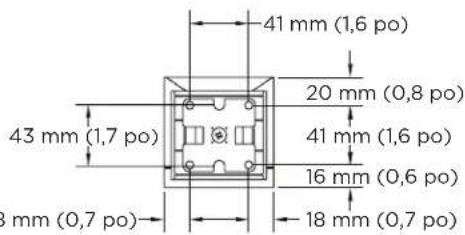

Product Dimensions

Series II Acoustimass Bass Module

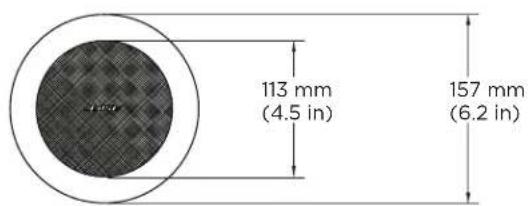

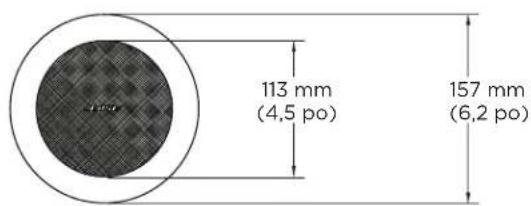

Flush-mount Satellites

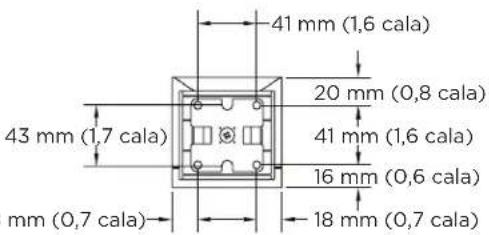

Surface-mount Satellites

Technical Specifications

For additional specification, instructions, and technical information about any FreeSpace loudspeaker, visit bosepro.link/freespace.

Series II Acoustimass Bass Module Flush-mount Satellites Surface-mount Satellites
Product Dimensions

Height × Width 391 mm (15.4 in.) (outer flange diameter)	157 mm (6.2 in) (outer flange diameter)	77 × 77 mm (3.0 × 3.0 in)
Depth 190 mm (7.5 in.)	123 mm (4.8 in) Without bracket: 102 mm (4.0 in.)	With bracket: 149 mm (5.9 in.)

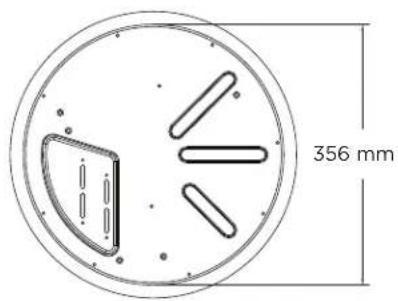

Ceiling Dimensions

Hole Diameter 362 mm (14.3 in.) 127 mm (5.0 in) Not applicable
Maximum Thickness 48 mm (1.8 in.) 38 mm (1.5 in.)	Not applicable

Weight

Net	6.4 kg (14.0 lb)	0.9 kg (1.9 lb)	0.8 kg (1.8 lb)
Shipping	9.1 kg (20.0 lb)	2.3 kg (5.0 lb)	1.8 kg (4.0 lb)

Safety & Regulatory Compliance

The Bose Freespace-3 Series II Acoustimass Module and Flush-mount Satellites are UL listed for safety as:

General Purpose Loudspeakers per UL1480, UL Category UEAY, File Number S 5591

Suitable for use indoors in damp locations.

Suitable for installation using Class 1, Class 2 or Class 3 wiring methods in accordance with NFPA 70, National Electric Code, 2002, Article 640

Suitable for use in air handling plenum spaces when used with the PC-FS3B and PC-FS3F Plenum Cover Accessories:

UL-2043, Fire Test and Visible Smoke Release for Discrete Products and their Accessories Installed in Air Handling Spaces

NFPA-70, National Electrical Code, 2002, Article 300.22(C)

NFPA 90A, 2002, Installation of Air Conditioning and Ventilation Systems, Paragraph 4.3.10.2.6.5

The Bose Freespace 3 Surface-mount Satellites described in this guide are not UL listed.

Important Installation Information

It is the installer's responsibility to ensure installation of the loudspeakers and mounting system is performed in accordance with all applicable codes, including local building codes and regulations. Consult the local authority having jurisdiction before installing this product.

It is the responsibility of the installer to ensure the safety of the loudspeaker installation. Failure to properly install the loudspeaker could result in damage, injury, or death.

Do not mount the product in locations where it may be exposed to water or condensation.

This product is not intended for installation or use in indoor water facility areas (including, without limitation, indoor pools, indoor water parks, hot tub rooms, saunas, steam rooms and indoor skating rinks).

Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produces heat. Keep the product away from fire and heat sources. Do not place naked flame sources, such as lighted candles, on or near the product.

Do not mount on surfaces that are not sturdy, or that have hazards concealed behind them, such as electrical wiring or plumbing. If you are not sure about installing the bracket, contact a qualified professional installer. Ensure the bracket is installed according to local building codes.

The hardware for securing the loudspeaker to the mounting surface is not supplied. Consult a building professional for the proper mounting hardware before installing the loudspeaker.

Do not expose loudspeaker or mounting components to any chemical substances that are not specified by Bose, including but not limited to lubricants, cleaning agents, contact sprays, or other hydrocarbon-based solvents. Exposure to such substances can lead to degradation of the plastic material, resulting in cracking and creating a falling hazard.

Installation Options

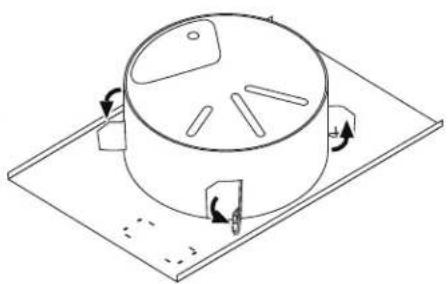

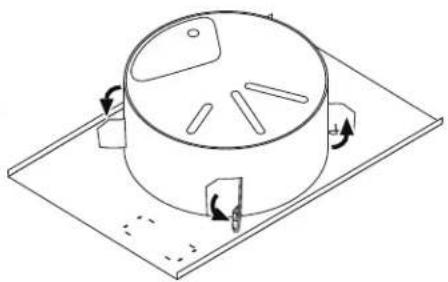

Series II Acoustimass Bass Module

Required

① FreeSpace 3BF Bass Loudspeaker Rough-In Pan or
2 FreeSpace 3BF Bass Loudspeaker Tile Bridge

Optional

3 FreeSpace 3BF Bass Loudspeaker Pendant-mounting Kit
4 FreeSpace 3BF Bass Loudspeaker Surface-mount Kit
5 FreeSpace 3BF Bass Loudspeaker Plenum Cover
6 FreeSpace Omni Pendant-mount Kit

Flush-mount Satellites

Required

7 FreeSpace 3F Satellite Loudspeaker Rough-in Pan or
8 FreeSpace 3F Satellite Loudspeaker Tile Bridge

Optional

9 FreeSpace 3F Satellite Loudspeaker Cosmetic Covers

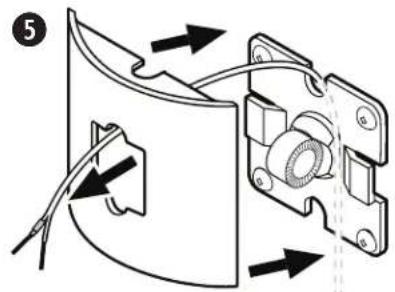

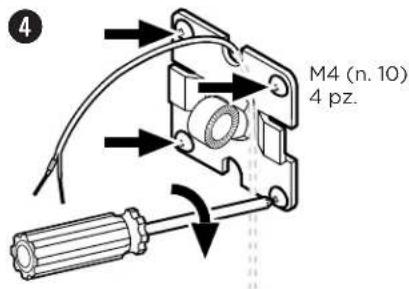

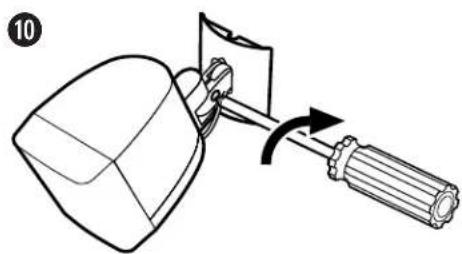

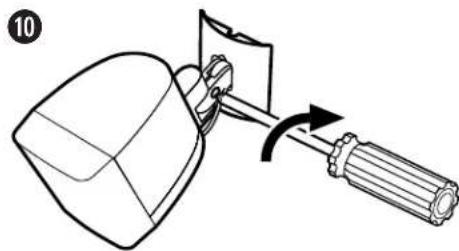

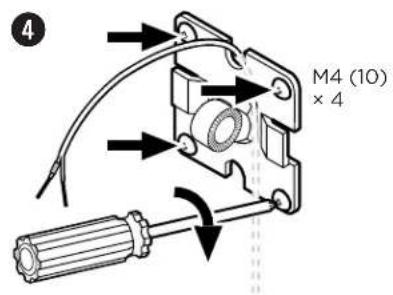

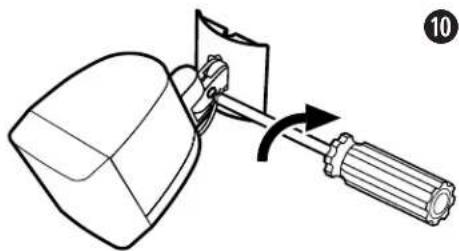

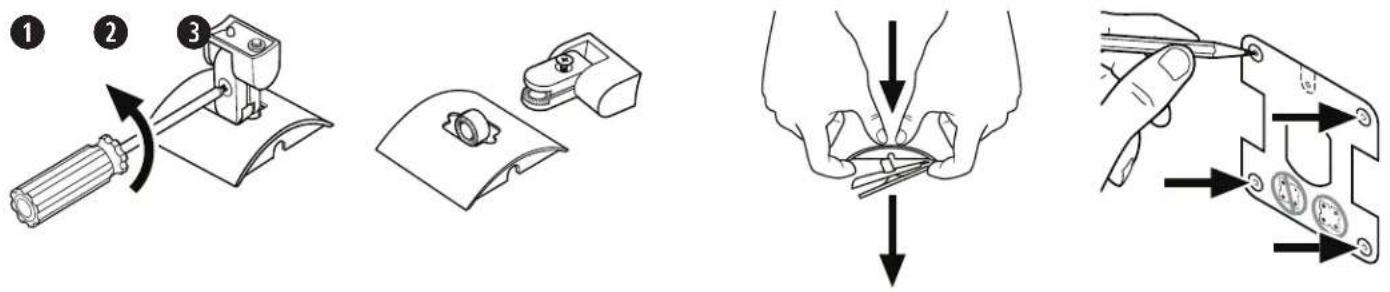

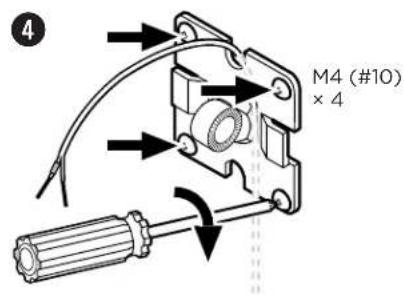

Surface-mount Satellites

10 FreeSpace Omni Pendant-mount Kit

1

Simple diagram with a circle inside a rectangle and a grid of dots (no text or symbols)

Simple line drawing of a rectangular frame with a circular cutout and two small dots, no text or symbols present.

3

4

5

Line drawing of a cylindrical container with four legs and attached weights, suspended by ropes (no text or symbols)

7

Simple line drawing of a rectangular plate with two circular holes and dashed lines, no text or symbols present.

9

Wiring the Loudspeaker

Wire Gauge

FreeSpace 3 loudspeakers are designed to work with 18 AWG (0.8 mm²) to 14 AWG (2.1 mm²) size wire only.

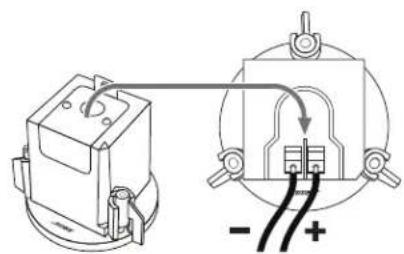

Wiring Terminals

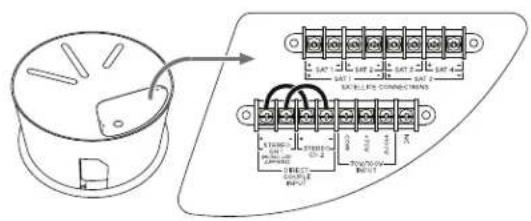

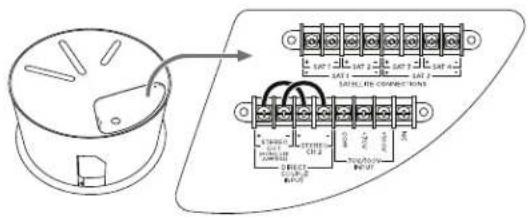

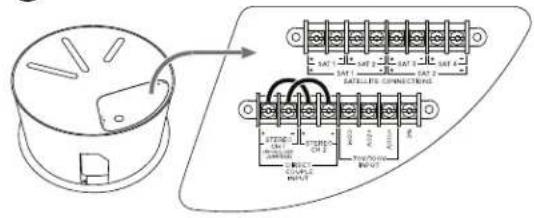

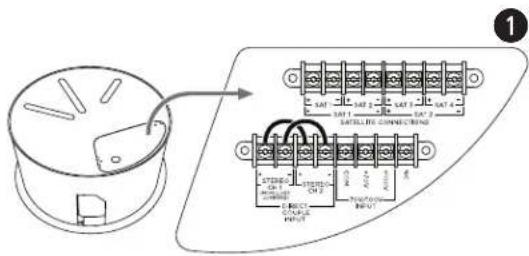

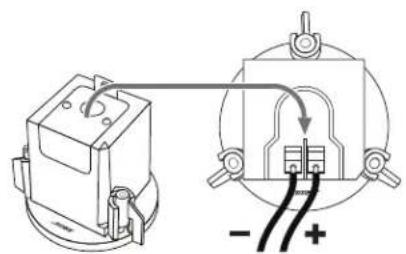

Series II Acoustimass bass module: Remove the rear cover plate to access the wiring terminals. Reattach the rear cover plate after completing all wiring connections.

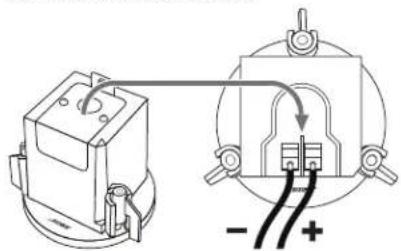

Flush-mount Satellites: Remove the rear cover plate to access the wiring terminals. Reattach the rear cover plate after completing all wiring connections.

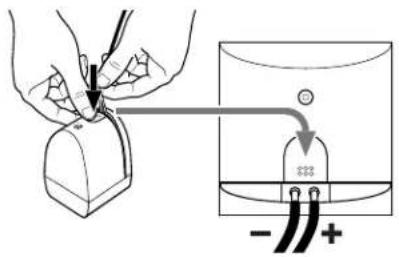

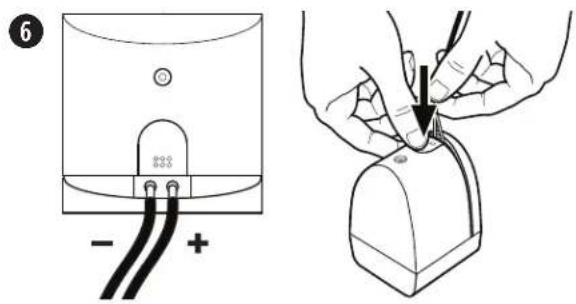

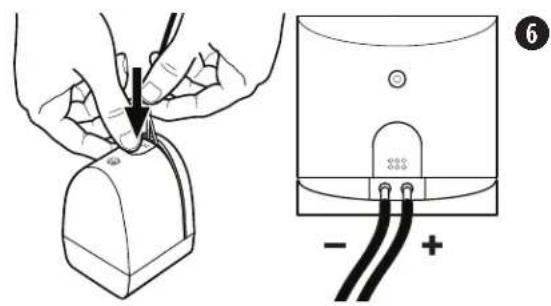

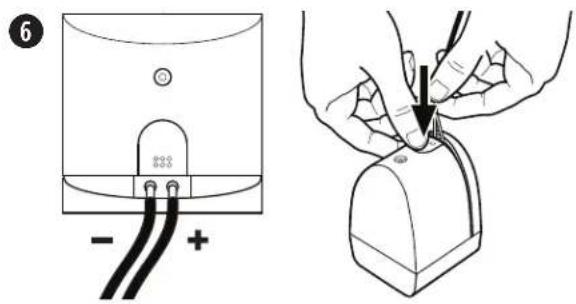

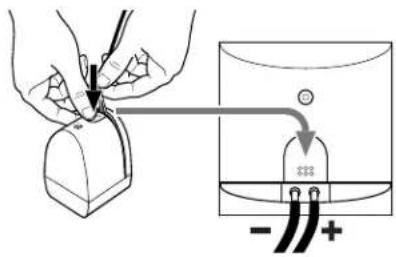

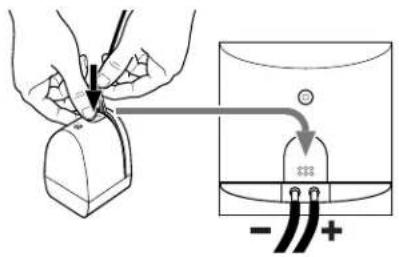

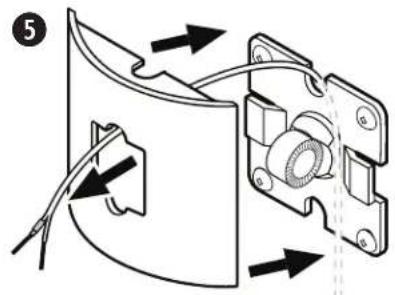

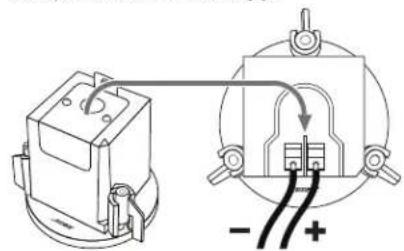

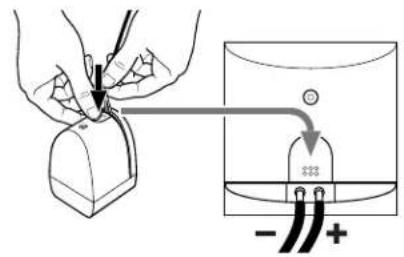

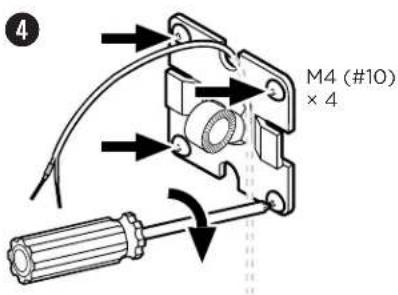

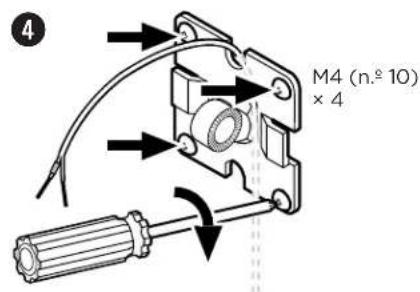

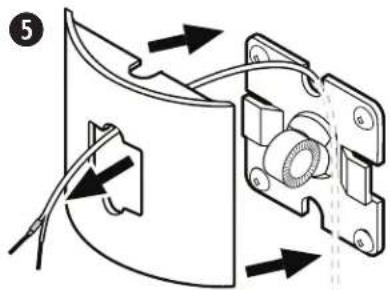

Surface-mount Satellites: Push and hold the button on the rear panel while inserting the wire to insert the wire fully.

Pure electrical circuit lines without any symbols

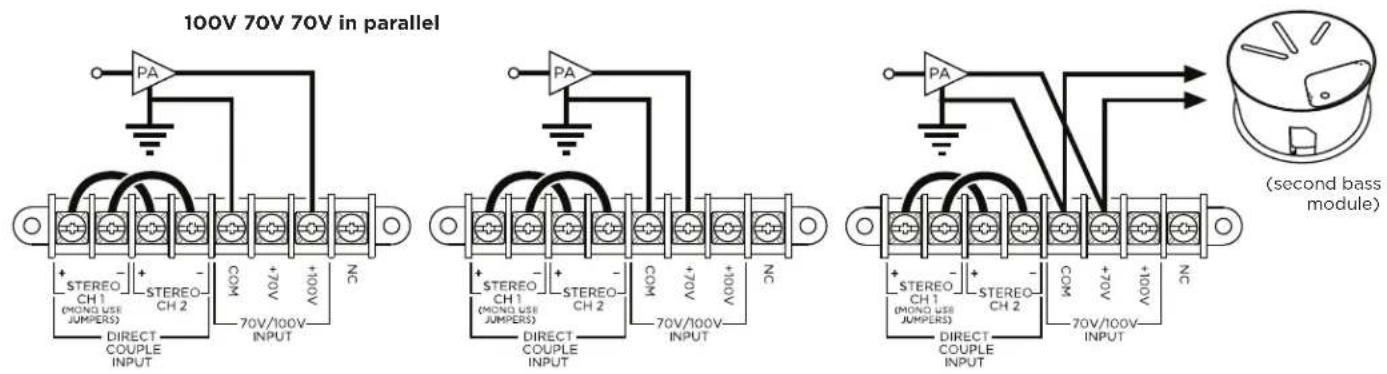

Amplifier Output Connection

CAUTION: Complete all wiring connections before connecting an amplifier to power or powering it on.

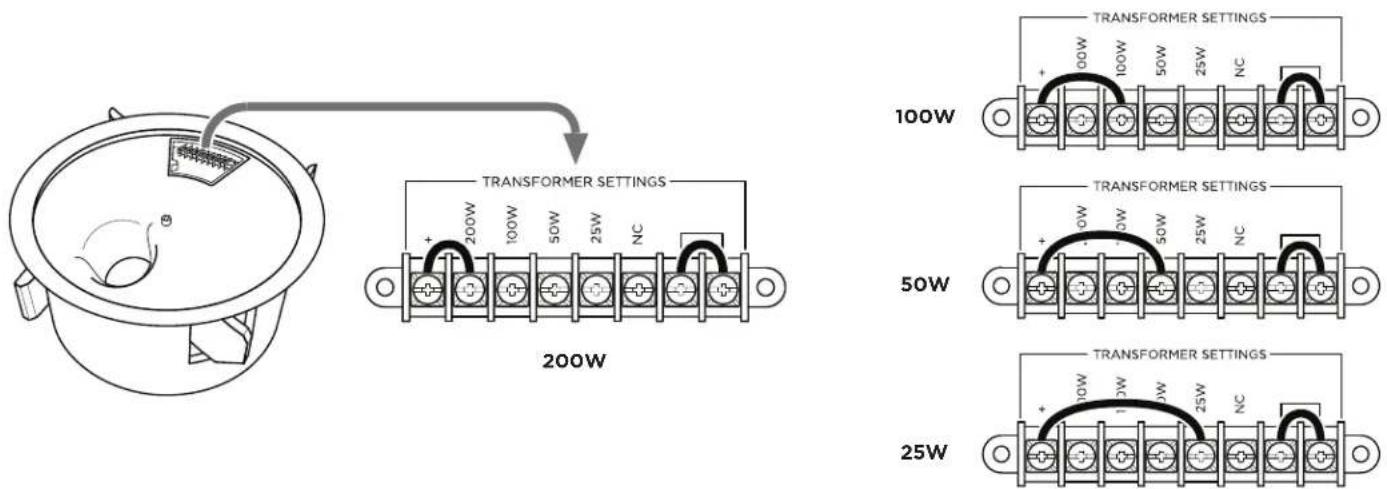

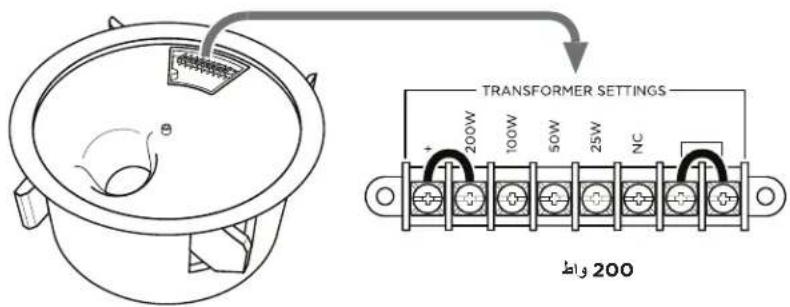

Transformer Tap Settings

The transformer tap is set at the factory for 200W use. To set it for a lower wattage, remove the end of the + jumper wire that is connected to the 200W terminal and reattach it to the appropriate tap: 100W, 50W, or 25W.

Note: The jumper wires are required for 70V/100V operation. For 6Ω operation (transformer bypass/direct), remove both jumper wires.

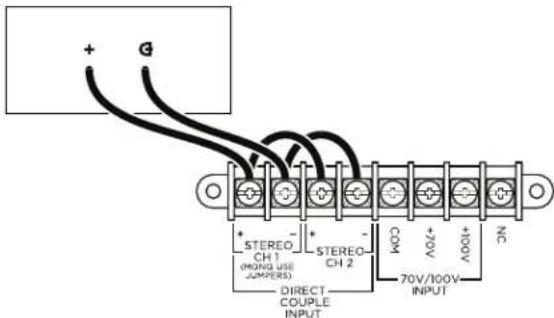

Transformer Bypass (Direct Mono)

To bypass the transformer and prepare the loudspeaker for 4Ω use and mono sound input, remove the two jumpers from the transformer settings on the front of the loudspeakers. Leave the CH1 and CH2 input jumpers on the back of the loudspeaker as they are.

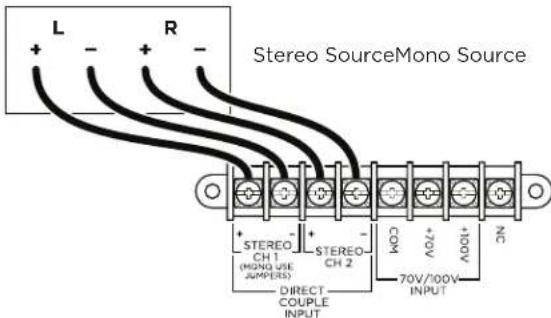

Transformer Bypass (Direct Stereo)

To bypass the transformer and prepare the loudspeaker for 6Ω use and stereo sound input, remove all jumper wires.

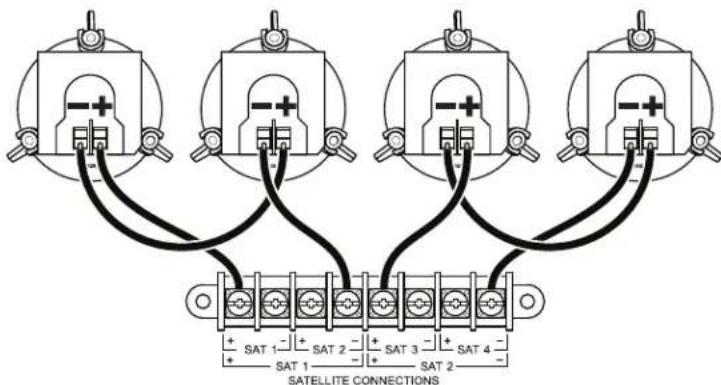

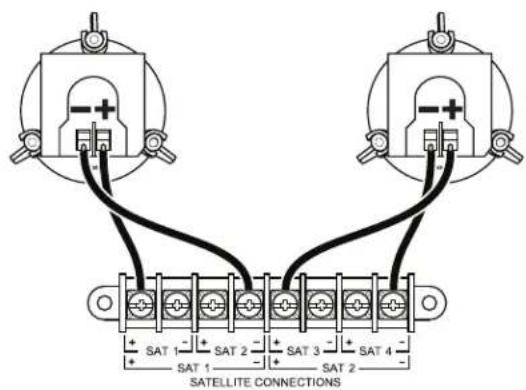

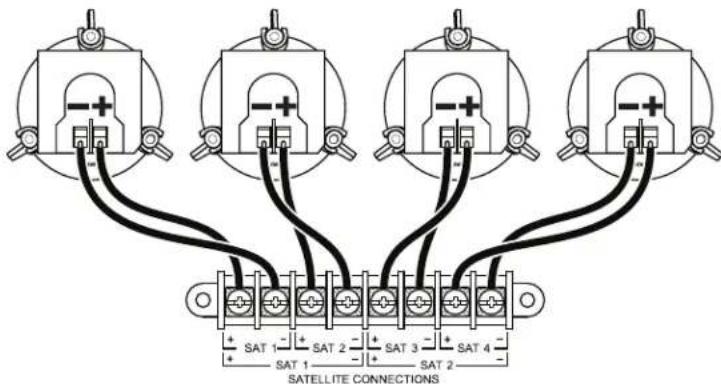

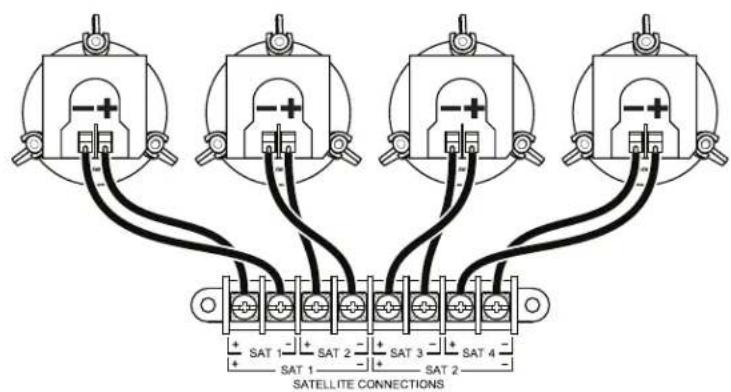

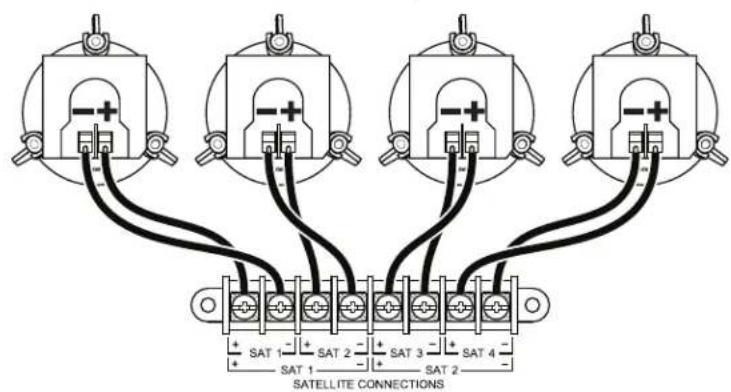

Satellite Loudspeaker Connection

CAUTION: Do not connect any loudspeakers other than FreeSpace 3 satellite loudspeakers directly to the module.

Connect the FreeSpace 3 Series II Acoustimass bass module to FreeSpace 3 Flush-mount Satellites or Surface-mount Satellites. (On this page, the Series II Acoustimass module is shown connected to the Flush-mount Satellites. You may substitute Surface-mount Satellites for any Flush-mount Satellites as long as your wire them with the correct polarity.)

You can use the FreeSpace 3 Series II Acoustimass module with other Bose loudspeakers, including but not limited to FreeSpace, DesignMax, or Panaray models. If you do this, connect both the loudspeakers and the module directly to the amplifier, using separate channels. Ensure that you apply appropriate band-pass filtering and/or the recommended equalization (if available) to all other loudspeakers. Visit PRO.BOSE.COM and refer to the technical data sheet for each model.

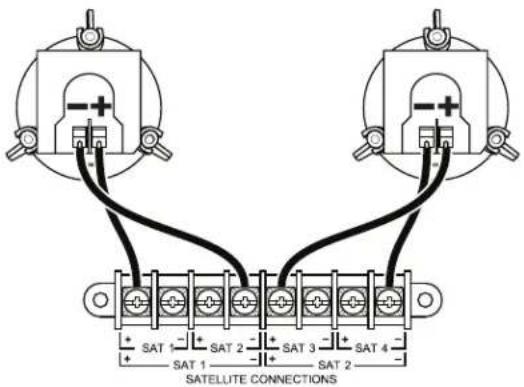

2 satellites

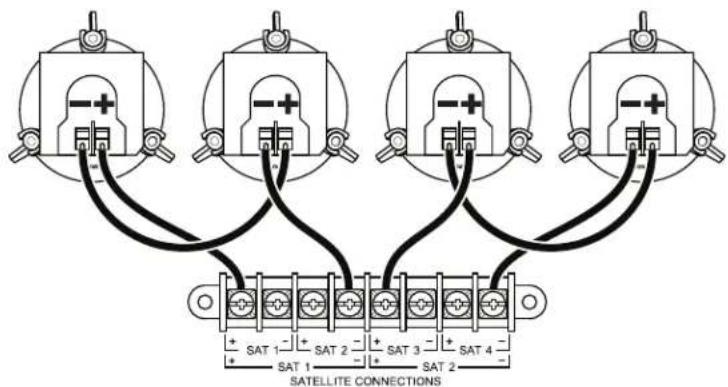

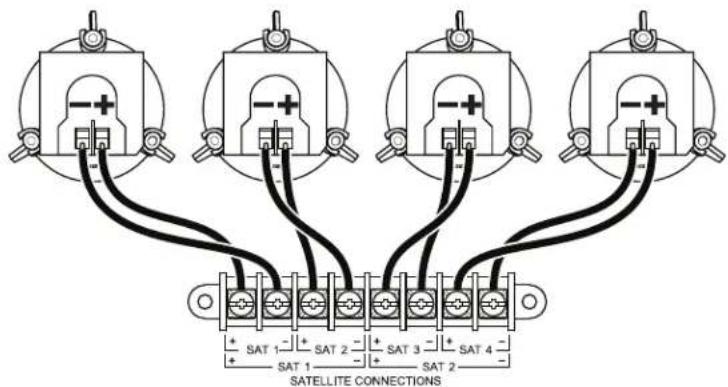

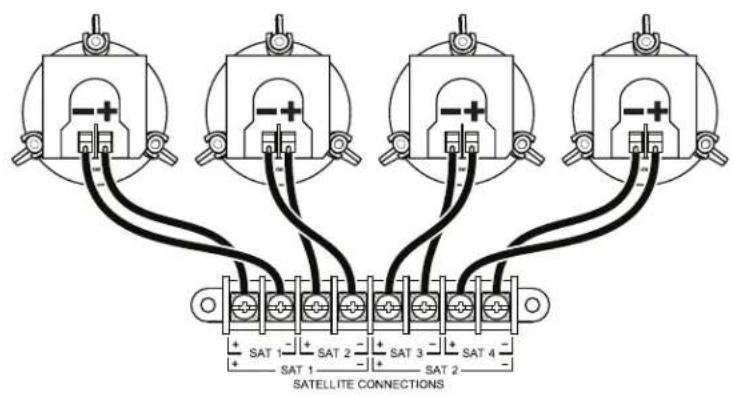

4 satellites

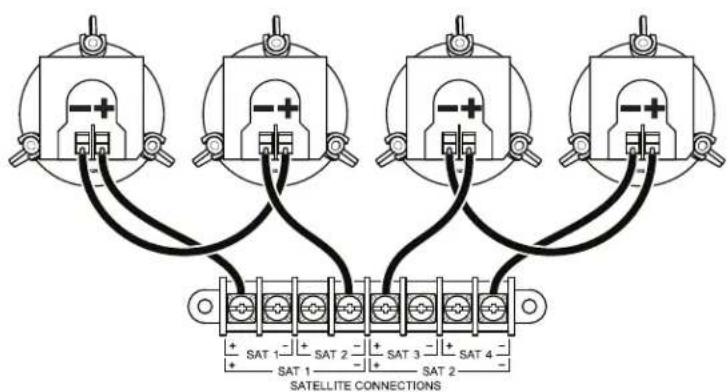

4 satellites (alternative, series method)

Preparing the Installation

Loudspeaker Placement

Note: Installation in close proximity to cooking surfaces where the loudspeaker may be directly exposed to cooking oils, steam, vapor, or high heat such as in commercial cooking environments may decrease the performance or reliability of the loudspeaker.

Using a Safety Cable

Some regional construction codes require the use of a secondary method of securing loudspeakers to support structures to provide additional safety. Choose a mounting position, method, and hardware consistent with local building codes and regulations.

Bose recommends using a safety wire or a safety cable as a secondary securing mechanism for the Series II Acoustimass bass module and Flush-mount Satellites. Follow the manufacturer's instructions for any secondary securing mechanism implemented.

Each loudspeaker model has one or more possible attachment points:

Series II Acoustimass Bass Module Remove an M6 screw from the rear cover plate, and attach a safety cable to that screw hole.

Flush-mount Satellites

Attach a safety cable to the opening in the metal tab on the rear cover plate.

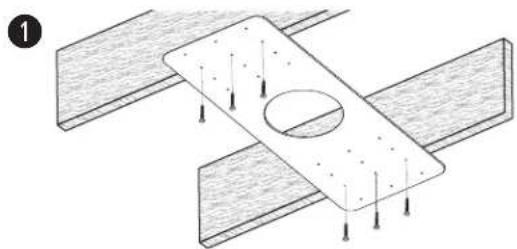

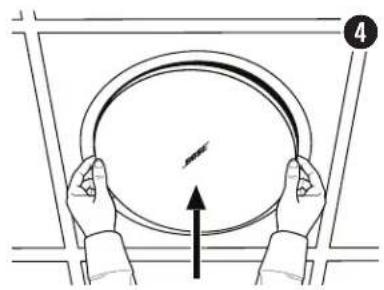

Preparing the Ceiling & Accessories

Before installing a bass module or satellite loudspeakers, follow the instructions to prepare the ceiling and any accessories you will use in the installation. See Installation Options (Page 5) for a list of required or optional accessories for each loudspeaker model.

Preparing Acoustic Ceiling Tile

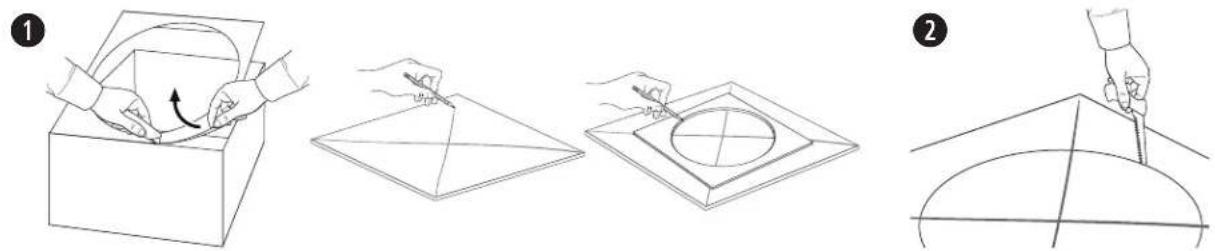

Cutting the Ceiling Tile

1. Remove the tile and use the template to trace a loudspeaker hole onto the tile. To center the template on the tile, draw an X by connecting the corners diagonally and center the template using the crossing point.
2. Cut a hole into the tile.

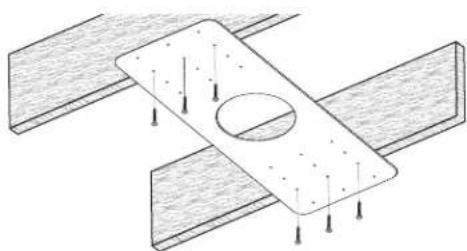

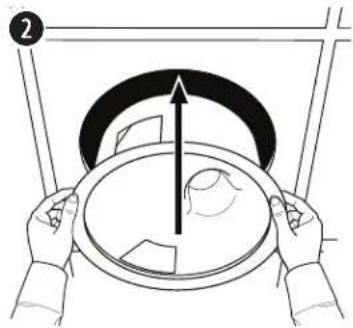

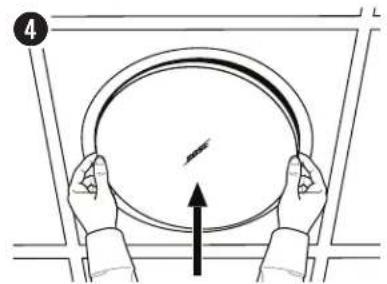

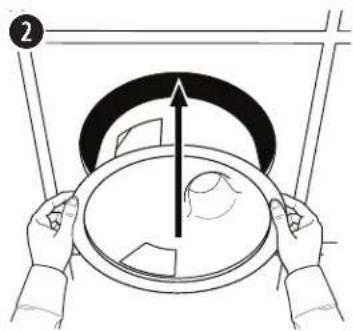

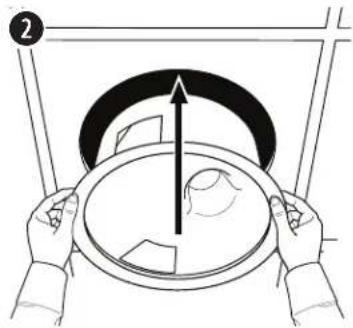

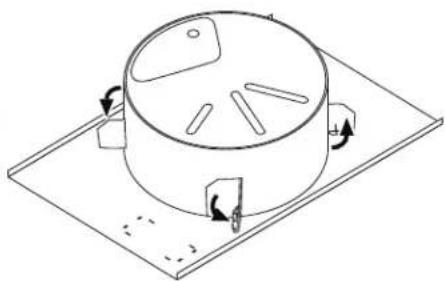

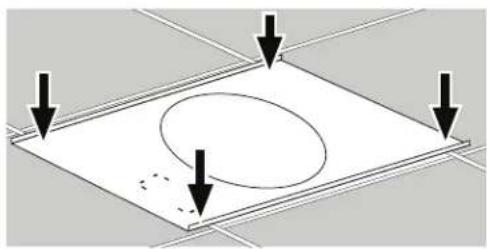

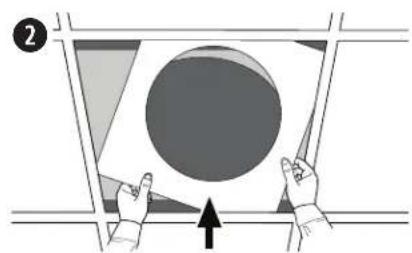

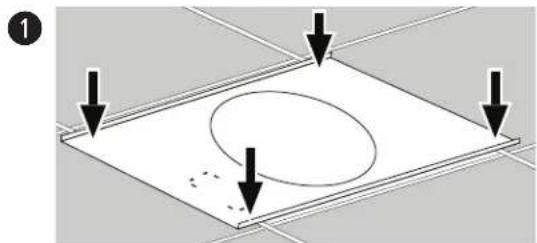

Installing the Tile Bridge

1. Place the tile bridge across the ceiling grid. If necessary, adjust the tile bridge so the rails rest on the ceiling grid.
2. Replace the tile in the ceiling.

Diagram showing a square plate with an oval cutout and arrows indicating direction (no text or symbols)

Illustration of two hands holding a circular object inside a frame, with an arrow indicating upward motion (no text or symbols)

Preparing Hard Ceiling Using a Rough-in Pan (New Construction)

1. Attach rough-in pan to the ceiling furring or wood studs. The rough-in pan includes multiple pre-drilled holes to accommodate different stud spacing, loudspeaker orientations, and loudspeaker placements.
2. After the ceiling is finished, cut a hole in the finished ceiling, using the rough-in pan as a guide.

Technical diagram showing a mechanical assembly with two plates and a central circular component, no text or symbols present.

Simple line drawing of a hand holding a pen, pointing at an oval shape on a 3D coordinate axis (no text or symbols)

Mounting the Loudspeaker

Series II Acoustimass Bass Module

1. Make sure all loudspeaker wiring connections are complete. For wiring information, see Wiring the Loudspeaker (Page 6).
2. Insert the loudspeaker through the hole and into the tile bridge or rough-in pan. Continue to hold the loudspeaker in place.
3. Tighten the anchor arm screws to secure the loudspeaker. If using a power drill, set to a low torque setting. Make sure all of the anchors are tightened before loosening your grip on the loudspeaker.

WARNING: Over-tightening the screws may result in damage to the anchor attachment point or the ceiling, which could lead to a falling hazard.

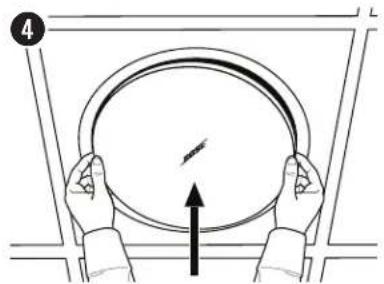

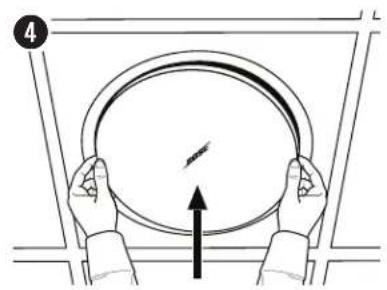

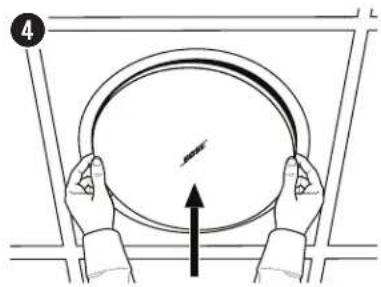

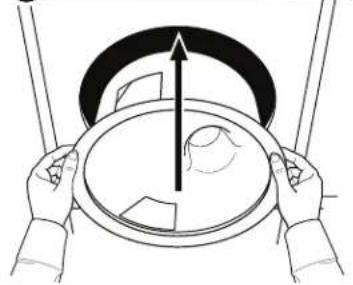

1. Using both hands, position the grille against the loudspeaker. Gently push the grille against the loudspeaker to secure it. You can rotate the logo when the grille is secured.

1

Illustration of hands holding a circular tray with an arrow indicating rotation or direction (no text or symbols)

3

Diagram of a mechanical setup with a screwdriver and rotating components, no text or symbols present

Isometric line drawing of a cylindrical device with internal slots and directional arrows, mounted on a base plate (no text or symbols)

Illustration of hands holding a circular object with an upward arrow, no text or symbols present

Flush-mount Satellites

1. Make sure all loudspeaker wiring connections are complete. For wiring information, see Wiring the Loudspeaker (Page 6).
2. Insert the loudspeaker through the hole and into the tile bridge or rough-in pan. Continue to hold the loudspeaker in place.
3. Tighten the anchor arm screws to secure the loudspeaker. If using a power drill, set to a low torque setting. Make sure all of the anchors are tightened before loosening your grip on the loudspeaker.

WARNING: Over-tightening the screws may result in damage to the anchor attachment point or the ceiling, which could lead to a falling hazard.

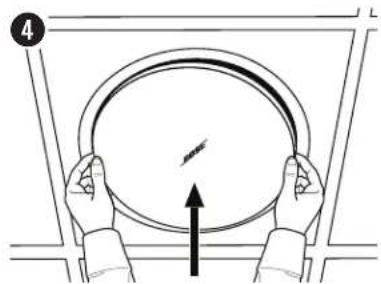

1. Using both hands, position the grille against the loudspeaker. Gently push the grille against the loudspeaker to secure it.

4

Illustration of hands holding a circular object with an arrow pointing upward (no text or symbols)

Diagram of a mechanical device with a screwdriver and rotating arm (no text or symbols)

Simple line drawing of a mechanical device with rotating arm and base plate (no text or symbols)

Illustration of two hands holding a magnifying glass over a surface, with an upward arrow indicating motion (no text or symbols)

Surface-mount Satellites

1. Loosen the screw connecting the loudspeaker arm to the wall-mount bracket, and separate the two parts.
2. Separate the rear plate from the cover the wall-mount bracket.
3. Use the template to mark the center of all four screw holes on the wall.

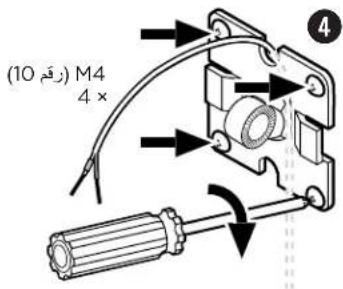

4. Insert four M4 (#10) screws to attach the wall-mount bracket plate to the wall. Make sure the point where the loudspeaker wire exits the wall is aligned with a notch of the plate.

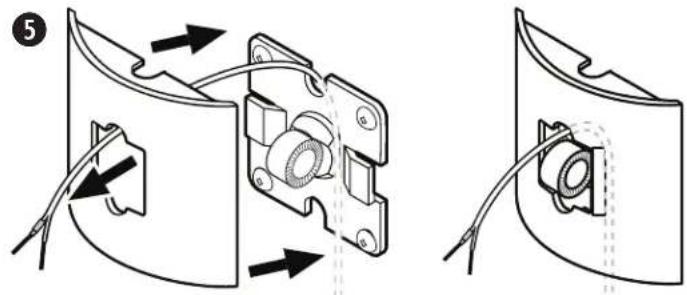

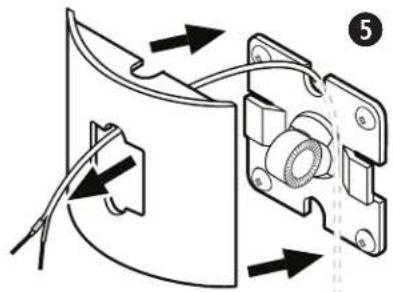

5. Reattach the wall-mount bracket cover to the plate, threading the loudspeaker wire through the center hole of the wall-mount bracket cover.
6. Connect the wire to the loudspeaker. For wiring information, see Wiring the Loudspeaker (Page 6).

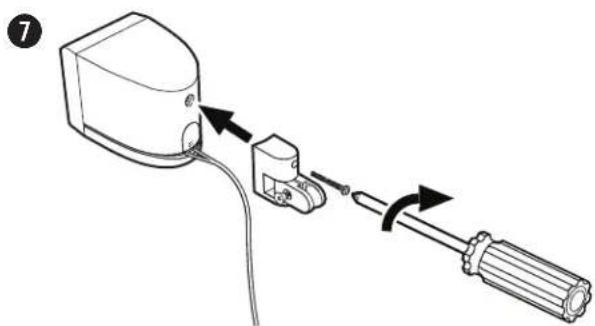

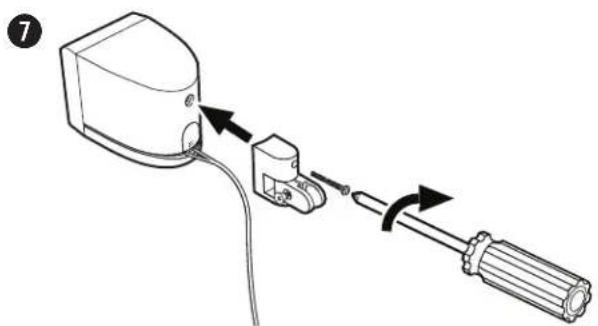

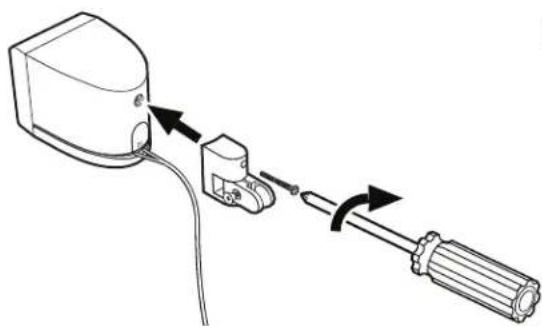

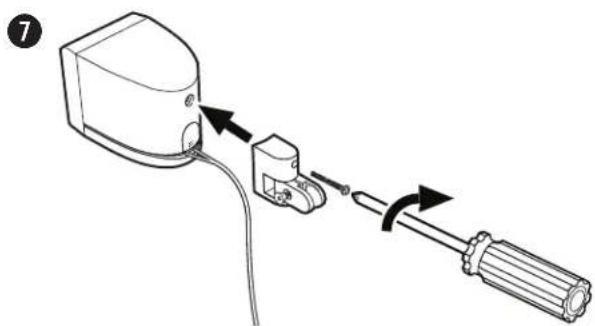

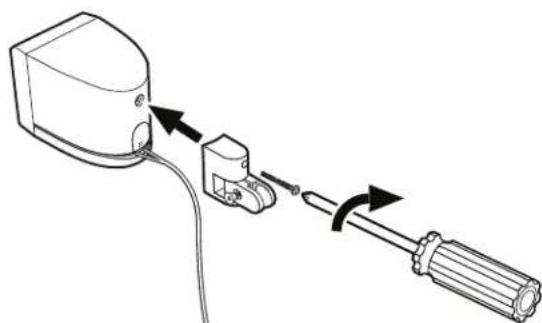

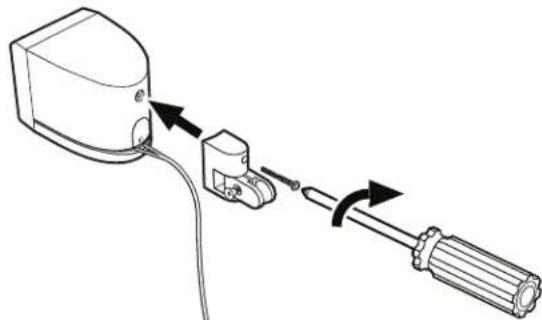

7. Use the included screw to attach the loudspeaker arm to the threaded insert on the rear panel of the loudspeaker.
8. Place the loudspeaker arm on the wall-mount bracket by aligning the two parts of the rotating joint (which you separated in Step 1).
9. Adjust the vertical and horizontal angles of the loudspeaker as desired.

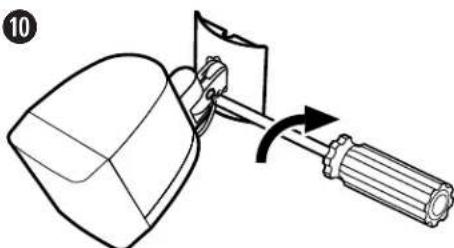

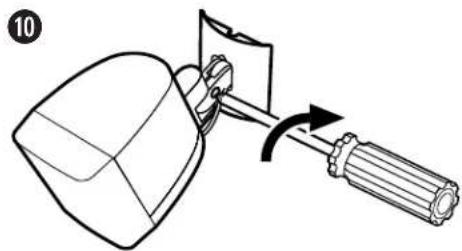

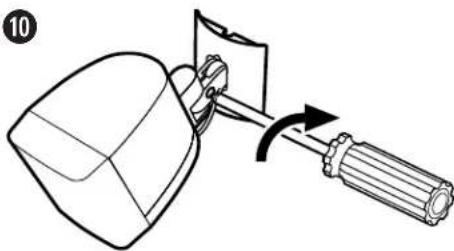

10. Insert the screw (which you removed in Step 1) into the rotating joint. Tighten the screw to secure the loudspeaker to the wall-mount bracket at the desired angle.

Technical diagram of a mechanical assembly with arrows indicating force or connection (no text or symbols present)

Pure technical line drawing of a mechanical component with no text or symbols

Diagram of a device with cable and connector, showing a mechanical assembly with no visible text or symbols

Line drawing of a device with an arrow pointing to a component, no text or symbols present

Diagram of a mechanical device with rotational arrows indicating motion (no text or symbols)

Diagram of a mechanical tool interacting with a component, showing a curved arrow indicating rotation (no text or symbols present)

Line drawing of a cylindrical container with four slots and a small protrusion, labeled '×1×1' below (no text or symbols on the diagram itself)

Simple circular diagram with a single diagonal line inside, no text or symbols present.

Simple diagram with a circle inside a rectangle and dotted lines at the top and bottom (no text or symbols)

3

5

7

Simple line drawing of a square plate with a circular hole and two small dots, no text or symbols present.

4

Line drawing of a cylindrical mechanical device with attached weights and ropes (no text or symbols)

Simple line drawing of a rectangular plate with two circular holes and three small dots, no text or symbols present.

9

Pure electrical circuit lines without any symbols

4 satélites

Diagram showing a square plate with an oval cutout and arrows indicating direction (no text or symbols)

Illustration of two hands holding a circular object inside a frame, with an arrow indicating upward motion (no text or symbols)

Technical diagram of a mechanical assembly with two plates and a central plate, showing alignment and mounting features (no text or symbols)

Simple line drawing of a hand holding a pencil, pointing at an oval shape on a 3D coordinate axis (no text or symbols)

Montaje del altavoz

Illustration of hands holding a circular tray with an arrow indicating direction (no text or symbols)

3

Diagram of a mechanical setup with a screwdriver and rotating components, no text or symbols present

Isometric line drawing of a cylindrical object with internal slots and directional arrows, placed on a flat base (no text or symbols)

Illustration of hands holding a circular object with an upward arrow, no text or symbols present

4

Illustration of hands holding a circular object with an arrow pointing upward, no text or symbols present

Diagram of a screwdriver lifting a screwdriver on a mechanical setup (no text or symbols)

Simple line drawing of a mechanical device with rotating arm and base plate (no text or symbols)

Illustration of hands holding a magnifying glass over a surface, with an upward arrow indicating direction (no text or symbols)

Technical diagram showing two views of a mechanical component with wires and connectors, no text or symbols present

Diagram of a device with cable and connector, showing a mechanical assembly (no text or symbols)

Line drawing of a device with an arrow pointing to a component, no text or symbols present

Diagram of a mechanical device with rotational arrows indicating motion (no text or symbols)

Diagram of a mechanical tool with a curved arrow indicating rotation or movement (no text or symbols present)

Technical line drawing of a cylindrical device with internal components and a separate circular component (no text or symbols)

Enceintes satellites encastrables

Four technical line drawings of mechanical components: a circular component, a circular dial, a rectangular box, and a curved bracket (no text or symbols)

Enceintes satellites encastrables

Simple geometric diagram with a circle inside a rectangle and dotted lines at the top (no text or symbols)

Simple line drawing of a square plate with a circle centered inside, no text or symbols present.

3

4

5

Line drawing of a cylindrical mechanical device with attached wires and a suspended hook (no text or symbols)

Simple line drawing of a rectangular plate with two circular holes and small dots, no text or symbols present.

9

Pure electrical circuit lines without any symbols

Quatre enceintes satellites

Diagram showing a square plate with an oval cutout and arrows indicating direction (no text or symbols)

Illustration of two hands holding a circular object inside a frame, with an arrow pointing upward (no text or symbols)

Technical diagram showing a mechanical assembly with two plates and a central circular component, no text or symbols present.

Simple line drawing of a hand holding a pen, pointing at an oval shape on a 3D coordinate axis (no text or symbols)

Illustration of hands holding a circular tray with an arrow indicating direction (no text or symbols)

3

Diagram of a mechanical setup with a screwdriver and rotating components, no text or symbols present

Isometric line drawing of a cylindrical device with four slots and a base plate, no text or symbols present

Illustration of two hands holding a circular object with an upward arrow, no text or symbols present

Enceintes satellites encastrables

4

Diagram of a mechanical device with a screwdriver and spring, no text or symbols present

Simple line drawing of a mechanical device with rotating components and base plates (no text or symbols)

Illustration of hands holding a magnifying glass over a surface, with an upward arrow indicating direction (no text or symbols)

Technical diagram of a mechanical assembly with arrows indicating motion or force direction (no text or symbols present)

Pure technical line drawing of a mechanical component with no text or symbols

6

Simple line drawing of a device with two black cables connected at the bottom (no text or symbols)

Line drawing of hands performing a sewing or cutting operation on a mechanical part (no text or symbols)

7

Diagram of a mechanical device with a lever and cable, showing no text or symbols

8

Diagram of a device with a paper clip inserted into a box, showing an arrow indicating direction (no text or symbols present)

9

Diagram of a mechanical or electrical component with rotational arrows indicating motion (no text or symbols)

Diagram of a mechanical tool interacting with a curved component, showing motion direction (no text or symbols)

Importeur aus China: Bose Electronics (Shanghai) Company Limited, Part C, Plant 9, No. 353 North Riying Road, China (Shanghai) Pilot Free Trade Zone

Technical line drawing of a cylindrical device with internal components and a separate circular component (no text or symbols)

Flush-Mount Satellites

Technical drawing of a mechanical component with two views: front view and side view (no text or symbols)

Surface-Mount Satellites

Produktabmessungen

Series II Acoustimass Bassmodul

Flush-Mount Satellites

Surface-Mount Satellites

NFPA 90A, 2002, Installation of Air Conditioning and Ventilation Systems, Paragraph 4.3.10.2.6.5

Simple diagram with a circle inside a rectangle and dotted lines at the top and bottom (no text or symbols)

Simple line drawing of a square plate with a circular hole and two small dots, no text or symbols present.

3

Simple line drawing of a bucket with a triangular support structure (no text or symbols)

4

5

Line drawing of a cylindrical container with attached weights and a suspended hook (no text or symbols)

7

Simple line drawing of a rectangular plate with two circular cutouts and a numbered circle (no text or symbols)

9

Pure electrical circuit lines without any symbols

4 Satelliten

Diagram showing a square plate with an oval cutout and arrows indicating direction (no text or symbols)

Illustration of two hands holding a circular object inside a frame, with an arrow indicating upward motion (no text or symbols)

Technical diagram of a mechanical assembly with two plates and a central plate, showing alignment and mounting features (no text or symbols)

Simple line drawing of a hand holding a pencil, pointing at an oval shape on a vertical line (no text or symbols)

Illustration of hands holding a circular tray with an arrow indicating upward motion (no text or symbols)

3

Diagram of a mechanical setup with a screwdriver and rotating components, no text or symbols present

Isometric line drawing of a cylindrical container with internal slots, mounted on a base plate (no text or symbols)

Illustration of hands holding a circular object with an arrow indicating upward motion (no text or symbols)

Flush-Mount Satellites

4

Illustration of hands holding a circular object with an arrow pointing upward (no text or symbols)

Diagram of a mechanical setup with a screwdriver and spring, no text or symbols present

Simple line drawing of a mechanical device with rotating arm and base plate (no text or symbols)

Illustration of hands holding a magnifying glass over a surface, with an upward arrow indicating direction (no text or symbols)

Surface-Mount Satellites

Diagram of a mechanical assembly with arrows indicating force or movement, no text or symbols present

Pure technical line drawing of a mechanical component with no text or symbols

Line drawing of hands performing a sewing or cutting operation on a mechanical part (no text or symbols)

Diagram of a device with cable and connector, showing a mechanical assembly (no text or symbols)

Line drawing of a device with an arrow pointing to a component, no text or symbols present

Diagram of a mechanical device with rotational arrows indicating motion (no text or symbols)

Diagram of a mechanical tool with a handle and lever mechanism (no text or symbols)

Importatore per la Cina: Bose Electronics (Shanghai) Company Limited, Part C, Plant 9, No. 353 North Riying Road, China (Shanghai) Pilot Free Trade Zone

Importatore per l'UE: Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, Paesi Bassi

Technical line drawing of a cylindrical device with internal components and a separate circular component (no text or symbols)

Two technical diagrams showing a cylindrical device and a mechanical component with 2 pz. label (no text or symbols on devices)

Simple diagram with a circle inside a rectangle and dotted lines at the top and bottom (no text or symbols)

Simple line drawing of a square frame with a circle at the center and two small dots below (no text or symbols)

3

4

5

Line drawing of a cylindrical container with attached weights and a suspended hook (no text or symbols)

7

Simple 3D diagram of a rectangular plate with two circular cutouts and a numbered circle (no text or symbols)

9

Pure electrical circuit lines without any symbols

4 satelliti

Diagram showing a square plate with an oval cutout and arrows indicating direction (no text or symbols)

Illustration of two hands holding a large circular object with an arrow pointing upward, enclosed in a frame (no text or symbols)

Technical diagram showing a mechanical assembly with two plates and a central circular feature, no text or symbols present.

Simple line drawing of a hand holding a circular object above a vertical axis (no text or symbols)

Illustration of hands holding a circular tray with an arrow indicating direction (no text or symbols)

3

Simple line drawing of a mechanical setup with a screwdriver and rotating components (no text or symbols)

Isometric line drawing of a cylindrical device mounted on a base plate with directional arrows indicating rotation (no text or symbols)

Illustration of hands holding a circular object with an upward arrow, no text or symbols present

4

Illustration of hands holding a circular object with an arrow pointing upward (no text or symbols)

Diagram of a mechanical device with a screwdriver and rotating arm (no text or symbols)

Simple line drawing of a mechanical device with rotating arm and base, no text or symbols present

Illustration of two hands holding a circular object with an upward arrow, against a plain background (no text or symbols)

Technical diagram of a mechanical assembly with arrows indicating motion or force direction (no text or symbols present)

Pure technical line drawing of a mechanical component with no text or symbols

6

Simple line drawing of a device with two black cables connected at the bottom (no text or symbols)

Line drawing of hands performing a sewing or cutting operation on a mechanical part (no text or symbols)

7

Diagram of a mechanical device with a lever and cable, showing no text or symbols

8

Diagram of a device with an arrow pointing to a component, no text or symbols present

9

Diagram of a mechanical device with rotating arrows indicating motion (no text or symbols)

Diagram of a mechanical tool interacting with a curved component, showing motion direction (no text or symbols)

Importeur in China: Bose Electronics (Shanghai) Company Limited, Part C, Plan 9, No. 353 North Riying Road, China (Shanghai) Pilot Free Trade Zone

Importeur in de EU: Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, Nederland

Importeur in Mexico: Bose de México, S. de R.L. de C.V., Paseo de las Palmas 405-204,

Lomas de Chapultepec, 11000 México, D.F. Gegevens importeur en service-informatie: [phone]

Importeur in Taiwan: Bose Taiwan Branch, 9F-A1, No.10, Section 3, Minsheng East Road, Taipei City 104, Taiwan. Telefoonnummer: [phone]

Technical line drawing of a cylindrical device with internal components and a separate circular component (no text or symbols)

Technical drawing of a mechanical component with two views: front view and side view (no text or symbols)

UL-2043, Fire Test and Visible Smoke Release for Discrete Products and their Accessories Installed in Air Handling Spaces

NFPA-70, National Electrical Code, 2002, artikel 300.22(C)

NFPA 90A, 2002, Installation of Air Conditioning and Ventilation Systems, Paragraph 4.3.10.2.6.5

Simple diagram with a circle inside a rectangle and a grid of dots (no text or symbols)

Simple line drawing of a circular object inside a tilted rectangular frame (no text or symbols)

3

Simple line drawing of a bucket with a triangular load and three vertical supports (no text or symbols)

4

5

Line drawing of a cylindrical container with four legs and attached weights, suspended by ropes (no text or symbols)

7

Simple line drawing of a rectangular plate with two circular holes and a dashed line, no text or symbols present.

9

De luidsprekers bekabelen

Bekabelingsdiameter

Pure electrical circuit lines without any symbols

Diagram showing a square plate with an oval cutout and arrows indicating direction (no text or symbols)

Illustration of two hands holding a large circular object inside a frame, with an upward arrow indicating motion (no text or symbols)

Technical diagram showing a mechanical assembly with two plates and a central circular component, no text or symbols present.

Simple line drawing of a hand holding a pencil, pointing at an oval shape on a 3D coordinate axis (no text or symbols)

Illustration of hands holding a circular tray with an arrow indicating rotation or direction (no text or symbols)

3

Simple line drawing of a mechanical setup with a screwdriver and two blocks on a beam (no text or symbols)

Isometric line drawing of a cylindrical object on a base plate with directional arrows indicating rotation (no text or symbols)

Illustration of hands holding a circular object with an upward arrow, no text or symbols present

4

Diagram of a mechanical device with a screwdriver and rotating arm (no text or symbols)

Simple line drawing of a mechanical device with rotating arm and base plate (no text or symbols)

Illustration of hands holding a magnifying glass over a surface, with an upward arrow indicating motion (no text or symbols)

Diagram of a mechanical assembly with arrows indicating force or movement, no text or symbols present

Pure technical line drawing of a mechanical component with no text or symbols

Line drawing of hands performing a sewing or cutting operation on a mechanical part (no text or symbols)

Diagram of a device with cable and connector, showing a mechanical assembly (no text or symbols)

Line drawing of a device with an arrow pointing to a component, no text or symbols present

Diagram of a mechanical device with rotational arrows indicating motion (no text or symbols)

Diagram of a mechanical tool with a handle and lever mechanism (no text or symbols)

Technical line drawing of a cylindrical device with internal components and a separate circular component (no text or symbols)

Innebygde satellitter

Technical drawing of a mechanical component with two views: top shows circular housing, bottom shows oval with internal features (no text or symbols)

Overflatemonterte satellitter

Produktmål

Series II Acoustimass-bassmodul

Innebygde satellitter

Overflatemonterte satellitter

Simple diagram with a circle inside a rectangle and dot grid, no text or symbols present

Simple line drawing of a circular object on a tilted rectangular base, with no text or symbols present.

Simple line drawing of a bucket with handles and a triangular structure inside (no text or symbols)

Line drawing of a cylindrical container with suspended weights and a triangular top (no text or symbols)

Simple line drawing of a rectangular plate with a circular hole and two small dots, no text or symbols present.

Pure electrical circuit lines without any symbols

Tilkobling for forsterkerutgang

Installere monteringsbroen

Diagram showing a square plate with an oval cutout and arrows indicating direction (no text or symbols)

Illustration of two hands holding a large circle inside a frame, with an arrow pointing upward (no text or symbols)

Technical diagram of a mechanical assembly with two plates and a central circular component (no text or symbols)

Simple line drawing of a hand holding a circular object above a V-shaped line (no text or symbols)

Montere høyttaleren

Series II Acoustimass-bassmodul

Illustration of hands holding a plate with an arrow indicating direction (no text or symbols)

3

Diagram of a mechanical setup with a screwdriver and rotating components, no text or symbols present

Isometric line drawing of a cylindrical container with internal slots and directional arrows, placed on a flat base (no text or symbols)

Illustration of hands holding a circular object with an upward arrow, no text or symbols present

Innebygde satellitter

4

Illustration of hands holding a circular object with an arrow pointing upward, no text or symbols present

Diagram of a mechanical setup with a screwdriver and lever, no text or symbols present

Simple line drawing of a mechanical device with rotating arm and base plate (no text or symbols)

Illustration of hands holding a magnifying glass over a circular object, with an upward arrow indicating motion (no text or symbols)

Overflatemonterte satellitter

Diagram of a mechanical assembly with arrows indicating force or movement, no text or symbols present

Pure technical line drawing of a mechanical component with no text or symbols

Line drawing of hands using a tool to apply a small object onto a rectangular object (no text or symbols present)

Diagram of a device with cable and connector, showing a mechanical assembly with arrows indicating motion (no text or symbols)

Line drawing of a device with an arrow pointing to a component, no text or symbols present

Diagram of a mechanical device with rotational arrows indicating motion (no text or symbols)

Diagram of a mechanical tool interacting with a cylindrical component, showing motion direction (no text or symbols)

Importer na terenie Chin: Bose Electronics (Shanghai) Company Limited, Part C, Plant 9, No. 353 North Riying Road, China (Shanghai) Pilot Free Trade Zone

Importer na terenle UE: Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, Holandia

Technical line drawing of a cylindrical device with internal components and a separate circular component (no text or symbols)

Technical drawing of a mechanical component with two views: top shows circular features, bottom shows a circular feature (no text or symbols)

Dane techniczne

Simple geometric diagram with a circle centered within a rectangle, surrounded by dots (no text or symbols)

Simple line drawing of a circular object inside a tilted rectangular frame, with no text or symbols present.

4

5

Line drawing of a cylindrical container with four legs and a suspended load, no text or symbols present

7

Simple line drawing of a rectangular plate with a circular hole and two small dots, no text or symbols present.

9

Pure electrical circuit lines without any symbols

4 satelity

Diagram showing a square plate with an oval cutout and arrows indicating direction, no text or symbols present.

Illustration of two hands holding a large sphere inside a frame, with an arrow pointing upward (no text or symbols)

Technical diagram of a mechanical assembly with two plates and a central plate, showing bolt holes and alignment lines (no text or symbols)

Simple line drawing of a hand holding a pen, pointing at an oval shape on a 3D coordinate axis (no text or symbols)

Montaż głośnika

Illustration of hands holding a circular tray with an upward arrow, no text or symbols present

3

Simple line drawing of a mechanical setup with a screwdriver and two blocks, no text or symbols present.

Isometric line drawing of a cylindrical object with four protruding slots, mounted on a base plate (no text or symbols)

Illustration of hands holding a circular object with an upward arrow, no text or symbols present

4

Illustration of hands holding a circular object with an arrow pointing upward (no text or symbols)

Diagram of a mechanical device with a screwdriver and rotating arm (no text or symbols)

Simple line drawing of a mechanical device with rotating arm and base, no text or symbols present

Illustration of hands holding a circular object with an upward arrow, no text or symbols present

Technical diagram of a mechanical assembly with arrows indicating force or connection (no text or symbols present)

Pure technical line drawing of a mechanical component with no text or symbols

Line drawing of hands performing a sewing or cutting operation on a mechanical part (no text or symbols)

Diagram of a device with cable and connector, showing a mechanical assembly with arrows indicating motion (no text or symbols)

Line drawing of a device with an arrow pointing to a component, no text or symbols present

Diagram of a mechanical device with rotational arrows indicating motion (no text or symbols)

Diagram of a mechanical tool with a handle and lever mechanism (no text or symbols)

请阅读并保留所有安全和使用说明。

Line drawing of a cylindrical container with three side slots and a small protrusion, labeled '×1×1' below (no text or symbols on the diagram itself)

Simple circular diagram with a single diagonal arrow inside, no text or symbols present.

天花吸顶 卫星扬声器

×2

× 2

壁装 卫星扬声器

× 2

×2

产品尺寸

Simple diagram with a circle inside a rectangle and dotted lines at the top (no text or symbols)

Simple line drawing of a circular object inside a tilted rectangular frame, with no text or symbols present.

3

Simple line drawing of a bucket with a triangular load triangle above it (no text or symbols)

4

5

Line drawing of a cylindrical mechanical device with attached weights and a suspended load (no text or symbols)

7

Simple line drawing of a rectangular plate with a circular hole and two small dots, no text or symbols present.

9

为扬声器布线

线规

Pure electrical circuit lines without any symbols

功放输出连接

4个卫星扬声器

4 个卫星扬声器（备选，串联方式）

准备安装

扬声器布置

Diagram showing a square plate with an oval cutout and arrows indicating direction (no text or symbols)

Illustration of two hands holding a circular object inside a frame, with an arrow indicating upward motion (no text or symbols)

Technical diagram of a mechanical assembly with two plates and a central circular component (no text or symbols)

Simple line drawing of a hand holding a magnifying glass over a 3D coordinate axis (no text or symbols)

安装扬声器

Illustration of hands holding a circular tray with an arrow indicating direction (no text or symbols)

3

Diagram of a mechanical setup with a screwdriver and rotating components, no text or symbols present

Isometric line drawing of a cylindrical device with internal slots and directional arrows, placed on a flat base (no text or symbols)

Illustration of hands holding a circular object with an arrow indicating upward motion (no text or symbols)

天花吸顶卫星扬声器

4

Illustration of hands holding a circular object with an arrow pointing upward, no text or symbols present

Diagram of a mechanical setup with a screwdriver and rotating arm (no text or symbols)

Simple line drawing of a mechanical device with rotating arm and base plate (no text or symbols)

Illustration of hands holding a circular object with an upward arrow, no text or symbols present

壁装卫星扬声器

Technical diagram of a mechanical assembly with arrows indicating direction (no text or symbols present)

Pure technical line drawing of a mechanical component with no text or symbols

6

Simple line drawing of a device with two black cables connected at the bottom (no text or symbols)

Line drawing of hands performing a sewing or cutting operation on a mechanical part (no text or symbols)

7

Diagram of a mechanical device with a lever and cable, showing a switch and adjustment mechanism (no text or symbols)

8

Line drawing of a device with an arrow pointing to a component, no text or symbols present

9

Diagram of a mechanical or electrical component with rotational arrows indicating motion (no text or symbols)

Diagram of a mechanical tool interacting with a component, showing a curved arrow indicating rotation (no text or symbols present)

請閱讀並保管好所有安全和使用指示。

Line drawing of a cylindrical container with four slots and a small protrusion, labeled '×1×1' below (no text or symbols on the diagram itself)

Simple circular diagram with a single diagonal arrow inside, no text or symbols present.

嵌入式安裝衛星揚聲器

× 2

×2

面裝 衛星揚聲器

× 2

×2

產品尺寸

II Acoustimass 低音箱

UL-2043.《Fire Test and Visible Smoke Release for Discrete Products and their Accessories Installed in Air Handling Spaces》(裝於空氣調節空間之分離性產品及其配件的防火測試及可視煙霧釋放)

Simple diagram with a circle inside a rectangle and dotted lines at the top (no text or symbols)

Simple line drawing of a circular object inside a tilted rectangular frame, with no text or symbols present.

3

Simple line drawing of a bucket with a triangular load triangle above it (no text or symbols)

4

5

Line drawing of a cylindrical mechanical device with attached weights and a suspended load (no text or symbols)

7

Simple line drawing of a rectangular plate with a circular hole and two small dots, no text or symbols present.

9

揚聲器接線

線規

Pure electrical circuit lines without any symbols

擴大機輸出連線

4 個衛星揚聲器

4 個衛星揚聲器（替代方案，系列方法）

安裝準備

揚聲器位置

安装天花板跨橋板

Diagram showing a square plate with an oval cutout and arrows indicating direction (no text or symbols)

Illustration of two hands holding a circular object over a window frame, with an upward arrow indicating motion (no text or symbols)

Technical diagram showing a mechanical assembly with two plates and a central circular feature, no text or symbols present.

Simple line drawing of a hand holding a speech bubble above a corner (no text or symbols)

安裝揚聲器

FreeSpace 3 II Acoustimass 低音箱

Illustration of hands holding a circular tray with an upward arrow, no text or symbols present

3

Diagram of a mechanical setup with a screwdriver and rotating components, no text or symbols present

Isometric line drawing of a cylindrical container with internal slots, mounted on a base plate (no text or symbols)

Illustration of hands holding a circular object with an arrow indicating upward motion (no text or symbols)

嵌入式安裝衛星揚聲器

4

Diagram of a mechanical setup with a screwdriver and spring, no text or symbols present

Simple line drawing of a mechanical device with rotating components and motion arrows (no text or symbols)

Illustration of two hands holding a magnifying glass over a surface, with an upward arrow indicating direction (no text or symbols)

面裝衛星揚聲器

Diagram of a mechanical assembly with arrows indicating direction of connection (no text or symbols present)

Pure technical line drawing of a mechanical component with no text or symbols

Diagram of a device with cable and connector, showing a mechanical assembly (no text or symbols)

Line drawing of a device with an arrow pointing to a component, no text or symbols present

Diagram of a mechanical device with rotational arrows indicating motion (no text or symbols)

Diagram of a mechanical tool with a handle and lever mechanism (no text or symbols)

This product conforms to all applicable EU directive requirements. The complete declaration of conformity can be found at: www.Bose.com/compliance.

This symbol means the product must not be discarded as household waste, and should be delivered to an appropriate collection facility for recycling. Proper disposal and recycling helps protect natural resources, human health and the environment. For more information on disposal and recycling of this product, contact your local municipality, disposal service, or the shop where you bought this product.

中国で制限されている有害／危険物質一覧

中国における輸入元: Bose Electronics (Shanghai) Company Limited, Part C, Plant 9, No. 353 North Riying Road, China (Shanghai) Pilot Free Trade Zone

EUにおける輸入元: Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, The Netherlands

メキシコにおける輸入元: Bose de México, S. de R.L. de C.V., Paseo de las Palmas 405-204, Lomas de Chapultepec, 11000 México, D.F. 輸入元およびサポート情報: [phone]

台湾における輸入元: Bose Taiwan Branch, 9F-A1, No. 10, Section 3, Minsheng East Road, Taipei City 104, Taiwan. Phone Number: [phone]

Bose Corporation Headquarters: 1-877-230-5639

Technical line drawing of a cylindrical device with internal components and a separate circular component (no text or symbols)

Flush-mount Satellites

Technical line drawing of a mechanical component with two views: top shows circular housing, bottom shows oval plate (no text or symbols)

Surface-mount Satellites

Two technical illustrations: a rectangular box and a mechanical component with cross-sectional view (no text or symbols)

製品寸法

Series II Acoustimass Bass Module

Flush-mount Satellites

Surface-mount Satellites

技術仕様

UL-2043、Fire Test and Visible Smoke Release for Discrete Products and their Accessories Installed in Air Handling Spaces

Flush-mount Satellites

必須

Simple diagram with a circle inside a rectangle and dotted lines on the sides (no text or symbols)

Simple line drawing of a circular object inside a tilted rectangular frame, with no text or symbols present.

3

4

5

Line drawing of a cylindrical container with suspended weights and a hanging hook, no text or symbols present

7

Simple line drawing of a rectangular plate with a circular hole and two small dots, no text or symbols present.

9

スピーカーの配線

ケーブルゲージ

Pure electrical circuit lines without any symbols

アンプ出力の接続

Diagram showing a square plate with an oval cutout and arrows indicating direction (no text or symbols)

Illustration of two hands holding a large circle inside a frame, with an arrow pointing upward (no text or symbols)

Technical diagram of a mechanical assembly with two plates and a central plate, showing alignment and mounting features (no text or symbols)

Simple line drawing of a hand holding a blank oval shape, no text or symbols present

スピーカーの取り付け

Series II Acoustimass Bass Module

2

Illustration of hands holding a circular tray with an upward arrow, no text or symbols present

3

Simple line drawing of a mechanical setup with a screwdriver and two blocks on a beam (no text or symbols)

Isometric line drawing of a cylindrical device with four slots and a base plate, showing rotational arrows (no text or symbols)

Illustration of hands holding a circular object with an upward arrow, no text or symbols present

Flush-mount Satellites

Illustration of hands holding a circular object with an arrow pointing upward, no text or symbols present

Simple line drawing of a mechanical device with a knob and base, no text or symbols present

Illustration of hands holding a magnifying glass over a surface, with an upward arrow indicating motion (no text or symbols)

Surface-mount Satellites

Technical illustration showing mechanical assembly steps: pinning, mounting bracket, and clamping mechanism (no text or symbols)

2

Illustration of two hands performing a manual manipulation or massage technique (no text or symbols present)

Mechanical assembly diagram showing a motor housing with wiring and mounting brackets (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

6

Simple line drawing of a device with two black cables connected at the bottom (no text or symbols)

Line drawing of hands performing a sewing or cutting operation on a mechanical part (no text or symbols)

7

Diagram of a handheld device with cable and connector, showing internal components and directional arrows (no text or symbols)

8

Line drawing of a device with an arrow pointing to a component (no text or symbols)

9

Diagram of a mechanical or electrical component with rotational arrows indicating motion (no text or symbols)

Diagram of a mechanical tool interacting with a curved component, showing motion direction (no text or symbols)

المعلومات التنظيمية

Technical line drawing of a circular component with a lid and a cylindrical housing, both without any text or symbols.

أبعاد المنتج

Simple line drawing of a rectangular frame with a circular cutout and two small dots at the bottom (no text or symbols)

Line drawing of a cylindrical mechanical device with attached weights and a suspended load (no text or symbols)

Simple diagram with a circle centered within a rectangle, surrounded by dots (no text or symbols)

Simple line drawing of a bucket with a triangular support structure (no text or symbols)

1
3
5 10 6
7

Simple 3D diagram of a rectangular plate with two circular cutouts and small dots, no text or symbols present.

خيرات التركيب

Pure electrical circuit lines without any symbols

ωاط 25

مکبرا صوت صغيران

Hand holding a pencil drawing a semicircle on a flat surface (no text or symbols)

Two line drawings showing hand-drawn geometric shapes: one with a circle and square, the other with a triangle and rectangle (no text or symbols)

Line drawing of two hands opening a box with an arrow indicating rotation (no text or symbols)

1

تركيب عارضة الألواح

Illustration of two hands holding a large circle inside a frame, with an arrow pointing upward (no text or symbols)

Pure diagram of a square plate with an oval cutout and arrows indicating direction, no text or symbols present.

1

Simple line drawing of a hand holding a pen, pointing at an oval shape on a line (no text or symbols)

Technical diagram of a mechanical assembly with two plates and a central circular feature (no text or symbols)

1

تركيب مكير الصوت

Illustration of hands holding a circular tray with an arrow indicating upward motion (no text or symbols)

Illustration of hands holding a circular object with an upward arrow, no text or symbols present

Isometric line drawing of a cylindrical device with four slots and a base plate, no text or symbols present

Diagram of a screwdriver pressing a mechanical component on a workbench (no text or symbols)

Hand holding a tool interacting with a mechanical component, showing arrows indicating movement or assembly (no text or symbols present)

Illustration of two hands performing a manual task with a downward arrow indicating motion (no text or symbols)

Technical line drawing of two mechanical components: a clamped part and a bracket (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

Diagram of a mechanical assembly with arrows indicating force or connection, no text or symbols present

Diagram of a mechanical device with a lever and cable, showing directional arrows indicating motion (no text or symbols present)

7

Line drawing of a mechanical tool with a curved arrow indicating rotation (no text or symbols)

Diagram of a mechanical or electrical component with rotational arrows indicating motion (no text or symbols)

Line drawing of a device with an arrow pointing to a component, no text or symbols present
