VL 5530 S - Fan AEG - Free user manual and instructions

Brand	AEG
Model	VL 5530 S
Product type	Pedestal fan
Power supply	220-240 V, 50 Hz
Power consumption	50 W
Protection class	I
Net weight	2.75 kg
Speeds	3 adjustable speeds
Timer	Timer from 0 to 7.5 hours (in 30-minute steps)
Oscillation	Automatic oscillation over 60°
Special modes	Sleep (SLEEP) and Nature (NATURE)
Remote control	Yes, range up to 6 meters, AAA batteries (not included)
Height adjustment	Yes, via screw nut
Tilt	Manually adjustable (15°)
Maximum recommended area	40 m²
Protective grille	Yes, with fixing hooks
Assembly	Required before first use
Cleaning	Dry cloth, do not immerse
Safety	Do not insert objects into the grille, do not use without grille
Spare parts	Use only original accessories
Repairability	Call a qualified technician

Frequently Asked Questions - VL 5530 S AEG

How to assemble the AEG VL 5530 S fan?

Mount the cross base, screw the mounting plate, insert the main tube, fix the motor, place the rear grille with the ring, install the propeller by aligning the pin, then the front grille. Tighten the screws and close the hooks. Refer to the manual for details.

How to use the remote control?

The remote control works wirelessly up to 6 meters. Insert 2 AAA batteries (not included) observing polarity. Point towards the sensor on the unit. If range decreases, replace the batteries.

How to set the timer?

Press the TIMER button: each press adds 30 minutes up to 7.5 hours. The fan will turn off automatically after the set time.

What do SLEEP and NATURE modes mean?

The SLEEP mode varies the speed for night comfort. The NATURE mode simulates a natural breeze by changing speed randomly. Press MODE to activate them, and select NORMAL to return to constant operation.

How to clean the fan?

First unplug the unit. Clean the exterior with a dry cloth. For stubborn dirt, slightly dampen the cloth with water, then wipe with a dry cloth. Never immerse in water or use abrasive products.

How to adjust the height and tilt?

For the height, unscrew the nut on the main tube, adjust to the desired height and retighten. For the tilt, manually tilt the motor block forward or backward up to 15°.

Why is the fan not working?

Check that the unit is plugged into a working 230 V outlet. Ensure the POWER indicator is on. Test the remote control with new batteries. If nothing works, contact a qualified technician.

Can I use the fan outdoors?

No, this appliance is designed for indoor use only. Do not expose it to rain, humidity, or direct sunlight.

How to replace the remote control batteries?

Open the battery compartment at the back of the remote control. Insert 2 R03 AAA 1.5V batteries observing the polarity markings. Close the compartment. Do not mix old and new batteries.

What to do in case of breakdown or damage?

Do not attempt to repair yourself. Unplug the unit and contact a qualified technician or AEG after-sales service. Use only original spare parts.

USER MANUAL VL 5530 S AEG

Black outdoor stand with a four-leafed fan and four legs, no visible text or symbols.

PERFECT IN FORM AND FUNCTION

AEG

Deutsch

Inhalt

Overview of the components ......Page 3

Instruction Manual Page 23

Technical Data Page 25

Język polski

Spis tres'ci

Overview of the components

Technical diagram of a mechanical device with numbered parts and exploded view, likely for assembly or maintenance instructions.

4 Deutsch

D-47906 Kempen/Germany

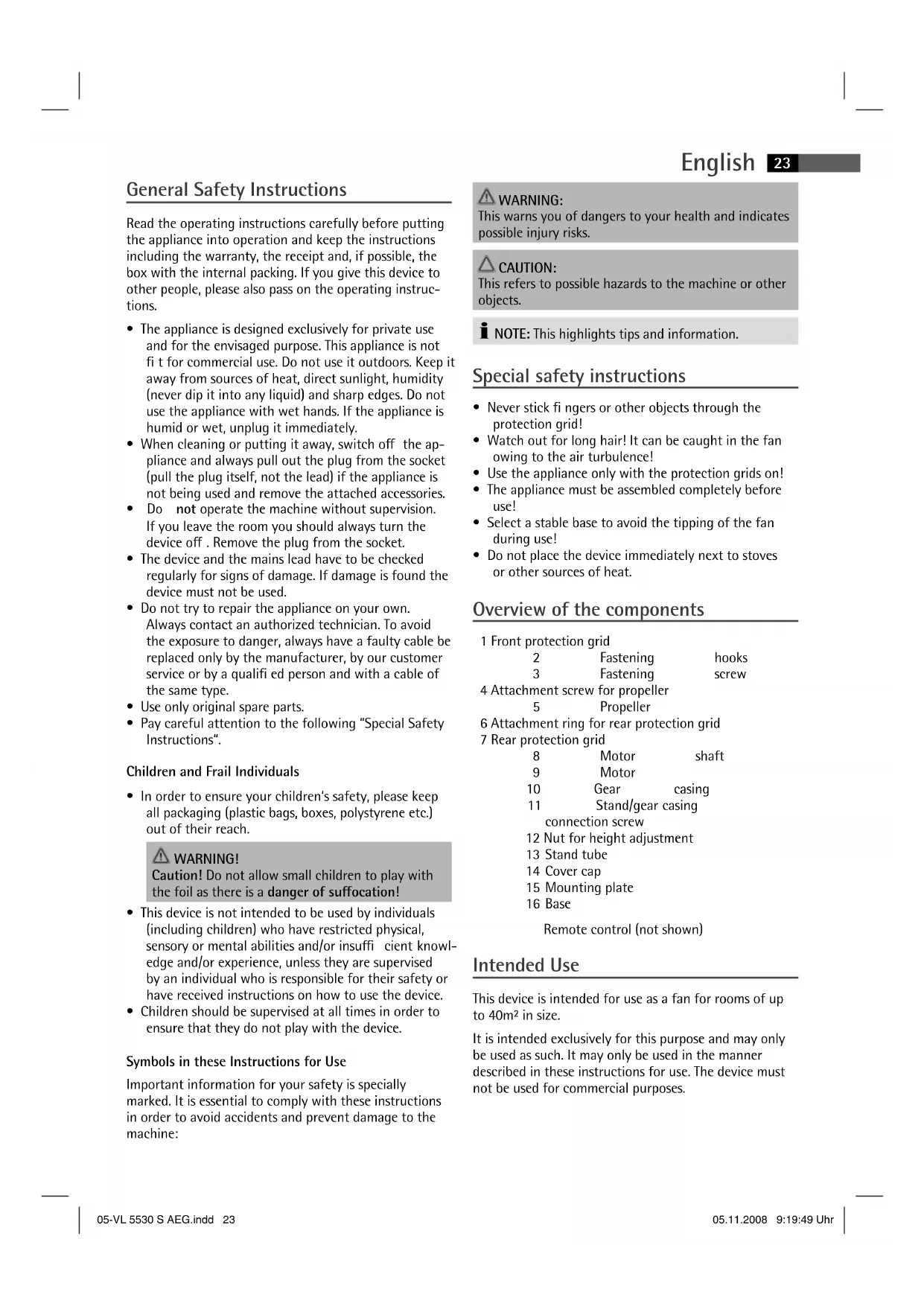

General Safety Instructions

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use. Do not use it outdoors. Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull the plug itself, not the lead) if the appliance is not being used and remove the attached accessories.
• Do not operate the machine without supervision. If you leave the room you should always turn the device off. Remove the plug from the socket.
• The device and the mains lead have to be checked regularly for signs of damage. If damage is found the device must not be used.
• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have a faulty cable be replaced only by the manufacturer, by our customer service or by a qualified person and with a cable of the same type.
• Use only original spare parts.
• Pay careful attention to the following "Special Safety Instructions".

Children and Frail Individuals

- In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING!

Caution! Do not allow small children to play with the foil as there is a danger of suffocation!

• This device is not intended to be used by individuals (including children) who have restricted physical, sensory or mental abilities and/or insufficient knowledge and/or experience, unless they are supervised by an individual who is responsible for their safety or have received instructions on how to use the device.
• Children should be supervised at all times in order to ensure that they do not play with the device.

Symbols in these Instructions for Use

Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the machine:

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the machine or other objects.

NOTE: This highlights tips and information.

Special safety instructions

• Never stick fingers or other objects through the protection grid!
• Watch out for long hair! It can be caught in the fan owing to the air turbulence!
• Use the appliance only with the protection grids on!
• The appliance must be assembled completely before use!
• Select a stable base to avoid the tipping of the fan during use!
• Do not place the device immediately next to stoves or other sources of heat.

Overview of the components

1 Front protection grid

2	Fastening	hooks
3	Fastening	screw

4 Attachment screw for propeller

5 Propeller

6 Attachment ring for rear protection grid

7 Rear protection grid

8	Motor	shaft
9	Motor
10	Gear	casing
11	Stand/gear	casing
connection screw

12 Nut for height adjustment

13 Stand tube

14 Cover cap

15 Mounting plate

16 Base

Remote control (not shown)

Intended Use

This device is intended for use as a fan for rooms of up to 40m^2 in size.

It is intended exclusively for this purpose and may only be used as such. It may only be used in the manner described in these instructions for use. The device must not be used for commercial purposes.

24 English

Any other use of this device is considered to be contrary to the intended use and may result in damage to materials or even personal injury.

The firm ETV - Elektro-Technische Vertriebsgesellschaft mbH does not accept any liability for damage caused as a result of the use of this device contrary to its intended use.

Unpacking the Device

• Remove the device from its packaging.
• Remove all of the packaging material such as foils, filling material, cable holders and cardboard packaging.
• Check the scope of delivery.

i NOTE:

There may still be dust or production residues on the surface of the device. We recommend that you quickly wipe off the housing with a damp cloth.

Assembly instructions

The device must be completely assembled before use! While reading the text it is advisable to refer to the "Overview of the Components".

1. Place the parts of the base together in the shape of a cross.
2. Screw the mounting plate (15) tightly to the base. Four crosshead screws are included in the scope of delivery.
3. Push the covering cap (14) on to the lowest position of the upright tube (13).
4. Loosen the connection screw (11) and insert the gear casing (10) and the motor casing (9) on the stand tube. Then tighten the screw well.
5. Position the rear protection grid (7) in place in accordance with the recesses.

i NOTE:

Please ensure that the carrying handle is facing upwards.

1. Turn the attachment ring (6) for the rear protection grid (7) slightly in a clockwise direction.
2. Attach the propeller. Note the position of the guide pin on the motor shaft.
3. Tighten the attachment screw (4) for the propeller in an anticlockwise direction.
4. Insert the front protective grille (1).

i NOTE:

Ensure that the holes for the attachment screw in the front and rear protective grille are aligned one above the other.

1. Tighten the protective grille with the attachment screw supplied.
2. Close the attachment hooks.

Position

The ideal position is a non-slip, fl at surface.

Putting into Service

Electrical Connection

1. Before inserting the plug into the socket. Make sure that the mains voltage to be used matches that of the device. You can find this information on the nameplate.
2. Connect the device to a duly installed 230V/50Hz protective contact socket. The control lamp POWER now illuminates.

Remote Control

• The cordless remote control has a range of up to 6 meters.
• When using the remote control, please ensure that there are no obstacles placed between it and the sensor on the device.
• If this range becomes smaller the batteries need replacing.

Inserting Batteries into the Remote Control (Batteries not supplied)

• Open the lid of the battery compartment on the rear of the remote control.
• Insert 2 MICRO batteries of type R03 „AAA" 1.5 V.
• Please ensure the correct polarity. Information is shown on the remote control itself.
• Close the battery compartment.

i NOTE:

• The buttons marked with an * are located on the device and on the remote control.
• If you are not going to use the remote control for a prolonged period, please remove the batteries in order to prevent them from leaking.

△ CAUTION:

• Used batteries should not be disposed of in the domestic waste. Please return all batteries to a special collection point. Your local authority will provide you with information on this.
• Different types of battery or new and used batteries must not be used together.

Use

Basic Settings

Set the blower inclination angle before starting the device. You can adjust the inclination angle by tipping the blower casing with both hands.

CAUTION:

The inclination angle amounts to approx. 15^ .

Height Adjustment

In order to alter the height of the blower, release the nut (12).

ON/OFF\*

Press this button to turn the device on and off.

SPEED\*

Press the SPEED button to select one of the three different speeds.

TIME\*

If you want the timer to switch the device off, press the TIMER button.

NOTE:

Every press of the TIMER button increases the operating time by 30 minutes.

MODE\* Wind Change Functions

The device has the two special functions SLEEP and NATURE. The speed of the fan buries between the functions.

• Press the MODE button to switch these functions on.
• Select the NORMAL function to return to normal operation.

OSC\* Oscillation

• If you select the OSC function the device oscillates automatically through a range of approximately 60 degrees.
• In order to switch the function off, press the OSC button again.

Cleaning

WARNING:

• Always remove the mains plug before cleaning the device.
- If you need to remove the safety guard: Always switch the device off and remove the mains plug.
- Under no circumstances should you immerse the device in water for cleaning purposes. Otherwise this might result in an electric shock or fi re.

CAUTION

• Do not use a wire brush or any abrasive items.
• Do not use any acidic or abrasive detergents.
• Clean the outside of the device with a dry cloth without any additives.
• If the device is very dirty wet a cloth with water and then wipe the device dry once you have fi nished.

Noise development

The workplace-related emission value is less than 70 dB(A).

Technical Data

Model: VL 5530 S

Power supply: 220-240 V, 50 Hz

Power consumption: 50 W

Protection class: I

Net weight: 2,75 kg

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Subject to technical changes without prior notice!

Meaning of the "Dustbin" Symbol

Protect our environment: do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilisation of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority.
