Product type	Pedestal fan
Brand	AEG
Model	VL 5688 S
Power supply	220-240 V~, 50 Hz
Power consumption	50 W
Protection class	I
Net weight	Approx. 7.0 kg
Recommended area	Up to 40 m²
Number of speeds	3 (low, medium, high)
Oscillation	Yes, 90° (push button)
Adjustable tilt	Yes (via wing screw)
Adjustable height	Yes (via wing screw on the tube)
Protective grille	Yes, front and rear
Fan blade	Removable, secured by locking screw
Assembly required	Yes, before first use
Cleaning	Dry or slightly damp cloth, without abrasive detergent
Storage	In its original packaging, dry and ventilated place, out of reach of children
Outdoor use	No, indoor use only
Repairs	Entrust to an authorized technician; do not repair yourself
Included accessories	Tripod, pin, tubes, screws, grilles, fan blade, etc.

Frequently Asked Questions - VL 5688 S AEG

How to assemble the AEG VL 5688 S fan?

Follow the assembly instructions on page 3 of the manual. Attach the tripod, tubes, motor, rear grille, fan blade, and front grille. Use a Phillips screwdriver.

How to adjust the fan height?

Loosen the wing screw on the base tube, adjust to the desired height, then tighten the screw.

How to clean the fan?

Always unplug the device. Clean the exterior with a dry cloth or slightly damp cloth. Do not use abrasive detergents or water.

What to do if the fan stops working?

Check the power supply. If the problem persists, do not attempt to repair it yourself. Contact an authorized technician.

How to activate oscillation?

Turn off the device, then press the control button (ON position). The fan oscillates 90°. To deactivate, turn off and push the button up (OFF).

Can I use this fan outdoors?

No, this fan is designed for indoor use only, in a room up to 40 m².

From what age can children use this fan?

Children over 8 years old can use it under supervision. Cleaning should not be performed by children without supervision.

How to store the fan during periods of inactivity?

Clean it, then store it in its original packaging in a dry, ventilated place out of reach of children.

What is the power consumption of the VL 5688 S?

The consumption is 50 W under a power supply of 220-240 V~, 50 Hz.

What to do if the power cord is damaged?

The cord must be replaced by the manufacturer, its after-sales service, or a qualified person to avoid any hazard.

USER MANUAL VL 5688 S AEG

PL Standing fan

HU Floor-standing fan

RU Floor-standing fan

AR Floor-standing fan

30 English Instruction Manual

Thank you for choosing our product. We hope you will enjoy using the appliance.

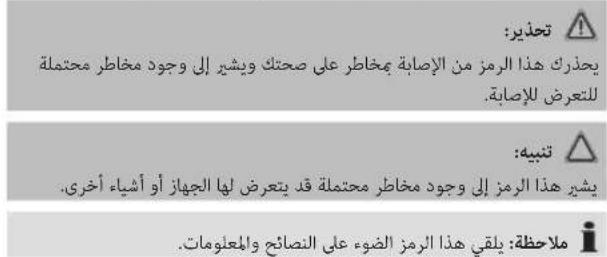

Symbols in these Instructions for Use

Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the machine:

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the machine or other objects.

NOTE: This highlights tips and information.

General Notes

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.
• Do not use it outdoors. Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull the plug itself, not the lead) if the appliance is not being used and remove the attached accessories.
• Do not operate the machine without supervision. If you leave the room you should always turn the device off. Remove the plug from the socket.
• The device and the mains lead have to be checked regularly for signs of damage. If damage is found the device must not be used.
• Use only original spare parts.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING:

Do not allow small children to play with the foil. There is a danger of suffocation!

Special Safety Precautions for this Appliance

• Never stick fingers or other objects through the protection grid.
• Watch out for long hair! It can be caught in the fan owing to the air turbulence!
• Use the appliance only with the protection grids on!
• If you need to remove the fan guard, first switch off the appliance and disconnect the mains plug.
• Select a stable base to avoid the tipping of the fan during use!
• Do not place the device immediately next to stoves or other sources of heat.
• Do not try to repair the appliance on your own. Always contact an authorized technician. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

English

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
• Please observe the instructions that we have included for you in the chapter "Cleaning".

Scope of Delivery and Parts Description

Position	Description Quantity
1 Tripod 3
2 Taper 1
3 Pedestal tube (fixed to taper)
4 Knurled thumbscrew for height adjustment			1
5 Screws for the tripods			6
6 Wing screw			3
7 Wing nut			3
8 Connecting tube 3
9 Installed safety grids
10 Propeller 1
11 Hook (fixed to front protective grid)
12 Locking screw for propeller			1
13 Rear protective grid 1
14 Flattened area on the motor shaft
15 Motor 1
16 Rotary switch for speed (on motor)
17 Control knob for oscillation (on motor)
18 U-shaped fixing (on motor)

32 English

Position	Description Quantity
19 Fastening nut		◎	1
20 Front protective grid 1
21 Fastening screw for protective grid		←	1
22 Power cord (on motor)
23 Small knurled screw			1
24 Limit bolt			1
25 Knurled nut for carriage bolt			1
26 Carriage bolt			1
Without Screws for rear protective grid			4

Intended Use

This appliance is a fan intended for rooms of up to 40m²

Do not use for other than its intended use. Use only according to the instructions in this manual. Do not use for commercial purposes.

Using the device for other than its intended use can result in property damage or injuries.

The manufacturer does not assume any liability for damages resulting from improper use.

Unpacking the Device

1. Remove the device from its packaging.
2. Remove all packaging material such as foils, filling material, cable holders, and cardboard packaging.
3. Check the scope of delivery.
4. Check the appliance for any transport damage to prevent a hazard.

NOTE:

There may still be dust or production residues on the surface of the device. We recommend that you quickly wipe off the housing with a damp cloth.

Assembly Instructions

The device must be completely assembled before initial operation!

WARNING: Risk of injury!

The edges of the propeller are sharp. Use caution during assembly.

NOTE:

• The taper is the central fastening device.
• You will need a Phillips screwdriver of medium size for the assembly.
• Screws not included as accessory are already pre-installed at the respective parts.
• Please review the images on page 3.
• Fix the tripod to the taper as shown in Fig. A.
• Fix the connecting tubes as shown in Fig. B.
• Place the motor onto the pedestal tube according to Fig. D. The square recess on the bracket must rest above the individual hole of the standpipe.
• Slide the carriage bolt through the hole until you reach the tetragonal stop.
• Use the small knurled thumbscrew and the limit bolt to set the tilt angle of the fan.
• Then attach the knurled nut to the end of the carriage bolt and tighten.
• Unscrew the 4 preassembled outer screws from the front of the motor.
• Hold the rear protective grid so that the 4 boreholes on the protective grid are exactly above the 4 boreholes on the motor.

NOTE:

Ensure that the carrying handle on the protective grid is pointing upwards.

1. Mount the rear protective grid with the 4 screws.
2. Attach the propeller and fasten it with the locking screw.

CAUTION:

The screw must sit on the flattened side of the motor shaft!

1. Attach the front protective grid by hanging the hook with the nut into the rear protective grid.

NOTE:

Ensure that the holes on the grid edge for the fastening screw in the front and rear protective grid are positioned above each other.

1. Secure the protective grid with the fastening screw and the nut.
2. Close the fasteners on the circumference of the protective grid.

Position

The ideal position is a non-slip, flat surface.

Putting into Service

Electrical Connection

1. Before inserting the plug into the socket. Make sure that the mains voltage to be used matches that of the device. You can find this information on the nameplate.
2. Connect the device to a duly installed protective contact socket.

Use

Basic Settings

Set the blower inclination angle before starting the device.

1. Unscrew the small knurled screw.
2. Tilt the protective grid into the desired position.
3. Re-tighten the knurled screw.

Height Adjustment

1. Loosen the knurled thumbscrew of the pedestal tube.
2. Adjust the fan to the desired height.
3. Re-tighten the knurled screw.

Operation

To select the speed, use the rotary switch on the rear:

0 off I slow II medium III fast

To shut off the device, select the position 0.

Fan Setting

You have two options:

Stationary

1. Shut off the device.
2. Pull the control knob upwards. (OFF)

Oscillating

1. Shut off the device.
2. Press the control knob. (ON)

TE:

The device rotates automatically in the range of about 90 degrees.

1. To turn off the function, shut off the device and pull the control knob upwards.

Cleaning

WARNING:

• Always remove the mains plug before cleaning the device!
• If you need to remove the safety guard: Always switch the device off and remove the mains plug.
• Under no circumstances should you immerse the device in water for cleaning purposes. Otherwise this might result in an electric shock or fire.

34 English

CAUTION:

• Do not use a wire brush or any abrasive items.
• Do not use any acidic or abrasive detergents.
• Clean the outside of the device with a dry cloth without any additives.
• If the device is very dirty, wet a cloth with water and then wipe the device dry once you have finished.

Storage

• Clean the appliance as described. We recommend that the appliance is kept in its original packaging if you do not intend to use it for long periods. Always store the appliance out of the reach of children, in a well-ventilated and dry place.

Technical Data

Model: VL 5688 S

Power supply: 220-240V, 50Hz

Power consumption: 50W

Protection class:

Net weight: approx. 7.0kg

The right to make technical and design modifications in the course of continuous product development remains reserved.

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest regulations.

Disposal

Meaning of the "Wheelie Bin" Symbol

Take care of our environment; do not dispose of electrical appliances via the household waste.

Dispose of obsolete or defective electrical appliances via municipal collection points.

Please help to avoid potential environmental and health impacts through improper waste disposal.

You contribute to recycling and other forms of utilization of old electric and electronic appliances.

Your municipality provides you with information about collecting points.

Instruction manual

CTC Clatronic Sp. z o.o

Indicates a possible danger to the user or other nearby objects.

NOTE: Provides additional information.

General notes

Before using the appliance, carefully read the enclosed instruction manual. Keep it in a safe place, together with the warranty card, cash receipt, and, if possible, the cardboard box and packaging material. If you give the appliance to someone else, be sure to also pass on this instruction manual.

- Use the appliance only for its intended purpose. The appliance is not intended for commercial use. Do not use the appliance outdoors. Protect the appliance from heat, direct sunlight, humidity (never immerse it in water), and impacts against sharp edges. Do not touch the appliance with wet hands. If the appliance becomes damp or wet, unplug it from the outlet immediately. - After use, when cleaning, or when changing accessories, always unplug the appliance from the outlet (pull the plug, not the cable). Do not leave switched-on electrical appliances unattended. When leaving the room, always switch off the appliance. Unplug it from the outlet. - If the appliance or the power cord is damaged, it must be repaired by a specialist. If damage is detected, the appliance must not be used. - Use only original spare parts. - For safety reasons, do not leave packaging (plastic bags, cardboard, polystyrene, etc.) unattended.

WARNING:

Do not allow children to play with the plastic film. Danger of suffocation!

Special safety instructions for this device

• Never insert any objects into the protective grid! Be careful with long hair: the air flow can pull it into the fan!
• The fan may only be switched on with the protective grille closed!
• If it is necessary to remove the protective guard of the fan, first switch off the motor and disconnect the plug from the wall socket.
• Choose a suitable location for the fan, such that its tipping over during operation is excluded! Do not place the device directly in front of a wall or other heat sources. Do not attempt to repair the device yourself. It is mandatory to contact an authorized technician. If the power cord is damaged, to avoid the danger of electric shock, the cord must be replaced by the manufacturer, its service agent, or other qualified persons.
• This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children must not play with the appliance.
• Cleaning and user maintenance shall not be performed by children without supervision. It is necessary to follow the instructions given in the "Cleaning" section.

Scope of delivery and description of parts

WARNING:

• Always pull the plug out of the socket before cleaning!
• If you need to remove the protective grille: Always switch off the appliance and unplug the power cord first.
• Never immerse the device or the plug in water. This could cause electric shock or fire.

ATTENTION:

Do not use wire brushes or other abrasive objects. Do not use strong or abrasive cleaning agents.

Before using the device, read the instructions carefully. Strong contamination should be wiped with a damp cloth, and after that, be sure to dry it.

Storage

• Clean the device according to the description.
• If you do not intend to use the device for a long time, we recommend storing it in its original packaging. Always store the device in a place inaccessible to children, dry and well ventilated.

Technical data

Model: VL 5688 S 220-240V~, 50Hz Power consumption: 50W Protection class: Net weight: approximately 7.0 kg

We reserve the right to make technical and design changes within the framework of further product development.

This product has passed all necessary and current checks prescribed by the CE directive, e.g. for electromagnetic compatibility and compliance with low-voltage requirements. It was also designed and built taking into account the latest safety requirements.

Therefore, the area of triangle OBC equals the area of triangle BOC plus the area of triangle CBA.

15

13

100

Therefore, cos α = 1

(OFF)

3^1 + (2 × 5)/1 = 6

(ON)

Therefore, 120 < y0 < 100.

الإستعمال الحرفية	الإستعمال
3 محيى 1	1	2
1 محيى 2	1	3
6	1	5
3	1	6
3	1	7
3	1	8
1	1	9
1	10	11
1	11	12
1	13	14
1	15	16
1	17	17
1	18	18
1	19	19
1	20	21
1	21	22
1	23	23
1	24	24
1	25	25
1	26	26
4	27	27

WARRANTY CARD

warranty card · garantiekaart · carte de garantie · scheda di garanzia · tarjeta de garantía · cartão de garantia · garantikort · karta gwarancyjna · záruční list · karta jamstva · carte de garantie · гаранционна карта · záručný list · garancijski list · garanciajegy · гарантийный формуляр · гарантийный талон

VL 5688 S

24 months warranty according to warranty declaration

Date of purchase, dealer stamp, signature

ETV

www.etrvd
