USER MANUAL RCR10868 SIEMENS

Mounting notes REV24RF.. and RCR10/868

1 Placement of units

1.1 REV24RF.. and RCR10/868

• The units must be placed such that transmitted and received signals will be disturbed as little as possible. For this reason, the following points must be observed with both the REV24RF.. and RCR10/868:

Do not mount the units on metal surfaces
- Do not mount the units near electrical wires or electronic equipment such as PCs, TV sets, microwave equipment, etc.

• Do not mount the units in the vicinity of large metal structures or other construction elements with fine metal meshes like special glass or special concrete
  The distance between controller / transmitter and receiver must not exceed 20 m or 2 floors

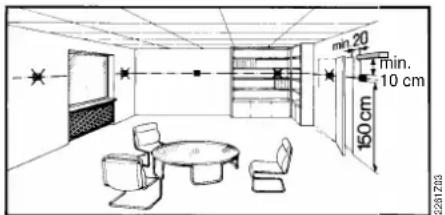

1.2 REV24RF.. (controller / transmitter)

• The controller / transmitter should be mounted in the main living room (wall mounting according to Fig. C, free standing according to Fig. E with stand)
• The REV24RF... must be located such that it can acquire the room temperature as accurately as possible, without getting affected by direct solar radiation or other heat or refrigeration sources. Wall mounting:

1.3 RCR10/868 (receiver)

The receiver and switching unit should preferably be mounted near the actuating device
- Make certain that the mounting location is dry and protected from splash water
- The unit can be fitted to most commercially available recessed conduit boxes or directly on the wall

2 Checking the wiring

For electrical connections, refer to "Connection diagram". Note: Do not use stranded wires, only solid wire or stranded wires with ferrules!

3 Notes

The local regulations for electrical installations must be complied with
If the reference room is equipped with thermostatic radiator valves, they must be set to their fully open position
External preliminary protection with max. C 16 A circuit breaker is required in all cases
- If you wish to check the radio link, press the TEST button at the rear of the REV24RF..
- LED_1 is lit red if the RCR10/868 receives very weak or corrupted control telegrams, or no control telegrams at all for about 65 minutes. In this case, check the display of the REV24RF... to see if there is an error message
- As long as the RCR10/868 receives control telegrams, the receiver works normally. If a control telegram is not correctly received, the relay will maintain the position assumed last. - As soon as the RCR10/868 receives another correct control telegram from the REV24RF., the receiver continues to work normally
If, for 60 minutes, the RCR10/868 receives no control telegram, or no correct control telegram, the relay will be deenergized. Hence, the controlled device is switched off. LED_1 is lit red. As soon as the RCR10/868 receives another correct control telegram from the REV24RF., the receiver continues to work normally
In the event of a power failure at the RCR10/868, the relay is switched OFF
- Should the REV24RF... become faulty, the relay of the RCR10/868 can be controlled manually. As soon as the REV24RF... resumes correct operation, its control telegrams will overwrite the relay's manual control. This process can take up to 130 minutes
- Press override button to manually energize and deenergize the relay. LED_1 indicates manual control by blinking at high frequency. LED_2 is lit when Lx-L1 is closed (Lx-L2 open). LED_2 is dark when Lx-L1 is open (Lx-L2 closed)

Commissioning RF set

1 Switching on the REV24RF...

• Remove the black battery transit tab (Fig. F); as soon as the tab is removed, the unit is ready to operate

2 Selecting the language

• When starting up, the display shows the type of controller at top left and "THANK YOU ..." in all available languages on the text line
• Press one of the buttons to stop the running display. The choice of languages starts with "ENGLISH" (factory setting). Press + or - until the language you require appears. Press or move the slider to confirm the selected language (also refer to Fig. G)

3 Mounting the RCR10/868 temporarily

If possible, mount the receiver temporarily (e.g. using double-sided adhesive tape), thus allowing you to find the location with the best reception conditions
- Wire completely the RCR10/868. For steps to be followed, refer to Figs. H through M (close the front also)

4 RCR10/868 and REV24RF...

The units are supplied interconnected
- For manual connection, refer to operating instructions

5 Mounting and setting up the REV24RF..

Refer to "Mounting instructions REV24RF.. and RCR10/868"
- Mount or set up the REV24RF.. at your preferred location: Remove the unit from its baseplate; for procedure, refer to Fig. A - For wall mounting, refer to Figs. B, C and D - For setting up, refer to Fig. E

6 Finding the best place for reception

a) Switch on the RCR10/868
b) Set up the REV24RF... at your preferred location. Test the radio link by pressing the TEST button at the rear of the controller (refer to Fig. N1)
c) The display of the REV24RF... shows the quality of the radio link. The longer the bar below the numbers 0...9, the better the quality of the radio link. If the bar only appears below number 0, there is no secure radio link (refer to operating instructions)

8.9.5.7.9

Insufficient

8.3.5.7.9

图图

Sufficient

3579

蕃蕃蕃蕃蕃蕃

Good

8.35.79

糟糟糟糟糟糟糟糟糟

Very good

d) On the receiver, LED_1 indicates the quality of the radio link (refer to Fig. N2):

Red = insufficient or no connection
Orange = good
Green = very good

e) If the quality of the radio link is insufficient, reduce the distance between controller and receiver. Then, repeat the test

7 Mounting the RCR10/868 in its final place

a) Switch power off
b) Mark the place where the RCR10/868 is located.
c) If necessary, remove wiring
d) Mount the receiver at the place previously identified (refer to Figs. H through M), complete wiring and close the housing
e) Switch power on

Configuration and function check REV24RF..

1 Configuration

1.1 DIP switches

△ON / OFF 1 2

3

4

5

6

7

8

9

10

See

See 1.1.1

Sensor calibration on

△

△

Periodic pump run on

1.1.5

Sensor calibration off Periodic pump run off

✓

1.1.2

Setpoint limitation 16...35 °C

△

△

△

Optimum start control:1 h/oC

1.1.6

Setpoint limitation 3...35 °C

✓

△

✓

Optimum start control: 1/4 h/oC

1.1.3

Temperature display °F

△

✓

△

Optimum start control: 1/2 h/oC

Temperature display °C

✓

✓

✓

Optimum start control: Off

1.1.4

PID self-learning

△

△

△

(Cooling on)

1.1.7

PID 6

△

✓

✓

(Heating on)

PID12

✓

△

Quartz

1.1.8

2-Point

✓

✓

Radio clock

1.1.9

DIP switch resetWhen changing one or several DIP switch positions, a DIP switch reset must be made by pressing the DIP switch reset button (also refer to Fig. 8). Otherwise, the previous settings will be maintained!

1.1.9

Note: The factory setting of all DIP switches is OFF

1.1.1 Sensor calibration: DIP switch 1

Set the DIP switch to ON and press the DIP switch reset button:

The display shows CAL. The room temperature currently acquired blinks.

Press + or - to make a recalibration of max. ± 5 °C. To save the entry,

set the DIP switch to OFF and press the DIP switch reset button (also refer to

Fig. ①

1.1.2 Setpoint limitation: DIP switch 2

DIP switch ON: Setpoint limitation 16...35°C

DIP switch OFF: Setpoint limitation 3...35 °C

(factory setting)

Save the entry by pressing the DIP switch reset button.

1.1.3 Temperature display in ^ C or ^ F : DIP switch 3

DIP switch ON: Temperature display in °F

DIP switch OFF: Temperature display in °C

(factory setting)

Save the entry by pressing the DIP switch reset button (also refer to Fig. ②).

1.1.4 Control action: DIP switches 4 and 5

DIP switch 4 ON and 5 ON:

PID self-learning

Adaptive control for all types of application.

DIP switch 4 ON and 5 OFF: PID 6

For fast controlled systems, applications at locations with

great

temperature variations.

DIP switch 4 OFF and 5 ON:

PID 12

For normal controlled systems, applications at locations

with normal temperature variations.

DIP switch 4 OFF and 5 OFF:

2-Point

For difficult controlled systems, 2-position controller with

a switching differential of 0.5^ (factory setting).

Save the entry by pressing the DIP switch reset button

(also refer to Fig. 3).

1.1.5 Periodic pump run: DIP switch 6

Can only be used when circulating pump or valve is controlled!

This function protects the pump or valve against seizing during longer off

periods. Periodic pump run is activated for 3 minutes every 24 hours at 12:00 (display showing symbol ).

DIP switch ON: Periodic pump run on (also refer to Fig. 4)

DIP switch OFF: Periodic pump run off (factory setting)

Save the entry by pressing the DIP switch reset button.

1.1.6 Optimum start control: DIP switches 7 and 8

Optimum start control shifts switch on point P.1 such that the adjusted setpoint

will be reached at the required point in time. The setting depends on the type of

controlled system, that is, on heat transmission (piping network, radiators),

building dynamics (building mass, insulation) and heat output (boiler output,

flow temperature)

(also refer to graph in Fig. 5/1.1.6).

DIP switch 7 ON and 8 ON: 1h / ^

DIP switch 7 ON and 8 OFF: 1 / 4h^

DIP switch 7 OFF and 8 ON: 1/2 ~h / ^ C

DIP switch 7 OFF and 8 OFF: OFF

Save the entry by pressing the DIP switch reset button.

Legend to graph in Fig. ⑤:

t Temperature (^)

Forward shift of switch on point (h)

TRx Actual value of room temperature

Pon Start point for optimum start control

1.1.7 Heating or cooling mode: DIP switch 9

PIP switch 0x01:

DIP switch 9 OFF:

Heating mode (factory setting)

Save the entry by pressing the DIP switch reset button

(also refer to Fig. 6).

1.1.8 Radio clock: DIP switch 10

Can only be used if receiver DCF77 is integrated (time signal from Frankfurt)!

DIP switch ON: Clock runs on built-in quartz

DIP switch OFF: Time signal DCF77 from Frankfurt

Save the entry by pressing the DIP switch reset button

(also refer to Fig. ⑦

1.1.9 DIP switch reset (Fig.)

When changing one or several DIP switch positions, press the DIP switch reset

knob to make a DIP switch reset.

Otherwise, the previous settings will be maintained!

(Also refer to Fig.) 8

2 Accessing the expert level

Move the selector slider to the RUN position and press simultaneously +and - for 3 seconds, then release the buttons and, within 3 seconds, press simultaneously and 空 for 3 seconds, release 空 and keep depressed for another 3 seconds. This enables you to access the expert level for making the settings on that level. Install on display (also refer to Fig. G).

Starting with code 00, the display shows the choice of languages. Navigation on the expert level is made possible with + and - . Confirm the settings by pressing

The expert level is quit by pressing the operating mode selection button.

Code list

Function block	Code	Name	Factory setting	Your setting
Basic settings	00 Language English
	01 Sensor calibration off
	02 Switching differential 0.5 °C
LCD settings	10 Illumination time 10 seconds
	11 Background brightness 0
	12 Contrast 0
Clock settings	30	Time zoneDeviation from time signal received from Frankfurt(Central European Time CET) (refer to Note 1)	0 hours
	31	Start of summer time (refer to Note 2)	March 31 (31-03)
	32	End of summer time (refer to Note 3)	October 31 (31-10)

Note 1: If the radio clock is not active or not present, this setting has no impact.
With the radio clock active, the time signal received from Frankfurt is shifted by the value set under code 30 (time zone).
Note 2: If the radio clock is not active or not present, the time change always takes place at 02:00 on the Sunday before the set date.
With the radio clock active, the time change is shifted by the value set under code 30 (time zone).
Note 3: If the radio clock is not active or not present, the time change always takes place at 03:00 on the Sunday before the set date.
With the radio clock active, the time change is shifted by the value set under code 30 (time zone).

3 Function check

a) Check the display. If there is no display, check the batteries
b) "Continuously Comfort mode", read the temperature displayed
c) REV.. in heating mode: Set the temperature setpoint to a level above the displayed room temperature (see operating instructions).

REV.. in cooling mode: Set the temperature setpoint to a level below the displayed room temperature (see operating instructions).

d) The relay and thus the actuating device must respond within 1 minute. Symbol appears on the display. If not:

• Check actuating device and wiring
• In heating mode, the room temperature is possibly higher than the adjusted temperature setpoint, in cooling mode possibly lower

e) Set temperature setpoint of "Continuously Comfort mode" to the required level
f) Select the required operating mode

4 Reset

User-defined settings:

Press simultaneously

All temperature and time settings of the slider positions are reset to their default values (refer to section "Factory settings" in the operating instructions). The settings made on the expert level will remain unchanged.

The clock starts at 12:00, the date on 01-01-08

(01 - January - 2008). During the reset time, all sectors of the display are illuminated and can thus be checked.

All user-defined settings plus those made on the expert level:

Press simultaneously the DIP switch reset button, + and - for 5 seconds:

After this reset, all factory settings will be reloaded. This applies to both the slider settings and the settings made on the expert level.

Notes

• The controller is classified as a device of software class A and designed for use in environments with normal degree of pollution
• REV24RF/SET is a set of units consisting of electronic room temperature controller with 7-day time switch, RF transmitter (REV24RF.) and RF receiver (RCR10/868)

Commutateurs DIP 4 ON et 5 ON: PID self-learning

Interruptor PLD 9 ON:

Interruptor PLD 9 OFF:

Refrigeración

Modo de calefaction (ajuste de fabrica)

Interruptor PLD OFF:

Serial horaria DCF77 de Frankfurt

Colocacao ao service RF Set

1 Ligar o REV24RF..

Interruptor DIP 4 ON e 5 ON:

Interruptor DIP 4 ON e 5 OFF:

PID6

Interruptor DIP 4 OFF e 5 OFF:

2 pontos

Interruptor DIP 9 ON:

Modo de refrigeracao

Interruptor DIP 9 OFF: Modelo aquecimento (definicao de fabrica)

Para guardar a entrada, pressione o botao de reposicao do interruptor DIP (consulte tambem a Fig. 6).

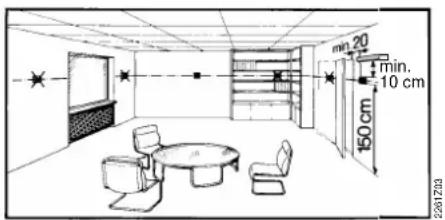

1.2 REV24RF.. (regulator/sandare)

1.2 REV24RF.. (regulator/sender)

1.2 REV24RF.. (regulator / emittator)

Regulatorul electronic / emitantul trebuie amplasat in camera de zi principala (montaj pe perete conform Fig. C, amplasament dupa dorinta cu suport conform Fig. E)
- REV24RF.. trebuie amplasat astfel incat sao pota determina temperatura din camera caret mai precis cu putinta, fara a fi afectat de radiata solara directa sau de alte surse de caldur a sau de frig.

Montaj pe perete:

1.3 RCR10/868 (receptor)

Comutator DIP 4 OFF 山 5 OFF:2-Point

Pentru sisteme cu reglaj dificil, reglaj in 2 puncte cu un diferential de comutare de 0,5^ (setare de fabrica).
