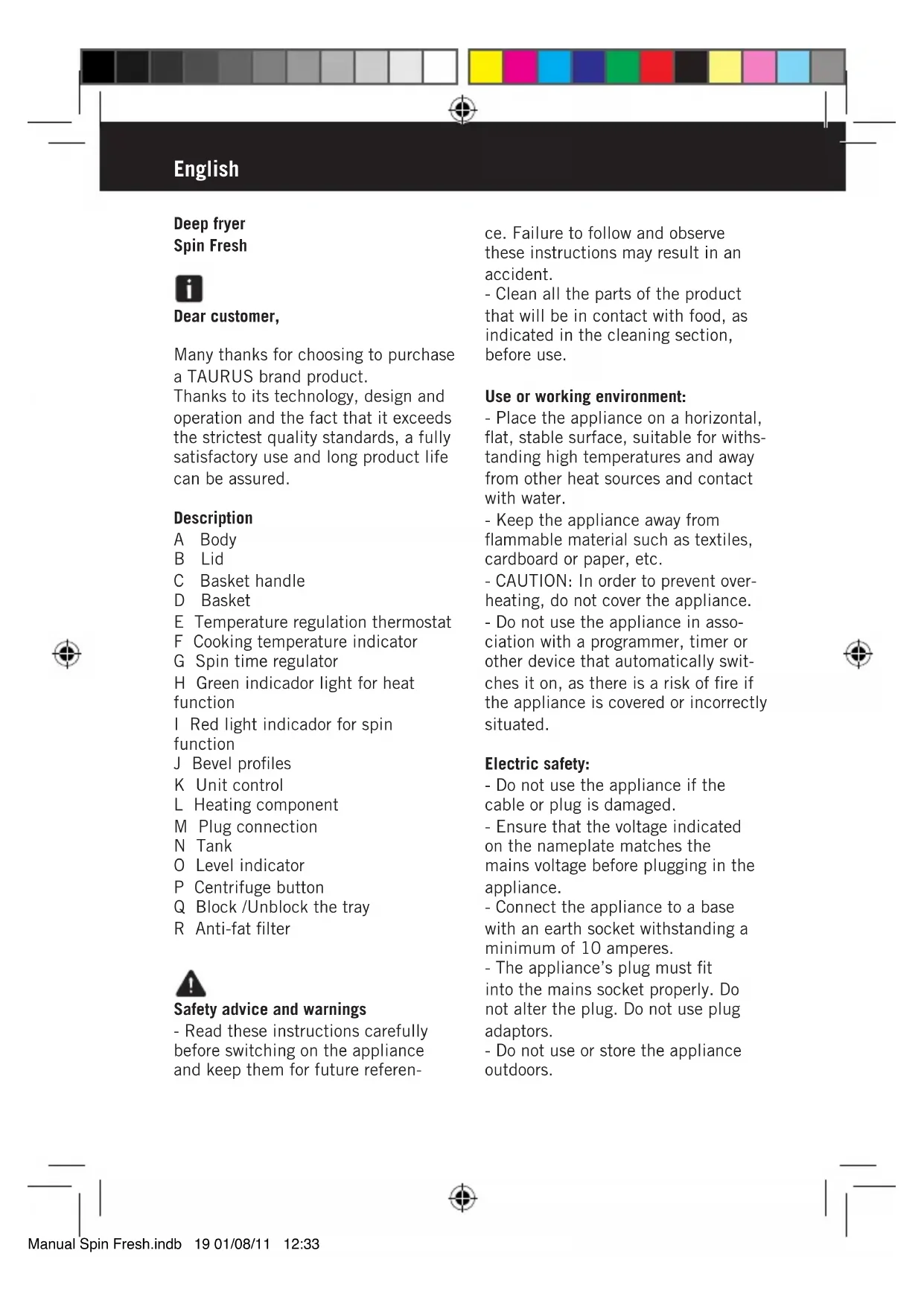

USER MANUAL Spin Fresh TAURUS

Many thanks for choosing to purchase

a TAURUS brand product.

Thanks to its technology, design and

operation and the fact that it exceeds

the strictest quality standards, a fully

satisfactory use and long product life

E Temperature regulation thermostat

F Cooking temperature indicator

G Spin time regulator

Q Block /Unblock the tray

Safety advice and warnings

- Read these instructions carefully

before switching on the appliance

and keep them for future referen-

ce. Failure to follow and observe

these instructions may result in an

- Clean all the parts of the product

that will be in contact with food, as

indicated in the cleaning section,

Use or working environment:

- Place the appliance on a horizontal,

flat, stable surface, suitable for withs-

tanding high temperatures and away

from other heat sources and contact

- Keep the appliance away from

flammable material such as textiles,

cardboard or paper, etc.

- CAUTION: In order to prevent over-

heating, do not cover the appliance.

- Do not use the appliance in asso-

ciation with a programmer, timer or

other device that automatically swit-

ches it on, as there is a risk of fire if

the appliance is covered or incorrectly

- Do not use the appliance if the

cable or plug is damaged.

- Ensure that the voltage indicated

on the nameplate matches the

mains voltage before plugging in the

- Connect the appliance to a base

with an earth socket withstanding a

minimum of 10 amperes.

- The appliance’s plug must fit

into the mains socket properly. Do

not alter the plug. Do not use plug

Manual Spin Fresh.indb 19 01/08/11 12:33- If any of the appliance casings

breaks, immediately disconnect the

appliance from the mains to prevent

the possibility of an electric shock.

- Do not use the appliance if it has

fallen on the floor, if there are visible

signs of damage or if it has a leak.

- Never use the electric wire to lift

up, carry or unplug the appliance.

- Do not wrap the cable around the

- Ensure that the electric cable does

not get trapped or tangled.

- Do not allow the connection cable to

hang or to come into contact with the

appliance’s hot surfaces.

- Check the condition of the electrical

connection cable. Damaged or

tangled cables increase the risk of

- Do not touch the plug with wet

- Do not touch metal parts or the

body when it is operating, as it may

cause serious burns.

- Never connect the appliance without

having first of all filled the oil bowl.

- Do not use the appliance if the on/

off switch does not work.

- Do not move the appliance whilst

in operation or if the oil is still hot.

Once cooled, transport the appliance

- Use the appliance handle/s, to

catch it or move it.

- Respect the MAX and MIN levels

- Disconnect the appliance from the

mains when not in use and before

undertaking any cleaning task.

- This appliance is designed for

household use only and is not

intended for professional or industrial

use. It is not designed to be used by

clients in the hotel or catering indus-

try, hotels, motels or other residential

types of environment, country holiday

lets, kitchen areas reserved for shop

staff, offices or other work environ-

- This appliance is intended for adult

Ensure that this product is not used

by the disabled, children or people

unused to its handling.

- This appliance can be used by

people that are not familiar with this

type of product as well as disabled

people and children if they are

correctly supervised or have received

adequate instructions regarding the

use of this appliance safely, so that

they understand the risks involved.

- Cleaning and maintenance carried

out by the user should not be done by

children without supervision.

- Keep the appliance and its cable

out of reach of children under the age

- This appliance is not a toy.

Children should be supervised to

ensure that they do not play with the

- This appliance should be stored

out of reach of children and/or the

- Do not store or transport the

appliance if it is still hot.

- Never leave the appliance unat-

tended when in use and keep out of

Manual Spin Fresh.indb 20 01/08/11 12:33the reach of children, as this is an

electrical appliance that heats oil to

high temperatures and may cause

- By way of orientation the attached

table shows a selection of recipes,

which include the quantities of

products to be processed and the

operating times for the appliance.

- If fat is used instead of oil, melt

first in a separate recipient. (Fig. 2).

- If fat has hardened in the pan, make

a few holes in the solid fat in order

to allow the water, which has been

retained in the fat to be released as

steam when heated at the minimum

thermostat temperature. (Fig. 3).

- If, for some reason, the oil were to

catch fire, disconnect the appliance

from the mains and smother the fire

using the lid, a cover or a large kit-

chen cloth. NEVER WITH WATER.

- Turn the thermostat control to the

minimum (MIN) setting. This does

not mean that the iron is switched off

- Any misuse or failure to follow

the instructions for use renders the

guarantee and the manufacturer’s

liability null and void.

Instructions for use

- Make sure that all the product’s

packaging has been removed.

- Before using the product for the first

time, clean the parts that will come

into contact with food in the manner

described in the cleaning section.

- Make sure that the unit control is

- Pour oil up to the mark indicating

the MAXIMUM level on the bowl.

- The appliance must not be used

with less oil than that indicated by

- Unroll the cable completely before

- Connect the appliance to the mains.

- Start the appliance by turning on

the speed regulator.

- Turn the appliance on, by using the

speed selection buttons.

- The pilot light comes on in red.

- Select the desired frying temperatu-

re using the thermostat control. The

indicator green light will switch off,

indicating that the oil is being heated

(Energy is saved when the cover is

- Prepare the food to be fried and

place it in the basket, making sure

that it does not rise above ¾ of its

- Frozen food must be allowed for

thaw beforehand. The placing of

frozen food or food with high water

content in the basket may cause

the oil to suddenly spit after a few

- Wait until the pilot green light

switch on which will indicate that the

appliance has reached an adequate

- Slowly place the basket in the bowl

Manual Spin Fresh.indb 21 01/08/11 12:33to avoid overflowing and splashing.

According to criteria, fry with the lid

- When the food has been fried suffi-

ciently, lift the basket and position

it in the support in order to allow

the excess oil to drain from the food

- Change the oil approximately every

15 or 20 frying operations, or every 5

– 6 months if not used frequently.

- In order to minimize the genera-

tion of acrilamida during the frying

process, avoid to reach dark brown

colours on the fried food, remove any

burnt leftovers from the oil container,

food rich in scratch (such as potatoes

or corns) should not be fried at tem-

peratures higher to 170ºC.

- In order to minimize the generation

of acrilamida during the cooking

process, avoid to reach dark brown

colours on the foodstuffs.

This fryer has a spin function to

remove oil from the food.

- When frying is done, raise the

basket to its limit.

- Use the control to programme the

- Select speed 1 or 2 depending on

the food type (see attached table)

- Select the speed before selecting

- The basket will begin to spin.

Once you have finished using the

- Select the minimum position (MIN)

using the thermostat control.

- Select position 0 using the cooking

- Select position 0 using the spin

- Unplug the appliance to the mains.

Practical recommendations:

- Fry a few pieces of bread to remove

the smell of used oil.

- For food with a high water content,

it is better and quicker to fry in two

lots with less food than in just one.

This will reduce the risk of splashes

- To ensure that frying is homoge-

neous and crunchy, frying can be

carried out using a two time process.

This system consists of first frying the

food until it is reasonably well done

and then frying again using very hot

oil to brown the food.

- Olive oil with a minimum acidity

level is recommendable for frying.

- Do not mix different oils.

- Wash potatoes before frying to stop

Safety thermal protector:

- The appliance has a safety device,

which protects the appliance from

- In the event of overheating, the

thermal safety mechanism will be

activated and the appliance will

stop operating. When this occurs the

appliance should be disconnected

from the mains and left to cool. Then

press the rearming button, situated at

the back of the electrical circuit, with

the tip of a pen or similar in order to

Manual Spin Fresh.indb 22 01/08/11 12:33reactivate the appliance (Fig. 7).

- Disconnect the appliance from the

mains and let it cool before underta-

king any cleaning task.

- Dismantle the appliance as follows:

Put the cover in a vertical position

and pull upwards to disassemble

- Remove the basket and remove the

unit control (Fig. 9)

- Remove the bowl (Fig. 10)

Carefully pour the used oil from the

bowl into a container (not the sink),

according to the regulations in force

for the treatment and disposal of

- All parts, except the electrical parts

and cable, can be cleaned with deter-

gent and water or in the dishwasher.

Rinse well to get rid of detergent.

- Clean the electrical equipment and

the mains connection with a damp

cloth and dry. DO NOT IMMERSE IN WATER OR ANY OTHER LIQUID.

- Clean the equipment with a damp

cloth with a few drops of washing-up

liquid and then dry.

- Do not use solvents, or products

with an acid or base pH such as blea-

ch, or abrasive products, for cleaning

- Do not let water or any other liquid

get into the air vents to avoid damage

to the inner parts of the appliance.

- Remove the filter. Clean using warm

and soapy water or in the dishwasher.

Return it to its correct position.

- Do not submerge the appliance in

water or any other liquid, or place it

under a running tap.

- Never submerge the connector in

water or any other liquid or place it

under running water.

- It is advisable to clean the applian-

ce regularly and remove any food

- It is recommended that the applian-

ce is cleaned regularly. Accumulated

grease in the appliance and especia-

lly in the filter reduces the product’s

capacity and increases risk of fire.

- If the appliance is not in good con-

dition of cleanliness, its surface may

degrade and inexorably affect the

duration of the appliance’s useful life

and could become unsafe to use.

Anomalies and repair

- Take the appliance to an authorised

technical support service if problems

arise. Do not try to dismantle or repair

without assistance, as this may be

- If the appliance is faulty, ring

customer service using the telephone

number on the guarantee form. Do

not try to disassemble or repair the

appliance yourself as it could be

- If the connection to the mains has

been damaged, it must be replaced.

Manual Spin Fresh.indb 23 01/08/11 12:33Product

For EU product versions and/or in

case that it is requested in your

Ecology and recyclability of the product

- The materials of which the packa-

ging of this appliance consists are

included in a collection, classification

and recycling system. Should you

wish to dispose of them, use the

appropriate public containers for each

- The product does not contain

concentrations of substances that

could be considered harmful to the

This appliance contains, or could

contain, oil. Remember that one

should abide by the regulations con-

cerning the elimination of this type of

This symbol means that in

case you wish to dispose of

the product once its working

life has ended, take it to an

authorised waste agent for

the selective collection of

waste electrical and electronic

This appliance complies with Direc-

tive 2006/95/EC on Low Voltage and

Directive 2004/108/EC on Electro-

magnetic Compatibility.

Manual Spin Fresh.indb 24 01/08/11 12:33Français

Net weight: 4.80Kg aprox.

Gross weight: 6.14Kg aprox.

Manual Spin Fresh.indb 100 01/08/11 12:33
