USER MANUAL GSR 14 4 VEC Professional BOSCH

OBJ_DOKU-45205-001.fm Page 1 Thursday, August 27, 2015 2:46 PM2 |

OBJ_BUCH-2456-001.book Page 2 Wednesday, August 12, 2015 3:21 PM3 |

OBJ_BUCH-2456-001.book Page 3 Wednesday, August 12, 2015 3:21 PM1 609 92A 16Y | (12.8.15) Bosch Power Tools

OBJ_BUCH-2456-001.book Page 4 Wednesday, August 12, 2015 3:21 PM5 | 1 609 92A 16Y | (12.8.15) Bosch Power Tools

WARNUNG OBJ_BUCH-2456-001.book Page 6 Wednesday, August 12, 2015 3:21 PMDeutsch | 7

OBJ_BUCH-2456-001.book Page 9 Wednesday, August 12, 2015 3:21 PM10 | Deutsch

Executive Vice President

Head of Product Certification

OBJ_BUCH-2456-001.book Page 10 Wednesday, August 12, 2015 3:21 PMDeutsch | 11

General Power Tool Safety Warnings

Read all safety warnings and all instruc-

tions. Failure to follow the warnings and

instructions may result in electric shock, fire and/or serious

Save all warnings and instructions for future reference.

The term “power tool” in the warnings refers to your mains-

operated (corded) power tool or battery-operated (cordless)

 Keep work area clean and well lit. Cluttered or dark areas

Do not operate power tools in explosive atmospheres, such

as in the presence of flammable liquids, gases or dust.

er tools create sparks which may ignite the dust or fumes.

WARNING OBJ_BUCH-2456-001.book Page 12 Wednesday, August 12, 2015 3:21 PMEnglish | 13

Bosch Power Tools 1 609 92A 16Y | (12.8.15)

 Keep children and bystanders away while operating a

power tool. Distractions can cause you to lose control.

 Power tool plugs must match the outlet. Never modify

the plug in any way. Do not use any adapter plugs with

earthed (grounded) power tools. Unmodified plugs and

matching outlets will reduce risk of electric shock.

 Avoid body contact with earthed or grounded surfaces,

such as pipes, radiators, ranges and refrigerators.

There is an increased risk of electric shock if your body is

earthed or grounded.

 Do not expose power tools to rain or wet conditions.

Water entering a power tool will increase the risk of electric

 Do not abuse the cord. Never use the cord for carrying,

pulling or unplugging the power tool. Keep cord away

from heat, oil, sharp edges and moving parts. Damaged

or entangled cords increase the risk of electric shock.

 When operating a power tool outdoors, use an exten-

sion cord suitable for outdoor use. Use of a cord suitable

for outdoor use reduces the risk of electric shock.

 If operating a power tool in a damp location is unavoid-

able, use a residual current device (RCD) protected

supply. Use of an RCD reduces the risk of electric shock.

 Stay alert, watch what you are doing and use common

sense when operating a power tool. Do not use a power

tool while you are tired or under the influence of drugs,

alcohol or medication. A moment of inattention while op-

erating power tools may result in serious personal injury.

 Use personal protective equipment. Always wear eye

protection. Protective equipment such as dust mask,

non-skid safety shoes, hard hat, or hearing protection

used for appropriate conditions will reduce personal inju-

 Prevent unintentional starting. Ensure the switch is in

the off-position before connecting to power source

and/or battery pack, picking up or carrying the tool.

Carrying power tools with your finger on the switch or en-

ergising power tools that have the switch on invites acci-

 Remove any adjusting key or wrench before turning

the power tool on. A wrench or a key left attached to a ro-

tating part of the power tool may result in personal injury.

 Do not overreach. Keep proper footing and balance at

all times. This enables better control of the power tool in

unexpected situations.

 Dress properly. Do not wear loose clothing or jewel-

lery. Keep your hair, clothing and gloves away from

moving parts. Loose clothes, jewellery or long hair can be

caught in moving parts.

 If devices are provided for the connection of dust ex-

traction and collection facilities, ensure these are con-

nected and properly used. Use of dust collection can re-

duce dust-related hazards.

Power tool use and care

 Do not force the power tool. Use the correct power tool

for your application. The correct power tool will do the

job better and safer at the rate for which it was designed.

 Do not use the power tool if the switch does not turn it

on and off. Any power tool that cannot be controlled with

the switch is dangerous and must be repaired.

 Disconnect the plug from the power source and/or the

battery pack from the power tool before making any

adjustments, changing accessories, or storing power

tools. Such preventive safety measures reduce the risk of

starting the power tool accidentally.

 Store idle power tools out of the reach of children and

do not allow persons unfamiliar with the power tool or

these instructions to operate the power tool. Power

tools are dangerous in the hands of untrained users.

 Maintain power tools. Check for misalignment or bind-

ing of moving parts, breakage of parts and any other

condition that may affect the power tool’s operation. If

damaged, have the power tool repaired before use.

Many accidents are caused by poorly maintained power

 Keep cutting tools sharp and clean. Properly maintained

cutting tools with sharp cutting edges are less likely to bind

and are easier to control.

 Use the power tool, accessories and tool bits etc. in ac-

cordance with these instructions, taking into account

the working conditions and the work to be performed.

Use of the power tool for operations different from those

intended could result in a hazardous situation.

Battery tool use and care

 Recharge only with the charger specified by the manu-

facturer. A charger that is suitable for one type of battery

pack may create a risk of fire when used with another bat-

 Use power tools only with specifically designated bat-

tery packs. Use of any other battery packs may create a

risk of injury and fire.

 When battery pack is not in use, keep it away from oth-

er metal objects, like paper clips, coins, keys, nails,

screws or other small metal objects, that can make a

connection from one terminal to another. Shorting the

battery terminals together may cause burns or a fire.

 Under abusive conditions, liquid may be ejected from

the battery; avoid contact. If contact accidentally oc-

curs, flush with water. If liquid contacts eyes, addition-

ally seek medical help. Liquid ejected from the battery

may cause irritation or burns.

 Have your power tool serviced by a qualified repair per-

son using only identical replacement parts. This will en-

sure that the safety of the power tool is maintained.

OBJ_BUCH-2456-001.book Page 13 Wednesday, August 12, 2015 3:21 PM14 | English 1 609 92A 16Y | (12.8.15) Bosch Power Tools Safety Warnings for Drills and Screwdrivers

GSB 14,4 V-EC/GSB 18 V-EC

 Wear ear protectors when impact drilling. Exposure to

noise can cause hearing loss.

GSR 14,4 V-EC/GSR 18 V-EC/

GSB 14,4 V-EC/GSB 18 V-EC

 Hold power tool by insulated gripping surfaces when

performing an operation where the cutting accessory

or fastener may contact hidden wiring. Cutting accesso-

ry and fasteners contacting a “live” wire may make ex-

posed metal parts of the power tool “live” and could give

the operator an electric shock.

 Use auxiliary handle(s), if supplied with the tool. Loss

of control can cause personal injury.

 Use appropriate detectors to determine if utility lines

are hidden in the work area or call the local utility com-

pany for assistance. Contact with electric lines can lead

to fire and electric shock. Damaging a gas line can lead to

explosion. Penetrating a water line causes property dam-

 Switch off the power tool immediately when the tool in-

sert jams. Be prepared for high reaction torque that

can cause kickback. The tool insert jams when:

— the power tool is subject to overload or

— it becomes wedged in the workpiece.

 Hold the machine with a firm grip. High reaction torque

can briefly occur while driving in and loosening screws.

 Secure the workpiece. A workpiece clamped with clamp-

ing devices or in a vice is held more secure than by hand.

 Always wait until the machine has come to a complete

stop before placing it down. The tool insert can jam and

lead to loss of control over the power tool.

 Do not open the battery. Danger of short-circuiting.

Protect the battery against heat, e. g., against

continuous intense sunlight, fire, water, and

moisture. Danger of explosion.

 In case of damage and improper use of the battery, va-

pours may be emitted. Ventilate the area and seek

medical help in case of complaints. The vapours can irri-

tate the respiratory system.

 Use the battery only in conjunction with your Bosch

power tool. This measure alone protects the battery

against dangerous overload.

 The battery can be damaged by pointed objects such as

nails or screwdrivers or by force applied externally. An

internal short circuit can occur and the battery can burn,

smoke, explode or overheat.

 The battery is supplied partially charged. To ensure full

battery capacity, completely charge the battery in the

battery charger before using for the first time.

 Read the operating instructions of the battery charger.

 Adjust the gear switch only when the machine is at a

 Always push the gear selector and turn the operating

mode selector switch through to the stop. Otherwise,

the machine can become damaged.

Product Description and Specifica-

Read all safety warnings and all instruc-

tions. Failure to follow the warnings and in-

structions may result in electric shock, fire

and/or serious injury.

While reading the operating instructions, unfold the graphics

page for the machine and leave it open.

The machine is intended for driving in and loosening screws

as well as for drilling in wood, metal, ceramics and plastic.

GSB machines are additionally intended for impact drilling in

bricks, brickwork and masonry.

The light of this power tool is intended to illuminate the power

tool’s direct area of working operation and is not suitable for

household room illumination.

The numbering of the product features refers to the illustra-

15 Handle (insulated gripping surface)

*Accessories shown or described are not part of the standard de-

livery scope of the product. A complete overview of accessories

can be found in our accessories program.

OBJ_BUCH-2456-001.book Page 14 Wednesday, August 12, 2015 3:21 PMEnglish | 15

Bosch Power Tools 1 609 92A 16Y | (12.8.15)

Sound emission values determined according to

GSR 18 V-EC / GSB 18 V-EC Typically the A-weighted noise levels of the product are: Sound pressure level 87 dB(A); Sound power level 98 dB(A). Uncer-

- - 0-28 500 0-28 500

Max. torque for soft screwdriving

application according to

Maximum torque, hard

screwdriving application

according to ISO 5393

Maximum drilling diameter

Weight according to EPTA-

Recommended batteries

Recommended chargers for

wireless charging batteries

GAL 18... W GAL 18... W

*depending on the battery pack being used

** Limited performance at temperatures <0 °C OBJ_BUCH-2456-001.book Page 15 Wednesday, August 12, 2015 3:21 PM16 | English

1 609 92A 16Y | (12.8.15) Bosch Power Tools

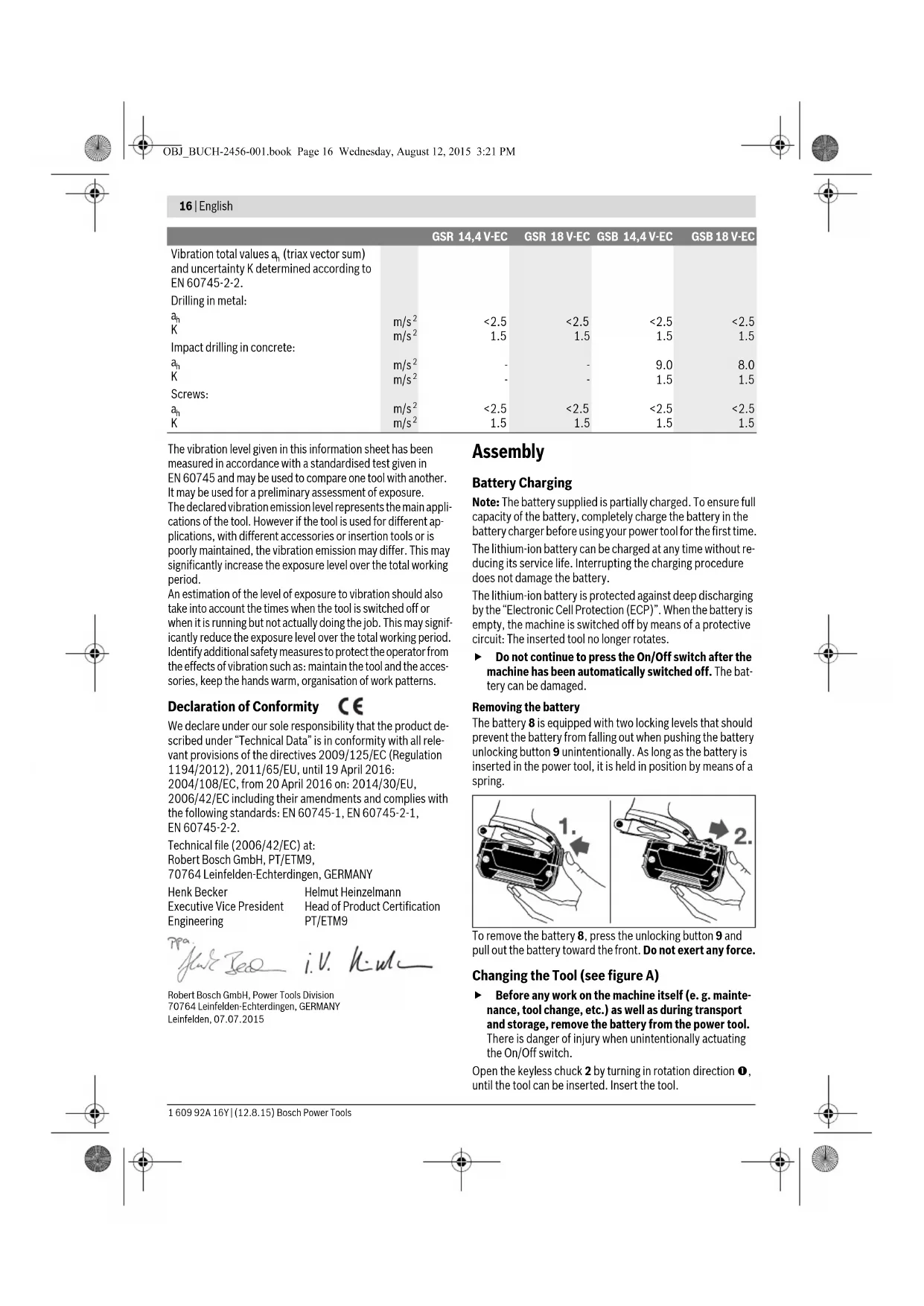

The vibration level given in this information sheet has been

measured in accordance with a standardised test given in

EN 60745 and may be used to compare one tool with another.

It may be used for a preliminary assessment of exposure.

The declared vibration emission level represents the main appli-

cations of the tool. However if the tool is used for different ap-

plications, with different accessories or insertion tools or is

poorly maintained, the vibration emission may differ. This may

significantly increase the exposure level over the total working

An estimation of the level of exposure to vibration should also

take into account the times when the tool is switched off or

when it is running but not actually doing the job. This may signif-

icantly reduce the exposure level over the total working period.

Identify additional safety measures to protect the operator from

the effects of vibration such as: maintain the tool and the acces-

sories, keep the hands warm, organisation of work patterns.

Declaration of Conformity

We declare under our sole responsibility that the product de-

scribed under “Technical Data” is in conformity with all rele-

vant provisions of the directives 2009/125/EC (Regulation

1194/2012), 2011/65/EU, until 19 April 2016:

2004/108/EC, from 20 April 2016 on: 2014/30/EU,

2006/42/EC including their amendments and complies with

Note: The battery supplied is partially charged. To ensure full

capacity of the battery, completely charge the battery in the

battery charger before using your power tool for the first time.

The lithium-ion battery can be charged at any time without re-

ducing its service life. Interrupting the charging procedure

does not damage the battery.

The lithium-ion battery is protected against deep discharging

by the “Electronic Cell Protection (ECP)”. When the battery is

empty, the machine is switched off by means of a protective

circuit: The inserted tool no longer rotates.

 Do not continue to press the On/Off switch after the

machine has been automatically switched off. The bat-

tery can be damaged.

Removing the battery

The battery 8 is equipped with two locking levels that should

prevent the battery from falling out when pushing the battery

unlocking button 9 unintentionally. As long as the battery is

inserted in the power tool, it is held in position by means of a

To remove the battery 8, press the unlocking button 9 and

pull out the battery toward the front. Do not exert any force.

Changing the Tool (see figure A)

 Before any work on the machine itself (e. g. mainte-

nance, tool change, etc.) as well as during transport

and storage, remove the battery from the power tool.

There is danger of injury when unintentionally actuating

Open the keyless chuck 2 by turning in rotation direction ,

until the tool can be inserted. Insert the tool.

GSR 14,4 V-EC GSR 18 V-EC GSB 14,4 V-EC GSB 18 V-EC Vibration total values a

and uncertainty K determined according to

K Impact drilling in concrete:

Executive Vice President

Head of Product Certification

OBJ_BUCH-2456-001.book Page 16 Wednesday, August 12, 2015 3:21 PMEnglish | 17

Bosch Power Tools 1 609 92A 16Y | (12.8.15)

Firmly tighten the collar of the keyless chuck 2 by hand in ro-

tation direction . This automatically locks the drill chuck.

Dust/Chip Extraction

 Dust from materials such as lead-containing coatings,

some wood types, minerals and metal can be harmful to

one’s health and cause allergic reactions, lead to res-

piratory infections and/or cancer. Materials containing

asbestos may only be worked by specialists.

– Provide for good ventilation of the working place.

– It is recommended to wear a P2 filter-class respirator.

Observe the relevant regulations in your country for the

materials to be worked.

 Prevent dust accumulation at the workplace. Dust can

Inserting the battery

Note: Use of batteries not suitable for the machine can lead to

malfunctions of or cause damage to the power tool.

Set the rotational direction switch 13 to the centre position in

order to avoid unintentional starting. Insert the charged bat-

tery 8 into the handle so that it can be felt to engage and faces

flush against the handle.

Reversing the rotational direction (see figure B)

The rotational direction switch 13 is used to reverse the rota-

tional direction of the machine. However, this is not possible

with the On/Off switch 14 actuated.

Rotate clockwise: Move the rotational direction switch

13 on both sides up to the stop into position .

Rotate anticlockwise: Move the rotational direction

switch 13 on both sides up to the stop into position .

Setting the operating mode

GSR 14,4 V-EC, GSR 18 V-EC:

Set the torque selector setting ring 3 to the re-

GSB 14,4 V-EC, GSB 18 V-EC:

Set the operating mode selector switch 4 to the

GSR 14,4 V-EC, GSR 18 V-EC:

Set the torque selector setting ring 3 to the

“screwdriving” symbol.

GSB 14,4 V-EC, GSB 18 V-EC:

Set the operating mode selector switch 4 to the

“screwdriving” symbol.

Impact drilling(GSB 14,4 V-EC, GSB 18 V-EC)

Set the operating mode selector switch 4 to the

“impact drilling” symbol.

Switching On and Off

To start the machine, press the On/Off switch 14 and keep it

The LED 10 lights up when the On/Off switch 14 is halfway or

fully pressed, and enables illumination of the screwing loca-

tion in unfavourable light conditions.

To save energy, only switch the power tool on when using it.

The speed of the switched-on power tool can be variably ad-

justed, depending on how far the On/Off switch 14 is

Light pressure on the On/Off switch 14 results in a low rota-

tional speed. Further pressure on the switch results in an in-

With the torque preselection ring 3, the required torque can

be preselected in 20 steps. The inserted tool is stopped as

soon as the set torque is reached.

Gear selection, mechanical

 The gear selector 5 can be actuated at standstill or

when the machine is running. However, this should not

be done while operating at full load or maximum speed.

Low speed range; for working with large drilling diameters.

High speed range; for drilling with small drilling diameter.

Temperature Dependent Overload Protection

When using as intended for, the power tool cannot be subject

to overload. When the load is too high or the allowable battery

temperature range is exceeded, the speed is reduced. The

power tool will not run at full speed until reaching the allow-

able battery temperature.

Activation of the temperature-controlled overload protector

is indicated by the LED 11 on the power tool lighting up red.

The LED 11 will go out once the temperature of the tool's bat-

tery is back within the permissible range.

Protection Against Deep Discharging

The lithium-ion battery is protected against deep discharging

by the “Electronic Cell Protection (ECP)”. When the battery is

empty, the machine is switched off by means of a protective

circuit: The inserted tool no longer rotates.

The rapid shut-off feature enables better control of the power

tool. The power tool shuts off in case of sudden and unexpect-

ed rotation of the power tool around the drilling axis.

The rapid shut-off feature is indicated by a flashing LED on the

To restart the machine, release the On/Off switch and then

 Rapid shut-off can trigger only when the power tool is

running at maximum operating speed and can rotate

freely around the drill bit axis. Choose a suitable work

position for this. Otherwise, rapid shut-off will not be en-

OBJ_BUCH-2456-001.book Page 17 Wednesday, August 12, 2015 3:21 PM18 | English

1 609 92A 16Y | (12.8.15) Bosch Power Tools

 Apply the power tool to the screw only when it is

switched off. Rotating tool inserts can slip off.

An auxiliary tool can be used to remove the screwdriver bit or

universal bit holder.

With the belt clip 7, the machine can be hung onto a belt. The

user has both hands free and the machine is always at hand.

Colour clip (see figure D)

You can use the colour clip 6 to individually label the power

Maintenance and Service

Maintenance and Cleaning

 Before any work on the machine itself (e. g. mainte-

nance, tool change, etc.) as well as during transport

and storage, remove the battery from the power tool.

There is danger of injury when unintentionally actuating

 For safe and proper working, always keep the machine

and ventilation slots clean.

When the battery is no longer operative, please refer to an au-

thorised after-sales service agent for Bosch power tools.

After-sales Service and Application Service

Our after-sales service responds to your questions concern-

ing maintenance and repair of your product as well as spare

parts. Exploded views and information on spare parts can al-

Bosch’s application service team will gladly answer questions

concerning our products and their accessories.

In all correspondence and spare parts orders, please always

include the 10-digit article number given on the nameplate of

Robert Bosch Ltd. (B.S.C.)

UB 9 5HJ At www.bosch-pt.co.uk you can order spare parts or arrange

the collection of a product in need of servicing or repair.

Tel. Service: (0344) 7360109

Australia, New Zealand and Pacific Islands

Robert Bosch Australia Pty. Ltd.

Customer Contact Center

Republic of South Africa

Hotline: (011) 6519600

35 Roper Street, New Centre

E-Mail: bsctools@icon.co.za

KZN – BSC Service Centre

Unit E, Almar Centre

E-Mail: bsc.dur@za.bosch.com

Western Cape – BSC Service Centre

Democracy Way, Prosperity Park

The contained lithium-ion batteries are subject to the Dangerous

Goods Legislation requirements. The user can transport the bat-

teries by road without further requirements.

When being transported by third parties (e.g.: air transport or

forwarding agency), special requirements on packaging and la-

OBJ_BUCH-2456-001.book Page 18 Wednesday, August 12, 2015 3:21 PMFrançais | 19 Bosch Power Tools 1 609 92A 16Y | (12.8.15) belling must be observed. For preparation of the item being

shipped, consulting an expert for hazardous material is re-

Dispatch batteries only when the housing is undamaged. Tape or

mask off open contacts and pack up the battery in such a manner

that it cannot move around in the packaging.

Please also observe possibly more detailed national regulations.

The machine, rechargeable batteries, accessories

and packaging should be sorted for environmental-

Do not dispose of power tools and batteries/rechargeable

batteries into household waste!

Only for EC countries:

According to the European Guideline

2012/19/EU, power tools that are no long-

er usable, and according to the European

Guideline 2006/66/EC, defective or used

battery packs/batteries, must be collected

separately and disposed of in an environ-

mentally correct manner.

Batteries no longer suitable for use can be directly returned

Robert Bosch Ltd. (B.S.C.)

UB 9 5HJ At www.bosch-pt.co.uk you can order spare parts or arrange

the collection of a product in need of servicing or repair.

Tel. Service: (0344) 7360109

E-Mail: boschservicecentre@bosch.com

Battery packs/batteries:

Please observe the instructions in sec-

AVERTISSEMENT OBJ_BUCH-2456-001.book Page 19 Wednesday, August 12, 2015 3:21 PM20 | Français

OBJ_BUCH-2456-001.book Page 21 Wednesday, August 12, 2015 3:21 PM22 | Français

Executive Vice President

Head of Product Certification

OBJ_BUCH-2456-001.book Page 23 Wednesday, August 12, 2015 3:21 PM24 | Français

OBJ_BUCH-2456-001.book Page 24 Wednesday, August 12, 2015 3:21 PMFrançais | 25

OBJ_BUCH-2456-001.book Page 27 Wednesday, August 12, 2015 3:21 PM28 | Español

OBJ_BUCH-2456-001.book Page 28 Wednesday, August 12, 2015 3:21 PMEspañol | 29

Executive Vice President

Head of Product Certification

OBJ_BUCH-2456-001.book Page 30 Wednesday, August 12, 2015 3:21 PMEspañol | 31

OBJ_BUCH-2456-001.book Page 31 Wednesday, August 12, 2015 3:21 PM32 | Español

OBJ_BUCH-2456-001.book Page 32 Wednesday, August 12, 2015 3:21 PMPortuguês | 33 Bosch Power Tools 1 609 92A 16Y | (12.8.15) Perú

OBJ_BUCH-2456-001.book Page 34 Wednesday, August 12, 2015 3:21 PMPortuguês | 35

OBJ_BUCH-2456-001.book Page 35 Wednesday, August 12, 2015 3:21 PM36 | Português

Executive Vice President

Head of Product Certification

OBJ_BUCH-2456-001.book Page 37 Wednesday, August 12, 2015 3:21 PM38 | Português

OBJ_BUCH-2456-001.book Page 38 Wednesday, August 12, 2015 3:21 PMPortuguês | 39

OBJ_BUCH-2456-001.book Page 42 Wednesday, August 12, 2015 3:21 PMItaliano | 43

Executive Vice President

Head of Product Certification

OBJ_BUCH-2456-001.book Page 44 Wednesday, August 12, 2015 3:21 PMItaliano | 45

OBJ_BUCH-2456-001.book Page 45 Wednesday, August 12, 2015 3:21 PM46 | Italiano

WAARSCHUWING OBJ_BUCH-2456-001.book Page 47 Wednesday, August 12, 2015 3:21 PM48 | Nederlands

OBJ_BUCH-2456-001.book Page 48 Wednesday, August 12, 2015 3:21 PMNederlands | 49

OBJ_BUCH-2456-001.book Page 49 Wednesday, August 12, 2015 3:21 PM50 | Nederlands

Executive Vice President

Head of Product Certification

OBJ_BUCH-2456-001.book Page 51 Wednesday, August 12, 2015 3:21 PM52 | Nederlands

OBJ_BUCH-2456-001.book Page 52 Wednesday, August 12, 2015 3:21 PMNederlands | 53

ADVARSEL OBJ_BUCH-2456-001.book Page 54 Wednesday, August 12, 2015 3:21 PMDansk | 55

Executive Vice President

Head of Product Certification

OBJ_BUCH-2456-001.book Page 57 Wednesday, August 12, 2015 3:21 PM58 | Dansk

OBJ_BUCH-2456-001.book Page 58 Wednesday, August 12, 2015 3:21 PMDansk | 59

Bosch Service Center

VARNING OBJ_BUCH-2456-001.book Page 60 Wednesday, August 12, 2015 3:21 PMSvenska | 61

OBJ_BUCH-2456-001.book Page 61 Wednesday, August 12, 2015 3:21 PM62 | Svenska

Executive Vice President

Head of Product Certification

OBJ_BUCH-2456-001.book Page 63 Wednesday, August 12, 2015 3:21 PM64 | Svenska

Bosch Service Center

ADVARSEL OBJ_BUCH-2456-001.book Page 65 Wednesday, August 12, 2015 3:21 PM66 | Norsk

OBJ_BUCH-2456-001.book Page 67 Wednesday, August 12, 2015 3:21 PM68 | Norsk

Executive Vice President

Head of Product Certification

OBJ_BUCH-2456-001.book Page 69 Wednesday, August 12, 2015 3:21 PM70 | Norsk

OBJ_BUCH-2456-001.book Page 73 Wednesday, August 12, 2015 3:21 PM74 | Suomi

Executive Vice President

Head of Product Certification

OBJ_BUCH-2456-001.book Page 75 Wednesday, August 12, 2015 3:21 PM76 | Suomi

OBJ_BUCH-2456-001.book Page 78 Wednesday, August 12, 2015 3:21 PMEλληνικά | 79

OBJ_BUCH-2456-001.book Page 81 Wednesday, August 12, 2015 3:21 PM82 | Eλληνικά

Executive Vice President

Head of Product Certification

OBJ_BUCH-2456-001.book Page 82 Wednesday, August 12, 2015 3:21 PMEλληνικά | 83

UYARI OBJ_BUCH-2456-001.book Page 84 Wednesday, August 12, 2015 3:21 PMTürkçe | 85

OBJ_BUCH-2456-001.book Page 85 Wednesday, August 12, 2015 3:21 PM86 | Türkçe

OBJ_BUCH-2456-001.book Page 86 Wednesday, August 12, 2015 3:21 PMTürkçe | 87

OBJ_BUCH-2456-001.book Page 87 Wednesday, August 12, 2015 3:21 PM88 | Türkçe

Executive Vice President

Head of Product Certification

OBJ_BUCH-2456-001.book Page 88 Wednesday, August 12, 2015 3:21 PMTürkçe | 89

OBJ_BUCH-2456-001.book Page 89 Wednesday, August 12, 2015 3:21 PM90 | Türkçe

OBJ_BUCH-2456-001.book Page 92 Wednesday, August 12, 2015 3:21 PMPolski | 93

OBJ_BUCH-2456-001.book Page 93 Wednesday, August 12, 2015 3:21 PM94 | Polski

Executive Vice President

Head of Product Certification

OBJ_BUCH-2456-001.book Page 95 Wednesday, August 12, 2015 3:21 PM96 | Polski

OBJ_BUCH-2456-001.book Page 96 Wednesday, August 12, 2015 3:21 PMPolski | 97

Robert Bosch Sp. z o.o.

OBJ_BUCH-2456-001.book Page 98 Wednesday, August 12, 2015 3:21 PMČesky | 99

OBJ_BUCH-2456-001.book Page 101 Wednesday, August 12, 2015 3:21 PM102 | Česky

Executive Vice President

Head of Product Certification

OBJ_BUCH-2456-001.book Page 102 Wednesday, August 12, 2015 3:21 PMČesky | 103

POZOR OBJ_BUCH-2456-001.book Page 104 Wednesday, August 12, 2015 3:21 PMSlovensky | 105

OBJ_BUCH-2456-001.book Page 106 Wednesday, August 12, 2015 3:21 PMSlovensky | 107

Executive Vice President

Head of Product Certification

OBJ_BUCH-2456-001.book Page 108 Wednesday, August 12, 2015 3:21 PMSlovensky | 109

OBJ_BUCH-2456-001.book Page 110 Wednesday, August 12, 2015 3:21 PMMagyar | 111 Bosch Power Tools 1 609 92A 16Y | (12.8.15) Magyar

FIGYELMEZTETÉS OBJ_BUCH-2456-001.book Page 111 Wednesday, August 12, 2015 3:21 PM112 | Magyar

OBJ_BUCH-2456-001.book Page 113 Wednesday, August 12, 2015 3:21 PM114 | Magyar

OBJ_BUCH-2456-001.book Page 114 Wednesday, August 12, 2015 3:21 PMMagyar | 115

Executive Vice President

Head of Product Certification

OBJ_BUCH-2456-001.book Page 115 Wednesday, August 12, 2015 3:21 PM116 | Magyar

OBJ_BUCH-2456-001.book Page 116 Wednesday, August 12, 2015 3:21 PMMagyar | 117

OBJ_BUCH-2456-001.book Page 118 Wednesday, August 12, 2015 3:21 PMРусский | 119

OBJ_BUCH-2456-001.book Page 119 Wednesday, August 12, 2015 3:21 PM120 | Русский

OBJ_BUCH-2456-001.book Page 120 Wednesday, August 12, 2015 3:21 PMРусский | 121

Executive Vice President

Head of Product Certification

OBJ_BUCH-2456-001.book Page 122 Wednesday, August 12, 2015 3:21 PMРусский | 123

OBJ_BUCH-2456-001.book Page 123 Wednesday, August 12, 2015 3:21 PM124 | Русский

OBJ_BUCH-2456-001.book Page 124 Wednesday, August 12, 2015 3:21 PMРусский | 125

Executive Vice President

Head of Product Certification

OBJ_BUCH-2456-001.book Page 134 Wednesday, August 12, 2015 3:21 PMҚазақша | 135

OBJ_BUCH-2456-001.book Page 136 Wednesday, August 12, 2015 3:21 PMҚазақша | 137

Executive Vice President

Head of Product Certification

OBJ_BUCH-2456-001.book Page 138 Wednesday, August 12, 2015 3:21 PMҚазақша | 139

AVERTISMEN T OBJ_BUCH-2456-001.book Page 141 Wednesday, August 12, 2015 3:21 PM142 | Română

OBJ_BUCH-2456-001.book Page 144 Wednesday, August 12, 2015 3:21 PMRomână | 145

Executive Vice President

Head of Product Certification

OBJ_BUCH-2456-001.book Page 145 Wednesday, August 12, 2015 3:21 PM146 | Română

Directivei Europene 2006/66/CE, acumu-

OBJ_BUCH-2456-001.book Page 147 Wednesday, August 12, 2015 3:21 PM148 | Български

OBJ_BUCH-2456-001.book Page 148 Wednesday, August 12, 2015 3:21 PMБългарски | 149

OBJ_BUCH-2456-001.book Page 151 Wednesday, August 12, 2015 3:21 PM152 | Български

Executive Vice President

Head of Product Certification

OBJ_BUCH-2456-001.book Page 152 Wednesday, August 12, 2015 3:21 PMБългарски | 153

Executive Vice President

Head of Product Certification

UPOZORENJE OBJ_BUCH-2456-001.book Page 161 Wednesday, August 12, 2015 3:21 PM162 | Srpski

OBJ_BUCH-2456-001.book Page 163 Wednesday, August 12, 2015 3:21 PM164 | Srpski

Executive Vice President

Head of Product Certification

OBJ_BUCH-2456-001.book Page 165 Wednesday, August 12, 2015 3:21 PM166 | Srpski

OPOZORILO OBJ_BUCH-2456-001.book Page 168 Wednesday, August 12, 2015 3:21 PMSlovensko | 169

OBJ_BUCH-2456-001.book Page 169 Wednesday, August 12, 2015 3:21 PM170 | Slovensko

Executive Vice President

Head of Product Certification

OBJ_BUCH-2456-001.book Page 171 Wednesday, August 12, 2015 3:21 PM172 | Slovensko

OBJ_BUCH-2456-001.book Page 172 Wednesday, August 12, 2015 3:21 PMSlovensko | 173

UPOZORENJE OBJ_BUCH-2456-001.book Page 174 Wednesday, August 12, 2015 3:21 PMHrvatski | 175

OBJ_BUCH-2456-001.book Page 175 Wednesday, August 12, 2015 3:21 PM176 | Hrvatski

Executive Vice President

Head of Product Certification

OBJ_BUCH-2456-001.book Page 177 Wednesday, August 12, 2015 3:21 PM178 | Hrvatski

OBJ_BUCH-2456-001.book Page 181 Wednesday, August 12, 2015 3:21 PM182 | Eesti

Executive Vice President

Head of Product Certification

OBJ_BUCH-2456-001.book Page 183 Wednesday, August 12, 2015 3:21 PM184 | Eesti

OBJ_BUCH-2456-001.book Page 187 Wednesday, August 12, 2015 3:21 PM188 | Latviešu

Executive Vice President

Head of Product Certification

OBJ_BUCH-2456-001.book Page 192 Wednesday, August 12, 2015 3:21 PMLietuviškai | 193

OBJ_BUCH-2456-001.book Page 195 Wednesday, August 12, 2015 3:21 PM196 | Lietuviškai

Executive Vice President

Head of Product Certification

Executive Vice President

Head of Product Certification

Bosch Korea, RBKR Mechanics and Electronics Ltd.

Executive Vice President

Head of Product Certification

Executive Vice President

Head of Product Certification

GBA 18V... W OBJ_BUCH-2456-001.book Page 219 Thursday, August 13, 2015 10:53 AM
