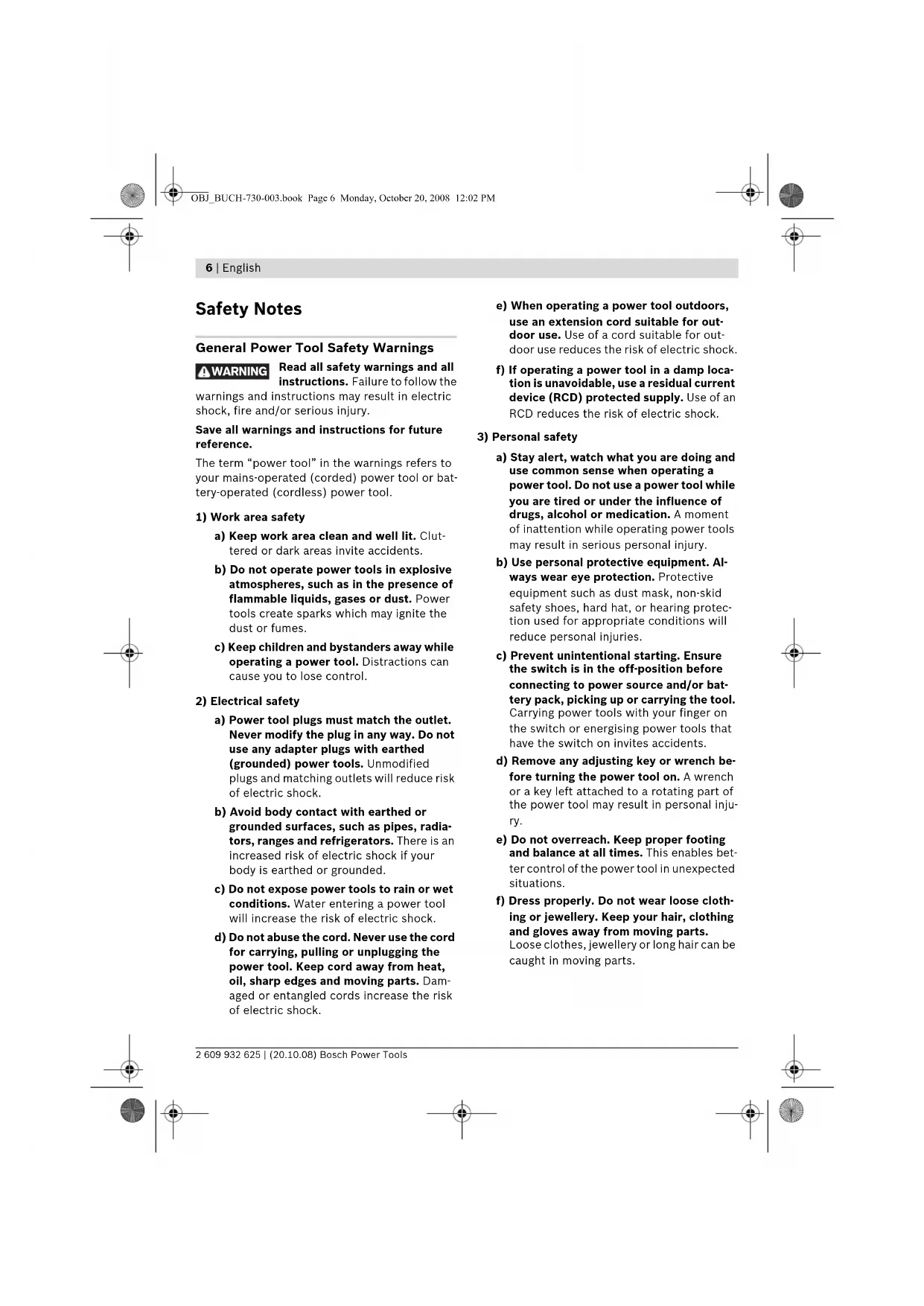

General Power Tool Safety Warnings

Read all safety warnings and all

instructions. Failure to follow the

warnings and instructions may result in electric

shock, fire and/or serious injury.

Save all warnings and instructions for future

The term “power tool” in the warnings refers to

your mains-operated (corded) power tool or bat-

tery-operated (cordless) power tool.

a) Keep work area clean and well lit. Clut-

tered or dark areas invite accidents.

b) Do not operate power tools in explosive

atmospheres, such as in the presence of

flammable liquids, gases or dust. Power

tools create sparks which may ignite the

c) Keep children and bystanders away while

operating a power tool. Distractions can

cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet.

Never modify the plug in any way. Do not

use any adapter plugs with earthed

(grounded) power tools. Unmodified

plugs and matching outlets will reduce risk

b) Avoid body contact with earthed or

grounded surfaces, such as pipes, radia-

tors, ranges and refrigerators. There is an

increased risk of electric shock if your

body is earthed or grounded.

c) Do not expose power tools to rain or wet

conditions. Water entering a power tool

will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord

for carrying, pulling or unplugging the

power tool. Keep cord away from heat,

oil, sharp edges and moving parts. Dam-

aged or entangled cords increase the risk

e) When operating a power tool outdoors,

use an extension cord suitable for out-

door use. Use of a cord suitable for out-

door use reduces the risk of electric shock.

f) If operating a power tool in a damp loca-

tion is unavoidable, use a residual current

device (RCD) protected supply. Use of an

RCD reduces the risk of electric shock.

a) Stay alert, watch what you are doing and

use common sense when operating a

power tool. Do not use a power tool while

you are tired or under the influence of

drugs, alcohol or medication. A moment

of inattention while operating power tools

may result in serious personal injury.

b) Use personal protective equipment. Al-

ways wear eye protection. Protective

equipment such as dust mask, non-skid

safety shoes, hard hat, or hearing protec-

tion used for appropriate conditions will

reduce personal injuries.

c) Prevent unintentional starting. Ensure

the switch is in the off-position before

connecting to power source and/or bat-

tery pack, picking up or carrying the tool.

Carrying power tools with your finger on

the switch or energising power tools that

have the switch on invites accidents.

d) Remove any adjusting key or wrench be-

fore turning the power tool on. A wrench

or a key left attached to a rotating part of

the power tool may result in personal inju-

e) Do not overreach. Keep proper footing

and balance at all times. This enables bet-

ter control of the power tool in unexpected

f) Dress properly. Do not wear loose cloth-

ing or jewellery. Keep your hair, clothing

and gloves away from moving parts.

Loose clothes, jewellery or long hair can be

caught in moving parts.

WARNING OBJ_BUCH-730-003.book Page 6 Monday, October 20, 2008 12:02 PMEnglish | 7

Bosch Power Tools 2 609 932 625 | (20.10.08)

g) If devices are provided for the connection

of dust extraction and collection facili-

ties, ensure these are connected and

properly used. Use of dust collection can

reduce dust-related hazards.

4) Power tool use and care

a) Do not force the power tool. Use the cor-

rect power tool for your application. The

correct power tool will do the job better

and safer at the rate for which it was de-

b) Do not use the power tool if the switch

does not turn it on and off. Any power tool

that cannot be controlled with the switch

is dangerous and must be repaired.

c) Disconnect the plug from the power

source and/or the battery pack from the

power tool before making any adjust-

ments, changing accessories, or storing

power tools. Such preventive safety meas-

ures reduce the risk of starting the power

d) Store idle power tools out of the reach of

children and do not allow persons unfa-

miliar with the power tool or these in-

structions to operate the power tool.

Power tools are dangerous in the hands of

e) Maintain power tools. Check for misalign-

ment or binding of moving parts, break-

age of parts and any other condition that

may affect the power tool’s operation. If

damaged, have the power tool repaired

before use. Many accidents are caused by

poorly maintained power tools.

f) Keep cutting tools sharp and clean. Prop-

erly maintained cutting tools with sharp

cutting edges are less likely to bind and are

g) Use the power tool, accessories and tool

bits etc. in accordance with these instruc-

tions, taking into account the working

conditions and the work to be performed.

Use of the power tool for operations differ-

ent from those intended could result in a

hazardous situation.

5) Battery tool use and care

a) Recharge only with the charger specified

by the manufacturer. A charger that is

suitable for one type of battery pack may

create a risk of fire when used with anoth-

b) Use power tools only with specifically

designated battery packs. Use of any oth-

er battery packs may create a risk of injury

c) When battery pack is not in use, keep it

away from other metal objects, like paper

clips, coins, keys, nails, screws or other

small metal objects, that can make a con-

nection from one terminal to another.

Shorting the battery terminals together

may cause burns or a fire.

d) Under abusive conditions, liquid may be

ejected from the battery; avoid contact. If

contact accidentally occurs, flush with

water. If liquid contacts eyes, additionally

seek medical help. Liquid ejected from the

battery may cause irritation or burns.

a) Have your power tool serviced by a quali-

fied repair person using only identical re-

placement parts. This will ensure that the

safety of the power tool is maintained.

Safety Warnings for Drills and Screw-

GSB14,4VE-2LI/GSB18VE-2LI

f Wear ear protectors when impact drilling.

Exposure to noise can cause hearing loss.

GSR18VE-2LI/GSB18VE-2LI

f Use auxiliary handle(s), if supplied with the

tool. Loss of control can cause personal in-

f When working with the machine, always

hold it firmly with both hands and provide

for a secure stance. The power tool is guided

more secure with both hands.

OBJ_BUCH-730-003.book Page 7 Monday, October 20, 2008 12:02 PM2 609 932 625 | (20.10.08) Bosch Power Tools

GSR14,4VE-2LI/GSR18VE-2LI/

GSB14,4VE-2LI/GSB18VE-2LI

f Hold power tool by insulated gripping sur-

faces, when performing an operation where

the cutting accessory may contact hidden

wiring. Cutting accessory contacting a “live”

wire may make exposed metal parts of the

power tool “live” and could give the operator

f Use appropriate detectors to determine if

utility lines are hidden in the work area or

call the local utility company for assistance.

Contact with electric lines can lead to fire and

electric shock. Damaging a gas line can lead to

explosion. Penetrating a water line causes

property damage or may cause an electric

f Switch off the power tool immediately when

the tool insert jams. Be prepared for high re-

action torque that can cause kickback. The

tool insert jams when:

— the power tool is subject to overload or

— it becomes wedged in the workpiece.

f Hold the machine with a firm grip. High reac-

tion torque can briefly occur while driving in

and loosening screws.

f Secure the workpiece. A workpiece clamped

with clamping devices or in a vice is held more

secure than by hand.

f Keep your workplace clean. Blends of mate-

rials are particularly dangerous. Dust from

light alloys can burn or explode.

f Always wait until the machine has come to a

complete stop before placing it down. The

tool insert can jam and lead to loss of control

over the power tool.

f Avoid unintentional switching on. Ensure the

On/Off switch is in the off position before in-

serting battery pack. Carrying the power tool

with your finger on the On/Off switch or in-

serting the battery pack into power tools that

have the switch on invites accidents.

f Do not open the battery. Danger of short-

Protect the battery against heat, e. g.,

also against continuous sun irradiation

and fire. There is danger of explosion.

f In case of damage and improper use of the

battery, vapours may be emitted. Provide for

fresh air and seek medical help in case of

complaints. The vapours can irritate the respi-

f When the battery is defective, liquid can es-

cape and come into contact with adjacent

components. Check any parts concerned.

Clean such parts or replace them, if required.

f Use the battery only in conjunction with your

Bosch power tool. This measure alone pro-

tects the battery against dangerous overload.

Functional Description

Read all safety warnings and all in-

structions. Failure to follow the

warnings and instructions may result

in electric shock, fire and/or serious

While reading the operating instructions, unfold

the graphics page for the machine and leave it

GSR14,4VE-2LI/GSR18VE-2LI The machine is intended for driving in and loos-

ening screws as well as for drilling in wood, met-

al, ceramic and plastic.

GSB14,4VE-2LI/GSB18VE-2LI The machine is intended for driving in and loos-

ening screws as well as for drilling in wood, met-

al, ceramic and plastic and for impact drilling in

brick, brickwork and stone.

OBJ_BUCH-730-003.book Page 8 Monday, October 20, 2008 12:02 PMEnglish | 9

Bosch Power Tools 2 609 932 625 | (20.10.08)

The numbering of the product features refers to

the illustration of the machine on the graphics

4 Operating mode preselection ring

12 Auxiliary handle clamping band

13 Universal bit holder*

14 Securing screw for keyless chuck

*Accessories shown or described are not part of the

standard delivery scope of the product. A complete

overview of accessories can be found in our acces-

Max. torque for hard/soft screw-

driving application according to

Drill spindle thread

OBJ_BUCH-730-003.book Page 9 Monday, October 20, 2008 12:02 PM2 609 932 625 | (20.10.08) Bosch Power Tools 10 | English

f Use only the battery chargers listed on the

accessories page. Only these battery charg-

ers are matched to the lithium ion battery of

Note: The battery is supplied partially charged.

To ensure full capacity of the battery, completely

charge the battery in the battery charger before

using your power tool for the first time.

The lithium ion battery can be charged at any

time without reducing its service life. Interrupt-

ing the charging procedure does not damage the

The Li-ion battery is protected against deep dis-

charging by the “Electronic Cell Protection

(ECP)”. When the battery is empty, the machine

is switched off by means of a protective circuit:

The inserted tool no longer rotates.

Do not continue to press the

On/Off switch after the ma-

chine has been automatically switched off. The

battery can be damaged.

The battery is equipped with a NTC temperature

control which allows charging only within a tem-

perature range of between 0 °C and 45 °C. A long

battery service life is achieved in this manner.

Observe the notes for disposal.

Combination Cordless Drill GSB 14,4 VE-2 LI Professional

Impact frequency at no-load

25500 25500 30750 30750

Max. torque for hard/soft screw-

driving application according to

Drill spindle thread

EPTA-Procedure 01/2003

kg 2.4 2.2 2.5 2.3 Please observe the article number on the type plate of your machine. The trade names of the individual machines may vary.

WARNING OBJ_BUCH-730-003.book Page 10 Monday, October 20, 2008 12:02 PMEnglish | 11

Bosch Power Tools 2 609 932 625 | (20.10.08)

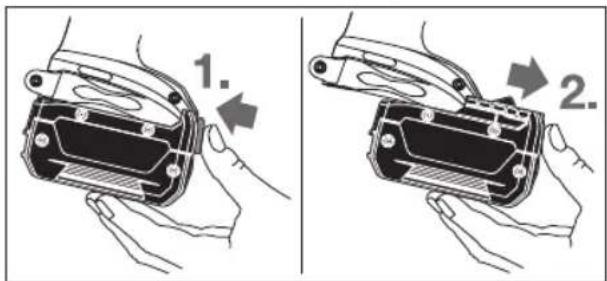

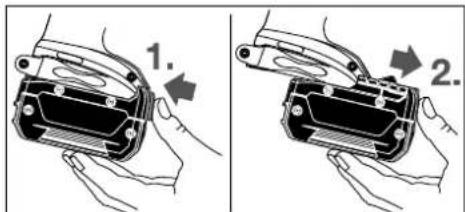

Removing the Battery

The battery 8 is equipped with two locking levels

that should prevent the battery from falling out

when pushing the battery unlocking button 7 un-

intentionally. As long as the battery is inserted in

the power tool, it is held in position by means of

To remove the battery 8, press the unlocking but-

ton 7 and pull out the battery toward the front.

Do not exert any force.

Auxiliary Handle (GSR 18 VE-2 LI/

GSB 18 VE-2 LI) (see figure A)

f Operate your machine only with the auxiliary

The auxiliary handle 5 can be set to any position

for a secure and low-fatigue working posture.

Turn the bottom part of the auxiliary handle 5 in

counterclockwise direction and swivel the auxil-

iary handle 5 to the desired position. Then

retighten the bottom part of the auxiliary handle

5 by turning in clockwise direction.

The clamping band 12 of the auxiliary handle

must be seated in the corresponding groove.

Changing the Tool (see figure B)

f Before any work on the machine (e. g., main-

tenance, tool change, etc.) as well as during

transport and storage, set the rotational di-

rection switch to the centre position. Unin-

tentional actuation of the On/Off switch can

The drill spindle is locked when the On/Off

switch 11 is not pressed. This makes quick, con-

venient and easy changing of the tool in the drill

Open the keyless chuck 1 by turning in rotation

direction n, until the tool can be inserted. Insert

Firmly tighten the collar of the keyless chuck 1 by

hand in rotation direction o until the locking ac-

tion (“click”) is no longer heard. This automati-

cally locks the chuck.

The locking is released again to remove the tool

when the collar is turned in the opposite direc-

Replacing the Drill Chuck

f Before any work on the machine (e. g., main-

tenance, tool change, etc.) as well as during

transport and storage, set the rotational di-

rection switch to the centre position. Unin-

tentional actuation of the On/Off switch can

Removing the Securing Screw (see figure C)

The keyless chuck 1 is secured with a securing

screw 14 against unintentional loosening from

the drill spindle. Completely open the keyless

chuck 1 and unscrew the securing screw 14 in ro-

tation direction n. Please note that the securing

screw has a left-hand thread.

Removing the Drill Chuck (see figure D)

Clamp the short end of an Allen key 15 into the

Place the machine on a stable surface (e. g. a

workbench). Hold the machine firmly and loosen

the keyless chuck 1 by turning the Allen key 15 in

rotation direction n. Loosen a tight-seated key-

less chuck by giving the long end of the Allen key

15 a light blow. Remove the Allen key from the

keyless chuck and completely unscrew the key-

Mounting the Drill Chuck (see figure E)

The keyless chuck is mounted in reverse order.

The drill chuck must be tightened with a

tightening torque of approx. 15–25 Nm.

Screw the securing screw 14 in anti-clockwise di-

rection into the opened keyless chuck, tightening

torque approx. 2.5–3.5 Nm. Always use a new se-

curing screw, as the threads are covered with a

thread-locking compound that loses its effect af-

OBJ_BUCH-730-003.book Page 11 Monday, October 20, 2008 12:02 PM2 609 932 625 | (20.10.08) Bosch Power Tools

Dust/Chip Extraction

f Dusts from materials such as lead-containing

coatings, some wood types, minerals and

metal can be harmful to one’s health. Touch-

ing or breathing-in the dusts can cause aller-

gic reactions and/or lead to respiratory infec-

tions of the user or bystanders.

Certain dusts, such as oak or beech dust, are

considered as carcinogenic, especially in con-

nection with wood-treatment additives (chro-

mate, wood preservative). Materials contain-

ing asbestos may only be worked by

– Provide for good ventilation of the working

– It is recommended to wear a P2 filter-class

Observe the relevant regulations in your coun-

try for the materials to be worked.

Inserting the Battery

f Use only original Bosch lithium ion batteries

with the voltage listed on the nameplate of

your power tool. Using other batteries can

lead to injuries and pose a fire hazard.

Set the rotational direction switch 10 to the cen-

tre position to protect the power tool against ac-

Insert the charged battery 8 from the front into

the base of the power tool. Push the battery com-

pletely into the base until the red stripe can no

longer be seen and the battery is securely locked.

Reversing the Rotational Direction

The rotational direction switch 10 is used to re-

verse the rotational direction of the machine.

However, this is not possible with the On/Off

Right Rotation: For drilling and driving in screws,

push the rotational direction switch 10 left to the

Left Rotation: For loosening and unscrewing

screws and nuts, press the rotational direction

switch 10 through to the right stop.

With the torque presetting ring 2 the required

torque setting can be preselected in 25+1 steps.

With the correct setting, the insert tool is

stopped as soon as the screw is screwed flush in-

to the material or when the adjusted torque is

reached. The safety clutch is deactivated in the

“ ” position, e. g. for drilling.

Select a higher setting or switch to the

“ ” symbol when unscrewing screws.

Lower torque for screwing in screws with small

diameter or into soft materials. Fine torque gra-

dients between the individual setting positions.

Setting range 21–25:

Higher torque for screwing in screws with large

diameters or into hard materials. Coarse torque

gradients between the individual setting posi-

Setting the Operating Mode (GSB 14,4 VE-2 LI/

GSB18VE-2LI) (seefigureG)

With the operating mode preselection ring 4, you

can select between drilling/screwdriving and im-

Drilling and screwdriving

Set the preselection ring 4 to the “Drilling

without impact” symbol.

Set the preselection ring 4 to the “Impact

In the “Impact drilling” position, the safety clutch

is deactivated and the maximum power is always

Gear Selection, Mechanical

f The gear selector 3 can be actuated at stand-

still or when the machine is running. Howev-

er, this should not be done while operating

at full load or maximum speed.

Two speed ranges can be preselected with the

OBJ_BUCH-730-003.book Page 12 Monday, October 20, 2008 12:02 PMEnglish | 13

Bosch Power Tools 2 609 932 625 | (20.10.08)

Low speed range; for screwdriving or working

with large drilling diameter.

High speed range; for working with small drilling

If the gear selector 3 cannot be pushed through

to the stop, lightly turn the drill chuck with drill.

Switching On and Off

To start the machine, press the On/Off switch 11

and keep it pressed.

The light 9 is lit when the On/Off switch 11 is

slightly or completely pressed in and permits to

light the work area when the lighting conditions

To switch off the machine, release the On/Off

The speed of the switched on power tool can be

variably adjusted, depending on how far the

On/Off switch 11 is pressed.

Light pressure on the On/Off switch 11 results in

a low rotational speed. Further pressure on the

switch results in an increase in speed.

Fully automatic spindle locking (Auto-lock)

When the On/Off switch 11 is not pressed, the

drill spindle and thus the tool holder are locked.

This enables screws to be screwed in, even when

the battery is empty and allows for the machine

to be used as a screwdriver.

When the On/Off switch 11 is released, the

chuck brakes to a stop, thus preventing the run-

When driving in screws, wait until the screw is

screwed in flush with the material and then re-

lease the On/Off switch 11. By doing so, the head

of the screw does not penetrate into the materi-

Temperature Dependent Overload Protection

When using as intended for, the power tool can-

not be subject to overload. When the load is too

high or the allowable battery temperature of

70 °C is exceeded, the electronic control switch-

es off the power tool until the temperature is in

the optimum temperature range again.

f Apply the power tool to the screw only when

it is switched off. Rotating tool inserts can

When the power tool is electrostatically charged,

the built-in electronic control switches it off. To

restart the power tool, press the On/Off switch

Note: Pay attention that no metal particles enter

After longer periods of working at low speed, al-

low the machine to cool down by running it for

approx. 3 minutes at maximum speed with no

For drilling in metal, use only perfectly sharp-

ened HSS drill bits (HSS=high-speed steel). The

appropriate quality is guaranteed by the Bosch

accessories program.

Before screwing larger, longer screws into hard

materials, it is advisable to predrill a pilot hole

with the core diameter of the thread to approx.

of the screw length.

Recommendations for Optimal Handling of the

Protect the battery against moisture and water.

Store the battery only within a temperature

range between 0 °C and 45 °C. As an example,

do not leave the battery in the car in summer.

Occasionally clean the venting slots of the bat-

tery using a soft, clean and dry brush.

A significantly reduced working period after

charging indicates that the battery is used and

Observe the notes for disposal.

OBJ_BUCH-730-003.book Page 13 Monday, October 20, 2008 12:02 PM2 609 932 625 | (20.10.08) Bosch Power Tools

Maintenance and Service

Maintenance and Cleaning

f Before any work on the machine itself (e. g.

maintenance, tool change, etc.) as well as

during transport and storage, remove the

battery from the power tool. There is danger

of injury when unintentionally actuating the

f For safe and proper working, always keep

the machine and ventilation slots clean.

If the machine should fail despite the care taken

in manufacturing and testing procedures, repair

should be carried out by an after-sales service

centre for Bosch power tools.

In all correspondence and spare parts order,

please always include the 10-digit article number

given on the type plate of the machine.

Replacing the Carbon Brushes (see figure H)

The power tool stops automatically when the car-

bon brushes are used. For replacing the carbon

brushes, loosen the two screws in the cover lid

17 and take off the cover lid 17. Place a screw-

driver or a similar tool into the clip of the brush

holder 16 and lever it out with caution. Take out

the used brushes and replace them. The new

brushes can also be mounted turned by 180 de-

grees. Press the mounted brushes slightly down

until they engage audibly. Then replace the cover

After-sales Service and Customer

Our after-sales service responds to your ques-

tions concerning maintenance and repair of your

product as well as spare parts. Exploded views

and information on spare parts can also be found

Our customer consultants answer your questions

concerning best buy, application and adjustment

of products and accessories.

People’s Republic of China

HK and Macau Special Administrative Regions

Robert Bosch Hong Kong Co. Ltd.

21st Floor, 625 King’s Road

North Point, Hong Kong

OBJ_BUCH-730-003.book Page 14 Monday, October 20, 2008 12:02 PMEnglish | 15

Liberty Square Building

Bosch Service – Training Centre

2869-2869/1 Soi Ban Kluay

Rama IV Road (near old Paknam Railway)

Republic of Singapore

Robert Bosch (SEA) Pte. Ltd – Vietnam

Representative Office

Saigon Trade Center, Suite 1206

37 Ton Duc Thang Street,

Ben Nghe Ward, District 1

Tel.: +84 (8) 9111 374 – 9111 375

Fax: +84 (8) 9111376

Australia, New Zealand and Pacific Islands

Robert Bosch Australia Pty. Ltd.

Customer Contact Center

The battery is tested according to UN document

ST/SG/AC.10/11/Rev.3 Part III, subsection 38.3.

It has effective protection against internal over-

pressure and short circuiting as well as devices

for the prevention of violent rupture and danger-

ous reverse current flow.

The lithium-equivalent content in the battery is

below applicable limit values. Therefore, the bat-

tery is not subject to national or international

regulations pertaining to dangerous mediums,

neither as an individual component nor when in-

serted into a machine. However, the regulations

governing dangerous goods may be relevant

when transporting several batteries. In this case,

it can be necessary to comply with special condi-

tions (e.g., concerning the packaging). For more

information, please refer to the instruction sheet

(in English) under the following Internet address:

http://purchasing.bosch.com/en/start/

Allgemeines/Download/index.htm.

The machine, accessories and packaging should

be sorted for environmental-friendly recycling.

Battery packs/batteries:

Please observe the instruc-

tions in section “Transport”,

Do not dispose of battery packs/batteries into

household waste, fire or water. Battery

packs/batteries should be collected, recycled or

disposed of in an environmental-friendly manner.

Subject to change without notice.

OBJ_BUCH-730-003.book Page 15 Monday, October 20, 2008 12:02 PM2 609 932 625 | (20.10.08) Bosch Power Tools 16 | 中文

OBJ_BUCH-730-003.book Page 17 Monday, October 20, 2008 12:02 PM2 609 932 625 | (20.10.08) Bosch Power Tools

"premium" "compact" "premium" "compact"

"premium" "compact" "premium" "compact"

OBJ_BUCH-730-003.book Page 20 Monday, October 20, 2008 12:02 PM中文 | 21

OBJ_BUCH-730-003.book Page 22 Monday, October 20, 2008 12:02 PM中文 | 23

OBJ_BUCH-730-003.book Page 25 Monday, October 20, 2008 12:02 PM2 609 932 625 | (20.10.08) Bosch Power Tools

"premium" "compact" "premium" "compact"

"premium" "compact" "premium" "compact"

OBJ_BUCH-730-003.book Page 28 Monday, October 20, 2008 12:02 PM中文 | 29

OBJ_BUCH-730-003.book Page 31 Monday, October 20, 2008 12:02 PM2 609 932 625 | (20.10.08) Bosch Power Tools

d) 󵍵󵥲󶠡󵲉 󵠓󴕝 󵫍󴚢󳾾󴀵󴕝 󵡽󴱹󵨽 󵑙󵨽 󴗈󵲉 󵠓󴕝 󳾼

OBJ_BUCH-730-003.book Page 33 Monday, October 20, 2008 12:02 PM2 609 932 625 | (20.10.08) Bosch Power Tools

OBJ_BUCH-730-003.book Page 34 Monday, October 20, 2008 12:02 PM󳝓󰽤󲞫 | 35 Bosch Power Tools 2 609 932 625 | (20.10.08) 󵬹󴲆

󴞥󴱽 󵽢 󵁍󶠽󶠡󴃹 ( 󴃁󴲅 D 󵼁󵬹 )

󲤘󰷸 󳊛 15 󲥏 󲯞󲤷 󱉔󲤻 󲝕󲤳󱩓 󳝏󲟣 󳊛󱧿󲒛 󲺐 1 󲟇 󱉳󲢸󱒿󱓛 .

OBJ_BUCH-730-003.book Page 35 Monday, October 20, 2008 12:02 PM2 609 932 625 | (20.10.08) Bosch Power Tools 36 | 󳝓󰽤󲞫

OBJ_BUCH-730-003.book Page 36 Monday, October 20, 2008 12:02 PM󳝓󰽤󲞫 | 37

OBJ_BUCH-730-003.book Page 37 Monday, October 20, 2008 12:02 PM2 609 932 625 | (20.10.08) Bosch Power Tools 38 | 󳝓󰽤󲞫

Robert Bosch Korea Mechanics and Electronics Ltd.

"premium" "compact" "premium" "compact"

"premium" "compact" "premium" "compact"

OBJ_BUCH-730-003.book Page 49 Monday, October 20, 2008 12:02 PM2 609 932 625 | (20.10.08) Bosch Power Tools

OBJ_BUCH-730-003.book Page 50 Monday, October 20, 2008 12:02 PMBahasa Indonesia | 51

OBJ_BUCH-730-003.book Page 51 Monday, October 20, 2008 12:02 PM2 609 932 625 | (20.10.08) Bosch Power Tools

OBJ_BUCH-730-003.book Page 54 Monday, October 20, 2008 12:02 PMBahasa Indonesia | 55

OBJ_BUCH-730-003.book Page 55 Monday, October 20, 2008 12:02 PM2 609 932 625 | (20.10.08) Bosch Power Tools

OBJ_BUCH-730-003.book Page 56 Monday, October 20, 2008 12:02 PMBahasa Indonesia | 57

mata bor HSS (HSS = High Speed Steel, baja

OBJ_BUCH-730-003.book Page 57 Monday, October 20, 2008 12:02 PM2 609 932 625 | (20.10.08) Bosch Power Tools

C~NH B|O OBJ_BUCH-730-003.book Page 59 Monday, October 20, 2008 12:02 PM2 609 932 625 | (20.10.08) Bosch Power Tools

OBJ_BUCH-730-003.book Page 60 Monday, October 20, 2008 12:02 PMTiøng Vi·t | 61

OBJ_BUCH-730-003.book Page 61 Monday, October 20, 2008 12:02 PM2 609 932 625 | (20.10.08) Bosch Power Tools

Procedure 01/2003 (chu¤n EPTA

OBJ_BUCH-730-003.book Page 62 Monday, October 20, 2008 12:02 PMTiøng Vi·t | 63

Procedure 01/2003 (chu¤n EPTA

OBJ_BUCH-730-003.book Page 63 Monday, October 20, 2008 12:02 PM2 609 932 625 | (20.10.08) Bosch Power Tools

OBJ_BUCH-730-003.book Page 64 Monday, October 20, 2008 12:02 PMTiøng Vi·t | 65

OBJ_BUCH-730-003.book Page 65 Monday, October 20, 2008 12:02 PM2 609 932 625 | (20.10.08) Bosch Power Tools

OBJ_BUCH-730-003.book Page 66 Monday, October 20, 2008 12:02 PMTiøng Vi·t | 67

AVERTISSEMENT OBJ_BUCH-730-003.book Page 68 Monday, October 20, 2008 12:02 PMFrançais | 69

OBJ_BUCH-730-003.book Page 69 Monday, October 20, 2008 12:02 PM2 609 932 625 | (20.10.08) Bosch Power Tools

OBJ_BUCH-730-003.book Page 71 Monday, October 20, 2008 12:02 PM2 609 932 625 | (20.10.08) Bosch Power Tools

OBJ_BUCH-730-003.book Page 74 Monday, October 20, 2008 12:02 PMFrançais | 75

OBJ_BUCH-730-003.book Page 75 Monday, October 20, 2008 12:02 PM2 609 932 625 | (20.10.08) Bosch Power Tools

OBJ_BUCH-730-003.book Page 77 Monday, October 20, 2008 12:02 PM2 609 932 625 | (20.10.08) Bosch Power Tools

“ﺔﻴﺋﺎﺑﺮﻬﻜﻟﺍ ﺓﺪﻌﻟﺍ” ﺢﻠﻄﺼﻤﺑ ﺪﺼﻘﻳ

ﺩﺎﺘﻋ ﺀﺍﺪﺗﺭﺍ ﺪﳛ .ﺔﻴﻗﺍﻭ ﺕﺍﺭﺎﻈﻧ

11 ﻞﺻﻭ ﻭ ﻊﻄﻗ ﺪﯿﻠﻛ ،ﭻﯿﭘ ﱳﺴﺑ ﻡﺎﮕﻨﻫ
