PSB 1800 LI-2 - Drill BOSCH - Free user manual and instructions

Product type	Cordless hammer drill
Brand	Bosch
Model	PSB 1800 LI-2
Nominal voltage	18 V
Battery type	Li-Ion
Battery capacity	2.0 Ah
Number of batteries included	2
No-load speed (1st gear)	0 – 400 rpm
No-load speed (2nd gear)	0 – 1,500 rpm
Maximum torque	30 Nm
Max drilling diameter (wood)	30 mm
Max drilling diameter (steel)	10 mm
Max drilling diameter (masonry)	13 mm
Chuck	Self-tightening chuck 13 mm
Torque setting	20 positions + drilling
Impact function	Yes
Weight	1.5 kg (with battery)
Dimensions (H x W x D)	210 x 200 x 70 mm
Sound level	Lpa = 84 dB(A); K = 3 dB
Vibration (metal drilling)	ah = 2.5 m/s²; K = 1.5 m/s²
Charger included	Yes, fast charger AL 1810 CV
Maintenance and cleaning	Clean with a dry cloth; do not immerse; periodic chuck lubrication
Safety	Chuck brake; spindle lock; overload protection
Spare parts	Batteries, charger, carbon brushes, chuck, switch
Repairability	Repairability score: 8.6/10
Usage	Drilling and screwdriving in wood, metal, masonry; ideal for DIY work

Frequently Asked Questions - PSB 1800 LI-2 BOSCH

What is the battery runtime?

With a 2.0 Ah battery, the runtime is approximately 30 to 60 minutes of continuous use depending on the work. It is recommended to have the second battery charging for extended use.

How to change the drill bit?

Turn the chuck ring clockwise to loosen, insert the drill bit, then tighten firmly counterclockwise. Make sure the tool is turned off.

How to activate the hammer action?

Turn the mode selector to the position with the hammer symbol. Use the hammer action only for masonry and concrete.

Is the charger compatible with other Bosch batteries?

Yes, the AL 1810 CV charger is compatible with 18 V batteries from the Bosch Home and Garden (green) range.

How to adjust the torque setting?

Turn the torque setting ring to the desired number (1 to 20). The higher the number, the higher the torque. For drilling, select the drill symbol.

What to do if the drill does not start?

Check that the battery is properly inserted and charged. If the charger indicator flashes, consult the manual. In case of jamming, the chuck brake can be activated.

Can you drill metal with this drill?

Yes, use a metal drill bit, a slow speed, and lubricate with cutting oil. The high torque allows drilling up to 10 mm in steel.

How to maintain the drill?

Regularly clean the ventilation slots with a brush. Grease the chuck from time to time. Store the drill in a dry, frost-free place.

What is the warranty?

Bosch offers a 2-year warranty from the date of purchase. Online registration can extend the warranty to 3 years.

Where to find spare parts?

Spare parts (batteries, charger, carbon brushes, chuck) are available from authorized Bosch dealers or on the Bosch Home & Garden website.

USER MANUAL PSB 1800 LI-2 BOSCH

OBJ_BUCH-2806-003 book Page 1 Wednesday, October 11, 2017 10:54 AM

Two electric drill putters shown in grayscale, no visible text or symbols on the devices themselves.

Robert Bosch Power Tools GmbH

70538 Stuttgart

GERMANY

www.bosch-pt.com

1609 92A 2UA (2017.10) AS/158

PSB

1440 LI-2 | 1800 LI-2

BOSCH

The following table is in English:

OBJ_BUCH-2806-003.book Page 2 Wednesday, October 11, 2017 10:54 AM

2|

PSB 1440 LI-2/PSB 1800 LI-2:

General Power Tool Safety Warnings

WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

Work area safety

• Keep work area clean and well lit. Cluttered or dark areas invite accidents.
  ▶ Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
• Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

Electrical safety

▶ Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
- Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
▶ Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
▶ Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges and moving parts. Damaged or entangled cords increase the risk of electric shock.
- When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
▶ If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

Personal safety

Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
▶ Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

▶ Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
▶ Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
▶ Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

Power tool use and care

▶ Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
▶ Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
▶ Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
▶ Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
- Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
▶ Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
▶ Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

Battery tool use and care

▶ Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

English | 9

▶ Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
▶ Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

Service

▶ Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Safety Warnings for Drills and Screwdrivers

▶ Wear ear protectors when impact drilling. Exposure to noise can cause hearing loss.
▶ Use auxiliary handle(s), if supplied with the tool. Loss of control can cause personal injury.
Hold power tool by insulated gripping surfaces when performing an operation where the cutting accessory or fastener may contact hidden wiring. Cutting accessory and fasteners contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
▶ Use appropriate detectors to determine if utility lines are hidden in the work area or call the local utility company for assistance. Contact with electric lines can lead to fire and electric shock. Damaging a gas line can lead to explosion. Penetrating a water line causes property damage.
Switch off the power tool immediately when the tool insert jams. Be prepared for high reaction torque that can cause kickback. The tool insert jams when: - the power tool is subject to overload or - it becomes wedged in the workpiece.
▶ Hold the machine with a firm grip. High reaction torque can briefly occur while driving in and loosening screws.
- Secure the workpiece. A workpiece clamped with clamping devices or in a vice is held more secure than by hand.
▶ Always wait until the machine has come to a complete stop before placing it down. The tool insert can jam and lead to loss of control over the power tool.
Before any work on the machine (e. g., maintenance, tool change, etc.) as well as during transport and storage, set the rotational direction switch to the centre position. Unintentional actuation of the On/Off switch can lead to injuries.
▶ Do not open the battery. Danger of short-circuiting.

Protect the battery against heat, e. g., against continuous intense sunlight, fire, water, and moisture. Danger of explosion.

In case of damage and improper use of the battery, vapours may be emitted. Ventilate the area and seek medical help in case of complaints. The vapours can irritate the respiratory system.
▶ Use the battery only in conjunction with your Bosch product. This measure alone protects the battery against dangerous overload.
The battery can be damaged by pointed objects such as nails or screwdrivers or by force applied externally. An internal short circuit can occur and the battery can burn, smoke, explode or overheat.

Additional Safety and Working Instructions

▶ Dust from materials such as lead-containing coatings, some wood types, minerals and metal can be harmful to one's health and cause allergic reactions, lead to respiratory infections and/or cancer. Materials containing asbestos may only be worked by specialists.
- Provide for good ventilation of the working place. - It is recommended to wear a P2 filter-class respirator. Observe the relevant regulations in your country for the materials to be worked.
▶ Prevent dust accumulation at the workplace. Dust can easily ignite.
▶ To save energy, only switch the power tool on when using it.
The power tool switches off automatically as soon as the set torque is reached. The LED indicator flashes 3 x.
The battery is supplied partially charged. To ensure full battery capacity, completely charge the battery in the battery charger before using for the first time.
▶ Read the operating instructions of the battery charger.
▶ Apply the power tool to the screw only when it is switched off. Rotating tool inserts can slip off.
▶ Adjust the gear switch only when the machine is at a complete stop.
▶ Always push the gear selector and turn the operating mode selector switch through to the stop. Otherwise, the machine can become damaged.
▶ If the gear switch cannot be pushed to the stop, turn the drill chuck a little.
▶ When the On/Off switch is pressed halfway or completely, the battery charge-control indicator indicates the charge condition of the battery for several seconds. It consists of 3 green LEDs.

LED Capacity

Continuous lighting 3 x green ≥ 75%

Continuous lighting 2 x green 50–75%

Continuous lighting 1 x green 26–50%

Slow flashing 1 x green ≤ 25%

10| English

The 3 LEDs of the battery charge-control indicator flash rapidly when the battery temperature is not within the operating temperature range of -30 to +65 °C, and/or when the overload protection has responded.

Symbols

The following symbols are important for reading and understanding the operating instructions. Please take note of the symbols and their meaning. The correct interpretation of the symbols will help you to use the machine in a better and safer manner.

Symbol Meaning

PSB 1440 LI-2/PSB 1800 LI-2: Combination Cordless Drill Grey-marked area: Handle (insulated gripping surface)

Article number

Read all safety warnings and all instructions

Before any work on the machine itself, remove the battery

Always wear ear protection.

Movement direction

Reaction direction

Screwdriving

Drilling without impact

Impact drilling

Low speed

High speed

Switching On

Symbol Meaning

Switching Off

Right/left rotation

U Rated voltage

n_s Impact rate

n_0 1 No-load speed (1. gear)

n_0 2 No-load speed (2. gear)

M Maximum torque according to ISO 5393

Brickwork

Metal

Wood

∅ Drilling diameter, max.

∅ Max. screw dia.

Chuck clamping range

Weight according to EPTA-Procedure 01:2014

L_w/s Sound power level

L_pM Sound pressure level

K U n c

a_h Vibration total value

T_1 Permitted ambient temperature during charging

T_2 Permitted ambient temperature during operation ^a and storage

* limited performance at temperatures <0 °C

Recommended batteries

Recommended chargers

Delivery Scope

Combination cordless drill.

Battery, application tools and other accessories shown or described are not part of the standard delivery scope.

A complete overview of accessories can be found in our accessories program.

Intended Use

The machine is intended for driving in and loosening screws as well as for drilling in wood, metal, ceramic and plastic and for impact drilling in brick, brickwork and masonry.

The light of this power tool is intended to illuminate the power tool's direct area of working operation and is not suitable for household room illumination.

1609 92A 2UA | (11.10.17) Bosch Power Tools

r t

English | 11

Technical Data

The technical data of the machine are listed in the table on page 149.

Noise/Vibration Information

The measured values of the machine are listed in the table on page 149.

Sound emission values determined according to EN 60745-2-1, EN 60745-2-2.

Vibration total values a_h (triax vector sum) and uncertainty K determined according to EN 60745-2-1, EN 60745-2-2.

The vibration level given in this information sheet has been measured in accordance with a standardised test given in EN 60745 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure.

The declared vibration emission level represents the main applications of the tool. However if the tool is used for different applications, with different accessories or insertion tools or is poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period.

An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This may significantly reduce the exposure level over the total working period.

Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.

Mounting and Operation

Action Figure Page
Removing the battery	1 150

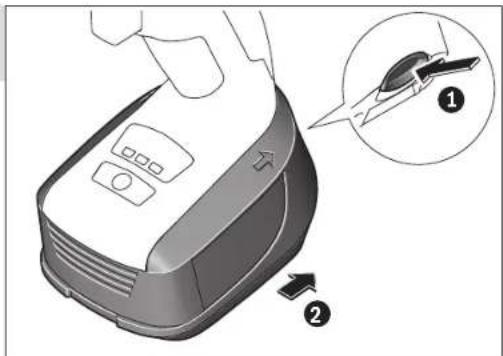

Inserting the battery	2 150
Mounting application tools	3 150

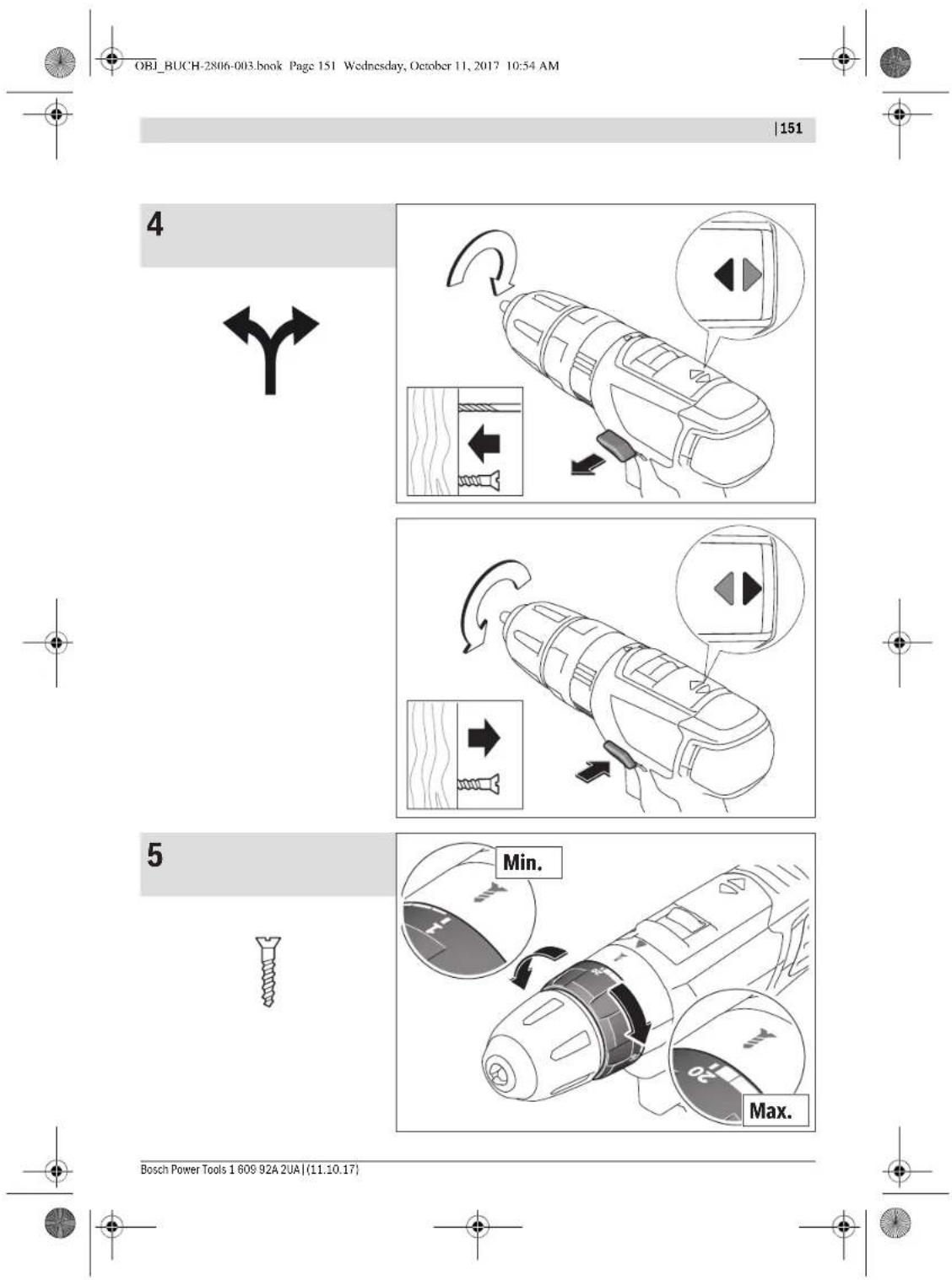

Reversing the rotational direction	4 151
Setting the torque	5 151

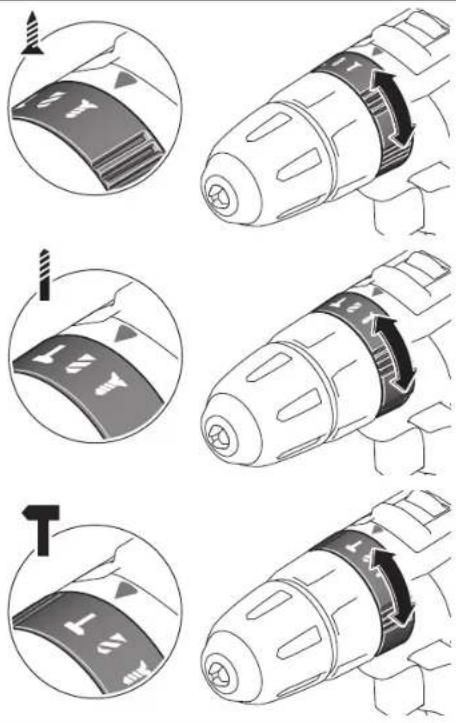

Setting the operating mode	6 152

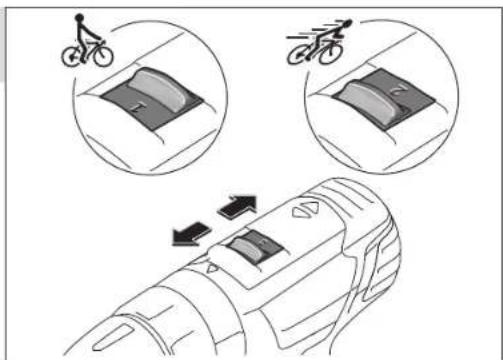

Gear selection, mechanical	7 152
Switching On and Off	8 153
Checking the battery charge condition	9 153
Selecting Accessories	- 154

Maintenance and Cleaning

▶ For safe and proper working, always keep the machine and ventilation slots clean.

Clean the application tool, the tool holder, the power tool's ventilations slots, and the battery's ventilation slots each time after using.

After-sales Service and Application Service

Our after-sales service responds to your questions concerning maintenance and repair of your product as well as spare parts. Exploded views and information on spare parts can also be found under:

www.bosch-pt.com

Bosch's application service team will gladly answer questions concerning our products and their accessories.

In all correspondence and spare parts orders, please always include the 10-digit article number given on the nameplate of the product.
