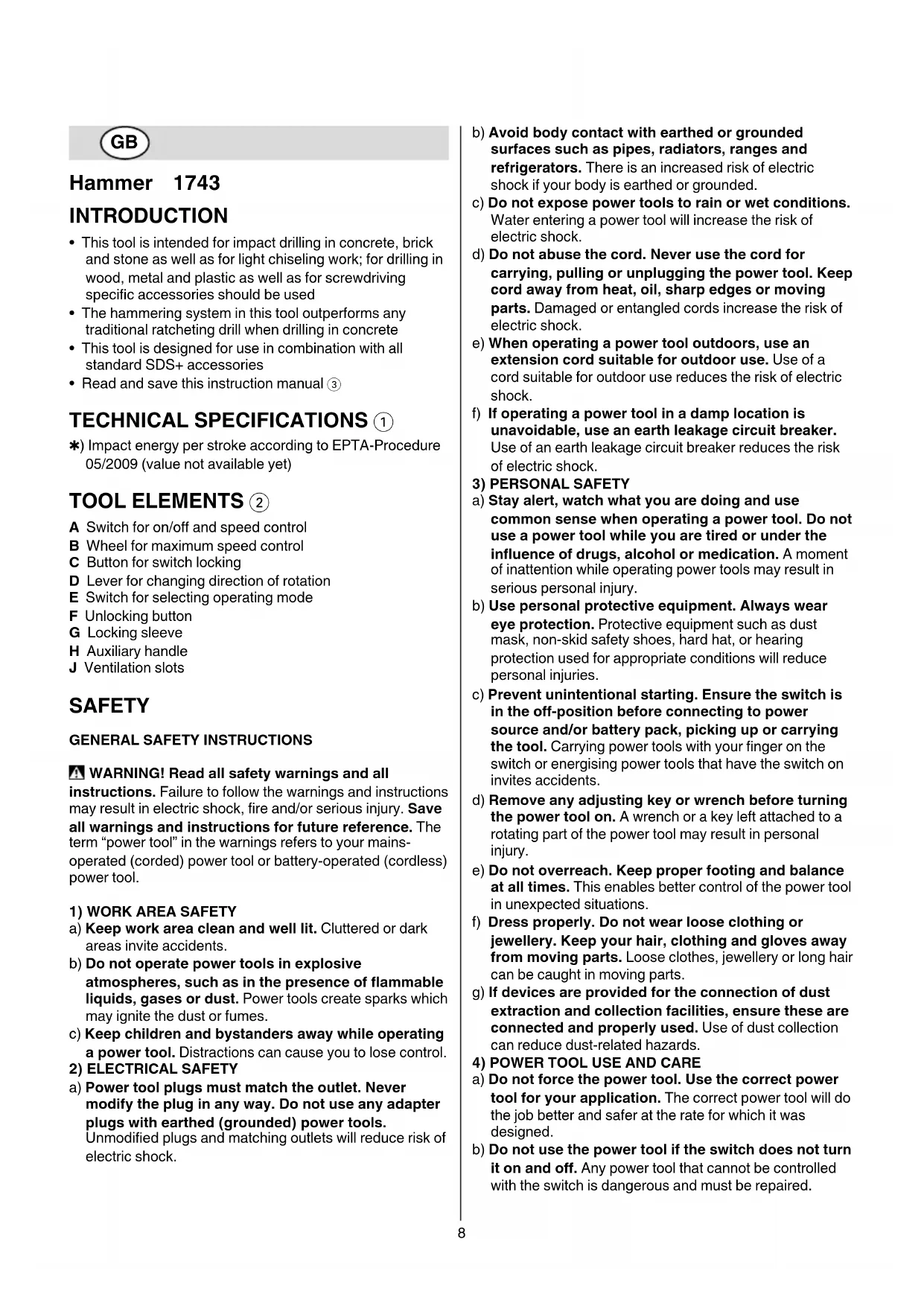

USER MANUAL 1743 AE SKIL

• This tool is intended for impact drilling in concrete, brick

and stone as well as for light chiseling work; for drilling in

wood, metal and plastic as well as for screwdriving

specic accessories should be used

• The hammering system in this tool outperforms any

traditional ratcheting drill when drilling in concrete

• This tool is designed for use in combination with all

standard SDS+ accessories

• Read and save this instruction manual 3

TECHNICALSPECIFICATIONS1

✱) Impact energy per stroke according to EPTA-Procedure

05/2009 (value not available yet)

A Switch for on/o and speed control

B Wheel for maximum speed control

C Button for switch locking

D Lever for changing direction of rotation

E Switch for selecting operating mode

SAFETY GENERALSAFETYINSTRUCTIONS WARNING!Readallsafetywarningsandall

instructions. Failure to follow the warnings and instructions

may result in electric shock, fire and/or serious injury. Save

allwarningsandinstructionsforfuturereference. The

term “power tool” in the warnings refers to your mains-

operated (corded) power tool or battery-operated (cordless)

a) Keepworkareacleanandwelllit. Cluttered or dark

areas invite accidents.

b) Donotoperatepowertoolsinexplosive

atmospheres,suchasinthepresenceofflammable

liquids,gasesordust. Power tools create sparks which

may ignite the dust or fumes.

c) Keepchildrenandbystandersawaywhileoperating

apowertool. Distractions can cause you to lose control.

Unmodied plugs and matching outlets will reduce risk of

b) Avoidbodycontactwithearthedorgrounded

surfacessuchaspipes,radiators,rangesand

refrigerators.There is an increased risk of electric

shock if your body is earthed or grounded.

c) Donotexposepowertoolstorainorwetconditions.

Water entering a power tool will increase the risk of

parts. Damaged or entangled cords increase the risk of

e) Whenoperatingapowertooloutdoors,usean

cord suitable for outdoor use reduces the risk of electric

f) Ifoperatingapowertoolinadamplocationis

Use of an earth leakage circuit breaker reduces the risk

influenceofdrugs,alcoholormedication. A moment

of inattention while operating power tools may result in

serious personal injury.

b) Usepersonalprotectiveequipment.Alwayswear

eyeprotection. Protective equipment such as dust

mask, non-skid safety shoes, hard hat, or hearing

protection used for appropriate conditions will reduce

sourceand/orbatterypack,pickinguporcarrying

thetool. Carrying power tools with your nger on the

switch or energising power tools that have the switch on

d) Removeanyadjustingkeyorwrenchbeforeturning

rotating part of the power tool may result in personal

e) Donotoverreach.Keepproperfootingandbalance

atalltimes. This enables better control of the power tool

in unexpected situations.

f) Dressproperly.Donotwearlooseclothingor

jewellery.Keepyourhair,clothingandglovesaway

frommovingparts. Loose clothes, jewellery or long hair

can be caught in moving parts.

g) Ifdevicesareprovidedfortheconnectionofdust

extractionandcollectionfacilities,ensuretheseare

connectedandproperlyused. Use of dust collection

can reduce dust-related hazards.

a) Donotforcethepowertool.Usethecorrectpower

the job better and safer at the rate for which it was

b) Donotusethepowertooliftheswitchdoesnotturn

itonandoff. Any power tool that cannot be controlled

with the switch is dangerous and must be repaired.9

c) Disconnecttheplugfromthepowersourceand/or

thebatterypackfromthepowertoolbeforemaking

anyadjustments,changingaccessories,orstoring

powertools. Such preventive safety measures reduce

the risk of starting the power tool accidentally.

d) Storeidlepowertoolsoutofthereachofchildren

anddonotallowpersonsunfamiliarwiththepower

Power tools are dangerous in the hands of untrained

operation.Ifdamaged,havethepowertoolrepaired

beforeuse. Many accidents are caused by poorly

maintained power tools.

f) Keepcuttingtoolssharpandclean. Properly

maintained cutting tools with sharp cutting edges are less

likely to bind and are easier to control.

g) Usethepowertool,accessoriesandtoolbitsetc.,in

accordancewiththeseinstructions,takinginto

accounttheworkingconditionsandtheworktobe

performed. Use of the power tool for operations dierent

from those intended could result in a hazardous situation.

a) Haveyourpowertoolservicedbyaqualifiedrepair

will ensure that the safety of the power tool is maintained.

SAFETYINSTRUCTIONSFORHAMMERS GENERAL

• Always check that the supply voltage is the same as the

voltage indicated on the nameplate of the tool

• This tool should not be used by people under the age of

• Donotworkmaterialscontainingasbestos (asbestos

is considered carcinogenic)

• Never use the tool when cord is damaged; have it

replaced by a qualied person

• Alwaysdisconnectplugfrompowersourcebefore

makinganyadjustmentorchanginganyaccessory

• SKIL can assure awless functioning of the tool only

when original accessories are used

• Use only accessories with an allowable speed matching

at least the highest no-load speed of the tool

• Use completely unrolled and safe extension cords with a

capacity of 16 Amps (U.K. 13 Amps)

• Avoid damage that can be caused by screws, nails and

other elements in your workpiece; remove them before

• Securetheworkpiece (a workpiece clamped with

clamping devices or in a vice is held more securely than

• Usesuitabledetectorstofindhiddenutilitylinesor

callthelocalutilitycompanyforassistance (contact

with electric lines can lead to re or electrical shock;

damaging a gas line can result in an explosion;

penetrating a water pipe will cause property damage or

an electrical shock)

• Dust from material such as paint containing lead, some

wood species, minerals and metal may be harmful

(contact with or inhalation of the dust may cause allergic

reactions and/or respiratory diseases to the operator or

bystanders); wearadustmaskandworkwithadust

extractiondevicewhenconnectable

• Certain kinds of dust are classied as carcinogenic (such

as oak and beech dust) especially in conjunction with

additives for wood conditioning; wearadustmaskand

workwithadustextractiondevicewhen

• Follow the dust-related national requirements for the

materials you want to work with

• Wearearprotectors (exposure to noise can cause

• Useauxiliaryhandle(s),ifsuppliedwiththetool

(loss of control can cause personal injury)

whenperforminganoperationwherethecutting

accessorymaycontacthiddenwiringoritsown

cord (a cutting accessory contacting a “live” wire may

make exposed metal parts of the power tool “live” and

could give the operator an electric shock)

• Always keep the cord away from moving parts of the tool

• In case of electrical or mechanical malfunction,

immediately switch o the tool and disconnect the plug

• If the cord is damaged or cut through while working, do

not touch the cord, but immediately disconnect the plug

• If the drill bit becomes unexpectedly jammed (causing a

sudden, dangerous reaction), immediately switch o the

• Be aware of the forces that occur as a result of jamming

(especially when drilling metals); alwaysuseauxiliary

handleH2 and take a secure stance

• When you put away the tool, switch o the motor and

ensure that all moving parts have come to a complete

WHEN CONNECTING NEW 3-PIN PLUG (U.K. ONLY):

• Do not connect the blue (= neutral) or brown (= live) wire

in the cord of this tool to the earth terminal of the plug

• If for any reason the old plug is cut o the cord of this tool,

it must be disposed of safely and not left unattended

• Switch locking for continuous use 5

• Speed control for smooth starting 6

• Maximum speed control 7

With wheel B 2 the maximum speed can be adjusted

steplessly from minimum to maximum

• Changing direction of rotation 8

- when not properly set in left/right position, switch A

- the tool functions at limited speed when set for left

! changedirectionofrotationonlywhentoolisata

• Selecting operating mode 9

- press button F to unlock switch E

- turn switch E to the desired operating mode until it

! startworkingonlywhenswitchEislocked

1 = normal drilling/screwdriving

! selectoperatingmodeonlywhentoolisswitched

offandplugisdisconnected

- for drilling in wood, metal and plastic as well as for

screwdriving the corresponding adapter should be

used (see: Application Advice)

- the hammer mechanism is activated by applying a

slight pressure on the tool when the drill bit is in

contact with the workpiece

- best impact drilling results can be obtained by only a

slight pressure on the tool needed to keep the

automatic clutch engaged; drilling performance will not

improve by applying more pressure on the tool

• Chiseling with rotating chisel

! switchoffthetoolanddisconnecttheplug

- select “rotating” chiseling mode

• Chiseling with xed chisel

! switchoffthetoolanddisconnecttheplug

- select “rotating” chiseling mode

- place chisel in desired position

- pull back locking sleeve G and insert accessory in

SDS+ chuck while turning and pushing it until it

engages; the accessory locks in position automatically

- pull accessory to check that it is locked correctly

- remove accessory by pulling back locking sleeve G

! theSDS+accessoryrequiresfreedomof

movementwhichcauseseccentricitywhentoolis

off-load;however,theaccessoryautomatically

If the accessory gets jammed, the drive to the spindle is

interrupted (causing a rattling noise)

- immediately switch o tool

- remove the jammed accessory

- switch on tool again

• Adjusting drilling depth !

• Holding and guiding the tool @

! whileworking,alwaysholdthetoolatthe

grey-colouredgriparea(s)

- alwaysuseauxiliaryhandleH (can be adjusted as

- keep the ventilation slots uncovered

- do not apply too much pressure on the tool; let the tool

• Use the appropriate bits #

! onlyusesharpbits/chisels

• For drilling in wood, metal and plastic as well as for

screwdriving use the corresponding adapter (SKIL

accessory 2610395660) $

- clean and lightly lubricate adapter before insertion

- pull back locking sleeve G 2 and insert adapter in

SDS+ chuck while turning and pushing it until it

engages; the adapter locks in position automatically

- pull adapter to check whether is it locked correctly

- set switch E 2 to normal drilling (onlyactivatewhen

toolisswitchedoffandplugisdisconnected)

• When drilling ferrous metals

- pre-drill a smaller hole, when a large hole is required

- lubricate drill bit occasionally with oil

• When turning in a screw at/near the cross cut end or an

edge of wood, pre-drill a hole in order to avoid cracking of

• Splinterfree drilling in wood %

• Dustfree drilling in walls ^

• Dustfree drilling in ceilings &

• Drilling in tiles without skidding *

• For more tips see www.skileurope.com

MAINTENANCE/SERVICE

• Always keep tool and cord clean (especially ventilation

! disconnecttheplugbeforecleaning

• If the tool should fail despite the care taken in

manufacturing and testing procedures, repair should be

carried out by an after-sales service centre for SKIL

- send the tool undismantled together with proof of

purchase to your dealer or the nearest SKIL service

station (addresses as well as the service diagram of

the tool are listed on www.skileurope.com)

• Donotdisposeofelectrictools,accessoriesand

packagingtogetherwithhouseholdwastematerial

(only for EU countries)

- in observance of European Directive 2002/96/EC on

waste of electric and electronic equipment and its

implementation in accordance with national law,

electric tools that have reached the end of their life

must be collected separately and returned to an

environmentally compatible recycling facility

- symbol ( will remind you of this when the need for

DECLARATIONOFCONFORMITY

• We declare under our sole responsibility that this product

is in conformity with the following standards or

standardized documents: EN 60745, EN 61000,

EN 55014, in accordance with the provisions of the

directives 2004/108/EC, 2006/42/EC11

• Technicalfileat: SKIL Europe BV (PT-SEU/PJE),

4825 BD Breda, NL Arno van der Kloot

Operations & Engineering

• Measured in accordance with EN 60745 the sound

pressure level of this tool is 90 dB(A) and the sound

power level 101 dB(A) (standard deviation: 3 dB),

and the vibration ✱ (hand-arm method; uncertainty

✱ when impact drilling in concrete 9.0 m/s²

✱ when chiseling 10.6 m/s²

• The vibration emission level has been measured in

accordance with a standardised test given in EN 60745; it

may be used to compare one tool with another and as a

preliminary assessment of exposure to vibration when

using the tool for the applications mentioned

- using the tool for dierent applications, or with dierent

or poorly maintainted accessories, may signicantly

increase the exposure level

- the times when the tool is switched o or when it is

running but not actually doing the job, may signicantly

reduce the exposure level

! protectyourselfagainsttheeffectsofvibration

2 = perçage de percussion

Operations & Engineering

1 = normal boring/skruning

2004/108/EF, 2006/42/EF

4825 BD Breda, NL Arno van der Kloot

Operations & Engineering

1 = normal boring/skruing

Operations & Engineering

2004/108/CE, 2006/42/CE

4825 BD Breda, NL Arno van der Kloot

Operations & Engineering

navodil 2004/108/ES, 2006/42/ES

SKIL Europe BV (PT-SEU/PJE), 4825 BD Breda, NL Arno van der Kloot

Operations & Engineering

2004/108/EK, 2006/42/EK

(PT-SEU/PJE), 4825 BD Breda, NL Arno van der Kloot

Operations & Engineering
