USER MANUAL KM 3099 CLATRONIC

Overview of the Components Page 3

D-47906 Kempen/Germany

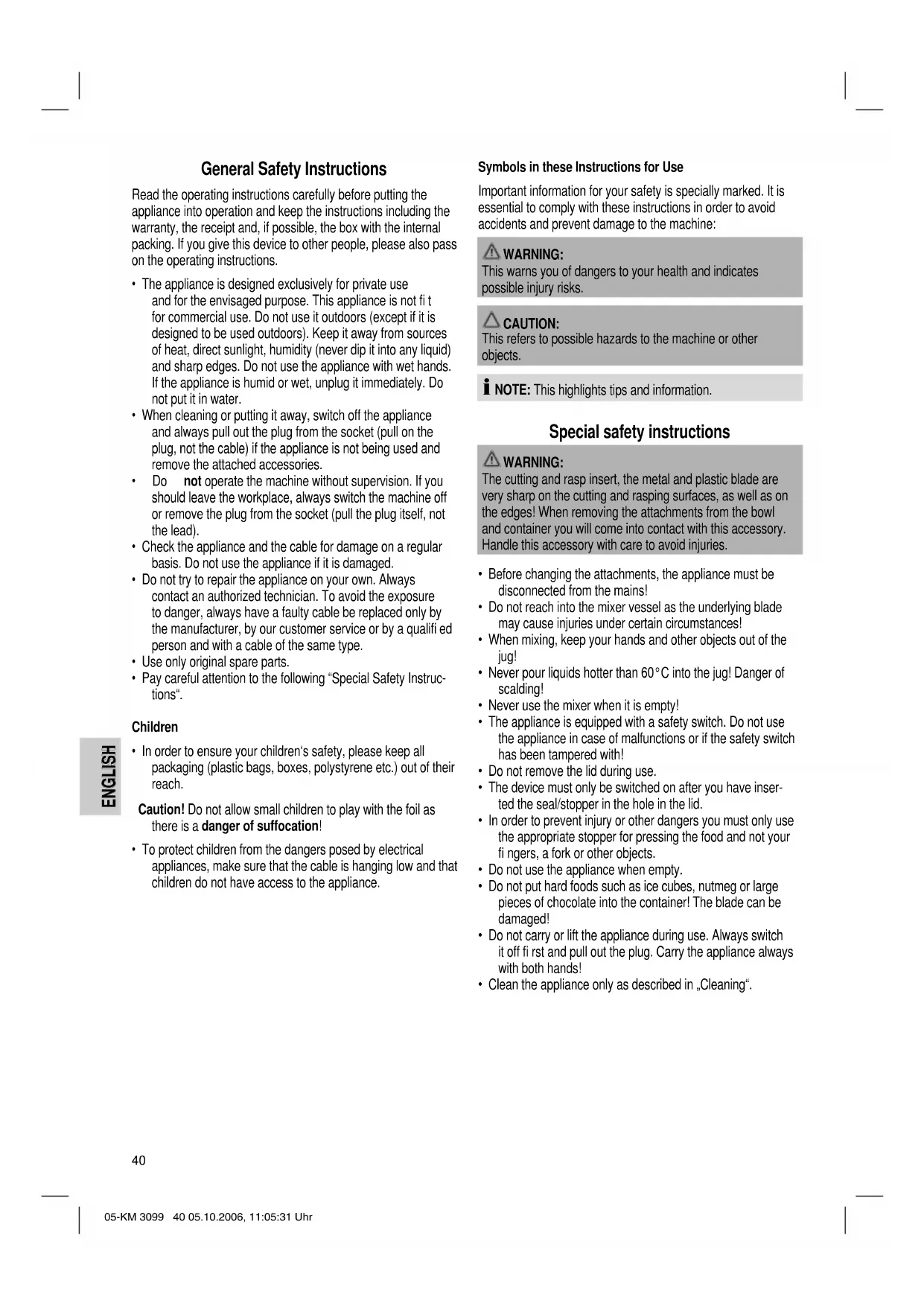

General Safety Instructions

Read the operating instructions carefully before putting the

appliance into operation and keep the instructions including the

warranty, the receipt and, if possible, the box with the internal

packing. If you give this device to other people, please also pass

on the operating instructions.

• The appliance is designed exclusively for private use

and for the envisaged purpose. This appliance is not fi t

for commercial use. Do not use it outdoors (except if it is

designed to be used outdoors). Keep it away from sources

of heat, direct sunlight, humidity (never dip it into any liquid)

and sharp edges. Do not use the appliance with wet hands.

If the appliance is humid or wet, unplug it immediately. Do

not put it in water.

• When cleaning or putting it away, switch off the appliance

and always pull out the plug from the socket (pull on the

plug, not the cable) if the appliance is not being used and

remove the attached accessories.

• Do not operate the machine without supervision. If you

should leave the workplace, always switch the machine off

or remove the plug from the socket (pull the plug itself, not

• Check the appliance and the cable for damage on a regular

basis. Do not use the appliance if it is damaged.

• Do not try to repair the appliance on your own. Always

contact an authorized technician. To avoid the exposure

to danger, always have a faulty cable be replaced only by

the manufacturer, by our customer service or by a qualifi ed

person and with a cable of the same type.

• Use only original spare parts.

• Pay careful attention to the following “Special Safety Instruc-

• In order to ensure your children‘s safety, please keep all

packaging (plastic bags, boxes, polystyrene etc.) out of their

Caution! Do not allow small children to play with the foil as

there is a danger of suffocation!

• To protect children from the dangers posed by electrical

appliances, make sure that the cable is hanging low and that

children do not have access to the appliance.

Symbols in these Instructions for Use

Important information for your safety is specially marked. It is

essential to comply with these instructions in order to avoid

accidents and prevent damage to the machine:

This warns you of dangers to your health and indicates

possible injury risks.

This refers to possible hazards to the machine or other

 NOTE: This highlights tips and information.

Special safety instructions

The cutting and rasp insert, the metal and plastic blade are

very sharp on the cutting and rasping surfaces, as well as on

the edges! When removing the attachments from the bowl

and container you will come into contact with this accessory.

Handle this accessory with care to avoid injuries.

• Before changing the attachments, the appliance must be

disconnected from the mains!

• Do not reach into the mixer vessel as the underlying blade

may cause injuries under certain circumstances!

• When mixing, keep your hands and other objects out of the

• Never pour liquids hotter than 60°C into the jug! Danger of

• Never use the mixer when it is empty!

• The appliance is equipped with a safety switch. Do not use

the appliance in case of malfunctions or if the safety switch

has been tampered with!

• Do not remove the lid during use.

• The device must only be switched on after you have inser-

ted the seal/stopper in the hole in the lid.

• In order to prevent injury or other dangers you must only use

the appropriate stopper for pressing the food and not your

fi ngers, a fork or other objects.

• Do not use the appliance when empty.

• Do not put hard foods such as ice cubes, nutmeg or large

pieces of chocolate into the container! The blade can be

• Do not carry or lift the appliance during use. Always switch

it off fi rst and pull out the plug. Carry the appliance always

• Clean the appliance only as described in „Cleaning“.

05-KM 3099 40 05.10.2006, 11:05:31 UhrENGLISH ENGLISH ENGLISH

Overview of the Components

2 Kitchen machine, basis appliance

4 Mixer vessel lid with fi lling slot

6 Drive shaft for mixing bowl

7 Safety cover for mixer drive

9 Mixing bowl driveshaft

Unpacking the appliance

• Remove the appliance from the box and all the enclosed

• Do not through the packaging away, but keep it together with

the inner packing and the warranty documents for the whole

life of the warranty. If you pass this article to others, please

also give them these instructions.

• Place the appliance on smooth, level and stable work

• Do not insert the appliance plug without installing the

necessary attachments.

• Before the device is used for the fi rst time the mixing bowl,

processor bowl, various lids and other accessories should

be washed in soapy water to remove any contamination

from their production.

Some parts are extremely sharp! There is the risk of being

injured under certain circumstances!

• Clean each single part one after the other and with great

• Dry well all the parts after washing.

Installation and use

Make sure that the switch (1) is positioned on „0“ and that the

appliance plug is not inserted when changing the attachments.

Only now can the attachments be mounted and used.

The safety cover (7) has to be mounted on the drive shaft of

the mixer drive (6) when you operate the grater bowl in order to

The appliance cannot be used without the safety lid!

operation: The mixer is also suitable for short-term

operation of not more than 2 minutes.

After this time it should be switched off.

• Pulse operation: Pulse operation is achieved by pressing

the button briefl y and then releasing it

again. The mixture should be used in

this mode for not more than 2 minutes.

Please allow it to cool down for 2

minutes before using it again!

Positioning the Mixing Bowl and Lid

Please all parts before using for the fi rst time (see „Cleaning“).

1. Place the mixing bowl (3) on the base of the device in such

“ arrow on the base of the device. Then turn

the mixing bowl clockwise until both are marks aligned with

“ mark on the mixing bowl.

mark on the lid is now pointing to the left-hand „

the mixing bowl. The mechanisms on the lower edge of the

lid and the upper edge of the container must mesh with one

another (Illustration 2).

Assembly of mixing bowl and lid

Please all parts before using for the fi rst time (see „Cleaning“).

1. Place the bowl (10) on the base in such a way that the left

“ mark on the bowl is pointing to the lower

the base. Then turn the bowl clockwise until you hear it lock

into place (Illustration 3 + 4).

2. Put the locating pin (21) over the drive shaft (Illustration

5) and select the corresponding tool (see the section on

„Grater Bowl Operation“).

3. Position the lid (8) in such a way that the arrow „

lid is aligned with the right-hand mark „

bowl. The metal tip of the locating pin (21) has to engage

into its bearing in the lid. Then turn the lid in the direction of

the „ “ until it is heard to lock into place at the stop. To

remove the lid, turn it in an anticlockwise direction.

Position the cover for the mixer drive (7) on the drive shaft of the

mixing vessel (6) such that the „

“ mark on the cover is pointing

“ arrow on the base of the device. Turn the cover for the

mixer drive in a clockwise direction as far as it will go.

Double Safety System

The motor can only be switched on if the grater bowl with the

cover locks into place correctly and the cover for the mixer drive

(7) is mounted. The mixer can only be used if the grater bowl

is correctly positioned. You should only remove the lid from

the grater bowl or from the mixing vessel when the device is

Do not use the mixer and the grater bowl at the same

Unwind the required mains lead from the base.

1. The grater bowl (10) must be mounted as described in the

section „Positioning the Grater Bowl“ (without tool).

2. Chop the food to be mixed into small pieces.

3. Fill the mixer vessel (3) with the food to be mixed (min. 0.2 l

- max. 1.5 l). Never fi ll with hot food or hard ingredients such

as potatoes, ice, coffee beans, nuts, and so on. Do not

overfi ll! Do not exceed the maximum quantity stated on the

CAUTION: SAFETY SWITCH!

The device only works if the grater bowl (10) with lid is

4. Put the lid (4) in place and turn it tight.

5. Close the lid with the lock (5), paying attention to the reces-

ses. Turn the lock until it is tight.

6. Place the mixing bowl (3) in position as described under

„Positioning the Mixing Bowl“.

7. If you wish to fi ll in more food to be mixed you can remove

the lid and cover. Switch the device off beforehand. Remove

the lid (4) of the mixer vessel and fi ll with the desired ingredi-

Do not reach into the mixer vessel, as the underlying

blade may cause injuries.

8. Place the lid on the mixer vessel again. Do not use the mixer

when empty or without the lid. Ensure that the function

switch is in the „0“ position.

9. Insert the plug in a duly installed 230 V/50 Hz socket.

10. Switch the device on (Level 1 or 2 etc.) or use pulse operati-

11. The mixing bowl must be held fi rmly in place during mixing.

12. For constant mixing (continuous mode):

When the device is operated on levels 1 to 4 the switch

locks into place in the respective position.

To switch the device off, turn the switch back to the „0“

For pulse mode (mixing at brief intervals) shift the switch

to „0“ position. The appliance is off now. Please press the

PULSE (20) button. Keep the button pressed down in this

position according to the desired interval length. When

the button is released, it automatically returns to the „off“

14. Clean the used parts as described in „Cleaning“.

• The cover of the mixer drive (7) must be mounted as descri-

• Mount the grater bowl as described under „Positioning the

• Place the locating pin over the drive shaft (Illustration 5).

The metal point faces upwards.

• Never use more than one utensil at a time.

Dough kneading and beating

1. Take the plastic blade (16) for preparing the dough and

attach it to the locating pin. Then press the plastic blade down

as far as it will go (Illustration 6).

2. Now fi ll in your ingredients. Please note the markings on the

processor bowl and do not fi ll it above them (min 0.2 l - max.

3. Place the lid in position on the processor bowl. Turn it tight

until it is clearly heard to lock in place (Illustration 7).

4. Close the opening in the lid with the stopper (17).

5. Insert the plug into a 230 V / 50 Hz socket installed accor-

ding to existing regulations and with earthing protection.

Switch on the appliance and set a speed between 1 and 3

(See table) with switch (1).

When the device is operated on levels 1 to 4 the switch

locks into place in the respective position.

To switch the device off, turn the switch back to the „0“

For pulse mode (Operating at short intervals) shift the switch

to „0“ position. The appliance is off now. Please press the

PULSE (20) button. Keep the button pressed down in this

position according to the desired interval length. When

the button is released, it automatically returns to the „off“

With this device it is possible within a very short time:

• up to 600 g of heavy dough (bread or pastry),

• beat up to 800 g of crepe or waffl e batter,

• beat up to 800 g of light dough (e.g. for cookies).

Do not exceed the short operation times stated in the table

when kneading the dough!

6. After kneading/stirring turn the switch (1) back to position

„0“ as soon as a small amount or ball of dough has formed.

Then remove the mains plug.

7. Turn the lid to the left and remove it from the processor

8. Pull the blade off from the locating pin.

9. Release and remove the grater bowl and the locating pin.

The fi nished dough can be released from the sides and with

a spatula (18) and taken out of the bowl.

10. Clean the used parts as described in „Cleaning“.

05-KM 3099 42 05.10.2006, 11:05:35 UhrENGLISH ENGLISH ENGLISH

Chopping with the Metal Blade

The metal blade (15) is very sharp! Danger of injury!

1. The safety cover (7) must be mounted on the drive shaft for

the mixing drive (6).

2. Mount the processor bowl as described.

3. Place the metal blade (15) directly over the locating pin.

Press the blade down as far as it will go (Illustration 6).

4. Cut the food up into smaller pieces beforehand. Now fi ll in

your ingredients. Please note the markings on the processor

bowl and do not fi ll it above them.

5. Place the lid in position on the processor bowl. Turn it to the

right until it is heard to lock in place.

6. Close the fi ller shaft (13) with the stopper (17).

7. Switch on the appliance and set a speed between 1 and 4

with switch (1). You will achieve better results if you use the

8. After chopping, turn the switch (1) back to „0“ and pull out

9. Turn the lid to the left and remove it from the processor

10. Pull the blade off the locating pin.

11. Release and remove the grater bowl and the locating pin.

The contents can now be taken out of the bowl.

12. Clean the used parts as described in „Cleaning“.

1. The safety cover (7) must be mounted on the drive shaft for

the mixing drive (6).

2. Mount the processor bowl as described.

3. Place the locating pin over the drive shaft (9).

4. Push to the desired tool (11/12) into the tool holder (14)

(Illustration 8). Attach the tool holder to the locating pin

The grater and rasp surfaces as well as the edges of the

inserts are very sharp! Danger of injury! Handle these

attachments with caution!

5. Place the lid in position on the processor bowl. Turn it to the

right until it is heard to lock in place (Illustration 10).

6. Insert the plug into a 230 V / 50 Hz socket installed accor-

ding to existing regulations and with earthing protection.

7. Switch the device on (Level 1 or 2 etc.) or use pulse operati-

on (PULSE) (See table).

8. Cut the food up into smaller pieces beforehand. Now fi ll the

fi ller shaft (13) with your ingredients. Use the fi ller (17) to

press the food into the fi lling slot. Exert a suffi cient degree

of pressure on the fi ller. The appliance must be switched on

only with the fi ller (17) mounted into place. Please note the

maximum fi lling level on the processor bowl.

9. After cutting/grating, turn the switch (1) back to „0“ and pull

10. Turn the lid to the left and remove it from the processor

11. Please take off the tool holder from the locating pin.

12. Remove the locating pin from the drive shaft.

13. The processor bowl can now be removed. The contents can

now be taken out of the bowl.

14. Clean the used parts as described in „Cleaning“.

Always choose a utensil and a speed according to the following

Heavy dough (e.g. yeast

Cutting into small pieces,

Grating carrots, radish,

500 g Grater utensil 2 to 3 2 min

Grating potatoes, hard

500 g Grater utensil 1 to 2 2 min

Liquids, shakes up to 1,5 l Mixer vessel

• Remove the plug from the socket before cleaning!

• Clean the bowl and the mixing vessel carefully immediately

after each procedure. To do so, remove the bowl in order to

be able to clean off any residues on the drive shaft.

• Never use sharp objects for cleaning!

• Never use abrasive detergents!

• Use a moist towel to clean the outside of the basis appli-

• In the case of intensely colored foodstuffs (e.g. carrots), the

plastic parts can be stained: clean them with oil.

• Any removable parts which have come into contact with

food (Tool and vessels) can be cleaned in soapy water.

The tools should be stored in the grater bowl in order to

prevent injuries. Place the metal blade on the guide pin fi rst of

all, followed by the plastic blade and then the tool holder.

05-KM 3099 43 05.10.2006, 11:05:37 UhrENGLISH ENGLISH

• Device is not working.

Check the mains connection.

Check the position of the rotary switch.

Other possible causes:

The device is fi tted with a safety switch.

This prevents the motor from starting up unintentionally.

Check that the mixing bowl, safety cover, grater bowl and lid

are correctly positioned.

: 550 W Protection class: ΙΙ

Short operation time:2 Min.

This device has been tested according to all relevant current

CE guidelines, such as electromagnetic compatibility and low

voltage directives, and has been constructed in accordance with

the latest safety regulations.

Subject to technical changes without prior notice!

The device supplied by our Company is covered by a 24 month

guarantee starting on the date of purchase (receipt).

During the life of the guarantee any fault of the device or its

accessories ascribable to material or manufacturing defects will

be eliminated free of charge by repairing or, at our discretion, by

replacing it. The guarantee services do not entail an extension

of the life of the guarantee nor do they give rise to any right to a

Proof of the guarantee is provided by the proof of purchase.

Without proof of purchase no free replacement or repair will be

If you wish to make a claim under the guarantee please return

the entire machine in the original packaging to your dealer

together with the receipt.

Defects to consumables or parts subject to wearing as well as

cleaning, maintenance or the replacement of said parts are not

covered by the guarantee and hence are to be paid!

The guarantee lapses in case of unauthorized tampering.

After the expiry of the guarantee

After the expiry of the guarantee repairs can be carried by the

competent dealer or repair service against the payment of the

Meaning of the “Dustbin” Symbol

Protect our environment: do not dispose of electrical equipment

in the domestic waste.

Please return any electrical equipment that you will no longer

use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the

environment and human health.

This will contribute to the recycling and other forms of reutilisati-

on of electrical and electronic equipment.

Information concerning where the equipment can be disposed of

can be obtained from your local authority.

05-KM 3099 44 05.10.2006, 11:05:40 UhrENGLISH

JĘZYK POLSKI JĘZYK POLSKI
