USER MANUAL SMO20DGW GORENJE

electrical and electronic equipment -

electrical and electronic equipment -

This function allow you to program a cooking

program to start at a later time.

For example: Suppose the present time is 9:00,

and you want the oven to start a 5 minutes gill

cooking program at 10:30.

1. Turn the dial to PRESET .

2. Press ―＋‖ or ―－‖to set the hours, press the

START/STOP/CANCEL to confirm.

the START/STOP/CANCEL to confirm

4. Turn the dial to GRILL.

5. Press the ―＋‖ or ―－‖directly to set the

6. Press START/STOP/CANCEL to start.

1. When it is time to 10:30, the desired

cooking program start automatically.

2. In the process of presetting, turn the dial to

PRESET can check the presetting time.

Press START/STOP/CANCEL once or turn

the dial to the right can cancel the PRESET

3. AUTO DEFROST can not be set in the

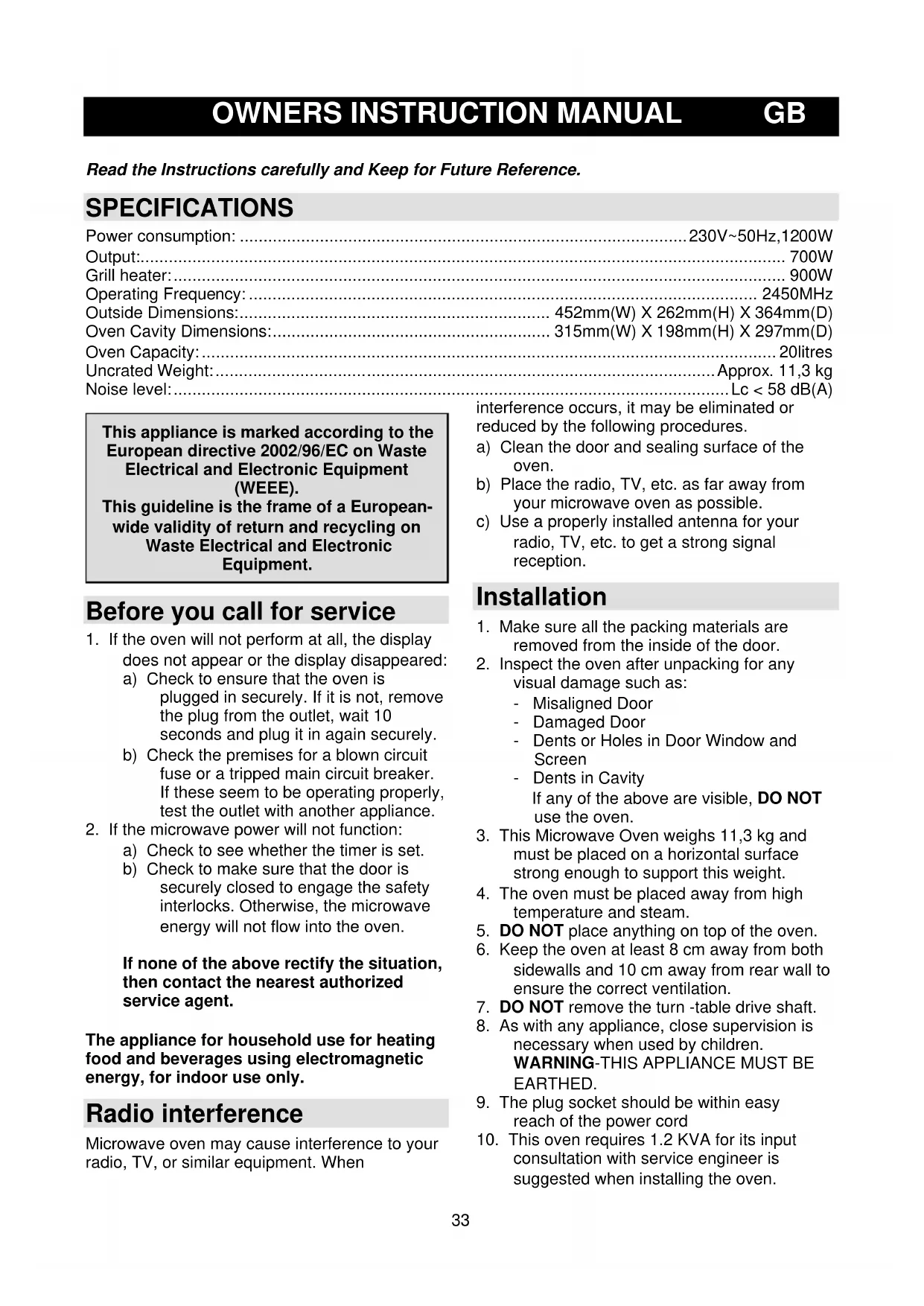

OWNERS INSTRUCTION MANUAL GB Read the Instructions carefully and Keep for Future Reference.

Uncrated Weight: Approx. 11,3 kg

Noise level: Lc < 58 dB(A)

Before you call for service

1. If the oven will not perform at all, the display

does not appear or the display disappeared:

a) Check to ensure that the oven is

plugged in securely. If it is not, remove

the plug from the outlet, wait 10

seconds and plug it in again securely.

b) Check the premises for a blown circuit

fuse or a tripped main circuit breaker.

If these seem to be operating properly,

test the outlet with another appliance.

2. If the microwave power will not function:

a) Check to see whether the timer is set.

b) Check to make sure that the door is

securely closed to engage the safety

interlocks. Otherwise, the microwave

energy will not flow into the oven.

If none of the above rectify the situation,

then contact the nearest authorized

The appliance for household use for heating

food and beverages using electromagnetic

energy, for indoor use only.

Microwave oven may cause interference to your

radio, TV, or similar equipment. When

interference occurs, it may be eliminated or

reduced by the following procedures.

a) Clean the door and sealing surface of the

b) Place the radio, TV, etc. as far away from

your microwave oven as possible.

c) Use a properly installed antenna for your

radio, TV, etc. to get a strong signal

1. Make sure all the packing materials are

removed from the inside of the door.

2. Inspect the oven after unpacking for any

visual damage such as:

- Dents or Holes in Door Window and

If any of the above are visible, DO NOT

3. This Microwave Oven weighs 11,3 kg and

must be placed on a horizontal surface

strong enough to support this weight.

4. The oven must be placed away from high

temperature and steam.

5. DO NOT place anything on top of the oven.

6. Keep the oven at least 8 cm away from both

sidewalls and 10 cm away from rear wall to

ensure the correct ventilation.

7. DO NOT remove the turn -table drive shaft.

8. As with any appliance, close supervision is

necessary when used by children.

WARNING-THIS APPLIANCE MUST BE EARTHED.

9. The plug socket should be within easy

reach of the power cord

10. This oven requires 1.2 KVA for its input

consultation with service engineer is

suggested when installing the oven.

This appliance is marked according to the

European directive 2002/96/EC on Waste

Electrical and Electronic Equipment

This guideline is the frame of a European-

wide validity of return and recycling on

Waste Electrical and Electronic

CAUTION: This oven is protected internally

by a 250V,10 Amp Fuse.

IMPORTANT The wires in this mains lead are coloured in

accordance with the following code:

Green-and-yellow: Earth

As the colours of the wires in the mains leads

of the appliance may not correspond with the

coloured markings indentifying the terminals

in your plug, proceed as follows:

- The wire which is coloured green-and-

yellow must be connected to the terminal in

the plug which is marked with the letter E or

by the earth symbol coloured green of

- The wire which is coloured blue must be

connected to the terminal which is marked

with the letter N or coloured black.

- The wire which is coloured brown must be

connected to the terminal which is marked

with the letter L or coloured red.

Important safety instructions

 WARNING: When the appliance is

operated in the combination mode, children

should only use the oven under adult

supervision due to the temperatures

generated; (Only for the model with grill

 WARNING: If the door or door seals are

damaged, the oven must not be operated

until it has been repaired by a competent

 WARNING: It is hazardous for anyone

other than a competent person to carry out

any service or repair operation that involves

the removal of a cover which gives

protection against exposure to microwave

 WARNING: liquids and other foods must

not be heated in sealed containers since

they are liable to explode.

 WARNING: This appliance is not intended

for use by persons (including children) with

reduced physical, sensory or mental

capabilities, or lack of experience and

knowledge, unless they have been given

supervision or instruction concerning use of

the appliance by a person responsible for

 Children should be supervised to ensure

that they do not play with the appliance.

 The oven must have sufficient air flow.

Keep 8 cm space at back; 10 cm at both

sides and 10 cms from top of the oven.

Don't remove oven's feet, do not block air

 Only use utensils that are suitable for use in

 When heating food in plastic or paper

containers, keep an eye on the oven due to

the possibility of ignition;

 If smoke is observed, switch off or unplug

the appliance and keep the door closed in

order to stifle any flames;

 Microwave heating of beverages can result

in delayed eruptive boiling, therefore care

must be taken when handling the container;

 The contents of feeding bottles and baby

food jars shall be stirred or shaken and the

temperature checked before consumption,

in order to avoid burns;

 Eggs in their shell and whole hard-boiled

eggs should not be heated in microwave

ovens since they may explode, even after

microwave heating has ended;

 When cleaning surfaces of door, door seal,

cavity of the oven, use only mild,

nonabrasive soaps, or detergents applied

with a sponge or soft cloth.

 The oven should be cleaned regularly and

any food deposits removed;

 Failure to maintain the oven in a clean

condition could lead to deterioration of the

surface that could adversely affect the life of

the appliance and possibly result in a

hazardous situation;

 If the supply cord is damaged, it must be

replaced by the manufacturer, its service

agent or similarly qualified persons in order

 Never connect this appliance to an external

timer switch or remote control system in

order to avoid a hazardous situation.

Safety instructions for general

Listed below are, as with all appliances,

certain rules to follow and safeguards to

assure top performance from this oven:

1. Always have the glass tray, roller arms,

coupling and roller track in place when

2. Do not use the oven for any reason other

than food preparation, such as for drying

clothes, paper, or any other nonfood items,

or for sterilizing purposes.

3. Do not operate the oven when empty. This

could damage the oven.35

4. Do not use the oven cavity for any type of

storage, such a papers, cookbooks, etc.

5. Do not cook any food surrounded by a

membrane,such as egg yolks, potatoes,

chicken livers, etc without first being pierced

several times with a fork.

6. Do not insert any object into the openings

7. Do not at any time remove parts from the

oven such as the feet, coupling, screws,

8. Do not cook food directly on the glass tray.

Place food in/on proper cooking utensil

before placing in the oven.

IMPORTANT-COOKWARE NOT TO USE IN YOUR MICROWAVE OVEN

- Do not use metal pans or dishes with

- Do not use anything with metal trim.

- Do not use melamine dishes as they

contain a material which will absorb

microwave energy. This may cause the

dishes to crack or char and will slow

down the cooking speed.

- Do not use Centura Tableware. The

glaze is not suitable for microwave use.

Corelle Livingware closed handle cups

- Do not cook in a container with a

restricted opening, such as a pop bottle

or salaed oil bottle, as they may explode

if heated in a microwave oven.

- Do not use conventional meat or candy

- There are the thermometers available

specifically for microwave cooking.

9. Microwave utensils should be used only in

accordance with manufacturer's

10. Do not attempt to deep-fry foods in this

11. Please remember that a microwave oven

only heats the liquid in a container rather

than the container itself.Therefore, even

though the lid of a container is not hot to the

touch when removed from the oven, please

remember that the food/liquid inside will be

releasing the same amount of steam and/or

spitting when the lid is removed as in

conventional cooking.

12 Always test the temperature of cooked food

yourself especially if you are heating or

cooking food/liquid for babies. It is

advisable never to consume food/liquid

straight from the oven but allow it to stand

for a few minutes and stir food/liquid to

distribute heat evenly.

13. Food containing a mixture of fat and water,

e.g.stock,should stand for 30-60 seconds in

the oven after it has been turned off. This is

to allow the mixture to settle and to prevent

bubbling when a spoon is placed in the

food/liquid or a stock cube is added.

14. When preparing/cooking food/liquid and

remember that there are certain foods, e.g.

Christmas puddings, jam and mincemeat,

which heat up very quickly. When heating

or cooking foods with a high fat or sugar

content do not use plastic containers.

15. Cooking utensil may become hot because

of heat transferred from the heated food.

This is especially true if plastic wrap has

been covering the top and handles of the

utensil. Potholders may be needed to

16. To reduce the risk of fire in the oven cavity:

a) Do not overcook food. Carefully attend

microwave oven if paper, plastic, or

other combustible materials are placed

inside the oven to facilitate cooking.

b) Remove wire twist-ties from bags

before placing bag in oven.

c) If materials inside the oven should

ignite, keep oven door closed, turn the

oven off at the wall switch, or shut off

power at the fuse or circuit breaker

Computer control panel

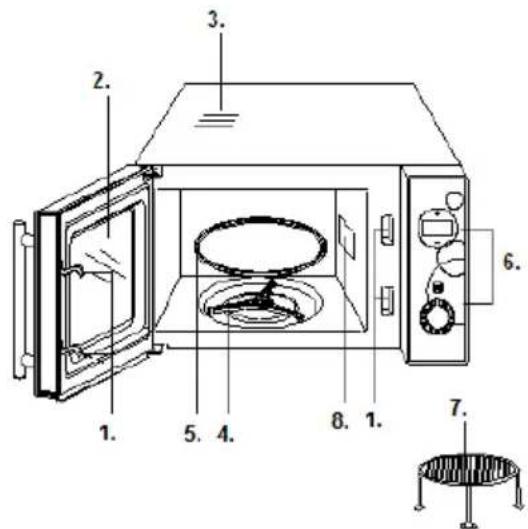

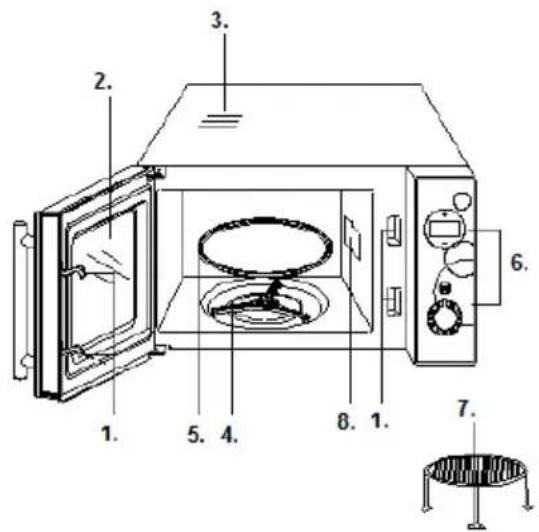

8. Wave guide (please do not remove the

mica plate covering the wave guide)

 MENU ACTION SCREEN Cooking time, power, action indicators, and clock time are displayed.

Turn the knob to set the time and weight and amount.

 AUTO DEFROST Turn the knob to set defrost program based on the weight entered.

 POWER LEVEL ( , , , )

Turn the knob to choose microwave cooking power level.

 GRILL Turn the knob to set a grill – cooking program up to 95 minutes.

Turn the knob to set cooking with combinet microwave and grill power.

 AUTO COOK Turn the knob to set cooking popular food instantly.

 CLOCK Turn the knob to set oven clock.

 PRESET Turn the knob to set a cooking program which starts at an appoint time

 START / STOP / CANCEL Press once to start a cooking program. Press once to temporarily stop

cooking, then hold 3 seconds to cancel the program. It is also used for

setting child lock. Simply press it a number of times to set cooking time

and cook immediately at full power level37

Operation Instruction

1. Setting digital clock

The oven is equipped with a digital clock, you

can choose to set the clock time in 24/12-hour

cycle by pressing the clock button in waiting

For example: Suppose you want to set the oven

1. In standbay mode the oven, turn the dial to

, you can press + to select 24 – hour clock

2. Press button once to confirm the hour

3. Press + or – to set hour digit 8.

4. Press button once to confirm the hour

5. Press + or – to set minute digit 30.

6. Press button once to confirm the hour

Note: You can check the time during cooking by

pressing the button.

2. Microwave cooking

For microwave cooking, turn the dial to different

POWER LEVEL code to select a cooking power

level, and then use + or – to set a disired cooking

time. The maximum cooking time is 95 minutes.

Select power level by turing the dial to different

P-40 1-S For example, suppose you want to cook for 10

minute at 60% of microwave power.

1. Open the door and place the food into the

2. Turn the dial to POWER LEVEL ( , . , )

until the screen ahows power level P-60.

3. Press + or – to set 10:00.

1. If you want to temporarily stop a cooking

session, press the once and then you

can start the cooking again by press ; or

press and hold for 3seconds during the

temporarily mode to cancel the cooking

2. After cooking program has finished, the

buzzer will sound beeps once every 2

minutes with End showing on screen, press

any button or open oven door to clear that

before setting another function. (Both note 1

and 2 are also available for other cooking

3. You can check the power level by turning

the dial to the right POWER LEVEL code.

This feature allows you to start the oven quickly.

The longest cooking time is 10 minutes.

In standby mode, press the button in quick

succession to set the cooking time, the oven

starts working at full power level immediately.

You can extend the cooking time during cooking

process by pressing .

The longest cooking time is 95 minutes. The grill

cooking is particularly useful for thin slices of

meat, steaks, chops, kebabs, sausages of piece

of chicken. It is also suitable for hot sandwiches

and au gratin dishes.

For example, suppose you want to grill for 12

1. Open the door and place the food into the

2. Turn the dial to GRILL .

3. Press + or – to set the time 12:00.

The longest cooking time is 95 minutes.

30% time for microwave cooking, 70% for grill

cooking. Use for fish or au gratin.

Suppose you want to set combination 1 cooking

1. Open the door and place the food into the

2. Turn the dial to .

3. Press + or – to set the time 25:00.

The longest cooking time is 95 minutes.

55% time for microwave cooking, 45% for grill

cooking. Use for puddings omelettes, baked

potatoes and poultry.

Suppose you want to set combination 2 cooking

1. Open the door and place the food into the

2. Turn the dial to .

3. Press + or – to set the time 12:00.

The oven allows defrosting food based on the

weight users input. The defrosting power levels

and time are automatically set once weight is

programmed. The weight of food to be defrosted

varies between 100g~1800g.

FOR EXAMPLE: Suppose you want to defrost

1. Turn the dial to auto defrost .

2. Press + or – to indicate the desired weight.

During defrosting program, the system will pause

to remind user to turn food over, and then press

to resume the defrosting.

For the following foods or cooking operation, you

do not need to input cooking power and time. Try

to focus on telling the oven what you want to

cook and the food weighs or amounts. The oven

starts to work after you pressing the .

For example：To cook 150g of pizza.

1. In standby mode, turn the dial to AUTO COOK.

2. Press ―＋‖ or ―－‖ to choose A－2.

3. Press to confirm.

For Beverage and Potatoes, the

screen will show the number of

serving instead of food weight

when pressing ―＋‖ or ―－‖.

For cooking Meat, the oven

pauses during cooking to remind

you turn the food over for uniform

The result of auto cooking

depends on factors such as

voltage fluctuation, the shape and

size of food, your personal

preference as to the doneness of

certain foods and even how well

you happen to place food in the

oven. If you find the result at any

rate not quite satisfactory, please

adjust the cooking time a little bit

Use to prevent unsupervised operation of the

oven by little children. The CHILD LOCK

indicator will show up on display screen, and the

oven can not be operated while the CHILD LOCK is set.

To set the CHILD LOCK: In standby mode of the

oven, press and hold the button for 3

seconds, a beep sounds and lock indicator lights.

To cancel the CHILD LOCK: Press and hold the

button for 3 seconds until lock indicator on

This function allow you to program a cooking

program to start at a later time.

For example: Suppose the present time is 9:00,

and you want the oven to start a 5 minutes gill

cooking program at 10:30.

1. Turn the dial to PRESET .

2. Press ―＋‖ or ―－‖to set the hours, press the

START/STOP/CANCEL to confirm.

the START/STOP/CANCEL to confirm

4. Turn the dial to GRILL.

5. Press the ―＋‖ or ―－‖directly to set the

6. Press START/STOP/CANCEL to start.

1. When it is time to 10:30, the desired

cooking program start automatically.

2. In the process of presetting, turn the dial to

PRESET can check the presetting time.

Press START/STOP/CANCEL once or turn

the dial to the right can cancel the PRESET

3. AUTO DEFROST can not be set in the

Care of your microwave oven

1. Turn the oven off and remove the power

plug from the wall socket before cleaning.

2. Keep the inside of the oven clean. When

food splatters of spilled liquids adhere to

oven walls,wipe with a damp cloth. The use

of harsh detergent or abrasives is not

3. The outside oven surface should be

cleaned with a damp colth. To prevent

damage to the operating parts inside the

oven, water should not be allowed to seep

into the ventilation openings.

4. Do not allow the Control Panel to become

wet. Clean with a soft, damp cloth, Do not

use detergents, abrasives or spray-on

cleaners on the control Panel.

5. If steam accumulates inside or around the

outside of the oven door, wipe with a soft

cloth.This may occur when the microwave

oven is operated under high humidity

conditions and in no way indicates

malfunction of the unit.

6. It is occasionally necessary to remove the

glass tray for cleaning. Wash the tray in

warm sudsy water or in a dishwasher.

7. The roller ring and oven cavity floor should

be cleaned regularly to avoid excessive

noise. Simply wipe the bottom surface of

the oven with mild detergent, water or

window cleaner and dry. The roller ring may

be washed in mild sudsy water or sish

washer. Cooking vapours collect during

repeated use but in no way affect the

bottom surface or roller ring wheels.

When removing the roller ring from cavity

floor for cleaning, be sure to replace it in the

8. Remove odors from your oven by

combining a cup of water with the juice and

skin of one lemon in a deep microwaveable

bowl. Microwave for 5 minutes, wipe

thoroughly and dry with a soft cloth.

9. When it becomes necessary to replace the

oven light, please consult a dealer to have it

Do not throw away the appliance with the normal

household waste at the end of its life, but hand it

in at an official collection point for recycling. By

doing this, you help to preserve the environment.

If you need information or if you have a problem,

please contact the Gorenje Customer Care

Centre in your country (you find its phone

number in the worldwide guarantee leaflet). If

there is no Customer Care Centre in your

country, go to your local Gorenje dealer or

contact the Service department of Gorenje

domestic appliances.

For personal use only!

We reserve the right to any

WISHES YOU A LOT OF PLEASURE WHILE USING YOUR APPLIANCE Additional recommendations for cooking with

microwave, grill and useful advices can be

electrical and electronic equipment -

Service Department of Gorenje Domestic

electronic equipment - WEEE).

Para as bebidas ou as

Domestic Appliances.

(waste electrical and electronic equipment

Domestic Appliances.

Department of Gorenje Domestic Appliances.

electronic equipment - WEEE).

Domestic Appliаnces.

electronic equipment - WEEE).

Ljudnivå: . (Lc IEC) < 58 dB Denna produkt är märkt utifrån »European

directive 2002/96/EC on Waste Electrical

and Electronic Equipment (WEEE)«.

Dessa direktiv utgör ram för en gemensam

ADVARSEL- DETTE APPARATET MÅ

AUTOMAATTIKYPSENNYS .

Olulised ohutusjuhised
