Product type	Microwave
Brand	Gorenje
Model	MO28A5BH
Capacity	28 liters
Dimensions (W x D x H)	520 x 420 x 310 mm
Net weight	14.5 kg
Power supply	230 V ~ 50 Hz
Microwave power	900 W
Main functions	Microwave, grill, combined, defrost, keep warm
Quick start (Start +30s)	Yes
Timer	Up to 99 minutes 99 seconds
Power levels	10 levels
Control type	Touch electronic or buttons
Display	LED screen
Child safety	Yes (lock)
Cavity material	Stainless steel
Door opening	Side handle
Turntable	Yes (diameter 315 mm)
Interior light	Yes
Energy class	A
Maintenance and cleaning	Clean with a damp cloth and mild detergent
Spare parts and repairability	Available via Gorenje after-sales service

Frequently Asked Questions - MO28A5BH GORENJE

How to start the microwave?

Place the food in the oven, close the door, press the Start/+30s key to start at full power for 30 seconds, or set the power and time using the buttons then press Start.

How to use the grill function?

Press the Grill key to select grill mode. Set the cooking time (up to 99:99) then press Start. Use a suitable metal rack.

How to defrost food?

Press the Defrost key, then enter the weight of the food (in grams). The oven automatically calculates the defrosting time. Press Start to start.

How to clean the inside of the microwave?

Use a soft damp cloth with a little mild detergent. Avoid abrasive products. For odors, place a bowl of water with lemon and heat for 5 minutes at full power.

Can I use metal containers?

No, unless the grill mode is activated and the container is specifically designed for microwave. Preferably use glass, ceramic or suitable plastic.

What to do if the microwave does not heat?

Check that the door is properly closed, that the time and power are set, and that the electrical socket works. If the problem persists, contact after-sales service.

How to activate child safety?

Press and hold the Stop/Reset key for 3 seconds until a lock appears on the screen. To deactivate, repeat the operation.

Which containers are suitable for microwave?

Glass, non-metallic ceramic, suitable plastic (labeled 'microwave') and aluminum foil in small amounts. Avoid metal and melamine.

How to set the time on the screen?

Press Clock, use the numeric keys to enter the time (24-hour format), then press Clock to confirm.

Where to find spare parts?

Contact Gorenje after-sales service or visit their official website. Use the exact model reference MO28A5BH to order.

USER MANUAL MO28A5BH GORENJE

MO28A5BH

Instruction manual / Microwave oven

EN 3

We sincerely thank you for your purchase. We believe you will soon find ample evidence that you can really rely on our products. To make the use of the appliance easier, we attach these comprehensive instruction manual.

The instructions should aid you in getting familiar with your new appliance. Please, read them carefully before using the appliance for the first time.

In any case, please make sure the appliance was supplied to you undamaged. Should you identify and transport damage, contact your sales representative or the regional warehouse from where the product was delivered. You will find the telephone number on the receipt or delivery report.

We wish you a lot of pleasure with your new household appliance.

The appliance for household use for heating food and beverages using electromagnetic energy, for indoor use only.

INSTRUCTIONS FOR USE

These instructions are intended for the user.

They describe the cooker and how to use it. They also apply to different types of appliances, therefore you may find some descriptions of functions that may not apply to your appliance.

Never touch the surfaces of heating or cooking appliances. They will become hot during operation. Keep children at a safe distance. There is a risk of burning!

Microwave energy & High voltage! Do not remove the cover.

WARNING! The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. Children should be supervised to ensure that they do not play with the appliance.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and maintenance shall not be made by children unless they are older than 8 and supervised.

Keep the appliance and its cord out of reach of children less than 8 years.

- WARNING: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated; (Only for the model with grill function)

• WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person;
• WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy;
• WARNING: Liquids and other foods must not be heated in sealed containers since they are liable to explode.
• Children should be supervised to ensure that they do not play with the appliance.
• Don't remove the oven's feet, do not block air vents of the oven.
• Only use utensils that are suitable for use in microwave ovens.
• When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition;
• If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames;
• Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container;
• The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns;
• Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended;
• When cleaning surfaces of door, door seal, cavity of the oven, use only mild, nonabrasive soaps, or detergents applied with a sponge or soft cloth.
• The oven should be cleaned regularly and any food deposits removed.
• Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.
• Do not let the cord hang over the edge of the table or worktop.
• Never connect this appliance to an external timer switch or remote control system in order to avoid a hazardous situation.
• Never replace the light bulb inside the oven. It must always be replaced by Gorenje service.
• Do not clean the appliance with steam cleaners, high-pressure cleaners, sharp objects, abrasive cleaning agents, abrasive sponges, or stain removers.

SAFETY INSTRUCTIONS FOR GENERAL USE

Listed below are, as with all appliances, certain rules to follow and safeguards to assure top performance from this oven:

1. Always have the glass tray, roller arms, coupling, and roller track in place when operating the oven.
2. Do not use the oven for any reason other than food preparation, such as for drying clothes, paper, or any other nonfood items, or for sterilizing purposes.
3. Do not operate the oven when empty. This could damage the oven.
4. Do not use the oven cavity for any type of storage, such as papers, cookbooks, etc.
5. Do not cook any food surrounded by a membrane, such as egg yolks, potatoes, chicken livers, etc., without first being pierced several times with a fork.
6. Do not insert any object into the openings on the outer case.
7. Do not at any time remove parts from the oven such as the feet, coupling, screws, etc.
8. Do not cook food directly on the glass tray. Place food in/on proper cooking utensil before placing in the oven.

IMPORTANT

• COOKWARE NOT TO USE IN YOUR MICROWAVE OVEN
• Do not use metal pans or dishes with metal handles.
• Do not use anything with metal trim.
• Do not use paper covered wire twist-ties on plastic bags.
• Do not use melamine dishes as they contain a material which will absorb microwave energy. This may cause the dishes to crack or char and will slow down the cooking speed.
• Do not use Centura Tableware. The glaze is not suitable for microwave use. Corelle Livingware closed handle cups should not be used.
• Do not cook in a container with a restricted opening, such as a pop bottle or sealed oil bottle, as they may explode if heated in a microwave oven.
• Do not use conventional meat or candy thermometers.
• There are thermometers available specifically for microwave cooking. These may be used.
• Microwave utensils should be used only in accordance with manufacturer's instructions.
• Do not attempt to deep-fry foods in this oven.
• Please remember that a microwave oven only heats the liquid in a container rather than the container itself.

Therefore, even though the lid of a container is not hot to the touch when removed from the oven, please remember that the food/liquid inside will be releasing the same amount of steam and/or spitting when the lid is removed as in conventional cooking.

1. Always test the temperature of cooked food yourself especially if you are heating or cooking food/liquid for babies. It is advisable never to consume food/liquid straight from the oven but allow it to stand for a few minutes and stir food/liquid to distribute heat evenly.
2. Food containing a mixture of fat and water, e.g. stock, should stand for 30-60 seconds in the oven after it has been turned off. This is to allow the mixture to settle and to prevent bubbling when a spoon is placed in the food/liquid or a stock cube is added.
3. When preparing/cooking food/liquid and remember that there are certain foods, e.g. Christmas puddings, jam and mincemeat, which heat up very quickly. When heating or cooking foods with a high fat or sugar content do not use plastic containers.
4. Cooking utensil may become hot because of heat transferred from the heated food. This is especially true if plastic wrap has been covering the top and handles of the utensil. Potholders may be needed to handle the utensil.
5. To reduce the risk of fire in the oven cavity:

a) Do not overcook food. Carefully attend microwave oven if paper, plastic, or other combustible materials are placed inside the oven to facilitate cooking. b) Remove wire twist-ties from bags before placing bag in oven. c) If materials inside the oven should ignite, keep oven door closed, turn the oven off at the wall switch, or shut off power at the fuse or circuit breaker panel.

DISPLAY UNIT

Displays the selected functions and time.

KEYS

ROTARY KNOB

Time

Weight

1. Door Safety Lock System
2. Oven Window
3. Roller Ring
4. Glass Tray
5. Control Panel
6. Wave guide (please do not remove the mica plate covering the wave guide)

Grill rack (Only be used for grill or for combination function and be placed on glass tray

1. COOKING AND REHEATING WITH MICROWAVES

There are five power levels: 100P, 80P, 50P, 30P, and 10P. Press the "Microwave" button repeatedly to select the desired microwave power. Turn the knob to select the cooking time; the time range is 0:10 to 60:00. After selecting the cooking time, press the "START/+30sec" button to start. A buzzing sound will notify you when the operation is complete.

HIGH 100% power output (		Quick cooking)
M.High 80 % power output (Normal cooking)
Med	50% power output	(Slow cooking)
M.Low	30% power output	(Defrost food)
LOW	10% power output	(Keep warm)

There are 5 power levels available, and the maximum operating time is 60 minutes.

NOTE: Never use the grill rack during microwave cooking.

1. GRILL

Grilling is especially suitable for thin slices of meat, escalopes, steaks, meat chops, skewers, sausages, or pieces of chicken. Grilling is also suitable for toasting bread or sandwiches and finishing dishes au gratin. The maximum operating time that can be set for the grill is 60 minutes.

There are three grill modes: G, G-1, and G-2. They are grill, combination 1 of grill and microwave cooking, and combination 2 of grill and microwave cooking. Press the "Grill" button repeatedly to select the desired mode; the display will show "G", "G-1", or "G-2". Then turn the knob to select the cooking time; the optional time range is 0:10 to 60:00. After selecting the cooking time, press the "START/+30sec" button to start cooking.

NOTE: In grill mode, all oven parts, as well as the rack and cooking containers, may become very hot. Use caution when removing any item from the oven. Use heavy potholders or oven mitts to PREVENT BURNS.

3. CONVECTION

G	Grill, the heat element will be energized during operation time. Which is applicable forolling thin meats or pork, sausage, chicken wing as good brown color can be obtained
G-1	Combination of grill and microwave cooking. 30% microwave and 70% grill.
G-2	Combination of grill and microwave cooking. 55% microwave and 45% grill.

There are three convection modes: C, C-1, and C-2. They are convection, combination 1 of convection and microwave cooking, and combination 2 of convection and microwave cooking. Press the "Convection" button repeatedly to select the desired mode; the display will show "the set temperature", "C-1", or "C-2". Then turn the knob to select the cooking time; the optional time range is 0:10 to 60:00. After selecting the cooking time, press the "START/+30sec" button to start.

C Five temperature shifts can be set
C-1	Combination of convection and microwave cooking.30% microwave and 70% convection.
C-2	Combination of convection and microwave cooking.55% microwave and 45% convection.

NOTE: In convection mode, all oven parts, as well as the rack and cooking containers, may become very hot. Use gloves when removing any item from the oven. Use heavy potholders or oven mitts to prevent burns.

4. DEFROST

There are two defrost modes: dEF1 and dEF2. dEF1 is for defrosting by weight, and dEF2 is for defrosting by time. Press this button to select defrost by weight or by time; the display will show "dEF1" or "dEF2". Turn the knob to select the food weight or defrost time. The weight range for dEF1 is from 100g to 1500g, and the time range for dEF2 is from 0:10 to 60:00. After selecting the defrost weight or time, press the "START/+30s" button to start. A buzzing sound will notify you when the operation is complete. In dEF1 defrost mode by weight, a beeping sound will prompt you to turn the food over during defrosting.

NOTE: It is necessary to turn over the food during operation to obtain uniform effect. Usually defrosting will need longer time than that of cooking the food. Defrosted food should be consumed as soon as possible, it is not advised to put back to fridge and freeze again.

5. AUTO MENU

There are eight automatic menus, Potato, Pasta, Pizza, Popcorn, Vegetable, Beverage, Meat and Fish respectively. Press the "AUTO MENU" button continuously to select the desired menu and turn the knob to select the desired food weight, then press "START/+30s" button to start work. A buzzing sound will notify completion of the operation.

Menu Weight	amount Microwave power
A1 potato	250, 500, 750g 100%
A2 pasta	50, 100, 150g 100%
A3 pizza	200, 400g 100%
A4 popcorn	100g	100%
A5 vegetable	200, 400, 600g 100%
A6 beverage	250, 500, 750ml 100%
A7 meat	200, 400, 600g 100%
A8 fish	200, 400, 600g	100%

NOTE: The temperature of food before cooking would be 20-25°C. Higher or lower temperature of the food before cooking would require increase or decrease of cooking time. The temperature, weight and shape of food will largely influence the cooking effect. If any deviation has been found to the factor noted on above menu, you can adjust the cooking time for best result.

6. CLOCK

In standby mode, press "DEF/MENU/CLOCK" button for more than 3 seconds to enter the clock setting interface. At the same time, the display screen blinks in hours. The hour time can be set by turning the knob. After setting the hour, press the "START/+30s" button for a short time to switch to the setting minute mode. The minutes can be set by turning the knob. After setting minutes, press the "START/+30s" button again to exit the setting mode.

7. QUICK START

Tips for using the oven

Use this function to rapidly heat (100% microwave power) or cook your food. In the standby mode, press the START key and the oven will operate for 30 seconds. With each consecutive press of the START key, the operating time will be extended by 30 seconds.

NOTE: Pressing the START key again will prolong the cooking time by 30 seconds in all programs except in automatic mode, and in the auto defrost mode.

8. CHILD LOCK

This function is used to prevent uncontrolled or inadvertent use of the oven by children.

To set: In standby or preset mode, hold down the STOP key for 3 seconds, a beep sounds and lock indicator lights. In the locked mode, all buttons are disabled except STOP key. To cancel: Hold down the STOP button for 3 seconds until lock indicator on display goes off.

9. COOKING TIPS

Food arrangement

Place thicker areas towards the outside of the dish, the thinner part towards the centre, and spread it evenly. Do not overlap if possible.

Cooking time length

Start cooking with a short time setting, evaluate it after it times out, and extend it according to actual need. Overcooking may result in smoke and burns.

Cooking food evenly

Food such as chicken, hamburger, or steak should be turned once during cooking.

Depending on the type of food, if applicable, stir it from outside to centre of dish once or twice during cooking.

Allow standing time

After cooking times out, leave the food in the oven for an adequate length of time. This allows it to complete its cooking cycle and cool down in a gradual manner.

Whether the food is done

Color and hardness of food help to determine if it is done. These include:

• Steam coming out from all parts of food, not just the edge.
• Joints of poultry can be moved easily.
• Pork or poultry shows no signs of blood.
• Fish is opaque and can be sliced easily with a fork.
• Turn the oven off and remove the power plug from the wall socket before cleaning.
• Keep the inside of the oven clean. When food splatters or spilled liquids adhere to oven walls, wipe with a damp cloth. The use of harsh detergent or abrasives is not recommended.
• The outside oven surface should be cleaned with a damp cloth. To prevent damage to the operating parts inside the oven, water should not be allowed to seep into the ventilation openings.
• Do not allow the Control Panel to become wet. Clean with a soft, damp cloth. Do not use detergents, abrasives or spray-on cleaners on the control panel.
• If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This may occur when the microwave oven is operated under high humidity conditions and in no way indicates malfunction of the unit.
• It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in warm sudsy water or in a dishwasher.
• The roller ring and oven cavity floor should be cleaned regularly to avoid excessive noise. Simply wipe the bottom surface of the oven with mild detergent, water or window cleaner and dry. The roller ring may be washed in mild sudsy water or dishwasher. Cooking vapours collect during repeated use but in no way affect the bottom surface or roller ring wheels. When removing the roller ring from cavity floor for cleaning, be sure to replace it in the proper position.
• Remove odors from your oven by combining a cup of water with the juice and skin of one lemon in a deep microwaveable bowl. Microwave for 5 minutes, wipe thoroughly and dry with a soft cloth.

ENVIRONMENT

Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment.

INSTALLATION

1. Make sure all the packing materials are removed from the inside of the door.
2. Inspect the oven after unpacking for any visual damage such as:
3. Misaligned Door
4. Damaged Door
5. Dents or Holes in Door Window and Screen
6. Dents in Cavity

If any of the above are visible, DO NOT use the oven.

1. This Microwave Oven weighs 17 kg and must be placed on a horizontal surface strong enough to support this weight.
2. The oven must be placed away from high temperature and steam.
3. DO NOT place anything on top of the oven.

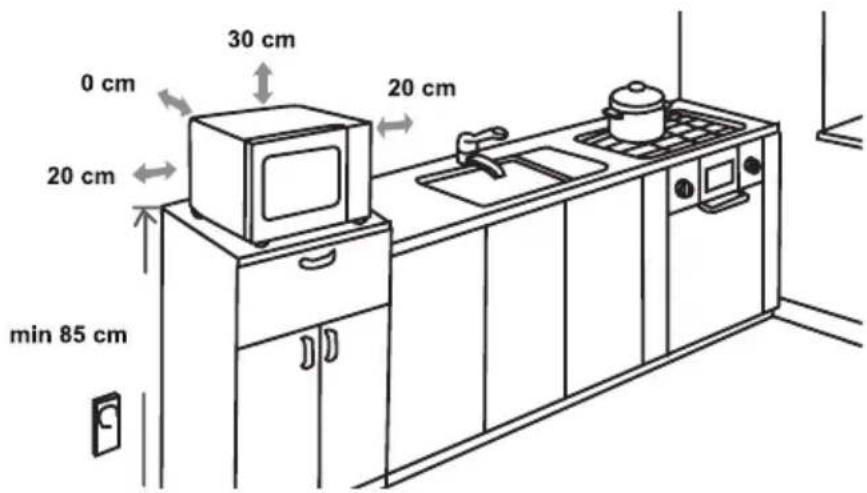

4. Keep the oven at least 20 cm away from both sidewalls and 30 cm away from top of wall to ensure the correct ventilation.
5. DO NOT remove the turn-table drive shaft.
6. As with any appliance, close supervision is necessary when used by children.
7. Make sure that the AC outlet is easily accessible so that the plug can be removed quickly in an emergency. Otherwise, it should be possible to disconnect the device using a switch from the circuit. In this case, the existing provisions of the electrical safety standards are considered.

The product has to be correctly installed on earthed socket with a single-phase AC (230 V/50 Hz). WARNING! THIS APPLIANCE MUST BE EARTHED!

1. This oven requires 1.3 KVA for its input consultation with service engineer is suggested when installing the oven.

CAUTION: This oven is protected internally by a 250V, 10 Amp Fuse.

SPECIFICATIONS

MOUNTING DIMENSIONS

RADIO INTERFERENCE

Power consumption 220-240V~50Hz, 1440W

Output power 900W

Grill 1200W

Convection....2200W

Operating Frequency 2450MHz

Outside Dimensions .... 510mm(W) x 303mm(H) x 410mm(D)

Oven Capacity 28 litres

Uncrated Weight .... Approx. 17 kg

Noise level ....Lc < 60 dB (A)

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).

This guideline is the frame of a European-wide validity of return and recycling on Waste Electrical and Electronic Equipment.

Microwave oven may cause interference to your radio, TV, or similar equipment. When interference occurs, it may be eliminated or reduced by the following procedures.

a) Clean the door and sealing surface of the oven. b) Place the radio, TV, etc. as far away from your microwave oven as possible. c) Use a properly installed antenna for your radio, TV, etc. to get a strong signal reception.

WE RESERVE THE RIGHT TO MAKE ANY CHANGES THAT DO NOT AFFECT THE FUNCTIONALITY OF THE APPLIANCE.

BEFORE YOU CALL FOR SERVICE

1. If the oven will not perform at all, the information

on the display does not appear or the display disappeared:

a) Check to ensure that the oven is plugged in securely. If it is not, remove the plug from the outlet, wait 10 seconds and plug it in again securely. b) Check the premises for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating properly, test the outlet with another appliance.

1. If the microwave power will not function:

a) Check to see whether the timer is set. b) Check to make sure that the door is securely closed to engage the safety interlocks. Otherwise, the microwave energy will not flow into the oven.

If none of the above rectify the situation, then contact the nearest authorized service agent.

The appliance is for household use for heating food and beverages using electromagnetic energy, for indoor use only.

GUARANTEE & SERVICE

If you need information or if you have a problem, please contact the Gorenje Customer Care Centre in your country (you find its phone number in the worldwide guarantee leaflet). If there is no Customer Care Centre in your country, go to your local Gorenje dealer or contact the Service department of Gorenje domestic appliances.

For personal use only!

Additional recommendations for cooking with microwave and useful advices can be found on web side:

http://www.gorenje.com

WISHES YOU A LOT OF PLEASURE WHILE USING YOUR APPLIANCE

gorenje

DEAR CUSTOMER, WE SINCERELY THANK YOU FOR YOUR PURCHASE. WE BELIEVE

DISPLAY UNIT

DEAR CUSTOMER,

DISPLAY UNIT

DISPLAY UNIT

DISPLAY UNIT

Convection....2 200 W

DISPLAY

DISPLAY

DISPLAY

DISPLAY

DISPLAY
