USER MANUAL RY36BLA RYOBI

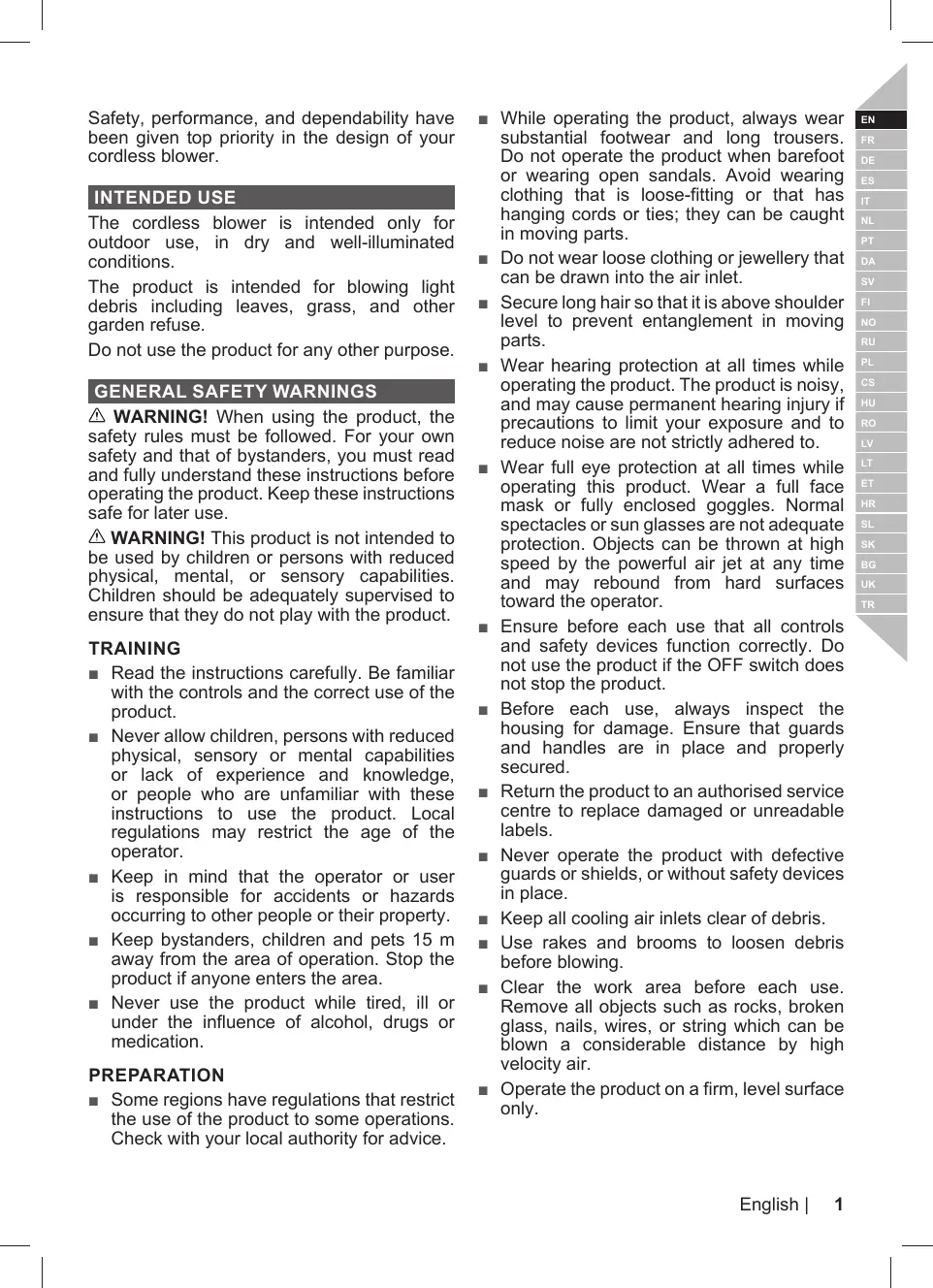

Safety, performance, and dependability have been given top priority in the design of your cordless blower. INTENDED USE The cordless blower is intended only for outdoor use, in dry and well-illuminated conditions. The product is intended for blowing light debris including leaves, grass, and other garden refuse. Do not use the product for any other purpose. À WARNING! When using the product, the safety rules must be followed. For your own safety and that of bystanders, you must read and fully understand these instructions before operating the product. Keep these instructions safe for later use. À WARNING! This product is not intended to be used by children or persons with reduced physical, mental, or sensory capabilities. Children should be adequately supervised to ensure that they do not play with the product. TRAINING = Read the instructions carefully. Be familiar with the controls and the correct use of the product. Never allow children, persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, or people who are unfamiliar with these instructions to use the product. Local regulations may restrict the age of the operator. Keep in mind that the operator or user is responsible for accidents or hazards occurring to other people or their property. = Keep bystanders, children and pets 15 m away from the area of operation. Stop the product if anyone enters the area. = Never use the product while tired, ill or under the influence of alcohol, drugs or medication. PREPARATION = Some regions have regulations that restrict the use of the product to some operations. Check with your local authority for advice. While operating the product, always wear ET substantial footwear and long trousers. Do not operate the product when barefoot or wearing open sandals. Avoid wearing clothing that is loose-fitting or that has hanging cords or ties; they can be caught in moving parts. Do not wear loose clothing or jewellery that can be drawn into the air inlet. Secure long hair so that itis above shoulder level to prevent entanglement in moving parts. Wear hearing protection at all times while operating the product. The product is noisy, and may cause permanent hearing injury if precautions to limit your exposure and to reduce noise are not strictly adhered to. Wear full eye protection at all times while operating this product. Wear a full face mask or fully enclosed goggles. Normal spectacles or sun glasses are not adequate protection. Objects can be thrown at high speed by the powerful air jet at any time and may rebound from hard surfaces toward the operator. Ensure before each use that all controls and safety devices function correctly. Do not use the product if the OFF switch does not stop the product. Before each use, always inspect the housing for damage. Ensure that guards and handles are in place and properly secured. Return the product to an authorised service centre to replace damaged or unreadable labels. Never operate the product with defective guards or shields, or without safety devices in place. Keep all cooling air inlets clear of debris. Use rakes and brooms to loosen debris before blowing. Clear the work area before each use. Remove all objects such as rocks, broken glass, nails, wires, or string which can be blown a considerable distance by high velocity air. Operate the product on a firm, level surface only. English | 1

= Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. = Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire = When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire. = Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns. OPERATION = Operate the product only at reasonable hours — not early in the morning or late at night when people might be disturbed. = Never operate the product in an explosive or dusty atmosphere. = Avoid using the product in bad weather conditions especially when there is a risk of lightning. = Do not operate the product in poor lighting. The operator requires a clear view of the work area to identify potential hazards. = The use of hearing protection reduces the ability to hear warnings (shouts or alarms). The operator must pay extra attention to what is going on in the working area. = Do not get distracted and always concentrate on the task. = Operating similar tools nearby increases both the risk of hearing injury and the potential for other persons to enter the working area. = Keep firm footing and balance. Do not overreach. Overreaching can result in loss of balance. = Always be sure of the footing on slopes. Walk, never run. 2 |English = Keep all parts of the body away from any moving part. Rotating impeller blades can cause severe injury. = Never run the product without the proper equipment attached. = Do not modify the product in any way or use parts and accessories which are not recommended by the manufacturer. À WARNING! !f the product is dropped, suffers heavy impact, or begins to vibrate abnormally, immediately stop the product and inspect for damage or identify the cause of the vibration. Any damage should be properly repaired or replaced by an authorised service centre. = To reduce the risk of injury associated with contacting rotating parts, always stop the product, remove the battery pack, and make sure all moving parts have come to a stop: + before cleaning or clearing a blockage + _ when leaving the product unattended e before installing or removing attachments before checking, maintaining, or working on the product to inspect the product for damage after striking a foreign object +_ifthe product starts to vibrate abnormally (inspect immediately) = immediately turn off the product and remove the battery pack in the event of accident or breakdown. Do not operate the product again until it has been fully checked by an authorised service centre.

BLOWER SPECIFIC SAFETY

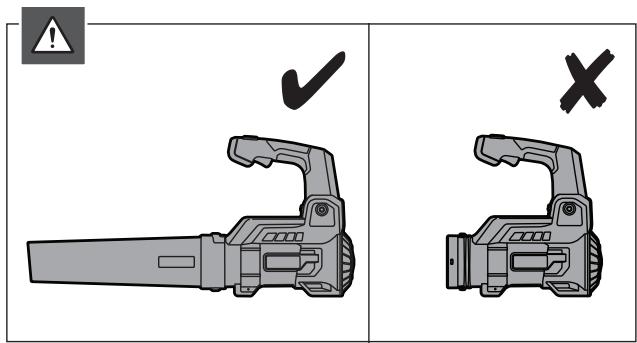

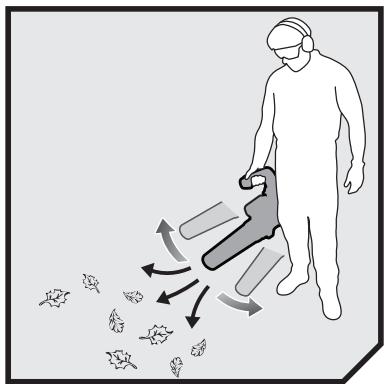

WARNINGS = Wear a face filter mask in dusty conditions to reduce the risk of injury associated with the inhalation of dust. Slightiy dampen surfaces in conditions. = Do not point the blower nozzle in the direction of people or pets. Never place objects inside the blower tubes. Do not operate the product near open windows. = Use the full blower nozzle extension so that the air stream can work close to the ground and perform effectively. dusty

# Do not place the product on top of or near loose debris. Debris can be sucked into the intake vent, resulting in possible damage to the product.

ADDITIONAL BATTERY SAFETY

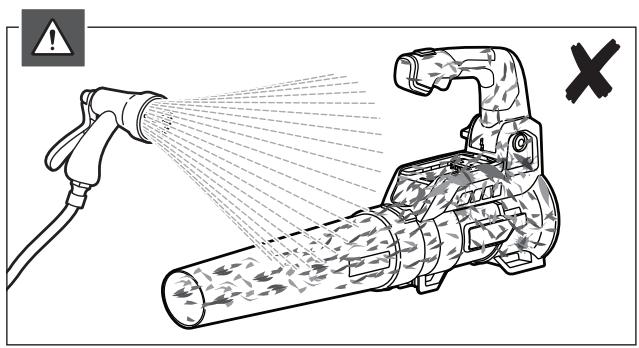

WARNINGS À WARNING! To reduce the risk of fire, personal injury, and product damage due to a short circuit, never immerse the product, battery pack or charger in fluid or allow fluid to flow inside them. Corrosive or conductive fluids, such as seawater, certain industrial chemicals, and bleach or bleach-containing products, etc., can cause a short circuit.

TRANSPORTATION AND STORAGE

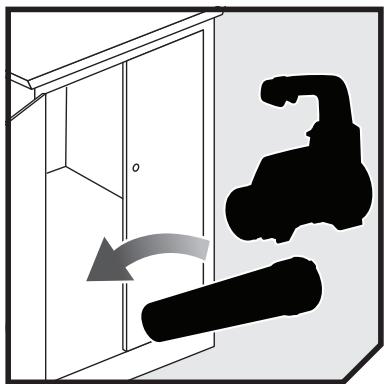

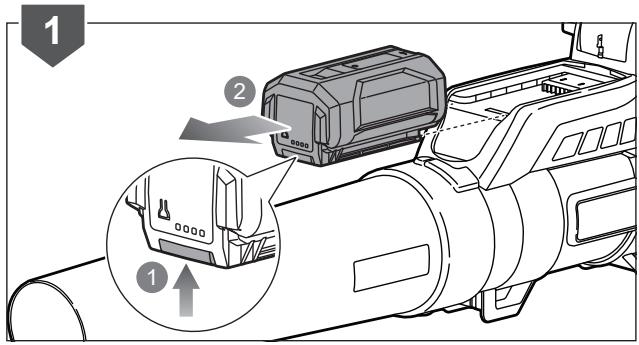

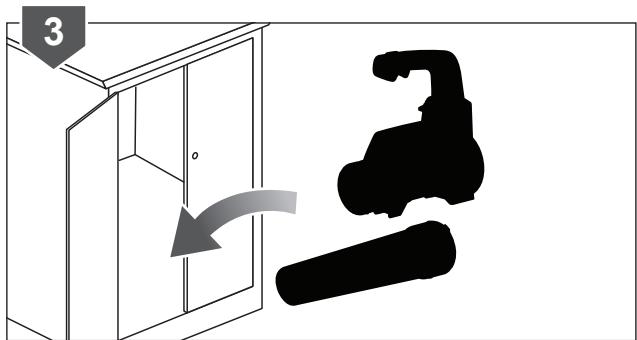

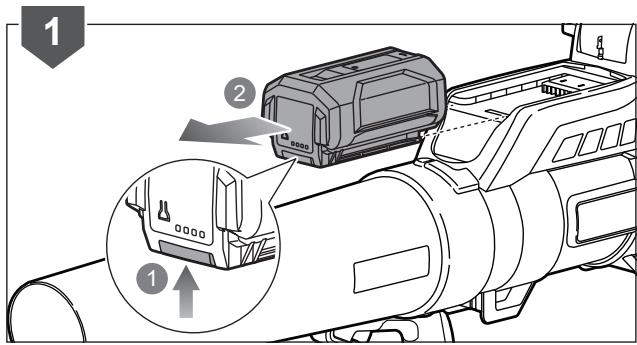

m Stop the product, remove the battery pack, and allow it to cool before storing or transporting. Clean all foreign materials from the product. Store the product in a cool, dry, and well- ventilated place that is inaccessible to children. Keep the product away from corrosive agents, such as garden chemicals and de-icing salts. Do not store the product outdoors. For transportation in vehicles, secure the product against movement or falling to prevent injury to persons or damage to the product.

TRANSPORTING LITHIUM BATTERIES

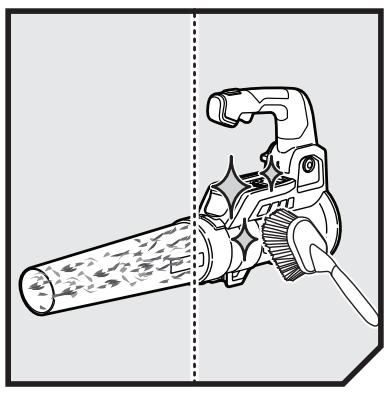

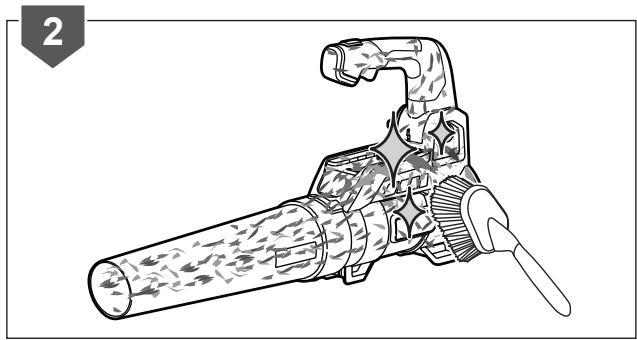

Transport the battery in accordance with local and national provisions and regulations. Follow all special requirements on packaging and labelling when transporting batteries by a third party. Ensure that no batteries can come in contact with other batteries or conductive materials while in transport by protecting exposed connectors with insulating, non- conductive caps or tape. Do not transport batteries that are cracked or leaking. Check with the forwarding company for further advice. A WARNING! Use only original manufacturer's replacement parts, accessories, and attachments. Failure to do so can cause possible injury, can contribute to poor performance, and may void the warranty. À WARNING! Servicing requires extreme EN care and knowledge and should be performed only by a qualified service technician. Have the product serviced by an authorised service centre. When servicing, use only original replacement parts. = You may make adjustment or repairs that are described in this manual. For other repairs, contact an authorised service agent. After each use, clean the product with a soft, dry cloth. Check all nuts, bolts, and screws at frequent intervals for proper tightness to ensure that the product is in safe working condition. Any part that is damaged should be properly repaired or replaced by an authorised service centre. Bring the product to an authorised service centre to replace damaged or unreadable labels. CLEARING À BLOCKAGE = To reduce the risk of injury associated with contacting moving parts, always turn off the product, remove the battery pack, and make sure that all moving parts have come to a complete stop. Remove the blower tubes to inspect for blockage. Clear the tubes if required. Reinstall the blower tubes before starting the product.

SYMBOLS ON THE PRODUCT

an) AaBwON = Read and understand all instructions before operating the product. Follow all warnings and safety instructions. English | 3

Do not expose the product to rain or damp conditions. Wear ear protection. Wear eye protection. Beware of thrown or flying objects. Keep all bystanders at least 15 m away. Rotating Fans. Keep hands and feet out of the openings while the product is running. Remove the battery pack before starting any work on the product. Conforms to all regulatory standards in the country in the EU where the product is purchased. EurAsian conformity mark Ukrainian mark of conformity Guaranteed sound power level Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. | English Note Warning Parts or accessories are sold separately

SYMBOLES APPLIQUÉS SUR LE PRODUIT]

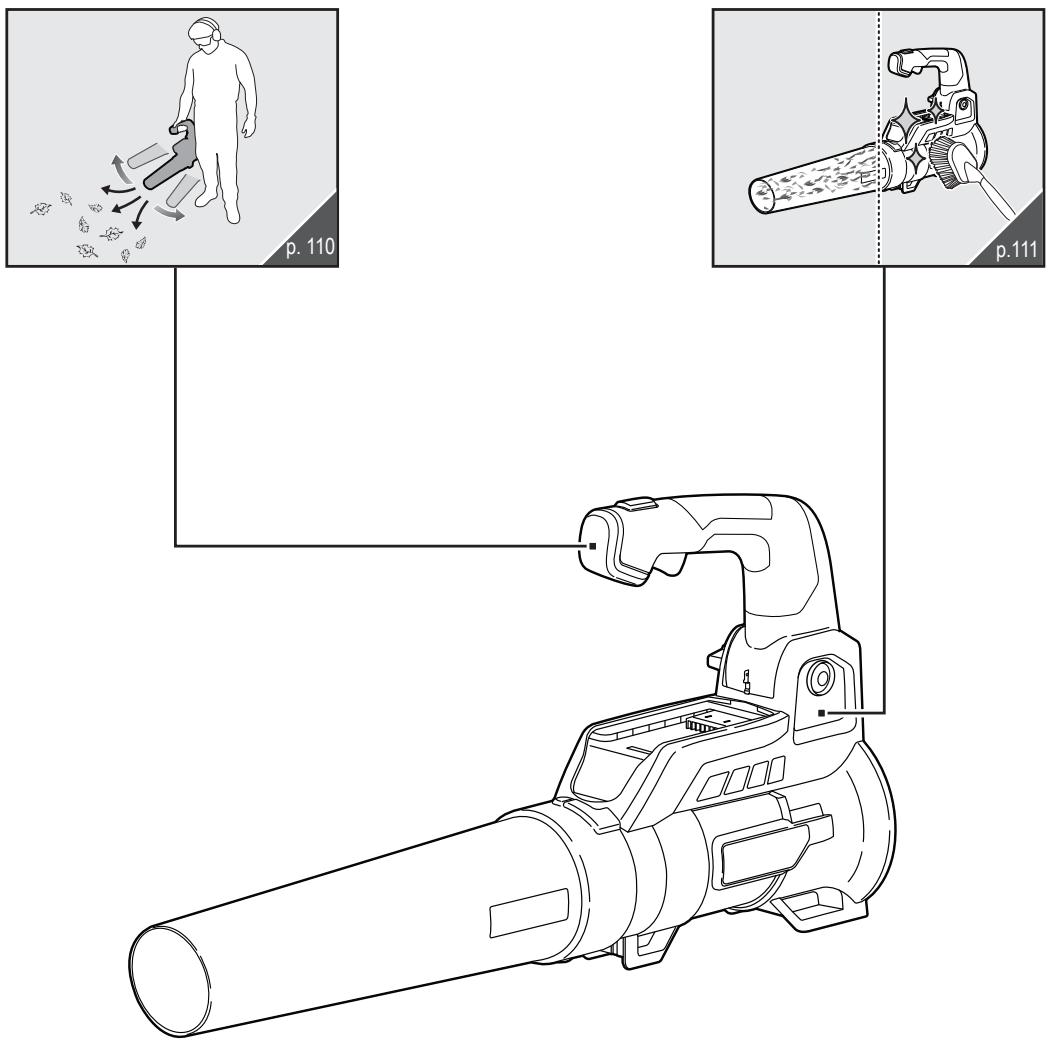

MACHEN SIE SICH MIT IHREM

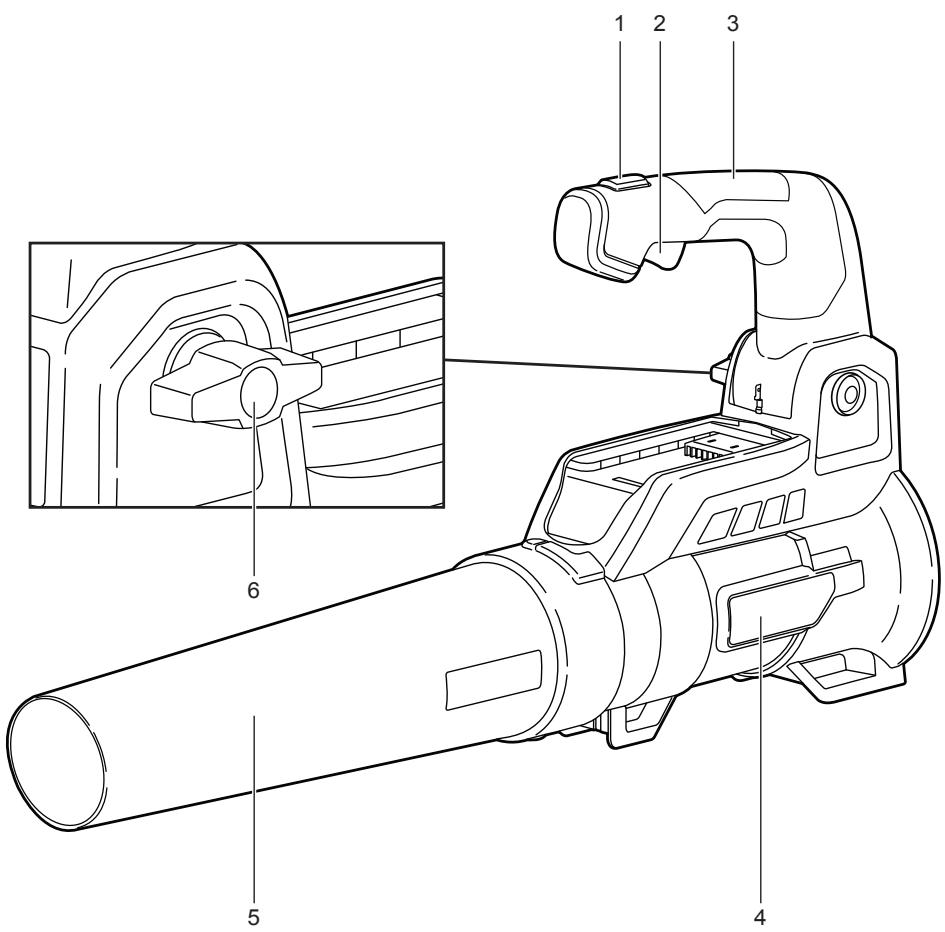

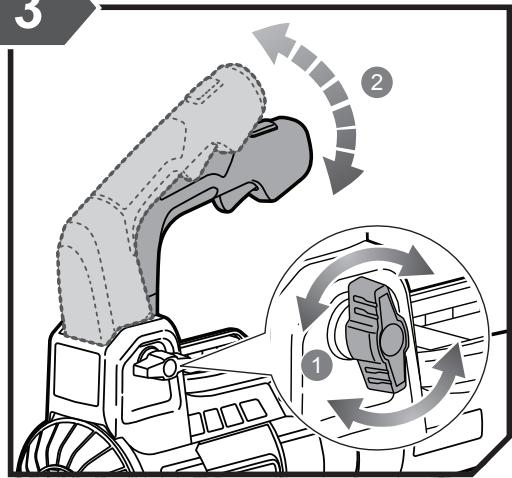

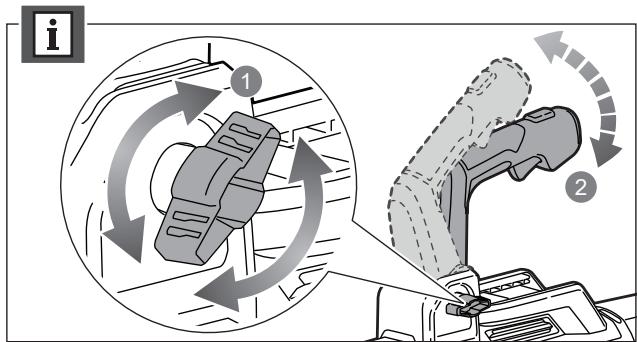

PRODUKT VERTRAUT Siehe Seite 107. Turbo-Boost-Taste Variable Geschwindigkeitskontrolle Griff Gehäuse des Blasgeräts Gebläserohr Griff-Einstellknopf

SYMBOLE AUF DEM PRODUKT

ELIMINAR UMA OBSTRUÇAO

SYMBOLER PA PRODUKTET

SYMBOLER PA PRODUKTEN

SYMBOLER PA PRODUKTET

ZAPOZNAJ SIE ZE SWOIM

BEHTMNALMOHHU OTBOPA YUCTH OT

3A BE30MNACHOCT 3A BATEPHATA

In addition Lo any stalutory rights resuling from the purchase, his produet is Covered by a warranty as slated balon.

1. The warranty perod is 24 manths or consumers and commences an the date

the product was purchased, This date has lo be documanted by an invoice or ther proof of purchase. The produet is designed and dedicaled to consumer and private use only. So there ls no warranty provided in casa of professional or commercial use. This warranty applis oniy on new products.

2. There is a possibiit to extend for à part of ina range of power tools (AC/DC)

3. The warranty covers all defects of the product durng the warranty period due to

fault in wrkmanshp or mater atthe purchase date. The warranty is mied to repair andlr replacement and does not include any other obligations including but not imite 9 incidental or consequental damages. The warranty is not valid Hthe product has been misused, used contrary to Îhe instruction manual, or has. been incorrecty connected Lo à power suppl. This warranty does not apply Lo: any damage Lo Ie produet ati ne resul of improper or lack of maintenance — any product nat has been allered or modified — any product where arlginal identification (rade mark, serial number) markings have been defacod, aared or removed _ any damage caused by non-abservance of the instruction manual — any product not displaying the CE approval mark an the rating plate — any product that has been attempted to be repaired by a non-autharised warranty service centre or without prlr authorsatlon by Tachtronic Industries any product connected to improper power supply (amps, voltage, frequency) — any damage caused by extemal influences (water, chemical, physical, shock) or forelgn substances _ normal wear and tear spare parts = inappropriate use, verioading of tne too! use of non-approved accessories or parts — Power tool accessories provided with the tool or purchased separatc including but not lmied 19 screw driver bis, dll bits, abrasive discs, sand paper and blades, lateral guide, ec. — Components (parts and accessories) subject to natural wear and tear including but not Imitod to service & maintenance His, carbon, brushes, bearings, chuck, SDS il bi attachment or reception, power cord, aux handle tanspor carry case, sanding plat, dust bag, dust exhaust tube, fit washers, Impact rench pins & springs, oc. For sarvicng, ne product must be sent or presented 19 à RYOBI authorised service station listed far each county in tre foloning lst af service station addresses. In some countries your local RYOBI dezler underlakes to send the product t the RYOBI service organisation. When sencing à product to a RYOBI Senica staion, the product should be safely packed wilhout any dangerous. contents such as pelrol, marked with senders address and accompanied by à shon descrplon of the fau. Arepai/ replacement under his warranty free of charge. does not constiute lan extension or à nëw star of he warranty period. Exchanged pars or products become our proper. n some countiss delivery charges or postage vil have. Lo be paid by ne sender. Your stautory rights aring from the purchase of he product remain unafected ‘This warranty is validin he European Community, Suizerland, Iceland, Norway, Liechtenstein, Turkey and Russia. Outside Inace areas, please contact your authorises RYOBH dealer Lo determine i another warranty applis.

5 0197 TÜV Rheinland LGA Products GmbH Tilystrafe 2 D - 90431 Nümberg, Germany has carried out EC type approval, and the certificate number is: BM 50473808 0001

Todd Chipner Sr. Director, GPT Quality and Asia Regulatory & Safety Winnenden, Sep. 3, 2020

Authorised to compile the technical fil: Alexander Krug, Managing Director Techronic Industries GmbH Max-Eyth-Strate 10, 71364 Winnenden, Germany
