USER MANUAL WX693 - WX693.9 WORX
- Works with other oscillating tool brands' accessories. The following compatible brands are trademarks owned by third parties which may be registered by their respective owners: Black & Decker®, Bosch®, Chicago Electric®, Craftsman®, Dremel®, Fein®, Genesis®, Makita®, Mastercraft®, Milwaukee®, Performmax® Porter Cable®, Ridgid®, Ryobi®, Skil®, and Tool Shop®.
Not all the accessories illustrated or described are included in standard delivery.

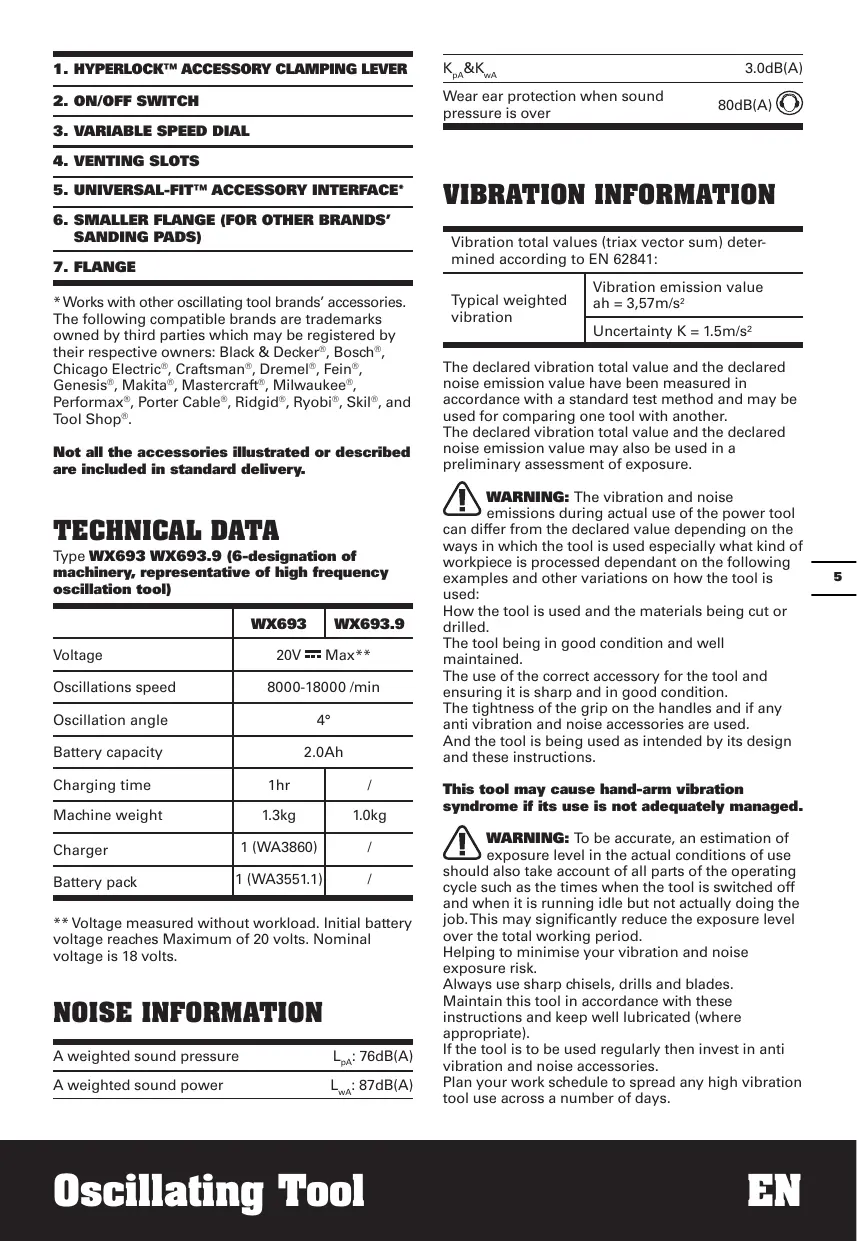

TECHNICAL DATA
Type WX693 WX693.9 (6-designation of machinery, representative of high frequency oscillation tool)
| WX693 | WX693.9 | |
| Voltage | 20V --- Max** | |
| Oscillations speed | 8000-18000 /min | |
| Oscillation angle | 4° | |
| Battery capacity | 2.0Ah | |
| Charging time | 1hr | / |
| Machine weight | 1.3kg | 1.0kg |
| Charger | 1 (WA3860) | / |
| Battery pack | 1 (WA3551.1) | / |
**Voltage measured without workload. Initial battery voltage reaches Maximum of 20 volts. Nominal voltage is 18 volts.
NOISE INFORMATION
| A weighted sound pressure | LpA: 76dB(A) |
| A weighted sound power | LwA: 87dB(A) |
K_pA & K_wA 3.0dB(A)
Wear ear protection when sound pressure is over
80dB(A)
VIBRATION INFORMATION
Vibration total values (triax vector sum) determined according to EN 62841:
| Typical weighted vibration | Vibration emission value ah = 3,57m/s2 |
| Uncertainty K = 1.5m/s2 |
The declared vibration total value and the declared noise emission value have been measured in accordance with a standard test method and may be used for comparing one tool with another.
The declared vibration total value and the declared noise emission value may also be used in a preliminary assessment of exposure.
WARNING: The vibration and noise
emissions during actual use of the power tool can differ from the declared value depending on the ways in which the tool is used especially what kind of workpiece is processed dependant on the following examples and other variations on how the tool is used:
How the tool is used and the materials being cut or drilled.
The tool being in good condition and well maintained.
The use of the correct accessory for the tool and ensuring it is sharp and in good condition.
The tightness of the grip on the handles and if any anti vibration and noise accessories are used.
And the tool is being used as intended by its design and these instructions.
This tool may cause hand-arm vibration syndrome if its use is not adequately managed.
WARNING: To be accurate, an estimation of exposure level in the actual conditions of use
should also take account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle but not actually doing the job. This may significantly reduce the exposure level over the total working period.
Helping to minimise your vibration and noise exposure risk.
Always use sharp chisels, drills and blades.
Maintain this tool in accordance with these instructions and keep well lubricated (where appropriate).
If the tool is to be used regularly then invest in anti vibration and noise accessories.
Plan your work schedule to spread any high vibration tool use across a number of days.
SAFETY INSTRUCTION FOR CUTTING
Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
SAFETY WARNINGS FOR BATTERY PACK
a) Do not dismantle, open or shred cells or battery pack.
b) Do not short-circuit a battery pack. Do not store battery packs haphazardly in a box or drawer where they may short-circuit each other or be short-circuited by conductive materials. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
c) Do not expose battery pack to heat or fire. Avoid storage in direct sunlight.
d) Do not subject battery pack to mechanical shock.
e) In the event of battery leaking, do not allow the liquid to come into contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice.
f) Seek medical advice immediately if a cell or battery pack has been swallowed.
g) Keep battery pack clean and dry.
h) Wipe the battery pack terminals with a clean dry cloth if they become dirty.
i) Battery pack needs to be charged before use. Always refer to this instruction and use the correct charging procedure.
j) Do not maintain battery pack on charge when not in use.
k) After extended periods of storage, it may be necessary to charge and discharge the battery pack several times to obtain maximum performance.
I) Battery pack gives its best performance when it is operated at normal room temperature (20^ ± 5^) .
m) When disposing of battery packs, keep battery packs of different electrochemical systems separate from each other.
n) Recharge only with the charger specified by WORX. Do not use any charger other than that specifically provided for use with the equipment. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
o) Do not use any battery pack which is not designed for use with the equipment.
p) Keep battery pack out of the reach of children.
q) Retain the original product literature for future reference.
r) Remove the battery from the equipment when not in use.
s) Dispose of properly.
SYMBOLS
| To reduce the risk of injury, user must read instruction manual | |
| Warning | |
| Wear ear protection | |
| Wear eye protection | |
| Wear dust mask | |
| Do not dispose of batteries. Return exhausted batteries to your local collection or recycling point. | |
| Do not expose to rain or water | |
| Do not burn | |
| Avoid danger of injury from the sharp edges of the accessories. | |
| Accessories can become very hot while working, presenting danger of burns! | |
| Make sure the battery is removed prior to changing accessories. | |
| Wear protective gloves | |
| High oscillation frequency. | |
| Low oscillation frequency. | |
| LED light is a battery capacity indicator and will flash when power gets low. | |
| Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. | |
xINR18/65-y: Cylindrical lithium ion battery cells with max diameter of 18mm and max height of 65mm; "x" represents a number cells serial connected, blank if 1; "y" represents a number of cells paralleled connected, blank if 1.
OPERATING INSTRUCTIONS
NOTE: Before using the tool, read the instruction book carefully.
INTENDED USE:
The power tool is intended for sawing and remodelling wooden materials, plastic, plaster, nonferrous metals and fasteners (e.g. nails and clamps) as well as for working on soft wall tiles and for dry grinding of small surfaces. It is especially suitable for working close to edges and for flush cutting.
ASSEMBLY AND OPERATION
| Action | Figure |
| Mounting accessories | See Fig. A-C |
| Mounting the sanding sheet | See Fig. D |
| Operating the on/off switch | See Fig. E |
| Using the variable speed dial | See Fig. F |
| Remove or install battery pack | See Fig. G |
| LED Light | See Fig. H |
The Variable Speed Dial can be used to set the optimum oscillating frequency according to the accessories used and the respective application.
| Oscillation frequency | Application |
| High oscillation frequency: | Sanding, Sawing, Rasping and Polishing Stone and Metal. |
| Low oscillation frequency: | Scraping, Polishing Varnishes. |
| Pic | Description | Application | |
| Sawing | Universal Metal/Wood End Cut Blade | Wood, plastic, fiberglass, nails, non-ferrous metals, thin sheet metal, hardened fillers | |
| Standard Wood End Cut Blade | Wood, plastic, drywall | ||
| Precision Wood Cut Blade | Wood, soft plastics | ||
| HSS Semicircle Saw Blade | Thin wood, plastic, fiberglass, non-ferrous metals, thin sheet metal, hardened fillers, window glazing | ||
| Sanding | Sanding Pad (Perforated) | Wood, plastic, hardened fillers | |
| Sanding Finger Pad | Wood, plastic, hardened fillers | ||
| Rasping | Triangular Carbide Grit Rasp | Wood, hardened adhesives, thin set, masonry | |
| Carbide Rasp (Finger Shaped) | Wood, hardened adhesives, thin set, masonry | ||
| Removing grout | Carbide Grit Semicircle Saw Blade | Grout, porous concrete, masonry | |
| Diamond-Coated Semicircle Saw Blade | Ceramic and stone tile, backerboard | ||
| Scraping | Rigid Scaper Blade | Old paint, hardened adhesives, caulk, carpet | |
| Flexible Scaper Blade | Elastic sealants, paint, adhesive residues, carpet |
We recommend that you purchase your accessories listed in the above list from the same store that sold you the tool. Refer to the accessory packaging for further details. Store personnel can assist you and offer advice.
NOTE: When plunging and sawing use a slight pendulum motion, to allow sufficient chip removal. The saw blade lasts longer if the wear is distributed evenly.
To ensure an even distribution, loosen the saw blade, rotate it and retighten firmly.
Cut/Sand with a constant movement and light pressure.
Heavy pressure does not increase the cut/removal rate – the accessory merely wears faster.
WORKING HINTS FOR YOUR TOOL
If your power tool becomes too hot, especially when used at low speed, set the speed to maximum and run it with no load for 2-3 minutes to cool the motor. Avoid prolonged usage at very low speeds. Always keep the blade sharp.
Always ensure the workpiece is firmly held or clamped to prevent movement.
Any movement of the material may affect the quality of the cutting or sanding finish.
Start your tool before working and turn it off only after you stop working.
Do not start sanding without having the sandpaper fitted.
Do not allow the sandpaper to wear away, it will damage the sanding pad. The guarantee does not cover sanding pad wear and tear.
Use coarse grit paper to sand rough surfaces, medium grit for smooth surfaces and fine grit for finishing surfaces. If necessary, first make a test run on scrap material.
Excessive force will reduce the working efficiency and cause motor overload. Replacing the accessory regularly will maintain optimum working efficiency.
MAINTAIN TOOLS WITH CARE
Your power tool requires no additional lubrication or maintenance. There are no user serviceable parts in your power tool. Never use water or chemical cleaners to clean your power tool. Wipe clean with a dry cloth. Always store your power tool in a dry place. Keep the motor ventilation slots clean. Keep all working controls free of dust.
The ambient temperature range for tool and battery use and storage is 0^ - 45^
The recommended ambient temperature range for the charging system during charging is 0^ - 40^
ENVIRONMENTAL PROTECTION
Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your
Local Authority or retailer for recycling advice.
DECLARATION OF CONFORMITY
We,
Declare that the product,
Description WORX Sonicrafter
Type WX693 WX693.9 (6-designation of machinery, representative of high frequency oscillation tool)
Function Sanding, sawing, rasping, scraping, polishing
Complies with the following Directives,
2006/42/EC
2011/65/EU
2014/30/EU
Standards conform to
EN 62841-1
EN 62841-2-4
EN 55014-1
EN 55014-2
The person authorized to compile the technical file,
Name Russell Nicholson
Address Positec Power Tools (Europe)Ltd, PO
Box 6242 Newbury RG14 9LT UK
Suzhou 2017/03/30
Allen Ding
Deputy Chief Engineer, Testing & Certification
1. HYPERLOCK™ ZUSATZ-SPANNHEBEL
2. EIN/AUS-SCHALTER
3. VARIABLEGESCHWINDIGKEIT
4. LÜFTUNGSSCHLITZE
5. UNIVERSAL FIT ZUBEHOrsCnNITTSTELLE*
INFORMATIONS RELATIVES AU BRUIT
INFORMATIONS RELATIVES AUX VIBRATIONS
MISES EN GARDE POUR LA COUPE
PO Box 6242, Newbury, RG14 9LT, UK
Suzhou 2017/03/30
Allen Ding
TIPS VOOR HET WERKEN MET UW APPARAAT
PO Box 6242, Newbury, RG14 9LT, UK
Suzhou 2017/03/30
Allen Ding
PO Box 6242, Newbury, RG14 9LT, UK
Suzhou 2017/03/30
Allen Ding
Cim: Positec Power Tools (Europe) Ltd
PO Box 6242, Newbury, RG14 9LT, UK
Suzhou 2017/03/30
Allen Ding
Nume: Positec Power Tools (Europe) Ltd
PO Box 6242, Newbury, RG14 9LT, UK
Suzhou 2017/03/30
Allen Ding
Adjunct Inginer Şef, Testare si certificare
| 1. | PÁČKA PRO UPÍNÁNI PřÍSLUŠENSTVÍ HYPERLOCK™ |
| 2. | VYPÍNAČ |
| 3. | REGULÁTOR RYCHLOSTI |
| 4. | VěTRACÍ OTVORY |
| 5. | UNIVERZÁLNI ROZHRANÍ PřÍSLUŠENSTVÍ FIT* |
| 6. | MALÁ PřÍRUBA (PRO BRUSNÉ DESKY JINYCH ZNAČEK) |
| 7. | PřÍRUBA |
PO Box 6242, Newbury, RG14 9LT, UK
Suzhou 2017/03/30
Allen Ding
PO Box 6242, Newbury, RG14 9LT, UK
Suzhou 2017/03/30
Allen Ding
Mastercraft®, Milwaukee®, Performax®, Porter Cable®, Ridgid®, Ryobi®, Skil®, and Tool Shop®.
Adress: Positec Power Tools (Europe) Ltd
PO Box 6242, Newbury, RG14 9LT, UK
Suzhou 2017/03/30
Allen Ding
Ime: Russell Nicholson
Naslov: Positec Power Tools (Europe) Ltd
PO Box 6242, Newbury, RG14 9LT, UK
Suzhou 2017/03/30
Allen Ding
Namestnik načelnika inženir, Testiranje in certificiranje
LITHIUM ION BATTERY
Handle with care.
Do not load or transport package if Damaged.
A fire hazard could exist.
For more information, call: +86-512-65152811
