SHORAI R32 - Air-conditioner TOSHIBA - Free user manual and instructions

Brand	TOSHIBA
Model	SHORAI R32
Product type	Reversible wall-mounted split air conditioner
Refrigerant	R32
Power supply	220-240 V ~ 50 Hz
Cooling capacity	Not specified (refer to rating plate)
Heating capacity	Not specified (refer to rating plate)
Operating temperature (cooling)	Indoor: 21°C to 32°C / Outdoor: -15°C to 46°C
Operating temperature (heating)	Indoor: below 28°C / Outdoor: -15°C to 24°C
Operating temperature (dehumidification)	Indoor: 17°C to 32°C / Outdoor: -15°C to 46°C
Operating modes	Auto, Cooling, Heating, Fan only, Dehumidification
Special functions	Hi-Power, Eco, Timer (on/off), Louver swing, Auto clean, Auto restart
Fan speed	AUTO, LOW-, LOW+, MED-, MED+, HIGH
Remote control	Infrared, AAA batteries, display brightness adjustment
Air filters	Washable, clean every 2 weeks
Maintenance	Clean the indoor unit and remote control with a damp cloth; do not use harsh chemicals
Safety	Three-minute protection, stop on anomaly, mandatory disconnection via bipolar circuit breaker (contact opening > 3 mm)
Dimensions (indoor unit)	Not specified
Weight (indoor unit)	Not specified

Frequently Asked Questions - SHORAI R32 TOSHIBA

How to set the stop timer?

While operating, press the OFF button on the remote control, then use the TIME buttons to select the desired stop time (from 0.5 to 12 hours). Press OFF again to confirm. To cancel, press OFF once more.

How to clean the air filters?

Open the air intake grille before removing the filters. Vacuum them or wash them with clean water, then let them dry completely before reinstalling. This operation is recommended every two weeks.

Why does my air conditioner not turn on?

Check that the main switch is in the ON position, that the circuit breaker has not tripped, and that there is no power outage. Also ensure that the ON timer is not activated (it would block starting).

How to use the Hi-Power mode?

Press the Hi-POWER button on the remote control to activate this mode (except in DRY or FAN ONLY mode). It allows you to reach the desired temperature faster by temporarily increasing power.

How to adjust the display brightness?

Hold the FAN button for 3 seconds until the level (d0 to d3) appears. Use the adjustment buttons to choose: d3 = 100%, d2 = 50% with operation LED on, d1 = 50% with operation LED off, d0 = all off.

What to do if the remote control stops working?

Use the RESET button located on the indoor unit. Press briefly for temporary operation (AUTO mode, 24°C, auto fan). If needed, hold this button for 3 seconds to cancel the temporary mode.

Can I use a refrigerant other than R32?

No, this is prohibited. Using a different refrigerant can cause abnormally high pressure, explosion, or injury. Always call a professional for any intervention on the refrigeration circuit.

How to activate the auto-clean function?

In Cooling or Dehumidification mode, press the corresponding button once: the fan continues to run for 30 minutes after stopping to dry the moisture. To stop immediately, press the button twice more within 30 seconds.

Why does the air conditioner blow warm air in heating?

The preheat function delays the output of hot air for about 5 minutes. Additionally, if the outdoor temperature is very low, heating may be less efficient; in that case, use an auxiliary heater.

How to distinguish two remote controls for two nearby air conditioners?

Use the B setting: on the indoor unit, point the remote control at the sensor, hold CHECK until '00' appears, then hold MODE without releasing CHECK until 'B' appears. To return to A, repeat the operation (A is the default).

USER MANUAL SHORAI R32 TOSHIBA

For general public use

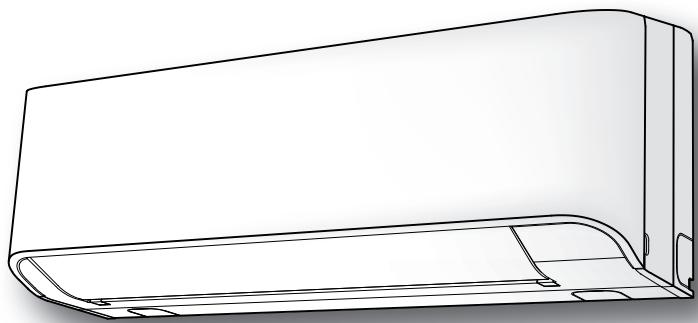

Indoor unit

RAS-07, 10, 13BKV-E

Outdoor unit

RAS-07, 10, 13BAV-E

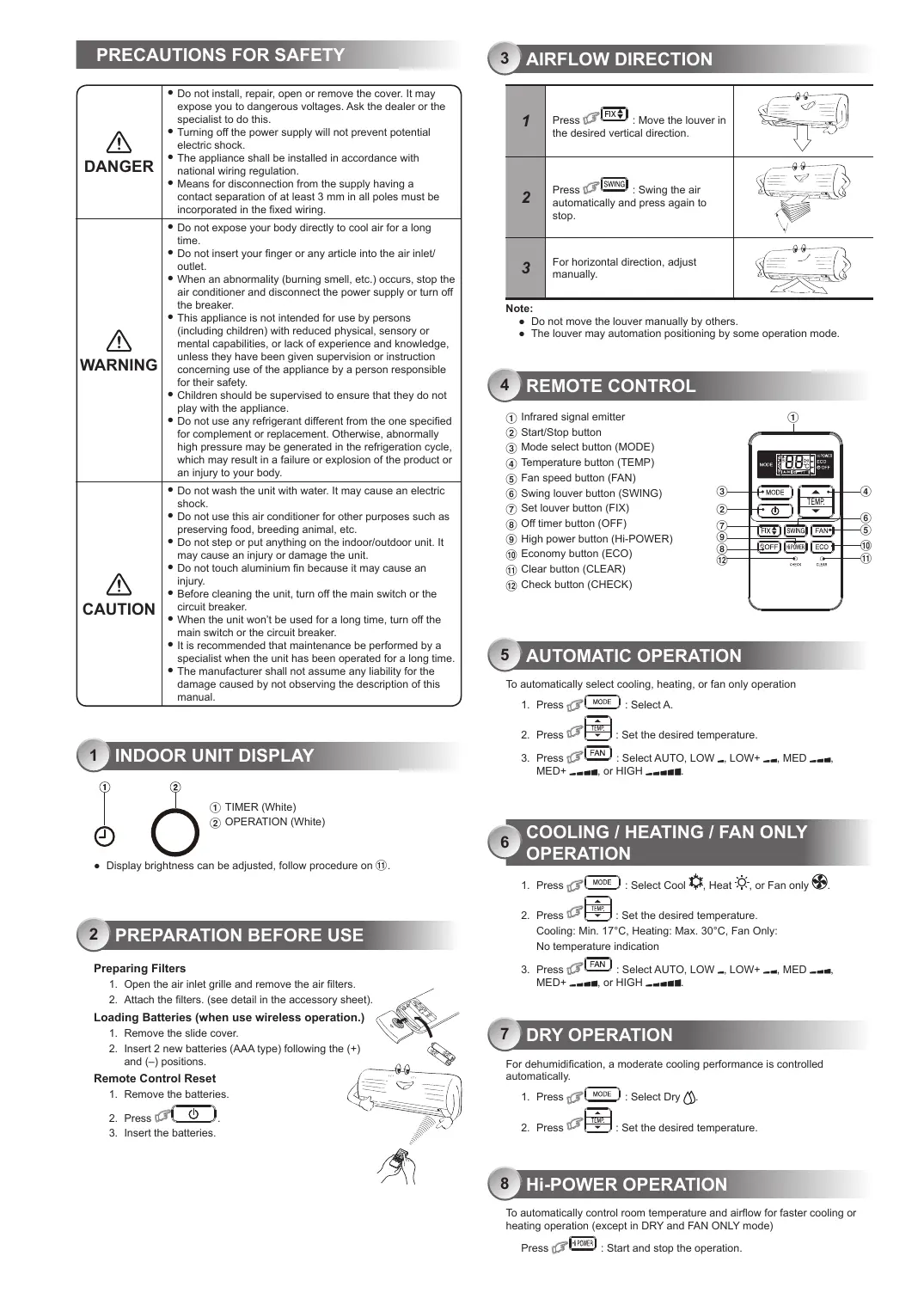

PRECAUTIONS FOR SAFETY

DANGER	• Do not install, repair, open or remove the cover. It may expose you to dangerous voltages. Ask the dealer or the specialist to do this. • Turning off the power supply will not prevent potential electric shock. • The appliance shall be installed in accordance with national wiring regulation. • Means for disconnection from the supply having a contact separation of at least 3 mm in all poles must be incorporated in the fixed wiring.
WARNING	• Do not expose your body directly to cool air for a long time. • Do not insert your finger or any article into the air inlet/outlet. • When an abnormality (burning smell, etc.) occurs, stop the air conditioner and disconnect the power supply or turn off the breaker. • This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. • Children should be supervised to ensure that they do not play with the appliance. • Do not use any refrigerant different from the one specified for complement or replacement. Otherwise, abnormally high pressure may be generated in the refrigeration cycle, which may result in a failure or explosion of the product or an injury to your body.
CAUTION	• Do not wash the unit with water. It may cause an electric shock. • Do not use this air conditioner for other purposes such as preserving food, breeding animal, etc. • Do not step or put anything on the indoor/outdoor unit. It may cause an injury or damage the unit. • Do not touch aluminium fin because it may cause an injury. • Before cleaning the unit, turn off the main switch or the circuit breaker. • When the unit won't be used for a long time, turn off the main switch or the circuit breaker. • It is recommended that maintenance be performed by a specialist when the unit has been operated for a long time. • The manufacturer shall not assume any liability for the damage caused by not observing the description of this manual.

1 INDOOR UNIT DISPLAY

① TIMER (White)
② OPERATION (White)

• Display brightness can be adjusted, follow procedure on ⑪.

2 PREPARATION BEFORE USE

Preparing Filters

1. Open the air inlet grille and remove the air filters.
2. Attach the filters. (see detail in the accessory sheet).

Loading Batteries (when use wireless operation.)

1. Remove the slide cover.
2. Insert 2 new batteries (AAA type) following the (+) and (-) positions.

Remote Control Reset

1. Remove the batteries.

1. Insert the batteries.

3

AIRFLOW DIRECTION

1	Press FIX: Move the louver in the desired vertical direction.
2	Press SWING: Swing the air automatically and press again to stop.
3	For horizontal direction, adjust manually.

Note:

• Do not move the louver manually by others.
• The louver may automation positioning by some operation mode.

4

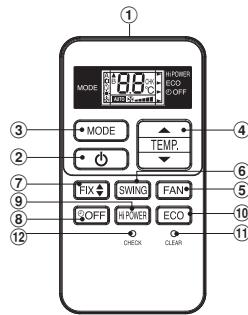

REMOTE CONTROL

① Infrared signal emitter
② Start/Stop button
③ Mode select button (MODE)
(4) Temperature button (TEMP)
(5) Fan speed button (FAN)
⑥ Swing louver button (SWING)
⑦ Set louver button (FIX)
⑧ Off timer button (OFF)
9 High power button (Hi-POWER)
Economy button (ECO)
11 Clear button (CLEAR)
12 Check button (CHECK)

5

AUTOMATIC OPERATION

To automatically select cooling, heating, or fan only operation

1. Press MODE : Select A.

: Set the desired temperature.

: Select AUTO, LOW_, LOW+, MED_
HIGH_

6

For dehumidification, a moderate cooling performance is controlled automatically.

1. Press MODE : Select Dry

: Set the desired temperature.

8

Hi-POWER OPERATION

To automatically control room temperature and airflow for faster cooling or heating operation (except in DRY and FAN ONLY mode)

Press HPOWER : Start and stop the operation.

To automatically control room to save energy (except in DRY and FAN ONLY mode)

: Start and stop the operation.

Note: Cooling operation; the set temperature will increase automatically 1 degree/hour for 2 hours (maximum 2 degrees increase). For heating operation the set temperature will decrease.

10 TIMER OPERATION

Set the timer when the air conditioner is operating.

Setting the OFF timer
1	Press ON/OFF for enter OFF timer setting.
2	Press TEMP for select desired OFF timer. (0.5 - 12 hrs)
3	Press OFF for set OFF timer.
4	Press OFF again for cancel OFF timer.

11 DISPLAY LAMP BRIGHTNESS ADJUSTMENT

To decrease the display lamp brightness or turn it off.

1. Press and hold FAN for 3 seconds until brightness level (d0, d1, d2 or d3) is shown on remote control LCD then release the button.
2. Press ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑↑

Remote control LCD	Operation display	Brightness
d3	Lamp illuminates full brightness.	100%
d2	Lamp illuminates 50% brightness.	50%
d1	Lamp illuminates 50% brightness and the operation lamp is turned off.	50%
d0	All lamps are turned off.	All turned off

• In the examples of d and d , the lamp illuminates for 5 seconds before going off.

12 TEMPORARY OPERATION

In case of the misplaced or discharged remote control

• Pressing the RESET button, the unit can start or stop without using the remote control.
  Operation mode is set on AUTOMATIC operation, preset temperature is 24^ and fan operation is automatic speed.

To automatically restart the air conditioner after the power failure (Power of the unit must be on.)

Setting

1. Press and hold the RESET button on the indoor unit for 3 seconds to set the operation. (3 beep sound and OPERATION lamp blink 5 time/sec for 5 seconds)
2. Press and hold the RESET button on the indoor unit for 3 seconds to cancel the operation. (3 beep sound but OPERATION lamp does not blink)
3. In case of ON timer or OFF timer are set, AUTO START OPERATION does not activate.

To protect bad smell caused by the humidity in the indoor unit.

1. If the button is pressed once during "Cool" or "Dry" mode, the fan will continue to run for other 30 minutes, then it will turn off automatically. This will reduce the moisture in the indoor unit.
2. To stop the unit immediately, press the more 2 times within 30 seconds.

Firstly, turn off the circuit breaker.

Indoor Unit and Remote Control

• Clean the indoor unit and the remote control with a wet cloth when needed.
• No benzine, thinner, polishing powder or chemically-treated duster.

Air filters

Clean every 2 weeks.

1. Open the air inlet grille.
2. Remove the air filters.
3. Vacuum or wash and then dry them.
4. Reinstall the air filters and close the air inlet grille.

1. Three-minute protection feature: To prevent the unit from being activated for 3 minutes when suddenly restarted or switched to ON.
2. Preheating operation: Warm up the unit for 5 minutes before the heating operation starts.
3. Warm air control: When the room temperature reaches the set temperature, the fan speed is automatically reduced and the outdoor unit will stop.
4. Automatic defrosting: Fans will stop during defrost operation.
5. Heating capacity: Heat is absorbed from outdoors and released into the room. When the outdoor temperature is too low, use another recommended heating apparatus in combination with the air conditioner.
6. Consideration for accumulated snow: Select the position for outdoor unit where it will not be subjected to snow drifts, accumulation of leaves or other seasonal debris.
7. Some minor cracking sound may occur when unit operating. This is normal because the cracking sound may be caused by expansion/ contraction of plastic. Note: Item 2 to 6 for Heating model

Air conditioner operating conditions

Temp. Operation	Outdoor Temperature	Room Temperature
Heating	-15°C ~ 24°C	Less than 28°C
Cooling	-15°C ~ 46°C	21°C ~ 32°C
Dry	-15°C ~ 46°C	17°C ~ 32°C

17 TROUBLESHOOTING (CHECK POINT)

The unit does not operate.	Cooling or Heating is abnormally low.
· The power main switch is turned off. · The circuit breaker is activated to cut off the power supply. · Stoppage of electric current · ON timer is set.	· The filters are blocked with dust. · The temperature has been set improperly. · The windows or doors are opened. · The air inlet or outlet of the outdoor unit is blocked. · The fan speed is too low. · The operation mode is FAN or DRY.

18 REMOTE CONTROL A-B SELECTION

To separate using of remote control for each indoor unit in case of 2 air conditioner are installed nearly.

Remote Control B Setup.

1. Press RESET button on the indoor unit to turn the air conditioner ON.
2. Point the remote control at the indoor unit.

3. Push and hold check button on the Remote Control by the tip of the pencil. "00" will be shown on the display. (Picture ①)

4. Press MODE during pushing CHECK. "B" will show on the display and "00" will disappear and the air conditioner will turn OFF. The Remote Control B is memorized. (Picture ②)

Note: 1. Repeat above step to reset Remote Control to be A.

1. Remote Control A has not "A" display.
2. Default setting of Remote Control from factory is A.

①

2

Information according to EMC Directive 2004/108/EC
(Name of the manufacturer)	TOSHIBA CARRIER (THAILAND) CO., LTD.
(Address, city, country)	144/9 MOO 5, BANGKADI INDUSTRIAL PARK, TIVANON ROAD, TAMBOL BANGKADI, AMPHUR MUANG, PATHUMTHANI 12000, THAILAND.
(Name of the Importer/Distributor in EU)	TOSHIBA CARRIER UK LTD.
(Address, city, country)	Porsham Close, Belliver Industrial Estate, PLYMOUTH, Devon, PL6 7DB. United Kingdom
