USER MANUAL X MASTER VALERA

Distributed by Ligo Electric SA - 6853 Ligornetto - Switzerland Valera is a registered trademark of Ligo Electric S.A. - Switzerland

IR Professional hair clippers Set

Translation from original instructions

2 = 1.3 mm 3 = 1.8 mm 4 = 2.4 mm 5 = 3.0 mm

OPERATING INSTRUCTIONS - Type 652.02 - Type 652.03 Read these instructions carefully before using the appliance. Available also on www.valera.com

•For additional protection, the installation of a residual current device (RCD) having a rated residual operating current not exceeding 30mA is advisable in the electrical circuit supplying the bathroom. Ask your installer for advice.

•Make sure the unit is perfectly dry before using it. •WARNING: Do not use this appliance near bathtubs, showers, basins or other vessels containing water. •This appliance can be used by children from 8 years of age and over, and by persons with limited physical, sensory or mental abilities or who lack the relevant experience and knowledge, if they are suitably supervised or have been educated to use the appliance safely and made aware of the associated risks. •Do not allow children to play with the appliance. •Children must not perform cleaning and maintenance procedures unless supervised. •Do not use your unit if it is not working properly. Do not try to repair this electrical unit yourself, rather contact an authorized technician. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person in order to avoid a hazard. •When the appliance is used in a bathroom, unplug it after use since the proximity of water presents a hazard even when the appliance is switched off.

•Only connect this unit to alternating current and check that the mains supply voltage corresponds to that indicated on the unit.

•Always switch off the appliance after use and disconnect the plug from the mains power socket. Do not remove the plug from the mains power socket by pulling the cable. •Do not pull the plug out of the power supply socket when your hands are wet. •Before switching on the appliance, always check its conditions and also control the transformer and power cable. •The elements used to pack the unit (plastic bags, cardboard box, etc.) must be kept out of reach of children as they are a potential danger to them. •This unit must only be used for the purposes for which it is expressly intended. Any other use is to be considered improper and therefore dangerous. The manufacturer accepts no responsibility for damage caused by improper or erroneous use. 6

Ligo Electric SA - 6853 Ligornetto - Switzerland

00060627 int giu2013

•Do not expose the appliance to temperatures below 0°C or above 40°C. Avoid exposing the appliance to direct and prolonged sunlight.

•Do not leave the appliance on charge in wet places and do not recharge the appliance when it is wet. •The appliance comes equipped with a NiMH battery. To help protect the environment, the batteries should not be included with ordinary domestic waste, but should be taken to a special collection point instead. •Have the battery removed by qualified technical personnel or by the treatment and recycling centre. •Do not expose the battery to liquid, moisture or high humidity •Keep the battery away from magnetic fields, sources of heat and naked flames. •Danger of scratches or cuts. Do not use a comb or a set of blades if they are damaged. Replace them immediately, as they may cause injury. •Take care not to scratch the skin when handling the appliance with the set of blades without combs.

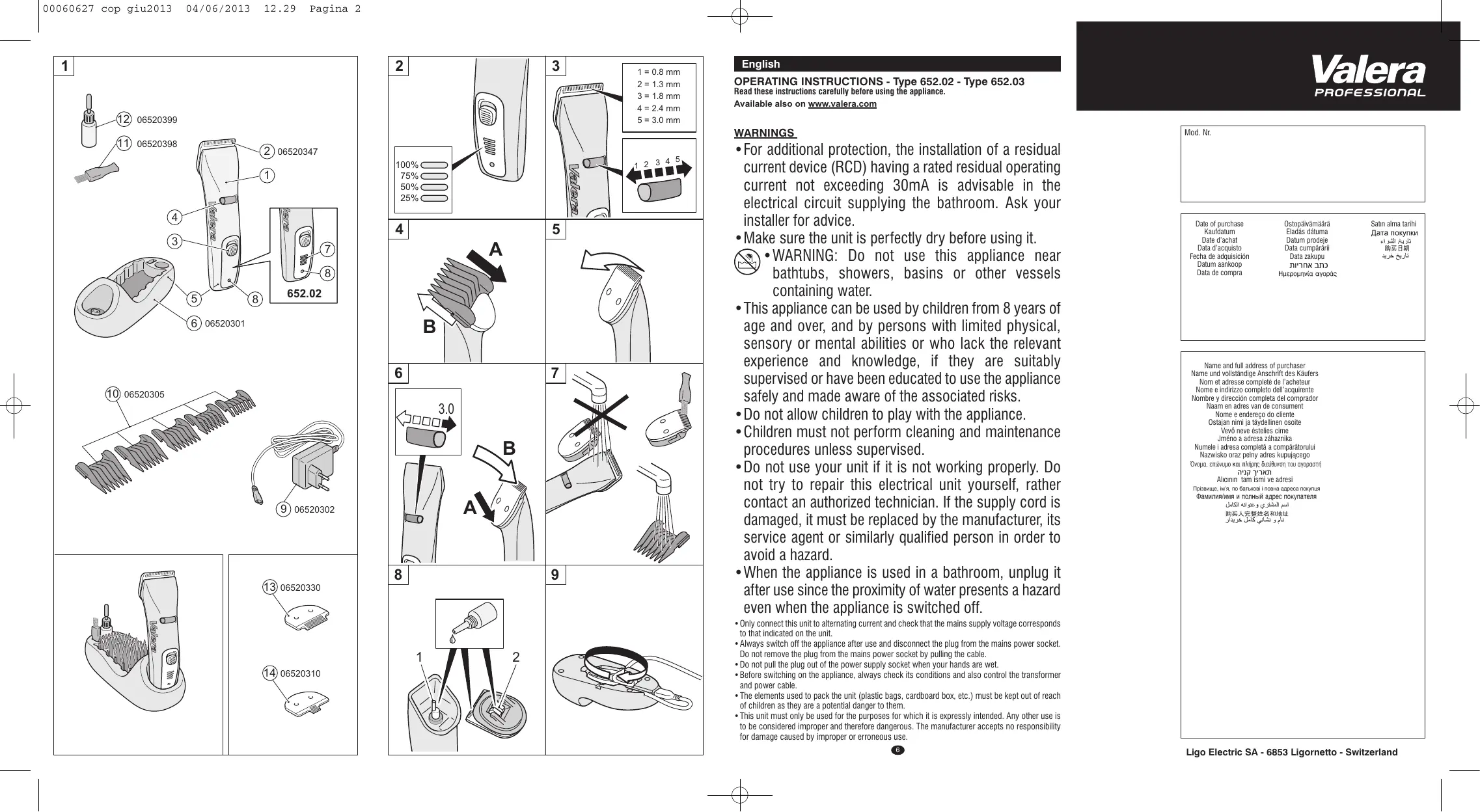

1 Clipper 2 Set of blades for hair, 46 mm 3 On/off switch 4 Cutting length selector 5 Socket for transformer 6 Base 7 Battery charge indicator (Type 652.02 only) 8 LED charge control

Guide combs Cleaning brush Lubricating oil Beard and moustache blade set (optional; not supplied with the appliance) 14 Sculpting blade set (optional; not supplied with the appliance

The appliance can operate either using mains power or in cordless mode, as it has a rechargeable battery.

MAINS POWER SUPPLY Connect the transformer the (fig.1- ref. 9) by inserting the plug into the appliance socket (fig.1 - ref.5).

Plug the transformer into the mains. Warning: if the appliance does not work with mains power when the battery charge has run down completely, switch it off, recharge the battery for about five minutes and then switch back on again, running on mains power.

BATTERY OPERATION Type 652.02

•The appliance has a LED charge indicator (fig. 2). • 4 LEDs lit = 100% charge • 3 LEDs lit = 75% charge • 2 LEDs lit = 50% charge • 1 LEDs lit = 25% charge •The LED charge indicator (fig. 1 - ref. 8) blinks when the battery is below the level of 25% charge. •Only recharge the battery when you note a clear reduction in appliance power. •When the battery is fully discharged, the appliance automatically switches off. Type 652.03 •Only recharge the battery when you note a clear reduction in appliance power. •When the battery is fully discharged, the appliance automatically switches off.

RECHARGING THE BATTERY

•Before using the appliance for the first time, charge the battery for 3 hours (Type 652.02) or 3,5 hours (Type 652.03). For subsequent charges, allow the appliance to charge for at least 2,5 hours (Type 652.02) or 3 hours (Type 652.03). •Switch off the appliance using the switch (fig.1 - ref.3). The battery can only be charged when the appliance is switched off. •Connect the transformer (fig.1 - ref.9) by inserting the plug into the appliance socket (fig.1 - ref.5). Or connect the transformer to the base (fig.1 - ref.6) by inserting the plug into the base plug (fig.1 -ref.5), then place the appliance on the base. •Plug the transformer into the mains. •During battery charging the red light comes on (fig. 1 - ref. 8). •Type 652.02: while charging the battery, the 4 green LEDs indicate the charge level reached. When 3 LEDs are steady on (after approx. 90 min. recharging), the appliance is ready to operate in cordless mode up to 70 min. 7

00060627 int giu2013

•Type 652.03: after approx. 90 min. recharging, the red light (fig. 1 - ref. 8) begins to flash. When reaching this charge level, the appliance is ready to operate in cordless mode up to 70 min.

•When fully recharged, the red light (fig. 1 - ref. 8) switches off. •When the battery is fully charged, the appliance can be used up to 110 minutes without connection to the mains. •After a certain number of operating hours, charge duration in cordless mode may decrease significantly. •The maximum charge level is reached after 4 - 5 recharging procedures.

ADJUSTING THE CUTTING LENGTH The appliance is equipped with the VARIO-CUT SYSTEM, which allows the selection of 5 different cutting lengths (fig. 3) using the proper selector (fig. 1 - ref. 4).

CUTTING WITH GUIDE COMBS Depending on the type of cut desired, the appliance can be used with or without a guide comb

(fig. 1 - ref. 10). Guide combs are used to achieve different cutting lengths ranging from 4 to 20 mm.

FITTING AND REMOVING THE GUIDE COMB

•Switch off the appliance. •To fit the guide comb, slide and push it into place (fig. 4, A). •To remove it, do the reverse operation (fig. 4, B).

•Switch off the appliance. •To remove the blades, push them out of their slot from underneath (fig. 5). •IMPORTANT: to replace the blades, set the selector (fig. 1 - ref. 4) to "3.0" (fig. 6); first insert the rear part into the slot (fig. 6, A), then push the front to close it (fig. 6, B). •IMPORTANT: before fitting the blade, make sure that the motor pin (fig. 8 - ref. 1) is adjusted so that it can slot into the space on the inner side of the blade (fig. 8 - ref. 2).

CABLE REEL The base (fig. 1 - ref. 6) has a compartment where part of the cable can be wrapped if the full length is not required (fig. 9).

CARE AND MAINTENANCE The cleaning and maintenance procedure must be carried out after every use.

•Switch OFF the appliance and disconnect it from the mains supply before performing any maintenance or changing any parts. •Never immerse the appliance in water! •After every use, remove the guide comb then use the small brush to eliminate any hair from the cutting head and its seat. •Clean the outside of the appliance with a soft cloth (slightly damp if necessary). Never use solvents or abrasive detergents! •Remove the cutting head (fig.5) and evenly oil the blades and the seat of the motor pin which is located on the inside (fig. 8). •If after prolonged use, and despite regular cleaning and lubrication, the cutting ability of the appliance appears to be diminished, the cutting head must be replaced.

DISPOSAL The appliance must be disposed of in compliance with applicable environmental standards.

This appliance conforms to European Directives 2004/108/EC, 2006/95/EC, 2009/125/EC and Regulation (EC) No. 278/2009.

00060627 int giu2013

GUARANTEE VALERA guarantees the appliance you have bought at following conditions:

1. The guarantee conditions for this appliance are as defined by our dealer in the country of sale. In Switzerland and in the countries subject to the European directive 44/99/CE the guarantee period is 24 months for domestic use and 12 months for professional or similar use. The guarantee period starts from the date of purchase as stated on the present guarantee card regularly filled out and stamped by the dealer or on the sale’s invoice. 2. The guarantee is applicable only against submission of the present guarantee card or the sale’s invoice. 3. The guarantee covers the elimination of all defects arisen during the guarantee period resulting from proven faults in material or workmanship. The elimination of the defects will be made either by repairing the appliance or exchanging it. The guarantee does not cover any damage arising from incorrect connection to the power supply, improper use, breakage, normal wear and noncompliance with the Instructions for Use. 4. All other claims of any nature, including those for eventual damages outside of the appliance, are excluded, unless our liability is legally mandatory. 5. The guarantee service is carried out free of charge; it does not affect the expiry date of the guarantee. 6. The guarantee becomes void if repairs are undertaken by unauthorized persons. For UK only: this guarantee in no way affects your rights under statutory law. In case of defect, please return the appliance well packed and together with the guarantee card regularly dated and stamped to one of our Valera Service Centres or to the dealer who will send it to the official importer for the guarantee service.

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
