USER MANUAL AMB09EU TARGUS

©2009 Manufactured or imported by Targus Europe Ltd., Hounslow, Middlesex, TW4 5DZ, UK. All rights reserved. Targus is either a registered trademark or trademark of Targus Group International, Inc. in the United States and/or other countries. Features and specifications are subject to change without notice. All trademarks and registered trademarks are the property of their respective owners.

Installing the Batteries

Thank you for your purchase of the Targus Bluetooth Comfort Laser Mouse. This mouse uses Bluetooth technology which provides a seamless connection up to 33 feet (10 m) away. This is a plug and play device so no additional software is required. The advance scroll wheel feature program can be downloaded from the Targus website.

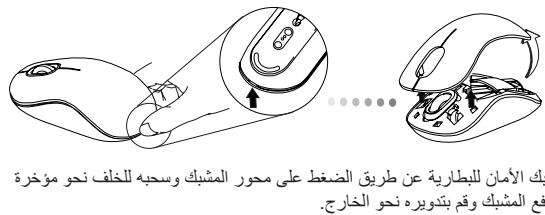

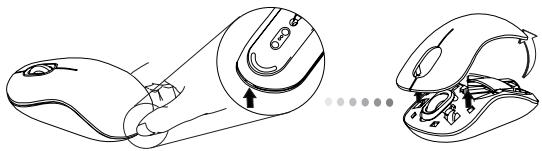

1. Remove the battery cover from the top of the mouse by using the notch on the back. Carefully lift the cover up as shown in the diagram.

Contents • Targus Bluetooth Comfort Laser Mouse • 2 x AA Batteries • User Guide

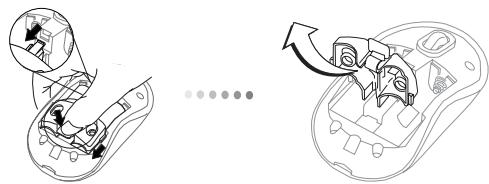

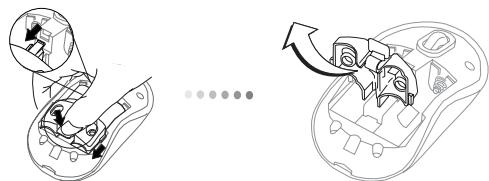

2. Remove the battery safety clip by squeezing the center of the clip and sliding it back, towards the rear of the mouse. Lift up and rotate the clip out of the way.

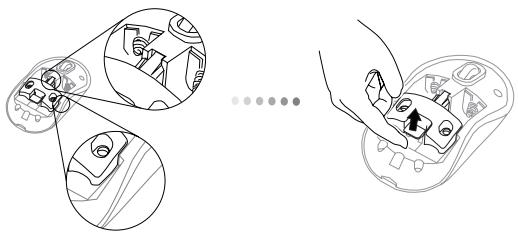

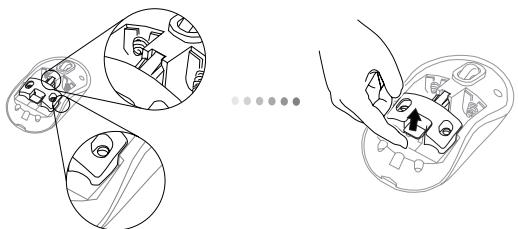

3. Slide and lift to remove the battery holder as shown.

Targus Bluetooth Comfort Laser Mouse

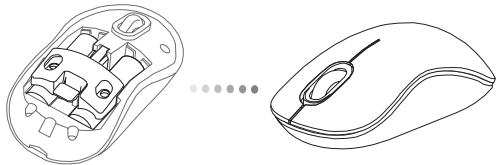

5. Replace the battery safety clip and by sliding it forward until it clicks into place and then replace the battery cover.

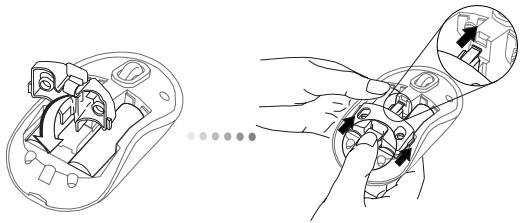

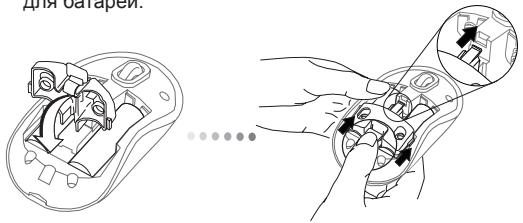

4. Insert the two AA batteries, making sure that the positive (+) and negative (-) ends of each battery match the polarity indicators inside the battery compartment.

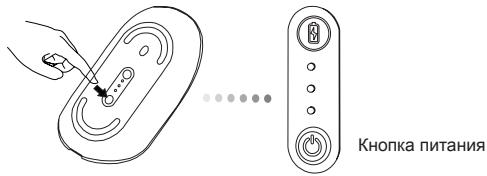

6. Turn on the mouse by pressing the power On/Off button on the bottom of the mouse. Hold for 3 seconds and then release.

Targus Bluetooth Comfort Laser Mouse

Power On: Press and hold the power button for 3 seconds and then release. The battery life indicator will briefly light up showing the current power level of the batteries. Power Off: Press and hold the power button for 3 seconds and then release. The battery life indicator will briefly light up and then fade out. Battery Check: After the mouse is turned on, quickly press and release the power button. The battery life indicator will light up showing the current power level of the batteries.

Initial Mouse Setup Enable Discovery mode: The mouse will go into pairing mode automatically after it is powered on. The 1st and 3rd LEDs will flash alternately for 60 seconds; this indicates that the pairing sequence is in operation. Once the connection is established, the 1st and 3rd LED lights will light up steadily for 3 seconds.

3rd LED Targus Bluetooth Comfort Laser Mouse

Power Saving mode: After an extended period of time, if the mouse is not used, it will automatically enter power saving mode to conserve power and increase battery life. Click on any mouse button to resume the normal operation. The mouse may take a few seconds to reconnect with your computer.

Battery Life Indicator 3 LEDs lit

NOTE: WHEN THE FIRST LIGHT IS BLINKING, PLEASE REPLACE THE BATTERIES Power Management • To extend the life of your battery, turn off the mouse while travelling or when you’re not using it.

If the connection is not established by the end of 60 seconds, the mouse will go into sleep mode. Click on any mouse button to exit from sleep mode. The pairing sequence will re-start automatically.

Initial Configuration Before you can begin using your Bluetooth mouse, you will first need to perform some initial setup steps. ®

Connecting with Bluetooth Software: WIDCOMM or Microsoft (Windows XP & Windows Vista)

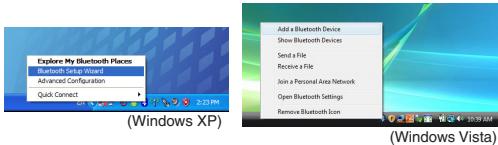

1. Go to the Bluetooth Places icon located on your desktop or in the system tray and double click, then click Add a Bluetooth Device.

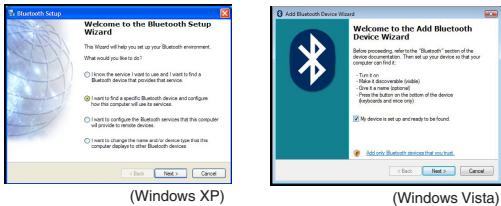

3. Power on the mouse and it will automactically go into discovery mode. Click Next to continue pairing and the computer will search for the mouse.

5. After selecting the correct device, the computer will finish establishing the connection. Please wait until the setup is completed.

4. The confirmation window will appear after the computer finishes detecting the Bluetooth devices. Select the Bluetooth Wireless Mouse and click Next to continue. (There may be one or more different Bluetooth devices detected.) If the mouse is not detected, please make sure the power is on and in discovery mode. Press Search Again to re-pair the device.

Targus Bluetooth Comfort Laser Mouse

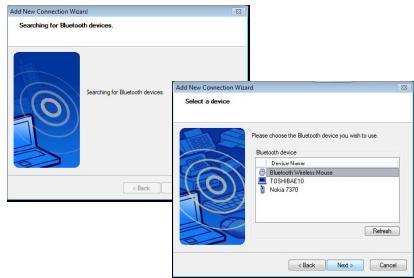

3. The computer will now search for the Bluetooth mouse and other Bluetooth devices. Please wait until the search is completed. Choose the device you wish to connect. There may be more than one Bluetooth device detected. Select Bluetooth Wireless Mouse and click Next to continue. If the mouse is not detected, please make sure the mouse is in discovery mode and click Refresh.

1. Double click on the Bluetooth Manager icon in the system tray, and then click Add New Connection.

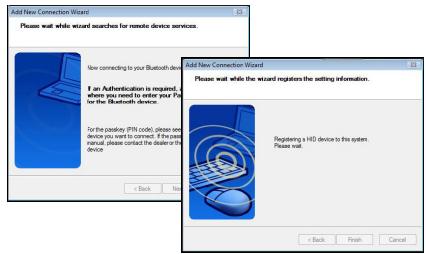

2. Power on the mouse and it will automactically go into discovery mode. Click Next to continue pairing and the computer will search for the mouse. 4. The computer will begin connecting with the device.

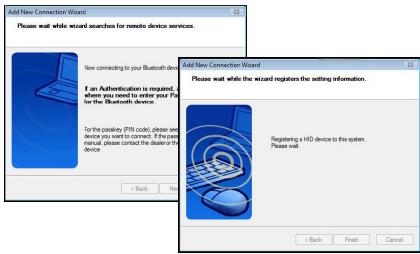

5. The connection is established and setup is complete. The device is ready to use. If the connection is not successful, please click Back and search the device again. You can continue to add other Bluetooth devices or close the window.

Targus Bluetooth Comfort Laser Mouse

Bluetooth Software: Mac 1. Go to the Bluetooth icon located on your desktop or in the system bar and click the icon to begin setup. Select “Turn Bluetooth On” to activate the Bluetooth function on your Mac.

2. Scroll down the list and select “Set up Bluetooth Device...”

3. The Bluetooth Setup Assistant will begin. Please follow the on-screen instructions.

Targus Bluetooth Comfort Laser Mouse

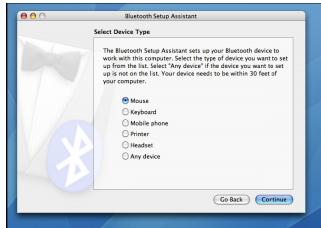

4. Select “mouse” and click continue to proceed with setup. Your mouse will need to be in “discovery” mode to connect. Power on the mouse and it will automactically go into discovery mode.

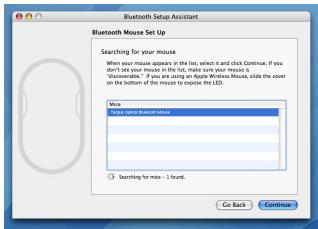

5. Your computer will begin to search for the mouse. Once the mouse is found, it will show up in the list. Highlight your mouse and press continue.

Targus Bluetooth Comfort Laser Mouse

6. The Bluetooth mouse will now begin pairing. Click continue to proceed.

7. Congratulations. Your Bluetooth mouse is setup and ready to use. You can choose to setup another device or click Quit to exit setup.

Targus Bluetooth Comfort Laser Mouse

Programming Your Mouse (Windows Only)

Targus Bluetooth Comfort Laser Mouse

Troubleshooting The mouse is not working.

To access the advanced scroll wheel features you will need to download and install the software driver. This can be downloaded from the following location:

• Make sure that the polarity of the batteries is correct. The positive (+) and negative (-) ends of each battery must match the positive (+) and negative (-) connections in the battery housing.

Visit www.targus.com to download and install the driver.

• Make sure the batteries are charged. Recharge or replace if necessary.

Once installation is complete, open the driver software and select the desired setting for the scroll-wheel button. Close the driver software application and you’re ready to go. Activate your selected feature by pressing down on the scroll wheel.

• Verify that the computer is Bluetooth enabled. • Verify that the device drivers are installed: 1. Click Start/ Settings/ Control Panel/ System/ Hardware/ Device Manager 2. Check under “Bluetooth Devices” that a “Soft-Touch Bluetooth” is installed • Paired devices are always displayed in My Bluetooth Places, even if the mouse is out of range or not powered up.
