DOMETIC CFF18 - Refrigerator
📄 152 pages English EN ⬇ Download 💬 AI Question ❓ 10 questions ⚙️ Specs
Notice DOMETIC CFF18 - page 14
14 / 152
Pick your language and provide your email: we'll send you a specifically translated version.
Product type Portable compressor refrigerator
Brand Dometic
Model CFF18
Capacity 18 liters
Dimensions (L x W x H) 45 x 30 x 40 cm
Weight 10 kg
Power supply 12 V / 24 V DC and 100–240 V AC (mains adapter included)
Power consumption Approximately 45 W in cooling mode
Temperature range From -18 °C to +10 °C
Main functions Refrigeration, freezing, digital thermostat, 3-level battery protection
Care and cleaning Clean interior surfaces with a soft cloth and soapy water. Defrost manually if necessary.
Safety Temperature alarm, low voltage protection, reverse polarity protection
Spare parts and repairability Dometic after-sales service available. Spare parts can be ordered online.
General information Multilingual manual (152 pages), 2-year warranty. Average user rating: 9.0/10

Frequently Asked Questions - CFF18 DOMETIC

How do I adjust the refrigerator temperature?
Use the +/- buttons on the control panel to set the desired temperature. The range is from -18 °C to +10 °C. The display shows the current internal temperature.
Can I use the device on a car battery?
Yes, the refrigerator operates on 12 V or 24 V DC, ideal for use in a motorhome or car. Make sure the battery is sufficiently charged and set the battery protection mode to avoid complete discharge.
How do I clean the interior of the refrigerator?
Unplug the device, remove all food, and use a damp cloth with mild soapy water. Rinse and dry thoroughly before restarting.
Why is my refrigerator not cooling enough?
Check that ventilation is adequate (no obstructions), that the ambient temperature is not too high, and that the temperature setting is correct. Excess frost can also reduce efficiency: defrost manually.
How do I defrost the freezer compartment?
Turn off the device and leave the door open. Place towels to absorb melting water. Never use sharp objects to remove ice. Once defrosted, wipe dry and restart.
What does the alarm indicator mean?
The alarm light flashes if the internal temperature is too high or if there is a malfunction. Refer to the manual for error codes. If the problem persists, contact technical support.
Can I use a cigarette lighter mains adapter?
Yes, the device comes with a 100-240 V to 12 V mains adapter. You can also use a cigarette lighter socket with a suitable cable (observe polarity).
The refrigerator makes noise, is this normal?
A slight humming from the compressor is normal. If the noise is loud or irregular, check that the device is on a flat, stable surface and that nothing is vibrating against it.
What is the power consumption on 12 V?
In normal operation, consumption is approximately 45 W. In standby mode, it is very low. Exact consumption depends on ambient temperature and setting.
Where can I find the complete user manual?
The full 152-page manual is available for free download at notice-facile.com. You can also request a translation into another language via the form on the page.

User questions about CFF18 DOMETIC

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

Your email remains private: it is only used to notify you if someone answers your question.

No questions yet. Be the first to ask one.

Download the instructions for your Refrigerator in PDF format for free! Find your manual CFF18 - DOMETIC and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. CFF18 by DOMETIC.

USER MANUAL CFF18 DOMETIC

CFF12, CFF18, CFF20, CFF35, CFF45, CFF700Z

EN

Mobile refrigerating appliance Short Operating Manual

DE

© 2024 Dometic Group. The visual appearance of the contents of this manual is protected by copyright and design law. The underlying technical design and the products contained herein may be protected by design, patent or pending patent. The trademarks mentioned in this manual belong to Dometic Sweden AB. All rights are reserved.

List of Figures

1ENERGY SUPPLIER'S NAME MODEL IDENTIFIER A B C D E F G XYZ kWh/annum XYZ L XYZ L XY dB ABCD

Hand holding a smartphone displaying a QR code with an arrow pointing to it, likely for mobile payment or scanning interface.

eprel.ec.europa.eu

2DOMETIC CFF18 - List of Figures - 3

12/24VDCDOMETIC CFF18 - List of Figures - 4

100-240 V ACDOMETIC CFF18 - List of Figures - 5

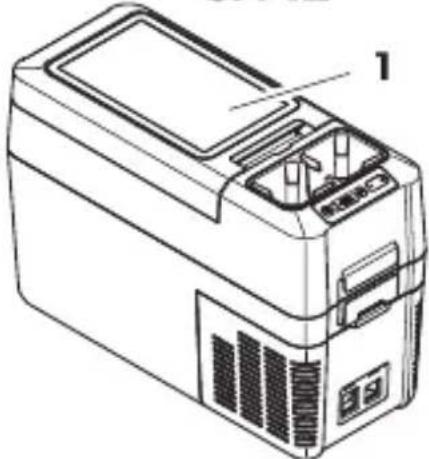

CFF12Line drawing of a computer device with labeled components (no text or symbols present).

CFF18Line drawing of a portable electronic device with handle and front panel (no text or symbols).

CFF20Line drawing of a computer internal unit with ports and connectors (no text or symbols).

CFF35, CFF45Line drawing of a rectangular electronic device with labeled components (no text or symbols present).

Diagram of a mechanical component with labeled parts 2 and 3, showing a cylindrical connector and plug.

CFF20, CFF35, CFF45, CFF70DZ

CFF70DZ 1

Technical line drawing of two mechanical components with a numbered callout (no text or symbols).

5 CFF12

3graph TD A["Electric Vehicle"] --> B["Battery"] B --> C["Car"] C --> D["Solar Panel"] D --> E["Battery"] style A fill:#f9f,stroke:#333 style B fill:#ccf,stroke:#333 style C fill:#cfc,stroke:#333 style D fill:#fcc,stroke:#333 style E fill:#ffc,stroke:#333

4

1. 2. 3. 100-240 V

5DOMETIC CFF18 - List of Figures - 16

6Simple line drawing of a shelving unit with a box and a curved arrow indicating rotation (no text or symbols).

DOMETIC CFF18 - List of Figures - 18

12/24 V 100 - 240 V ▲ - / ≡ 2.

CFF35, CFF45, CFF70DZ CFF18

Illustration of a closed storage box with arrows indicating rotation or movement, accompanied by containers and a bottle (no text or symbols).

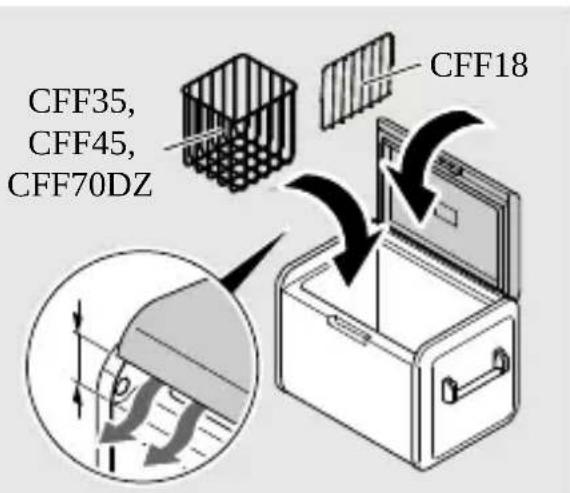

CFF35, CFF45, CFF70DZ, CFF18

7 CFF12, CFF18, CFF20, CFF35, CFF45

1.

-5.7° SET - +

2.

3.

21F SET - +

CFF70DZ

1.

SET -6℃ -6℃ - +

2.


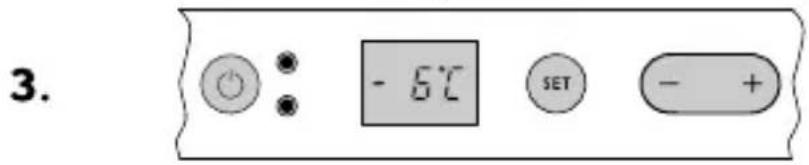

3.

SET 2.17F 2.17F - +

8 CFF12, CFF18, CFF20, CFF35, CFF451. -5℃ SET - + 2. SET → - + 3 s 1x 3. -5℃ SET - +

CFF70DZgraph TD A["SET 1x"] --> B["-6°C"] B --> C["-8°C"] C --> D["+"] D --> E["-3°C"] E --> F["-8°C"] G["SET 2x"] --> H["-6°C"] H --> I["-8°C"] I --> J["+"] J --> K["-6°C"] K --> L["-5°C"]

9 CFF12, CFF18, CFF20, CFF35, CFF45

1. -6℃ SET - +

3.

CFF70DZ1. SET -6.7 -6.7 - +

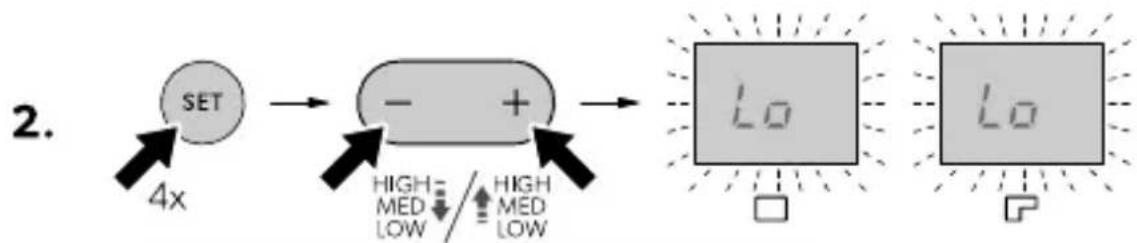


3.

10 CFF12, CFF18, CFF20, CFF35, CFF45

1. -5℃ SET - +

3.

CFF70DZ1.

3.

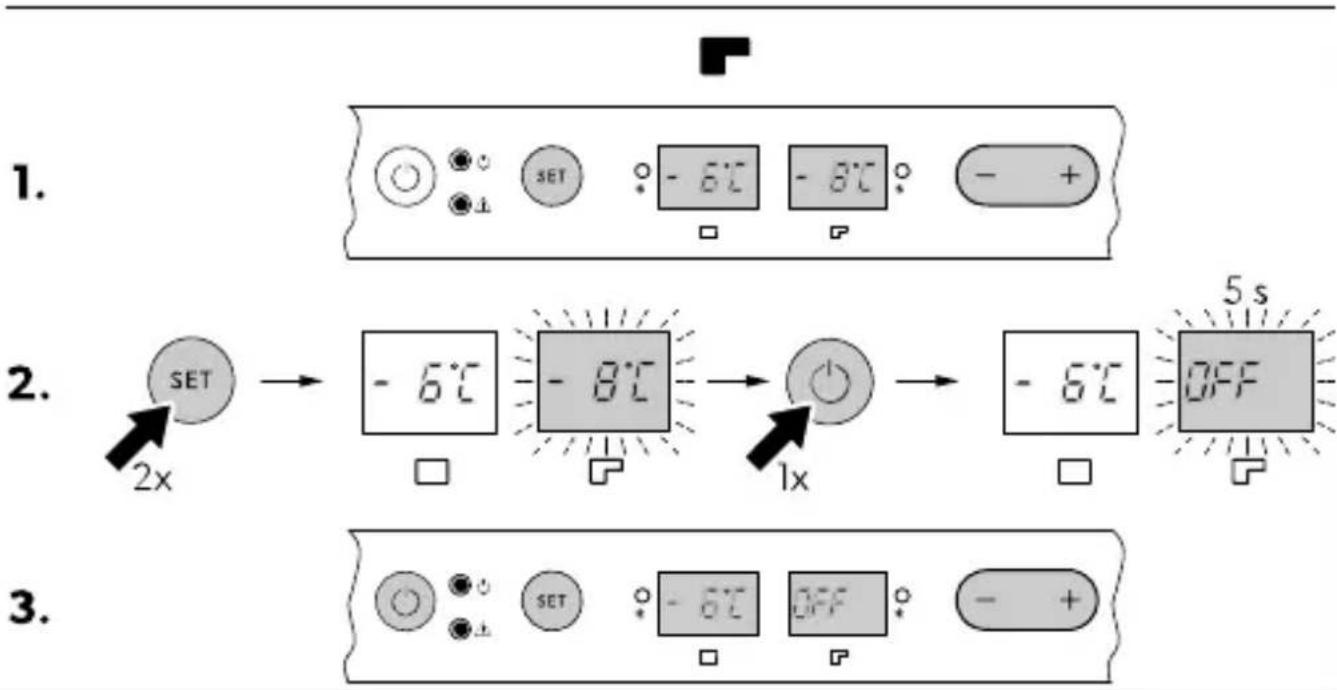

11 CFF70DZgraph TD A["SET"] --> B["-6°C"] B --> C["-8°C"] C --> D["OFF"] D --> E["-8°C"] style A fill:#f9f,stroke:#333 style B fill:#ccf,stroke:#333 style C fill:#cfc,stroke:#333 style D fill:#fcc,stroke:#333 style E fill:#ffc,stroke:#333

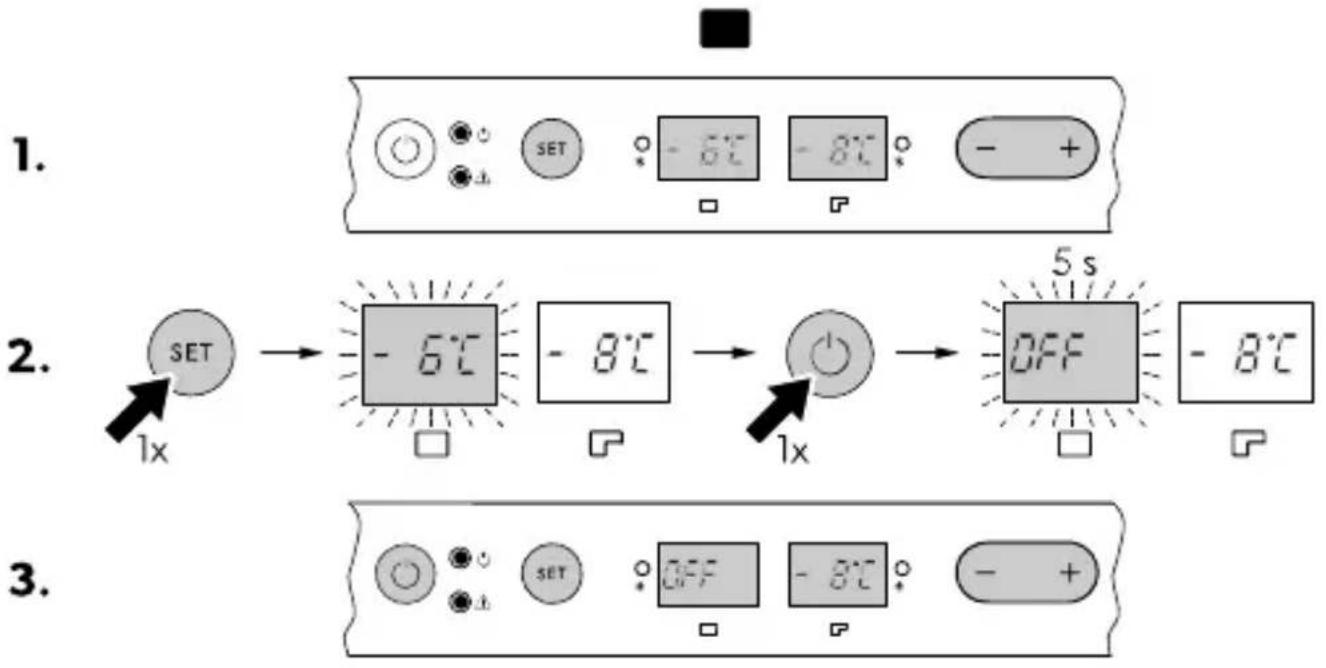


12 CFF70DZgraph TD A["1. SET"] --> B["2. OFF"] B --> C["3. 5s -8℃"] C --> D["4. 1x"]

13DOMETIC CFF18 - CFF12, CFF18, CFF20, CFF35, CFF45 - 11

LowW + -

Medium/HighMedium/High + -

LowMediumHigh
12VDOMETIC CFF18 - CFF12, CFF18, CFF20, CFF35, CFF45 - 14OFF10.1 V11.2 V11.8 V
ON11.4 V12.2 V12.6 V
24VDOMETIC CFF18 - CFF12, CFF18, CFF20, CFF35, CFF45 - 15OFF21.5 V24.1 V24.6 V
ON23.0 V25.3 V26.2 V

English

1 Important notes

Please read these instructions carefully and follow all instructions, guidelines, and warnings included in this product manual in order to ensure that you install, use, and maintain the product properly at all times. These instructions MUST stay with this product.

By using the product, you hereby confirm that you have read all instructions, guidelines, and warnings carefully and that you understand and agree to abide by the terms and conditions as set forth herein. You agree to use this product only for the intended purpose and application and in accordance with the instructions, guidelines, and warnings as set forth in this product manual as well as in accordance with all applicable laws and regulations. A failure to read and follow the instructions and warnings set forth herein may result in an injury to yourself and others, damage to your product or damage to other property in the vicinity. This product manual, including the instructions, guidelines, and warnings, and related documentation, may be subject to changes and updates. For up-to-date product information, please visit epdvn f outjepn fujdjdpn .

2 Explanation of symbols on the device

DOMETIC CFF18 - Explanation of symbols on the device - 1

Warning! Risk of fire. Flammable materials.

QR code image with a large upward arrow symbol in the center

Find the full operating manual online on qr.dometic.com/bfNTDt.

4 Safety instructions

DOMETIC CFF18 - Safety instructions - 1

DANGER! Electrocution hazard

On boats: If the device is powered by the mains, ensure that the power supply has a residual current device (RCD), a residual current circuit breaker (RCCB), or a ground fault circuit interrupter (GFCI). Installation, especially in potentially damp areas, must be in accordance with all applicable installation regulations. Do not touch exposed cables with your bare hands. This applies especially when operating the device from the AC mains. Before starting the device, ensure that the power supply line and the plug are dry.

DOMETIC CFF18 - DANGER! Electrocution hazard - 1

WARNING! Explosion hazard

Do not store any explosive substances such as spray cans with a flammable propellant in the cooling device.

DOMETIC CFF18 - WARNING! Explosion hazard - 1

WARNING! Electrocution hazard

Do not operate the cooling device if it is visibly damaged.

DOMETIC CFF18 - WARNING! Electrocution hazard - 1

If the cooling device's power cable is damaged, it must be replaced with a suitable power cable or assembly available from the manufacturer or its service agent to prevent safety hazard. This cooling device may only be repaired by qualified personnel. Improper repairs can lead to considerable hazards. Plug the device to sockets that ensure proper connection especially when the device needs to be earthed.

WARNING! Fire hazard

When positioning the cooling device, ensure that the supply cord is not trapped or damaged. Do not locate multiple portable socket-outlets or portable power supplies at the rear of the device. In the event of any damage to the refrigerant circuit:

- Keep open flames and potential ignition sources away from the cooling device.

- Ventilate the room well.

- Switch off the cooling device.

For cooling devices with flammable refrigerant: The refrigeration circuit contains a small quantity of an environmentally friendly but flammable refrigerant. It does not damage the ozone layer and does not increase the greenhouse effect. Any leaking refrigerant may ignite. Keep the ventilation openings on the device housing or in installations free of obstructions. Do not use any mechanical objects or other means to speed up the defrosting process, unless they have been recommended by the manufacturer for this purpose. Do not open or damage the refrigerant circuit. Do not use electrical devices inside the cooling device unless they are recommended by the manufacturer for that purpose.

DOMETIC CFF18 - WARNING! Fire hazard - 1

WARNING! Health hazard

This cooling device can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the cooling device in a safe way and understand the hazards involved. Children aged from 3 to 8 years are allowed to load and unload cooling devices.

Children must be supervised to ensure that they do not play with the device. Cleaning and user maintenance must not be carried out by unsupervised children.

DOMETIC CFF18 - WARNING! Health hazard - 1

CAUTION! Electrocution hazard

Before starting the cooling device, ensure that the power supply line and the plug are dry. Disconnect the cooling device from the power supply

• Before each cleaning and maintenance

• After every use

DOMETIC CFF18 - CAUTION! Electrocution hazard - 1

CAUTION! Health hazard

To avoid contamination of food, observe the following instructions:

  • Check if the cooling capacity of the cooling device is suitable for storing the food to be cooled.
  • Food may only be stored in its original packaging or in suitable containers.
  • Opening the cooling device for long periods of time can cause significant increase of the temperature in the compartments of the device.
  • Clean regularly surfaces that can come in contact with food and accessible drainage systems.

If the cooling device is left empty for long periods:

  • Switch off the cooling device.
  • Defrost the cooling device.
  • Clean and dry the cooling device.
  • Leave the lid open to prevent mold from developing within the cooling device.

DOMETIC CFF18 - CAUTION! Health hazard - 1

NOTICE! Damage hazard

Check that the voltage specification on the data plate corresponds to that of the energy supply. Only connect the cooling device as follows:

- With the DC connection cable to a DC power supply in the vehicle

- With the AC connection cable to an AC power supply

Never pull the plug out of the socket by the cable. If the cooling device is connected to a DC outlet, disconnect the cooling device and other power consuming devices from the battery before connecting a quick charging device. If the cooling device is connected to a DC outlet, disconnect the cooling device or switch it off when turning off the engine. Otherwise the battery may be discharged. The cooling device is not suitable for transporting caustic materials or materials containing solvents. The insulation of the cooling device contains flammable cyclopentane and requires special disposal procedures. Deliver the cooling device at the end of its life-cycle to an appropriate recycling center. Do not place the cooling device near open flames or other heat sources (heaters, direct sunlight, gas ovens, etc.). Risk of overheating! Ensure at all times that there is a minimum of 50 mm ventilation on all sides of the cooling device. Keep the ventilation area free of any objects that could obstruct the air flow to the cooling components. Do not use or store the cooling device in closed compartments or areas with none or minimal air flow. Do not fill the inner container with ice or fluids. Never immerse the cooling device in water. Protect the cooling device and cables against heat and moisture. The cooling device shall not be exposed to rain.

5 Intended use

The cooling device is suitable for cooling food. The cooling device is also suitable for use on vehicles.

The cooling device is designed to be operated from a DC on-board power supply of a vehicle or boat, from a DC auxiliary battery or from an AC power supply.

The cooling device is suitable for camping or other similar recreational uses.

The cooling device is intended to be used in household and similar applications such as:

  • Staff kitchen areas in shops, offices and other working environments
  • Farm houses
  • Clients in hotels, motels and other residential type environments
  • Bed and breakfast type environments
  • Catering and similar non-retail applications

This product is only suitable for the intended purpose and application in accordance with these instructions.

This manual provides information that is necessary for proper installation and/or operation of the product. Poor installation and/or improper operation or maintenance will result in unsatisfactory performance and a possible failure.

The manufacturer accepts no liability for any injury or damage to the product resulting from:

  • Incorrect installation, assembly or connection, including excess voltage
  • Incorrect maintenance or use of spare parts other than original spare parts provided by the manufacturer • Alterations to the product without express permission from the manufacturer
  • Use for purposes other than those described in this manual

Dometic reserves the right to change product appearance and product specifications.

6 Operation

6.1 Avoiding food waste

To avoid food waste, note the following:

Keep temperature fluctuation as low as possible. Only open the cooling device as often and for as long as necessary. Store the foodstuff in such a way that the air can still circulate well. Adjust the temperature to the quantity and type of the foodstuff. Foodstuff can easily absorb or release odor or taste. Always store foodstuff covered or in closed containers/bottles.

6.2 Saving energy

Choose a well ventilated location which is protected from direct sunlight. Allow warm food to cool down first before placing it in the cooling device to keep cool. Do not open the cooling device more often than necessary. Do not leave the cooling device open for longer than necessary. If the cooling device has a basket: For optimal energy consumption, position the basket according to its position on delivery. On a regularly basis, ensure the lid seal still fits properly. Avoid unnecessarily low temperatures.

6.3 Operating

Further product information can be accessed via QR code on the energy label or via f qsf mif d;f vspqb;f v.

DOMETIC CFF18 - Operating - 1

Scope of delivery:

DOMETIC CFF18 - Operating - 2

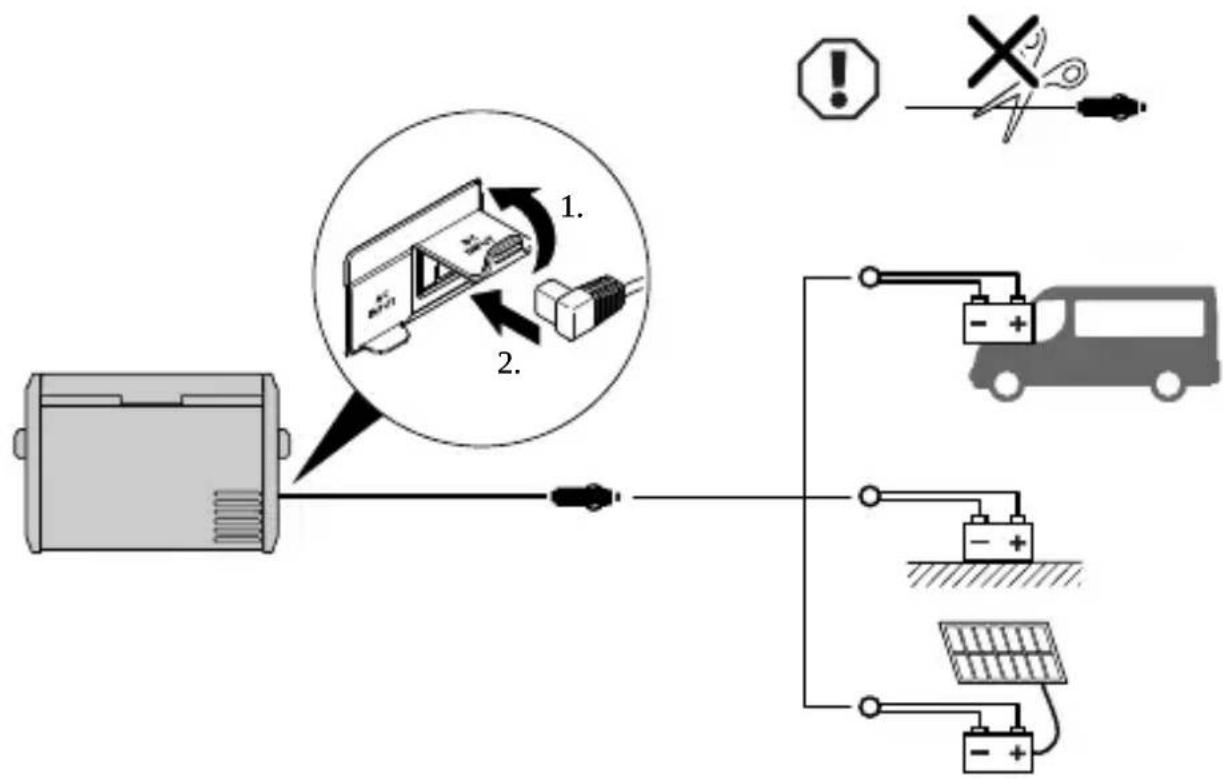

Connect to a battery.

DOMETIC CFF18 - Operating - 3

Connect to an AC power supply.

DOMETIC CFF18 - Operating - 4

Switch on.

DOMETIC CFF18 - Operating - 5

Fig. 5 on page 6

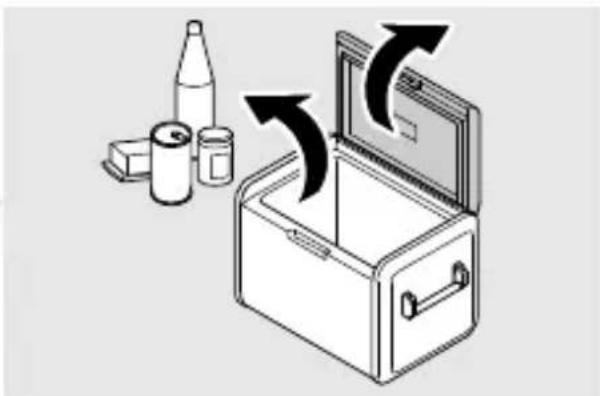

Switch off and store.

DOMETIC CFF18 - Operating - 6

Fig. 6 on page 6

Select the temperature unit.

DOMETIC CFF18 - Operating - 7

Fig. 7 on page 7

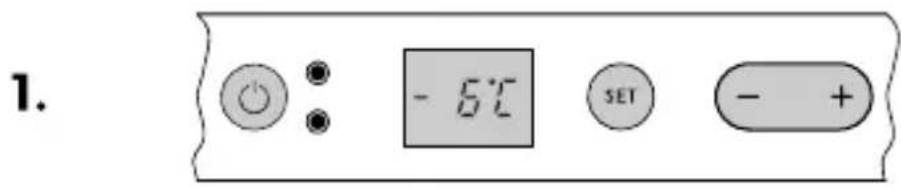

Set the temperature.

DOMETIC CFF18 - Operating - 8

Fig. 8 on page 8

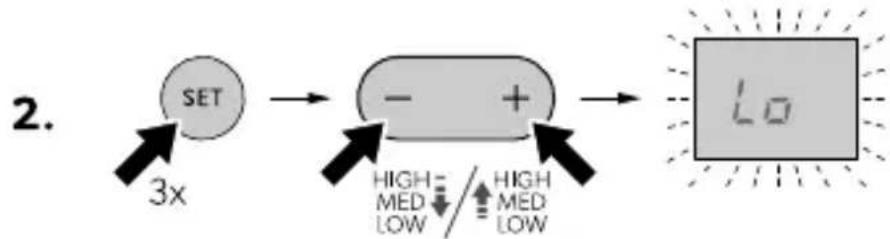

Adjust the sensitivity of the battery monitor, see Battery monitor on page 18.

DOMETIC CFF18 - Operating - 9

Fig. 9 on page 9

Set the display's brightness.

DOMETIC CFF18 - Operating - 10

Fig. 10 on page 10

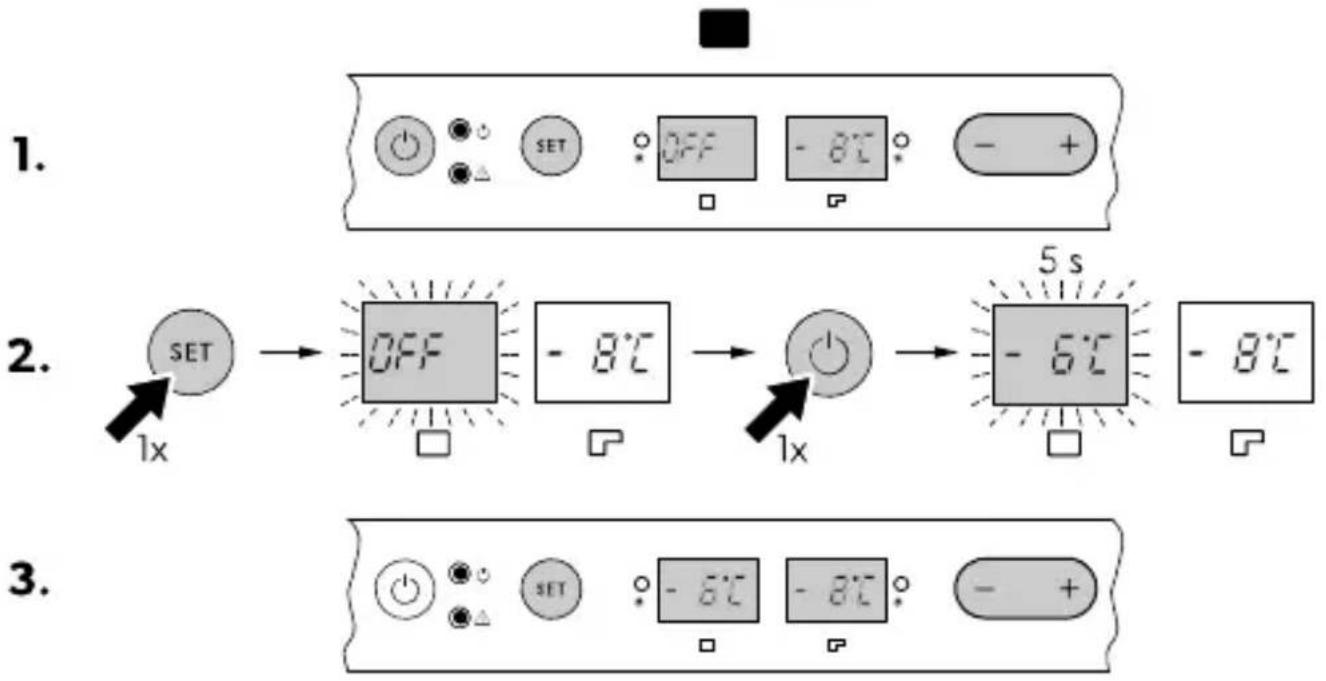

Switch off the compartments (dual zone coolers).

DOMETIC CFF18 - Operating - 11

Fig. 11 on page 11

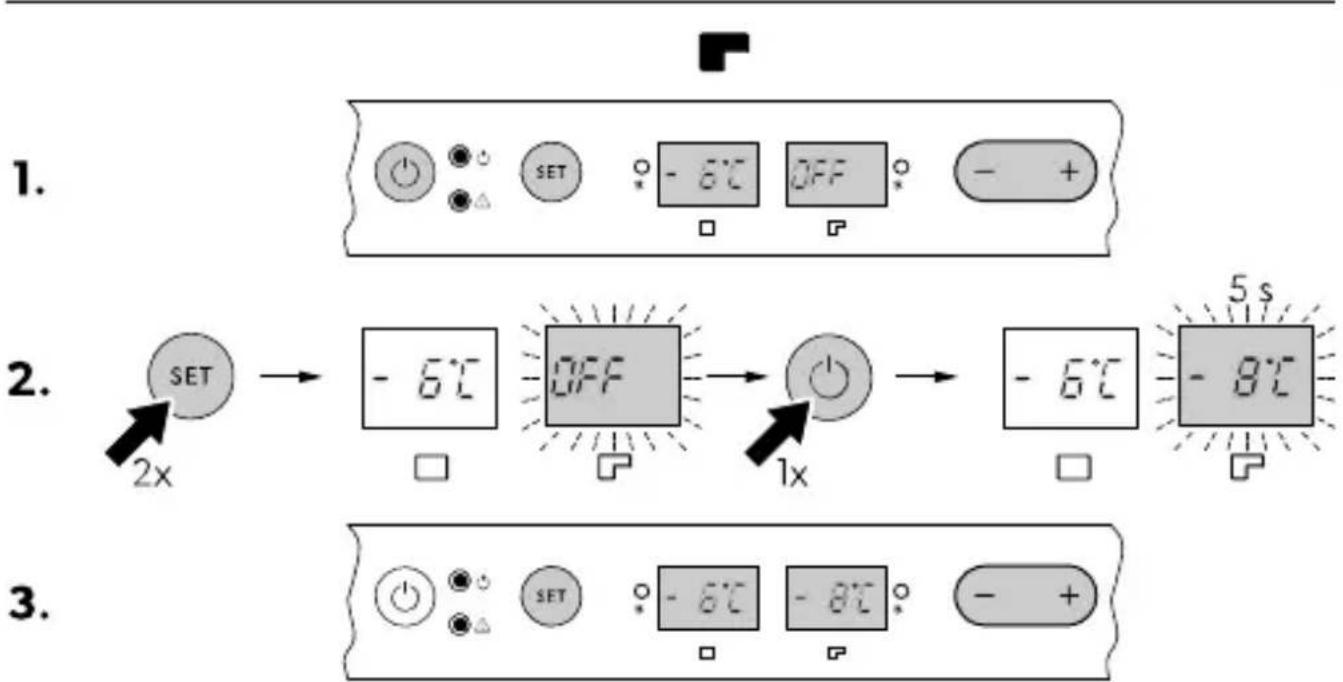

Switch on the compartments (dual zone coolers).

DOMETIC CFF18 - Operating - 12

Fig. 12 on page 12

6.4 Battery monitor

The cooling device is equipped with a multi-level battery monitor that protects the vehicle battery against excessive discharging when the cooling device is connected to the on-board DC supply.

DOMETIC CFF18 - Battery monitor - 1

Fig. 13 on page 13

7 Disposal

DOMETIC CFF18 - Disposal - 1

Recycling packaging material: Place the packaging material in the appropriate recycling waste bins wherever possible.

DOMETIC CFF18 - Disposal - 2

If you wish to finally dispose the product, ask your local recycling center or specialist dealer for details about how to do this in accordance with the applicable disposal regulations. The product can be disposed free of charge.

DOMETIC CFF18 - Disposal - 3

If the product contains any non-replaceable batteries, rechargeable batteries, or light sources, you don't have to remove them before disposal.

German

1 Important Notes

WARNING! Fire hazard

Warning! Fire risk. Flammable materials.

Detailed operating instructions can be found online at qr.dometic.com/bfNTDt.

Complete operating instructions can be found online at qr.dometic.com/bfNTDt.

4 Safety Instructions

DOMETIC CFF18 - Safety Instructions - 1

DANGER! Risk of electric shock

On boats: If the device is powered via the electrical grid, ensure that the power supply has a residual current device (RCD), a residual current circuit breaker (RCCB), or a ground fault circuit interrupter (GFCI). Installation, especially in potentially damp areas, must be carried out in accordance with all applicable installation regulations. Do not touch exposed cables with bare hands. This is especially important if the device is powered via an AC mains supply. Before switching on the device, make sure that the connecting cable and plug are dry.

DOMETIC CFF18 - DANGER! Risk of electric shock - 1

WARNING! Risk of explosion

Switch off and store.

DOMETIC CFF18 - WARNING! Risk of explosion - 1

Fig. 6 on page 6

Selecting the temperature unit.

DOMETIC CFF18 - WARNING! Risk of explosion - 2

Fig. 7 on page 7

Setting the temperature.

DOMETIC CFF18 - WARNING! Risk of explosion - 3

Fig. 8 on page 8

Parrot: a and b in line of an olive arbor, on the all- cerebral column la

6.3 Operating mode

S. 1 Education of the health centre—posthouse, home and community

Lithuanian

1 Important notes

4 Safety instructions

dometic.com/sales-offices

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : DOMETIC

Model : CFF18

Category : Refrigerator
