USER MANUAL TK-500 FAGOR

The manufacturer reserves the right to modify the models described in this User's Manual.

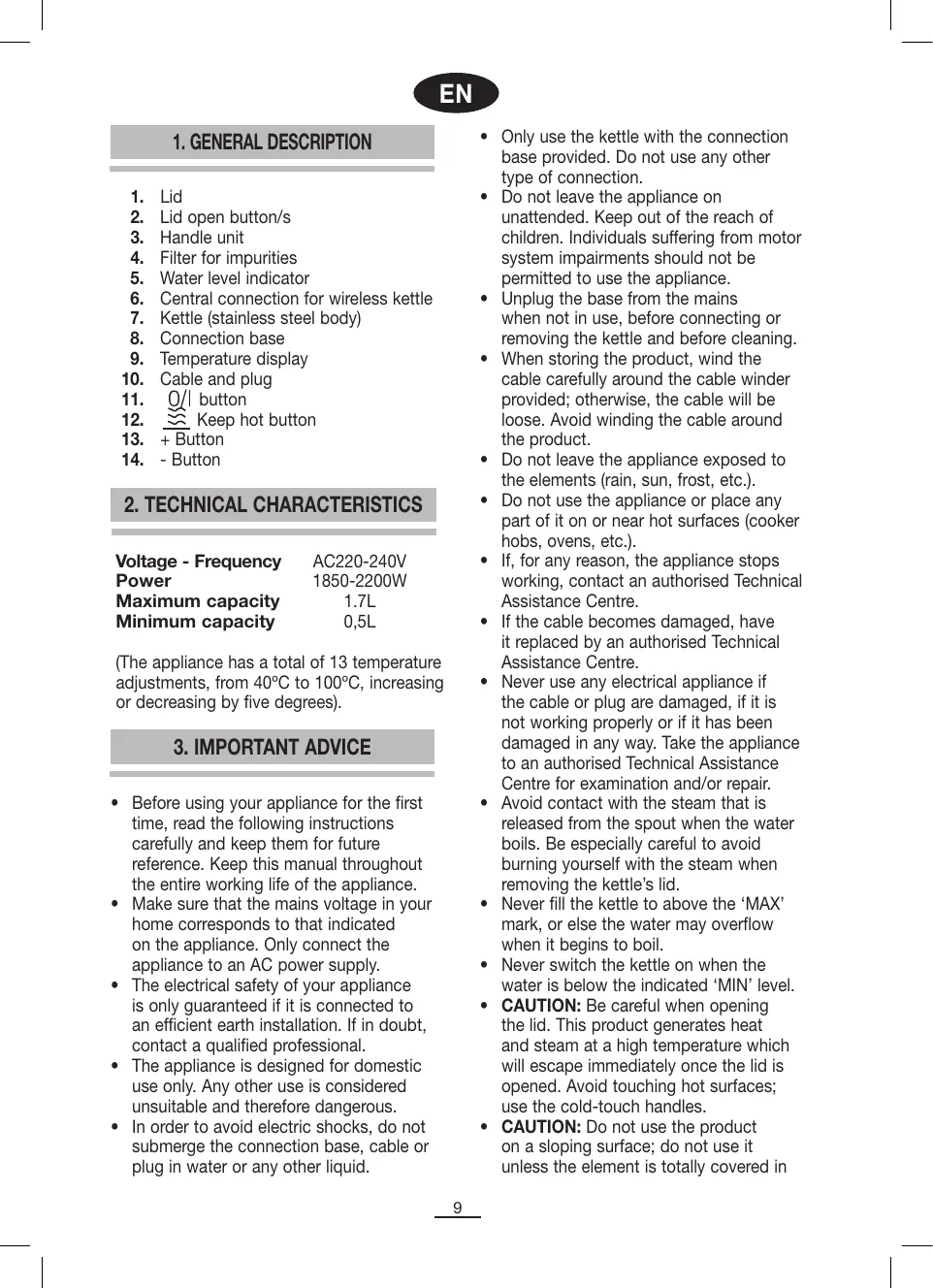

1. Lid
2. Lid open button/s
3. Handle unit
4. Filter for impurities
5. Water level indicator
6. Central connection for wireless kettle
7. Kettle (stainless steel body)
8. Connection base
9. Temperature display
10. Cable and plug
11. 0/1 button
12. Keep hot button
13. +Button
14. -Button

2. TECHNICAL CHARACTERISTICS

Voltage - Frequency AC220-240V

Power 1850-2200W

Maximum capacity 1.7L

Minimum capacity 0,5L

(The appliance has a total of 13 temperature adjustments, from 40^ to 100^ , increasing or decreasing by five degrees).

3. IMPORTANT ADVICE

• Before using your appliance for the first time, read the following instructions carefully and keep them for future reference. Keep this manual throughout the entire working life of the appliance.
• Make sure that the mains voltage in your home corresponds to that indicated on the appliance. Only connect the appliance to an AC power supply.
• The electrical safety of your appliance is only guaranteed if it is connected to an efficient earth installation. If in doubt, contact a qualified professional.
• The appliance is designed for domestic use only. Any other use is considered unsuitable and therefore dangerous.

• In order to avoid electric shocks, do not submerge the connection base, cable or plug in water or any other liquid.

• Only use the kettle with the connection base provided. Do not use any other type of connection.

• Do not leave the appliance on unattended. Keep out of the reach of children. Individuals suffering from motor system impairments should not be permitted to use the appliance.
• Unplug the base from the mains when not in use, before connecting or removing the kettle and before cleaning.
• When storing the product, wind the cable carefully around the cable winder provided; otherwise, the cable will be loose. Avoid winding the cable around the product.
• Do not leave the appliance exposed to the elements (rain, sun, frost, etc.).
• Do not use the appliance or place any part of it on or near hot surfaces (cooker hobs, ovens, etc.).
• If, for any reason, the appliance stops working, contact an authorised Technical Assistance Centre.
• If the cable becomes damaged, have it replaced by an authorised Technical Assistance Centre.
• Never use any electrical appliance if the cable or plug are damaged, if it is not working properly or if it has been damaged in any way. Take the appliance to an authorised Technical Assistance Centre for examination and/or repair.
• Avoid contact with the steam that is released from the spout when the water boils. Be especially careful to avoid burning yourself with the steam when removing the kettle's lid.
• Never fill the kettle to above the 'MAX' mark, or else the water may overflow when it begins to boil.
• Never switch the kettle on when the water is below the indicated 'MIN' level.
• CAUTION: Be careful when opening the lid. This product generates heat and steam at a high temperature which will escape immediately once the lid is opened. Avoid touching hot surfaces; use the cold-touch handles.
• CAUTION: Do not use the product on a sloping surface; do not use it unless the element is totally covered in

water; do not move the product when it is SWITCHED ON. The kettle can be dangerous if these precautions are not taken.

WARNING: If the kettle is too full, the boiling water may splash out.

4. BEFORE USING YOUR KETTLE

Before using your kettle for the first time or after a long period of disuse, fill to the maximum, boil and then pour the water away.

5. HOW TO USE YOUR AUTOMATIC KETTLE

• Place the appliance on a dry, flat, stable surface.
• Open the lid by pressing the corresponding button (2) and fill with the required quantity of water. The water level should be between the 'MAX' and 'MIN' marks.
• Replace the lid and make sure it is properly fitted, otherwise the kettle will not switch itself off when the water boils.
• Place the kettle on the base, plug into the mains.
• To turn on the appliance, if you first press the "+" or "-" button, the screen will show the temperature of the water that is in the kettle. After 10 seconds, if you do not set anything, nothing will be displayed on the screen, the kettle will return to standby mode. If you continue pressing one of these (+) "(-)" the temperature will rise or fall. Then press the O/I button, the screen will flash continuously and the kettle will go into water boiling mode. If you press O/I again, the LED screen will display nothing, the kettle will return to standby mode.
• Otherwise, if in the first instance you press 0/1 and then the "+" or "-" button to select the desired temperature, the kettle will go into water boiling mode. If you only press the 0/1 button, the appliance will reach the

pre-established temperature, i.e. 100^ , showing 99^ on the LED screen.

• While the water is boiling, you can readjust the temperature to boil the water with the "+" or "-" keys. If the temperature is higher than the previous temperature, the kettle will continue boiling the water. Otherwise, if the temperature is lower, the element will not function.
• While the kettle is heating the water, the digits on the screen will flash. When the temperature of the water to be boiled reaches the preselected temperature, these digits will stop flashing.
• The kettle will count two minutes and then go into standby mode. You can do this yourself by pressing 0 / 1 before these two minutes pass. When the water inside reaches boiling point.
• Do not add more water to the kettle while it is switched on.
• Do not leave water in the kettle for long periods or overnight.

6. KEEP HOT FUNCTION

This appliance also has a function for keeping the water hot.

Once you have turned on the kettle, you can select the temperature you wish with the "+" or "-" buttons. Then press the 'button and then press 0/1. The kettle will start the process of keeping the water hot, and this process will continue for a maximum period of one hour. As the process continues, the screen will show a dot at the bottom right.

During the keep hot process, if you press the _i = 1^n button, it will come out of the keep hot function and return to the water boiling mode.

When the kettle goes into the keep hot mode, the circuit begins to count the time, and after one hour nothing will be displayed on the screen; the kettle will return to standby mode. During the one-hour period, if you press the 0/1 button, nothing will be displayed on the screen and the kettle will return to standby mode.

7. AUTOMATIC SAFETY SHUT-OFF

The kettle is fitted with an automatic safety protection device in case of overheating and for when there is no water in the kettle. It is activated if the kettle is turned on when there is not enough water inside, i.e. when the water level is below the MIN mark. If this happens, switch the kettle off at the mains and unplug the cable. Leave to cool for 10 minutes, then refill with cold water and plug the appliance back in.

8. CLEANING AND MAINTENANCE

After use, unplug the appliance from the mains and leave to cool.

Clean the base and the outside of the kettle with a damp (not cloth) and dry thoroughly with a soft, clean cloth before storing or plugging back into the mains. Remove the stubborn marks with a cloth dampened (not wet) with soap and water or a gentle, non-abrasive, cleaner.

Do not use chemical products or abrasive detergents that may scratch the plastic coating.

Protect the connection base, cable and plug against humidity.

After repeated use, lime deposits may form on the inside of the kettle and interfere with its correct working. These deposits can be removed using any kettle decalcifying products available on the market. If you prefer, you can also decalcify your kettle with white vinegar. To do so, follow the instructions outlined below:

• Place three cups of vinegar in the kettle and then fill with water. Leave the water-vinegar mixture to soak overnight (without boiling).
• The next morning, pour away the water-vinegar mixture, fill the kettle with fresh water and then empty once again. Repeat this operation. The kettle is now ready for use.
• We recommend that you decalcify your kettle once every 4 weeks if used on a daily basis.

9. CLEANING THE ANTI-SCALE FILTER

The following steps can only be taken when the kettle is SWITCHED OFF, unplugged from the mains and the kettle and water are cold.

1. Open the lid of the jug.
2. Extract the anti-scale filter from the jug, pulling upwards at an angle.
3. Clean the anti-scale filter with a soft washing-up brush.
4. If necessary, you can leave the antiscale filter soaking in vinegar or lemon juice for a few hours.
5. Rinse the filter thoroughly and dry it carefully.
6. Install the filter into the jug, aligning it with the guides in the opening and then press downwards at an angle. Place the filter into position by pressing gently until it is securely in place.

10. INFORMATION FOR THE CORRECT DISPOSAL OF ELECTRICAL AND ELECTRONIC APPLIANCES

At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or to a

dealer providing this service. Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving from inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources.

To remind you that you must collaborate with a selective collection scheme, the symbol shown appears on the product warning you not to dispose of it in traditional refuse containers.

For further information, contact your local authority or the shop where you bought the product.
