TK-2005 - Electric kettle FAGOR - Free user manual and instructions

Product Type	Electric Kettle
Brand	FAGOR
Model	TK-2005
Body Material	Stainless Steel
Base Material	Stainless Steel
Minimum Capacity	0.25 L
Supply Voltage	220-240 V ~ 50/60 Hz
Automatic Shut-off	Yes, at boiling
Overheat Protection	Yes (automatic shut-off if turned on without water)
Removable and Washable Filter	Yes
Water Level Indicator	Yes (min and max markings)
Operating Indicator Light	Yes
On/Off Switch (I/O)	Yes
Base with Cord Storage	Yes
Safety Lid	Yes
Lid Opening by Push Button	Yes
Ergonomic Handle	Yes
Use	Domestic, for heating and boiling water only
Cleaning	With a damp cloth, do not immerse
Descaling	Regular with commercial descaling product
Weight (estimated)	Approximately 1 kg

Frequently Asked Questions - TK-2005 FAGOR

How to use the kettle for the first time?

Fill the kettle to the maximum level, bring the water to a boil then discard it. Repeat this operation 2 or 3 times before first use.

How to clean the kettle filter?

Remove the kettle from the base and let it cool. Pull the filter upwards to extract it. Rinse it under running water, optionally with a soft brush. Replace it by fitting it correctly at the bottom of the kettle.

What are the minimum and maximum water levels?

The minimum level is marked 0.25 L and the maximum level is indicated by "max" on the water level indicator. Never exceed the max level to avoid splashes.

What to do if the kettle does not turn on?

Check that the kettle is properly plugged in and that the kettle is correctly positioned on its base. Make sure the lid is firmly closed (otherwise the appliance will shut off automatically). If the problem persists, contact an authorized technical support service.

How to descale the kettle?

Use a commercial descaling product following the manufacturer's instructions. Rinse several times with clean water, then boil clean water and discard it before reusing the appliance.

Can you heat milk or other liquids in the kettle?

No, this kettle is designed only for heating and boiling water. Do not pour milk, soup, coffee, tea, etc.

Does the kettle shut off automatically?

Yes, the kettle shuts off automatically as soon as the water boils. You can also stop it manually at any time by pressing the I/O switch.

How to open the kettle lid?

Press forward on the opening button located on the handle to lift the lid. Never lift the lid while the water is boiling.

Why does the kettle turn off during use?

This may be due to a problem with the lid closure or overheating if the kettle has been operated without water. In this case, unplug the appliance, let it cool down and check the water level before turning it on again.

Where to find spare parts for the FAGOR TK-2005 kettle?

Contact a FAGOR Authorized Technical Service Center and ask for original spare parts. Do not attempt repairs yourself.

USER MANUAL TK-2005 FAGOR

The manufacturer reserves the right to modify the models described in this User's Manual.

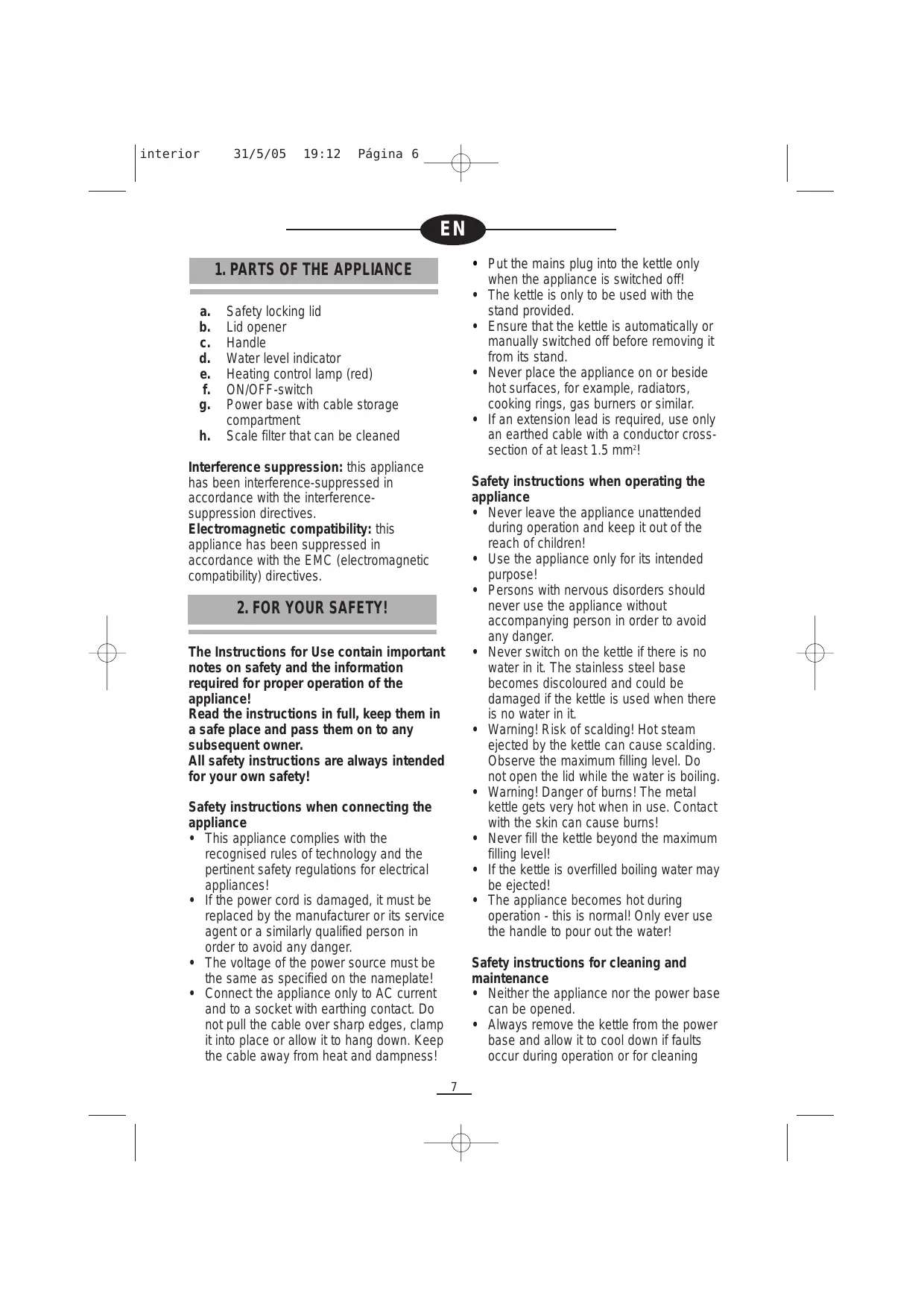

1. PARTS OF THE APPLIANCE

a. Safety locking lid b. Lid opener c. Handle d. Water level indicator e. Heating control lamp (red) f. ON/OFF-switch g. Power base with cable storage compartment h. Scale filter that can be cleaned

Interference suppression: this appliance has been interference-suppressed in accordance with the interference-suppression directives.

Electromagnetic compatibility: this appliance has been suppressed in accordance with the EMC (electromagnetic compatibility) directives.

2. FOR YOUR SAFETY!

The Instructions for Use contain important notes on safety and the information required for proper operation of the appliance!

Read the instructions in full, keep them in a safe place and pass them on to any subsequent owner.

All safety instructions are always intended for your own safety!

Safety instructions when connecting the appliance

• This appliance complies with the recognised rules of technology and the pertinent safety regulations for electrical appliances!
• If the power cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid any danger.
• The voltage of the power source must be the same as specified on the nameplate!
• Connect the appliance only to AC current and to a socket with earthing contact. Do not pull the cable over sharp edges, clamp it into place or allow it to hang down. Keep the cable away from heat and dampness!
• Put the mains plug into the kettle only when the appliance is switched off!
• The kettle is only to be used with the stand provided.
• Ensure that the kettle is automatically or manually switched off before removing it from its stand.
• Never place the appliance on or beside hot surfaces, for example, radiators, cooking rings, gas burners or similar. If an extension lead is required, use only an earthed cable with a conductor cross-section of at least 1.5 mm².

Safety instructions when operating the appliance

• Never leave the appliance unattended during operation and keep it out of the reach of children!
• Use the appliance only for its intended purpose!
• Persons with nervous disorders should never use the appliance without an accompanying person in order to avoid any danger.
• Never switch on the kettle if there is no water in it. The stainless steel base becomes discoloured and could be damaged if the kettle is used when there is no water in it.
• Warning! Risk of scalding! Hot steam ejected by the kettle can cause scalding. Observe the maximum filling level. Do not open the lid while the water is boiling.
• Warning! Danger of burns! The metal kettle gets very hot when in use. Contact with the skin can cause burns!
• Never fill the kettle beyond the maximum filling level!
• If the kettle is overfilled, boiling water may be ejected!
• The appliance becomes hot during operation - this is normal! Only ever use the handle to pour out the water!

Safety instructions for cleaning and maintenance

• Neither the appliance nor the power base can be opened. Always remove the kettle from the power base and allow it to cool down if faults occur during operation or for cleaning

and maintenance! Disconnect the plug from the mains!

• Do not use the cable to pull on the plug or pull the plug out of the socket when hands are wet!
• Warning! Danger of electric shock or short-circuit! Protect the appliance and the power base from dampness. Never put them into the dishwasher! Never immerse them in water!
• Observe the instructions for de-scaling!

3. USE IN ACCORDANCE WITH PURPOSE

The appliance may only be used to heat and boil water. Never put milk, soup, coffee or tea, etc., into the kettle.

No liability is accepted for any damage resulting from use for other purposes, faulty operation or amateur repairs. Guarantee services are also excluded in such cases.

The appliance is not intended for catering purposes!

Operating the appliance for the first time FIG.1

Before using the kettle for the first time, fill it up to the maximum level and boil at least two lots of water.

Rinse the kettle out with cold water each time between boiling up these two lots of water.

Method:

• Adjust the required length of cable on the power base "g". Wind any cable not required onto the cable winder. Guide the cable through one of the three recesses (1).
• Connect the power base "g" according to instructions (observe the safety instructions).
• Put the appliance into operation (see "Putting into operation").

FIG. 2-8

Filling with water

To open the lid, push the lid opener "b" forwards, the lid will snap up (2).

Note

The lid is opened with a spring mechanism. Ensure that the lid does not hit any part of the body.

• Open the lid and fill the kettle while the lid is open (3).
• Check the filling level on the water level gauge "d". Note the maximum filling level (4)!

Note

If the kettle was accidentally started empty, the safety cut-out will automatically switch it off. In this case you should remove the kettle from the power base and allow it to cool down for a few minutes. Make sure that the kettle has been filled with an adequate amount of water before using it again.

Switching on the kettle

• Close the lid. The safety locking lid must lock into place (5).

Connect the power base to the mains and position the kettle on the power base (6).

Note

If the lid is not properly closed, the kettle will not shut off automatically. - Switch on the kettle at the ON/OFF switch "f" - the red heating control lamp "e" lights up (7).

Note

The ON/OFF switch only operates when the kettle is located on the power base.

Warning! Risk of scalding!

Never open or remove the lid during operation.

Switching off the kettle

• The kettle switches off automatically when the water boils - the red heating control lamp "e" goes off (8). However, you can also switch the kettle off using the ON/OFF switch "f" at all times.

Note

The kettle also switches off automatically when it is removed from the power base.

kettle with water. Remove stubborn stains with washing up liquid. - To get the best results at all times, make a regular check to see if there are particles of scale in the scale filter. Rinse the scale filter under running water and use a soft brush if necessary (no metal).

Switching the kettle back on again

• The kettle can be switched back on again after being allowed to cool down for approx. 30 seconds.

5. POURING OUT THE WATER

FIG. 9

• Remove the kettle from the power base and pour out the hot water (9).

Note

As a result of its functioning, some water can condense out of the outlet openings in the base of the kettle and run out over the edge of the power base. This is normal and is perfectly harmless.

If the kettle is returned to the power base, any water left in it will only heat up if the kettle is switched on again.

6. REMOVE SCALE FILTER

FIG. 10 / FIG. 11

Before removing the scale filter, first remove the kettle from the power base and allow it to cool down. Never remove the scale filter while the kettle is still hot or still full of water. Simply pull the scale filter upwards (10).

When replacing the filter, ensure that the scale filter is located properly in its guide (11). Press the scale filter down fully into the body.

Note

Never leave the scale filter loose in the kettle.

7. CLEANING AND MAINTENANCE

• Remove the kettle from the power base and allow it to cool down each time before cleaning. Disconnect the plug from the mains.
• Never immerse the appliance or the power base in water and never use highly corrosive or abrasive cleaning agents.
• Wipe out the kettle and power base with a damp cloth. Rinse out the inside of the

8. DE-SCALING

The kettle must be descaled regularly. At the latest, the kettle should be descaled when the time required to boil water is markedly longer or if it cuts out too soon while heating the water.

Method:

Fill the kettle up to the maximum filling level. Close the lid. The safety lid must click into place. Connect the power base to the mains and put the kettle on the power base.

Switch on the kettle. The kettle switches off automatically once it has boiled the water. Use any standard descaler (follow the instructions for use given by the maker).

Allow the de-scaling agent to take effect for at least 30 minutes. Afterwards, rinse out the appliance several times with clean water and then boil again with clean water which should then be poured away.

Repeat the process if the kettle is heavily scaled.

9. WASTE ELIMINATION

The materials used in the packaging, product and accessories can be recycled. Correct separation of waste materials will allow recyclable materials to be re-used.

When the appliance is no longer useful, you should cut its cord to put it out of action and dispose of it using a suitable waste elimination procedure. For further information on this matter, consult your local authorities.

• Turn the tap to position "b" and press (2).
• Fill the kettle with water (3). The water level should be between the maximum "max" and minimum "0.251" - "d" (4). Close the lid (5) and place the kettle on the base for connection. (6) Note: If the lid is not closed properly, the kettle will switch off automatically.
• Switch on the kettle by pressing the I/O switch - "f". The indicator light "e" lights up (7). When the water boils, the kettle switches off automatically. The indicator light "e" goes out (8). You can also switch off the kettle at any time using the I/O switch - "f". Note: The kettle switches off automatically when it is lifted from the base. Lift the kettle from the base and pour out the hot water (9). Note: As a result of operation, some water may escape through the openings located at the base of the kettle and run down the base for connection. This is

normal and does not pose any danger.

To switch on again, wait about 30 seconds.

6. SAFETY

The electric kettle is equipped with a thermal safety device that interrupts the power supply if it runs dry. If this happens, the kettle switches off automatically. Switch it off at the socket, remove the kettle from the base and wait at least a few minutes to cool down.

7. CLEANING AND MAINTENANCE

Remove the kettle from the base and let it cool down before cleaning. Switch it off at the socket. Do not immerse the appliance or the base for connection in water. Do not use abrasive or aggressive cleaning agents. Clean the kettle and the base for connection with a damp cloth. Rinse the inside of the kettle with water.

Cleaning the filter

FIG.10/FIG.11

Before cleaning the filter for impurities, first remove the kettle from the base and let it cool down. Do not remove the filter from the kettle while it is hot. To remove it, pull it upwards (10). Check it regularly for hard particles that may collect on it. Rinse the filter under running water and, if necessary, use a soft brush. - When replacing it, make sure it fits well into the slot (11). Insert it back into the kettle.

Note: Do not leave the filter loose in the kettle.

8. DESCALING

Depending on how hard the water is, limescale deposits may form on the inside of the kettle, which can affect the functioning of the electric kettle. If these deposits are not removed, they can affect the proper functioning of your appliance. These deposits can be removed with any descaling agent available on the market. Follow the manufacturer's instructions for use. - Repeat the descaling process if there is a lot of limescale in the kettle. Rinse the appliance several times with clean water. Then fill it with fresh water, which you must boil. Repeat these steps several times and then use the electric kettle again.

The materials used for the jug, apparatus, and attachments can be recycled. Dispose of them separately according to the relevant regulations.

For repeated use of the appliance. When you decide to take the appliance out of use, it is advisable to render it unusable, for example, by cutting its cable, and to dispose of it, you must follow the relevant regulations for disposal. For more information, contact your local authorities.

1. DESCRIPTION OF THE APPLIANCE

a. Safety lid b. Lid opening button c. Handle d. Water level indicator e. Light indicator f. On/Off switch g. Base with cord storage h. Scale filter

Interference suppression: This appliance has been filtered in accordance with the requirements for interference suppression.

Electromagnetic compatibility: This appliance complies with the requirements of the EMC (Electromagnetic Compatibility).

2. SAFETY INSTRUCTIONS

The instruction manual contains important safety notes as well as necessary information for the correct use of the appliance. Read the instructions carefully and keep them for future reference. If you pass the appliance on to another person, include this manual.

Do not fill the kettle above the "max" mark to avoid splashing when boiling water. - Do not switch on the appliance if the water level is below the "0.25 L" mark. Caution: When the appliance is operating, the kettle reaches a high temperature, and there is a risk of burns. Use the handle only for filling water.

Before first use of the kettle or after prolonged storage, it is necessary to fill the kettle to the maximum level, boil the water and discard it. Repeat this process two or three times, following the instructions in the next section.

Safety measures during operation and use

• Before moving or operating the appliance, disconnect it from the mains and wait until the kettle has cooled down. Do not pull the cord when unplugging the plug from the wall. Do not unplug with wet hands. To avoid the risk of electric shock, do not immerse the kettle, base, plug, cord, or plug in water or any other liquid. Do not place the appliance in a dishwasher.
• Follow the descaling instructions.

3. USE AS INTENDED

This appliance should only be used for heating and boiling water for domestic use. Do not fill with milk, soup, coffee or tea, etc.

The manufacturer declines all responsibility for damage caused by improper use or repair by unqualified personnel. In such cases, the warranty is void.

5. START-UP

FIG. 1-9

Choose the minimum length of cord needed to connect the appliance to the outlet and wind the excess cord into the recess at the base "g". Pass the cord through one of the grooves and plug into the outlet (1). - Open the lid by pulling the lid release button "b" forward (2). - Fill the kettle with water (3). The water level should be between the maximum mark "max" and the minimum level "0.25I" (0.25 L) "d" (4). Close the lid (5) and place the kettle on the base (6). Note: If the lid is not closed completely, the kettle will switch off automatically. Switch on the kettle by pressing the I/O button "f". The indicator light "e" lights up (7). - The kettle switches off automatically when the water boils. The indicator light "e" goes out (8). You can also switch off the kettle at any time using the I/O switch "f".

Note: The kettle also switches off when it is removed from the base.

• Remove the kettle from the base and pour out the hot water (9).

Note: During operation, some water may spill through the vents

located on the base of the kettle and overflow through the base connection. This is normal and does not pose any danger.

To reconnect the kettle, allow it to cool for at least 30 seconds.

6. SAFETY

The kettle is equipped with a thermal safety device that protects it from overheating when there is no water. If this happens, the kettle switches off automatically. Unplug the appliance from the outlet, remove it from the base and wait a few minutes until it cools down.

7. CARE AND MAINTENANCE

Before cleaning, remove the kettle from the base and let it cool down. Unplug the power cord from the outlet. Do not immerse the appliance or the base in water. Do not use corrosive or abrasive products. Clean the kettle and the base with a damp cloth. Rinse the inside of the kettle with water.

Fig. 10 / Fig. 11

Before cleaning the filter, it is necessary to disconnect the device from the power supply and let it cool down. Do not remove the filter while the device is still hot. To remove the filter, pull it upwards (10). Perform periodic checks to detect any parts in the filter. Rinse the filter under running water and, if necessary, use a soft brush.

Materials for secondary

Use gives advantages for processing.

When you decide to stop using the device in the future, it would be good, for example, to cut off its power cord to prevent its use by others. To dispose of it, it is necessary to follow the recycling process in accordance with the materials. For more information, contact local authorities.
