USER MANUAL MV 100 FAGOR

m = 311 ;

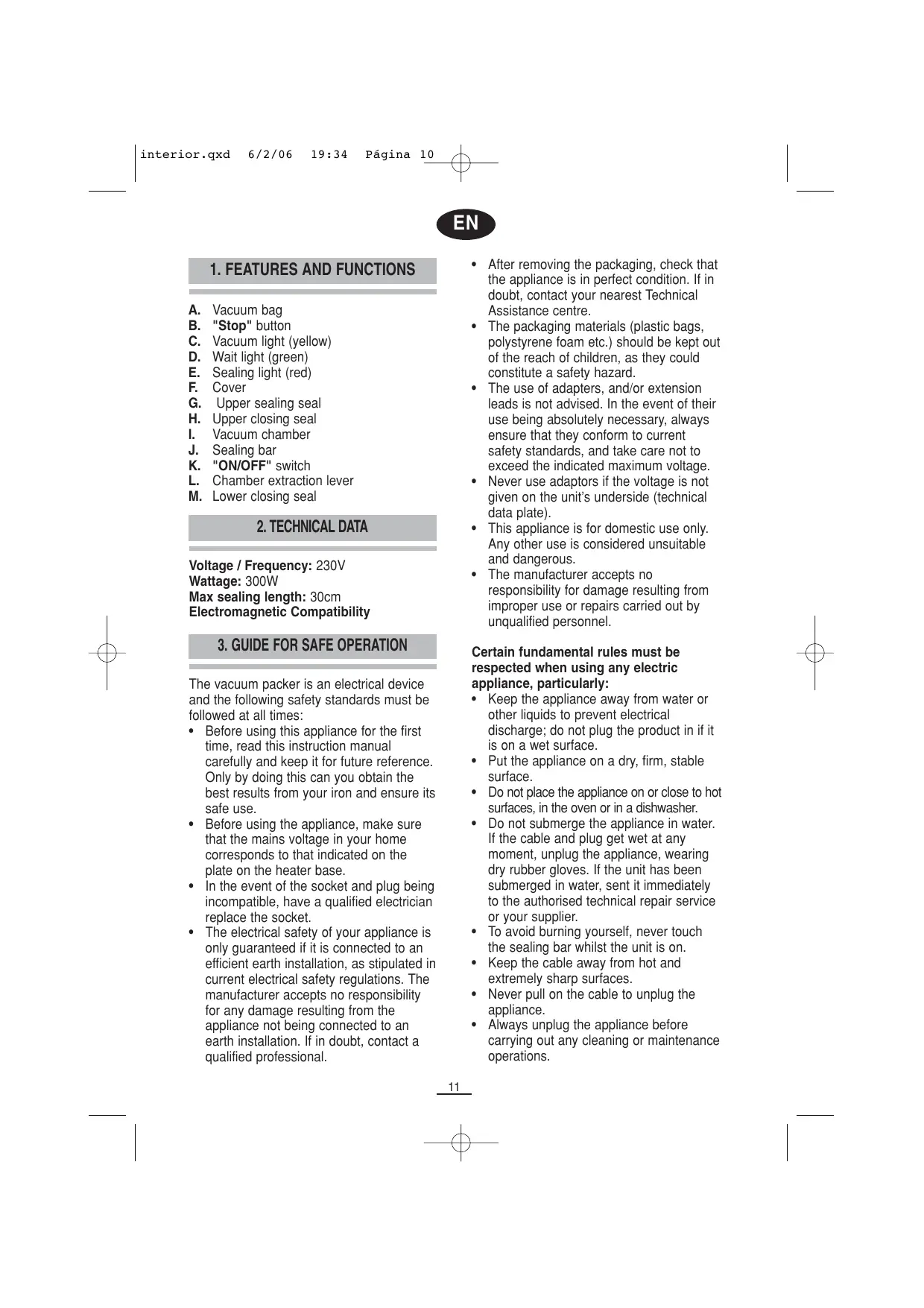

1. FEATURES AND FUNCTIONS

A. Vacuum bag
B. "Stop" button
C. Vacuum light (yellow)
D. Wait light (green)
E. Sealing light (red)
F. Cover
G. Upper sealing seal
H. Upper closing seal
I. Vacuum chamber
J. Sealing bar
K. "ON/OFF" switch
L. Chamber extraction lever
M. Lower closing seal

2. TECHNICAL DATA

Voltage / Frequency: 230V

Wattage: 300W

Max sealing length: 30cm

Electromagnetic Compatibility

The vacuum packer is an electrical device and the following safety standards must be followed at all times:

• Before using this appliance for the first time, read this instruction manual carefully and keep it for future reference. Only by doing this can you obtain the best results from your iron and ensure its safe use.
• Before using the appliance, make sure that the mains voltage in your home corresponds to that indicated on the plate on the heater base.
• In the event of the socket and plug being incompatible, have a qualified electrician replace the socket.
• The electrical safety of your appliance is only guaranteed if it is connected to an efficient earth installation, as stipulated in current electrical safety regulations. The manufacturer accepts no responsibility for any damage resulting from the appliance not being connected to an earth installation. If in doubt, contact a qualified professional.

After removing the packaging, check that the appliance is in perfect condition. If in doubt, contact your nearest Technical Assistance centre.
- The packaging materials (plastic bags, polystyrene foam etc.) should be kept out of the reach of children, as they could constitute a safety hazard.
- The use of adapters, and/or extension leads is not advised. In the event of their use being absolutely necessary, always ensure that they conform to current safety standards, and take care not to exceed the indicated maximum voltage.
- Never use adaptors if the voltage is not given on the unit's underside (technical data plate).
- This appliance is for domestic use only. Any other use is considered unsuitable and dangerous.
- The manufacturer accepts no responsibility for damage resulting from improper use or repairs carried out by unqualified personnel.

Certain fundamental rules must be respected when using any electric appliance, particularly:

• Keep the appliance away from water or other liquids to prevent electrical discharge; do not plug the product in if it is on a wet surface.
• Put the appliance on a dry, firm, stable surface.
• Do not place the appliance on or close to hot surfaces, in the oven or in a dishwasher.
• Do not submerge the appliance in water. If the cable and plug get wet at any moment, unplug the appliance, wearing dry rubber gloves. If the unit has been submerged in water, sent it immediately to the authorised technical repair service or your supplier.
• To avoid burning yourself, never touch the sealing bar whilst the unit is on.
• Keep the cable away from hot and extremely sharp surfaces.

• Never pull on the cable to unplug the appliance.
  Always unplug the appliance before carrying out any cleaning or maintenance operations.

• In the event of technical failure and/or improper working, switch the machine off and do not try to repair it. Repairs should only be carried out by a Technical Assistance Service authorised by the manufacturer. Always demand that original spare parts are used. Any failure to follow the above instructions could affect the safe functioning of the appliance.

• Do not pull the cable to turn it off. Use the "Stop" (B) button or the "ON / OFF" switch (K).
• Do not use detergents or abrasive scrubbers to clean the unit.
• The product is not designed to be used by children, keep it out of their reach.
  In order to get better results, use the bags and accessories recommended by the manufacturer.
• The user should never attempt to change the cable. If, for any reason, the cable requires changing, contact a Technical Assistance Service authorised by the manufacturer. Do not use the appliance if the cable or plug is damaged.
• If you decide never to use the appliance again, remove the plug from the socket and render it useless by cutting the power cable.

Protection against overheating

This appliance is equipped with a safety device which prevents sealing of the bag or receptacle if the unit overheats. The automatic thermal protection system will be activated for example:

• Extreme ambient conditions (e.g. 35^ (95^) and / or 10% extra voltage If the thermal protection system is activated, wait 30 minutes until the appliance has cooled before starting again allowing the protection system to be re-established.

4. OPERATING INSTRUCTIONS

Adjustment

Before using it for the first time, make sure that the vacuum chamber and the appliance parts which come into contact with the food are clean. Follow the cleaning instructions

in the "5. Maintenance and Cleaning" section.

How to dismantle the vacuum chamber

1. Move the chamber extraction lever (L) as shown in Fig. 2. Raise the left side of the vacuum chamber and pull it all out (Figure 3).
2. To refit the vacuum chamber (I), fit the right side into the right side of the coupling (Figure 4). Make sure that the suction nozzle (a) fits into the corresponding hole in the chamber and that the chamber's positioning tab (b) is inserted into its corresponding groove.
3. Press the left side into the coupling until the lever (L) clicks (Figure 5).

Vacuum packing

1. Put the appliance in a dry place. Make sure that the work area in front of the appliance is obstacle free and is wide enough for the food bags. Plug it in and press the "ON/OFF" switch (K); the green light will come on.
2. Make sure that the bag you want to use is at least 8 cm (3.1 in.) longer than the food. If you want to reuse the bag, you must take into account that you will need 2 cm more (0.8 in.) each time you want to reuse it.
3. Raise the cover (F) and place the food inside the bag, taking care not to cause wrinkles or tension on the surface. Remove the liquids or the residue from the food inside the bag which is about to be sealed. Put the bag with its contents in front of the machine positioning it inside the vacuum chamber (I) (Figure 6).
4. Lower the cover (F) completely and press it down for a few seconds (Figure 7). The yellow light (C) flashes whilst the unit is working. The vacuum cycle is now in progress. During the sealing phase, the red light (E) will also flash. When the bag has been sealed the two lights will go out. Now press the vacuum button (A) and let air enter the pneumatic circuit (Figure 8). Raise the cover and remove the bag with the end sealed.
5. If you need to interrupt the vacuum operation (e.g. the bag is not fitted

correctly) first press the "Stop" button (B) and then the vacuum button (A).

1. Check the appearance of the sealed bag; it should have a tape along the sealing and no wrinkles; if not, the sealing is possibly not complete.

Recommendation: If the food you are sealing have sharp edges, such as bones, spaghetti or seafood, put kitchen paper around these edges to avoid them ripping the bag.

Information on the bags

This appliance can use bags available on the market which are suitable for vacuum packing. However, Fagor only guarantees correct functioning of the appliance with the bags and accessories in its own range.

Fagor bags can be reused, they are suitable for the microwave and freezer and they can be boiled.

Before reusing a bag, wash it first as indicated in "Maintenance and Cleaning"

Vacuum adjustment function

You can remove the bag with the vacuum level of your choice. Follow normal operations according to what was described above to create the vacuum inside the bags. During the operation, whilst the yellow light (C) is flashing, briefly press the "Stop" button (B). The red light (E) will come on, meaning that the sealing bar has been activated. When sealing is completed, the unit automatically finishes its work cycle.

5. MAINTENANCE AND CLEANING

Cleaning

• Wash your hands before cleaning the machine and its accessories.
• Make sure the unit is unplugged before cleaning it.
• Clean the outer surfaces of the appliance with a damp cloth (no detergent) before and after use.
• Do not use detergents or abrasive products to clean the appliance
• Do not submerge the appliance in water to clean it
• The vacuum chamber can be cleaned under a running tap or in the dishwasher

(Figure 9). To dismantle the chamber see "How to dismantle the vacuum chamber"

Warning: Make sure the unit is unplugged before cleaning it. If liquid is spilt accidentally in any part of the unit, do not plug it in or try to reuse it. Contact the authorised technical service or supplier.

Re-using Fagor bags

If you want to re-use a used Fagor bag, firstly you must clean it using neutral soap and leave it to dry completely before using it again. They can also be washed in the dishwasher.

Maintenance

With use, the upper (H) and lower (M) closing seals deteriorate and need to be replaced with new seals.

From time to time, turn the seal over. Dismantle the seal and fit it upside down (Fig. 10)

6. TROUBLE SHOOTING

Here are the steps to follow if you experience problems with the product.

The appliance does not work.

• Make sure that the unit is plugged in correctly. Check the electrical socket by plugging in another appliance.
• Check that the "ON/OFF" switch (K) has been pressed correctly. The green light (D) must come on.
• If the unit has overheated, sealing is interrupted automatically. Let it cool for 30 minutes and try again.
• Check if the cable or plug is damaged. If so, do not try to work it again.

The unit does not create a complete vacuum inside the bags

• The open end of the bag should remain completely inside the vacuum chamber coupling.
• Check for impurities in the sealing seals and the seals. Clean them and put them back in the correct position.
• Turn the useful side of the lower seal over by turning it.
• The bag could have a hole in it. To check this, seal the bag with some air inside,

submerge the bag in water and squeeze it.
Bubbles will indicate that there is a leak.
Seal it again or use another bag

The bags have not sealed correctly

• The cause could be the sealing bar overheating or the bag has melted. Open the cover and let the sealing bar cool for several minutes.

The bag did not maintain the vacuum after being sealed

• This can be caused by a leak due to wrinkles, crumbs, fat or liquid. Open the bag, clean the upper part and remove any foreign matter from the sealing bar before trying to seal it again.

• Make sure that the bag does not have any holes. If the food to be sealed has sharp edges, first cover it with serviettes or kitchen paper.

7. DURATION OF VACUUM PACKED FOOD

Vacuum packing processes prolong the life of food by eliminating most of the air in the sealed receptacle, thereby reducing oxidation which affects the nutritional value, their flavour and above all the quality. Expelling air also inhibits proliferation of micro-organisms Below is a list of the storage times for vacuum packed foods. These times are just a guideline and can vary depending on how well the food is cooked and its original quality.

	Normal storage time	Vacuum packed storage time
REFRIGERATED FOOD (5 ± 2 °C)
Beef, lamb, pig	3 – 4 days	8 – 9 days
Poultry	2 – 3 days	6 – 8 days
Fish	1 – 3 days	4 – 5 days
Salami	7 days	25 days
Salami slices	4 – 6 days	20 – 25 days
Soft cheese	5 – 7 days	20 days
Very hard cheese	15 days	60 days
Vegetables	1 – 3 days	7 – 10 days
Fruit	5 – 7 days	14 – 20 days
COOKED AND REFRIGERATED FOOD (5 ± 2 °C)
Soup	2 – 3 days	8 – 10 days
Pasta and rice/risotto	2 – 3 days	6 – 8 days
Stewed or roast meat	3 – 5 days	10 – 15 days
Cakes	2 – 3 days	8 days
FROZEN FOOD (-18 ± 2 °C)
Meat	4 – 6 months	15 – 20 months
Fish	3 – 4 months	10 – 12 months
Vegetables	8 – 10 months	18 – 24 months
FOOD AT HIGH AMBIENT TEMPERATURE (25 ± 2 °C)
Fresh bread	1 – 2 days	8 – 10 days
Biscuits	4 – 6 months	12 months
Pasta and rice	5 – 6 months	12 months
Flour	4 – 5 months	12 months
Nuts	3 – 4 months	12 months
Ground coffee	2 – 3 months	12 months
The	5 – 6 months	12 months
Powdered milk	1 – 2 months	12 months

8. INFORMATION FOR THE CORRECT DISPOSAL OF ELECTRICAL AND ELECTRONIC APPLIANCES

At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or to

a dealer providing this service. Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving from inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources.

To remind you that you must collaborate with a selective collection scheme, the symbol shown appears on the product warning you not to dispose of it in traditional refuse containers.

For further information, contact your local authority or the shop where you bought the product.
