| Product type | High-pressure cleaner |
| Brand | KARCHER |
| Model | K4 COMPACT / K4 |
| Dimensions (L × W × H) | 516 × 295 × 282 mm |
| Weight (operational) | 12.2 kg |
| Supply voltage | 230 V ~ 50 Hz |
| Power consumption | 1.8 kW |
| Protection class | IP X5, class I |
| Operating pressure | 11 MPa (110 bar) |
| Maximum permissible pressure | 13 MPa (130 bar) |
| Water flow rate (nominal) | 6.3 l/min |
| Water flow rate (maximum) | 7.0 l/min |
| Maximum feed water temperature | 40 °C |
| Maximum water supply pressure | 0.8 MPa (8 bar) |
| Maximum suction height | 0.5 m |
| Sound pressure level (LpA) | 75 dB(A) |
| Sound power level (LWA) | 91 dB(A) |
| Supplied accessories | Gun, 10 m high-pressure hose, Vario Power lance, dirt blaster, washing brush, rotary brush, foam nozzle (depending on model) |
| Main functions | High-pressure cleaning, detergent suction, continuous pressure regulation, automatic pump shut-off |
| Safety devices | Main switch, gun lock, pressure relief valve with pressure switch |
| Routine maintenance | Clean the water inlet filter and the detergent hose filter |
| Warranty | According to applicable conditions in the country (check with dealer) |
Frequently Asked Questions - K4 COMPACT, K4 KARCHER
User questions about K4 COMPACT, K4 KARCHER
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Pressure washer in PDF format for free! Find your manual K4 COMPACT, K4 - KARCHER and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. K4 COMPACT, K4 by KARCHER.

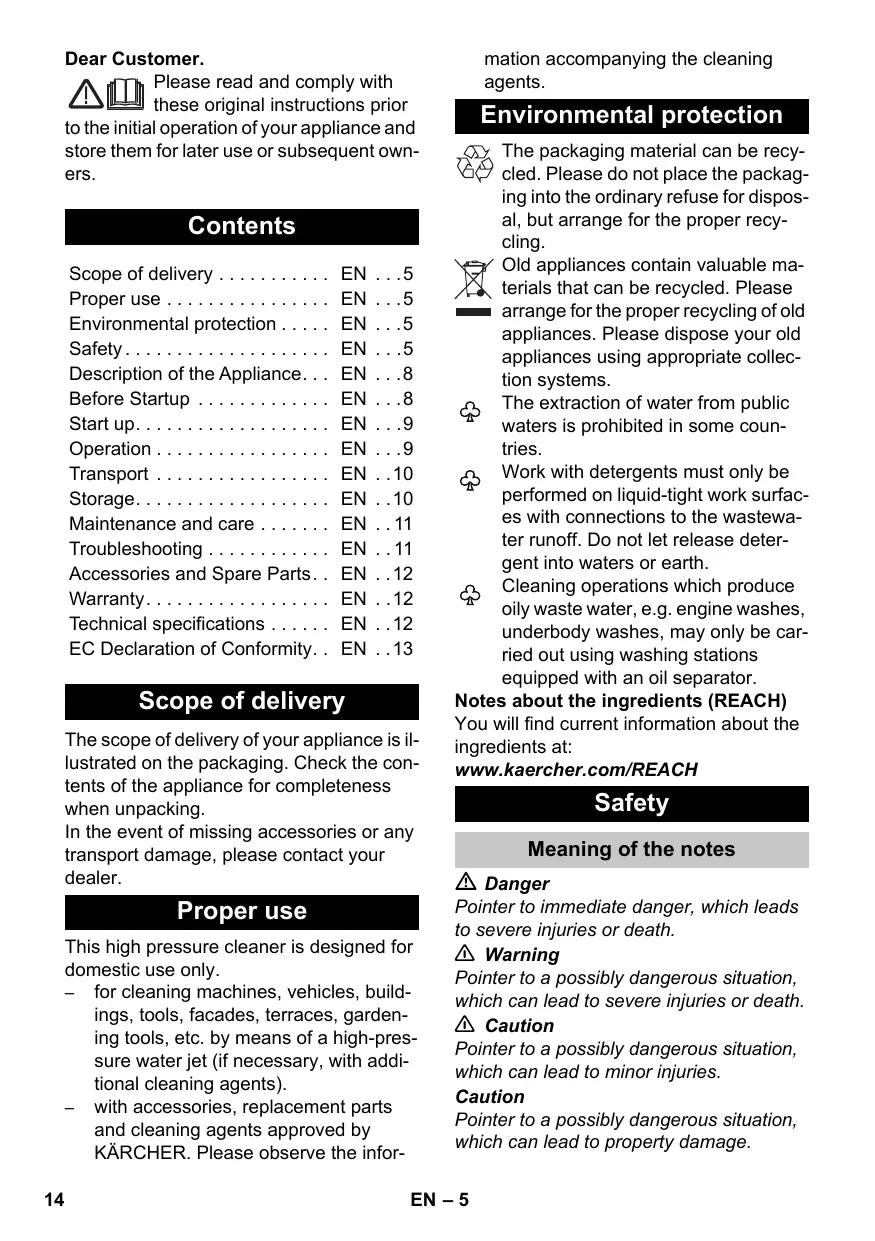

USER MANUAL K4 COMPACT, K4 KARCHER
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2013/09/01
Dear Customer.
Please read and comply with these original instructions prior
to the initial operation of your appliance and store them for later use or subsequent owners.
Contents
Scope of delivery EN .5
Proper use EN .5
Environmental protection . EN . .5
Safety EN 5
Description of the Appliance... EN . . .8
Before Startup EN .8
Start up. EN 9
Operation EN 9
Transport EN .10
Storage. EN .10
Maintenance and care EN .11
Troubleshooting EN .11
Accessories and Spare Parts.. EN . .12
Warranty. EN .12
Technical specifications EN .12
EC Declaration of Conformity.. EN ..13
Scope of delivery
The scope of delivery of your appliance is illustrated on the packaging. Check the contents of the appliance for completeness when unpacking.
In the event of missing accessories or any transport damage, please contact your dealer.
Proper use
This high pressure cleaner is designed for domestic use only.
- for cleaning machines, vehicles, buildings, tools, facades, terraces, gardening tools, etc. by means of a high-pressure water jet (if necessary, with additional cleaning agents).
with accessories, replacement parts and cleaning agents approved by KÄRCHER. Please observe the infor
mation accompanying the cleaning agents.
Environmental protection
The packaging material can be recycled. Please do not place the packaging into the ordinary refuse for disposal, but arrange for the proper recycling.
Old appliances contain valuable materials that can be recycled. Please arrange for the proper recycling of old appliances. Please dispose your old appliances using appropriate collection systems.
The extraction of water from public waters is prohibited in some countries.
Work with detergents must only be performed on liquid-tight work surfaces with connections to the wastewater runoff. Do not let release detergent into waters or earth.
Cleaning operations which produce oily waste water, e.g. engine washes, underbody washes, may only be carried out using washing stations equipped with an oil separator.
Notes about the ingredients (REACH)
You will find current information about the ingredients at:
www.kaercher.com/REACH
Safety
Meaning of the notes
Danger
Pointer to immediate danger, which leads to severe injuries or death.
Warning
Pointer to a possibly dangerous situation, which can lead to severe injuries or death.
Caution
Pointer to a possibly dangerous situation, which can lead to minor injuries.
Caution
Pointer to a possibly dangerous situation, which can lead to property damage.
Symbols on the machine
The appliance must not be directly connected to the public drinking water network.
1 Risk of damage! The appliance must only be operated laying down (horizontal).
2 The high pressure jet may not be directed at persons,
animals, live electrical equipment or at the appliance itself.
3 Protect the appliance against frost.
Electric components
Danger
- Never touch the mains plug and the socket with wet hands.
Check the power cord with mains plug for damage prior to every use. Immediately have damaged power cord replaced by an authorised customer service / electrician. Do not operate an appliance if the power cord is damaged.
All current-conducting parts in the working area must be protected against jet water.
The mains plug and the coupling of an extension cable must be watertight and must never lie in water. Moreover, the coupling may never lie on the ground. The use of cable reels that ensure that the sockets are at least 60~mm above the ground is recommended.
Make sure that the power cord or extension cable is not damaged by running over, pinching, dragging or the like. Protect the power cords from heat, oil, and sharp edges.
Warning
The appliance may only be connected to alternating current. The voltage must correspond with the type plate of the appliance.
The appliance may only be connected to an electric supply that has been installed by an electrician in accordance with IEC 60364.
- Unsuitable electrical extension cables can be hazardous. Only use electrical extension cables outdoors which have been approved and labelled for this purpose and have an adequate cable cross-section: 1 - 10 ~m: 1.5 ~mm^2; 10 - 30 ~m: 2.5 ~mm^2 :
Always fully unreel the extension cable from the cable drum.
For safety reasons, we recommend that you operate the appliance only via a residual current device (max. 30 mA).
Safe handling
Danger
- Check important components, such as high-pressure hose, hand spray gun and safety installations, for damage prior to every operation. Immediately replace damaged components. Do not operate appliance with damaged components.
The high-pressure jet must not be directed at other persons or the user him/herself to clean clothing or footwear. - Never use the appliance to clean objects containing hazardous substances (e.g. asbestos).
Vehicle tyres/tyre valves are susceptible to damage from the high-pressure jet and may burst. The first indication for this is a discolouration of the tyre. Damaged vehicle tyres/tyre valves are perilous. Keep a minimum jet distance of 30 cm during cleaning! - Keep packaging films away from children, there is a risk of suffocation!
Warning
The appliance must not be operated by children or persons who have not been instructed accordingly.
This appliance is not intended for use by persons with limited physical, sensory or mental capacities or lacking experience and/or skills, unless such persons are accompanied and supervised by a person in charge of their safety or they have received precise instructions on the use of this appliance and have understood the resulting risks.
Children must not play with this appliance.
Supervise children to prevent them from playing with the appliance.
The user must use the appliance as intended. The person must consider the local conditions and must pay attention to other persons in the vicinity when working with the appliance.
High-pressure hoses, fixtures and couplings are important for the safety of the appliance. Only use high-pressure hoses, fixtures and couplings recommended by the manufacturer.
- Do not use the appliance when there are other persons around unless they are also wearing protective clothing.
This appliance was designed to be used with detergents which are supplied or recommended by the manufacturer. The use of other detergents or chemicals may compromise the safety of the appliance.
Caution
In case of extended breaks, switch the appliance off at the main switch / appliance switch or pull the mains plug.
- Keep a distance of at least 30~cm when using the jet for cleaning painted surfaces to avoid damage.
- Never leave the appliance unattended as long as it is in operation.
- Do not operate the appliance at temperatures below 0^ .
Other risks
Danger
Do not spray flammable liquids.
- Never draw in fluids containing solvents or undiluted acids and solvents! This includes petrol, paint thinner and heating oil. The spray mist is highly inflammable, explosive and poisonous. Do not use acetone, undiluted acids and solvents, as they corrode the materials used on the appliance.
The appliance may not be operated in explosive atmospheres.
If the appliance is used in hazardous areas (e.g. filling stations) the corresponding safety regulations must be observed.
Personal protective equipment
Wear protective clothing and safety goggles to protect against splash back containing water or dirt.
Stability
Caution
Create stability for the appliance prior to any work on or with the appliance to prevent accidents or damage.
The stability of the appliance is warranted when it is placed onto an even surface.
Safety Devices
Caution
Safety installations serve the protection of the user and may not be modified or bypassed.
Appliance switch
The appliance switch prevents unintentional operation of the appliance.
Lock trigger gun
This lock locks the lever of the trigger gun and prevents the inadvertent start of the appliance.
Overflow valve with pressure switch
The overflow valve prevents the permissible working pressure from being exceeded. If the lever on the trigger gun is released the pressure switch turns off the pump, the high pressure jet is stopped. If the lever is pulled the pump is turned on again.
Description of the Appliance
These operating instructions describe the maximum equipment. Depending on the model, there are differences in the scopes of delivery (see packaging).
Illustrations on fold-out page!
1 Storage for accessories
2 Transport handle, detachable
3 Quick coupling for high pressure hose
4 Appliance switch "0/OFF"/,I/ON"
5 Mains cable with mains plug
6 Carrying handle
7 Bearing wheel
8 Water connection with integrated sieve
9 Coupling element for water connection
10 Detergent suction hose (with sieve)
11 Trigger gun
12 Lock trigger gun
13 High pressure hose
14 Key to detach the high pressure hose from the trigger gun
15 Spray lance with pressure regulation (Vario Power)
Carrying out the most common cleaning tasks. The work pressure can be stagelessly regulated between "Min" and "Max". You can add detergent when "Mix" is selected.
In order to adjust the working pressure, release the lever of the hand spray gun and turn the spray lance to the desired position.
16 Spray lance with Dirtblaster For strong contaminations
* Optional accessories
17 Washing brush
Suitable for use with detergents.
18 Rotary washing brush
Suitable for use with detergents.
Especially suitable for cleaning cars.
19 Foam nozzle with detergent container With powerful foam for effortless cleaning.
\*\* Not included in the delivery
20 Water supply hose
Use a fabric reinforced water hose with a commercially available coupling. Minimum diameter 13mm (1/2 inch); minimum length 7.5 m.
Before Startup
Attaching the Accessories
Mount loose parts delivered with appliance prior to start-up.
Illustrations on fold-out page!
Illustration A
Screw the coupling element to the water connection on the appliance.
Illustration B
Push the high pressure hose into the trigger gun until it locks audibly.
Note: Make sure the connection nipple is aligned correctly.
Check the secure connection by pulling on the high pressure hose.
Water supply
For connection values, see type plate/technical data.
Caution
Impurities in the water can damage the high-pressure pump and the accessories.
For protection, the use of the KÄRCHER water filter (optional accessory, order no.
4.730-059) is recommended.
Water supply from mains
Observe regulations of water supplier.
Warning
According to applicable regulations, the appliance must never be used on the drinking water net without a system separator. A suitable system separator by KARCHER or alternatively a system separator according to EN 12729 type BA must be used.
Water that has flown through a system separator is no longer classified as drinking water.
Caution
Always connect the system separator to the water supply, never directly to the appliance!
Drawing in water from open reservoirs
This high-pressure cleaner is suited to work with the KÄRCHER suction hose with backflow valve (Optional accessory, order no. 4.440-238) to draw in surface water, e.g. from water butts or ponds (see specifications for max. suction height).
Fill the suction hose with water.
Screw the suction hose into the water connection of the appliance and insert it into the water source (e.g. rainwater drum).
Start up
Caution
Dry running of more than 2 minutes leads to damage of the high-pressure pump. If the appliance does not build up pressure within 2 minutes, switch the appliance off and proceed in accordance with the instructions in Chapter "Troubleshooting".
Illustration C
Push the high pressure hose into the quick coupling until it locks audibly.
Attach the water supply hose to the coupling on the water connection. Note: The supply hose is not included.
Connect the water supply hose to the water supply.
Completely open the water tap.
Insert the mains plug into the socket.
Turn on the appliance "I/ON".
Illustration D
Unlock the lever on the trigger gun.
Pull on the lever of the trigger gun; the device will switch on.
Switch the appliance on for a (max. of 2 minutes) and wait until the water exits at the hand spray gun without bubbles.
Release the lever on the trigger gun. Note: Release the lever of the trigger gun; the device will switch off again.
High pressure remains in the system.
Illustration E
Lock the lever on the trigger gun.
Operation
Danger
The water jet that is emitted from the high-pressure nozzle results in a repulsion power acting on the hand spray gun. Make sure that you have a firm footing and are also holding the hand spray gun and spray lance firmly.
Danger
High-pressure jets can be dangerous if improperly used. The jet may not be directed at persons, animals, live electrical equipment or at the appliance itself.
Caution
Risk of damage! The appliance must only be operated laying down (horizontal).
Caution
Car tyres, paint or sensitive surfaces such as wood should not be cleaned with the dirt blaster, as there is a risk of damage.
Caution
Risk of damage to the paintwork
When working with the washing brush, it must be free of dirt or other particles.
Illustration F
Push the spray lance into the trigger gun and fasten it by turning it through 90^ .
Unlock the lever on the trigger gun.
Pull on the lever of the trigger gun; the device will switch on.
Note: Release the lever of the trigger gun; the device will switch off again. High pressure remains in the system.
Working with detergent
Danger
The use of wrong detergents or chemicals can compromise the safety of the appliance.
Please use exclusively KÄRCHER detergents and care products to carry out the respective cleaning task, as these were specifically developed for your appliance. The use of other detergents and care products may lead to premature wear and can invalidate your warranty claims. Please obtain information at your local dealer or request information directly from KÄRCHER.
Danger
The improper use of detergents can cause severe injuries or toxication.
When using detergents, the material data safety sheet issued by the detergent manufacturer must be adhered to, especially the instructions regarding personal protective equipment.
Illustration G
Pull detergent suction hose as far as is required out of the housing.
Suspend end of detergent suction hose in a container filled with detergent.
Use spray lance with pressure regulation (Vario Power).
Turn the spray lance to "Mix" position. Note: This will mix the detergent with the water stream.
Optional
Fill the detergent solution in the detergent tank of the foam nozzle (observe dosage instructions on the packaging of the detergent).
Recommended cleaning method
Spray the detergent sparingly on the dry surface and allow it to react, but not to dry.
Spray off loosened dirt with the high pressure jet.
Interrupting operation
Release the lever on the trigger gun.
Lock the lever on the trigger gun.
During longer breaks (more than 5 minutes), also turn the appliance off using the "0/OFF" switch.
Finish operation
Caution
Only separate the high-pressure hose from the hand spray gun or the appliance when there is no pressure in the system.
Caution
When disconnecting the supply or high pressure hose, warm water may leak from the connections after operation.
After operation with detergent: Run the machine for approximately 1 minute for a clear rinse.
Release the lever on the trigger gun.
Turn off the appliance "0/OFF".
Turn off tap.
Press the lever on the trigger gun to release any remaining pressure in the system.
Lock the lever on the trigger gun.
Disconnect the mains plug from the socket.
Detach the appliance from the water supply.
Transport
Caution
In order to prevent accidents or injuries, mind the weight of the appliance during transport (see technical data).
When transporting by hand
Illustration H
Lift appliance by the carrying handle and carry it.
Illustration 1
Pull out the transport handle until it audibly snaps into place.
Pull the appliance by its transport handle.
When transporting in vehicles
Secure the appliance against shifting and tipping over.
Storage
Caution
In order to prevent accidents or injuries, mind the weight of the appliance when choosing the storage location (see technical data).
Storing the Appliance
Prior to extended storage periods, as during the winter, also observe the instructions in the Care section.
Park the machine on an even surface.
Press the disconnect on the trigger gun and remove the high pressure hose from the trigger gun.
Push the casing of the quick coupling for the high pressure hose toward the rear and disconnect the high pressure hose from the appliance.
Illustration 1
Stow away the mains cable, the high-pressure hose and accessory on the appliance.
Frost protection
Caution
Appliances and accessories that are not completely drained can be destroyed by frost. Completely drain appliance and accessories and protect them against frost. To avoid damage:
Completely drain all water from the appliance: Switch the appliance on with detached high pressure hose and detached water supply (max. 1 minute) and wait, until no more water exits at the high pressure connection. Turn off the appliance.
Store the appliance and the entire accessories in a frost free room.
Maintenance and care
Danger
Risk of electric shock. Turn off the appliance and remove the mains plug prior to performing any care and maintenance work.
Care
Prior to longer periods of storage, e.g. in the winter:
Remove filter from suction hose for detergent and clean under running water.
Pull out the sieve in the water connection using flat-nose pliers and clean under running water.
Maintenance
The appliance is maintenance free.
Troubleshooting
You can rectify minor faults yourself with the help of the following overview. If in doubt, please consult the authorized customer service.
Danger
Risk of electric shock. Turn off the appliance and remove the mains plug prior to performing any care and maintenance work.
Repair work and work on the electrical components may only be performed by an authorised customer service.
Appliance is not running
Pull on the lever of the trigger gun; the device will switch on.
Check whether the voltage indicated on the type plate corresponds to the voltage of the mains supply.
Check the mains connection cable for damages.
Appliance does not start, motor hums
Voltage reduction due to weak mains supply or when using an extension cable.
When switching on, first pull the lever of the trigger gun and then switch the appliance switch to "I/ON".
Pressure does not build up in the appliance
Check setting at the spray lance.
Check water supply for adequate delivery rate.
Pull out the sieve in the water connection using flat-nose pliers and clean under running water.
Appliance ventilation: Switch the appliance on with the high-pressure hose detached and operate (max. 2 minutes) until the water exits the high-pressure connection without bubbles. Switch off appliance and reconnect high-pressure hose.
Strong pressure fluctuations
Clean high-pressure nozzle: Remove dirt and debris from the nozzle bore, using a needle and rinse through with water from the front.
Check water flow quantity.
Appliance is leaking
Slight leakage from the appliance pump is normal. If the leakage increases contact the authorized customer service.
No detergent infeed
Use spray lance with pressure regulation (Vario Power).
Turn the spray lance to "Mix" position.
Clean the detergent suction hose filter.
Check the detergent suction hose for kinks.
Accessories and Spare Parts
Special accessories
Special accessories expand the possibilities of using your appliance. Please contact your KÄRCHER dealer for further information.

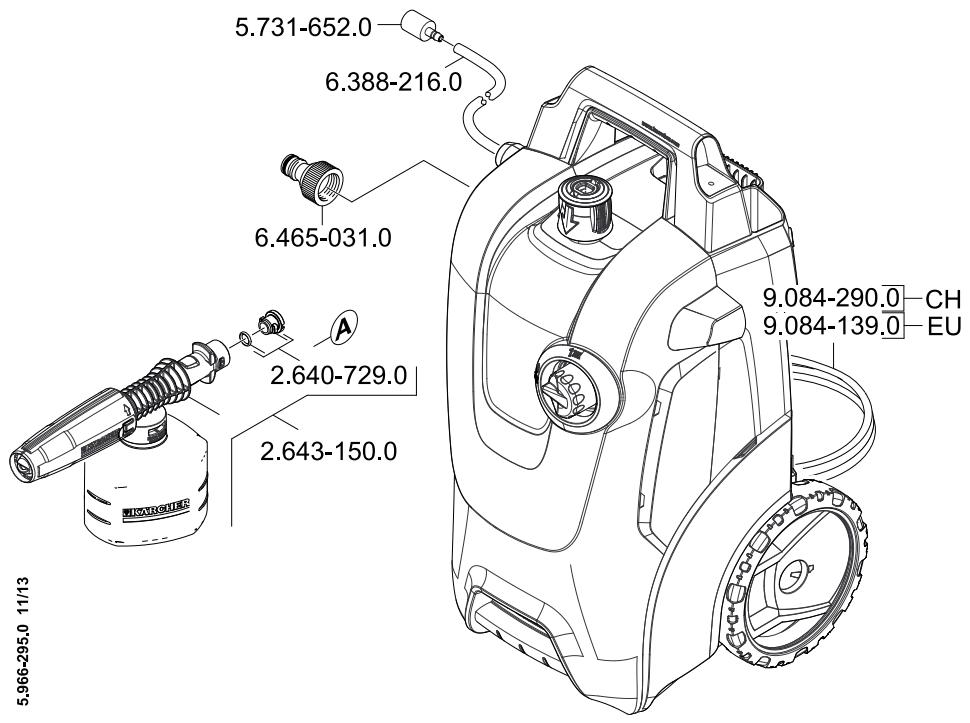

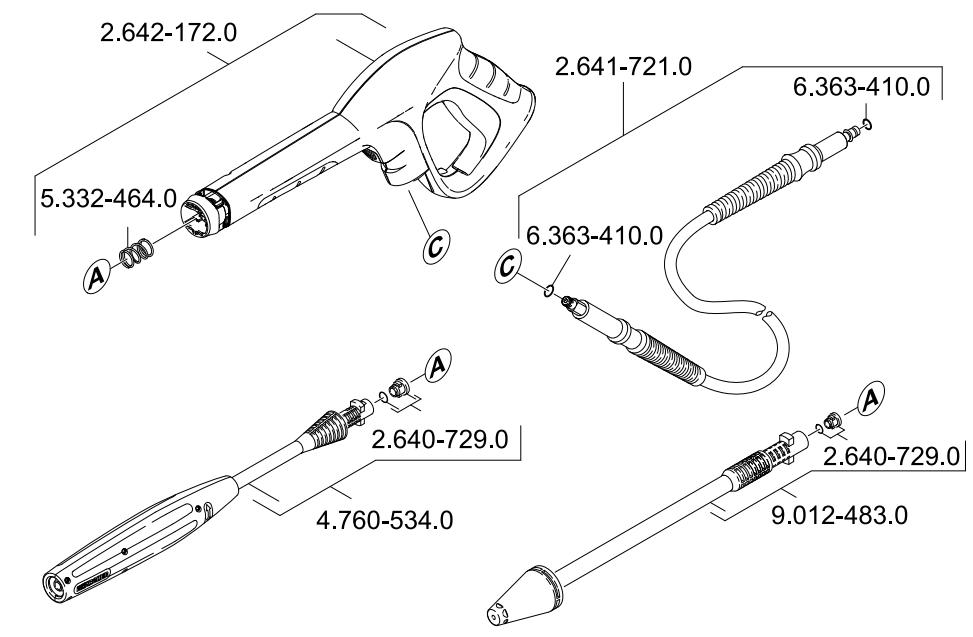

Spare parts
Use only original KÄRCHER spare parts. You will find a list of spare parts at the end of these operating instructions.
Warranty
The warranty terms published by the relevant sales company are applicable in each country. We will repair potential failures of your appliance within the warranty period free of charge, provided that such failure is caused by faulty material or defects in manufacturing. In the event of a warranty claim please contact your dealer or the nearest authorized Customer Service centre.
Please submit the proof of purchase.
Addresses can be found under:
www.kaearcher.com/dealersearch
Technical specifications
| Electrical connection | |
| Voltage | 230 V |
| 1~50 Hz | |
| Connected load | 1,8 kW |
| Protection class | IP X5 |
| Protective class | I |
| Mains fuse (slow-blow) | 10 A |
| Water connection | |
| Max. feed pressure | 0,8 MPa |
| Max. feed temperature | 40 °C |
| Min. feed volume | 9 l/min |
| Max. Suction height | 0,5 m |
| Performance data | |
| Working pressure | 11 MPa |
| Max. permissible pressure | 13 MPa |
| Water flow rate | 6,3 l/min |
| Max. feed volume | 7,0 l/min |
| Detergent flow rate | 0,3 l/min |
| Recoil force of trigger gun | 16 N |
| Dimensions and weights | |
| Length | 516 mm |
| Width | 295 mm |
| Height | 282 mm |
| Weight, ready to operate with accessories | 12,2 kg |
| Values determined as per EN 60335-2-79 | |
| Hand-arm vibration value | <2,5 m/s² |
| Uncertainty K | 0,3 m/s² |
| Sound pressure level LpA | 75 dB(A) |
| Uncertainty KpA | 3 dB(A) |
| Sound power level LWA + Uncertainty KWA | 91 dB(A) |
Subject to technical changes.
EC Declaration of Conformity
We hereby declare that the machine described below complies with the relevant basic safety and health requirements of the EU Directives, both in its basic design and construction as well as in the version put into circulation by us. This declaration shall cease to be valid if the machine is modified without our prior approval.
Product: High pressure cleaner
Type: 1.637-xxx
Relevant EU Directives
2000/14/EC
2004/108/EC
2006/42/EC (+2009/127/EC)
2011/65/EU
Applied harmonized standards
EN 50581
EN 55014-1: 2006+A1: 2009+A2: 2011
EN 55014-2: 1997+A1: 2001+A2: 2008
EN 60335-1
EN 60335-2-79
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2008
EN 62233: 2008
Applied conformity evaluation method
2000/14/EC: Appendix V
Sound power level dB(A)
Measured: 87
Guaranteed: 91
The undersigned act on behalf and under the power of attorney of the company management.
H.Jenner
CEO
S. Reiser
Head of Appropriation
Authorised Documentation Representative
S. Reiser
71364 Winnenden (Germany)
Phone: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2013/09/01
Cher client,
www.kaercher.com/REACH
Sécurité
Manipulation friable
Danger
2006/42/CE (+2009/127/CE)
2011/65/UE
71364 Winnenden (Germany)
Telephone: +49 7195 14-0
Winnenden, 2013/09/01
Gentile cliente,
www.kaercher.com/REACH
Sicurezza
www.kaercher.com/dealersearch
Dati tecnici
2006/42/CE (+2009/127/CE)
2011/65/UE
S. Reiser
Head of Approbation
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2013/09/01
Geachte klant
www.kaercher.com/REACH
Veiligheid
www.kaearcher.com/dealersearch
Technische gegevens
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2013/09/01
Estimado cliente:
www.kaercher.com/REACH
Seguridad
2006/42/CE (+2009/127/CE)
2011/65/UE
71364 Winnenden (Germany)
Tele.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2013/09/01
Estimado cliente
Leia o manual de manual original antes de utiliser o seu apare-
Dados techniques. PT...14
www.kaercher.com/REACH
Seguraçā
2006/42/CE (+2009/127/CE)
2011/65/UE
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2013/09/01
Kare kunde.
www.kaercher.com/REACH
Sikkerhed
www.kaearcher.com/dealersearch
Tekniske data
2006/42/EF (+2009/127/EF)
2011/65/EU
71364 Winnenden (Germany)
TIf.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2013/09/01
Kjare kunde.
www.kaercher.com/REACH
Sikkerhet
** Leveres/DDs standard
www.kaercher.com/dealersearch
Tekniske data
Relevante EU-directiver
2000/14/EF
2004/108/EF
2006/42/EF (+2009/127/EF)
2011/65/EU
Anvende overensstemmende normer
EN 50581
EN 55014-1: 2006+A1: 2009+A2: 2011
EN 55014-2: 1997+A1: 2001+A2: 2008
EN 60335-1
EN 60335-2-79
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3:2008
EN 62233: 2008
Anvendt metode for samsvarsvduring
2000/14/EF:Vedlegg V
Lydeffektnivá dB(A)
Malt: 87
Garantert: 91
71364 Winnenden (Germany)
TIf: +49 7195 14-0
Winnenden, 2013/09/01
Bästekund,
#
www.kaercher.com/REACH
Sakerhet
www.kaearcher.com/dealersearch
Tekniska data
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2013/09/01
Arvoisa asiakas
www.kaercher.com/REACH
Turvallisuus
71364 Winnenden (Germany)
Puh.: +49 7195 14-0
Winnenden, 2013/09/01
Axiotmu EeAatn.
Piv xpoaiouioeTe Tn ou
Okeun oac yia npwtn popa, dia
BaoTe autcTG TTpWTOTUttc eOnc, Evpyntoe Ouupwva e autcKai Kpa
Tnote Tc yia eAovtikxpnn n Yia Tov
ETIOEVOIOKTInT.
Anawon ZuumoppwosTwv
E.K. EL .15
Σuokεuaoia
To Tnpaoboto uliko tns ouakeunc atteikoVizetai otuokueaia. Kata tvn atouoKekuaia elevyTe To Tnepiexóveo tnc wTpoc nTv nI npotnta.
www.kaercher.com/REACH
Aoαλεια
www.kaercher.com/dealersearch
S. Reiser
Head of Appropriation
YtueBuvos teKunpiwns
S. Reiser
71364 Winnenden (Germany)
Tnλ::+49719514-0
Φaξ: +49 7195 14-2212
Winnenden, 2013/09/01
Sayin musterimiz,
www.kaercher.com/REACH
Güvenlik
Uyarilarin anlami
Tehlike
www.kaearcher.com/dealersearch
Teknik Bilgiler
Elektrik böglantisi
S. Reiser
Head of Approbation
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Winnenden, 2013/09/01
YbaxaemblnokynataJIb!
IpeepnepBbIM npimHeHnemBaawero npnbopa npoHTaTe
3Ty opuHnHaIbHyU INHCTpyKUIO NO 3KcNlyaTaun, NocLe 3TOrO DeIeCTByIe COOTBeTCTBENHO COxpaHnte ee IJy DaJIbHeIseTo NOJb3OBAHnI INI dIe CNeDuIoero BlaJeIbca.
OrnaBneHne
KOMJIeKT IOCTaBKn RU .5
IcnoJIb3ObaHne no Ha3HaueHHIO RU . .5
3aunTa okpykaioe cpebl..RU...5
Be3onacHocTb RU...6
Описане пибopa .RU...9
Ipeud hauanom pa60tbU .9
Hauano pa60tbl RU .10
3Kcnpnyataua RU..11
TpaHcnpToPobKa RU..12
Xpahene. RU .12
YxOДиTexHnueckoe obcIyKuBaHne.RU..13
Pomoub B cnyaehenonaek.RU..13
www.kaercher.com/REACH
Be30nachoctb
3haeHne yka3aHn:
Onachocmb
Yka3aHue omHocumelbHo HenocpeDcmeHHO ap03raeU onachocmu, Komopar npueodum K mJKeIbIM yeebym UUNKcmepmu.
IpeynpeXdeHue
Yka3aHue omHocumelbHo 6o3MOxHOu noMeHcuaIbHo onaChou cumyaauu, KOMopaR moKem npueecmu KmJKeIbIM yEyBMy UUN K Cmepmu.
BhumaHue!
Yka3aHue Ha nomeHuzaJIbHo onaChyU cUmyaIku, Komopar MoKem npubeecMu KnolyuHIO neakux mpaem.
BhumaHue
Yka3aHue omHocumelbHo 8o3MoXHO noMeHcuaJIbHO onaCHO cUmyaUu, KOMopaJ MOxem noeJeB mamepuJIbHbI yuepe6.
CnmbonblHa npnbope
3aepaaemcHnprmyo nod KnUoyMb ycmpoucmeo Kmpybo npoeody c numbeoou eodoi.
1 Onachocmb nopekdeHnra! Ycmpoucmo pa3peWaaemc uCNoIb3OaMb mJbKO e Jexkaem (eOpu3OHmaJIbHOM) NOJIOKeHuU.
2 He hnapaBnAmbcmpyOeObIHaJIIOdeu, XueomHbIX, EKnIOUeHNHe 3JeKmpuueckoe obOpdyoBaHue UNu Ha cam bBCOKOHApHbIMoOuU annapam.
3 3auiuamb npubop om mopo3a.
3NeKtpnueckne KOMNoHEtbl
Onachocmb
Hu 6 Koem cnyae He npukacambc K umenceIbHOB 8unke U po3emKe MokpbIMu pykAm.
Ipeod hauanom paobmblc annapamom npoeepumb cemeoou coedunHmehblkabenu umencelhyo eunky ha nopexdeHn. PoepexdeHblc meeou coedunemblk Ka6bdoJxhen 6bImb He3amedunelHo 3aMeHen ynonHomoyenHcnyK60cpeBucHOO bcnyXueHur/CneuaLuscm-3neKmpukOM.He 3ckpnyamupobamb ycpoucmeo c nopexdeHbIM cemeBIM coedunHembl Kabelem.
Bce mokonpoobouaue 3nemEmbl e pa6oey 30he doJXhbl 6bimb 3auuueHbl om nonadahura cmpyu 60dbI.
CemeBa 6nka u coedunHumeBnbl 3neMeHm yDnHumeJdoJXhbl 6bImb aepMemuHbIMU u He haxoDbc8 e ode. CoedunHumeBnbl 3neMeHm e daIbHeuWeH He doJxhen Kacambc noJa. PekomeHdyemc UcNoB3oAmb KaBeNbHbIe bapabHbl, Komopbie obecneueBaom pa3MeueHue po3emok He MeHee, Yem 60 MM om nona.
Heo6xodumo cneedum3a mem, ymo6bI cemeoeu coeuhumeHbI KabeIu yOunHumeIu He 6bln noepexdeHbI nymem nepeezda ueez hux, cdaanu- bauHpaemxhenu u m.I. Cemeebie kabenu cneedyem zauuamb om 603- deucmbua Kapbl, macna, a maKke om noepexdeHua ocmpbIMu kpaMlu.
△IpeodynpeXdeHue
Ucmpoucmeo cneoyem eknoyamb molbko 8 cemb nepemehno moka. HanpjaKeHue doJxHo coombemcmBoBambyka3aHnM 8 3aOodcko ma6luKe.
Ucmpoicmeo moKHO nooknOyamb molkbKO K 3neMeHmy 3neKpmoNDkNo-ueHua, uCnonHeHHOMy 3neKmpomHom me o coombemcmBuu co cmaHdapmOM MekdynapodHou 3neKpmo-mexHuueckoi Komuccu (M3K) IEC 60364.
Henodxodyaue 3neKmpuueckue ydunumenu moym npedcmaenm b onacnoemb. Bne nomeeenu cneyuem ucnoIb3oammb monko donyuenhble dna uonl3oBaHn u coomeemcmbeHHO mapkuoabaHbE 3neKmpueckue ydunHumeu c docmamoHybIM nonepeuHbIM ceeHuem npoeoda:1- 10M:1,5 MM2,10-30M:2,5 MM2
YdunHumenb cneodyem 8ce2da noJHoCmbo pa3MaMbIeamb c Ka6JIbHO2O 6apabha.
13 coobpaeHu 6e3oNaChocmu peKoMeHoyemc uCnOlb30aMb ycmpoucmeo c aemomamom 3auumbl om moka ymeku (MaKc. 30 mA).
БezонachoeобслукиВане
Onachocmb
IpeodKaJdbim npumehuem npoeepmbl Ha hauue nopexdehu maKue 6aXhble KOMnoHmbi, KaWnHaBbICOKo2O daJIeHnU, nucmonem-pa3-6pbIzuaBamU npedoxpanEmbHbIy cmpoucMBA. NopexdeHbIEKOMnoHmbI nodlexam He3aMeDnUmelbHOJ 3aMeHe. He ekCnIpyampoBamb ycmpoucMBO C nopexdeHHbIMU KOMnoHmemu.
He pa3peuwaemcmaKxe HapnaeIbmbcmpyioBDbl, haxoayocnoD bicoKum daaeneHEm,Ha opyaux unu cebaoJyucmku odexkbl unu obyu.
He yucmumb cmpye e oobI npedMe mbI, codepkaaue eeuecemaa, epeHbIe dna 3doopo8b (Hanpumep, ac-6ecm).
AemomobunbHbe wuHb/wwHHbIe 6HmUu Moaym 6bIMn oepexdeHbI cmpye 8oBIO nod daaHeuem u nonHym. IepbIM npu3HaKOM 3mo2o cnJxum u3MeHeHue ueema wuHbI.
PoipejdeHbIe aMOMoBunbHbIe WUHb/wwHHbIe bEHmUu npedcmaJrIom onaChocmb dnn Jxu3Hu.Bo epMa Yucmku uHn HeobxOduMo bIepeKuEamb paCCMOHue MeXdy fOpcyHKou u wHo, kAc MuHUMym, 30 cm!
Unyakoobuyu npneHky depxamb 6da nu om demeu, cyuecmeyem onacnoctmb ydywena!
IpeynpexdeHue
3Kcnnyamaua npubopa dembu unu luam, He npoweodumu uHcmpykmax, 3anpeaaemcra.
Данhoe ycmpoucmeо He npedha3ha-ueho dny ucnonb3o6aHua NIObMu C OspaHnueHHbIMU qu3uyeCKUMU, CEH-COPHBIMU UUNY MCMBeeHHbIMU 8O3MOX-Hocmmu, a makke luC o omycmcm-ueem onbima u/Unu omcymcuem Heobxodumbix 3HaHui, 3a uckIkuoyeuem cnuaeB, Ko2a OHU HaxoJmCn oD had3opom ombeMcmEHNHOz 3a 6e3-onacHocmb luza unu nOlyaHOM om Hezo yka3aHua NO npumeHeHuO ycmpoucmea, a maKxe oc03HaOM ebl mekaouue omcdu pucu.
He pazepwaime demm uapambc ycmpoicmbom.
Cneodumb 3a mem, ymo6bl demu He uapau c ycmpoucm.
Iolb3oabeMeIb o83an uCnoIb3oaeamb ycmpoucmeo 6 coombeemcmbu cHa- 3naueHuem. OH doJxhen yUmbieamb MecmhbIe ocobenHocmu u obpaumab EHumane npu paBome C ycmpoucmeBOM Ha dpyaux luu, haxodrauxxcn no6nu3ocmu.
UHaau bicokoo daBneHua, apmamyu Mymbi Umeom boBuoe 3naueHue dra bezopacnocmu ycpoucmea. Bmoou cya3u cnedyem npumehmbo molko uHaau bicokoo daBneHua, apmamyu Mymbi, peKoMeHDoaHbIe u3aOobumelm ycpoucmea.
He ucnolb3o6amb ycmpoucmeo, Ko2a 8 30ne deucmbu Haxodmca dpyue IIOU, ecnu ONU He HocamHyo odexdy.
Danhbl npubop 6bI npa3paobomn dny UcnoB3o8aHua MOUux cpeCme, KOMopbIe nocmaaJyomcra unu 6blu peKomeHdo8aHbU uZoMObumem npu-bopa. NcnoB3o8aHue dpyeux moUx cpeCme unu xumukamoe MoXem HezamueHo noBnAmb Ha be3ona-choomb npubopa.
△ BHUMaHue!
Bo epem npodjxumelbHexpepepbieoe 8 paobome cneedyem ebiknouymb ycmpooucmeo c nomoubno anaBHOZO ebIKNUoyamela / npubopHOZO bIKNUoyamela unu omcoedunhm eo om 3JIeKmpocemu.
IpuMoKeJaKupoeaHbINoepxHoCmeu cneyem bIdepkueambpaccmohue 30 cm om fOpcyku do noeepxHocmu,ymobbluzbexkambnopeJxoepnura JapuOeKu.
3anpeuzaemc ocmnaempbabomauoue ycmpoucm863 npucmoppa.
He pa3pewaemc3Kcnnyamaucyympoicma npu memnepamype Hxke 0^
PpOue onaChocTu
Onachocmb
He paclbIaMb aOpIOue XkuOkoMu.
BcacsbHue ycmpoUcBOM xuokocme, codepkaux pacmbopumenu, amKke Hepa36aeneHHbIX Kucnom unu pacmbopumenu He donyckaemc! Kmakum beeecmeam omnoCmcr, Hanpumep, bEn3un, pacmbopumenu Kpa-cok u Ma3ym. Obpa3yuouicr u3 makux beeecmmymAHneko 0ocnIaMeHnEemr, e3pbboonaceH u rdoem. He uCnonb3o8aMb aueom, Hepa36aeneHHbIe Kucnombu pacmbopumenu, mak kak OHU pa3pywaIOM mamepuIbl, u3 komobpxu3aOmoNEHOycmpoucMBO.
3Kcnnyamauya ycmpoucmea 80 63pbl- 80oanachbix 30hax 3anpeuaemcra.
Ipu ucnonb3oehuu ycmpoucmea e onachbix 30hax (Hanpumep, Ha aemoz3napaobuyix cmanuex) cneyem co6nodamb coomeemcmeyiouue npaeuna mexnuku 6e0nacnocmu.
ИндиВиДуаЛьНоe 3aциТhoe Chapяжehne
Длгзацumbi om pa3nematouxcx6pbizao8oodyu ap3u cneyem hocumb coomcemeyouy0 3auumHyO odexdy u 3auumHbI oe ouku.
Ko3ΦΦnμηENT yCTOnuHBOCTN
△BHumaHue!
Ipepe bInolHeHue m IIObIX deUcmeu c ycmpoUcmb umy ycmpoUcmba HeobxOumo oBecneumb ycmoUcuOcmb 0u36ekAnue HeCuaChmHbIX cnyaee umn noepexdeHui B pe3yIbMame onpokuObiaHua ycmpoUcmba.
YCTOuHBOCTb npi6opa rapaHTnpoBaHa TOJbKO B TOM Cnyuae,ecn OH yCTaHOBJIeH Ha pOBHOI NOBepxHOCTN.
3aunTHbIe yctpoCTBa
△BHumaHue!
3aumhble ycmpoicmea cnykam dna 3aumbl noIb3oameJe. BudouImeHene 3aumhbx ycmpoicme unu npene6pexehue umu He donyckaemcra.
Pn6OpHbI BbIKIOuOaTeJIb
IJIaBbI BbIKIyOaTeJI npenTCTByET HeIpn0n3BOJbHO paOte annapata.
IpeepdIINTeBbIM XpaHEnm,HaPnMep,3MOi:
→ CHIMNTEФЛьтИЗ BCacbIBAUоero UJnaHraДЯ MOUоero CpeДCTBa И рОМоITE erO npOTOCHOH BOdOi,
BbInbTe c nOMOuBIO pIIOCKORYeB CEteBOI qINbTp IN3 3JIeMeHTa IJRA BOOCHa6KeHnI nPpOMOIeero npOTOHOBdoI.
TexHnueckoe o6cnyXnBaHne
AnnapaT He HuykdaetcB npoФnIakTnueckOM 6cbnyKuBaHIn.
YnctTaaee CpeDCTBO He BCaCbIBaETCa
IcnoIb3OBAtB cTpHyu Tpy6ky C pe-ryJrTOpOM daBJIeHnA (Vario Power). IobepHyTB cTpHyu Tpy6ky B noJIo-JxHeNe ,Mix".
OuHCTnTbΦnIbTp BO BCaCbIBaHOUeM JIHaHRe MOIOUeO cpeDCTBa.
→ PIOBEBPITb BCaCbIbAIOUmI UJnAHr DJI MIOUeero CpeDCTBa Ha nepernObl.
PpHnHaIeXHoCTn 3aIacHbIe DeTaII
CneuaJIbHbIe npHaJdJIeXHoCTn
CneuHaBhIe npHaadJeKHOCTn paCuHn
pAOT BO3MOXHOCTn pPIMHeHn Ipn6Opa.
Boene DetaBHyIO INΦopMaciIO MOxHO
noJyHTb y TopROoB OpraHn3aunn ΦnpMbI
KARCHER.
3aapanchbIe yactn
IcnoIb3yIte ToIbko opunHaNbHbIe 3anaChbIe yactn fnpMbIKARCHER. OncaHne 3anacbIX Yacte HaxoIITcB KOHc DaHHO IHCTpyKuIN NO kcnnyatauIN.
RapaHTIa
B kaJdoi cTpaHe DeiCCTByIOT COOTBeTCTBENHO rapaHTnHbIe ycNoBnIA, n3DaHHbIe yNOJIHOMOueHHo OprAHn3aUnei C6bITaHaWei npOdyKuIN B daHNo CTpaHe.Bo3-MoXHbIe HeINcnpaBHOCTn np6opa B TeueHne rapaHTnHOrO cPoka Mbl YcTpaHReM 6ecnlaTHO, ecnn npUIna 3akNIOuaeTCB NdeΦeKtax MaTePnAIOB IIN OOn6kax npn I3rTOBLeHm. B Cnyuae Bo3NHKObeHn npTeH3N B TeueHne rapaHTnHOrO cPoka npoc6Ba oBaTaBc, IMeI npn Ce6ye K0 NOKyIKe, B TOpROByO oprAn3aUIn, npOdaBsyBam pnp6op INN B 6bnjKaIHyUyONlHOMOueHHU cNyK6by cepBnCHOrO 6cLyKmbAHnI.
www.kaercher.com/dealersearch
TexHnueckne daHHbIe
3JNeKtpuYeckne npaMeTpbl
71364 Winnenden (Germany)
Ten: +49 7195 14-0
ΦaKc: +49 7195 14-2212
Winnenden, 2013/09/01
Tiszelt Ügyfelünk!
www.kaercher.com/REACH
Biztonság
www.kaearcher.com/dealersearch
Muszaki adatok
S. Reiser
Head of Approbation
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2013/09/01
Vázeny zákazníku,
#
www.kaercher.com/REACH
Bezpečnost
Vyznam upozorněné
Nebezpeci!
www.kaercher.com/dealersearch
Technické udaje
2006/42/ES (+2009/127/ES)
2011/65/EU
S. Reiser
CEO
Head of Approbation
Osoba zplnomocnéná sestavenim dokumentace:
S. Reiser
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2013/09/01
Spostovani kupec.
www.kaercher.com/REACH
Varnost
Pomen opozoril
Nevarnost
www.kaercher.com/dealersearch
Tehnični podatki
Zadevne ES-directive:
2000/14/ES
2004/108/ES
2006/42/ES (+2009/127/ES)
2011/65/EU
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Winnenden, 2013/09/01
Szanowni Klienci!
www.kaercher.com/REACH
www.kaearcher.com/dealersearch
Dane techniczne
Podlącenie do sieci
2006/42/WE (+2009/127/WE)
2011/65/UE
71364 Winnenden (Germany)
tel.: +49 7195 14-0
faks: +49 7195 14-2212
Winnenden, 2013/09/01
Mult stimate client,
www.kaercher.com/REACH
Siguranta
Transportul in vehicle
Asigurataparatulcontraalunecarii sirasturnarii.
Depozitarea
Atentie
www.kaercher.com/dealersearch
Date tehnice
Directive EG respectate:
2000/14/CE
2004/108/CE
2006/42/CE (+2009/127/CE)
2011/65/UE
Norme armonizate utilize:
EN 50581
EN 55014-1: 2006+A1: 2009+A2: 2011
EN 55014-2: 1997+A1: 2001+A2: 2008
EN 60335-1
EN 60335-2-79
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3:2008
EN 62233: 2008
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2013/09/01
Vázeny zákaznik.
#
Pred prvym pouzitim vasho zaradenia si preciţajearto pô
www.kaercher.com/REACH
Bezpečnost'
Vyznam upozorneni
Nebezpečenstvo
www.kaercher.com/dealersearch
Technické udaje
2006/42/ES (+2009/127/ES)
2011/65/EU
2000/14/ES: Priloha V
71364 Winnenden (Germany)
Tel: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2013/09/01
Poštovani kuple
Pije prve uporabe Vaseg ureda ja procitajte ove originalne radne upute, postupajte prema njima i saucujte ih za kasniju uporabu ili za sljedeceg vlasnika.
Pregled sadržaja
Opseg isporuke HR .5
www.kaercher.com/REACH
Sigurnost
Značenje napomena
Opasnost
www.kaearcher.com/dealersearch
Tehnički podaci
| Elektrichi prikrljučak | |
| Napon | 230 V |
| 1~50 Hz | |
| Priključna snaga | 1,8 kW |
| Stupanj zašite | IP X5 |
| Klasa zašite | I |
| Strujna zašita (inertna) | 10 A |
| Priključak za vodu | |
| Dovodni tlak (maks.) | 0,8 MPa |
| Dovodna temperatura (maks.) | 40 °C |
| Dovodni protok (min.) | 9 l/min |
| Maks. usisna visina | 0,5 m |
| Podaci o snazi | |
| Radni tlak | 11 MPa |
| Maks. dozvoljeni tlak | 13 MPa |
| Protok vode | 6,3 l/min |
| Maksimalni protok | 7,0 l/min |
| Protok sredstva za Čišćenje | 0,3 l/min |
| Povratna udarna sila ručnog pi-štolja za prskanje | 16 N |
| Dimenzije i težine | |
| Duljina | 516 mm |
| Širina | 295 mm |
| Visina | 282 mm |
| Težina u stanju pripravnosti za rad, s priborom | 12,2 kg |
| Uvtvržene vrijednosti prema EN 60335-2-79 | |
| Vrijednost vibracije na ruci | <2,5 m/s2 |
| Nepouzdanost K | 0,3 m/s2 |
| Razina zvučnog tlaka LpA | 75 dB(A) |
| Nepouzdanost KpA | 3 dB(A) |
| Razina zvučne snage LWA + nepouzdanost KWA | 91 dB(A) |
2006/42/EZ (+2009/127/EZ)
2011/65/EU
Primijenjene uskladene norme:
EN 50581
EN 55014-1: 2006+A1: 2009+A2: 2011
EN 55014-2: 1997+A1: 2001+A2: 2008
EN 60335-1
EN 60335-2-79
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3:2008
EN 62233: 2008
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Winnenden, 2013/09/01
Poštovani kuple
Pre prve upotrebe Vaseg uredaja procitajte ove originalno
www.kaercher.com/REACH
Sigurnost
Značenje napomena
Opasnost
Napomena koja ukazuje na reposredno pretecu opasnost koja dovodi do teških telesnih povreda ili smrti.
Upozorenje
Napomena koja ukazuje na eventualno opasnu situaciju koja moze dovesti do teških telesnih povreda ili smrti.
△ Oprez
Napomena koja ukazuje na eventualno opasnu situaciju, koja moze izazvati lakse telesne povrede.
Pažnja
Napomena koja ukazuje na eventualno opasnu situaciju koja moze izazvati materijalne stete.
Simboli na uredaju
www.kaearcher.com/dealersearch
Tehnički podaci
2006/42/EZ (+2009/127/EZ)
2011/65/EU
Primenjene uskladene norme:
EN 50581
EN 55014-1: 2006+A1: 2009+A2: 2011
EN 55014-2: 1997+A1: 2001+A2: 2008
EN 60335-1
EN 60335-2-79
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3:2008
EN 62233: 2008
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Winnenden, 2013/09/01
Ybaxaem KIneHTn.
Ppei nIpbBOTo I3NoJ3BaHe Ha Baunya peI npouTeTe TOba
opunHaHNO HNCTpyKUy yNbTbaHe 3a pa-60Ta, JeIcTBaIte Cnopei Hero n ro 3ana3eTe 3a IIO-KbCHO n3IPOJ3BaHe nII N3aCneDbaSIN npITexKaTeI.
CbDpXaHne
Obem Ha doctabkaTa BG...5
YnoTepe6a no npedna3NaueHne BG...5
Ona3BaHe Ha OKoJHaTa cpea. BG . .5
CnryphocT BG...6
ОписанneHaурда...BG...8
Ipeeni nyskaHe B eKcnIioaTauny BG . .9
Iyckahe B ekcnloaataza. .BG...10
Eknpnoataua BG.10
TpaHcnpT BG .12
CbXpaHene. BG...12
Грижи и подрьжka.. BG...12
POMOu npHnHn3npaBHOCTN . BG ..12
B HЯΚΟ ΚΤρΑΝΗ Ε e ΠΟ3ΒΟJEΗ ΑΙΤΟΥΒΑΗΕ ΘΑ ΒΟДΑ ΘΟ ΜΟΥ ΒΕ ΒΕ ΒΕ ΒΕ ΒΕ ΒΕ ΒΕ ΒΕ ΒΕ ΒΕ ΒΕ ΒΕ ΒΕ ΒΕ ΒΕ ΒΕ ΒΕ ΒΕ ΒΕ ΒΕ ΒΕ ΒΕ ΒΕ ΒΕ ΒΕ ΒΕ ΒΕ ΒΕ ΒΕ ΒΕ ΒΕ ΒΕ ΒΕ ΒΕ
Pa6oTaTc nOocntBaun npenapatn eNo3BOJEna cAmOBbpxy yCTOnuHBn Ha TeUHOCTn pa6oTHn IOBbpxHOCtN c N3BOd KbM KaHaJIIN3aCnIra 3a MpbCHa BOda. He OCTaBnTe noocntBaunTe npenapatn Da nOJaAT BbB BO-dHIne baceHN i NoYBaTaN
IOnuCTBaHe, npn KoTo ce OTdEJa MpbchA BoDa, CbDbPkaaMa MacNo, HAnpUmep npn MneHe Ha DnBraTeJiMne He Ha NOD, MOKe Da Ce N3BbPbBa Camo Ha MeCTa, KbDeTo ca npedBvndEH pe3epBoapn 3a Cb6bpaneHa MacNOTO.
Yka3aHnna 3a CbctaBknte (REACH)
AkyaJIHa HnΦopMaζη 3a CbCTaBKnTe ξe Hamepnte Ha:
www.kaercher.com/REACH
CnFpyphocT
3haeHneHa yka3aHnraTa
Onachocm
Yka3aHue 3a HenocpeDcmbeno apo3raUa onacHcM, KoryMo bOu do mexKu meJeHu HapaHbAHua Ulu do cMbpm.
△IpeodynpeXdeHue
Yka3aHue 3a 3b3MOxHa onacha cumya- uya, kOyMo MoKe da doeede do mexku meIechu HapaHraBaHura ULU do Cmbpm.
△BhumaHue
Yka3aHue 3a 6b3MOxHa onaHa cumya- uya, KoMyo MoKe da doBeede do neku Ha- paHraeaHua.
BhumaHue
Yka3aHue 3a 6b3MoXHa onacHa cumya- uya, Koymo MoKe da doBeede do Mamepu- aJHu uemu.
CnmboHa ypea
Ypeobm He 6bua da ce EKnIOUcBa HENOCpeOcmeeHO KbM ObuEcMeehama Mpeka 3a NumuHa BOda.
1 Onachocm om yepexdahe! Ypeb mmpa da pa6o mu camo e neha nno noJxehue (xopu3ohmanHo).
2 He hacoueauime cmpyma
noB BuCOKo HAnraaHe KbM Xopa, KuEomHu, akmueHo eNeKmpuuecko oBOpydeae UJU KbM camua ypeD.
3 Ypeda da ce na3u om 3ampb36ahe.
EneKtpnueckn KOMNoHEnTn
Onachocm
Hukozha He dokocbaume uencena u KOhmacma cbnaxHu pue.
Ipedu cka ynompeba npoeperbau meMpexobua 3axpaHau Ka6en C uencela 3a uem. He3abHo an2aJxupaime cneuaJU3upan cep8u3/ eNeKmpomexHuk cbc CMHaHa Na noepednur MpekoBu 3axpaHau Ka6en. He npckaume beknloamaucya ypeda
c nopehen Mpeko 3axpaeaau Ka-6eJ.
Bcuuku ekempueecku yacmu u elemmu o obceea ha paoboma mpr6ea da ca 3auumenu om eoohama cmpy.
Ueencbym u kynnyhzm Ha eunu yobjxumeneH kabemmp8ea da 6b-dam bodoycmouueu u He buea da ce Hamupam ebe oda. Ocehen moa kynnyhzm He buea da leku Ha noda. Ipenopbyea Ce u3non3baHemo Ha 6apabahu 3a Kabenu, Koumo aapaanmuam, ye konhmakmume ue ce Hamupam Ha MuHumym 60 MM om noda.
Obpbhe mHmAHue Ha moea, MpeKoBum 3axpanBaU KaBEn Unu yDblJxumEnHnM KaBEn da He ce HapAnmUnu noepedam nopadu npemunaeaneHa aemomobuli Bpxy mX, npema3BaHe, onbAne unu nodobNu. IaZeme MPeKoBume 3axpanHeau KaBenu om oopeuHa, macna u ocmpu pb6oe.
△IpeodynpeXdeHue
Cebp3eaume ypeda camo kbl npomEnnue mok. Hanpexehuemo mpr6ea da cbomeemcmea ha nocouehomo bpxy dupMehama ma6enka ha ypeda.
Cebp3eaHemohypea e no3eOJeHocamoKbM eJekmpuuecku u360d,u3- nIbHeH om enekmpouHcmaJamop cb- enacHo IEC 60364.
Henodxoduime ekempueecku ybIkumenu KaBenu Moaam da 6b- dam onacn. Ha omkpuno u3noJ3ea- me camo pa3peuHume 3a moea u cboemnHO oO3NaHu eKeMpuecku ybIkumenu KaBenu c docmamyHo ceuenue Ha npoeodhuime:1-10 M: 1,5MM^2 10-30M:2,5 MM2
YobJxumEnHnarm Ka6eImp6ea da 6bde HantbIHo pa3Bum om 6apabaha 3a Ka6eIu.
Ipo npuunu Ha cuaypnoemma npunuHnno npenopbYBaMe 3aedeumhaHemoHa ypeDa npe3 3auumHo npucno-cobHeue 3a naDoe 8 HappeKeHuemo (MaKc. 30 mA).
Cnrgpno 6opabeHe
Onachocm
Ipedu cyaKa ekcnnoamau npoeepaBaume 3a uemu baxHume KOMnOHeHmu, kamo Mapkyuime 3a pa6oma nod HanaaHe, nucmonema 3a pbyHo npbckane u npedna3Hume npucnoc6neHua. Cmehyme He3ab6eNo noepeDeHume KOMnOHeHmu. He nycaUme eKcnnoamau ypeDa c noepeDeHu KOMnOHeHmu.
He hacoue aume cmpyama nod bucoko Hnraahe KbM dpyauxopa uu KaM ca Mume ce6e cu, 3a da noucmeame o6neKno uu obyu.
He npbckaime ebpxy npedMemu, koumo cbbpkam onacHu 3a 3dpaemoeeuecmba (Hnnp. a3becm).
AemomobunHume aymu/ehmunume Ha aymu Moaam da 6bdam nopedeHu om cmpyma nod bucoko hanae u da ce cnkyam. Pbeu npuzhak 3a moa e obeseemhaHemo ha yumama. PoepedHume aemomobunHu aymu/ehmuni Ha aymu ca onachu 3a xueoma. Cnaeaume Muumum 30 cm pa3cmohue Ha npckane npu noucmbahemo!
Дрьжme onakoebchomo fojuo daJe om obceza ha deua, cbiuecmbyea onachocm om 3adyuabahe!
△IpeodynpeXdeHue
Upeobm He mpr6ea da ce u3non3ea om deua, Mnaedexu unu HeomopuupaHu luua.
To3u ypeD He e npedHa3Hauhen 3a mo-ea, da 6bde u3nOJ3eAH om luca c oapauHu fU3uuecku, cEH3OpHu U ymcBHeHu cnOCo6HocMu u lunca Ha onum u/Unu lunca Ha no3HaHua, ocEh aKO me ca nod had3opa Ha omoeapra-uo 3a mXhama be3onacHocm luce unu ca nonyuunu om He2o uHcmpyk-uu, kak da u3non3eam ypeDa.
IeuaHa He 6uea da uepaam c ypea.
Ieua mpr6ba da sbdam noh had-3op, 3a da ce aapaHmupa, ye hma da uepaam c ypeda.
Pompebumenmmpaea da u3non3ea ypeda no npedha3nueHue.ToMmp6ea da 63eme noD eHUMaHue MecmHume ycnoBu u npu paBoma c ypeda da eHMaea 3a xopama,Hamupau ce 6bnu-30cm.
Mapkyume 3a pa6oma nod haIrahe, apmamypume u Kynnyhune me ca eaxHu 3a 6e3oNacHcMma Ha ypea. N3non3Baume npenopbuaHume om npou3oDumela Mapkyu 3a pa6oma nod hauHaHe, apmamypu u KynnyHau.
He u3non38aume ypeda, ako 6 o6ceaa My ceHAMupam dpyu xopa, dopu akome Hocarm 3auumHo 6neKJIo.
To3u ype de pa3pa6bomeH 3a non3eaHe Ha npenapamu 3a noucmbaHe, Koumo ce docmaem unu npenopbyeam om npou3bodumela. N3non3eaHemo Ha dpyu npenapamu 3a noucmbaHe unu xumukanMoKe da bnoWu hadejHOcmma u 6e3onacHcmmHa ypeda.
△ BHUMaHue
Ipu no-npodbJnxjumEnHu npekbcaaHnHa pa6oma u3KnIOueaUme ypea om 2naHnur npekbc8au /npekbc8aHa ypeDa Uu u38aXdaUme uencena om KOhmacma.
Ipu noucmbahe Ha naKupuHNo 6bpxhocmu cna3eaume MuHumalno pa3cmohue Ha npbcKahe om 30 cm, 3a da u3beaheme ypekdaunma
Hukoza He ocmaeYume ypeda 6e3 ha-30p,dokamo paobomu.
He pa6omeme c ypeda npu memnepa-mypu n0d 0^
Дугн onachoctn
Onachocm
He npbckaume oopormu meuhoctrn.
Hukoza He 3acmykaume cbbpkau pa3meopumenu meyocmu unu He pa3peDeHu Kucenuu u pa3meopumenu!KbM mnx cnadam hnp.6enun, pa3pedumenu 3a 6ou u naema.Aepo30nHaMa Mbana e cunHo 6b3nnaMeHuMa,ekcno3ueHa u ompoBa. He u3- no3eaume auemoh,He pa3peDeHu KuCeenuu u pa3meopumenu,mb'u kamo
me pa3aJkDam u3nOJ36aHume Ha ype- da mamepuanu.
3a6pahe e ekcnnoamaue 30Hu, Koumo uma onachocm om ekcnno3uu.
Ipu u3noJ36aHe Ha ypeDa 8 onachu 30Hu (Haip. 6eH3uHocmaHuu)mpra6ea da ce 33emam noD eHumaHue cbomsemHume pa3nope6b 3a 6e3oNaChocm.
YpeIbT He NoteJIa, MOTOpbT 6pbMn
CnaaHe Ha HnpeXeHneTo nopadn cna6a eJeKtpueecka MpeXa nn npn n3noI3BaHe Ha ydbJxKeTEn.
→ PnB KBNIOUbaHeTo pBPO N3DbpnaIte NoCTa Ha NnCTOJIeTa 3a pBCHo npbcka-He, CNeT TOBa NOCTaBeTe npeKcbBaVa Ha ypeJa Ha ,/ON".
YpeIbT He DoCTnra HaJIraHe
→Пюверете НастpoикаТа На ТрбаТа 3a pa3пьсkaHe.
→ПювереTe,Дали подаразно на Вда e cdoctaTbUHOKONIYeCTBO.
I3terIeTeZeIkaTaOTBp3kata3aKpaHa 3a BOda C NOMOHTa Ha NIOCKN KJIeUIN YI NOHCTeTPOID TeuAua BOda.
06e3Bb3dYuShaBaHeneHa ypeJa:BkIIOUeTe ypeJa 6e3 Mapkyu 3a pa6Ota noiHaJIraHe i N3yakaIte (MaKc.2 MInHy-T),DOKATO BOdaTa 3aOnOHe da N3nN3a 6e3 MexypyeTa OT N3BOda 3a BVCOKO HaJIraHe.I3KIOUeTe ypeJa oOTHOBoNoDBbPjKeTe Mapkyu 3a pa6Ota noiHaJIraHe.
CnJIH N KOJIe6aHnB H aHaTaHTo
Почиствае на дюза Високо habягathe: Мхнete замьрсванята OTOTBOPa Ha dюзатcnomoцTa Ha ngla uN3ПлakHete C BODa Happei.
→Пюовере Te DeиТа Na BoДаТa.
YpeTHe xepMeTuueH
Maikata Jnnca Ha xepMeTnHocT Ha ypeJa e obycnoBeHa texnueckn. Pnp CnHa JInca Ha xepMeTnHocT ce 06bprHeTe KbM OTOpn3nPan cepBn3.
ПочиствацOTO срedingво He ce 3acmykba
Да ceизползва Трьба 3а разпpackва-heс рeredул，在а Наляганeto (Vario Power)Трьбатza разпьскваеда са ZeBbptnВ пооженe „Mix".
→ПоунICTeTeФиNTbpaHa BCMyKaTeHnHaMapkyu 3a ПОунICTBaUO CpeДСТВО.
→Пювере Te BCMykaTeHnЯ МаркуЗа IOчИСТВацо CpeДСТВО 3a OгьНATN MECTa.
PpHaIeJXHOCTn pe3epBn Yactn
ElenemHTOCTneuaJIHATA OKOMJIeKTOBka
Elenentte ot CneuHaHaTa OKOMnJIeK-TOBka pa3wnpBb3MOxHcTNe 3a n3- noJ3BaHe Ha Bauny ypeI. Io-noPobHa HOpMauny ue noJyUnTe OT oToPn3upaHn npedctabntel 3a ypeInTe KARCHER.
Pe3epBn qactn
I3noJI3BaIe cAmo opuHnHaJIHn pe3epBHN chaTn Ha KARCHER. CncbK Ha pe3epBHNte qactn Ie HamePHTe B kpa Ha HactOaIto YnbTbaHe 3a pa6ota.
TapaHcH
BbB BcKa CtpaHa BaKaat rapaHcNOnHHnTe yCIOBnI, Np6NIkyBaHN O T OTOp3nPaHata OT Hac DNCTPb6yTopcKa cnpMa. EBeHTyAaHn NOBpeHn Ha BaSIny UpeD Ie OTCTpaHnB P aMKITE Ha rapaHcNOnHHnC pOK 6e3JIaTHO, Ako Ce Kacae 3a DepeKT B MaTePnaJIte nIN npi npOn3BOJcTBo. BraHcNOnHeN clyuay Ce o6bPheTe KbM DNCTPb6yTopa INn Hau-6JIu3KnOr OTOp3nPaH cepBu3, KaTO ppeDCTabNTe KacOBaTa 6eJIeKka.
www.kaercher.com/dealersearch
TexHnueckn daHHN
EneKtpuYecko 3axpaHBaHe
71364 Winnenden (Germany)
Ten.: +49 7195 14-0
ΦaKc: +49 7195 14-2212
Winnenden, 2013/09/01
Väga austatud klien
www.kaercher.com/REACH
Ohutus
Märkuste tähendused
Oht
Osutab vahetult ahvardavale ohule, mis voib pohjustada tosiseid kehavigastusi voi Ioppeda surmaga.
Hoiatus
Osutab voimalikule ohtlikule olukorrale, mis voib pohjustada toseid kehavigastusi voi loppeda surmaga.
Veevarustus veevargist
www.kaercher.com/dealersearch
Tehnilised andmed
Toode: Korgsurvepesur
Tuup: 1.637-xxx
71364 Winnenden (Germany)
Tel: +49 7195 14-0
Winnenden, 2013/09/01
Godajamais client!
Pirms ieri cimes pirmas lietoanas izlasiet instrukcijas originalvalo
www.kaercher.com/REACH
Drošība
Norăžu nozime
Bistami
www.kaercher.com/dealersearch
Tehniskie dati
71364 Winnenden (Germany)
Tālr.: +49 7195 14-0
Fakss: +49 7195 14-2212
Winnenden, 2013/09/01
Gerbiamas klien.
Pries pirma karta pradedant naudotis prietaisu, butina ati
džiai perskaityi originalia instrukcija, ja vadovautis ir saugoti, kad ja galima butu nau-dotis veliau arba perduoti naujam savinin-kui.
Turinys
www.kaercher.com/REACH
Suga
Nuorodu paaiskinimas
Pavojus
Nuoroda del tiesioginio pavojaus, galincio sukelti sunkius kuno suzalojimus ar mirtj.
△Ispejimas
Nuoroda del galimo pavojaus, galincio sukelti sunkius kuno suzalojimus ar mirtj.
Adresus rasite: www.kaearcher.com/dealersearch
Techninial duomenys
Elektros iranga
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Faksas: +49 7195 14-2212
Winnenden, 2013/09/01
UaHOBnKoPncTyBaCy!
Ipeepnepuim3actocybaHnHaBaaworo npictpo npounTaTae
IOpnHaJIbHy IHCTpyKciIO 3 ekCnnyatauii, nicra cboRo diIte BiINOBiINO HeI Ta 36epeXkIb II dnn IOnaJIbWoRO KOpNCyBaHnna a6o dJa HAcTyNHO BlaChnka.
3mict
KOMJIeKT NOCTaayHn. UK...5
PpabnIbHe 3aCTocyBaHHra. UK...5
3axnCT HaBKOJIINHbOro cepeIOBnUca. UK...5
Be3neka UK...6
Oncn pnpctpoU UK...9
Ipeep noaTkom po6oToN . UK .9
BveeHnB Eeknnyatauio. .. UK...10
Ekcnnyataia UK.11
TpaHcnpOpTyBaHHa UK...12
36epirahnna UK.12
Доглад та texhiчne обслг罗ваянna. UK..13
Iionomora y BnnaKyu HenoJaoK UK...13
Ppnilaandry 3anachi detani. UK..14
Tapaantia. UK..14
Texhihi xapaKtepcntkn. UK...15
3aBa npi BiIIOBiIDHicTb CbponeiCbKoro cnIBTOBapnCTBa UK .15
KomnJIeKT noCTaHaHHa
KomnneKtaucipnctroo 3a3haeHa Ha ynaKOBuCi. Pnpo3pakyBaHHi npnctroo nepeBipNTKmnnKeTauio.
Y pa3i Hectaqui DoDAtKOBORO OblaJHaHHa 60 yuKoJKeHb,OTpIMaHxPiJ Yac TpaHCnOpTyBaHHa, CnIIOBIDOMTe npo ce B ToproBeJIbHy opraH3auiH, Jka npoJana anapat.
www.kaercher.com/REACH
Bézneka
3haueHHBk3iBOK
△O6epexHo!
Bka3iEka uo do He6e3neku, kka 6e3nocepedHbO 3aapoxye ma npu3bodumb do mKux mpaem Yu cmepmi.
△PonepexdkHn
Bka3iKa 0do nomeHuiHo moKnuOi He6e3neHoiC cumyaui, 0o MoKe npu3BeMcU do mXkuxmpaM Yu cMepmi.
△ Yezza!
Bka3i8ka uodo nomeuio Ho he63neuho i cumyaui, k a moke cnpuuHmu ompumHa HneKux mpaem.
yeaza
Bkaizka zoodo moKnueoI nomenuHo He6e3neuHi cumyaui, zo MoKe cnpuunumu mamepiabhi 3bumku.
CIMBOJNHa npncIpoi
Pnpumpi He moxHa iidKNoquam 6e3nocepedHbO do mpyoepody 3 numHO oooio.
1 He6e3neka yukokxhenra! Ppucmpiu do3e0nrembc eukopucmooyamumibku y lexaomy (eouuohmanbHOMy) noJoxehHI.
2 He ckepoyeamu cmpymiHb eodu ha IIOdeu, mApun, yeIMKHeHe eNEkmpuNe oBnaDHaHHa Ha cam bucoKoHanipHu MuHua napam.
3 Cnio 3axuama npunaed io mop03y.
EneKtpnHi KOMnoHeHTN
△O6epexHo!
Hikolu He mopkaumecb MepexHo2o umekepy ma pozemku 8onoaumu pykamu.
Ipeod noamkom pobomu 3 anapamom nepebipumu mepexeu Kaebma umencelby eunky ha nowkoedkeHn. YwKOxHeu Kaeb MepeXHOo XueHnnoeUHbymu HeaHo 3amiHeu ynoHOBaxHo cny6o cepicHOo o6cnyo8yBaHn/ qaxieem-eneKmpkOM.He Kopucmyaumcb npucmpoem 3 nowkoDxHm npoBOM dna Niokluoyehn do mepexi.
Bci yacmuH, uo npoeobm b cmpym y po6oui 30hi, noeunHi bymu 3axuueHi bi nompapnHnKpanenb odu.
I IImencelbHa eBunka ma 3'edhyBaIbHu eIemHm nOobKyEa a NobunHi bymu zepMemuHi ma He nepe6yBamU y 6oDi. 3'edHbHu eIemHn HadaJI He nobuHen cmocyBamucn iDnozU. PekomeHoycBcB uKOpucmoeBamu KaebNbI bapabahu, kI 3abe3neuyomb po3MiueHnpo3emok He MeHwe, HIX e 60 MM eID iD nozoU.
Cniodkyume 3a mum, uo6 mepexhi KaBeni abo nodoexyueqi He moXha 6bno nowkodumu hacmynuwu Ha Hux, y pe3yIbmani nepezunHnra, po3ipeaHnra abo nodi6ho2o ywkodxeHH. 3axuzaume Mepexehu KaBEnb eid japu, macna ma 2ocmpux noeepxoHb.
△PonepeoKehn
Ipnucpii cnid emukamu nuwe do 3minnozo cmpyMy. Hanpyza noeunha iiooeidamu eka3aHUM Ha fipmoei mabluu npucmpo daHUM oodo Hanpyeu.
IpucmpiMoKe 6bmyPiOeHaHuu
Lnue do eNeKmpuHoi MepeXi, uo
NoouHa 6bmy EcmaHOeNa
eNeKpmoHmepo eiOpoeHO do
cMaHdapmy MxHapodHOi
eNeKpmexHiHo i Komicii (MEK) IEC
60364.
Henpuadamhi enekmpuhyi nooexyeaipoKymb 6ymu Hebe3neHuMu. Ha biokpumomy noeimpi eukopucmoeyama minbku npudamhu dny zuo2o enekmpuHu npodoxyyauch iDnoBIDHM mapkyeaHnma doctamhim diamempom kaebilo:1-10m:1,5 MM², 10-30 m:2,5 MM²:
Ipooexkyeaunouhen3aekdubymu noeHicmno po3kpyueHUM 3 KaeblbHo2o 6apabany.
3 MípkybaHb 6e3πeKu padumo nioKnUcAmu npucmpiu uepe3 aemomam 3axucmy iD cmpymy bumikaHna (MaKc. 30 mA).
Бe3neuHe o6cIyroBvBaHHa
06epexHo!
Ipeped koxhm ukuopumannm nepeepmaHa harehicmb nowkodxheb maki eaxnuei KOMnoHmu, yK wlahe bucoko0o mucky, nicmonem-po36pu3ky8a ma 3anobixhi npucmpoi. Nowkodxehi KOMnoHmu cnid HezauHo 3amHmu. He Kopucmyamucb npucmpoeM 3 nowkodxehmu KOMnoHmemamu.
Takox He do36oIembcr ckepo8yamu cmpymh bodu, uo nepe6ybae nducokum muckom, ha iHux IIOdeu yHa cebe dnyuueHHa 3ymmra yOday.
He Mumu npedMemu, uo Micmmb ukiDnuei dner 3dopeoe'peoenu (HaPuknaad, a36ecm).
Cmpymem nio muckom mojymb 6ydu nowkodxehi abo nonhymu koneca aemomobinie. Nepuo o3naKOIO nowkodxehnE 3mHa kOJIbOpY KOleca. Nowkodxehi Koneca cmaHOeIbMb Hebe3neky dny 3dOpoeJ. B xodi ouuueHnNcI 36epieamu ducmauo uohaumme 30 cm!
PakyeaIbHy npIeKy mpumaIme nOaIi biD dimeu, icHyc He6e3neka 3adyweneHra!
△IonepeoKehn
3aboponhaembcekcnnyamaus npucmpoio dimbu a6o HekaianpikoBaHmu ocobamu.
Lii npucpii He npu3naeHu dny 6ukopucmaHHnIObMu 3 06mxeHUMU fI3uHUMU,ceHCOPHumu a6o po3ymObUM moKnuOcMmu a6o 3 eIDcymHicmIO docidy/a6o 6IDcymHicmIO eIDnoBDHux 3HaHb,3a BuHramKom buadkie, KOnu BOHU 3haxodmbcr NiD HaeJADOM 6IDnoBdaNbHOi 3a Be3neky oc6u a6o ompumyomb iD HeI bKa3iBku no 3acmocyeanHIO npucpoio, amokx yc6idomNIObMb MoKnuePi3UKU.
He dozeoJme dima npucmpoeM.
Cmexkumu 3a mum, uo6 dimu He epanu i3 npucmpoeM.
Kopucmya nuuH en uKOpucmoeyamu npucpiy y eioeiodocmi do iHcmpykui. BIn noBuH en epaxoyama yMoBu Micueocmi ma 3eepmamu yeauy ha mpemix oc6 nd qac po6omu 3 npucmpoem.
LJHau, apmamypu ma 3'edhnn - Maomb bexnuee 3naehn da 6e3neku pobomu 3 npucmpoem. Do3eonreBcE uKOpucmann H JanaHei, apmamyp ma 3'edn b, doynuehux dner uKOpucmann Eupo6HuKOM.
He bukopucmooyamu npucmpiu, kou 30hi docxnocmi 3haxodmbc iHui IIOdu, oc6JIueo, kkuo BOHU He MaIomb 3axUCHOO ODAy.
Leu npucmpiu 6ye po3pObeHnui dny buKOpUcmaHHa Y HbOMy MUoUx 3acobie, uo nocmaaIombcra abo peKoMeHOyOMbcra eupo6HuKOM. BuKOpUcMaHHa Ihuux MuOuyx 3acobie abo ximikame moke HezamueHo enluhymu Ha 6e3neKy npucmpoio.
△ Yeasa!
IiD yac mpuaeJux npepe e pobomi cnid bumkhymu npucmpiu 3a donomoo2o 20noeH2o bumkaaya / bumkaaya npucmpoio abo iD'edhamu uo2o biEneKpmopepexi.
Дязлобиаань покожжени ру ouuценhi cnid 3бepizamu biocmaHB zuhaumehwe 30 cm biJ nakoeaHux noeepxoHb.
He moxha 3auiuamu npucmpiu 6e3 haaydy niq yac po6omu.
He do3e0jraembca ekcnlyamaia npucmpo npu memnepamypi Huxue 0^
Ihwi He6e3nekn
△ObepexHo！
He po3nulmau zoipoui pioduHu.
3a6boponhaembc8cMOKmyaHnnpucmpoempiuH，0oMicmpo3uHHKU，amokxhepo36abHeuxKusnom a6o po3uHHukie！TakumupeoBuHaMuE，HanpuKlad，6e3un，po3uHHukfapbu ma Ma3ym.Tymaneko3aumcuMu，b6yxoHe6e3neuHu i ompymHu.Heukopucmoeymeaemoh，hepo36abNei KUCOMu ma po3uHHiaocbi，ma JK peoeuHu6nueombHa Mamepianu，0oukopucmoeyombcraHa npucmpoi.
3abopoheno bukopucmoeyamu npucmpiu yubxohoe3neuhux 3OHax.
Ipu bukopucmaHHi npucmpoIO e He6e3neuHomy Micu (HaNPkuad, 6eH3OKoNnKa) Heo6xioHo npumpumyBamucb cneuiabhux nopad no mexHi ci 6e3neku.
IHdNbIyajbHe 3axnche cnopraJxKeHHa
Odaaume 3axuchy odekyma 3axucHi okynpu dnn 3axumy eioeou ma bpydy, uo eio6pu3kyiombcra.
KoepiiciHT ctiKocTi
△yeaza!
Peped eukohannm 6ydb-kaux diu 3 npucmpoem a6o bJn Hb0o Heobxio 3a6e3neum cmiKicmb, uo6 3anobiemu Heusacnmu bunaKaM ma mpaemyeaHnO e pe3ybnmami nepekuadnna npucmpoio.
→ CtiKicTb npnlaNy rapaHToBaHa JInuE y TOMy BnnaKy, KOJI NOrO BCTaHOBNeHo Ha pIBHni NOBepxHi.
3axnchi 3ac06n
△yeaza!
3axuci npucmpoi cnyayomb dny 3axumy kopucmyaue. Budo3miHa 3axuchux npucmpoie yu HexmyaehnHa Hmu He donyckaembcra.
BmMkau npncTroo
TOnOBHnBmNkauch 3anobiraecamOBiNbHi po6oTi anapaty.
HabeDeHO OINc PnCTpOu 3
MaKcImMaJIbHOIO KOMJIneKTaUciEO.
KOMnneKaTiaJi BIdpi3HЯeTbCz 3aIexKHO BiMoDeni (NIV. ynaKyBaHHa).
3o6paXeHHaNb.Ha pO3BOpOTi!
1 Miciue nIy 36epirarHnA kcecyapiB
2 PuykaДлЯТранспортуbaнь, BNTIryeTbCra
3 WbNdkOp03HIMc 3'EdHaHHaIJI pIKJIOUeHHBVCOKOHanipHOro IJaHra
4 TOnOBHnBmMkaU,0/OFF" / ,I/ON" (0/BIMK. / I/YBIMK.)
5 MepexkeBn Ka6eNb 3i uTeNceIbHO BUNKOIO
6 Puyka
7 TpaHcnpTHe KOJecO
8 PiiBBeHnB BOiN 3i BCTaHOBnEHM ciTuactm pInbTpom
9 ActnHa 3'EdHaHHa IJI pIiBedeHb BOIN
10 BcMoKtYBaJIbHn ⅢIaHr IJIaMnHOrO 3ac06y (3 φiJIbTpOM)
11 Puchnni nictolet-po3nnllobay
12Блokувань рунHoro nicToNeTypo3nJIIOvBaVa
13 PykaB BnCOKOro TnCKy
14 KhonkaДЯ BiD'EDHaHnHЯ WlaHry BncoKOro TnCKy BiD pyHoro niCTOJeTypo3nIbOBaça
15 CtpymeHeBa Tpy6ka 3 peryIIOBaHHaM TnCKy (Vario Power)
→ IpebeBipuTu NaiiHicTh KpInJIeHHN, NOTaRHyBUn 3a WJNaHR BnCOKOrO TnCKy.
IpaBAnHbOu
IOTyXHicTb DnB. Ha 3BOcBi T a6JIuCi/B TexHiuHNx daHnx.
yeaza
Bodhi 3abpyDHeHH MoKymb cnpuunHm nu nowkOJeHH Haocy eucokso muCKy ma npuna.ДЯ 3axucmy padumo ckopucmamucb bOdHUM qinbmpom KARCHER (cneuaJIbHe npuna, Homep dJa 3amoeJenn4.730- 059).
IpaBAnBaNbBOn3BoDOrOHy
Iotpmytecb npad niinpneMCTBa BOJONOCTaayHn.
△PonepeoKehn
BiodnoiHO do dioux dupekmue 3aboponembceeknnyamaui npucmpo6e3 cuscmemho0 po3diovoba a cuscemi nocmaaHna numho i odu.Cnid eukopucmoyeamu iDnoiH u cuscmemu po3diovbaq ipmu KARCHER abo anbmehamuehu cuscmemu po3diovbaq, 3aioHO EN 12729 muny BA.
Boda, uo npouwua chepe cuscmemnupo30inobau, baxaembcn HnpudamnoDra numma.
yeaza
CucmemHu po3diHoea 3aeKdu noBuHe 3haxodumcra e cucmemi eoOnocmauHna, He do3eOJMaBcra iidKnouamu uo2o 6e3nocepedHb o npucmpo.
IOnaBaHnB BODn 3 BiKpNTnx BOOIMMn
Дань Високоанірні МИнь anapat 3i BCMOKTyBaJIbHIMШанROM KARCHER Ta 3ВОРOTНМКлаланOM (Спeцiaльно npILAДЯ, HOMePЗamOBlenHry.4.440-238)npu3HaueHOДЯ BCMOKTyBaHHry BODI 3 BiKpNTxpe3epByaPIB, npmIPOM, 3 DiJOKДЯ DOUOBOI BODI YN CTaBkIB (MaKcIMaJIbHy BVICOTy BCMOKTyBaHHry DnB.у po3diNi "TexHicHi DaHI").
3aIOBHNITBCMOKTYBaJIbHnI WJIaHr BOIOHO.
→ PnirBnHTnBCMOKtyBaIbHn IJnaHr Do eIeMeHTa NODaCi BOu H a npicTpoI Ta NOMICTnU y DkepeNo BOuN (HaNPNKJa, y DOoOBy bOchky).
BVeDeHnBaEcknJyaTauzio
yeaza
Poboma ecxy npomr oem 6nbe 2
xuun npubodumb do buxody 3 na dy
Hacocae bucoko0 mucky. Kaio npucmpiu
npomzom 2 xuun He nabupae muck, mo
Uo0 cnid eumkhymu ma diamu eioibido
Ekaizkam, kni npubodmcbc 8 anaei
"Onomoa y eunaeky heonlaedok".
ManIOHOK
BCTaBHTN BnCOKOHaipHn IJNaHr y IWBnDKopo3'EMHe 3'EJaHHn Do KlaCaHHra.
BCTaBHTI UHaHr IJnI noaHi BOi B MyOITy BiINOBiHORo 3'EDHaHH. Bka3IBKa: IJNaHr INoaHi BOi He BXODITb DO KOMNJIeKTy NOCTaHaHH.
PiJ'eHaTn BOJaHn IJNaHr DO BOIOBOy.
Lijikom BiiKpnIte BOOriHnn KpaH.
BCTaBTe MepeXeBn uTeKepe y po3eTKy.
→ YbIMKHiTb anapat ,I/ON" (I/YBIMK.). ManhoHok D
→ P036JIOkyBaTn BaXJIb pyHOrO nictOnTeY-po3nJIHOBaHa.
IotrayHTn 3a BaxiNb, anapat yBIMKHeTbCra. 3aIuHITn npicTpriyBIMKHeHm (He 6JIbU, HIX Ha 2 XBUNH), nOKn 3 pyHOrO p03NIIIOBaHa He NoUHe BVXODHTN BOda 6e3 6yIb6aWok nobitpr.
→ 3BilbHItb BaxiNb 3pyHnMp03nIIOBaUemBka3IBKa:JaKIO BaxiNb 3HOBy3BilbHnTbcra,anapaT3HOByBIMKHeTcR. BucOKNI TNC3aIIuHaCTbcR B CNTeMI.
MaJIHOHOK E
3a6nokyBaTN Baxijb pyHoro nictolety-p03nnHOBaay.
Ekcnnyatauia
06epexHo!
Cmpymh b odu, uo buxodum 3
fopcyHKu nio bucoKUM Hanopom,
cnpuunre iiddauy puhozo nicmonemy- po3nunobau. 3 uei npuunu cnid
3aHmu cmiuke noJoxeHHra, MiHO
mpumamu pyHuN nicmonem-po3nunobau
3i cmpymunHO mpykoIO.
△ObepexHo!
CmpymiHb eOdu, uo 3naXoDumbcra nio
eucOKUM muckOM, MoKe cmaHOobUm
He6e3neky npu HnnpaBunbHomy
eukopucmanHi. 3abOpohreMcbc
ckepooyama cmpymHb oodu Ha IIOdeu,
mApun, yeIMKHehe enekmpuNe
oblaDaHaHHa Yu Ha cam bucoKOHapHu
MuOnu anapam.
yeaza
He6e3neka yukokxeHH! Ppucmpiu do380nembcra eukopucmoeyamu minbky nekayomy (2oju30hmaIbHomy) noLoxhenHi.
yeaza
He yucmum aemomobijhuiu,
laokaapboe nokpmm a6o yumnbi
noeepxhi (hanpukna3 depesnu) i3
3acmocyeaHnM fpe3u dny budaJeHHA
6bydy. lChye 3aepo3a nowkodxehn.
yeaza
Puzuk nowkodxehnnaKoap6ofo nokpumma
Ipepdobomoo3 Muoyo uimkoocid nepekohamuc8 momy, 0o oHa ouuetae iD 6pydy abo iHux cmopohhix yacmok.
MaHIOHOK
→ HaDiHbTe Ha puHm NiCToJIeT- po3nIIOBaU CTpyMmHHy Tpy6kY Ta 3aΦiKcYte II, NOBepHyBmHa 90^
→ P036JIOkyBaTn BaXiJIb pyHOrO nictOJeTy-po3nIIOBvau.
→ПOTЯнтуза Вадиь, anapat yBIMKHTbC.
Bka3ibKa: KaIO BaJIb 3HOBy 3BiJIbHnTbCra, anapat 3HOBy BUMKHeTbCra. BucOKn TnCK 3aJIuHaCTbCra B CnCTemI.
Pobota 3 MnHm 3ac06om
△O6epexHo!
BukopucmaHnHeeiDnoiHux 3ac06ie
dnyuueHHa6ximikame Moke
hezamueHo enluHymu Ha 6e3neky
npucmpo.
Длг buKohyeaH0zo 3a6dAnH no yuSeHHo eukOpucMoeyme euknOyHO 3acobu dny uUeHNma 3acobu no dozIy dy fipMu KARCHER, ockInbku eOnu po3pObeNHi cneuaJIbHo dny 3acmocyeaHnry y eauux npucmpox. 3acmocyeaHnry ihuux 3acobie dny uUeHNma 3acobie no dozIy doMe npuzBeemu do npuckopeHO 3Hocy ma empaMu npaaHa naapAHmiHe obcnyoBvAHnry. DoKnadHy infopMaio MoxHa odepjAmu e cneuaIi3oEahOMy Micui mopaii a6o be3nocepeHbO e npedcmabHmu me KARCHER.
△ObepexHo!
HenpaBunbHe 3acmocyeaHn 3ac06i8 dny
yuueHH MoKe cmmu npuHoo
cepO3Hux mpaem abo ompyehb.
Ppu 3acmocyeaHn 3ac06ie dny yueHH
cnid dompumyamucr bumoe
cepmuqikamy be3neku bupobhuka,
ocobnueo ekazibok iDhocho
3acmocyeaHn 3ac06ie iHDueidyalbHo2o
3axucmy.
MaHIOHOK 6
→ BCMOKTYBaJIbHn IJIaHr IJIa MInHoro 3acO6y BNTaTn 3 KOpNycy Ha NOTpi6Hy DOBXKINHy.
OnyctNTIN BCMOKTYBaJIbHNI JIaHr IJRA MHIHO 3acO6y B pe3epByap 3 p03HHOM MHIHO 3acO6y.
→ BinkopnctOByBaTu n CTpyMeHeBy Tpy6ky 3 perynIOBaHHm TnCKy (Vario Power)
→Повернтусту мину Тубку В
положеня „Mix".
Вka3iBka: Таим чином, пи
екл�аразць розун МИного засобу
Змшуетсь З STРУМЕHМВОД.
Braokci onii
→ 3aIHTMmHm3acioBpe3epByap InMaHOrO 3ac06y (DToPmMyuOncB Bka3iBOK 1oDoIOO3yBaHHHa EMHOCTI dI MaHOrO 3ac06y).
Pekomehdobahi MeToOn OunuHn
→ Pɔзпліntи Hebeileky kiIbkiCtB 3ac6oyДЯЧИSEHнHa cyxu NOBepxHIO Ta3aIIshHTn DiTn (He BucnxaTn).
→ 3MnItepo3UHHeHn6pydCTpyMeHEM BNCOKO TNUCKY.
PpnnnHnTneKcnnyataciio
→ 3BilbHItb BaxJIb 3pyHnM pO3nnIIOBaUeM
3a6nokyBaTN BaxjIb pyHoro nictolety-p03nnHOBaay.
→Пьд уас trpvbaInxперрвуpo6Otbl (ногад 5хвилн) anapat слд ВIMNKaTN ,0/OFF"(0/BIMK.).
3aKiHueHHra po6OTn
△ Yea2a!
UlnaHbucokoo mucky iD'edhyeamu iD pyuhoo po3nunloea a6o npucmpo miIbku modi, kIoU e cucmemi iOcymHiu muck.
yeaza
Ipu 3njammi kueunbhozo a6o bucoKoHaipnozo wlaHaa nid yac pobomu MoKe eunukHymu bumik zapraoyo bodu micyx 3'edhaHHna.
Picna po6oTu 3 MmHm 3ac6obom: C MeTOIOIPOJOCKaHH DaTu IOnpaIcOBaTu npuJaNy npOTaROM 6JIu3bKo 1 XBVJIInH.
→ 3BilbHItb BaxiIb 3pyHnM pO3nnIIOBaUeM
→ Bvmkhytn anapat "0/OFF" (0/BmK.).
→ 3akpntu BOoonpoBiHn KpaH.
→HaTnCHyTuHa pyuKy po3nnIIOBaYa, 106 3MeHsHTN TnCK y CnCTeMI.
3a6nokybaTn Baxijb pyHoro nictolety-p03nnHOBaY.
BntaHnItb MepeXhN ITeKeP 3i ITeNCJIbHOI pO3eTKN.
→ BiDOKpemTn anapat BiD BODoNOCaHNN.
TpaHcnpTyBaHHa
△ Yea2a!
Длзлбьднг HeцachmБunaKaMa mmpaBMyBaHnI npumpaHcnpmyBaHnI npucmpo cni npuiHmU do yeaU baynpucmpo (due. p03di "TexhiHi daHI").
TpaHcnpryBaHHaBpyHy
MaHIOHOK H
Bucoko pindn npictpi 3a pyky Ta nepehectn.
MaJIIOHOK
→ BntaHHTn Do knaaHnpykoTky dny TpaHCnOpTyBaHH.
→ PpIiJa TЯrTn 3a pyUkY dIra TpaHcnpTyBaHH.
TpaHcnpTyBaHHa TpaHcnpTHIMM 3ac06amn
3aΦiKcYBaTn npJlaD BiD 3CyHeHNa Ta nepeKeIdaHH.
36epiraHHN
△ Yeasa!
Длзлбианг HeaacHm euaKaMa mmpaMyeaHnI npu e6opi Micya36epiaaHn npucmpoCnID npuHma doyea2 baay npucmpoO (dua. po3di"TexHiDaHI").
36epiratnpictpi
IpeepTprBbAIm36epiraHnHm,HanpknJaB3NIMky,CNIДIOaTkoBO 3BepHyTuYBaRyHa BkazBKn Bpo3iIn "DorJrJd.
BCTaHOBHT npncptiHa pIBHn noBepxHi.
→ HatnchTytn po3MNkajbHy KhoNky Ha pyuHOMy niCTOleti-po3nIIOBaHi Ta BiDiInNTu BnCOKOHanipHN JlaHaHr BiD pyuHoro niCTOleta-po3nIIOBaHa.
→ HaxkTu Ha Kopnyc SwBnKOp03'EMHOrO 3'EDHaHHN DJI BnCOKoHaipHOrO 7JNaHra B HAnpMky, 3a3HaueHOMy CTpiIJKOIO, Ta BnHrTn BnCOKoHaipHn J7JNaHr.
MaHIOHOK
→ CknaCTn MepexeBn Ka6eNb, UlaHn BnCOKOro TnCKy Ta npuJaDЯ Ha anapati.
3axnt BiMop03iB
yeaza
He noEhicmIo BuNOpOxHeni npucmpoi ma oBlaadHaHHa MoKymb bymu NowkodKeHi pyHyueAHnIO npu oii Mop03y. NoEhicmIo BuNOpOxHmu npucmpiMi ma oBlaadHaHHa, a makoX 3abe3neumu 3axucm eid Mop03y Uo6 yHnKnHyTu nOwKoDkeHb:
3 anapaty cnid zikom Bnuadlanu Boyu. BMkaTn anapat 6e3 npueHaHoro shaHra BnCOKOr TnCKy i 6e3 npieHaHoro BOOnOCTaHaHHa (MaKcMym Ha 1 XbUNHy) Ta noyeKaTH OToN, DOKI npuINHTbcBNTIK BOm 3i shaHry BnCOKOr TnCKy. BmKnHtB anapat.
36epiraTn npicTpim 3 ycima akcecyapamny TeILOmy npmiiueHHi.
Доглад таTekhiчнoe6cIyroBvBaHnHa
△O6epexHo!
He6e3neKa npa3ku cmpymom. Npeped npoeedeHnram 6yob-kaux pobim no doaIayma mexHcyHomy o6cnyeOeyaHHIO eumKhymu npucmpiu i buHmyu mepexeby uJky 3 po3emku.
Dorla
IpeedIOBrrnIepioDom36epirAHnHaHpNknaDy3UMky:
→ 3HIMITb φIJIbTp 3i BCMOKTyBaJIbHOrO
UJNaHrγ ДЯ MИHOrO 3aCOby Ta
IppOMnIte NOrO IpoTOUHO BOJOH.
→ BntaHtB 3 donomoro npocKory6iB MepeXeBn fIbTp 3 eIemaHTy IJRA BOIOOCTaAHNHa Ta npOMnTe NOro y npotoChn BOi.
Texhiehe o6cIyroByBaHHa
Anapat He noTpe6ye npoΦiJaKTnUHOrO 06cIyROByBaHHJ.
Дономога у виразду нелого
He3NaHHi yUkoJKeHHB NMOKeTe BnIpaBHTn CaMocTiHNO 3a DOnOMOrOu HAcTyNHO OrJaY. Y cyMHInHnx BnPaJkax, 6yNb JaCKa, 3BeptaIteCra Do KOMPeHTHO CnyKb TeXHiHoPiDTPmMKn.
ObepeKHO!
Hebe3neka npa3ku cmpymom. Npeod npo6e0dennm 6yob-axpobim no doanay ma mexnichomy o6cnyo8yaehnlo bumkhymu npucmpiu i buharnmu mepexey buky 3 po3emku. Pemohmhi p6obomu ma p6obomu eJeKpuHmu ey3namu MOxe bukOnyu7amu minbku yno8HO8aKeHa clyj6a cepieCHOO o6cnyo8yaehnra.
PnnctriHne npaucoc
→ BntaHHTB baxiNb pyHoro nictoeta- pO3nIIOBaHa, npucTpiB BMKHeTbCra.
Ipebeipte BiinobiHicb Hanpyr, Bka3aHOy 3aBOcBki Ta6nuci, Hanpy3i Dkepena eektpoeheprii.
→IpeBipuTm MepeKeBn Ka6JIb Ha NOUKOxKeHHa.
AnapaT He BMnKaCTbCra, DBNrHyH rYdNtB
PaniHnHa npyurYepe3 cna6ky eIeKtpomepexky a6o npn BnKOpncTaHHi noDobKyBaaya.
→Пи ВИМКнEHHI HacampepeДВITЯгТи BaxiJIbpyuHOrO nICToJeTy- po3nIIOBaUa,notIM yCTaHOBiTь ВИМКач anapatyB noIIOJKeHHa,I/ON" (I/YBIMK.).
PnnctriHne npaioe nid Tnckom
Ппеверпун Настpoюваян CTуминно ITpyбк.
→ IpepeBipuTn DoCTaTHicTB o6'Emy noJaCuI BOAn.
→ BuntarHtB 3 DonomoroIO pIOnCKoryuB MepeXeBn fIbTp 3 eJeMeHTy IJRA BOJONOCaAHN Ta npOMTe NOrO y npOTouHi BOJI.
→ BvdaJIeHnI NOBITpI 3 npNCTpoI: BBIMKHyTn npNCTpiI 6e3 NiIKNIOueHOrO BvCOKOHaipHoro 7JNaHra Ta nopeKaTu (He 6iNbIe 2 XBNIN), NOKI 3 BvCOKOHaipHoro 7JNaHra He noUHe BHXODHTN BOa 6e3 6yIb6aWok nobITpR. BvIMKHyTn npNCTpiI Ta 3aHOBO npNEdHaTn 7JNaHr BvCOKOTo TnCKy.
Benviki nepenadtncky
OuHCTnTnΦOpCyHky BvCoKOro TnCKy: TOnKOIO npInbpaTn 6pyd 3 OTBOPyΦOpCyHKn Ta npOMTu II cpepeDy BOdoHO.
→IpebeBipTe kInbKicTb noDaBaHoI BOuN.
Anapat HerepMeTnHn
→ He3nauchny heereMpTeuHicTb anapaty 3ymoBJIeHO TexHiuHMn OcO6JIuBOCTaMn. Ipr cIuJIbHiJ HeereMpTeuHocTi 3BepHiTbcrdo aBTOpN3OBAHOI cLyKbI cepBICHO 06cIyroBvBaHHra.
OuHCHN 3acio He BCMOKTyETbca
→ BnKOpNCToBvBaTn CTpymHeBy Tpy6ky 3 peryIIOBaHHm TnCKy (Vario Power) IIOBepHyTu CTpymHnHy Tpy6Ky B nOLOKeHHa „Mix".
→ПоунICTИТиФИльТу BCMOKТУВаЛьНOMу
шлангу МИнHorO 3aCo6y.
IpebeBipTN BCMOKTByBaJIbHnI ShlaHr DnA MmHOrO 3aCo6y Ha nepeRHHn.
Ppnilaandny 3anachhi deTani
CneuianbHe DonomixKHe oBnaHaHnHa
IodatkoBe 6bnaHaHnHpo3uHPOe MoKlnBocti BkOpncTahnBaWoRO npncTpoIO. IodatkoBy iHopMauiBO Bu MoKeTe OTpMaTu y BaWoTO troPBoRo areHTa φipMn KARCHER.
3anachi yactnH
BnKOpncToByTe TbIbKn OpnIbHaJIbHbI 3aNaChi YacTnHi fipMn KARCHER. OInc 3aNaChNX YacTnH HApNkiHci DaHoI IHCTpyKci i 3 ekCnPyataci.
RapaHTia
YkoKhi KpaIHi DiIOb yMOBn rapaHTi,
HaadaHO BIDNOBIDHOO φipMOIO-
npoDaBcEM. HenonAaKn Bpo6oti
pncTPOOM uCyBaEMO 6e3PNaTHO
npOTaROM TepMiHy DiI rapaHTi, RaKIo BOHn
BVKNlKaHl 6paKOM MaTepiAny nn
NOMINKAMN BVROTOBHeHH. Y BnPaKDy
UnHHocTi rapaHTi 3BepTiTc8 Do npoDaBua
yn B NaBjInxuN aBTopu3OBaHni
cepBicHn ceHtp 3 DOkUMeHTaJIbHmN
PiD TBepJxehnM NOKyKn.
aAdpeCN B3MOKeTe 3HaITn Ha Be6-
ctOpinCi:
www.kaercher.com/dealersearch
TexHiChi xapaKTepeNCTnKn
EneKtpnHi 3'edHaHHa
S. Reiser
Head of Approbation
ynoBHOBaXeHnNoDOKymeHTaIi:
S. Reiser
71364 Winnenden (Germany)
Ten.: +49 7195 14-0
ΦaKc: +49 7195 14-2212
Winnenden, 2013/09/01
Kypmetti TytbHywbl,
BiyibMbbl anfawkbk KonpaHy aIbIHda naJaIaHaHy HcKaybH
MkyTOKbIbIbIbI3,HcayapdbOpbIaIan,KeiHri naIaIaHyuIN HeMeceOcbIannapaTbI KeiHn aIaNalaHaTbIHTyFaIap yuIN caKTan KoIbIbI3.
Ma3MyHbI
KanTama iuiHdere 6eJweKTeP. KK .5
BiybIMbl MaKCaTbHa caiKeC KOndany .KK.5
Kopwafrn opTaHbI KopFay . . . KK . .5
Kayincizik KK...6
BvibIM CnnaTtAmacbl. Kk .8
Icke KocyaIbHaH. KK .9
БиьIMы icke Kocy ..KK..10
KoIdaHny. KK ..10
TacbImaJday KK .12
BvibIMHbIH CaKaTJIbHybl .KK.12
KvTy MeH TexHnKaIbIK TeKcepy KymbICTapbl. KK .12
Keideprinep 6oJFaHda KEmek any. KK .13
Буньим Керек-жарakтапи Мен Косалкь 6олшевпетер . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . KK ..13
Kenilme KK.14
TexHnKaJbIK MaFJyMaTtap . . . KK . .14
EC cTaHdapTtap cənKeCTIK TypaIbI DeKlapaunia . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
KanTama iwiHdere 6eJIwekTeP
Ci3diH 6yIbIMbIHb3dBiH JKeTki3iNy KJIeMI Kopanwada 6eHHeJehreH. BybIM KopanwacBH aWKaHda KOpanwa iWihderi 6yIbIM MeH 6eJIWeKTePiH TOJIbIK XaHE 6y3blMaFAH TypDe 6oNfAHbIFbIH TeKcepIn aJIbHIbI3.
Erep Kei6ip Ka6IbIKTap KOK 60JcA
Hemece TacblMaJIay Ke3IHderi akaynap
60Jca, aannapaTbI caTkAn PhnpMaHbI
xa6apdap etiH3.
БуиьIMДы MaKcaTbIHa cэйКec KОлдану
ByxKOFapbI KbICbIMDbI Ta3aJafblWtBly WapyaUblbIFbHa fHa KaJdaHbIbI3.
Kypblfblnapbl,KeIikTepdi, KypblbICTapbl,Kypanlapbl, Ka6eTTepdi, Teppacanalapbl, 6ak KypanlapblH JHe T.6. Jxofapbl KbICbIMdbCy aflbImeH Ta3aayfa apHaHanfH (KaXET 60nca, Ta3aJaNbI3aTTapdbH KEMerimEn).
- KÄRCHER KOMmaHcB MaKyIdaFaH XnblHTbIKTaybI 6eJIWeKTePMeH, KOcaIkbI 6eJIWeKTePMeH XaHe Ta3anaftbI 3aTTapMeH. Ta3anaftbI 3aTTapMeH 6ipre 6epiNetin HycKaynapDbI opbIHdaHbI3.
Kopshafah OpTaHbI KopFay
KanTay MaTePnaIaIapbl ekHwi eHdeyre KapaMdbI. KaTamaHbI yKoKbICbHa NaKTbIPMaYbIHb3DbI cypaMb3, oJapbl ekHwi eHdey yuHin 6eJIek KoBbHb3.
Θ3 MEP3iMIn aAektarH KypaIapda
6aIaIbI, ekHsi ΘHdeyre JkapamDbI
MaTePnaIaIap 6ap. CoHdbIkTah
KoIaHbIJFaH XHe ecki
6BybIMapDbI apHaBI ipIKTeN XnHay
XyIeJIepi apKbIbI KaIdbIKTapFa
TanCbIPyBbIb3 Ja3bIM.
Kei6ip eIeppe Kofamdbk cy KOImaIapbHaH cy aNyfa pyKcT 6epinmei.
Ta3aJaftbIi 3aTTapMeH KymblcTbI TEK cybIKTBk EToKi36eTih Kymblc 6eTepiHde KocblnFaH yu KaHaJIIN3aUNrCBIMeH opbIHday KepeK Ta3aJaftbIi 3aTTbIH cy KOImacblHa He Jepre eHyIHe K0J 6epMeH3.
KaIdbIbTap naIa dboTaBtH MyHaN KaMTNTbIH Cy KoIMaJapbIHdAfbl Ta3aJAY KymbICTapbl, MbICaJIbI, KO3FaNTKbIsh Jyy, IhaHAcTbIH Jyy, TEK JyyfA apHaIraH aHaHdApda MaI 6eIriuhiH kEmerimH opbIHdanybI Kepek.
KypamblHaBf3aTtap TypaJIb aHbIKTaMaJap (REACH)
BiybIMbIH KypaMbIHdaftb3aTTapTypaIbI COHfbl MaFMyMaTTapDbI actbIda KepcTeJIReH INHTepHeT 6eTTepiMi3de OKn aJlacbi:
www.kaercher.com/REACH
Kayincizik
HcykaYbIH aHbIKTaMaCbI
Kayin
Abyip kapaakammahyra He enImae anapbIn corambin mikee mypde myce anamblmayekene Hycay.
CaKaMaHdbIpy
Abyip jkapakammahyra He eniime anapbin cofambin bikmuman Kayinmi kardaunapra HycKay.
CaKmbiHKyckaybl
JKeHJI kapaKammaHyra anapbIn cofambH bIkmumai Kayinmi Kardaura Hycay.
Ha3ap ayadapbIhbl3
Mamepuandbik 3uHra anapbIn corambih bikmumanKayinmi XardauHa Hcyay.
БунымдаftsCиMbOлдap MeH 6eIripe
BiyubIMbIO KOFAMbIK aybi3 cy JeNiciHe mikeNeu Kocyra 60JMaUdbI.
1 3aKbIMdany kayni! Byubimdb mek KeIeHeN Kyude naDaanahyra bona db.
2 KorapbKbcBIMdbI arbIH aamapra, kanyapnapra, bencen3neKmpnik Kypandapra Hemece 6yubIMhIH e3iHe KapcbI 6arbImmanMayb muic.
3 Byubimbaa3daHcaKmaHb13.
3neKtpnik Kypamdaactap
Kayin
Ka6eBbawacblMeH3neKmp po3emkacbIH eWkaaah bInraIobI KOJMeH yCmAmAhbI3 He mypmneHi3.
Kyam cbIMb Meh KaBeJIb awacbIHda ep KOJaHaBic anDbIHda 3aKbIMdapdbH 6apKorblmekcepH3.3aKbIMdaHaf KybIM cbIMbH eKilemmi Kbi3Mem Kepcemyu/3NeKmpwi MAmHdapdepey aybcmbpybl muic. KybIM cbIMb3aKbIMdaHaf 6yUbIMbO1 KOJaHaBsaHbI3.
Bepi jymbic 6bnimwecide 6ap 6oIraH mok emki3iuu 6nwekepebIH copraay wawbipahdbkopray bony KepeK.
Y3apmKbIuMbIH KeJI auIpbI MeH
XaIramacbl cyra 6epik bonyi KepeK
XeHe oIapObl cyra muiz36ey KaKem.
XaIramaKepeDe kanau 6oNca, conau
Xamnaybl muic. KaBb JkuHaumblH
WaprblbIKondaHraHbHb3 KcH, 6yn
awalbl po3emKaHbIH KepeD H MuH. 60 MM. Xorapbl mpybl KaMmaMaCb13
emedi.
Kyam cbIMbi MeH y3apmKbIiMtbIn KUbiny, KbICbIy, CO3bIy XaHe m.6. HAmuxeciHde naOda 6oJraH akaynapdbH 6oImaybH KaaraJaiy KepeK. 3neKmpik cbIMdapdbI bICMbH, MaDbH acepineH XaHe emkip KbIPnapdaH KopFaHbI3.
CaKaMaHdbIpy
ByubimdbI mek aybcnabI mokka kajraHb3. Kephey byubimhbIn myp kecmecihde Kepceminaen Hcpheye cukce 60nybl muic.
BvibIMdbI meK 3neKmpuiHIN IEC 60364 cmahdapmbiHa cukec KOdbipraH 3neKmp po3emkacbiHa kajfayra 6oJadbl.
Kapamcb3 3nekpik y3apmy Kaebbdepin KOndaHy Kayinmi bony MyMKIn. Cbypma kymbic icmeaeHde mek KaHa pyKcam eminaeh XHe Naibkmbl mypde beeneineHce HxHe Xemkiikmi Keandehen Kumacbl 6ap 3nekpik y3apmy Kaebbdepin KOndaHbIb3:1-10M:1,5MM2;10-30 M:2,5 MM2:
¥3apmKbIuMbI apKauaH Ka6eNb 6apa6aHbHa monbIfbImeH opaHbI3.
Kayincidikmi KaMmamacb3 emy MaKcamblda 6YubIMdba aemomammbl axbipamkbiuu (MaKc. 30 MA) apkblbl KOlaHy kamah ycbHbnadbl.
Kayinci KoJdaHy
Kayin
KorapbI KbICBMdbI wnaHai, KOImeHwaibpamy nucmonemi xHeKayinci3dk Kypandapbi cuaKmbiMaHb3dbI Kypamdacmapda apKOndaHbIC andbIHDA 3aKbIMdapbIH6ap-koRbIH mekepiH3.3aKbIMdanraH KypamdacmapdbdepeyaybcmbpbHb3.Kypamdacmapbl3aKbIMdaJFaH 6yubIMdbIOkndhaHb3.
Korapbl KblcimbI afbH Kuim Hemece aR Kuiim ma3aJay yuih 6aca aadamapra Hemece e3iHizee KapcbI 6arbimmayra 6oImauobI.
KypambldaKayinmi 3ammapbl (MbicaJIbI,macKeHdip)6ap 3ammapdbI 6ypkimeHi3.
UuHaap/uHa 6paHdaIapbIXorapbl KbcIMbI aBihHa 3aKbIMra KeiIn, Xapblybl MykIn. MyhIn 6ipHwi Benaici -uHa myciHIn e3epyi. 3aKbIMdAnrH uHaanap/uHa 6paHdaIapbl eme kayinmi 6oJbIn ma6blnabI. Ta3anay ke3iHde arBHHaH KEMHDe 30cKaawbikmbikma mypblb13!
Kanmama Kara3bH 6anaPdah aynaKymahbi3, myHwBfBn Kany Kayni 6ap!
CaKaMaHdbipy
Bana napra HeMece Hycay 6epinaeHkoaadamapra 6yI 6yubIMdbI naudanahyra 6oMauiobI.
BvN KpybIrfHbI quskaJIbIK, ceHCOPnbIK HeMece aKbI-NoDAmybI ueKmEnaen HeMece moxipubeci XHe/ Hemece biikminiei Kok adamdap 6jikmi MAMAHbIH bakblaybIDa 60MaHaH Ke3de HeMece Ocbl MAMHap mapabIHan 6yibIMbI KOndaHy mcini XHe orAh kambicmbI
Kayinmep myciHdiipimmeaen Ke3de naudanah6aybu muic.
BaIaIapra KypbINFBIMe H O'HayrpaKcam 6epMeH3.
Bana napra KypbInrBIme H ouhayra Konj 6epmey yuiH onapdbi bakbnan ombyp kepek.
Iaoudaanhyb6yubimdbHbicaHbHa 6aunahbcmb kondahybKepeK. EybIMMeJyMbic icmey Ke3iHde Jepainikmi wapmmapra Ha3ap aydapybKepeK, xakbiHda JypeH aadamapdbEckepykaxem.
KorapbI KbICBIMdbI wnaHai, apmamypa MeH MyfmaIap 6yubIMhbIH Kayinci3diayuH MaHb3db. TeK eHdipyuMI MaYndarAH KofapBI KbICBIMdbI wnaHaeJep, apmamypanap MeH MyfmaIapDbIKoNdaHbIHbI3.
Eeep Kopraywbl Kuimi Jokbaca aadamap JkaKbIH 6oJca, 6yubIMdbI KOndaHbHaB13.
Bny6yibmb6yubimwbfapuywbicbimeH KOybIraH HeMece ycblbIraH ma3anay 6yubIMap naDanaHy ywiH. BaKa ma3anay 6yubIMap Hemece xumraIK 3ammeKmep KOndaHy Ke3IHde 6yubIMbIH Kayinci3OieIH 6y3bIybi MYMKIH.
CaKmbIK HycKaybl
Y3aKa yaKbIm icKe KocblMa mypraH XaRdaUda Heia3i KocblUmbI/6yubIM KocblUbIN 6acbl HEmece 3JneKmpnik awahbl axblpambIn 6yubIMdbI eWipPi3.
Jaikmanrah 6emmepdi maanay KeiHoe 3aKbIMdapra kOJI bepMey yuIH arbHHHaH KEMIHDe 30 cm KaWbIKmbIkma mypbIbI3.
Bvubimdbi ewkaaah Kocynbl KyuiHde KaNbpyra 60MauiobI.
Temnepamypa 0^ -deH mEmeH 6oIraHa dbyubIMObi KOndaHbI3.
Baçka Təyekeldep
Kayin
KaHfbIw cyubikmbikmapobbl 6ypkImeHi3.
Epimho KocbIrah cybIKmbkmapbI HemeepimImeaeH KbIkwblapmH epimHdinepdi ewkaawan 6yibIMr copfblmaHbI! Bynapra, Mbicnbl, 6en3un, epimKiuimep Hemece Maym xamaDbI. CybIKmbK bypikkiui me3 xahfbli, kapblfbiw xeHe ynb60bn mablnadl.AcemOH, epimImeep Kbiukblndap MeH epimKiuimepi KOndaHaBbI3, onap 6yubIdarbl KOndaHbIraH MamepuandapdbH 6y3blviba anapa aanaDbI.
Kapbiny kayni 6ap jeppepe naoudanhyra mblbIM caIbHaobI.
BvibIMdbiKayinmi aumakmapda (MbicaJIb,BeH3UN Kyo cmaHcuaJapbIHda) KondaHy Ke3iHoe muicmi kayinci3ik epexeepin cakmay kaxem.
Kayincizdk KypanapbI
CaKmbIK Hcckaybl
Kayinci3diK KypaIadapbIHbIM MaKcambl - KondaHyubInapdbI Kayinmen caKaMaHdbIpy, onApdbI e3eepmye Hemece 6aKbInaycbI3 KaIdbIpyf aOImauDbI.
BiybIM Kockblbl
BiybIM KOKbIbIb6ybIMHbIH KeHET KOJaHaBJIbYbHa XoJbepMeiDi.
Kynnb6ap kon6ypikkiwi
KyIbIn KOI 6pyiKiWiH IN iNHTiperIH KaabaI da, 6yIbIMbIH KeHeT icKe KocblNybiHa JKOI 6epMeiDi.
KbICbIMDbI KockbIuBbI 6ap 6ocaTkblkJanaH
BocatKbI KwIanaH MaKcImMaIdbI pyKcAt etinreH Kymbc KblcblHbI apTybHa K0JI 6epMeiDi.
KoJImeH waBipaty nIcToJIeTIHiH TyTkacbl 6OcaTbIJaHaNda KbcIcbIM KCKbIbIb CopaNTbl icTeH WbIrapbl aIaNbl, XOFapbl KbICbIMbl aFBIM TOKaTaTbIaNbl. TyTk aTapTbIaNFaHd copan KaTadaH Kocblnbl.
BvibIM cHnTaTamaCbI
OcbI naDanaHy HcyaybIHda TOJIbIK
KnbIHTbIK KepcetijireH. MoJeBRe
6aJNaHbICTbI JkTeK3iiny KeIeMInDe
e3reWeJIik 6oJaDbI (KanTamaHbI KapaHbI3)
CypeTRep 6yKtemeni 6eTTe KapaHbI3!
1 KepeK-kaPaKaTapDbI caKaTay opHbI
2 TacbImaJday TyTkacbl, XblXbImaJIbl
3 Xofapbl KbcbIMdbI Wnahrire apHaJFaH XblJam aXbipaTbIaNtBm MyfTa
4 Byibim KockbIbbl "0/OFF"/"I/ON"
5 3neKtp TokKa Kocy Ka6eIep aHaacbImeH
6 TacbImaJday TtKacbl
7 TacbImaJnay deHreJeri
8 Kipictipinre eneri 6ap cy kekti3y kepi
9 Cy keTki3y kepihe apHaIraH MypTa
10 Ta3anaftbI 3aTAPdb copfbity shnaHrici (cy3rici 6ap)
11 Kon bypikkiu
12 Kynnb6ap kon 6ypiKiWi
13 Kofapbl KblcIMdb WJnaHri
14 KofapbI KbIcBIMdbI JNaHriHi KOI 6pyiKiWiHeH aXbIpaTyFa apHaJIFaH TYIme
15 KbIcBIM peTteriwi 6ap waabipaty Ky6bipb (Vario Power) KondaHbICTaftbTa3anay KymblCTapbHa apHaflraH. Kymblc KbIcMbI Min"JxHe "Max" apacbHda bipKeJIki peTteJei. "Mix" KyinHde Ta3anaFbI 3aTTbIKocyfa 6oanaBl. Kymblc KbICbIMbIH peTtey ysiH KOI bypikkuiHIn TytKacbH xibepiH3 XHe Waabipaty Ky6bipbH KaIaFaH Kyire 6ypaHb3.
16 Kip KeTipy pfpe3epi 6ap waubpaaty K6blpbl KInH KeTipinetIH KipJeHyre apHaIraH
\*KocbIMwa Kepek-kaPaKaTap
17 Kyfblw KbIwnak Ta3anaflwi 3aTTapMeH xMbc icTeyre kapaambl.
18 AHaJMaJbI KyfBiI KblIaK Ta3aIaNbI 3aTTapMeH Kymblc icTeyRe kapaMbl. Ocipece aBtOMaTTbI Ta3aJIay ysiH kapaMbl.
19 Ta3anaftb3at caybItb6ap Ke6ik
Wymeri Ta3anaftb3at caybTTaH copbJaNb
XeHE KyaTTbTa3anaftb3at Ke6iri
60nbT a6bJaNb.
\*\*KHaKaTa KaMTbJMaFaH
20 Cy afbHbI uHaHrci MaTAmeKyUeHtINReH cy uHaHrci CTaHdApTTbIMyΦTaMeHKoJaHaBlaJaDbI. DnAmetpi eH KeMi 13 MM (1/2 IIOm), Y3bIHdbfB eH KeMi 7,5 M.
Icke Kocy aIaBHaH
BiyibIM Kepek-kaKaPaKTapbIn oPhaTy
Icke Kocy aJdIbIHda 6yIbIMHbIH 6oc KocaIKbl 6eNikTePiOpHaTbIHbI3.
Cypetep 6yKtemeni 6eTKe kapaHbI3!
Cyper A
ByiIMbIH MyoTacbi MeH cy XeTKi3y xepiH 6ekiTih3.
Cyper B
KofapbI KblcBIMdbI UJahHriHi KOI 6pyiKiWiHe Dbl6bcneH 6ekiTImereHwe eHri3iH3. HcyKay: BaJnAhbCTbIPfbl 6ypaHaIbI TyTikTePdiN dypbO pHaIaackaHbIH TeKcepHj3.
KoIapbl KblcBIMbl IJnaHriJeri TaPbIbIbCTbl TeKcepy Ke3iHne caK 60JIbIHbI3.
Cy bepy kyuenei
BaiNaHbIC mənImeTepiH Typ TaKtacbl/ TexNkaJIbIK mənImeTep 6eIimiHde kapaHbI3.
Ha3ap ayadpaHbI3
CydaRbI KocnnapKorapbI KbICbIMdbI copfbiwka XeHe KepeK-JapaKaMapra 3aKbIM Keinmipy MymKiH. KopraHbIC yuH IN KARCHER cy cy3aicIH (KocbIMwa KepeKJapaK, mancbipbc Hempi 4.730-059) naDaJAnhy CsbHbInadbl.
Ky6bipdaH cy 6epy kyneci
Cy 6epy MekeMeciH HycKaynapbH opbHdaHbI.
CaKaMaHdbipy
KoandaHbIambl 3aHbI epexepee
cAkec,ipikmey kyueci KOK 6yubIM
ewkaWAn ac cy kyuecihde
koandaHbImaybl muic.MiHemmi mypde
KARCHER KompanucreMakyldaFah
ipikmey kyueci Hemece EN 12729,BA
mypi mananmapbHa cai Kelemin ipikmey
kyueci kondaHbInybl muic.
Ipikmey kyueci apkbInbI aBbHraH cy aybl3
cy peminde KapacmbpblnMaiobl.
Ha3ap ayadpaHb13
IpiKmey KjYueCIN apKaWAn cy 6epy KJYueNepiHe, EwKaWAn 6yUbIMra mikeNeu KocnAHaB13.
Cydbl aawbk caybitTah copfbyT
Бул когары KBICIMы TazalaftbIu 6eTteri cydbI, MblcAnbI, XaHbIp He ToFAHHa, copby Yu wIn Kepi KlaanahbI (KocbIMwa kepek-xapak, Tancbipbc Hemipi 4.440-238) bap KARCHER copby uHaHricMeh biPre naDanaHbJaDbI (MaKcImaJdbI copby BnIKtirH TexHkaJIbK maniMeTTepDeH kapaHbI3).
CopfbyTu wnaHriciH cymeH TOJtblpblHbl3.
CopfbyTy wlaHriciH 6ynbIMhBHy Cy XeTKi3y JkepiHe 6ekiTHi3 KAnHe cy Ke3iHe (MbCaIbI, KaaHbIp) iin KOybHbI3.
BvIbIMdbI ickeKocy
Ha3ap ayadapbHbI3
2 Muhymmah apmbik Kypfak Kyuidezi
XyMbIC Xorapbl KbICbIMdbl COPbIuMbIH
3aKbIMdaNybiHa anapbn coradbl.
BybIMdbI 2 Muhym iuiHde KbICbIMcbI3
KaJIbHa KeIinpiH3,6ybIMdbI eWipiH3
xHe "Akaynbkmap BoBuHwa aHbIKmaMa"
6eImiHdeei HycKaynapdbOpbHdaHbI3.
Cypet C
KorapbI KblcBIMdbI WJahHriH XblJaam aXbipaTbJIaTbIH MyfTaFa Dbl6bcnEH 6ekitijmereHe eHri3iH3.
Cy afbihb uhaHricin cy xektki3y xepiHderi MyoTara opHaTBih3. HcKay: Cy xibepy uhaHrici 6yibmmeh 6ipre caTbIma#bl.
→ Cy afbHbI uHaHriciH cy 6epy kyyneciHe XaJIFaHbI3.
→ Kv6bip KpaHbIH TOJIbIFbIMeH aUbIb3.
→ 3JIeKTp aUaAcbIH 3JIeKTp po3eTKacbIHa caJIbIHbl3.
ByyibIMdbI "I/ON" KyiHe aybICTbIPbIHb3.
Cyper D
KoI 6ypikkiuH nIHtiperIH KyIbInTaH 6ocatblb13.
NiHTipeKti TapTbIbI3 Da, 6yIbIM KocblaDbI. Cy Keiipuikci3 Kon 6ypikKiine IbIrapbJMaFAHwa 6yIbIMdbI JxMbIC icTeTIi3 (MAKC.2 MmHyT).
KoI 6ypiKiHin HnHTiperIH 6OcaTbHbI3. Hycay: NiHTipeK 6OcaTbJFaHHaH KeiH 6yblm eWipipJIeI. Kyneeri KOFapbl Kblcblm CaKaTaJaBl.
Cypet ②
KoI 6ypikkiuHn iHTiperIH KyIbIITaHbI3.
KoIpaHy
Kayin
KorapbI KbIcblObl WymeKe cy aftlbI KyyueiminaeHde kon 6ypikkiuine KaumapbIM kyui apmaDbI. Kayinc3 kyudi KaMmAmacB13 emy yuiH kon 6ypikkiuMi MeH waibpamy Ky6bIpbIH JkaKcbIan YcmaHbI3.
Kayin
KorapbI KbIcBIMMeH WbIrapblbnWaaWbpanambiH arBIMdapbiH naUbIKcbI3mypde kondaHaHaKayin mycyi MymkiH.OcbI arBIMdapbiH adamapra, kahyapnapHe aHdapra KapcbI, icme bONFaH 3neKmpKypandaPra Hemece 6yubIMhBiH e3iHekapcbI sbarbimmalmaybu muic.
Ha3ap ayadapbHbI3
3aKbIMdany Kayni! ByubIMdb mek KeIndeHEn Kyude naudanaHyra 6oNaDbI.
Ha3ap ayadapbHbI3
UHa, naK he arawcui ceiIman 6empeoi wawbipamy Kcbipimen ma3anamahb13, ce6ebi 3aKbIMdany Kayni 6ap.
Ha3ap ayadapbHbI3
Boryra 3akbim Keimipy kayni Kybiw Kblwaekmbi naudanaHrah Ke3de OHi Kip He baca bennuekmpdeh boc ycmayKepeK.
Cyper F
Ⅲaawbipaty Kv6bipbH KOJ 6ypikkiiHe eHri3iH3 JxHe 90^ aHaJIbIMda 6ekiTHi3.
KoI 6ypikkiuH nIHtiperIH KyblntaH 6ocatbHbI3.
→ NiHTipeKTI TapTbIHb3 da, 6YbIM KocblaDbI.
Hycay: NiHTipeK 6ocatbJnFaHHaN KeiH 6yibIM eWipineDi. Jyueeri Xofapbl KbcBcIM caKTanaDbI.
Ta3anaftbi 3aTneh Kymbic icTey
Kayin
JXacaHbI ma3anaFbIw 3ammapbI
HeMece xumnblk 3ammapdbKOndaHy
6yubIM kayinci3diine 3uH Keimipyi
MYMKIH.
Op ma3anay XymbcI ywiH meK
KARCHER ma3anaFbIw XaHe Kymy
3ammapbI naDanaHbIb3, c6e6i onap
6yubIMbIb36en naDanaHbIny uwiH
apHaBIXacakmanfAh. Baca ma3anaFbIw
XaHe Kymy 3ammapbI h naDanaHy
Me3eincix mo3yra XaHe KenindikmiH
6y3bIybiHa aKeyni MYMKIH. ApHaBl
dykeHDI xaBapdAp emH3 He Mece mikeNeu
KARCHER aknapammbIK beniime
xaBapnaCbIb3.
Kayin
JacaHbI ma3anaRbUu 3ammapbI naDanaHy aybp JapaKaammapra He ynaHyFa anapbIn corybl MymKIn. Ta3aay bUbIMdap KondHy Ke3iHde ma3anay bUbIM ubIrApuybIHbIN 3ammapbIH Kayincizik nacnpmmbl, acipece jkeke KopraHy KypaIadap mypaIbl HycKaynapbI cakmay kaxem.
Cypet G
→ Ta3anafbl 3aTbIH copfblty IJnahrici KaIanaFah Y3blNbIKKa KopnyCTAH TapTbIHb3.
Ta3anafblw 3aTbIH copfbity IJnaHriciHa3anafblw 3at Kocnac6ap Cayltka iiniH3.
Kbicbim peTteriwi6ap wauwbipaty Ky6bipbH (Vario Power) naaandaHbIH3.
ⅢaibpaTy KybipbIn "Mix" KyiHe 6ypbHbI3. HcKay: OcbHbIH HtNKeCiHde naJaHaHy Ke3iHne Ta3aJaFbIi 3aT Kocnacbl cy afbHbHa KocbIaNbl.
Kocbimwa
K6ik yMerieHH Ta3aIaNbIi 3aT CaybITbIH Ta3aJIaNbIi 3aT KOCnacBIMeH TOITbIPbIbI3 (MeJIWeP HcYcayIapbIH Ta3aJIaNbIi 3aTTbIH Ka6bIHda KapaHbI3).
YcbHbJFaH Ta3aJaay Tciji
Ta3anay 6yIbIMbIH Kypfak YcTipTkE yHemDi Tpyde IaIbIpaTbIn, ciHy yIiH (KeTIpIn KeTki3Be rHa) bipa3 KaNTbIPyblHbI3 Ja3bIM.
→ Epitirren Kipdi Kofapbl KblicbIMbl afbHMeh WauBIn Xi6epiH3.
KoIpaHybI yaKbITwa TKTaTy
→ Kɔn 6ypikiiHin nHtiperih 6ocatbHb3.
KoI 6ypikkiiHIn nIHtiperIH KyIbIITaHbI3.
→ ￥3ak kymblc kiipictepi (5 MInHyTTaH apTbIK) yIiH 6yIbIMdbI "0/OFF" KyniHe aybICTbIPbIbI3.
KymbICTbI aYkTay
CaKmbIK HycKaybl
Kyuede Kbcim KOK 60nraHda Kofapbl KbcimbObl WnHaHi meK KOI bypikkiuHeH He bYubIMHa aKbipambHb3.
Ha3ap ayadapbHbI3
ArbH He Kxorapbl KbicbIMdbu nlaHaeicih axbipamy apkblnb kondaHy keiHoe bIcMbIK cydbI yuubikmapdaH wblrapyfa 6oJabbl.
Ta3anaftbI 3aTneH Kymbcic icTey KeiHne: BybIMbl Wamameh 1 MnHyT Waio ysiH Kymbcic icTeiHi3.
KoI 6ypikiiHnHtiperIH 6ocatbHb3.
→ ByiMbIbI "0/OFF" KyiHe opHaTbIbI3.
→ Ky6bip KpaHbHxKa6bHb3.
KyuJeeri 6ap KbICbIMdb TeMeHnDeTy yuH kon 6ypiKiuiHi nIHtipereiH 6acblb3.
KoI 6ypikkiiHn iHtiperIH KyIbntHaB13.
→ ΘηεΚTp aωaçbIH ΘηεΚTp p03eTkacbIHah WbIfapbI n aJbIHbI3.
→БиIMdbI cy 6epy KyneciHeaKbIpaTbIHbI3.
TacbImaJday
CaKmbIK HcCKaybl
Anammap MeH 3aKbIMapObI 6oNObIpMay yuIH 6yUbIMobI macImaIooaraH Ke3oecaImarbiHa Ha3ap aydapbiIbI3 (mexHuKaJIbIK MəJImemmepei KaPaHbI3).
KoImeH TacbImaJnay
Cyper H
→ KypaanDbI TyTkacbIHahn KeTepein TaBImaIJaHbI3.
Cyper 1
TacbImaJay TyTkacbIH UblfapbHbI3, on 6ekiriinei.
→ ByiBIMdbI TaCbIMaJIday TyTKacbIHapTApTbIHbI3.
YwaKTapda TacbImaJday
KypbIfblHb cIpraHAn KeTydeH XaHe COfbIydaH KopraHbI3.
BvibIMbIH caKTaIbHybl
CaKmbIK HcCKaybl
Anammap MeH 3aKbIMdapdbI bOndbIpMay yuiH cakmay opbIHOpabIH mHaDAraH Ke3de 6yubIMhIH cAlMaftbHa Ha3ap ayOpabHb13 (mexHuKaJIbIK MAmiMemmePdi KapaHb13).
BmybIMdbicaTay
¥3aKa yaKbIka, MbICaJIb, KbICTa caKTay yLiH "KyTy" 6eImiHderi HyCKaynapdbOpbIHdaHbI3.
→ ByuBIMdb teric 6eTke KoBihb3.
KoI 6pyikkiuHderi axbipaty Tymecin 6acblh3 XHe KOFapbl KbICbIMdbI uHaHi i K01 6pyikkiuH e H axbipatblb13.
Kofapbl KbICbIMdbI Wnahrire apHaJfAH XblJamam axbipatbIaTbIH MyfTaHbIH KopnycbIH KepceTki 6aftbImeH 6acBbI3 XeHe Kofapbl KbICbIMdbI WnahriHi TapTbIN WbIFapblHbI3.
Cypet 1
KyaT CbIMbIH, KOFapbl KbICbIMdbI ⅢJaanHriHi JKeHe KepeK-xapaKTapDbI 6yNbIMda caKaTahb3.
Ara3dAn KopfAreBic
Ha3ap ayadapbHbI3
TonbIfbIme6ocambimmaH 6yubIM MeH KepeK-kaPakmap a3daH 6y3binybIMYMkiH. 6yubIM MeH KepeK-kaPakmapdo bI moBbIFbIMe6ocambihb3 XaHe a3daH KopraHbI3.
3aKbIMdanyfα kon 6epmey yshin:
ByibIMdbI TObnIFbIMeH cydaH 6ocatbIHb3: Kocblfah Kofapbl KbICbIMdbI JnHaHrci MeH Kocblfah Cy 6epy Knyeci KOK 6yibIMdbI Kocblb3 (MaKc.1 MInHyT) XHe JxOFapbl KbICbIMdbI YSwbIKbI cy KaImaFaHwa XblbTBHb3. ByibIMdbI eWipiH3.
→ ByibIMdbI 6apNbIK kepeK- japaKaTapbImeH a3 etKi36eTih Jepre caKTayfKaOyblHbI3.
Kytmy MeH TeXnKaJIbIK Tekcepy XyMbICTapbl
Kayin
3neKmpnik mokmbiH cory kayni.
KypblfbiFa Kbl3Mem Kepemy andbIHda KypblfbiHbEuipin, 3neKmp awacbIH po3emKaadaH wblrapblbI3.
KvTy
¥3ak yaKbITKa, MbICaJIbl, KbICTa CaKTay yUH:
Cy3riHi Ta3aJaNfblu 3aTTb1 CopfbIty IJHaHriciHeh axbipTaHbI3 XeHe afbIHbI cy actbHda Ta3aJAHbI3.
Cy kTeKti3y jKepiHderi eJeleKti KEMnipaybI36eH wEwiiH3 xHe aFbIHdbI cy acTbIHda Ta3aHaHbI3.
KbI3MeT Kepcety
Kpbblfbl KbI3MeT KepceTydi KaKeTeetnei.
Kepeprinep 6oJraHda KEmek any
UaftnKeeprinepdi actbda Kepcetilireh Ti3imre cainkec O3iH3 X08 aanyblb3 MymkiH. KydkTI kafdaimapda KbImet Kepcety 6eJIMiH apnaBb MaMaHdapbIme H xa6apJaacblb3.
Kayin
3Neekmpnik mokmbiH cory kayni. KypbInfbira KbI3Mem Kepcemy anobihda KypbInfbihb I eWipin, 3Neekmp awacbH po3emkadaH wbiRapbHbI3. XeHdey KymbicmapbI MeH 3Neekmpnik 6bnueKmep BoBuHwa Kymbicmap meK ekinenmi KbI3Mem KepcememH MaMaHap opbiHdaybI KepeK.
БунбIMЖumbicICTemereHne
KoI 6ypikwHIn NiHTiperIH TaTbIHbI3 Da,6yHbIM KocblaBl.
ByibIMhblTHypTaKtacbHda KepcetIirHeKepHeyTOKKe3iHKepeHyIHe cAkeC eEeHdiriH TeKcepHi3.
Kyat cblmbihdafb3aKbImdapdbIH 6ap- xOFbIH TeKcepiH3.
Буным icke kocbIMmaIbI, MOTOP dipindei
Önci3 3neKtpnik TK Hemece y3apTkblIITbI naJaIaHcyce6eBiHcKpHeydiH TEmeHdeyi.
ByiMbI KocBn, anDbImeH KOJ 6pyiKiWiHiH TTKacBn TapTbIHb3, coaH KeiH 6yibIM KockblbH "I/ON" KyiHe opHaTbIHb3.
БунбIM КьсимfaхayaNбермerede
ⅢaIbIpaTy K6bIpbIHdaIbI npaMeTpdi TeKcepiH3.
→ Cy bepy kyyneicinderi keTkijikti bepinic Kelemim Tekepihi3.
Cy kTeK3y kepiHderi eJekTi KEmnipaybI36eH WSeWiH3 xKeHe aFbIHdbI cy aCTbIHda Ta3aHaHbI3.
→ BybIMdbj KeJDenety: KocbIraH Jxorapbl KbcBIMdbj WlaHriCi XOK 6yibIMdbj KocbIb3 JxHe cy Kepipwikci3 Jxorapbl KbcBIMdbj YwaBikka WbIFrapbIraHaJWa KyTHi3 (MaKc.2 MInHyT). BybIMdbj eWiipiHi3 JxHe Jxorapbl KbICbIMdbI WJaHriHi KaTt JaNfRaHbI3.
KaTbI KbICbIM ipKJIicTepi
XKorapbI KbIcBIMdbI UyMeKTI Ta3aJAY: UyMeK KaHaJIbIHaN KipJIeHydi INHeMeH KetipiH3 XHe KaIbTaJAH CymeH UaMbHbI3.
→Cy KyIO MEnIeepiH KaIa TeKcepiH3.
Biybim 6iteynili JOK
BybIMhbla3dafah KeMy TeXHkAnblK ce6enneH opbl aJdbI. KaTbKeMy opbl anFaHaDa eKilNETKbI3MeT KepceTy MaMaHbHa xa6apJaCbHb3.
Ta3anafbiw 3at copfbtbnmaiDbI
KbICbIM peTteriwi 6ap 7a7bIpaTy K6bIpbH (Vario Power) naiDanaHbIH3. 7a7bIpaTy K6bIpbH "Mix" KyniHe 6ypbIH3.
→ Ta3anafblw 3aTTb1 copfbity
wnaHricinderi cy3riH iTa3anaHbI3.
→ Ta3anaftbI 3aTTbI copfblty IJnAHHriciHderi cBihbIKTapdbIH 6apKOFbIH KaTaNTEKcepiHj3.
Буным Керек-жарakтарIMenКocankbl6eJWeKTepi
AphaBbI Xa6DbIKTap
KocbIMwa KepeK-kaPak 6yIbIMdbI KOJaHaHydbH MymKiHdkTePiHKeHeiTepi. TOnbIK aKnapaTbI KARCHER dInepiHi3eH anbIHb3.
KocankbI 6eIwekTep
TeKaHa TynHcyKaIbIK KARCHER KocalkbI 6eJWeKTeP KOJaHaBbIb3. KocaikbI 6eJWeKTePdIH CypETTMeci ocbl HcayIbIKTBiH COhIHda bepinreH.
KenindeMe
BiybIMapbIMbI3 yuH np eJne jayantbI etim cepikTecTepi3 tapanbHaH
bIFapbIaTbIH KENiJeMe wapTTapbI
KyUte 6oJaIbI. Erep MaTePnAdepdbIH
akaylbIFbI HeMece daBbHday
6abcHdaFbI KaTeJIkTep TaBbIca, 6i3
bIKtMaJn akaylbIKTapdbI KeniMep3iMi
iiHHe aKbICb3 XeHdEmi3. KeniMep3iMi
iiHHe hapa3bIbIKTapbIHb3 6oJCa,
acnAaTbI cATKaH cayda MeKemeciHe
HEmece JkaKbIHdaFbI ekInetTI cepBnCTIK
KbI3MeT KepCeTy opHbHa cTbIN any YerIH
KepCETin, xaBapnaCbHbI3.
EHpiinre H KyHKepeTinre H Typ KecTeCiHne 1nppnaHaH.
Keke caHdapIbIH MaftbHaCbl KeleciJe 60aIbI:
MbicaIbI:30190
3 ΘHπipiIπeHxblb
0 ΘHπipiπreH facbipbl
1 ΘHπipinreH OXkbIДbIK
9 ΘHidiipiIreH aibihbH ekHsi caHbI
0 ΘHДiPInReH aIbIbIH 6ipiHsi caHbI
CoHbIMeH 6yI MblcAJa 30190 KoDbl 09/(2)013 eHndipinre Kynih 6iJdpedi.
Mekenkainap TeMeHne 6epinren: www.kaercher.com/dealersearch
TexHnKaIbIK MaFnyMaTTap
KoIaH6aIbI CaiKeCTikrI BaIaNay typaIbI epexepe
2000/14/EG V KocbIMuacbl
Winnenden, 2013/09/01
