Product type	Water and dust vacuum cleaner
Brand	KARCHER
Model	SE 3001
Power supply	230-240 V ~ 50/60 Hz, 10 A
Maximum power	1400 W
Minimum power	1200 W
Air flow	74 l/s
Suction pressure	200 mbar
Dirty water tank capacity	6 L
Clean water tank capacity	5 L
Filter bag volume	12 L
Spray rate	1 l/min
Dimensions (L x W x H)	370 x 290 x 470 mm
Weight	7 kg
Power cable length	5 m
Sound pressure level	77 dB(A)
Protection class	II
Accessory connection diameter	35/60 mm
Main functions	Water cleaning of carpets and hard surfaces, dry and wet vacuuming
Included accessories	Combined spray/extraction hose, two 0.5 m suction tubes, spray/extraction nozzle with hard surface attachment, combined carpet/hard surface nozzle, cushion brush nozzle, crevice nozzle, paper filter bag, wet/dry suction adapter, manual spray nozzle
Filters	Flat pleated filter (built-in), sanitary microfilter (built-in)
Maintenance	Cleaning the flat pleated filter, replacing the filter bag and sanitary microfilter, rinsing the spray lines
Automatic shut-off	The device automatically turns off when the dirt tank is full in wet vacuuming
Warranty	Warranty according to conditions of the authorized Karcher dealer

Frequently Asked Questions - SE 3001 KARCHER

How to use the device for water cleaning of carpets?

For water cleaning, remove the paper filter bag, insert the detergent tank, plug in the device, turn on the suction turbine then the spray pump. Apply the spray/extraction nozzle to the floor and work backwards, pressing the handle button to spray. For stubborn stains, let the detergent act for 5 to 10 minutes. Finish by rinsing with clean water.

How to dry vacuum with this Karcher SE 3001?

For dry vacuuming, use a paper filter bag (except for coarse debris). Remove the detergent tank, empty the dust container. Plug in the device, turn on the suction turbine. Adjust the power with the slider on the handle. For hard surfaces or carpets, use the switch lever on the combined nozzle.

Why does the device turn off during use?

In wet vacuuming mode, the device turns off automatically when the dirt tank is full. Turn off the suction turbine, empty the tank and restart. If the problem persists, check the float or contact customer service.

How to clean or replace the flat pleated filter?

When suction power decreases, pull the filter vibrator button several times. If needed, open the compartment, remove the flat pleated filter, shake it or clean it under running water then dry it. Replace it if damaged (ref. 6.414-498).

When should the paper filter bag be replaced?

Replace the paper filter bag when the fill indicator turns red. Open the closures, remove the old bag by closing it, insert a new one (ref. 6.904-143) and close the device.

How to rinse the spray lines after use?

Fill the detergent tank with about 1 liter of clean water. Hold the nozzle over a container and run the spray pump until the tank is empty. Then unplug the device and empty the dirt tank.

Can I use the device on parquet flooring?

No, the device is not suitable for cleaning parquet floors as liquid can penetrate and damage them. It is designed for carpets and hard surfaces like tiles.

Which detergents to use with the SE 3001?

Use only original Kärcher RM 519 detergent for textile cleaning. For mite removal, use Mitex RM 765. For antistatic impregnation, use Care Tex RM 762. Always follow the product instructions.

What to do if the spray pump does not work?

Check the power supply and fuses. Ensure the detergent tank is not empty and is inserted correctly. Clean the suction filter in the tank. If the problem persists, disconnect the hose and test the pump; if it does not spray, contact customer service.

How to store the device after use?

Empty and rinse the dirt tank and accessories. Store the accessories in their compartments on the device. Wrap the power cable and hoses around the device. Keep the device in a dry place.

USER MANUAL SE 3001 KARCHER

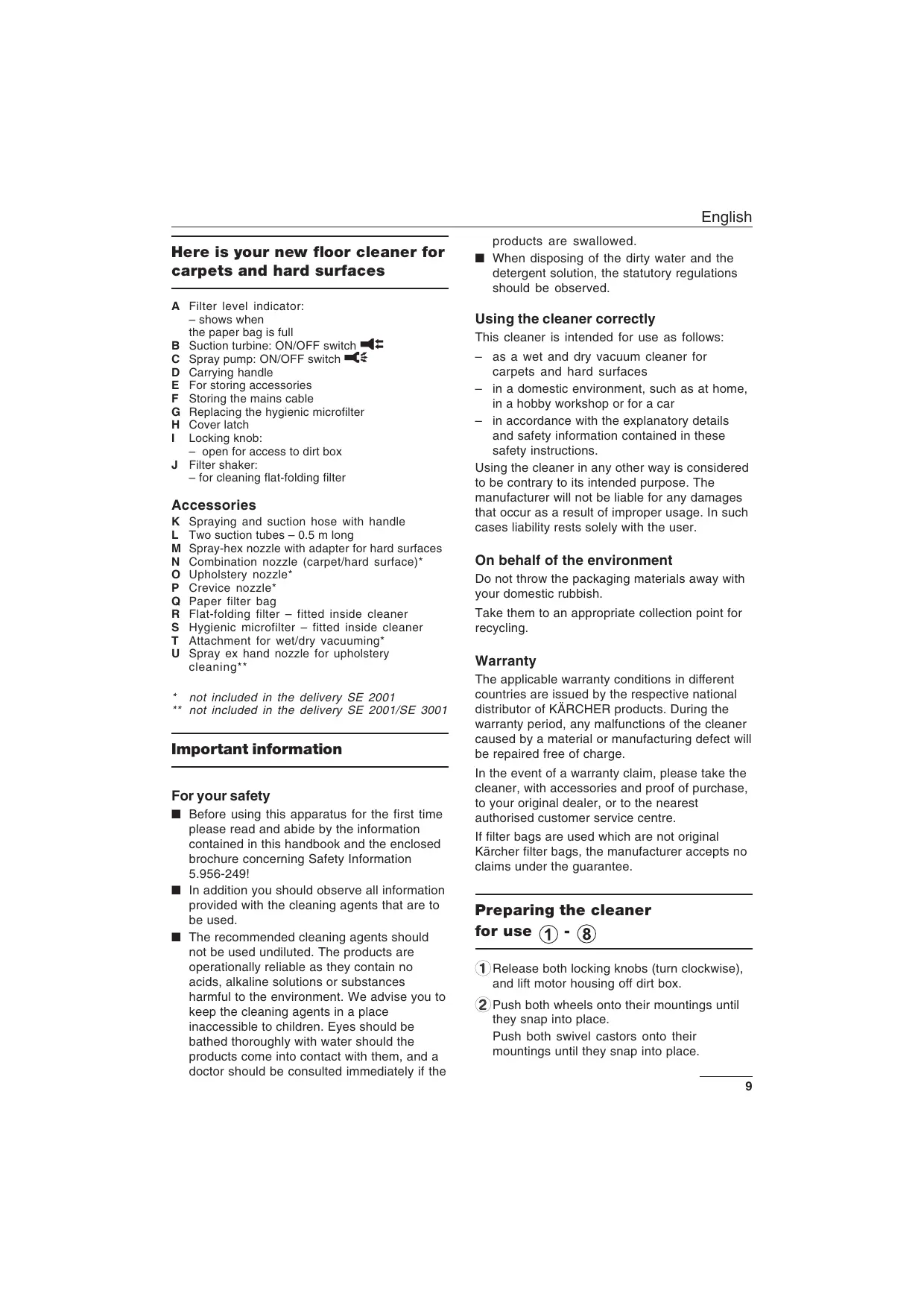

Here is your new floor cleaner for carpets and hard surfaces

A Filter level indicator:
shows when
the paper bag is full
B Suction turbine: ON/OFF switch
C Spray pump: ON/OFF switch
D Carrying handle
E For storing accessories
F Storing the mains cable
G Replacing the hygienic microfilter
H Cover latch
Locking knob:
open for access to dirt box
J Filter shaker:
- for cleaning flat-folding filter

Accessories

K Spraying and suction hose with handle
L Two suction tubes - 0.5 m long
M Spray-hex nozzle with adapter for hard surfaces
N Combination nozzle (carpet/hard surface)
O Upholstery nozzle
P Crevice nozzle
Q Paper filter bag
R Flat-folding filter - fitted inside cleaner
S Hygienic microfilter - fitted inside cleaner
T Attachment for wet/dry vacuuming
U Spray ex hand nozzle for upholstery cleaning**

• not included in the delivery SE 2001
  ** not included in the delivery SE 2001/SE 3001

Important information

For your safety

Before using this apparatus for the first time please read and abide by the information contained in this handbook and the enclosed brochure concerning Safety Information 5.956-249!
In addition you should observe all information provided with the cleaning agents that are to be used.
The recommended cleaning agents should not be used undiluted. The products are operationally reliable as they contain no acids, alkaline solutions or substances harmful to the environment. We advise you to keep the cleaning agents in a place inaccessible to children. Eyes should be bathed thoroughly with water should the products come into contact with them, and a doctor should be consulted immediately if the

products are swallowed.

• When disposing of the dirty water and the detergent solution, the statutory regulations should be observed.

Using the cleaner correctly

This cleaner is intended for use as follows:

• as a wet and dry vacuum cleaner for carpets and hard surfaces
• in a domestic environment, such as at home, in a hobby workshop or for a car
• in accordance with the explanatory details and safety information contained in these safety instructions.

Using the cleaner in any other way is considered to be contrary to its intended purpose. The manufacturer will not be liable for any damages that occur as a result of improper usage. In such cases liability rests solely with the user.

On behalf of the environment

Do not throw the packaging materials away with your domestic rubbish.

Take them to an appropriate collection point for recycling.

Warranty

The applicable warranty conditions in different countries are issued by the respective national distributor of KÄRCHER products. During the warranty period, any malfunctions of the cleaner caused by a material or manufacturing defect will be repaired free of charge.

In the event of a warranty claim, please take the cleaner, with accessories and proof of purchase, to your original dealer, or to the nearest authorised customer service centre.

If filter bags are used which are not original Karcher filter bags, the manufacturer accepts no claims under the guarantee.

Preparing the cleaner

for use ① - ⑧

① Release both locking knobs (turn clockwise), and lift motor housing off dirt box.
②Push both wheels onto their mountings until they snap into place. Push both swivel castors onto their mountings until they snap into place.

③Push the accessory holder into its mounting until it snaps into place.
45 For dry vacuuming insert paper filter bag.
(6)Put the motor housing on the dirt box and lock it in place (turn the locking knobs counter-clockwise as far as possible).

Connecting the accessories

⑦ Insert spraying and suction hose, and press until it snaps into place.
Connect coupling on spraying and suction hose, and press until it snaps into place.
⑧ Attach required accessory to spraying and suction hose or to suction tubes. If necessary engage the catch.

Note: The appropriate additional accessory to be fitted depends upon the actual cleaning task. Read the next section of these instructions for further information.

How to use the cleaner

Wet cleaning Carpets/Hard surfaces

(Spraying on cleaning agents and vacuuming them off in one continuous process)

Attention: Do not clean parquet floors in this way (moisture can penetrate the material and damage the floor).

Accessories required

• Spraying and suction hose with handle
  Suction tubes (e.g. for cleaning the floor)
• Spray-hex nozzle without hard-surface adapter for carpets
• Spray-hex nozzle with hard-surface adapter for hard surfaces.

Mixing a detergent solution

Attention: Avoid any damage to health or property by observing all the information provided with the cleaning agents that are to be used.

Removal of mites:
To eliminate mites we recommend our specially developed cleaning agent Mitex RM 765. Depending on the textile type, tests show that mites are removed for 6 - 9 months.
For cleaning please use only the original Karcher cleaning agent RM 519. This is suitable for all textile cleaning processes.

Dissolve half of the supplied test pack (or 1/2 the RM 519 measuring beaker) in 5 litres of water and pour this mixture into the detergent reservoir.

Getting started

Empty dirt box
■ Work without paper filter bag fitted
Fit detergent reservoir
Mount motor housing onto dirt box, and lock in place
Plug into mains socket
Switch on suction turbine
Switch on spray pump

Attention: If the detergent reservoir is empty, switch off the spray pump (pump could become damaged). If you are not working with the pump, switch this off at the ON/OFF switch.
To spray detergent - press and hold button on handle.

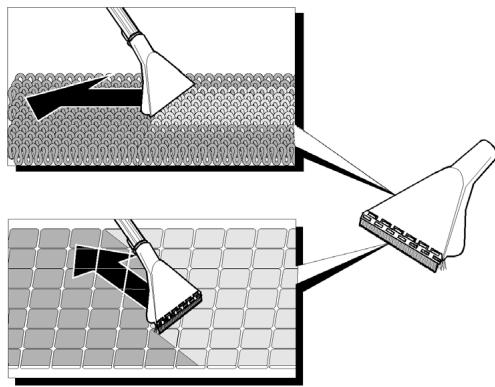

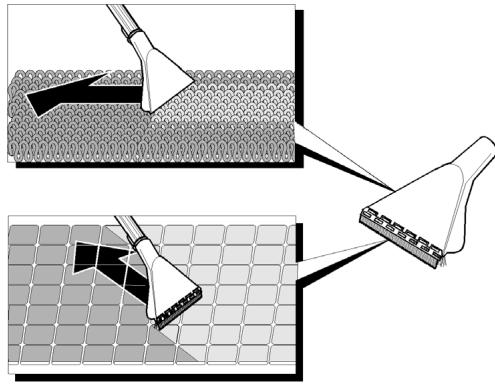

Place spray-hex nozzle on floor, and draw backwards along surface to be cleaned. Tiles are best cleaned diagonally across the joints.

Tips for working with the cleaner

Badly stained areas should be sprayed separately, and the detergent left to soak in for 5-10 minutes.

• Carpets should be rinsed with clear water after cleaning has been completed so that all traces of detergent are removed. Allow carpet to dry out thoroughly before walking on it again.
  If you use warm water (up to 50^ ) you achieve better cleaning results.
  If the textile layer has become impregnated with moisture after wet cleaning, we recommend our Care Tex RM 762, which is a dirt-repellent and anti-static proofing agent, to help to prevent dirt building up again quickly.

When cleaning has finished

Switch off spray pump
Switchoff suctionturbine
Empty detergent reservoir.

Note: Liquid that has just been vacuumed up could drip from the detergent reservoir while it is being removed.

When the tubes and nozzles are pulled apart some water may escape.

Rinse the spray tubes in the appliance thoroughly:

Fill the cleaning agent container with approximately 1 litre of clear water.
Hold the nozzle above the drain, and switch on the spraying pump until the clear water has been consumed.
Unplug cleaner from mains
Empty dirt box, and rinse out and dry if required

Wet vacuuming (Carpets/Hard surfaces)

(Vacuuming up moisture)

Use spray ex nozzles to vacuum moisture or wetness.
If you use a crevice nozzle:

Attach and secure the adapter for wet/ dry vacuuming. Install the crevice nozzle directly to the adapter.

Getting started

Remove detergent reservoir
Empty dirt box
■ Work without paper filter bag fitted
Mount motor housing onto dirt box, and lock in place
Plug into mains socket
Switch on suction turbine

While cleaning is being carried out

The cleaner cuts out automatically when the dirt box is full.

Note: Switch the suction turbine off after the cleaner has cut out, otherwise the turbine will start up again as soon as the cleaner is opened.

When cleaning has finished

Switch off suction turbine
Unplug cleaner from mains
Empty the dirt container. If required, rinse inside and let dry..

If you have vacuumed sticky liquids:

■ Rinse the accessories and let dry.

Dry vacuuming (Carpets/Hard surfaces)

(Vacuuming fine or coarse dry dirt)

Use the adapter for wet/dry vacuuming Attach the adapter to the handle, turn the locking handle to secure it.
- Select the desired accessories and attach to the spray/suction pipes or directly to the attachment.

Change-over lever set to following symbol

Vacuuming hard surfaces

Change-over lever set to following symbol

Vacuuming carpets

Getting started

Remove detergent reservoir
Empty dirt box, and rinse out and dry if required
The accessory (suction hose and tubes) should be dry inside so that they don't stick.
Vacuuming fine dry dirt: Fit paper filter bag (see section "Tasks to be carried out at regular intervals").

Note: The paper filter bag may be damaged if coarse or sharp objects are picked up by the vacuum cleaner.

Vacuuming coarse dry dirt:
Work without paper filter bag fitted.
Mount motor housing onto dirt box, and lock in place
Plug into mains socket
Switch on suction turbine
Adjust vacuum power by adjusting sliding control on handle.

While cleaning is being carried out

When working without a paper filter bag

Empty the dirt box when it is full.

When the paper filter bag is full

The filter level indicator changes to red. Fit a new paper filter bag (see section "Tasks to be carried out at regular intervals").

When cleaning has finished

Switchoff suctionturbine
Unplug cleaner from mains

When working without a paper filter bag

Empty the dirt container.

Tasks to be carried out at regular intervals

Renewing the paper filter bag

(Order no. 6.904-143)

Switch off cleaner
■ Release both locking knobs (turn clockwise), and lift motor housing off dirt box. ①
Remove paper filter bag from dirt box, and seal it up.

Insert new paper filter bag. ④ ⑤
Mount motor housing onto dirt box, and lock in place (turn locking knobs anti-clockwise as far as they will go). 6

Cleaning the flat-folding filter

When there is a reduction in vacuuming power:

Switch off cleaner

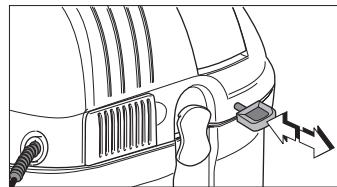

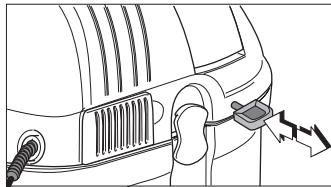

Pull knob on filter shaker several times.

Every now and then (depending upon how dirty it may be):

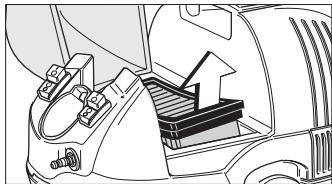

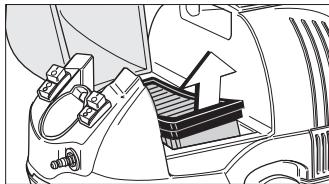

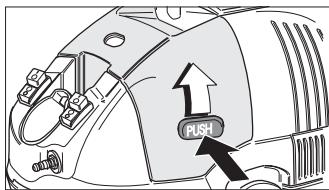

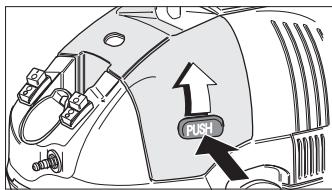

Press knob and open filter compartment.

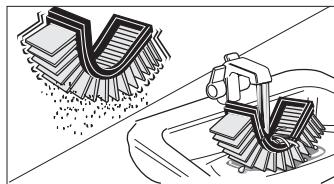

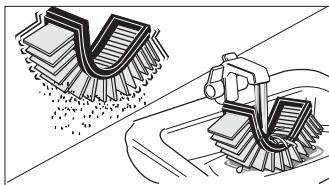

Remove flat-folding filter, and tap to remove dirt

or
if dirt does not drop off, clean flat-folding filter under running water, and leave to dry

■ Renew filter if covered in stubborn dirt.

Inspecting/renewing the flat-folding filter

(Order no. 6.414-498)

Check the flat-folding filter at regular intervals for signs of damage. The filter should be renewed immediately if it has been damaged, otherwise the motor could also be damaged.

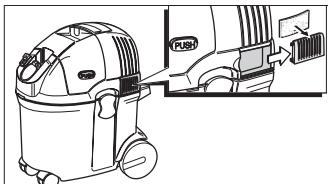

Renewing the hygienic microfilter

(Order no. 6.904-143)

The hygienic microfilter should be replaced whenever the paper filter bag is renewed for the fifth time - earlier if required.

Push cover panels towards rear
Mount hygienic microfilter onto cover panel, and refit both to cleaner.

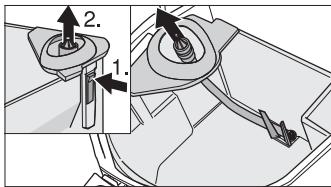

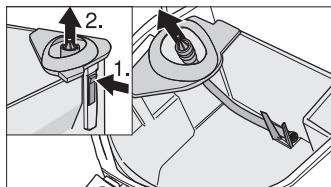

Inspecting and cleaning the accessories

Check the following accessories at regular intervals to ensure that they are not full of dirt, blocked or damaged:

• all suction and spraying nozzles
• spraying and suction hose with handle
  suction tubes
• rubber lip and bristles on hard-surface adapter
• suction filter in detergent reservoir
• Parts 1 and 2 must be movable.

Rinse parts with water if required.

Cleaning the device

Fill the cleaning agent container with approximately 1 litre of clear water.
Hold the spray-ex nozzle into a large container or the shower tub.
- Switch on the spraying pump, and rinse the appliance with clear water until it has been consumed.
Switch on the suction turbine, and vacuum the sprayed water to clean the suction tubes.
Empty the dirt container, rinse the dirt container and the accessories and let dry.

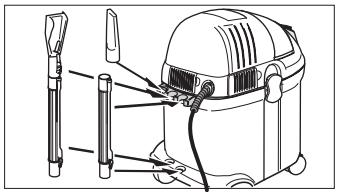

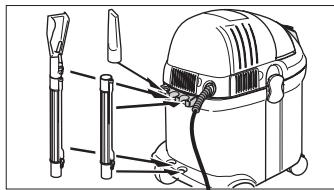

Storing the cleaner

Place accessories in holder on cleaner.

Wind mains cable and spraying and suction hose into coils, and wrap them round accessories.

Note: To release the coupling unit of the spraying and suction hose, press the two housing parts together and remove the coupling.

Technical specifications

Power supply	230 - 240 V
	1~50/60 Hz
Mains fuse (slow)	10 A
Power:	1440 Watt
Suction turbine	Pmax1400 Watt
	Pnom1200 Watt
Air flow	74 L/s
Vacuum	200 mbar
Capacity, wet vacuuming	11 L
Capacity, filter bag	12 L
Spraying rate	1 L/min
Capacity, fresh water	5 L
Capacity, dirty water	6 L
Length	370 mm
Width	290 mm
Height	470 mm
Weight	approx. 7 kg
Size of accessory connection	35/60 mm
Sound pressure level	77 dB(A)
Protection class	II
Mains cable:
Length	5 m
Type	H 05 VV – F 2x1

Troubleshooting

Attention: Danger due to presence of electric current. Unplug cleaner from mains before working on any electrical components.

Fault	Cause	Remedy
Unit does not start up	No supply voltage	Inspect mains fuse, cable, plug and socket, and have them replaced by a qualified electrician if required.
Unit cuts out	When wet vacuuming: water level in dirt box is too high, cleaner cuts out automatically	Press ON/OFF switch, empty dirt box.
Reduced suction power	Blocked paper filter bag, flat-folding filter nozzle, suction hose or suction tube. Level indicator has turned to "red". Full paper filter bag or dirt box. Flat-folding filter is missing, or has not been fitted correctly.	Inspect and clean if required. Renew paper filter bag or empty dirt box. Insert flat-folding filter correctly.
Dust is expelled during vacuuming	Suction hose is not properly attached. Flat-folding filter is missing, has not been fitted correctly or is defective.	Attach suction hose correctly. Insert flat-folding filter correctly, or renew if required.
Water escapes during wet vacuuming	Sticking float. Defective float switch.	Arrange for specialist dealer to inspect.
Spray pump does not function	No voltage supply.	Inspect mains fuse, cable, plug and socket.
Spray pump is working, but no water is discharged	Empty detergent reservoir. Blocked suction filter. Detergent reservoir has not been correctly positioned inside cleaner. Blockage inside cleaner or accessories.	Top up detergent reservoir. Clean suction filter. Fit detergent reservoir correctly. Detach coupling for spraying hose, and check whether pump is delivering water to outlet if yes, check accessories if no, arrange for customer service to check.
No water is discharged from accessories	Blocked nozzle. Blocked spraying and suction tubes or hose.	Clean nozzle. Check accessory connections, clean spraying and suction tubes and hose if required.

Your KÄRCHER Customer Service representative will be pleased to help if the above-mentioned measure do not enable you to repair the fault yourself.

No3HaKombTeCb C BaUIM HOBbIM MOUcIM NblIEcOCOM IJIa

TBepdbix N KOBPObIX HaNOJIbHbIX NOKpbITn

A INDnkaTOp 3aONHeHnE HnJIbTpA:
-CINHNAIIN3NpyETO3aIPOJIHEHN6yMaXKHOrOΦNJIbTp-MeUka
B BCacbBaioua Tpy6Ha: BKJI/BblKJI
C pa36pb3rBaIOuN Haoc: BKJ/BbIKJ
D pyuKa IJnI nepeHoCKN
E depkaTeIb IyxaHHeNn npHaIaIeXHOCTe
F CMOTAHHbI COeINHHTeHbI KaBeJIb
G 3aMeHReMbI rIrHeHueCKn MNUKpOΦNJIbTp
H KHONKa 3aMKa KpbIiJKN
3aMOK: -ДяСНТЯБаKa
J pyuKa yCToPoiNCTBa BnBpOoUHcTKn fNJIbTpA:
-ДЯ OЧИСТКИ ПЛOCKОТСКЛАДСАТОФПИВТРА

PpHnHaJdJIeXHoCTN

K BCaCbIBAIOUIM IJIaHr C pyKOaTKoN Tpy6KOJ DIA NOdau HBObl
L DBe yDInHInTeJbHbIe Tpy6Kn dInHoN no 0,5 M
M HacadkaДлЯ MOKPOY YIcTKN C COJNOM ДяпаЗбpbI3rIbAHnI N BCTaBKOДлЯ TBePdIx NOBEXHOCTeI
N KOM6HnHPOBaHHa HacaIka (ДЯ KOBPOBbIX IN TBeRbIX NOKpbITn)
O hacaika JIy MraKoM Me6eN
P 电eEBAHacaKa
Q 6byMaXhbl ΦnJIbTp-MeUOK
R nlockn cKaJaUaTbI ΦInbTp (yCTaHOBJIeH B aannapate)
S MUKPOΦHnIbTp (yCTaHOBJIeH B aIInapaTe)
T AdaTep IaI BlaXHoN uCyOu NCTKn*
U PaçnbIJInteIbHЯpyHЯфopcyHkaДячICTKn 06NBKN**

• He BXOДИТ В KOMПЛЕKT ПОТаВКИ SE 2001
  ** HE BXOДИТ B KOMПЛЕKT NOCTaBKN SE 2001/SE 3001

BaxHbIe yka3aHn

B uejx Baew 6e3oanchoctn

Ipeed npBbIM npimMeHnEM aannapata N3yUHTe daHHOE pyKOBODCTBO n O6pATITE OC6OBe BHMaHHe Na HNΦOpMaCIO, pnpBeDeHHYIO B pnIIaHaemoi 6poJIOpe "YkaAHAH NO TEXHNI 6e3oPachOCTn Pn paBaOte C nbIeCCamNi BLaxHOi n cyXOH y6opKn" N 5.956-249.
KpOME TORO, pINMITE K CBeDEHIO BCE yka3aHnI, pINlaeMble K NcPOJIb3yEmbIM YNCTRAUIM CpeiCTBAM.
PekomeHIOBaHNbIe NCTTcIe CpeCTBa He D0JXHbI NCIOJIb3OBAtBcR B Hepa36abJIeHHOM

coCTOHN. IpoDyKtbl yDObJIeTbOPRJOT Tpe6oBaHnM 3KcNlIyTaUIOHOH0 6Be3ONaCHOCTN, NOCKoJIbKy OHI He CcOepKxAT KcIcNt, UeIoOeI NII BeIeCTB, BpeDHbIX DJIg OKpyXaIOSeI cpeDbI. Mbl peKOMeHdyem XpaHNTb YIcTIAuIe CpeIcTBA B He IOCTynhIx dJIeTeI MeCtax. B Cnyae nonaDaHnY uCtAUXx CpeIcTb R Ila3a CJIeDyET cpa3y JxE TuaTeJIbHO pPOMbITb INx BOIo, a Pnri CUYaHHom npOrIaTbBAHmN HeO6XoDIMO He3aMeDJIInTEHbO OboPaTIbC K BpaUy.
Pn ytni3aun 3arp3HHeHHo BObI MoUeO pactBopa CneJeT co6IoDaT 3akoHOdaTeJbHbe npedncaHna.

PpimehyTe annapat no Ha3haeHnIO

Daanhyb annapat npedna3haeH dI pynmeHn

B KaueCTBe NbIeCocCa Dnla MOKpo YIcTKn I CyXoY6OpKn TBePDbIX NOBepxHOCTeN KOBoPoBbIXHaNoJIbHbIX NOKpbITn,
BbTOBOcfepe,HaNPIMep,JaYbOpKn DOMaSHHx NOMEueHn IMactepCKnx, YNCTKN CaHOHBaTOMObnIe,
B COOTBeTCTBnC INHCTpyKUJMAm N IpaBUNaMn 6e3OpAChOCTN, INPBEJeHHbIMN B DaHOM pyKOBOdCTBe NO 3KcIJIyatauIN.

Любoe npimemeHHe, BbIXOJaIe 3a npeJeIbI yka3aHHbIX ycIOBn, paccMatprBaETCB KaucheTBe npimemeHHe He no Ha3HaueHNo. Ipn3BOJntJIb He HecET OTBcTBeHNOCTN 3a BO3MOxHbI CB7aHHbI C 3TmUyεp6; COOTBcTcByIOuI pNCK loXHTcR ceJINKOM Ha NOL3OBATEJIa.

B 3aunty okpykaioe cpebl

He bIbIpaIbIaIte octaIOUmeCe Iocne paCnakOBKn 1actn ynaKOBKn B KOHTeHep JIry 6bITOBOrO Mycopa.

CdaTe HeHyKbIe yactuYnaKOBKn Ha COOTBeTCTByIOUne C6OpHbI neyHKtBdIaNX IOBTOHnpepeapoTkn.

Tapaantna

B KaKdoi CtpaHe DeIcTByIOr rapaHTnHbIe ycIOBnA,
3ndaHbIe Hauwei TropBOOi KOMPnaHMe. B TeueHne
rapaHTnHoro Cpoka Mbl 6ecPiAtHO yCtpaHIM
HeNCnPabHOCTn Annpata, PnUHnAMn KOtOpbIX
YABJIOrCTeΦeKtBl NcONJb3oBaHHbX MaTePnAIOB
INJIpOn3BOJcTBeHHbIe DeΦeKtBl.

B rapaHTnHOM cIyae o6paTntEc bMeCTe C npHaIeXHOCrMn I KbTaHcNei Ha NOKynkY B IpOdaBlyo Bam aInpaT topROByIO opraHn3aCIO nIi Ha 6IInKaIyio ABTopu3OBaHHyIO cTAHCIO cepBVCHO O6cIyKBAHnI.

ПОНЗВОДТЕЛБ He HeceT rapaHTNHOI OTBETCTBEHHOCTN B CNYae NCSIOJIb3OBAHNA HEOPINHAJIbHbIX ΦINJIbTp-MeJIKOB.

IoproToBka annapata k pa6oTe

① - ⑧

①OTKpbIbTbO6a3aMkA（NOBOPOTOM NO YacBOBcCTpeJIke）INCHaTB KOpNyc 3JIeKtpoDnRaTeJc Mycopoc6bOpHOro 6aKa.
② UcTaHOBnTB KOneca，HaCaIINb INx Ha NOBOkN n 3aΦNKCuPObAB HaxHMOM. HaTeB Ha NOBOkN oBa NobOPoTHbIX polnka n 3aΦNKCuPObA Tb HaxHMOM Ha HNX.
③ UctaHOBtBaHa KOpNyCe DePkaTeB IJnI npHaADJIeXHOCTeN 3aΦuKcUPOBaTb eO.
45Для pa6obTb B pexmme cyxoh y60pkn yctahOBuTB 6ymaXhbl ΦnIbTp-MeUOK.
⑥ YcTaHOBnTb KOpNyc 3JIeKToPdBnRaTeIHa 6aK n 3aKpeNtB eRO (IOBepHyTb 3aMKn IpOTnB yacOBoi CTpeJkn Do ynpopa).

PpncoeDHeHne npHaIeXHoCTe

⑦ BcTaBnTb WTucep BCacbIbAIOUeero WlnaHra C Tpy6KoI DnI NODaun BObI N 3aΦHKCuPOBaTe erO HaxNMOM. HaTeMb MyfTy WlnaHra I 3aΦHKCuPOBaTe ee HaxNMOM.
HaTeb Ha DpyroI WtUeep BCacBIBaIOeO 1nlaHra C Tpy6KoI JIJI POJaHn BOBbl NIIHa yDInHInTeJbHyIO Tpy6Ky XeJaEMyIO npHaJLeXHOCTb. PpI Heo6xoImocTn 3aΦuKcnpOBaTb ee.

Yka3aHne: BbIOp Tex IIN INHbIX npHaJIeXHOCTe 3aBNCIT OT KOHKpETHOrO npIMeHeHn (CM. CJIeNyUoN pa3JeI daHHoro pyKOBOdCTBa).

Pa6ota c annapatom

Mokpa Ynctka KOBpObblx HanoIbHbIX NOKpbITn / TBepDbIX NOBepXHocTei

(pa36pb3r3nBbAHne YnCTTaeo CpeIcTBa I BCacbBAHne B eINHom pa60eem npoecece)

BHHMaHHe: He cIeIyEt YIcTITb TaKIM CnOc6oM npKeTHbIe Nolbl (XnIKoCTb MoKeT IpoHnKHytB B IeJI N nPiNbECTN K NOBpeJdeHIO noJa).

Heo6xoIIMbIe npHaIaJIeXHocTn

• BCaCbIbAIOUmI UHaHr C pyKoTko I Tpy6ko I JIPOJauN BObl
• ydlnHntBbHbIe Tpy6Kn (Ha npimep, Ina y6opkn noJa)

HacdaKdIy MoKpOu YcTKn 6e3 BCTaBKn dIy TBepDbIX NOBepxHOCTei (Iy y6opKn KOBPOBbIX NOKpbITn)
- HacdaKdIЯ MOKpoI YIcTKeN C BCTaBKOI dJI TBePdbIX NOBepxHocTei (ДЯ OYnCTKIN TBepdbIX NOBepxHocTei)

IeTani 1 n 2doJXHbI coxpaHrTa IoBNXHOCTb.

Ipo Mepe Heo6xOJIMOCtN CJIeDyET IpombIiBaTb DeTaJIi CHapUKyN UJI N3HHTn BOIOJ.

Чистka пибopa

3aIITb Bpe3epByap IJIa MOIOeero CpeCDtBa 1I. UICTOIBObl.
Onycntb pacnbIyIOyIO fOpcyHky «3KCTpa» B pe3epByap IOCTaTOHNO EMKOCTN IIN B DyUeByIO BaHHyo.
BKNIOHTb HACOC CNTEmbl pa36pb3rHBAHnI nPOMbIBaTb npN6Op qHCTOJ BOJ, NOKA BOJa He 6yJeT n3pacXoJOBaHa NOJIHOCTbJ.
Дя npombyBaHnB BcacbBaIOuXn Tpy6 BKIOHTb BCacbBaIOUyIO Ty6Hny nCo6paTb BbKaayHHyO BODy.
Onopoxhntb pe3epByap hakonJIeHnI rpa3n, npomblteero n npHaJnxHOCTn, daTb IM BbICOXHYtB.

Xpahene annapata

BcTabt npHaJnEJHocTn B depKaTeIb Ha Kopnyce annapata.

CMToTb coeHnHTeHbN Ka6eJIb I BCAcbIbAIOUm UIaHr C Tpy6KoI JI NaOdauB OdbI BOKpyr YcTaHOBJeHHbIX B DePkaTeIN npHaJdJIeXHOCTeI.

Yka3aHne: IЯ pa36IokuropOBaHnMyΦTbI BCacbIBAIOJero IJIaHaRc COXMITEДBE YacTn ee KOpNyaCИ CTaHInTe MyΦTy.

Texhueckne xapakTepncnKu

Ecnn OuncaHhle 3decBneCTBnH He No3BOJrT yCtpaHTb HncnPpABHOCTb, oBpaNTecb, noXaNyIcTa, B MeCTHO otDeHHecePBCHCH cnKx6bl Karcher. Ee CneuaJImCTb OxOTHo NOMORYBam.

(Objed. c. 6.414-498)

Icnpntepn6op.
Pn60yTaKHTe y dpaHa anapaTy.

Hamotajte pinnkbyuHn Ka6eN uYcNo 3peBO 3a npckaHe n NoCTabNTe OKo npnbopa.

Unyta:3aJe6IokaNy cnojke ycncHOr upeBa 3a npckaHe npTnCHNe 3ajeNHO Dba DeJa KyHnUHa Tn3ByuTe cnojky.

Texnucn noaun

Мрекни пкльчak	230 - 240 V 1- 50/60 Hz
Осигураиbe мреше (Инерто)	10 A
Снarga	1440 watta
усисна турбиha, Pmaks	1400 watta
усисна турбиha, Pnaz	1200 watta
Колочина ваздуха	74л/c
Вakуум	200 мбap
Колочина пссканыа	1л/мен
КалаштET мokрог усисваьа	11л
Запемнина Фильерсke кесице	12л
Запемнина с breaste Воре	5л
Запемнина отпадne Воре	6л
Духиha	370 MM
Ширниha	290 MM
Висниа	470 MM
Текина за.	7 кг
Прinksьчна маса, прибор ø	35/60 MM
Разнина звuchог прип tcacka	77 dB(A)
Зашатни Клaca	II

Мразхни Кабел:

PpNkpEnBaHe Ha npHnHaJdxKxHocTn

7 ΠbXHeTe BnbpckBaIoo-N3cMyKBaIuT Mapkyu, DOKaTo E B rOTOBHOCT.

BkIIOUte KynIyHra Ha BnPbCKBaTeJIHHa MapKyu, DOKaTO E B rOTOBHOCT.

⑧ NocTaBeTe JxelAnHTe npCnOc6JIeHnHa BnpbckBaTeHnMa MapKyu,pecn.Ha BCMyKBaUHTe Tpb6n.B npOTnbEN CnyaH 6Iokupa.

Ppenopbka: KaKBO DoJIbJIHInTeJHO npucnOc6JeHne MoXeTe Da 3aKaUHe, 3aBUCN OT cEJIta Ha yNoTpe6a. IpOyete 3a TOBA CNeDbaunr TeKCT B yIbTBaHeto.

Taka pa6oTe c ypea

BnaJHo nouchTbaHe KnIIMn/TbbpDn NOBbpxHOCTN

(BnpbckBaHe n n3cmyKbaHe Ha nouicTbaU npenapat 3a eINH pa6oTeH deH)

BhMaHHe: Da He Ce NoUcTb NapKeT (BnArata MoKe Da HauIe3e N nobpeu napKeTa).

Hyxhn npnHaadneXhoCTn

BnPbckBaTeJIHO-N3CMyKBaU,MapKyU CpbkoXBaTka
- Tpb6n 3a n3cmykBaHe (Ha npimep 3a noHCTBaHe Ha nOi)
Дюза 3a ВпьскBaHe 6e3 Нakраинк 3a TBbpДИ NOВьрхHOCTN 3a KЛIMM
ДIO3a 3aВпрьСКВанeСнakраинк 3a TBbpДИ NOBbpxHOCTHn 3a TBbpДИ NOBbpxHINH.
- PpIroTbAHe Ha pa3TBop 3a noOuNCTBaHe

BHMHHe:3aJa npedotbpaTne 3dpabHn IIn BWeueCTBeHn yBpeJdaHn, Cb6IIOdaBaHTe DOnbJIHNTeHNO BCNUK 3a6eJekK, KOUTo ca npedHa3NaYeHn 3a NoocTbaUnte npenapATn.
OTCTpaHbAhe Ha akapu:

3a OTCTpaHbAhe Ha akapn Hne npenopbyBame pa3BHTnTc PecuAnHO ot Hac nouchCTBaU npenapat Mitex RM 765. Cnopei Bnda TeKCTnI akapnte ue 6bDat OTCTpaHeHn 3a nepnoD ot 6 do 9 Mecesa.

I3noJI3BaIte 3a noUcTbaHe caMo opuHnHaJIHHrT noUcTbaU npenapat Ha Kaercher RM 519. ToI e npedna3NaueH 3a BCNU BIDObe TEKCTNJ nIOUcTbaUdEiHOCTN.
Pa3TBOpTe noJIOBnHaTa OT npJIoXeHTo nakeTte (NIN S KOJI6a RM 519) B 5 J. BOJa N HaleIe Ta3N CMEc B pe3epBoapa 3a NOuICTBaUyI r npenapat.

3anoubahe ha pa6ota

I3npa3BaHeHape3epBoapa 3aOTpaDbu
Pa60Ta 6e3 xapTneH qntbP
IocTabAHe Ha pe3epBoapa 3a nouchTbau npenapat
IocTaBeTe n 3aTbOpTe MoTOPnHnT KOpNyc Ha pe3ePBoapa 3a OTnAbu

BkIIOUeTe UeIeCeIa B KOHTaTa
BkIIOUeTe BcMyKBaUaTa Tpy6Ha
BkHIOUeTe pa3npbckBaUaTa nomna

BnmaHne: Korato pe3epBoapbT 3a noocntBaun npenapat e npa3eH n3kIoUepe pa3npbckBauaata NOMta (nomnata MoKe Ja ce Nobpeu).Korato He pa6oTte C nomnata n3kIoUeTe oT 6yToHa EIN/ AUS.

3a BnPbCKBaHe HaTnCHTe KOnyTe Ho pBkoXBaTkata N 3aDpBxTe.

IocTaBete HIO3aT3a BnpbckBaHe Ha 3eMraTn pa6oTeHa 3aEN XoN,poN C nIoOKn HauNoDobpe ce NoHcTBa DnaRaHOHaJHo no fpyrnte.

CbBET npn pa6ota

Bnpbchete DOnbHInTeJHo Ha CnIHO 3aMbpceHm MecTa N OCTabete OKOJO 5-10 MNHTN NOHCtBaUHrT Ppenapat Da NoDeiCTBA.
N3yHCTe NOBbPxHOCTHe C KINIM B KpaHa pa6oTata C YnCTa BOda, 3a Da OTCTpaHITc octaTbci NT ONUCTBaUIm T npenapat. Octabete cIed NOuCTBaHETO da n3cbxHe ochOBHNO, ppei Da ce CTbNBA He Hero.
■ПиИЗПОЛЗВАнеHaToПla ВОДа（ДоМakc.50℃）постигаTe Na-Добьрpe3уЛтппп NOЧИСТВАНTO.
CneBnAaJHHTO NOUcCTBaHe TEKCTUNHITe NOKPnBKn Tp8oBa Da ce MMnpeRHipat, 3a da ce n36erHe NOBTOpHO 3aMbpcBaHe. Hne npedarame 3a ToBa HaunrT Care Tex RM 762 c 3a OTbckBaIo 3aMbpcBaHe n aHTNCTaTuHo MMnpErHnPaHe.

3aBbPbBaHe Ha pa6oTa

I3KJIIOHcTe IOMnTa 3a pa3npbCkBaHe
N3KJIIOHeTe Tpy6HHaTa 3a BCMyKBAHe
N3KJIIOUeTe UeENCeLa
I3npa3HePe3epBoapa 3a nouchTba, npenapat.

Yka3aHne: PnO tCpAraBaHe Ha pe3epBoapa 3a nouchTbaunI npenapat MOraT da nadHa T BCMyKaHn KaunuOn OT TeUHOCTTa.

Ppna pa3dienHeTo Ha Tpb6nte N IIO3nTe MoKe Da noteve Boda

N3JIaKBAHe Ha pa3npbCKBaIuTe Tpb6OpPoBOn B ypeJa:

HanbHHepe3epBoapa 3a npenapatn 3a nouchTaBe HOKOIO1IITbp YNCTa BOJa.
3aDpbXTe HakpaHnka 3a NOuchTbaHe Bbpyx MRCTO 3a OTtHaHe N BKIIOueTe pa3npckBaUaTa NOMna,doKaTo ce n3xa6u YNCtata BOda.
N3npa3BaHe pe3epBoapa 3a OTnAbu, npn HjxJa da ce N3PnakHe OT BbTpE n Da ce N3Cyu

BnaJxHo n3cMyKBaHe (KnIIMn/TbbpNn HactnIkn)

(Измкваны вларa)
3a n3cmykbahe Ha Bnla rpecn. MOKpn Mecta n3no13BaIe Te pbckaun DIO3n Ex.
9PnH3no3BaHe HaIIO3aTa 3aФyI. IocTabeTe nOCInpyete aAnTep 3a MOKpo/Cyxo I3CMyKBaHe.IocTabeTeIIO3aTa 3aФyIg InpEKTHOHa aAnTepa.

3anoybahe Ha pa6oTa

CbaJIaHe Ha pe3epBoapa 3a noUncTbaI npenapat
I3npa3BaHe Ha pe3epBoap 3a OTpaBcN
Pa6oTa 6e3 xapTneH fntbP
IocTaBeTe I 3aTbOpeTe MOTOpHnI KOpNyc Ha pe3epBoapa 3a OTNaDbu
BkIIOUeTe UeNcEla B KOHTaTa
N3KJIoueTe TpybHaTa 3a BCMyKBaHe

IbpeMeHa pa6ota

Korato pe3epBoapa 3a otnaIbIe nIbIeH ypea ce N3KJIIOUyBa ABTOMATUHO.

Yka3aHHe:Korato ypeIbTce n3KJIIOUBa, n3KIIIOUBa ce I BCMyKBaIaTa Tpy6nHa, Tb KaTo npo OTBapJeHa ypeDa ty6nHaTaOTHOBe 3aJeICBa.

3aBbPbBaHe Ha pa6ota

N3KJIIOUeTe Tpy6nHaTa 3a BCMyKBAHe
13KIOUeTe UcENcena
I3npa3HeTe pe3epBoapa 3a OTnabu, aKo e Heo6xOdmo, n3JIpaKHeTe ro ng 3Cywete.

Ako cTe n3cMykann JeNkABn TeuHocTn:

I3nJIaKHeTe eJEMeHTInTE OT OKOMJIeKTOBkata I nOCTaBeTe Da N3cbxHaT.

Cyxo n3cmykBaHe (KnlmN/TVbPn NaCTnIKN)

(V3cmykBaHe naΦHnHnIη rpy6n 3ambpcnteIi)

9I3noJI3BaIte aIaIaTep 3a MOKpo/Cyxo I3CMyKbaHe. IocTabete aIaIaTepa Ha pbKOxBAtKaTa IJIN BCMyKaTeIHaTATA Tpb6a, 3aBbptTe IIOCTa 3a 6IoKIPAne Iro OcInpype.
I36epeTe JeJAHInTe PnHaJaEJXHOCTN I nIOCTaBeTe Ha pa3npbckBaUInTe BCMyKaTeJIH INp86n peCn. DnpeKTHO Ha aadantepa.

PpeBKLIOHbATEIcBcCJIeDNHnCIMBOJI:

I3cMyKBaHe Na TBbPdIO NOBbPxHHN

IpeBkHIOUbATEJI CbC CJIeHNr CIMBOJ:

I3cMyKbaHe Ha IOBbpxHNHc KINIM

3anoubahe ha pa6ota

OThemaHe Ha pe3epBoapa 3a nouchTbaI npenapat
N3npa3BaHe pe3epBoapa 3a OTnAdbu, npn Hjka da ce N3PnakHe ot BbTppe n da ce n3Cyu
PnPnHaIeJXHocHTe (MapKyuI Tpb6u) Tpr6Ba Da ca cyxN OTBbTpe, 3a Da He 3aJIenBa.
I3cmykbaHe HaΦnH cyx OTnaBk: IocTabaHHe Ha xapTneH ΦnITbp.

Yka3aHHe: PnI n3cMcyKBaHe Ha rpy6n IInN OcTpNi ppeiMeTn, XapTneHnrt fHNTbP MoKe da ce noBpeDn.

N3cmykbaHe Ha rpy6 cyx OTnabk: Pa6ota 6e3 xaptneH qnlTbp.
IocTaBeTe n 3aTBopeTe MOtOpHnA r KOpNyc Ha pe3ePBoapa 3a OTnAdbu
BkIIOHcTe UeNCEla B KOHTaTa
BkIIOUeTe BCMyKbAaTaTtyp6Ha
HactpoTe CnIaTa Ha BCMyKBAHe NocpeDCTBOM pIb3raaIrt peryIaTOp Ha pbkoXbaTkata.

No Bpeme Ha pa6ota

Pp npabota 6e3 xaptnen fnnTbp:

Korato pe3epBoapara 3a OTnadbue nIbIeH n3npa3HeTe ro.

Korato xaptneHnT fUntbpe nblJeH:

BctaHOJIeHHdoaTkoBOrnpIJaIaIaI

⑦ BcTaBTe UHaHr DnIpo36pN3KyBaHH/BCMOKTyBaHH, NOKI BIn HE 3aΦiKCyETbCra.HacyhTe MyΦTu UHaHra DnIpo36pN3KyBaHH, NOKI BOHa He 3aΦiKCyETbCra.
⑧3akpiinitb notpi6he npnilaanda Ha shaHry dny po36pni3KyBaHH/BCMOKtyBaHHa 60 BCMOKtyBaJIbHi Tpy6i.

PpMItKa. Bn6ipdoaTkoBOr npnilaIy 3aJeKtB Bid 3aIIaHOBaHOr BO BkOpncTaHnH PnpIaNy. YntaTe HacTyHnPi03dIuBoo NociHnka.

Pobota 3 npnilaioM

BoIore uIeHnKINIMOBORIO NOKPITTTOJy/TBepDIN NOBepxOHB (po36pN3kyBaHnI BCMOKTyBaHHa 3ac06y dIy uIeHnHa 3a OdHn IpoxiD)

Ybara! LcE MeToD He npu3NaeHn IpyuIeHH naPKeTHnx NiIIOr -PPOHnKaIOHy UJINHN, BOJORA MOKe NOLIKOJNTN NiIIOry.

Heo6xidne npnlaedra

• LJIaHr,IЯpo36pN3KyBaHHra/BCMOKtYBaHHra 3 pyHKIO
  BcMoKtByBaJIbHI Tpy6n (HaPnIKJIaI,ДЯ YIeHnI niJIOrI)
• Po36pIaKbAJIbHa 0fOpCyHka 6e3 HacIaKn IJIA NIIeHNH TBePdNIX IOBepXoHb (ДЯ KIJIIMMOBOrO nOKpIITTBA
  P036pni3KyBaIbHa foOpCyHka 3 HacaIkoIO nIy NiIeHHa TBePnIX NOBepXOHb (IJIa TBePnIX NOBepXOHb)

BCTaBTe HOBn fIbTpBaJIbHn paKeT (INB. po3dIn

"LcTeTpe6a po6nTu peYyIpaHNo".

3aikyuemop60ty

BumKhitbBCMOKTyBaIbHy Typ6iHy

BntarHtB wTekep.

B3 napepoboro pfIbtpybalbHoro naKeta:

CnoopoxHITb KOHTeHep dIa cmITT.

Ie tpe6a po6ntn perylnarpo

3aMiHa nanepoBoro oIbtpyBaIbHoro naKeTa

(HomepДяЗamOBJIeHH6.904-143)

BumKHiTb npnla.
BiiKnIte Dba 3aMkn, o6epHyBUn 3a roHNHnKOBOO CTpiIKoIO, i3HiIMt b KopNyc MToP a 3 KOHTeHepa dJa CmITT. (1)
BHTaHITb 3 KOHTeHepa fIbTpYBaJIbHn IaKeT. 3akpnte KOHTeHep.

BCTABTeHOBNΦiNbtpyBaIbHn naket.④⑤
BcTaHOBIb KOpNc MOTopa Ha KOHTeHepi dIa CMITr i 3aΦikCyIte, o6ebHyBUn 3aMKn IpOTn rOdINHHKOBOI cTPIKn Do yIpy. ⑥

UHENnIaCKOrO cKaHaHOF OJIbTpA

YBnIaIky nOriPseHHe CNJIN BCMOKTyBaHHa

BumKHiTb npuHa.
■ DekiIbKa pa3 notarHITb pyky dIy BnTpuyBaHHa fiNbTpa.

Yac BID Yacy (B 3aIexxHocTi BiD pIBHa 3acMiyeHHA):

HaTnChiTb KhoNky i BiKpnIte BiDcKiBtpa.

BntTnItb icTpychItb nlaackn cklaadHn fIbTp.

a60

KJUcTcNtCmITT3 9IbTpHeBdaETbcra, npomnte 9IbTp npOTOHO BOIO i daTe BnCOxHyTI.

YBnIaKy 3HaHNO, CTiKOrO 3acMHeHHa3AmHt bIaCKn CKlaDaHn FJIbTp.

Kärcher Cleaning Systems A.E.

31-33, Nikitara & Konstantinoupoleos str.

13671 Acharnes

210-2316153

GB

Kärcher (UK) Limited

Kärcher House

Beaumont Road

Banbury

Oxon, OX16 1TB

01295752200

H

Kärcher Hungária Kft

Tormásrét ut 2.

2051 Biatorbágy

[phone]

HK

Kärcher Limited

Unit 10, 17/F.

APEC Plaza

49 Hoi Yuen Road

Kwun Tong, Kowloon

[phone]

1

Kärcher S.p.A.

Via A. Vespucci 19

21013 Gallarate (VA)

848-998877

IRL

Kärcher Limited

12 Willow Business Park

Nangor Road

Clondalkin

Dublin 12

014097777

KOR

Karcher Co. Ltd. (South Korea)

Youngjae B/D, 50-1, 51-1

Sansoo-dong, Mapo-ku

Seoul 121-060

032-465-8000

MAL

Karcher Cleaning Systems Sdn. Bhd.

No. 8, Jalan Serindit 2

Bandar Puchong Jaya

47100 Puchong, Selangor

[phone]

N

Kärcher AS

Stanseveien 31

0976 Oslo

24177700

NL

Kärcher BV

Postbus 474

4870 AL Etten-Leur

09003344433

NZ

Karcher Limited

12 Ron Driver Place

East Tamaki, Auckland

[phone]

PRC

Kärcher Cleaning Systems Co., Ltd.

Part B, Building 30,

No. 390 Ai Du Road

Shanghai Waigaoquiao 200131

[phone]

P

Neoparts Com. e Ind. Automóvel, Lda.

Largo Vitorino Damasio. 10

1200 Lisboa

(21) 3950040

PL

Karcher Sp. z o.o.

UI. Stawowa 140

31-346 Kraków

[phone]

RUS

Karcher Ltd.

Vienna House

Strastnoi Blv. 16

107031 Moscow

095-9338748

S

Kärcher AB

Tagenevagen 31

42502 Hisings-Karra

[phone]

SGP

Karcher Asia Pacific Pte. Ltd.

5 Toh Guan Road East

01-00 Freight Links Express Distripark

Singapore 608831

6897-1811

TR

Kärcher Servis Ticaret A.S.

9 Eylül Mahallesı

307 Sokak No. 6

Gaziemir / Izmir

[phone]

TWN

Karcher Limited

5F/6.No.7

Wu-Chuan 1st Rd

Wu-Ku Industrial Zone

Taipei County

[phone]

UA

Kärcher Ukraine

Kilzeva doroga, 9

03191, Kyiv

[phone]

UAE

Karcher FZE

Jebel Ali Free Zone

RA 8, XB 1, Jebel Ali, Dubai

[phone]

ZA

Kärcher (Pty.) Limited

144 Kuschke Street

Meadowdale

Edenvale 1614

[phone]

05/2008

KARCHER

www.kaercher.com
