USER MANUAL DA312DW MAKITA

GB Cordless Angle Drill Instruction Manual

DK Batteridrevet vinkelboremaskine Brugsanvisning

Sladdlös vinkelborrmaskin Bruksanvisning

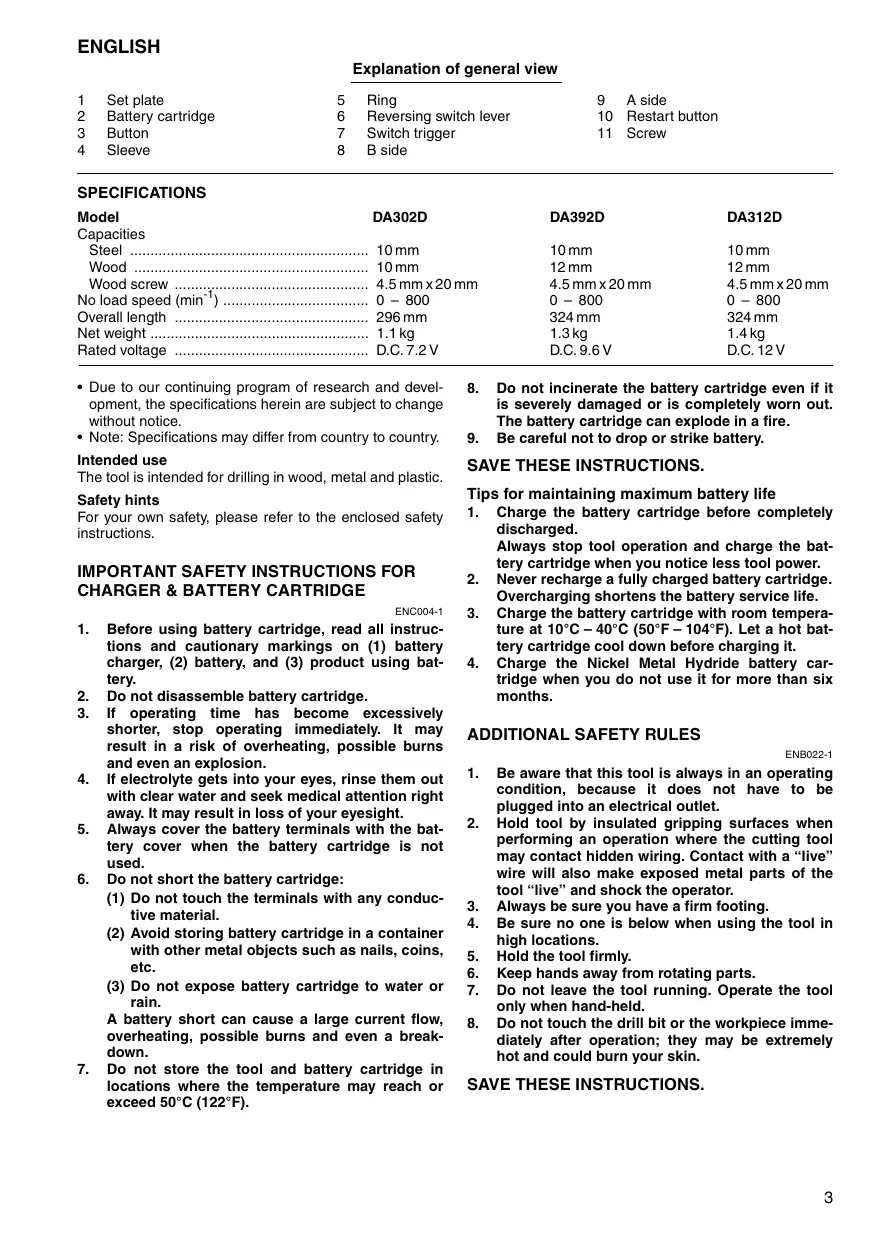

Batteridrevet vinkelboremaskin Bruksanvisning ENGLISH Explanation of general view

Set plate Battery cartridge Button Sleeve

Ring Reversing switch lever Switch trigger B side

• Due to our continuing program of research and development, the specifications herein are subject to change without notice.
• Note: Specifications may differ from country to country.

Intended use The tool is intended for drilling in wood, metal and plastic. SAVE THESE INSTRUCTIONS. Safety hints For your own safety, please refer to the enclosed safety instructions. Tips for maintaining maximum battery life

IMPORTANT SAFETY INSTRUCTIONS FOR

CHARGER & BATTERY CARTRIDGE

Before using battery cartridge, read all instructions and cautionary markings on (1) battery charger, (2) battery, and (3) product using battery. Do not disassemble battery cartridge. If operating time has become excessively shorter, stop operating immediately. It may result in a risk of overheating, possible burns and even an explosion. If electrolyte gets into your eyes, rinse them out with clear water and seek medical attention right away. It may result in loss of your eyesight. Always cover the battery terminals with the battery cover when the battery cartridge is not used. Do not short the battery cartridge: (1) Do not touch the terminals with any conductive material. (2) Avoid storing battery cartridge in a container with other metal objects such as nails, coins, etc. (3) Do not expose battery cartridge to water or rain. A battery short can cause a large current flow, overheating, possible burns and even a breakdown. Do not store the tool and battery cartridge in locations where the temperature may reach or exceed 50°C (122°F).

Do not incinerate the battery cartridge even if it is severely damaged or is completely worn out. The battery cartridge can explode in a fire. Be careful not to drop or strike battery. Charge the battery cartridge before completely discharged. Always stop tool operation and charge the battery cartridge when you notice less tool power. Never recharge a fully charged battery cartridge. Overcharging shortens the battery service life. Charge the battery cartridge with room temperature at 10°C – 40°C (50°F – 104°F). Let a hot battery cartridge cool down before charging it. Charge the Nickel Metal Hydride battery cartridge when you do not use it for more than six months. Be aware that this tool is always in an operating condition, because it does not have to be plugged into an electrical outlet. Hold tool by insulated gripping surfaces when performing an operation where the cutting tool may contact hidden wiring. Contact with a “live” wire will also make exposed metal parts of the tool “live” and shock the operator. Always be sure you have a firm footing. Be sure no one is below when using the tool in high locations. Hold the tool firmly. Keep hands away from rotating parts. Do not leave the tool running. Operate the tool only when hand-held. Do not touch the drill bit or the workpiece immediately after operation; they may be extremely hot and could burn your skin. SAVE THESE INSTRUCTIONS.

OPERATING INSTRUCTIONS Reversing switch action (Fig. 4) Installing or removing battery cartridge CAUTION:

• Always check the direction of rotation before operation.
• Use the reversing switch only after the tool comes to a complete stop. Changing the direction of rotation before the tool stops may damage the tool.
• When not operating the tool, always set the reversing switch lever to the neutral position. For DA302D (Fig. 1)
• Always switch off the tool before insertion or removal of the battery cartridge.
• To remove the battery cartridge, pull out the set plate on the tool and grasp both sides of the cartridge while withdrawing it from the tool.
• To insert the battery cartridge, align the tongue on the battery cartridge with the groove in the housing and slip it into place. Snap the set plate back into place. Be sure to close the set plate fully before using the tool to prevent the battery cartridge from accidentally falling out of the tool.
• Do not use force when inserting the battery cartridge. If the cartridge does not slide in easily, it is not being inserted correctly. For DA392D & DA312D (Fig. 2)
• Always switch off the tool before insertion or removal of the battery cartridge.
• To remove the battery cartridge, withdraw it from the tool while pressing the push buttons on both sides of the cartridge.
• To insert the battery cartridge, align the tongue on the battery cartridge with the groove in the housing and slip it into place. Always insert it all the way until it locks in place with a little click. If not, it may accidentally fall out of the tool, causing injury to you or someone around you.
• Do not use force when inserting the battery cartridge. If the cartridge does not slide in easily, it is not being inserted correctly. Installing or removing driver bit or drill bit (Fig. 3) CAUTION: Always be sure that the tool is switched off and the battery cartridge is removed before installing or removing the bit. Hold the ring and turn the sleeve counterclockwise to open the chuck jaws. Place the bit in the chuck as far as it will go. Hold the ring firmly and turn the sleeve clockwise to tighten the chuck. To remove the bit, hold the ring and turn the sleeve counterclockwise. Switch action (Fig. 4) CAUTION: Before inserting the battery cartridge into the tool, always check to see that the switch trigger actuates properly and returns to the “OFF” position when released. To start the tool, simply pull the trigger. Tool speed is increased by increasing pressure on the trigger. Release the trigger to stop.

This tool has a reversing switch to change the direction of rotation. Set the reversing switch lever to the A side for clockwise rotation or to the B side for counterclockwise rotation. When the reversing switch lever is in the neutral position, the tool will not start even if you pull the trigger. Overload protector (Fig. 5) The overload protector automatically cuts out to break the circuit and the button pops out, whenever heavy work is prolonged. Wait 20 – 30 seconds before pressing the restart button to resume operation. Your finger should not be on the switch trigger when you press the restart button, however. Drilling operation

• Drilling in wood When drilling in wood, best results are obtained with wood drills equipped with a guide screw. The guide screw makes drilling easier by pulling the bit into the workpiece.
• Drilling in metal To prevent the bit from slipping when starting a hole, make an indentation with a center punch and hammer at the point to be drilled. Place the point of the bit in the indentation and start drilling. Use a cutting lubricant when drilling metals. The exceptions are iron and brass which should be drilled dry. CAUTION:
• Pressing excessively on the tool will not speed up the drilling. In fact, this excessive pressure will only serve to damage the tip of your bit, decrease the tool performance and shorten the service life of the tool.
• There is a tremendous twisting force exerted on the tool/bit at the time of hole breakthrough. Hold the tool firmly and exert care when the bit begins to break through the workpiece. Use both hands to help control the tool.
• A stuck bit can be removed simply by setting the reversing switch to reverse rotation in order to back out. However, the tool may back out abruptly if you do not hold it firmly.
• Always secure small workpieces in a vise or similar hold-down device. MAINTENANCE Screwdriving operation (Fig. 6) Place the point of the driver bit in the screw head and apply pressure to the tool. Start the tool slowly and then increase the speed gradually. Release the trigger just as the screw bottoms out. If the trigger is not released, the screw may strip out the hole or the screw and/or bit may be damaged. NOTE:
• Make sure that the driver bit is inserted straight in the screw head, or the screw and/or bit may be damaged.
• When driving wood screws, predrill pilot holes to make driving easier and to prevent splitting of the workpiece. See the chart.
• If the tool is operated continuously until the battery cartridge has discharged, allow the tool to rest for 15 minutes before proceeding with a fresh battery. Nominal diameter of wood screw (mm) Recommended size of pilot hole (mm)

2.0 – 2.2

2.2 – 2.5

2.5 – 2.8

2.9 – 3.2

CAUTION: Always be sure that the tool is switched off and the battery cartridge is removed before carrying out any work on the tool. To maintain product safety and reliability, repairs, maintenance or adjustment should be carried out by a Makita Authorized Service Center. ACCESSORIES CAUTION:

• These accessories or attachments are recommended for use with your Makita tool specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attachment for its stated purpose. If you need any assistance for more details regarding these accessories, ask your local Makita service center.

Screw bits Rubber pad assembly Foam polishing pad 125 Wool bonnet 100 Various type of Makita genuine batteries and chargers Plastic carrying case Installing set plate (Optional accessory) (Fig. 7) Always install the set plate when using battery cartridges 9100, 9102, 9102A for Model DA392D and 1200, 1202, 1200A, 1202A for Model DA312D. Install the set plate on the tool with the screw provided.

CONSERVEZ CES INSTRUCTIONS. BELANGRIJKE VEILIGHEIDSVOORSCHRIFTEN VOOR

ACCULADER EN ACCU

EC-DECLARATION OF CONFORMITY

We declare under our sole responsibility that this product is in compliance with the following standards of standardized documents, EN50260, EN55014 in accordance with Council Directives, 89/336/EEC and 98/37/EC.

DÉCLARATION DE CONFORMITÉ CE

EU-DEKLARATION OM KONFORMITET

MAKITA INTERNATIONAL EUROPE LTD. Michigan Drive, Tongwell, Milton Keynes, Bucks MK15 8JD, ENGLAND

ENG001-1 ENGLISH Noise and Vibration of Model DA302D The typical A-weighted sound pressure level is not more than 70 dB (A). The noise level under working may exceed 85 dB (A). – Wear ear protection. – The typical weighted root mean square acceleration value is not more than 2.5 m/s2. FRANÇAISE ENGLISH Noise and Vibration of Model DA312D The typical A-weighted sound pressure level is 75 dB (A). The noise level under working may exceed 85 dB (A). – Wear ear protection. – The typical weighted root mean square acceleration value is not more than 2.5 m/s2. ENGLISH Noise and Vibration of Model DA392D The typical A-weighted sound pressure level is 74 dB (A). The noise level under working may exceed 85 dB (A). – Wear ear protection. – The typical weighted root mean square acceleration value is not more than 2.5 m/s2.
