USER MANUAL BHR200WAE MAKITA

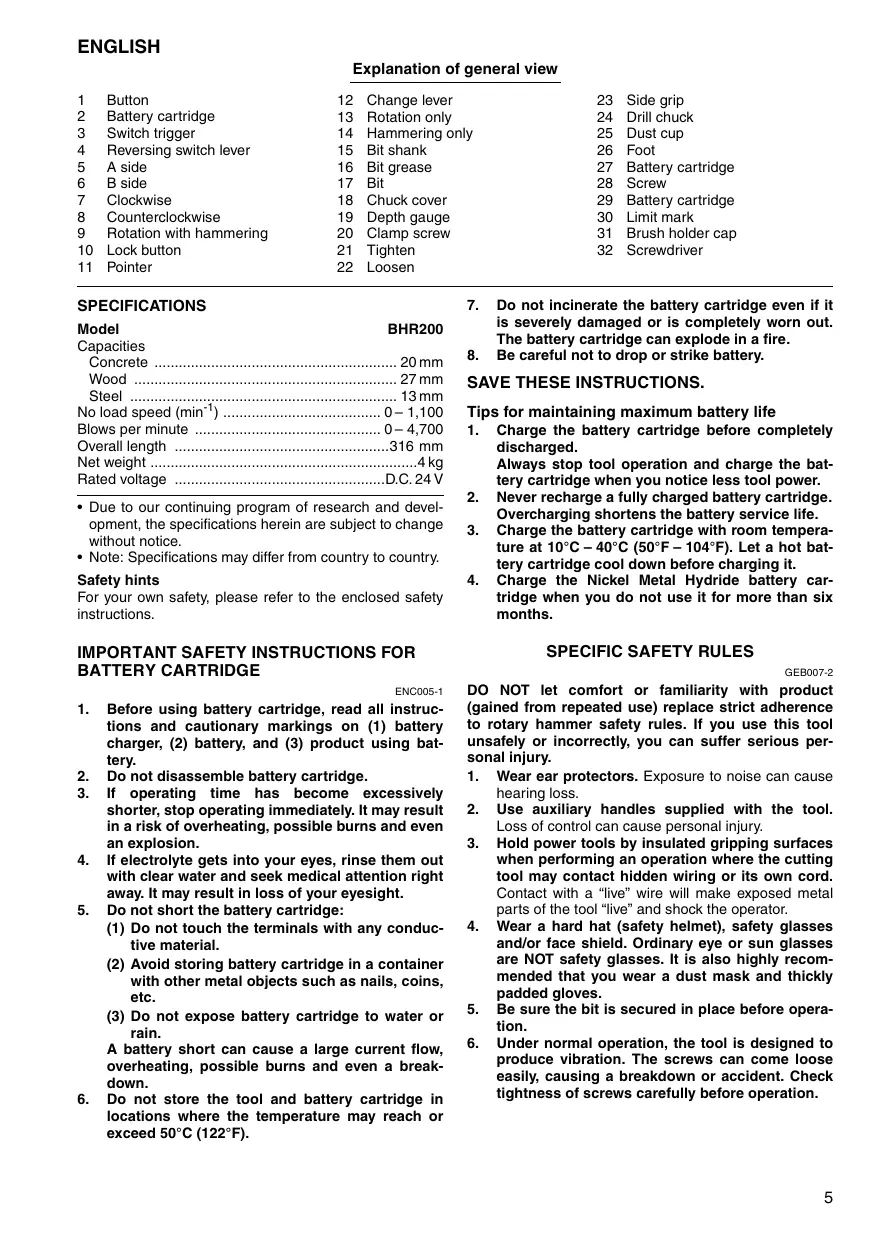

		Explanation of general view
1	Button	12	Change lever	23 Side grip
2	Battery cartridge	13	Rotation only	24 Drill chuck
3	Switch trigger	14	Hammering only	25 Dust cup
4	Reversing switch lever	15	Bit shank	26 Foot
5	A side	16	Bit grease	27 Battery cartridge
6	B side	17	Bit	28 Screw
7	Clockwise	18	Chuck cover	29 Battery cartridge
8	Counterclockwise	19	Depth gauge	30 Limit mark
9	Rotation with hammering	20	Clamp screw	31 Brush holder cap
10	Lock button	21	Tighten	32 Screwdriver
11	Pointer	22	Loosen

SPECIFICATIONS

Model	BHR200
Capacities
Concrete	20 mm
Wood	27 mm
Steel	13 mm
No load speed (min-1)	0-1,100
Blows per minute	0-4,700
Overall length	316 mm
Net weight	.4 kg
Rated voltage	D.C. 24 V

• Due to our continuing program of research and development, the specifications herein are subject to change without notice.
  Note: Specifications may differ from country to country.

Safety hints

For your own safety, please refer to the enclosed safety instructions.

IMPORTANT SAFETY INSTRUCTIONS FOR BATTERY CARTRIDGE

ENC005-1

1. Before using battery cartridge, read all instructions and cautionary markings on (1) battery charger, (2) battery, and (3) product using battery.
2. Do not disassemble battery cartridge.
3. If operating time has become excessively shorter, stop operating immediately. It may result in a risk of overheating, possible burns and even an explosion.
4. If electrolyte gets into your eyes, rinse them out with clear water and seek medical attention right away. It may result in loss of your eyesight.
5. Do not short the battery cartridge:

(1) Do not touch the terminals with any conductive material.
(2) Avoid storing battery cartridge in a container with other metal objects such as nails, coins, etc.
(3) Do not expose battery cartridge to water or rain.

A battery short can cause a large current flow, overheating, possible burns and even a breakdown.

1. Do not store the tool and battery cartridge in locations where the temperature may reach or exceed 50^ (122^) .

2. Do not incinerate the battery cartridge even if it is severely damaged or is completely worn out. The battery cartridge can explode in a fire.

3. Be careful not to drop or strike battery.

SAVE THESE INSTRUCTIONS.

Tips for maintaining maximum battery life

1. Charge the battery cartridge before completely discharged. Always stop tool operation and charge the battery cartridge when you notice less tool power.
2. Never recharge a fully charged battery cartridge. Overcharging shortens the battery service life.
3. Charge the battery cartridge with room temperature at 10^ - 40^ (50^ - 104^) . Let a hot battery cartridge cool down before charging it.
4. Charge the Nickel Metal Hydride battery cartridge when you do not use it for more than six months.

SPECIFIC SAFETY RULES

GEB007-2

DO NOT let comfort or familiarity with product (gained from repeated use) replace strict adherence to rotary hammer safety rules. If you use this tool unsafely or incorrectly, you can suffer serious personal injury.

1. Wear ear protectors. Exposure to noise can cause hearing loss.
2. Use auxiliary handles supplied with the tool. Loss of control can cause personal injury.
3. Hold power tools by insulated gripping surfaces when performing an operation where the cutting tool may contact hidden wiring or its own cord. Contact with a "live" wire will make exposed metal parts of the tool "live" and shock the operator.
4. Wear a hard hat (safety helmet), safety glasses and/or face shield. Ordinary eye or sun glasses are NOT safety glasses. It is also highly recommended that you wear a dust mask and thickly padded gloves.
5. Be sure the bit is secured in place before operation.

6. Under normal operation, the tool is designed to produce vibration. The screws can come loose easily, causing a breakdown or accident. Check tightness of screws carefully before operation.

7. In cold weather or when the tool has not been used for a long time, let the tool warm up for a while by operating it under no load. This will loosen up the lubrication. Without proper warm-up, hammering operation is difficult.

8. Always be sure you have a firm footing. Be sure no one is below when using the tool in high locations.
9. Hold the tool firmly with both hands.
10. Keep hands away from moving parts.
11. Do not leave the tool running. Operate the tool only when hand-held.
12. Do not point the tool at any one in the area when operating. The bit could fly out and injure someone seriously.
13. Do not touch the bit or parts close to the bit immediately after operation; they may be extremely hot and could burn your skin.
14. Some material contains chemicals which may be toxic. Take caution to prevent dust inhalation and skin contact. Follow material supplier safety data.

SAVE THESE INSTRUCTIONS.

WARNING:

MISUSE or failure to follow the safety rules stated in this instruction manual may cause serious personal injury.

OPERATING INSTRUCTIONS

Installing or removing battery cartridge (Fig.1)

• Always switch off the tool before insertion or removal of the battery cartridge.
• To remove the battery cartridge, withdraw it from the tool while sliding the button on the cartridge.
• To insert the battery cartridge, align the tongue on the battery cartridge with the groove in the housing and slip it into place. Always insert it all the way until it locks in place with a little click. If you can see the red part on the upper side of the button, it is not locked completely. Insert it fully until the red part cannot be seen. If not, it may accidentally fall out of the tool, causing injury to you or someone around you.
• Do not use force when inserting the battery cartridge. If the cartridge does not slide in easily, it is not being inserted correctly.

Switch action (Fig.2)

CAUTION:

Before inserting the battery cartridge into the tool, always check to see that the switch trigger actuates properly and returns to the "OFF" position when released.

To start the tool, simply pull the trigger. Tool speed is increased by increasing pressure on the trigger. Release the trigger to stop.

Reversing switch action (Fig. 3)

CAUTION:

• Always check the direction of rotation before operation.
• Use the reversing switch only after the tool comes to a complete stop. Changing the direction of rotation before the tool stops may damage the tool.
• When not operating the tool, always set the reversing switch lever to the neutral position.

This tool has a reversing switch to change the direction of rotation. Depress the reversing switch lever from the A side for clockwise rotation or from the B side for counterclockwise rotation. When the switch lever is in the neutral position, the switch trigger cannot be pulled.

Selecting action mode

Rotation with hammering (Fig. 4)

For drilling in concrete, masonry, etc., depress the lock button and rotate the change lever so that the pointer points to the symbol. Use a tungsten-carbide tipped bit.

Rotation only (Fig.5)

For drilling in wood, metal or plastic materials, depress the lock button and rotate the change lever so that the pointer points to the <> symbol. Use a twist drill bit or wood bit.

Hammering only (Fig. 6)

For chipping, scaling or demolition operations, depress the lock button and rotate the change lever so that the pointer points to the symbol. Use a bull point, cold chisel, scaling chisel, etc.

CAUTION:

• Do not rotate the change lever when the tool is running. The tool will be damaged.
• To avoid rapid wear on the mode change mechanism, be sure that the change lever is always positively located in one of the three action mode positions.

Installing or removing bit

Important:

Always be sure that the tool is switched off and the battery cartridge is removed before installing or removing the bit.

Clean the bit shank and apply the bit grease provided to it before installing the bit. (Fig. 7)

Insert the bit into the tool. Turn the bit and push it in until it engages. (Fig. 8)

If the bit cannot be pushed in, remove the bit. Pull the chuck cover down a couple of times. Then insert the bit again. Turn the bit and push it in until it engages. (Fig.9)

After installing, always make sure that the bit is securely held in place by trying to pull it out.

To remove the bit, pull the chuck cover down all the way and pull the bit out. (Fig. 10)

Depth gauge (Fig.11)

The depth gauge is convenient for drilling holes of uniform depth. Loosen the clamp screw and adjust the depth gauge to the desired depth. After adjusting, tighten the clamp screw firmly.

NOTE:

The depth gauge cannot be used at the position where the depth gauge strikes against the gear housing/motor housing.

Side grip (Fig. 12)

CAUTION:

Always use the side grip to ensure operating safety when drilling in concrete, masonry, etc.

The side grip swings around to either side, allowing easy handling of the tool in any position. Loosen the side grip by turning it counterclockwise, swing it to the desired position and then tighten it by turning clockwise.

Bit angle (when chipping, scaling or demolishing)

Important:

Always be sure that the tool is switched off and the battery cartridge is removed before changing the bit angle.

To change the bit angle, depress the lock button and rotate the change lever so that the pointer points to the symbol. Turn the bit to the desired angle. (Fig.13)

Depress the lock button and rotate the change lever so that the pointer points to the 1 symbol. (Fig. 14)

Then make sure that the bit is securely held in place by turning it slightly.

Operation

CAUTION:

• Always insert the battery cartridge all the way until it locks in place. If you can see the red part on the upper side of the button, it is not locked completely. Insert it fully until the red part cannot be seen. If not, it may accidentally fall out of the tool, causing injury to you or someone around you.
• When operating overhead, always make sure the battery cartridge is locked securely so that it will not be fallen out of the tool. If not, it may accidentally fall out of the tool, causing injury to you or someone around you.

Hammer drilling operation (Fig. 15)

Set the change lever to the symbol. Position the bit at the location for the hole, then pull the trigger. Do not force the tool. Light pressure gives best results. Keep the tool in position and prevent it from slipping away from the hole.

Do not apply more pressure when the hole becomes clogged with chips or particles. Instead, run the tool at an idle, then remove from the hole. By repeating this several times, the hole will be cleaned out.

CAUTION:

• When the bit begins to break through concrete or if the bit strikes reinforcing rods embedded in concrete, the tool may react dangerously. Maintain good balance and safe footing while holding the tool firmly with both hands to prevent dangerous reaction.

Torque limiter

The torque limiter will actuate when a certain torque level is reached. The motor will disengage from the output shaft. When this happens, the bit will stop turning.

CAUTION:

As soon as the torque limiter actuates, switch off the tool immediately. This will help prevent premature wear of the tool.

Chipping/Scaling/Demolition (Fig. 16)

Set the change lever to the 1 symbol. Hold the tool firmly with both hands. Turn the tool on and apply slight pressure on the tool so that the tool will not bounce around, uncontrolled. Pressing very hard on the tool will not increase the efficiency.

Drilling operation (Fig.17)

Use the optional drill chuck assembly. When installing it, refer to "Installing or removing drill bit" described on the previous page. You can drill up to 13mm diameter in metal and up to 27mm diameter in wood.

Set the change lever so that the pointer points to the symbol.

Use a cutting lubricant when drilling metals. The exception is brass which should be drilled dry.

CAUTION:

• Pressing excessively on the tool will not speed up the drilling. In fact, this excessive pressure will only serve to damage the tip of your bit, decrease the tool performance and shorten the service life of the tool.
• Never use "rotation with hammering" when the drill chuck assembly is installed on the tool. The drill chuck assembly may be damaged.

Blow-out bulb (Fig. 18)

Use the blow-out bulb to clean out the hole.

Dust cup (Fig. 19)

Use the dust cup to prevent dust from falling over the tool and on yourself when performing overhead drilling operations. Attach the dust cup to the bit. The size of bits which the dust cup can be attached to is as follows.

	Bit diameter (mm)
Dust cup 5	6-14.5
Dust cup 9	12-16

Foot

Remove the foot when you use the battery cartridge B2417.

This will help to place the tool steady. (Fig. 20)

Install the foot when you use the battery cartridge B2430.

This will help to place the tool steady. (Fig.21)

MAINTENANCE

CAUTION:

Always be sure that the tool is switched off and the battery cartridge is removed before carrying out any work on the tool.

Replacement of carbon brushes (Fig. 22 & 23)

Remove and check the carbon brushes regularly. Replace when they wear down to the limit mark. Keep the carbon brushes clear and free to slip in the holders. Both carbon brushes should be replaced at the same time. Use only identical carbon brushes.

Use a screwdriver to remove the brush holder caps. Take out the worn carbon brushes, insert the new ones and secure the brush holder caps.

To maintain product safety and reliability, repairs, maintenance or adjustment should be carried out by a Makita Authorized Service Center.

ACCESSIONS

CAUTION:

• These accessories or attachments are recommended for use with your Makita tool specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attachment for its stated purpose.
  If you need any assistance for more details regarding these accessories, ask your local Makita service center.
• SDS Plus Tungsten-carbide tipped bit
• Bull point
  Cold chisel
• Scaling chisel
  Grooving chisel
• Dust cup
• Side grip
• Plastic carrying case
• Bit grease (100 g)
• Dust extractor attachment
• Depth gauge
• Drill chuck
• Chuck key S13
• Blow-out bulb
• Safety goggles
• Various type of Makita genuine batteries and chargers

Descriptif

Martelagesubsection(Fig.6)

VEILIGHEIDSVOORSCHRIFTEN VOOR ACCU

1. Opbevar违法犯罪 and the law of the law of the law of the law of the law of the law of the law of the law of the law of the law of the law of the law of the law of the law of the law of the law of the law of the law of the law of the law of the law of the law of the law of the law of the law of the law of the law of the law of the law of the law of the law of the law of the law of the law of
2. Lad vare med at brande batteriet, selv ikke i tilfænde, hvør det har lidd alvorlig skade aller er fuldstændig udtjent. Batteripatronen kan eksplodere, hvis man forsoger at brande den.
3. Lad vare med at brænde batteriet ell udsætte det for sted.

GEM DENNE BRUGSANVISNING.

Hammerboring (Fig.15)

Slagboring (Hammerboring) (Fig.15)

Still skiftehendelen pa hy symbolet. Plasser borkronen i hullet, vri pa startbryeren. Bruk ici makt pa maskinen. Et lett trykk gir best resultant. Hold maskinen i riktig positjon og sorg for a hindre at den glipper bor t fra hullet.

EC-DECLARATION OF CONFORMITY

We declare under our sole responsibility that this product is in compliance with the following standards of standardized documents,

EN60745, EN55014

in accordance with Council Directives, 89/336/EEC and 98/37/EC.

FRANÇAISE

DECLARATION DE CONFORMITE CE

Michigan Drive, Tongwell, Milton Keynes,

Bucks MK15 8JD, ENGLAND

Responsible manufacturer:

Fabricant responsible :

EU-DEKLARATION OM KONFORMITET

Michigan Drive, Tongwell, Milton Keynes,

Bucks MK15 8JD, ENGLAND

Fabricante responsavel:

Ansvarlig fabrikant:

For European countries only

Noise and Vibration

The typical A-weighted noise levels are sound pressure level: 89 dB (A) sound power level: 100 dB (A) Uncertainty is 3 dB (A). -Wear ear protection.

The typical weighted root mean square acceleration value is 9m / s^2 These values have been obtained according to EN60745.
