Product Type	Managed Network Switch (Smart/Managed Switch)
Model	TP-Link JetStream T1700X-16TS
Dimensions (W x D x H)	440 x 220 x 44 mm (1U rack mount)
Weight	3.2 kg
Power Supply	100-240V AC, 50/60 Hz (power cord included)
Number of Ethernet Ports	16 RJ45 ports 10/100/1000 Mbps
SFP Ports	2 SFP slots for fiber optic modules
Console Port	1 RJ45 console port for CLI management
Key Features	Management via Web interface and CLI, VLAN, QoS, Link Aggregation, Spanning Tree, IGMP Snooping, advanced security
Mounting	Desktop (rubber feet included) or 19" rack (brackets included)
Configuration	Default IP address: http://192.168.0.1, credentials: admin/admin
Maintenance and Cleaning	Unplug before cleaning; use a soft, dry cloth; avoid liquids.
Safety	Do not open the device; keep away from water; disconnect the power cable to power off.
Spare Parts and Repairability	No spare parts provided; any repair must be carried out by a TP-Link authorized service center.
Warranty	TP-Link limited warranty (see packaging or manual for duration)
General Information	Managed switch from the JetStream series, ideal for business networks.

Frequently Asked Questions - JetStream T1700X-16TS TP-LINK

How to reset the TP-Link JetStream T1700X-16TS switch to factory settings?

Press and hold the Reset button on the front of the switch for about 10 seconds, until the LEDs blink. Release, the switch will restart with default settings.

What is the default IP address to access the web interface?

The default IP address is 192.168.0.1. Make sure your computer is on the same subnet (e.g., 192.168.0.x) with a subnet mask of 255.255.255.0.

What are the default login credentials?

The default username and password are both admin (lowercase).

How to connect an SFP module to this switch?

Gently insert the compatible SFP module into the SFP slot until it clicks. Then connect the fiber optic cable to the module. No additional configuration is usually required.

Can I mount this switch on a desk?

Yes, the switch comes with adhesive rubber feet. Place them on the four bottom corners of the switch, then place it on a flat, stable surface.

How to install the switch in a 19-inch rack?

Attach the provided mounting brackets to each side of the switch using the included screws. Then, screw the switch into the rack using appropriate bolts (not included).

What is the maximum power consumption of this switch?

Typical consumption is about 20 W in normal operation, with a 100-240V AC power supply.

How to update the switch firmware?

Log in to the web interface, go to System Tools > Firmware Upgrade, download the file from the TP-Link website, then select it and click Upgrade. Do not power off during the update.

What to do if the power LED does not light up?

Check that the power cable is properly connected to both the switch and a working electrical outlet. If the problem persists, test with another cable or contact support.

Is this switch compatible with Cat5e Ethernet cables?

Yes, it is compatible with Cat5e, Cat6, and Cat6a cables for speeds up to 1 Gbps.

USER MANUAL JetStream T1700X-16TS TP-LINK

Easy Smart&Smart&Managed Rackmount Switch

CONTENTS

Deutsch....01

English....06

Español....11

Ελληνικά......16

Français....21

Italiano....26

Português....31

Suomi....36

Nederlands....41

Svenska....46

Norsk....51

Dansk....56

Türkçe....61

Installation

- Tischmontage

- SFP-Port

- Einschalten

Konfiguration

- Desktop Installation

To install the device on the desktop, please follow the steps below:

1. Set the device on a flat surface strong enough to support the entire weight of the device with all fittings.
2. Remove the adhesive backing papers from the rubber feet.
3. Turnover the device and attach the supplied rubber feet to the recessed areas on the bottom at each corner of the device.

- Rack Installation

To install the device in a rack, follow the instructions described below:

1. Check the grounding and stability of the rack.

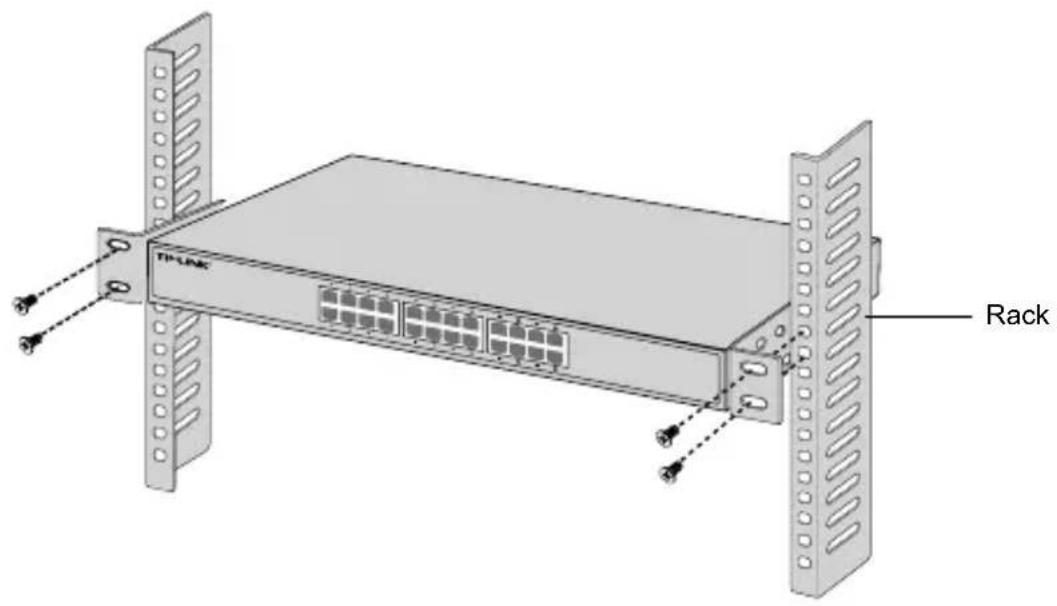

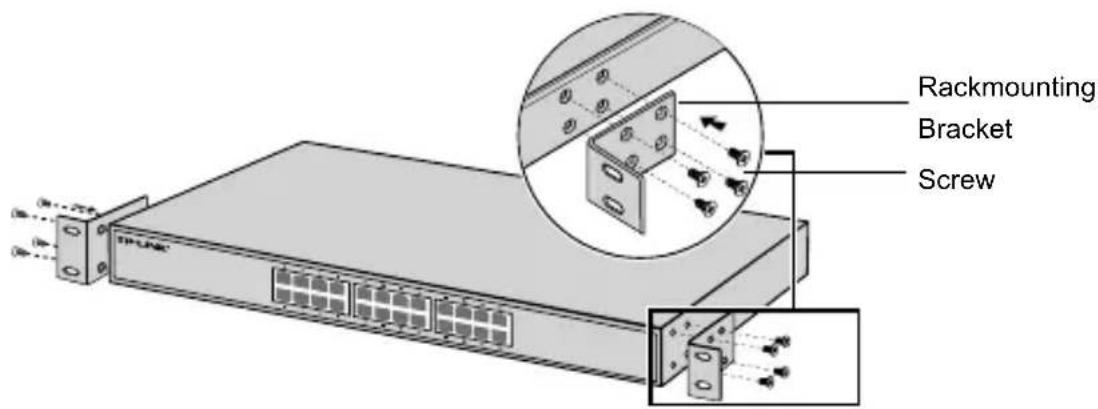

2. Secure the supplied rack-mounting brackets to each side of the device with supplied screws.

1. After the brackets are attached to the device, use suitable screws (not provided) to secure the brackets to the rack.

Connection

- Ethernet Port

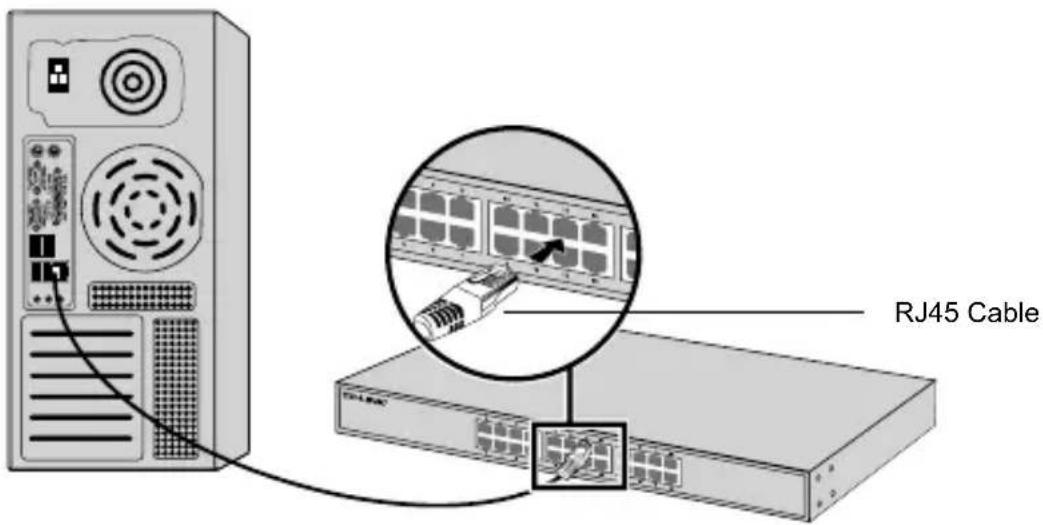

Connect an Ethernet port of the switch to the computer by RJ45 cable as the following figure shown.

- SFP Port

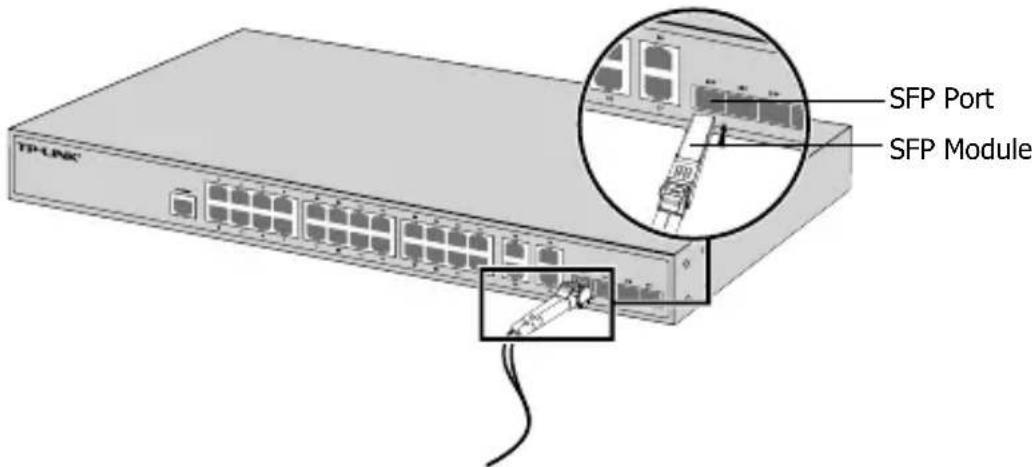

For switches with SFP ports, you can connect a SFP port to a SFP module. If an SFP transceiver is installed in a slot and has a valid link on the port, the associated RJ45 port will be disabled and cannot be used.

- Console Port

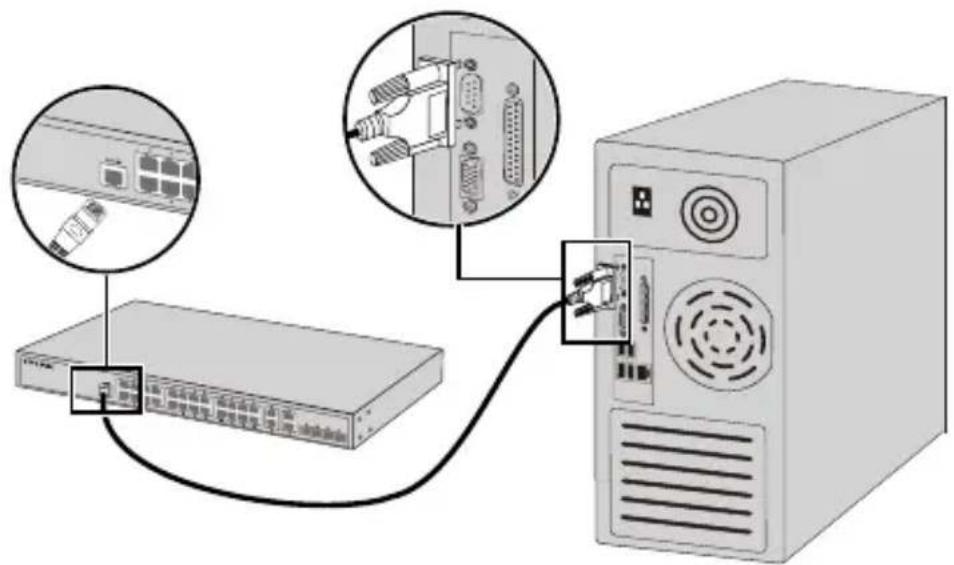

For switches with the console port, you can connect the console port with your computer by the console cable. Then you can load the CLI to manage the switch.

- Power On

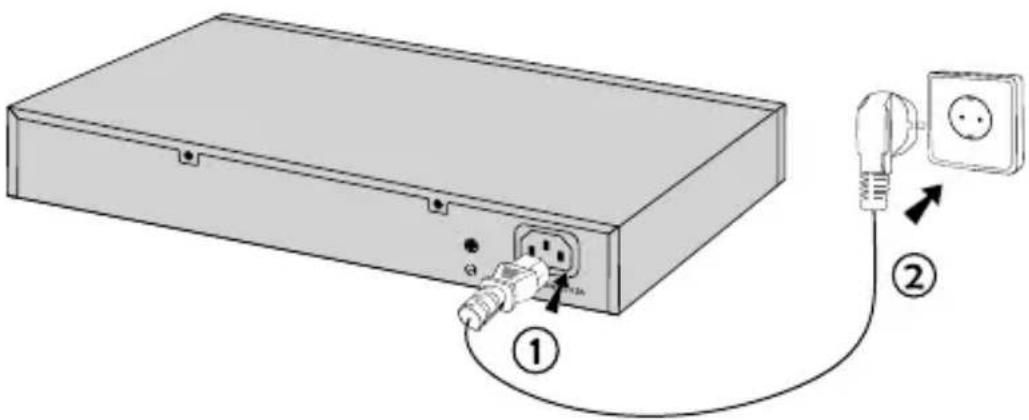

Plug the female connector of the provided power cord into the power socket of the device, and the male connector into a power outlet.

Configuration

- Configure the Switch Using the GUI

1. Set the IP address of your PC in the same subnet of the switch. The IP address is 192.168.0.x("x" is any number from 2 to 254); the Subnet Mask is 255.255.255.0.
2. Open a web browser and type the default management address http://192.168.0.1 in the address field of the browser, then press the Enter key.
3. Enter admin for the default User Name and Password, both in lower case letters. Then click the Login button or press the Enter key.
4. After a successful login, you can configure the switch on the management page.

- Configure the Switch Using the CLI (Only for Smart Switches and Managed Switches)

You can log on to the switch and access the CLI to manage the switch. For the detailed instructions as to how to do this, please refer to the CLI Guide.

- Configure the Switch Using the Utility (Only for Easy Smart Switches)

You can use the Easy Smart Configuration Utility to centrally manage entire networks of the Easy Smart Switches. For the detailed instructions as to how to do this, please refer to the Utility User Guide.

Instalación

- Puerto SFP

- Encender

Configuración

- Θúpa Console

- Ενεργοποιήστε

Ρύθμιση

Configuration

- Configurer le switch via son interface graphique

- Accensione

Configurazione

- Ligar

Configuração

- Configurar o Switch via Interface gráfica

- Virta päällä

Konfigurointi

- Konfiguroi kytkin GUI:lla

- Inschakelen

Configuratie

- Desktop-installation

Anslutning

- Ethernet-port

- Ström på

Konfiguration

- For å slå på

Konfigurasjon

- Tændt

Konfiguration

- Cihazı Çalıştırma

Yapılandırma

• When a product has a power on/off button, the power on/off button is one way to turn-off the product. For products without the on/off button, the only way to completely turn-off the product is to disconnect the product or the power adapter from the power source. The disconnected device shall remain readily operable.
• Do not open this product or attempt to service it; it may expose you to dangerous high voltage or other risks. Opening a sealed component or sealed product/s will void the warranty. For product servicing, please contact us.
• Do not operate this product near water.

TP-LINK Limited Product Warranty

For TP-LINK Branded Products Only.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE (OR BY COUNTRY OR PROVINCE).

TO THE EXTENT ALLOWED BY LOCAL LAW, THIS WARRANTY AND THE REMEDIES SET FORTH ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS.

TP-LINK warrants the TP-LINK branded hardware product contained in the original packaging against defects in materials and workmanship when used normally in according with TP-LINK's guidelines for some period which depends on the local service from the date of original retail purchase by the end-user purchaser.
