Product Type	Electric Tube Bender
Brand	ROTHENBERGER
Model	ROBULL (type ME)
Working Force	8 tons (8 Tn)
Piston Stroke	270 mm
Piston Diameter	34 mm
Pump Piston Diameter (electric)	10 mm
Hydraulic Oil Type	ISO 32
Oil Volume	850 cc
Bending Capacity	Black or galvanized iron steel tubes, medium and heavy series (EN 10255)
Bending Angles	0° to 180° (90° in one operation)
Power Supply	Electric (voltage not specified)
Safety	Protection device, grounding, use of RCD outdoors
Maintenance	Regularly check oil level, use ISO 32 oil, clean valves if necessary
Spare Parts	Available from ROTHENBERGER customer service
Included Accessories	Guide flanges, bending dies, diabolo rollers

Frequently Asked Questions - ROBULL ROTHENBERGER

How to use the ROBULL bender?

Place the guide flanges on the cylinder, secure them with the pins. Position the diabolo rollers according to the tube diameter. Fit the bending die onto the piston, place the tube and close with the upper flange. Before use, make sure there is no air in the circuit by opening the release valve and pumping several times. Close the valve, open the reservoir cap, then pump or start. 90° bending is done in one operation.

What hydraulic oil to use?

Use a good quality hydraulic oil of type ISO 32. Never use brake fluid. The recommended oil volume is 850 cc, but the fill should reach about 70% of the reservoir capacity (1,250 cc).

How to check the oil level?

Lift the front part of the cylinder about 45°. The oil level should reach the filler hole. If necessary, add filtered ISO 32 oil avoiding debris.

What to do if the piston does not advance?

First check the oil level. Make sure the release valve is properly closed. If there is air in the circuit, open the valve and pump several times to purge. If the problem persists, clean the suction valve.

How to purge air from the hydraulic circuit?

Place the cylinder in a nearly vertical position (piston up), open the release valve, and pump until suction is perfect. Then reposition the cylinder horizontally for work.

What types of tubes can be bent?

The ROBULL bender can cold bend black or galvanized iron tubes complying with standard EN 10255 (medium and heavy series), without deformation.

How to clean the valves?

If debris blocks the valves, retract the piston, disassemble the relevant valve (suction, discharge, or retention) and clean it thoroughly. Then reassemble and purge the circuit.

Where to find spare parts?

Order your accessories and spare parts from your specialized dealer or directly from ROTHENBERGER customer service (+49 (0) 61 95/ 800 8200).

How to dispose of the device at end of life?

Do not dispose of the device with household waste. In accordance with European directive 2012/19/EU, take it to a collection point for electronic waste recycling. Some parts are recyclable.

What safety precautions to take?

Read all safety instructions. Work in a clean and well-lit area, keep children away, wear safety glasses, avoid contact with grounded surfaces, and use a residual current device (RCD) outdoors. Unplug the device before any adjustment.

USER MANUAL ROBULL ROTHENBERGER

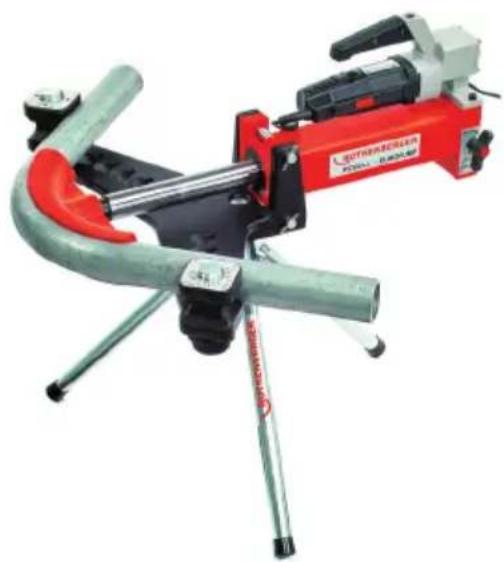

Red and green mechanical clamp device with adjustable arms and a handle (no visible text or symbols)

Industrial welding machine with red and green components, no visible text or symbols

EN Instructions for use

rothenberger.com

EU-Declaration of Conformity

declare on our sole responsibility that the product:

Product-Designation:

is in conformity with the following regulations.

as date of manufacture

01.03.2021

Manufacturer / authorized representative signature

ppa. Thorsten Bühl i. V. Maximilian Gottschalk

Head of Business Unit ROTHENBERGER Head of New Product Development

D-65779 Kelkheim/Germany

Intro

DEUTSCH - Originalbetriebsanleitung!Bedienungsanleitung bitte lesen und aufbewahren! Nicht wegwerfen! Bei Schäden durch Bedienungsfehler erlischt die Garantie! Technische Änderungen vorbehalten!	Seite 2
ENGLISHPlease read and retain these directions for use. Do not throw them away! The warranty does not cover damage caused by incorrect use of the equipment! Subject to technical modifications!	Page 6
FRANÇAISLire attentivement le mode d'emploi et le ranger à un endroit sûr! Ne pas le jeter! La garantie est annulée lors de dommages dûs à une manipulation erronée! Sous réserve de modifications techniques!	Page 10
ESPAÑOL¡Por favor, lea y conserve el manual de instrucciones! ¡No lo tire! ¡En caso de daños por errores de manejo, la garantía queda sin validez! Modificaciones técnicas reservadas!	Página 14
ITALIANOPer favore leggere e conservare le istruzioni per l’uso! Non gettarle via! In caso di danni dovuti ad errori nell’uso, la garanzia si estingue! Ci si riservano modifiche tecniche!	Pagina 18
NEDERLANDSLees de handleiding zorgvuldig door en bewaar haar goed! Niet weggooien! Bij schade door bedieningsfouten komt de garantieverlening te vervallen! Technische wijzigingen voorbehouden!	Bladzijde 22
PORTUGUESQueiram ler e guardar o manual de instruções! Não deitar fora! Em caso de avarias por utilização incorrecta, extingue-se a garantia! Reservado o direito de alterações técnicas!	Pagina 26
POLSKIInstrukcję obsługi proszę przeczytać i zachować! Nie wyrzucać! Przy uszkodzeniach wynikajacych z błędów obsługi wygasa gwarancja! Zmiany techniczne zastrzeżone!	Strony 30
CESKYNavod k obsluze si prosim přečtěte a uschovejte jej! Nevyhazujte jej! V pripade poškozeni zpusobenem chybnou obsluhou zanika zaruka! Technicke změny jsou vyhrazeny!	Stránky 35
РУССКИЙПрочтите инструкцию по эксплуатации и сохраняйте её для дальнейшего использования! В случае поломки инструмента из-за несоблюдения инструкции клиент теряет право на обслуживание по гарантии! Возможны технические изменения!	Страница 39

[e-mail] - www.rothenberger.com

7 Entsorgung

ROBULL type E is to be used for hand-hydraulic, ROBULL type ME for electro-hydraulic cold bending up to 90° according to the technical data. This device may only be used correctly as described. The user bears sole responsibility for any damage caused by improper use.

1.2 General Power Tool Safety Warnings

WARNING! Read all safety warnings, instructions, illustrations and specifications provided with this power tool.

Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term “power tool” in the warnings refers to your electrically-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work area safety

a) Keep work area clean and well lit. Cluttered and dark areas invite accidents.

b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges and moving parts. Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors only, use an extension cords suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A momentary lack of attention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc., in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.
5) Service
a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

2 Technical Data

Nominal power 8 Tn

Maximum travel 270 mm

Piston diameter 34 mm

Pump piston diameter 16 mm (hand operated), 10 mm (electric)

Volume of top-up oil 850 cc

Oil to be used .... Tipo ISO 32 o similar

3 Function of the Unit

With the ROTHENBERGER pipe bender you can cold bend galvanized or black steel pipes of the following types, without filling, and without reamers on the inside:

Steel Pipe EN 10255 Medium and heavy series

The angles we can effect with these benders range from 0^ to 180^ . A right angle can be made directly, while others can be effected with several curves.

These angles can be in different planes. The equipment could be hand operated or electrically, with automatic, piston return.

3.1 Starting up and using the two-plate pipe bender

→ Fit the guide plates to the front flange and secure them with pins.
→ Fit the diabolos to the lower plate, in the position corresponding to the size of the pipe to be bent. At the same time fit the diabolo in position in accordance with the size of the pipe.
→ At the end of the piston, fit the former corresponding to the size of the pipe that it is desired to bend. Place the pipe in position and put down the upper plate.
→ In the event that the pipe to be bent is welded, the weld beam should be placed either in the upper or lower side position.
→ Before starting to use the pipe bender, release any pressure there may be in the valve system of the hydraulic circuit. Do this by opening the return cock and pumping several times with the lever or switch on the motor.
→ Make sure the return valve is well closed, and the tank plug open.
→ You can then begin to operate the pump lever or switch on the motor.
→ When the bend has been finished, return the piston by loosening the return valve on the side of the
→ distributor.

4 Care and Maintenance

Check oil level at regular intervals.

When topping up, be especially sure to filter the oil so that it is free of extraneous matter. Check its level by lifting the front part of the unit about 45^ and looking in. The oil should reach the level of the hole used for loading it in.

When the oil has been topped up, fit the unit in inclined position, i.e. almost vertical, and with the piston upward. Open the return valve and work the pump with the lever until suction is as it should be. After a short space of time with the position unchanged, and when suction is satisfactory, fit in horizontal working position.

In the event that it is necessary to top up, use a high-quality hydraulic oil. Never use brake fluid. Bear in mind that excess of oil will render the equipment inoperative. Accordingly fill to about 70% of tank capacity (1250 cc), first removing the cap.

Close the tank plug for transportation.

5 Troubleshooting

Symptom Possible Reason	Solution
The piston fails to advance	Insufficient oil Check oil level
	Return valve not closed	Close return valve
	Air in the system (pump) Open	en the return valve and operate the pump lever until the air is released. To do this, position the unit with the piston upward, so that the oil will descend to the distributor
The piston advances only in the absence of load	Return valve is poorly closed	Close the return valve
	There is a foreign body in the intake valve	Disassemble the intake valve and clean it thoroughly, first having made the piston return
The piston stops before reaching the end of its stroke	Very low oil level Top up the oil
	Tank plug closed Open the tank plug
The piston advances and returns with each pump stroke	Foreign body in the output valve, or air in the pipes	Position the cylinder vertically, first having made the cylinder return. Take apart the output valve and clean it
	Foreign body in the intake valve	Take apart the intake valve and clean it, first having made the piston return
The piston advances well under load but the lever returns suddenly	Foreign body in the check valve	Remove the check valve, disassemble it, and clean it, first having made the piston return

6 Customer service

The ROTHENBERGER service locations are available to help you (see listing in catalog or online) and replacement parts and service are also available through these same service locations. Order your accessories and spare parts from your specialist retailer or using RO SERVICE+ online: 📞 + 49 (0) 61 95/ 800 8200 📞 + 49 (0) 61 95/ 800 7491 ✉ [e-mail] - www.rothenberger.com

7 Disposal

Components of the unit are recyclable material and should be put to recycling. For this purpose registered and certified recycling companies are available. For an environmental friendly disposal of the non-recyclable parts (e.g. electronic waste) please contact your local waste disposal authority.

For EU countries only:

Do not dispose electric tools with domestic waste. In accordance with the European Directive 2012/19/EU the disposal of electrical and electronic equipment and its implementation as national law, electric tools that are no longer serviceable must be collected separately and utilised for environmentally compatible recycling.
