RT32K5030WW - Freezer SAMSUNG - Free user manual and instructions

Brand	Samsung
Model	RT32K5030WW
Product Type	Freezer (refrigerator-freezer combination)
Main Functions	Refrigeration and freezing, door reversal possible
Power Supply	Electric (power cord)
Maintenance and Cleaning	Regular cleaning, manual or automatic defrosting depending on model
Safety	Unplug before any intervention, requires 2 people to move, wear protective gloves
Spare Parts and Repairability	Handle, gasket, drawer, hinges (top, middle, bottom) replaceable by user
General Information	Manual available in multiple languages, model code on barcode label at bottom left

Frequently Asked Questions - RT32K5030WW SAMSUNG

How to replace the freezer handle?

To remove the handle, pull it outward and tap it vertically to release the locking system. For assembly, proceed in reverse order by tightening the screws firmly.

How to replace the door gasket?

Remove the gasket by pulling the 4 corners, then the center. Attach a new gasket ensuring no gap between the gasket and the door.

How to remove the freezer drawer?

Remove the drawer by pulling it by the wheeled part and lifting it. To reinstall, follow the reverse procedure.

How to replace a hinge?

Unplug the appliance and remove the doors. Use a 10 mm socket wrench for the top hinges, 8 mm for the middle and bottom hinges. Reassemble in reverse order after replacement.

Can the door opening direction be reversed?

Yes, door reversal is possible. Follow the steps in the manual: unplug the appliance, remove the hinges and doors, then reassemble by reversing the sides. This operation requires 2 people.

What safety precautions should be taken?

Always unplug the appliance before any repair. Wear safety gloves. For heavy operations (door reversal), have another person assist you.

Where to find the model code of the appliance?

The model code is displayed on the barcode label located at the bottom left of the product.

How to get spare parts?

Visit the Samsung parts purchase site (http://samsung.com) and enter the model code. User-replaceable parts are the handle, gasket, drawer, and hinges.

What to do if the manual is not available in my language?

On the manual page, choose your language and enter your email to receive a specifically translated version.

Does the warranty cover repairs made by the user?

No, repairs not performed by a Samsung certified service may void the warranty. Only the specified parts (handle, gasket, drawer, hinges) are user-replaceable.

USER MANUAL RT32K5030WW SAMSUNG

User servicing manual

1. You can check where to buy replacement parts at http://samsung.com
2. Visit the part purchase site and enter the model code of your product to check the parts available for purchase. The model code is labelled on the outer side of your product.
3. You can check the model code and version on the barcode label at the bottom left of the product.
4. For replacement parts, make sure the part name matches that of the illustration in this manual.
5. User-serviceable parts are limited to handles (some models only), gaskets, drawers, and hinges.

NOTE

Following the repair by a non-authorised service provider, self-repair or non-professional repair of the product, Samsung is not liable for any damage to the product, any injury or any other product safety issue caused by any attempt to repair the product which does not carefully follow these repair and maintenance instructions. Any damage to the product caused by an attempt to repair the product by any person other than a Samsung certified service provider will not be covered by the warranty.

CAUTION

• The part name listed on the site may differ from that in this manual. Please make sure you choose the right part name.
• Replacing hinges requires extreme caution because it involves detaching the door.
• Be sure to wear safety gloves while making repairs.

English

The actual image and provided parts of the refrigerator may differ, depending on the model and the country.

01 Hinge Up 02 Gasket
03 Hinge Mid 04 Drawer
05 Hinge Low 06 Barcode label

English

Handle replacement

CAUTION

• When replacing the door handle, take care not to scratch the front of the door.
• Firmly press the handles at the supports. Make sure there is no gap between the supports and the door.
• Tightly fasten the screws when attaching the handle.
• Check that the handle is firmly attached before using the product.

To detach the handles

NOTE

This procedure applies to both the fridge and freezer compartment.

FRE

Close-up of a hand holding a metallic object, possibly a refrigerator or appliance, with no visible text or symbols.

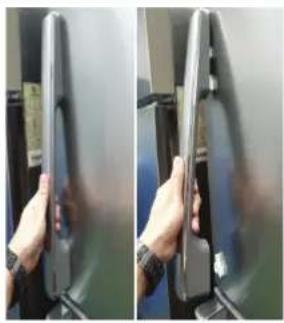

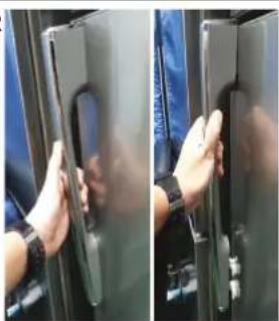

Pull out the handle and hit the handle vertically. When the handle is released from the lock. To pull the handle toward you. (Refer to the picture)

REF

Two-panel photo showing a person holding a black door handle, no visible text or symbols

CAUTION

• Be careful not to scratch.
• When disassembling, make sure the unit turned off if you want to assembly fellow the reverse order.

English

Gasket replacement

CAUTION

Make sure you firmly attach the gasket. Otherwise, cold air from the refrigerator may leak.

To remove the gasket

1. Pull the 4 corners of gasket Fre & Ref.

Close-up of a hand pressing down on a white plastic sheet (no visible text or symbols)

Close-up of a hand holding a textured, dark surface with no visible text or symbols

1. Pull the center of gasket.

To replace the gasket

Attach a new gasket to the refrigerator door. Make sure there is no gap between the new gasket and the door.

English

Drawer replacement

CAUTION

Check that the drawer is inserted properly into the rail during assembly.

To remove the drawer

Interior view of a refrigerator with a hand adjusting the lid (no visible text or symbols)

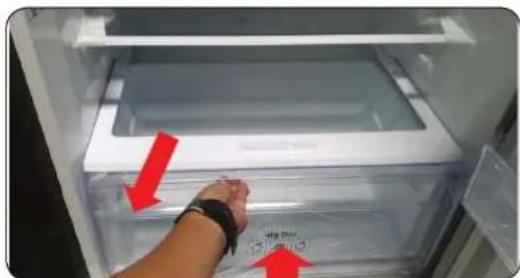

Remove the drawer by pulling the roller part and lifting it up.

To reattach the drawers

Reattaching the drawers follows the reverse order of their respective removal steps.

English

Hinge replacement

To replace the hinges, you must remove the doors first.

CAUTION

- When removing the doors, take extreme caution because the doors are heavy. - Before replacing the hinges, put a soft pad such as cardboard on the floor to prevent scratches on the door when you place the doors down. - As the hinges must be handled carefully and replaced by two or more persons, we recommend you to call for professional technical service.

- If you remove the hinge without holding the door, the door may fall and cause injury. - Ensure that the shaft is firmly tightened on the hinge. - Check that the hinge is firmly attached to the cabinet. - Make sure the wire connectors are connected properly. - Be careful not to damage the wires when fastening the top cover.

WARNING

- Tilting/laying the refrigerator requires a minimum of 2 people. - Disconnect the power cord before reversing the doors.

Tools required (not provided)

Phillips screwdriver Flat-head screwdriver 11 mm spanner

10 mm socket wrench Allen wrench (5 mm) 10 mm spanner

English

Reversing the door

Hinge Up

Close-up of a hand using a red-handled tool to press or adjust a small object, with no visible text or symbols.

1. Remove screw 1 ea Cover hinge with the (+) screwdriver and Open.

Close-up of a hand holding a gray mechanical clip with a red upward arrow, partially visible inside a car (no text or symbols)

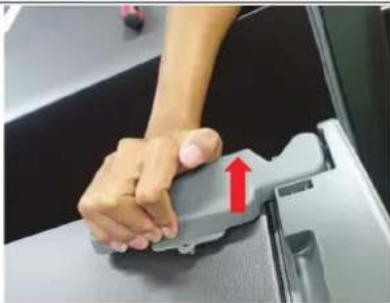

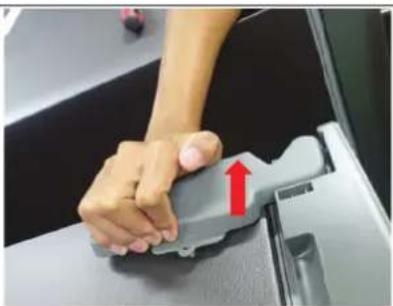

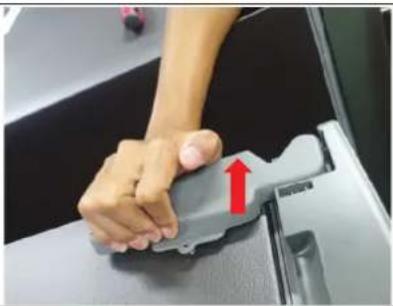

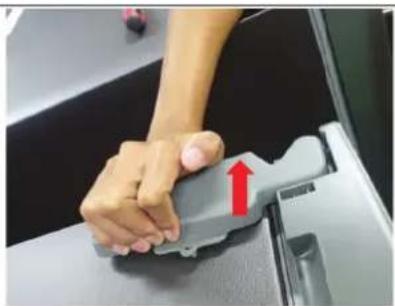

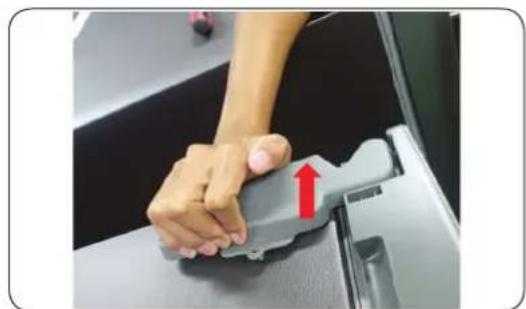

1. Pull the hooks and lift Cover hinge.

Close-up of hands assembling a small object with red arrows indicating direction (no text or symbols visible)

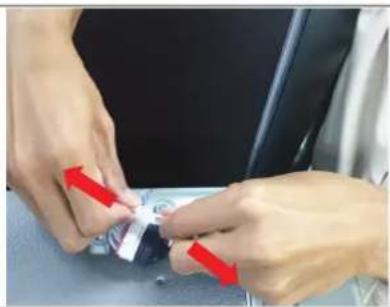

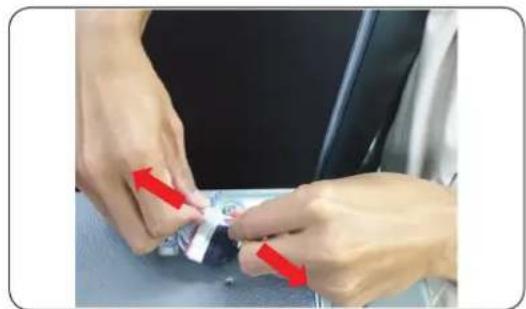

1. Disconnect the wire connector on the hinge up.

CAUTION

Be sure to unplug the power cord before performing the operation above.

Hand using a wrench to lift a mechanical component, with a red ribbon and green plastic nearby (no visible text or symbols)

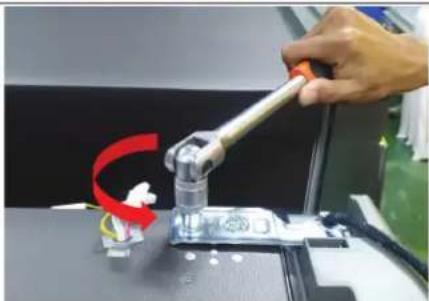

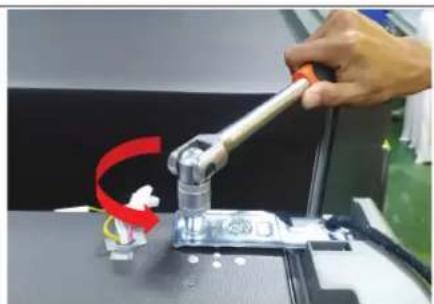

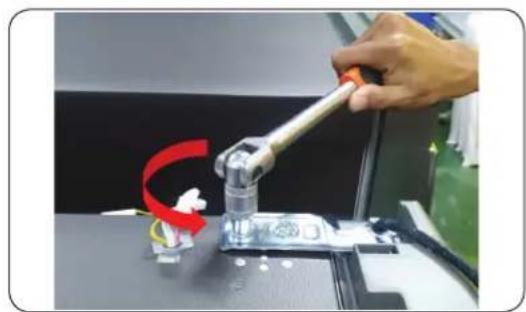

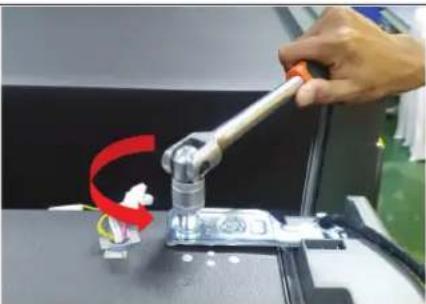

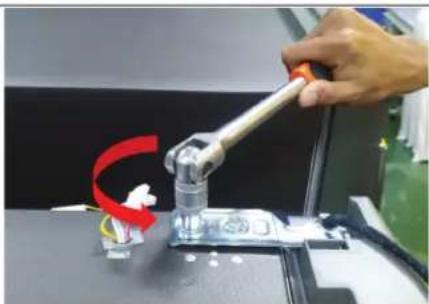

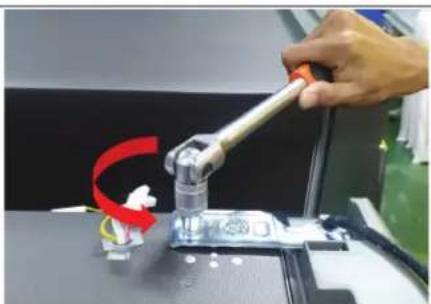

1. Remove the 2 hex bolts that hold the hinge on the top of the refrigerator with the 10mm socket wrench.

English

Close-up of a hand using a small robotic device to interact with a device on a flat surface, with no visible text or symbols.

1. Remove Hinge up R/L.

Interior view of a refrigerator with open door and side panel, showing interior compartments and a hand adjusting the door (no text or symbols visible)

1. Remove Door.

CAUTION

Must working more than 2 people. One person grab the door to prevent falling door.

English

Hinge Mid

Close-up of a hand using a wrench to adjust a mechanical component, with a red curved arrow indicating rotation (no text or symbols visible)

Close-up of a hand using a red tool to adjust or install a small mechanical component, with no visible text or symbols.

Close-up of hands installing a small mechanical component on a white surface, with a red arrow indicating the step (no text or symbols visible)

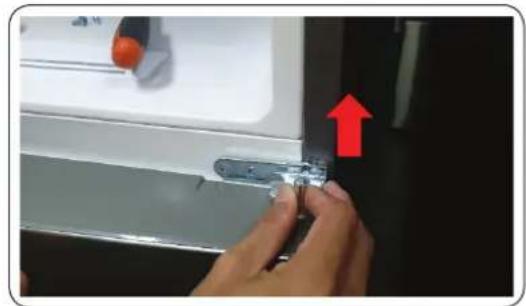

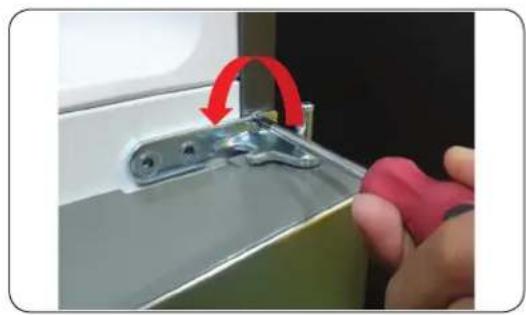

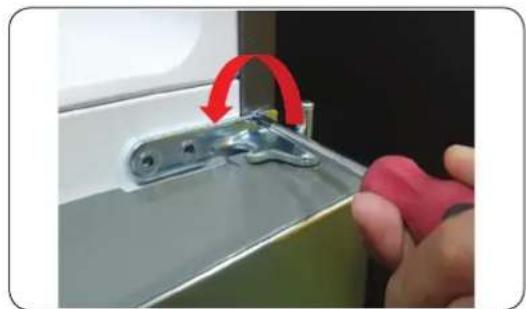

1. Remove the 2 hex bolts that hold the hinge with the 8 mm socket Wrench or using (+) screwdriver.

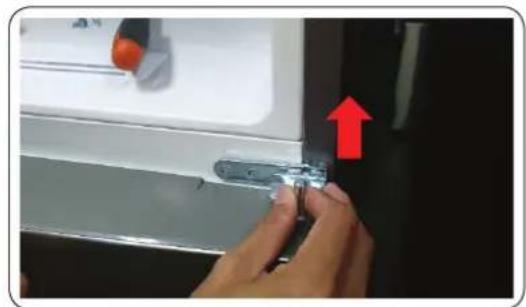

2. Remove the screw 1 ea the hinge With (+) screwdriver.

3. Diassembly hinge mid from door ref up.

CAUTION

- Must working more than 2 people.

- Be sure to unplug the power cord before performing the operation above.

English

Hinge Low

Black plastic tray with red downward arrows indicating a measurement or inspection (no text or symbols visible)

Two-panel image showing a hand operating a mechanical device with red arrows indicating rotation or adjustment (no text or symbols visible)

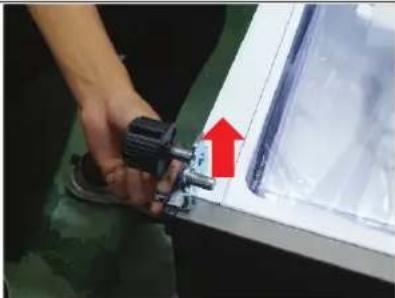

Close-up of a hand holding a mechanical component with a red arrow pointing to a component (no visible text or symbols)

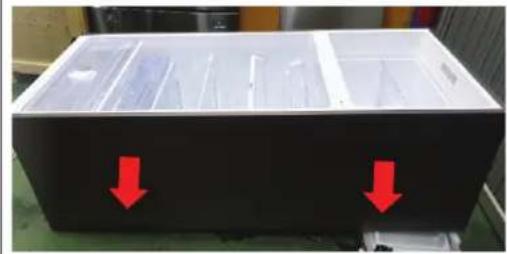

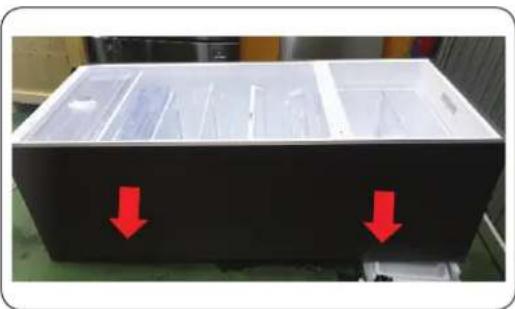

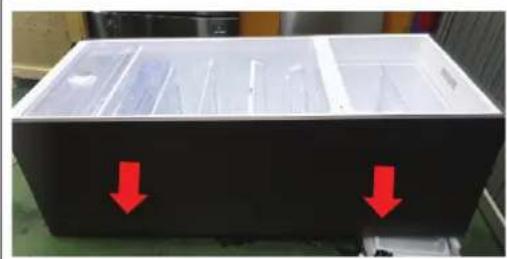

1. Lay down product (Refer picture).

CAUTION

• Must to a pad underneath to protect the back of the product from being damaged.
• Must working more than 2 people.

• Be sure to unplug the power cord before performing the operation above.

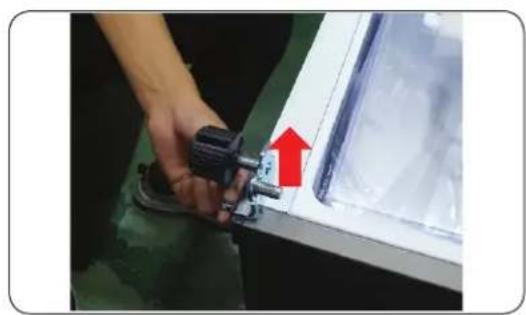

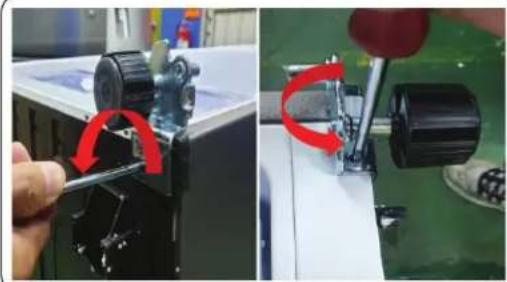

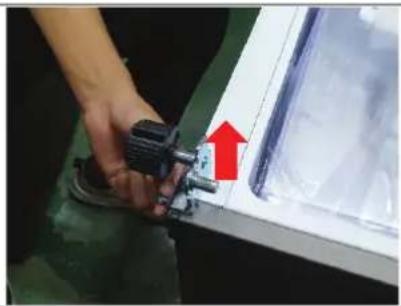

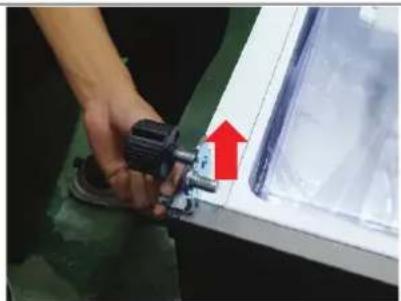

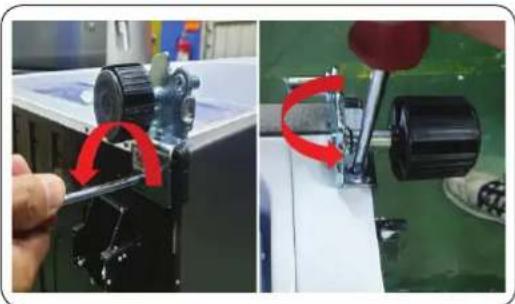

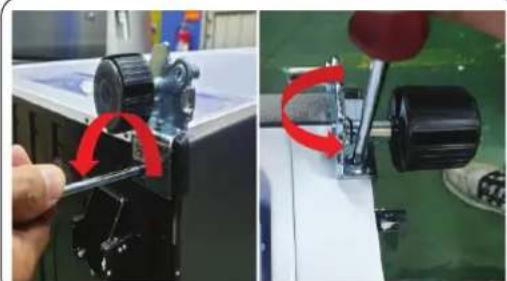

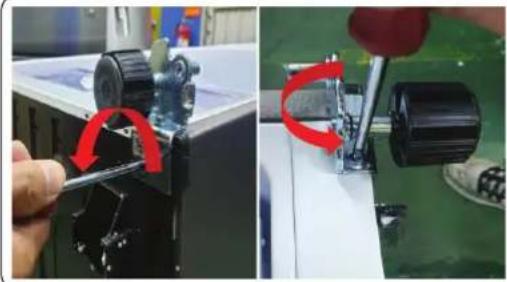

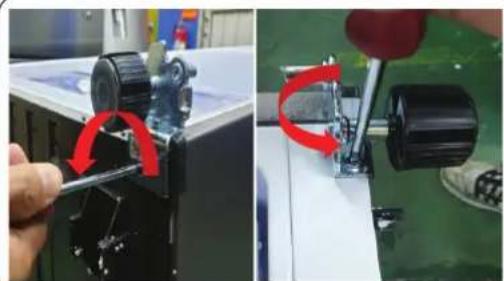

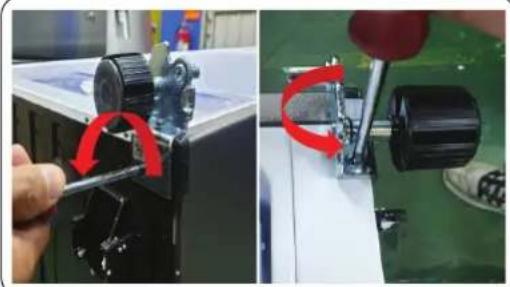

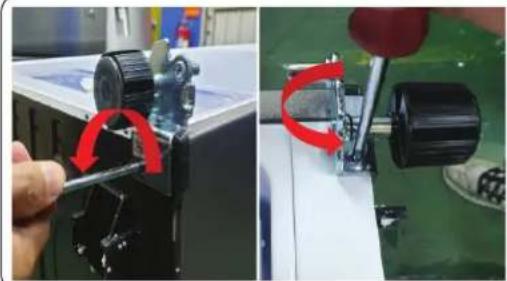

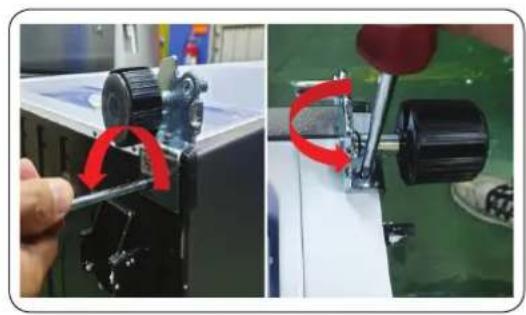

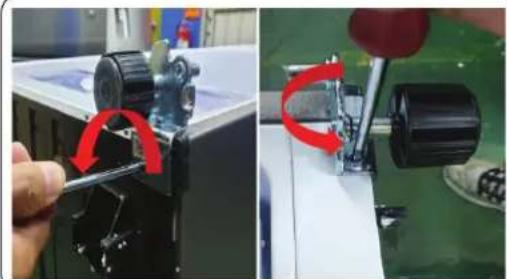

• Remove the 3 hex bolts that hold the hinge with the 8 mm socket Wrench or using (+) screwdriver.

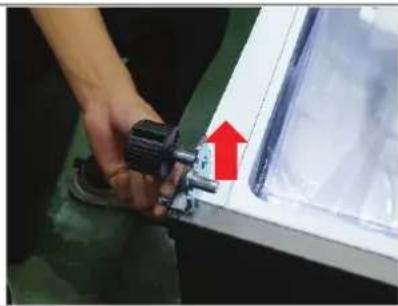

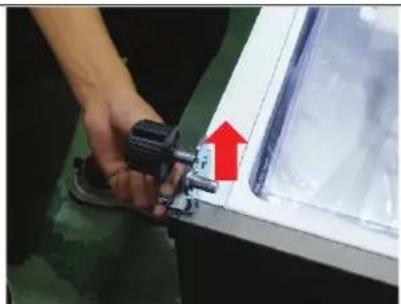

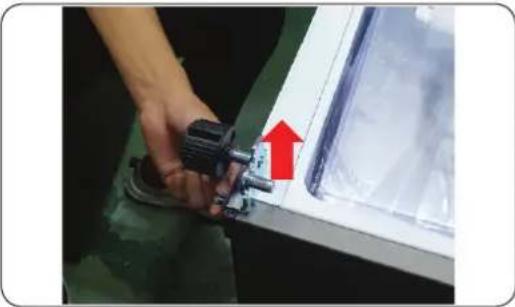

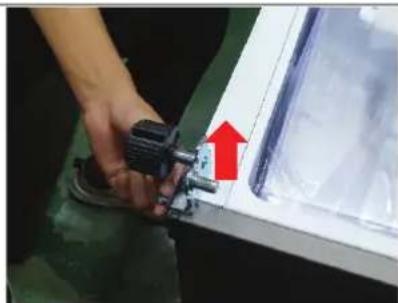

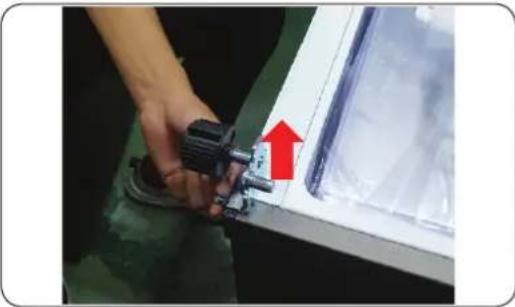

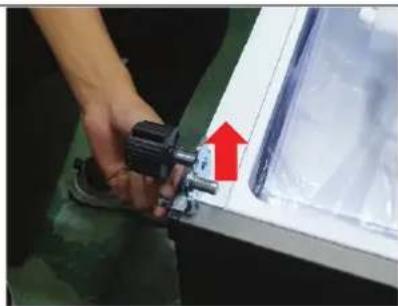

• Remove Hinge Low.

• Reassemble in the opposite order of disassembly after replacing the top, middle, and/or bottom hinge.

CAUTION

• Make sure the wire connectors are connected properly.
- Be careful not to damage the wires when fastening the top cover

English

Guide de réparation

Close-up of a hand holding a black plastic object, no visible text or symbols

Person adjusting a door panel inside a vehicle (no visible text or symbols)

ATTENTION

Close-up of a hand pressing down on a white plastic sheet (no visible text or symbols)

Close-up of a hand holding a small object with abstract patterns (no visible text or symbols)

Interior view of a refrigerator with a hand adjusting the lid (no visible text or symbols)

Close-up of a hand using a red-handled tool to press or adjust a mechanical component, with no visible text or symbols.

Close-up of a hand holding a gray plastic clip with a red upward arrow, partially open the dashboard (no text or symbols visible)

Close-up of hands assembling a small object with red arrows indicating direction (no text or symbols visible)

Hand operating a 3D printer with a red ribbon cable, no visible text or symbols

Close-up of a hand using a small robotic device to interact with a device on a flat surface, with no visible text or symbols.

Interior view of a refrigerator with open door and side panel, showing interior compartments and a hand adjusting the door (no text or symbols visible)

1. Retirez la porte.

ATTENTION

Close-up of a hand using a wrench to adjust a mechanical component, with a red curved arrow indicating rotation (no text or symbols visible)

Close-up of a hand using a red tool to adjust or install a small mechanical component, with no visible text or symbols.

Close-up of hands installing a plastic door clip with a red arrow indicating upward motion (no text or symbols visible)

Black rectangular electronic device with two red downward arrows pointing to its sides (no visible text or symbols)

Two-panel image showing a mechanical assembly with red arrows indicating motion or rotation, no visible text or symbols.

Close-up of a hand holding a mechanical component with a red arrow pointing upward (no visible text or symbols)

Close-up of a hand holding a refrigerator door, showing the handle and seat (no visible text or symbols)

Close-up of a person's hand holding a refrigerator door, showing interior details (no text or symbols visible)

ATTENZIONE

Close-up of a hand pressing down on a white plastic component (no visible text or symbols)

Close-up of a hand pressing down on a textured surface with a dark triangular pattern (no text or symbols visible)

Interior view of a refrigerator with a hand adjusting the lid (no visible text or symbols)

Close-up of a hand using a pink screwdriver to press or adjust a mechanical component, with a red curved arrow indicating motion (no text or symbols visible)

Close-up of a hand holding a gray mechanical device with a red upward arrow, partially open the side of a car (no visible text or symbols)

Close-up of hands assembling a small electronic component with red arrows indicating assembly direction (no text or symbols visible)

Close-up of a hand using a wrench to lift a mechanical component, with a red ribbon and green plastic nearby (no visible text or symbols)

Close-up of a hand using a small robotic device to interact with a device on a flat surface, with no visible text or symbols.

1. Rimuovere la cerniera S/D.

Interior view of a refrigerator with open door and side panel, showing interior compartments and a hand adjusting the door (no text or symbols visible)

1. Rimuovere la porta.

ATTENZIONE

Close-up of a hand using a wrench to adjust a mechanical component, with a red curved arrow indicating rotation (no text or symbols visible)

Close-up of a hand using a red tool to adjust or install a small mechanical component, with no visible text or symbols.

Close-up of hands installing a small mechanical component on a white door, with a red arrow indicating the step (no text or symbols visible)

Black rectangular electronic device with red downward arrows indicating internal components (no text or symbols visible)

Two-panel image showing a mechanical assembly: left panel shows a motor with red arrows indicating rotation, right panel shows a close-up of a black cylindrical component being inserted (no text or symbols visible)

Close-up of a hand holding a small mechanical component, with a red arrow pointing upward (no visible text or symbols)

Close-up of a hand holding a refrigerator door, showing the handle and seat (no visible text or symbols)

Close-up of a person holding a refrigerator door, showing hand positioning (no text or symbols visible)

VORSICHT

Two-panel photo showing a hand inserting or removing a document into a device (no visible text or symbols)

Interior view of a refrigerator with a hand adjusting the lid (no visible text or symbols)

Close-up of a hand using a red-handled tool to press or adjust a small object, with no visible text or symbols.

Close-up of a hand holding a gray mechanical clip with a red arrow indicating upward motion (no text or symbols visible)

Close-up of hands assembling a small object with red arrows indicating direction (no text or symbols visible)

Hand operating a mechanical tool with a red ribbon, no visible text or symbols

Close-up of a hand using a small robotic device to interact with a device on a flat surface, with no visible text or symbols.

Interior view of a refrigerator with open door and side panel, showing interior compartments and a hand adjusting the door (no text or symbols visible)

Close-up of a hand using a wrench to adjust a mechanical component, with a red curved arrow indicating rotation (no text or symbols visible)

Close-up of a hand using a red tool to adjust or install a small mechanical component, with no visible text or symbols.

Close-up of hands installing a plastic door clip with a red arrow indicating upward motion (no text or symbols visible)

Black rectangular electronic device with red downward arrows indicating internal components or features (no text or symbols visible)

Two-panel image showing a mechanical device being adjusted for a tool, with red arrows indicating the motion direction (no text or symbols visible)

Close-up of a hand holding a small mechanical component, with a red arrow pointing upward (no visible text or symbols)

Close-up of a hand holding a refrigerator door, showing the handle and seat (no visible text or symbols)

Two-panel photo showing a person adjusting a door panel, no visible text or symbols

LET OP

Two-panel image showing a hand inserting or removing a document into a device (no visible text or symbols)

Interior view of a refrigerator with a hand adjusting the lid (no visible text or symbols)

Close-up of a hand using a pink screwdriver to press or adjust a small object on a workbench, with no visible text or symbols.

Close-up of a hand pressing a gray mechanical clip with a red arrow indicating motion (no text or symbols visible)

Close-up of hands assembling a small object with red arrows indicating direction (no text or symbols visible)

Hand operating a 3D printer with a red ribbon cable, no visible text or symbols

Close-up of a hand using a small robotic device to interact with a device on a flat surface, with no visible text or symbols.

Interior view of a refrigerator with open door and side panel, showing interior compartments and a hand adjusting the door (no text or symbols visible)

1. Verwijder de deur.

LET OP

Close-up of a hand using a wrench to adjust a mechanical component, with a red curved arrow indicating rotation (no text or symbols visible)

Close-up of a hand using a red tool to adjust or install a small mechanical component, no visible text or symbols.

Close-up of hands installing a plastic door clip with a red arrow indicating upward motion (no text or symbols visible)

Black rectangular electronic device with two red downward arrows pointing to its sides (no visible text or symbols)

Two-panel image showing a mechanical assembly with red arrows indicating motion or rotation, no visible text or symbols.

Close-up of a hand holding a mechanical component with a red arrow pointing upward (no visible text or symbols)

Close-up of a hand holding a metal door panel, showing the handle and seat (no text or symbols visible)

Two-panel photo showing a hand adjusting a door panel, no visible text or symbols

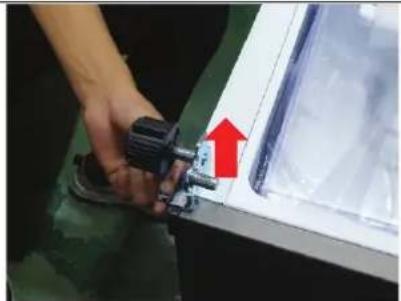

PRECAUCIÓN

Two-panel image showing a hand inserting a card into a device, with no visible text or symbols.

Interior view of a refrigerator with a hand adjusting the lid (no visible text or symbols)

Hand using a red-handled tool to press or adjust a mechanical component, with no visible text or symbols.

Close-up of a hand pressing a gray mechanical clip with a red upward arrow (no text or symbols visible)

Close-up of hands assembling a small object with red arrows indicating direction (no text or symbols visible)

Hand operating a 3D printer with a red ribbon cable, no visible text or symbols

Close-up of a hand using a small robotic device to interact with a device on a flat surface, with no visible text or symbols.

Interior view of a refrigerator with open door and side panel, showing interior compartments and a hand adjusting the door (no text or symbols visible)

1. Retire la bisagra superior D/I.

2. Retire la puerta.

PRECAUCIÓN

Close-up of a hand using a wrench to adjust a mechanical component, with a red curved arrow indicating rotation (no text or symbols visible)

Close-up of a hand using a red tool to adjust or install a small mechanical component, with no visible text or symbols.

Close-up of hands installing a plastic door clip with a red arrow indicating upward motion (no text or symbols visible)

Black plastic container with red downward arrows indicating a measurement or inspection (no text or symbols visible)

Two-panel image showing a mechanical device being adjusted with red arrows, alongside a close-up of the component being cut (no visible text or symbols)

Close-up of a hand holding a mechanical component with a red arrow pointing to a device (no visible text or symbols)

Close-up of a hand holding a metallic object, possibly a refrigerator or appliance (no visible text or symbols)

Two-panel photo showing a person holding a black door handle, no visible text or symbols

ATENÇÃO

Close-up of a hand pressing down on a mechanical component (no visible text or symbols)

Close-up of a hand pressing down on a white surface with a dark triangular pattern (no text or symbols visible)

Interior view of a refrigerator with a hand adjusting the lid (no visible text or symbols)

Close-up of a hand using a small robotic device to interact with a laptop (no visible text or symbols)

Interior view of a refrigerator with open door and side panel, showing interior compartments and a hand adjusting the door (no text or symbols visible)

1. Remova a porta.

ATENÇÃO

Close-up of a hand using a wrench to adjust a mechanical component, with a red curved arrow indicating rotation (no text or symbols visible)

Close-up of a hand using a red tool to adjust or install a small mechanical component, with no visible text or symbols.

Close-up of hands installing a plastic door clip with a red arrow indicating upward motion (no text or symbols visible)

Black rectangular electronic device with red downward arrows indicating internal components (no text or symbols visible)

Two-panel image showing a mechanical assembly: left panel shows a motor with red arrows indicating rotation, right panel shows a close-up of a black cylindrical component being inserted (no text or symbols visible)

Close-up of a hand holding a small mechanical component, with a red arrow pointing upward (no visible text or symbols)

Close-up of a hand holding a metallic object, showing part of a device (no visible text or symbols)

Close-up of a person's hand holding a door panel, showing interior details (no text or symbols visible)

ΠΡΟΣΟΧΗ

Two-panel image showing a hand inserting a card into a printer case, no visible text or symbols

Close-up of a hand using a red-handled tool to press or adjust a mechanical component, with no visible text or symbols.

Close-up of a hand pressing a gray mechanical component with a red upward arrow (no text or symbols visible)

Close-up of hands installing a small component with red arrows indicating direction (no text or symbols visible)

Hand using a wrench to lift a mechanical component, with a red ribbon and blue plastic wrap visible (no text or symbols)

Close-up of a hand using a small robotic device to interact with a device on a flat surface, with no visible text or symbols.

Interior view of a refrigerator with open door and side panel, showing interior compartments and a hand adjusting the door (no text or symbols visible)

Close-up of a hand using a wrench to adjust a mechanical component, with a red curved arrow indicating rotation (no text or symbols visible)

Close-up of a hand using a red tool to adjust or install a metal hinge component (no text or symbols visible)

Close-up of a hand holding a small metal clip next to a white door, with a red upward arrow indicating motion (no text or symbols visible)

Exterior view of a rectangular electronic device with two red downward arrows pointing to internal compartments (no text or symbols visible)

Two-panel image showing a robotic arm tool interacting with a mechanical component; no visible text or symbols.

Close-up of a hand holding a mechanical component, with a red arrow pointing to a device component (no visible text or symbols)

Close-up of a hand holding a black object, possibly a device or tool, against a blurred background (no visible text or symbols)

Two-panel photo showing a person holding a black door handle, no visible text or symbols

VAR FÖRSIKTIG

Close-up of a hand pressing down on a white plastic component (no visible text or symbols)

Close-up of a hand pressing down on a textured surface with a dark triangular pattern (no text or symbols visible)

Interior view of a refrigerator with a hand adjusting the lid (no visible text or symbols)

Close-up of a hand using a pink screwdriver to press or adjust a mechanical component, with a red curved arrow indicating motion (no text or symbols visible)

Close-up of a hand pressing a gray plastic clip with a red upward arrow (no text or symbols visible)

Close-up of hands assembling a small object with red arrows indicating direction (no text or symbols visible)

Hand operating a 3D printer with a red ribbon cable, no visible text or symbols

Close-up of a hand using a small robotic device to interact with a device on a flat surface, with no visible text or symbols.

Interior view of a refrigerator with open door and side panel, showing interior compartments and a hand adjusting the door (no text or symbols visible)

Close-up of a hand using a wrench to adjust a mechanical component, with a red curved arrow indicating rotation (no text or symbols visible)

Close-up of a hand using a red tool to adjust or install a small mechanical component, with no visible text or symbols.

Close-up of hands installing a plastic door clip with a red arrow indicating upward motion (no text or symbols visible)

Black plastic container with red downward arrows indicating a measurement or inspection (no text or symbols visible)

Two-panel image showing a hand operating a mechanical device with red arrows indicating rotation or adjustment (no text or symbols visible)

Close-up of a hand holding a mechanical component with a red arrow pointing to a device (no visible text or symbols)

Close-up of a hand holding a black object, possibly a device or tool, against a blurred background (no visible text or symbols)

Two-panel photo showing a hand holding a black door panel, no visible text or symbols

FORSIGTIG

Close-up of a hand holding a white object with a curved edge, possibly part of a device or tool (no visible text or symbols)

Close-up of a hand pressing down on a textured surface (no visible text or symbols)

Interior view of a refrigerator with a hand adjusting the lid (no visible text or symbols)

Close-up of a hand using a pink screwdriver to press or adjust a mechanical component, with a red curved arrow indicating motion (no text or symbols visible)

Close-up of a hand pressing a gray plastic clip with a red upward arrow (no text or symbols visible)

Close-up of hands assembling a small object with red arrows indicating direction (no text or symbols visible)

Hand operating a 3D printer with a red ribbon cable, no visible text or symbols

Close-up of a hand using a small robotic device to interact with a device on a flat surface, with no visible text or symbols.

Interior view of a refrigerator with open door and side panel, showing interior compartments and a hand adjusting the door (no text or symbols visible)

1. Fjern døren.

⚠️ FORSIGTIG

Close-up of a hand using a wrench to adjust a mechanical component, with a red curved arrow indicating rotation (no text or symbols visible)

Close-up of a hand using a red tool to adjust or install a metal bracket component (no text or symbols visible)

Close-up of a hand holding a small transparent object with a red arrow pointing upward (no text or symbols visible)

Black rectangular electronic device with red downward arrows indicating internal components (no text or symbols visible)

Two-panel image showing a mechanical assembly: left panel shows a hand holding a tool, right panel shows a close-up of a mechanical component with red arrows indicating rotation or adjustment (no text or symbols visible)

Close-up of a hand holding a small mechanical component, with a red arrow pointing upward (no visible text or symbols)

Close-up of a hand holding a metallic object, possibly a refrigerator or appliance, with no visible text or symbols.

Two-panel photo showing a person holding a black door handle, no visible text or symbols

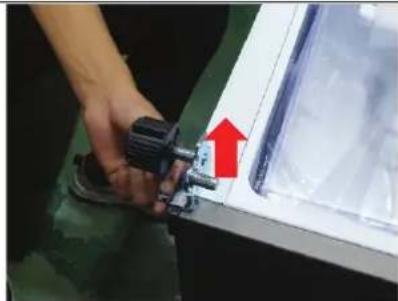

FORSIKTIG

Close-up of a hand inserting a small object into a device (no visible text or symbols)

Close-up of a hand pressing down on a white surface with a dark triangular pattern (no text or symbols visible)

1. Trekk midten av pakningen.

Interior view of a refrigerator with a hand adjusting the lid (no visible text or symbols)

Close-up of a hand using a pink screwdriver to press or adjust a mechanical component, with a red curved arrow indicating motion (no text or symbols visible)

Close-up of a hand pressing a gray plastic clip with a red upward arrow (no text or symbols visible)

Close-up of hands assembling a small object with red arrows indicating direction (no text or symbols visible)

Hand using a wrench to lift a mechanical component, with a red ribbon and blue cable visible (no text or symbols)

Close-up of a hand operating a small robotic device with a red arrow and white components (no visible text or symbols)

Interior view of a refrigerator with open door and side panel, hand pointing to the door (no visible text or symbols)

Close-up of a hand using a wrench to adjust a mechanical component, with a red curved arrow indicating rotation (no text or symbols visible)

Close-up of a hand using a red tool to adjust or install a small mechanical component, with no visible text or symbols.

Close-up of hands installing a plastic door clip with a red arrow indicating upward motion (no text or symbols visible)

Black plastic tray with red downward arrows indicating a measurement or inspection (no text or symbols visible)

Two-panel image showing a mechanical device being adjusted with red arrows, alongside a close-up of the component being cut (no visible text or symbols)

Close-up of a hand holding a small mechanical component, with a red arrow pointing upward (no visible text or symbols)

Close-up of a hand holding a metallic object, possibly a device or tool, with no visible text or symbols.

Close-up of a person's hand opening a door panel, showing the interior and side views (no text or symbols visible)

HUOMIO

Close-up of a hand pressing down on a white plastic sheet (no visible text or symbols)

Close-up of a hand holding a textured, layered object with no visible text or symbols

Interior view of a refrigerator with a hand adjusting the lid (no visible text or symbols)

Close-up of a hand using a pink screwdriver to press or adjust a mechanical component, with a red curved arrow indicating motion (no text or symbols visible)

Close-up of a hand holding a gray mechanical device with a red upward arrow, partially open the side of a car (no visible text or symbols)

Close-up of hands assembling a small electronic component with red arrows indicating assembly direction (no text or symbols visible)

Hand using a wrench to lift a mechanical component, with a red ribbon and green plastic nearby (no visible text or symbols)

Close-up of a hand using a small robotic device to interact with a device on a flat surface, with no visible text or symbols.

Interior view of a refrigerator with open door and side panel, showing interior compartments and a hand adjusting the door (no text or symbols visible)

1. Irrota ovi.

HUOMIO

Close-up of a hand using a wrench to adjust a mechanical component, with a red curved arrow indicating rotation (no text or symbols visible)

Close-up of a hand using a red tool to adjust or install a small mechanical component, no visible text or symbols.

Close-up of hands installing a small mechanical component on a white surface, with a red arrow indicating the step (no text or symbols visible)

Black plastic refrigerator with red downward arrows indicating internal compartments or features (no text or symbols visible)

Two-panel image showing a robotic arm and a close-up of a mechanical component with red arrows indicating rotation (no text or symbols visible)

Close-up of a hand holding a black tool next to a white container with a red arrow pointing to the handle (no visible text or symbols)

Close-up of a hand holding a metallic object, showing part of a container (no visible text or symbols)

Person holding a door panel, viewed from side (no visible text or symbols)

PRZESTROGA

Two-panel image showing a hand inserting or removing a document into a device (no visible text or symbols)

Interior view of a refrigerator with a hand adjusting the lid (no visible text or symbols)

Close-up of a hand using a red-handled tool to press or adjust a small object, with no visible text or symbols.

Close-up of a hand holding a gray mechanical clip with a red upward arrow, partially visible inside a car (no text or symbols)

Close-up of hands assembling a small object with red arrows indicating direction (no text or symbols visible)

Hand using a wrench to lift a mechanical component, with a red ribbon and green plastic nearby (no visible text or symbols)

Close-up of a hand operating a small robotic device with a red arrow and white components (no visible text or symbols)

Interior view of a refrigerator with open door and side panel, hand pointing to the door (no visible text or symbols)

Close-up of a hand using a wrench to adjust a mechanical component, with a red curved arrow indicating rotation (no text or symbols visible)

Close-up of a hand using a red tool to adjust or install a small mechanical component, with no visible text or symbols.

Close-up of hands installing a plastic hinge on a white door panel, with a red arrow indicating the angle (no text or symbols visible)

Black rectangular electronic device with two red downward arrows pointing to its sides (no visible text or symbols)

Two-panel image showing a hand operating a mechanical device with red arrows indicating rotation (no text or symbols visible)

Person using a tool to adjust or install a white plastic panel, with a red arrow indicating the process (no visible text or symbols)

Close-up of a hand holding a metallic object, showing front and side views (no visible text or symbols)

Two-panel photo showing hands holding a black door handle, no visible text or symbols

UPOZORNĚNÍ

Close-up of a hand pressing down on a mechanical component (no visible text or symbols)

Close-up of a hand pressing down on a white surface with a dark triangular pattern (no text or symbols visible)

Interior view of a refrigerator with a hand adjusting the lid (no visible text or symbols)

Close-up of a hand using a red-handled tool to press or adjust a small object, with no visible text or symbols.

Close-up of a hand pressing a gray mechanical clip with a red arrow indicating motion (no text or symbols visible)

Close-up of hands assembling a small object with red arrows indicating direction (no text or symbols visible)

Hand using a wrench to lift a mechanical component, with a red ribbon and blue cable visible (no text or symbols)

Close-up of a hand using a small robotic device to interact with a device on a flat surface, with no visible text or symbols.

Interior view of a refrigerator with open door and side panel, showing interior compartments and a hand adjusting the door (no text or symbols visible)

1. Demontujte dveře.

⚠️ UPOZORNĚNÍ

Close-up of a hand using a wrench to adjust a mechanical component, with a red curved arrow indicating rotation (no text or symbols visible)

Close-up of a hand using a red tool to adjust or install a small mechanical component, with no visible text or symbols.

Close-up of hands installing a small electronic component with a red arrow indicating upward motion (no text or symbols visible)

Black rectangular electronic device with red downward arrows indicating internal components (no text or symbols visible)

Two-panel image showing a mechanical assembly with red arrows indicating rotation or adjustment, no visible text or symbols.

Close-up of a hand holding a mechanical component with a red arrow pointing to a device (no visible text or symbols)

Close-up of a hand inserting a metallic object into a refrigerator (no visible text or symbols)

Two-panel photo showing a person adjusting a door panel, no visible text or symbols

POZOR

Two-panel image showing a hand inserting a card into a device, with no visible text or symbols.

1. Potiahnite stred tesnenia.

Osadenie tesnenia

Interior view of a refrigerator with a hand adjusting the lid (no visible text or symbols)

Close-up of a hand using a pink screwdriver to press or lift a small mechanical component, with a red curved arrow indicating motion (no text or symbols visible)

Close-up of a hand holding a gray car seatbelt buckle with a red arrow indicating the handle (no text or symbols visible)

Close-up of hands assembling a small electronic component with red arrows indicating assembly (no text or symbols visible)

Hand using a wrench to lift a mechanical component with a red ribbon, no visible text or symbols

Close-up of a hand using a small robotic device to interact with a device on a flat surface, with no visible text or symbols.

Interior view of a refrigerator with open door and side panel, showing interior compartments and a hand adjusting the door (no text or symbols visible)

1. Demontujte dvere.

POZOR

Je potrebná spolupráca viac než dvoch ludí. Jedna osoba musí uchopit dvere, aby sa zabránilo pádu dverí.

Slovenčina

Stredný pánt

Close-up of a hand using a wrench to adjust a mechanical component, with a red curved arrow indicating rotation (no text or symbols visible)

Close-up of a hand using a red tool to adjust or install a small mechanical component, no visible text or symbols.

Close-up of hands installing a small electronic component with a red arrow indicating upward motion (no text or symbols visible)

Black rectangular electronic device with red downward arrows indicating internal components (no text or symbols visible)

Two-panel image showing a robotic arm and a close-up of a mechanical component with red arrows indicating motion (no text or symbols visible)

Close-up of a hand holding a small mechanical component, with a red arrow pointing upward (no visible text or symbols)

Close-up of a hand holding a black object, possibly a device or tool, against a blurred background (no visible text or symbols)

Two-panel photo showing hands holding a black door handle, no visible text or symbols

ATENTIE

Close-up of a hand pressing down on a mechanical component (no visible text or symbols)

Close-up of a hand pressing down on a white surface with a dark triangular pattern (no text or symbols visible)

Interior view of a refrigerator with a hand adjusting the lid (no visible text or symbols)

Hand using a red-handled tool to press or adjust a mechanical component, with no visible text or symbols.

Close-up of a hand pressing a gray mechanical component with a red arrow indicating upward motion (no text or symbols visible)

Close-up of hands assembling a small object with red arrows indicating direction (no text or symbols visible)

Hand using a wrench to lift a mechanical component, with a red ribbon and blue cable visible (no text or symbols)

Close-up of a hand using a small robotic device to interact with a device on a flat surface, with no visible text or symbols.

Interior view of a refrigerator with open door and side panel, showing interior compartments and a hand adjusting the door (no text or symbols visible)

1. Scoateți ușa.

⚠️ ATENTIE

Close-up of a hand using a wrench to adjust a mechanical component, with a red curved arrow indicating rotation (no text or symbols visible)

Close-up of a hand using a red screwdriver to adjust a metal bracket component (no text or symbols visible)

Close-up of a hand holding a small metal clip next to a white door, with a red upward arrow indicating motion (no text or symbols visible)

Black rectangular device with transparent lid and two red downward arrows pointing to its sides (no text or symbols visible)

Two-panel image showing a mechanical assembly: left panel shows a hand holding a tool, right panel shows a close-up of a mechanical component with red arrows indicating rotation or adjustment (no text or symbols visible)

Close-up of a hand holding a small mechanical component, with a red arrow pointing upward (no visible text or symbols)

1. Puneti produsul jos (vezi poza).

ATENTIE

Close-up of a hand holding a refrigerator panel, showing the handle and seat (no visible text or symbols)

Close-up of a person's hand holding a door panel, showing interior details (no text or symbols visible)

ВНИМАНИЕ

Two-panel image showing a hand cleaning a white plastic sheet with a cloth (no text or symbols visible)

Interior view of a refrigerator with a hand pressing down on the drawer (no visible text or symbols)

Close-up of a hand using a red-handled tool to press or adjust a mechanical component, with no visible text or symbols.

Close-up of a hand pressing down on a car seatbelt buckle, with a red arrow indicating the grip (no text or symbols visible)

Close-up of hands adjusting a small object with red arrows indicating direction (no text or symbols visible)

Hand using a wrench to lift a mechanical component, with a red ribbon and blue plastic wrap visible (no text or symbols)

Close-up of a hand using a small robotic device to interact with a device on a flat surface, with no visible text or symbols.

Interior view of a refrigerator with open door and side panel, showing interior compartments and a hand adjusting the door (no text or symbols visible)

Close-up of a hand using a wrench to adjust a mechanical component, with a red curved arrow indicating rotation (no text or symbols visible)

Close-up of a hand using a red tool to adjust or install a metal bracket component (no text or symbols visible)

Close-up of a hand holding a small metal clip next to a white door, with a red upward arrow indicating motion (no text or symbols visible)

Black plastic tray with red downward arrows indicating a measurement or inspection (no text or symbols visible)

Two-panel image showing a hand operating a mechanical device with red arrows indicating rotation or adjustment (no text or symbols visible)

Person using a tool to adjust or install a white panel, with a red arrow indicating the motion (no visible text or symbols)

Close-up of a hand adjusting a black plastic door handle, showing the interior and side views (no text or symbols visible)

Close-up of a person holding a black door panel, no visible text or symbols

VIGYÁZAT!

Close-up of a hand holding a white object with a curved edge, possibly part of a device or tool (no visible text or symbols)

Close-up of a hand pressing down on a textured surface with a dark triangular pattern (no text or symbols visible)

Interior view of a refrigerator with a hand adjusting the lid (no visible text or symbols)

Close-up of a hand using a pink screwdriver to press or adjust a mechanical component, with a red curved arrow indicating motion (no text or symbols visible)

Close-up of a hand pressing a gray plastic clip with a red upward arrow (no text or symbols visible)

Close-up of hands assembling a small object with red arrows indicating direction (no text or symbols visible)

Hand operating a 3D printer with a red ribbon cable, no visible text or symbols

Close-up of a hand using a small robotic device to adjust components on a laptop keyboard (no visible text or symbols)

Interior view of a refrigerator with open door and side panel, showing interior compartments and a hand adjusting the door (no text or symbols visible)

Close-up of a hand using a wrench to adjust a mechanical component, with a red curved arrow indicating rotation (no text or symbols visible)

Close-up of a hand using a red tool to adjust or install a small mechanical component, no visible text or symbols.

Close-up of hands installing a plastic hinge on a white door panel, with a red arrow indicating the angle (no text or symbols visible)

Black rectangular container with transparent lid and two red downward arrows pointing to its side (no text or symbols visible)

Two-panel image showing a mechanical assembly with red arrows indicating rotation or adjustment, no visible text or symbols.

Person using a tool to adjust or install a white plastic container with a red arrow pointing to the component (no text or symbols visible)

Close-up of a hand holding a refrigerator door, showing the handle and seat (no visible text or symbols)

Izvucite ručku i povucite je nagore kada se oslobodi iz bravice. Povucite ručku ka sebi (pogledajte sliku).

FRIŽIDER

Person holding a door panel, viewed from side (no text or symbols visible)

OPREZ

Two-panel image showing a hand inserting or removing a document into a device (no visible text or symbols)

1. Povucite sredinu zaptivne gume.

Da biste zamenili zaptivnu gumu

Postavite novu zaptivnu gumu na vrata frižidera. Uverite se da između nove zaptivne gume i vrata nema razmaka.

Srpski

Zamena fioke

OPREZ

Tokom postavljanja, proverite da li je fioka pravilno umetnuta u vodice.

Da biste skinuli fioku

Interior view of a refrigerator with a hand adjusting the lid (no visible text or symbols)

Uhvatite zaobljeni deo fioke i podignite ga da biste je izvadili.

Da biste vratili fioke

Close-up of a hand using a red-handled tool to press or adjust a small object, with no visible text or symbols.

Close-up of a hand pressing a gray mechanical clip with a red arrow indicating motion (no text or symbols visible)

Close-up of hands assembling a small object with red arrows indicating direction (no text or symbols visible)

Hand using a wrench to lift a mechanical component, with a red ribbon and blue cable visible (no text or symbols)

1. Skinite zavrtanj sa poklopca šarke pomoću (+) odvijača i skinite ga.

2. Povucite kukice i podignite poklopac šarke.

3. Isključite konektor za žicu na gornjoj šarci.

OPREZ

Obavezno isključite kabl za napajanje pre nego što započnete ovaj postupak.

1. Skinite 2 vijka sa šestougaonom glavom koji pričvršćuju šarku na vrhu frižidera pomoću nasadnog ključa od 10 mm.

Srpski

Close-up of a hand using a small robotic device to interact with a device on a flat surface, with no visible text or symbols.

1. Skinite gornju desnu i levu šarku.

Interior view of a refrigerator with open door and side panel, showing interior compartments and a hand adjusting the door (no text or symbols visible)

1. Skinite vrata.

OPREZ

Close-up of a hand using a wrench to adjust a mechanical component, with a red curved arrow indicating rotation (no text or symbols visible)

Close-up of a hand using a red tool to adjust or install a small mechanical component, with no visible text or symbols.

Close-up of hands installing a plastic hinge on a white door panel, with a red arrow indicating the angle (no text or symbols visible)

1. Skinite 2 šestougaona vijka kojima je pričvršćena šarka pomoću nasadnog ključa od 8 mm ili (+) odvijača.

2. Skinite zavrtanj na šarci pomoću (+) odvijača.

3. Srednja šarka se rasklapa na isti način kao i gornja.

OPREZ

• Za ovo su potrebne najmanje tri osobe.
- Obavezno isključite kabl za napajanje pre nego što započnete ovaj postupak.

Srpski

Donja šarka

Black rectangular electronic device with red downward arrows indicating internal components or features (no text or symbols visible)

Two-panel image showing a robotic arm tool interacting with a mechanical component; no visible text or symbols.

Close-up of a hand using a tool to adjust or install a white plastic component, with a red arrow indicating the upward motion (no text or symbols visible)

1. Položite uredaj (pogledajte sliku).

OPREZ

• Postavite neku podlogu na pod da se poledina uređaja ne bi oštetila.
• Za ovo su potrebne najmanje tri osobe.

• Obavezno isključite kabl za napajanje pre nego što započnete ovaj postupak.

• Skinite 3 šestougaona vijka kojima je pričvršćena šarka pomoću nasadnog ključa od 8 mm ili (+) odvijača.

• Skinite donju šarku.

• Postavljanje izvršite suprotnim redosledom od redosleda skidanja, nakon zamene gornje, srednje i/ili donje šarke.

OPREZ

• Proverite da li su konektori kablova pravilno priključeni.
- Pazite da ne oštetite kablove dok pričvršćujete gornji poklopac

Srpski

Close-up of a hand holding a metallic object against a blurred background (no visible text or symbols)

Izvucite ručku i udarite ju vertikalno. Kada se ručka odblokira, povucite ju prema sebi. (Pogledajte sliku)

REF

Close-up of a person holding a black door panel, no visible text or symbols

OPREZ

Two-panel image showing a hand inserting a white plastic bag into a device, with no visible text or symbols.

1. Povucite sredinu brtve.

Za zamjenu brtve

Interior view of a refrigerator with a hand adjusting the lid (no visible text or symbols)

Uklonite ladicu tako da povučete dio s kotačićima i podignete ga prema gore.

Ponovno postavljanje ladica

Close-up of a hand using a pink screwdriver to press or adjust a mechanical component, with a red curved arrow indicating motion (no text or symbols visible)

Close-up of a hand holding a gray mechanical device with a red upward arrow, partially open the side of a car (no visible text or symbols)

Close-up of hands assembling a small electronic component with red arrows indicating assembly direction (no text or symbols visible)

Hand operating a 3D printer with a red ribbon cable, no visible text or symbols

1. Uklonite vijak 1 ea poklopca šarke s pomoću (+) odvijača i otvorite.

2. Povucite kuke i podignite poklopac šarke.

3. Odvojite priključak žice na gornjoj šarki.

OPREZ

Pobrinite se da iskopčate kabel za napajanje prije nego što provedete prethodnu radnju.

1. Uklonite 2 imbus vijka koja drže šarku na vrhu hladnjaka ključem s čegrtaljkom od 10 mm.

Hrvatski

Close-up of a hand using a small robotic device to interact with a device on a flat surface, with no visible text or symbols.

1. Uklonite desnu/lijevu gornju šarku.

Interior view of a refrigerator with open door and side panel, showing interior compartments and a hand adjusting the door (no text or symbols visible)

1. Uklonite vrata.

! OPREZ

Close-up of a hand using a wrench to adjust a mechanical component, with a red curved arrow indicating rotation (no text or symbols visible)

1. Uklonite 2 imbus ključa koja drže šarku ključem s čegrtaljkom od 8 mm ili (+) odvijačem.

Close-up of a hand using a red tool to adjust or install a small mechanical component, with no visible text or symbols.

1. Uklonite vijak 1 ea šarke (+) odvijačem.

Close-up of hands installing a small mechanical component on a white surface, with a red arrow indicating the step (no text or symbols visible)

1. Rastavite srednju šarku vrata.

OPREZ

• Ovo moraju obavljati dvije ili više osoba.
• Pobrinite se da iskopčate kabel za napajanje prije nego što provedete prethodnu radnju.

Hrvatski

Donja šarka

Black rectangular container with transparent lid and two red downward arrows pointing to its side (no text or symbols visible)

Two-panel image showing a mechanical assembly with red arrows indicating rotation or adjustment, no visible text or symbols.

Person using a mechanical tool to adjust or install a transparent plastic component, with a red arrow indicating the motion (no text or symbols visible)

1. Polegnite proizvod (pogledajte sliku).

OPREZ

Close-up of a hand holding a metallic object, possibly a refrigerator or appliance, with no visible text or symbols.

Close-up of hands adjusting a black door panel, no visible text or symbols

KUJDES

Two-panel image showing a hand inserting or removing a document into a device (no visible text or symbols)

1. Tërhiqni qendrën e guarnicionit.

Interior view of a refrigerator with a hand adjusting the lid (no visible text or symbols)

Close-up of a hand using a red-handled tool to press or adjust a small object, with no visible text or symbols.

Close-up of a hand holding a gray mechanical clip with a red upward arrow, partially visible inside a car (no text or symbols)

Close-up of hands assembling a small electronic component with red arrows indicating assembly direction (no text or symbols visible)

Hand using a wrench to lift a mechanical component, with a red ribbon and blue plastic nearby (no visible text or symbols)

Close-up of a hand operating a small robotic device with wires and a red arrow indicating motion (no text or symbols visible)

Interior view of a refrigerator with open door and side panel, hand pointing to the door (no visible text or symbols)

Close-up of a hand using a wrench to adjust a mechanical component, with a red curved arrow indicating rotation (no text or symbols visible)

Close-up of a hand using a red tool to adjust or install a metal bracket component (no text or symbols visible)

Close-up of a hand holding a small metal clip next to a white door, with a red upward arrow indicating motion (no text or symbols visible)

Black rectangular electronic device with two red downward arrows pointing to its sides (no visible text or symbols)

Two-panel image showing a mechanical assembly with red arrows indicating motion or rotation, no visible text or symbols.

Close-up of a hand holding a small mechanical component, with a red arrow pointing upward (no visible text or symbols)

Close-up of a hand holding a black appliance, showing part of the door (no visible text or symbols)

Close-up of a person's hand holding a black door panel, showing interior details (no text or symbols visible)

ВНИМАНИЕ

Close-up of hands cleaning a white plastic sheet with a curved edge (no text or symbols visible)

Interior view of a refrigerator with a hand adjusting a tray, showing red arrows pointing to the tray (no text or symbols visible)

Close-up of a hand using a red-handled tool to press or adjust a mechanical component, with no visible text or symbols.

Close-up of a hand pressing down on a gray mechanical component, with a red arrow indicating the motion direction (no text or symbols visible)

Close-up of hands installing a small white object with red arrows indicating direction (no text or symbols visible)

Hand using a 3D tool to lift a mechanical component, with a red ribbon and white plastic components visible (no text or symbols)

Close-up of a hand operating a small robotic device with a red arrow and white components (no visible text or symbols)

Interior view of a refrigerator with open door and side panel, showing interior shelves and a hand adjusting the door (no text or symbols visible)

Close-up of a hand using a wrench to adjust a mechanical component, with a red curved arrow indicating rotation (no text or symbols visible)

Close-up of a hand using a red tool to adjust or install a metal clip on a white surface (no text or symbols visible)

Close-up of a hand adjusting a small metal clip on a white door, with a red arrow indicating upward motion (no text or symbols visible)

Black rectangular electronic device with red downward arrows indicating internal components (no text or symbols visible)

Two-panel image showing a hand operating a mechanical device with red arrows indicating rotation or adjustment (no text or symbols visible)

Close-up of a hand holding a small mechanical component next to a white car, with a red arrow pointing upward (no visible text or symbols)

Close-up of a hand holding a metallic object, possibly a refrigerator or appliance, with no visible text or symbols.

Two-panel photo showing hands holding a black door handle, no visible text or symbols

ETTEVAATUST!

Two-panel image showing a hand inserting a white plastic bag into a device, with no visible text or symbols.

1. Tömmake tihendi keskosa.

Interior view of a refrigerator with a hand adjusting the lid (no visible text or symbols)

Hand using a red-handled tool to press or adjust a mechanical component, with no visible text or symbols.

Close-up of a hand pressing a gray plastic clip with a red upward arrow (no text or symbols visible)

Close-up of hands assembling a small object with red arrows indicating direction (no text or symbols visible)

Hand operating a 3D printer with a red ribbon cable, no visible text or symbols

Close-up of a hand using a small robotic device to interact with a component, with no visible text or symbols.

Interior view of a refrigerator with open door and side panel, hand pointing to the door (no visible text or symbols)

Close-up of a hand using a wrench to adjust a mechanical component, with a red curved arrow indicating rotation (no text or symbols visible)

Close-up of a hand using a red tool to adjust or install a small mechanical component, no visible text or symbols.

Close-up of hands installing a plastic hinge on a white door panel, with a red arrow indicating the angle (no text or symbols visible)

Black rectangular electronic device with red downward arrows indicating internal components (no text or symbols visible)

Two-panel image showing a mechanical assembly with red arrows indicating rotation or adjustment, no visible text or symbols.

Close-up of a hand holding a mechanical component with a red arrow pointing to a device (no visible text or symbols)

1. Asetage toode pikali (vt pilti).

ETTEVAATUST!

Close-up of a hand holding a refrigerator door, showing the handle and seat (no visible text or symbols)

Two-panel photo showing a hand adjusting a door panel, no visible text or symbols

DÈMESIO

Two-panel image showing a hand inserting or removing a document into a device (no visible text or symbols)

Interior view of a refrigerator with a hand adjusting the lid (no visible text or symbols)

Close-up of a hand using a pink screwdriver to press or lift a small mechanical component, with a red curved arrow indicating motion (no text or symbols visible)

Close-up of a hand holding a gray car seatbelt buckle with a red arrow indicating the handle (no text or symbols visible)

Close-up of hands assembling a small electronic component with red arrows indicating assembly (no text or symbols visible)

Hand using a wrench to lift a mechanical component with a red ribbon, no visible text or symbols

Close-up of a hand using a small robotic device to interact with a laptop (no visible text or symbols)

Interior view of a refrigerator with open door and side panel, showing interior compartments and a hand adjusting the door (no text or symbols visible)

1. Išimkite dureles.

⚠️ DÊMESIO

Close-up of a hand using a wrench to adjust a mechanical component, with a red curved arrow indicating rotation (no text or symbols visible)

Close-up of a hand using a red tool to adjust or install a small mechanical component, no visible text or symbols.

Close-up of hands installing a small electronic component with a red arrow indicating upward motion (no text or symbols visible)

Black rectangular container with transparent lid and two red downward arrows pointing to its sides (no text or symbols visible)

Two-panel image showing a mechanical device being adjusted for a red-handled tool, and a close-up of the component being processed (no visible text or symbols)

Close-up of a hand holding a small mechanical component, with a red arrow pointing upward (no visible text or symbols)

Close-up of a hand holding a black object, possibly a device or tool, with no visible text or symbols.

Close-up of a person holding a black door handle, showing hand positioning (no text or symbols visible)

UZMANĪBU!

Close-up of hands cleaning a white plastic bag with a cloth (no text or symbols visible)

1. Pavelciet blives centru.

Lai nomainītu blīvi

Interior view of a refrigerator with a hand adjusting the lid (no visible text or symbols)

Iznemiet atvilktni, pavelkot rullīša dalu un paceļot to uz augšu.

Hand using a red-handled tool to press or adjust a mechanical component, with no visible text or symbols.

Close-up of a hand pressing a gray mechanical clip with a red arrow indicating force (no text or symbols visible)

Close-up of hands assembling a small object with red arrows indicating direction (no text or symbols visible)

Hand operating a 3D printer with a red ribbon cable, no visible text or symbols

Close-up of a hand using a small robotic device to interact with a device on a flat surface, with no visible text or symbols.

Interior view of a refrigerator with open door and side panel, showing interior compartments and a hand adjusting the door (no text or symbols visible)

1. Nonemiet durvis.

⚠ UZMANĪBU!

Close-up of a hand using a wrench to adjust a mechanical component, with a red curved arrow indicating rotation (no text or symbols visible)

Close-up of a hand using a red tool to adjust or install a small mechanical component, with no visible text or symbols.

Close-up of hands installing a small electronic component with a red arrow indicating upward motion (no text or symbols visible)

Black plastic container with red downward arrows indicating a measurement or inspection (no text or symbols visible)

Two-panel image showing a mechanical device being adjusted with red arrows, alongside a close-up of the component being cut (no visible text or symbols)

Close-up of a hand holding a small mechanical component, with a red arrow pointing upward (no visible text or symbols)

Close-up of a hand holding a refrigerator panel, showing the handle and seat (no visible text or symbols)

Close-up of a person's hand opening a refrigerator door, showing the handle and seat (no text or symbols visible)

PREVIDNO

Two-panel photo showing a hand inserting a white plastic bag into a device (no text or symbols visible)

Interior view of a refrigerator with a hand adjusting the lid (no visible text or symbols)

Odstranite predal tako, da povlečete del valjčka in ga dvignete.

Ponovna namestitev predala

Close-up of a hand using a pink screwdriver to press or install a small mechanical component, with no visible text or symbols.

Close-up of a hand holding a gray plastic clip with a red upward arrow, partially open the dashboard (no text or symbols visible)

Close-up of hands assembling a small object with red arrows indicating direction (no text or symbols visible)

Hand operating a 3D printer with a red ribbon cable, no visible text or symbols

1. Odstranite vijak 1 ea pokrova tečaja s (+) izvijačem in ga odprite.

2. Povlecite zatiče in dvignite tečaj pokrova.

3. Izključite žični priključek na zgornjem tečaju.

PREVIDNO

Close-up of a hand using a small robotic device to interact with a device on a flat surface, with no visible text or symbols.

1. Odstranite zgornji tečaj L/D.

Interior view of a refrigerator with open door and side panel, showing interior compartments and a hand adjusting the door (no text or symbols visible)

1. Odstranite vrata.

PREVIDNO

Close-up of a hand using a wrench to adjust a mechanical component, with a red curved arrow indicating rotation (no text or symbols visible)

Close-up of a hand using a red tool to adjust or install a small mechanical component, no visible text or symbols.

Close-up of hands installing a small electronic component with a red arrow indicating upward motion (no text or symbols visible)

1. Odstranite 2 šestrobe vijake, ki držijo tečaj, z 8 mm nasadnim ključem ali z uporabo (+) izvijača.

2. Odstranite vijak 1 ea tečaja s (+) izvijačem.

3. Razstavite srednji tečaj od vrat hladilnika navzgor.

PREVIDNO

Black rectangular electronic device with red downward arrows indicating internal components (no text or symbols visible)

Two-panel image showing a robotic arm tool interacting with a mechanical component; no visible text or symbols.

Close-up of a hand adjusting a mechanical component with a red arrow pointing to a white panel (no visible text or symbols)
