Product Type	Food Processor
Brand	Gorenje
Model	SBR800HC
Functions	Blending, Chopping, Mixing, Creaming, Slicing, Grating, Grinding
Speed Settings	Low (MIN), High (MAX), Pulse
Control Type	Touch buttons (ON/OFF, PULSE, MIN, MAX)
Motor Unit	Base with spindle for attachment
Blade Material	Stainless steel (inferred)
Safety Features	Overload protection, lid lock, anti-slip base
Dishwasher Safe	No (hand wash recommended)
Included Attachments	Blender jug, chopper/mixer attachment, disc with slicer and grater, mill
Mill Capacity	Do not fill more than one third
Max Operating Time	2 minutes for processor/disc, 1.5 minutes for other uses, then 2 min rest
Ice Crushing	Yes, with pulse function
Hot Liquid Warning	Do not pour liquid hotter than 40°C into blender
Cleaning	Hand wash removable parts; wipe motor unit with damp cloth
Repairability	Contact Gorenje Customer Care or local dealer
Environmental Compliance	WEEE directive 2012/19/EU; recycle responsibly
Guarantee	Worldwide guarantee leaflet included

Frequently Asked Questions - SBR800HC GORENJE

How do I assemble the blender jug?

Lower the jug onto the motor unit, then turn the jug clockwise to lock it in place. Remove the lid by pulling it up, add ingredients (do not exceed the MAX mark), replace the lid and push down to seal.

How do I use the pulse function?

Press the PULSE button for short bursts at high speed. The motor stops automatically when you release the button. Ideal for precise control and ice crushing.

Can I crush ice with this appliance?

Yes. Fill the blender jug up to half or three-quarters with ice (or 4–6 cubes), add 15 ml (1 tbsp) of water, put the lid on, and use the PULSE function in short bursts until desired consistency.

How do I clean the blade unit?

Unplug the appliance. Turn the jug upside down, grip the handle, turn the blade unit clockwise to loosen, then carefully pull it out. Wash the seal and blade unit in warm soapy water using a nylon brush; avoid touching the sharp blades. Rinse and air dry. Replace by turning anti-clockwise to tighten.

Can I put parts in the dishwasher?

No. The harsh dishwasher environment may affect surface finishes. All removable parts should be hand washed in warm soapy water. Do not put any part of the appliance in a dishwasher.

What is the maximum operating time?

When using the processor and disc for cutting/grating, do not exceed 2 minutes. For other uses (e.g., chopping, mixing), limit to 1.5 minutes. After any operation, let the motor rest for 2 minutes before restarting.

What should I do if the machine stops due to overload?

Do not touch the machine. The overload protection has activated. Wait for the motor to cool down and reset automatically. Then you can continue use. Ensure you do not exceed the recommended operating times.

How do I attach the disc for slicing/grating?

First, fit the desired slicer or grater into the disc. Lower the disc over the spindle on the motor unit. Place the lid with the tube slightly behind the handle, turn clockwise to lock the tab into the handle. Remove the pusher, add ingredients through the tube, and use the pusher to push them down gently.

How do I use the mill attachment?

Unplug the appliance. Turn the mill upside down, release the mill base by turning clockwise, and lift it out. Fill the bowl with dry ingredients up to one third full. Replace the base and turn anti-clockwise to lock. Put the mill right side up on the motor unit and turn clockwise to lock. Use the PULSE function in short bursts. After use, unlock and empty.

Where can I get service or repairs?

Contact the Gorenje Customer Care Centre in your country (phone number in the worldwide guarantee leaflet). If no centre exists, go to your local Gorenje dealer or contact the Service department of Gorenje domestic appliances.

USER MANUAL SBR800HC GORENJE

Product photo of a kitchen blender with various kitchen utensils and accessories (no visible text or labels)

SBR800HC

Kuhinjski robot	Navodila za uporabo	SI
Kuhinjski robot	Upute za uporabu	BIH HR
Kuhinjski robot	Uputstvo za upotrebu	BIH SRB MNE
Кујнски робот	Упатства за употреба	MK
Food processor	Instruction manual	GB
Robot de bucătărie	Manual de utilizare	RO
Kuchyňský robot	Návod na použití	CZ
Robot kuchenny	Návod na obsluhu	SK
Robot kuchenny	Használati utasítás	H
Konyhai robotgép	Инструкции за употреба	BG
Кухненски робот	Instrukcja obsługi	PL
Кухонний комбайн	Інцтрукція з експлуатації	UA
Кухонный комбайн	Инструкция по эксплуатации	RUS
Robot da cucina	Istruzioni per l'uso	I
Küchenmaschine	Gebrauchsanweisung	D

SL Navodila za uporabo ....3

Circular mechanical component diagram with concentric rings and central gear-like structure (no text or symbols)

blade unit

seal

blade unit

food processor

coarse fine slicer grater grater

Three identical line drawings of a curved, segmented object with circular indentations, shown in side profile (no text or symbols)

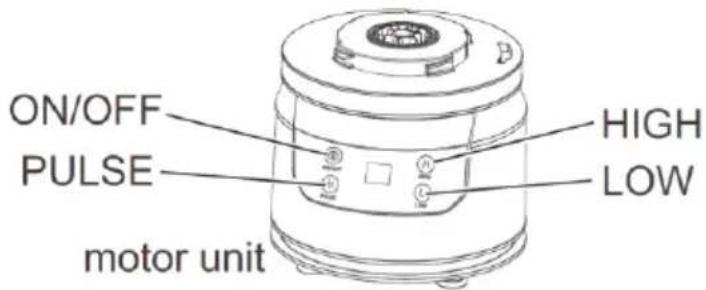

1. Touch "ON/OFF" to start or stop appliance.
2. Touch "PULSE" for pulse function and to clean the jar and blades after use.
3. Touch "MAX" to choose HIGH speed.
4. Touch "MIN" to choose LOW speed

Warning

Read the instructions, keep them safe, pass them on if you pass the appliance on. Remove all packaging before use.

Follow basic safety precautions, including:

1. Don't put the motor unit in liquid, don't use it in a bathroom, near water, or outdoors.
2. Unplug before fitting or removing an attachment.
3. Switch off before fitting the jug to the motor unit.

4. Switch off and wait till the blades come to a complete stop before removing the lid from the jug.

5. Keep your hands away from the blades – they're sharp.

6. Don't use the appliance unless the lid is in place.

7. Don't fill with anything hotter than you can comfortably handle (i.e. below 40^ ).

8. Don't put spoons, spatulas, or any other object into the jug while the appliance is plugged in.

9. Don't leave the appliance unattended while plugged in.

10. Sit the motor unit on a dry, firm, level surface.

11. Route the cable so it doesn't overhang, and can't be tripped over or caught.

12. Don't let the jug overflow. If liquid gets under the motor unit, it may be sucked into the motor, damaging it.

13. Don't fill the jug above the max mark – if you do, the contents may force the lid open when you start the motor.

14. You may use the processor and disc for cutting/grating for up to 2 minutes. Any other use should be restricted to 1 12 minutes. After this, let the motor rest for 2 minutes.

15. Don't use the appliance for any purpose other than those described in these instructions.
16. Don't use the appliance if it's damaged or malfunctions.
17. If the cable is damaged, return the appliance, to avoid hazard.
18. When the machine stops because of overload protection, do not touch the machine. Continue with use after the machine is back to normal.
19. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
20. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
21. If the electrical cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
22. Household use only
23. Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.
24. Be careful when handling the sharp cutting blades, emptying the bowl and during cleaning the appliances.
25. Be careful if hot liquid is poured into the food processor or blender as it can be ejected out of the appliance due to a sudden steaming.

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). This guideline is the frame of a European-wide validity of return and recycling on Waste Electrical and Electronic Equipment.

In Brief

1. Sit the motor unit on a dry, firm, level surface.
2. Route the cable so it doesn't overhang, and won't trip or catch.
3. Lower the jug on to the motor unit, then turn the jug clockwise, to lock it in place.
4. Remove the lid.
5. Put the ingredients into the jug – don't fill above the mark max.
6. Put the lid on the jug.

Power up

Put the plug into the power socket. Switch on the socket if needed.

Speed control

1. Press the speed control button for low speed (MIN) or high (MAX) speed. Then press the on/off button
2. Use low speed (MIN) for lighter applications, using mainly liquid ingredients, and high speed (MAX) for heavier applications, using mainly solid ingredients.
3. Press the on/off button again and the motor shuts off.
4. Press the button PULSE which will give you a short burst at high speed, for more precise control. It turns off automatically when you release the button.

USING BLENDER:

1. Lower the jug to the motor unit, then turn the jug clockwise, to lock it in place.
2. Pull the lid up and off the jug - it's stiff, because of the seal.
3. Put the ingredients into the jug - don't fill above the mark max.
4. Put the lid on the jug, and push it down to seal it.
5. Align the pips on the cap with the slits in the lid opening, fit the cover over the hole, and turn clockwise. Don't run the blender without the cap.
6. To add ingredients while the motor is running: a) turn the cap clockwise to unlock it, and lift it off b) add the ingredients via the hole c) replace the cap and turn it anti-clockwise to lock it
7. Turn the jug anti-clockwise to unlock, and lift it off the motor unit.

Crushing Ice

1. Fill the cup with ice (up to half or three quarters) or 4 to 6 cubes, and add 15ml (1 tbsp) of water.
2. Put the lid on the blender, then turn on function PULSE for a few second or so.
3. Check the state of the ice.
4. Repeat if necessary

Care and Maintenance

1. Switch off and unplug before cleaning.
2. Wipe the outside of the motor unit with a clean damp cloth.
3. Handwash the removable parts.
4. If you use a dishwasher, the harsh environment inside the dishwasher will affect the surface finishes.
5. The damage should be cosmetic only, and should not affect the operation of the appliance.

Blade Unit

1. You may remove the blade unit for cleaning.
2. This is best done with the jug upside down.
3. Grip the jug handle with one hand.
4. Grip the bottom of the blade unit with the other hand.
5. Turn the blade unit clockwise till it comes loose from the jug base.
6. Carefully, pull it up and out of the bottom of the jug.
7. Wash the seal and blade unit in warm soapy water, rinse and air dry.
8. Take great care with the blades – don't handle them directly, use a nylon washing-up brush.
9. Replace the seal round the blade unit.
10. Turn the blade unit upside down, and replace it in the bottom of the jug base.
11. Turn the blade unit anti-clockwise to tighten it.

Using the processor

1. Unplug the appliance.
2. Fit the spindle to the top of the motor unit.
3. Lower the jug on to the motor unit, then turn the jug clockwise, to lock it in place.
4. Choose the attachment you need.

With the Support

1. Use the chopper for pulverizing ingredients.
2. Use the mixer to mix ingredients together.
3. Use the creamer to thicken cream, to beat eggs, and to cream eggs and sugar together.
4. Fit the attachment over the support, and slide it to the bottom.
5. Lower the support into the centre of the jug, over the spindle.
6. Put the ingredients into the jug - don't fill it above the mark max.
7. Hold the lid with the tube slightly behind the jug handle, set it on the jug, then turn it clockwise, to lock the tab into the top of the handle.

8. To add ingredients while the motor is running: a) lift the pusher out of the tube b) add the ingredients via the tube c) replace the pusher

9. To remove the lid, turn it anti-clockwise to unlock it, then lift it off.

With the Disc

1. Fit the slicer or one of the graters into the disc.
2. Lower the disc over the top of the spindle.
3. Hold the lid with the tube slightly behind the jug handle, set it on the jug, then turn it clockwise, to lock the tab into the top of the handle.
4. Remove the pusher, and drop the ingredients down the tube.
5. Replace the pusher, and use it to push the ingredients gently down the tube. Don't use fingers or cutlery to push food down the tube - use pusher only.
6. The blade on top of the disc will slice or grate the food into the bowl.
7. Don't let the bowl gets more than about half full.
8. To remove the lid, turn it anti-clockwise to unlock it, then lift it off.
9. Turn the disc over, and press one of the metal ends in and down, to remove the slicer/grater.

Care and Maintenance

1. Switch off and unplug before cleaning.
2. Wipe the outside of the motor unit with a clean damp cloth.
3. Handwash the removable parts.
4. If you use a dishwasher, the harsh environment inside the dishwasher will affect the surface finishes. Don't put any part of the appliance in a dishwasher.
5. The damage should be cosmetic only, and should not affect the operation of the appliance.

Using the mill

1. Unplug the appliance.
2. Turn the mill upside down.
3. Turn the mill base clockwise, to release it, and lift it out of the mill.
4. Put the goods to be ground into the bowl. Dry goods only. For best results, don't fill in more than one third.
5. Replace the mill base, inside the mill, and turn it anti-clockwise, to lock it in place.
6. Turn the mill right way up.
7. Lower the mill onto the motor unit, then turn it clockwise, to lock it in place.
8. Choose the PULSE function and use short bursts till you achieve the size of grind you want.
9. After releasing the button PULSE wait till the blades stop moving.
10. Turn the mill anti-clockwise to unlock it, and lift it off the motor unit.

1. Turn the mill upside down.
2. Tap the mill a couple of times to move all the grounds into the bowl.
3. Turn the mill base clockwise, to release it, and lift it out of the mill.
4. Empty the bowl.

Environment

This marking indicates that this product should not be disposed of with other household waste throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmentally safe recycling.

Care and Maintenance

1. Switch off (0) and unplug before cleaning.
2. Wipe the outside of the motor unit and the mill base with a damp cloth.
3. Handwash the bowl and seal.
4. If you use a dishwasher, the harsh environment inside the dishwasher will affect the surface finishes. Don't put any part of the appliance
5. in a dishwasher.
6. The damage should be cosmetic only, and should not affect the operation of the appliance.

Guarantee & service

If you need information or if you have a problem, please contact the Gorenje Customer Care Centre in your country (you find its phone number in the worldwide guarantee leaflet). If there is no Customer Care Centre in your country, go to your local Gorenje dealer or contact the Service department of Gorenje domestic appliances.

For personal use only!

GORENJE WISHES YOU A LOT OF PLEASURE WHEN USING YOUR APPLIANCE

We reserve the right to any modifications!
