Product type	Electric scooter
Brand	Motus
Model	Scooty 10 Pro
Net weight	19 kg
Maximum load	120 kg
Maximum speed	20 km/h
Maximum range	70 km
Motor power	600 W
Battery	36 V / 15 Ah
Charging time	7 to 8 hours
Protection rating	IP45
Brakes	Front drum, rear disc
Suspension	Front and rear spring shock absorbers
Driving modes	Pedestrian, Eco, Drive, Sport
Connectivity	Bluetooth, NFC
Lighting	Front/rear lights and RGB ambient lighting
Display	Multifunction LED display
Warranty period	24 months
Certification	EN 17128:2020
Recommended minimum age	10 years

Frequently Asked Questions - Scooty 10 Pro Motus

How to fold the Motus Scooty 10 Pro scooter?

Use the folding mechanism located on the handlebar. Lower the folding latch and fold the handlebar backward. Make sure the mechanism is securely locked before transporting the scooter.

How to charge the battery?

Plug the original charger into the charging port (mark 6) and into a wall outlet. The charging time is 7 to 8 hours. Only use the provided charger to avoid any fire risk.

What does the E10 error on the screen mean?

Error E10 indicates a communication error. Check the cables and connection between the screen and the controller. If the problem persists, contact customer service.

How to change the driving mode?

Press the power button twice to change the mode (Pedestrian, Eco, Drive, Sport). The selected mode appears on the screen. You can also change the speed unit (km/h ↔ mph) by pressing three times.

What is the maximum weight supported by the scooter?

The maximum load is 120 kg. Do not exceed this limit to ensure safety and avoid damaging the device.

Can I ride in the rain with the Motus Scooty 10 Pro?

No, it is prohibited to ride in rain, snow, or on ice. The IP45 protection rating resists splashes but not immersion or water jets. Riding on wet ground increases the risk of falling.

How to maintain the scooter?

Perform a service every 1,000 km or once a year. Regularly check tire pressure, brake efficiency, and bearings. Lubricate the folding and suspension mechanisms every 2 to 3 months.

How to register an NFC card for locking?

Press and hold the brake and accelerator buttons, then press the power button 9 times. Follow the on-screen instructions to pair the NFC card.

What to do if the scooter does not turn on?

First check the battery level: if error E21 (low voltage) appears, recharge it. If the problem persists, contact authorized customer service.

How to clean the scooter?

Do not use water. Use a soft brush, damp wipes, and specific cleaning products. After use on sand, thoroughly clean all moving parts to prevent premature wear.

USER MANUAL Scooty 10 Pro Motus

1. Introduction
2. Identification and labelling
3. Safety rules
4. Installation and initial start-up
5. Operation
6. Maintenance and servicing
7. Storage
8. Warranty
9. Disposal
10. Model name and designation
11. Technical specifications
12. Design description
13. Control panel diagram
14. Model-specific notes
15. Display error list
16. Button functions
17. CE declaration of conformity

ANG

1. INTRODUCTION

Thank you for purchasing an electric scooter.

Please read this manual carefully

before use.

Failure to follow the

recommendations may void the

warranty

and pose a risk to

the user's safety.

The package contains:

1x Motus Scooty electric scooter

1x Adjustment key

4x Handlebar screws

1x User manual

1x Charger and power cable

1x Locator

1x NFC card

Scooty

2. Identification and labelling

Manufacturer: BAREL POLAND Sp. z o.o., ul. Kalwaryjska 69, 30-504 Kraków, Poland The CE marking confirms that the product complies with the requirements of the following directives: 2006/42/EC (MD), 2014/53/EU (RED), 2014/30/EU (EMC),

2014/35/EU (LVD),

2011/65/EU (RoHS).

The product complies with EN 17128:2020 – PLEV.

3. Safety rules

To ensure safe use of the electric scooter, strictly observe the following rules:

1) The device is intended for users over 10 years of age who have a bicycle licence, or adults.

2) The maximum speed on public roads cannot exceed 20 km/h.

3) We recommend wearing a helmet. The obligation to wear one depends on local regulations — please familiarise yourself with them before riding.

4) We recommend wearing knee and elbow pads.

5) The user should wear full, closed footwear with non-slip soles.

Riding barefoot, in flip-flops, sandals or other footwear that does not provide stability and traction is prohibited.

6) Passengers, animals and loads must not be carried.

7) Riding under the influence of alcohol or intoxicating substances is prohibited.

8) Riding in rain, snow, ice or other slippery surfaces is prohibited.

9) No structural or electrical modifications to the device are permitted.

10) The scooter should only be used in permitted areas, in accordance with local traffic regulations.

11) Charge the scooter only at temperatures between 10^ C and 40^ C, in a dry and ventilated place.

12) Do not leave the device unattended during prolonged charging.

13) Do not use the scooter if the battery has been hit, deformed, wet, emits an odour or heats up unnaturally.

14) If smoke or a burning smell appears, immediately disconnect the charger and discontinue use.

15) Use only the original charger – using incompatible accessories may cause a fire or damage the battery.

16) Do not open the battery or tamper with the installation – this may result in electric shock and loss of device safety.

The scooter has an IP45 protection rating, which means it is splash-proof but not

protected against immersion, pressurised water jets

or prolonged exposure to water.

4. Assembly and initial start-up

1) Remove the scooter from the packaging

2) Unfold the handlebars and secure the folding mechanism

3) Connect the display and check the brake operation

4) Tighten the handlebar mounting screws

5) Charge the battery before first use

6) Turn on the scooter – hold down the power button and wait for the display to start up correctly

5. Use

1) Correct posture:

a) Stand with one leg in front and the other behind, knees slightly bent.

b) When accelerating, lean your torso slightly forward, and when braking, lean back, balancing your body.

2) Safe behaviour:

a) Do not ride with your legs side by side, on one leg or with a tight grip on the handlebars.

b) Acrobatics, jumps, riding on one wheel, towing, carrying passengers or loads are prohibited.

c) Avoid riding over potholes, kerbs and bumps higher than 3 cm – in such cases, the device should be carried.

3) Footwear:

When riding, wear closed-toe shoes with non-slip soles.

Riding barefoot, in flip-flops, sandals or high-heeled shoes is prohibited.

4) Conditions for permissible riding:

a) Maximum permitted speed in Poland - 20 km/h.

b) Ride only on flat, paved surfaces: cycle paths, pavements or roads permitted by law.

c) Do not ride on snow, mud, sand, salted roads or in the rain.
d) It is forbidden to ride through puddles, ponds and other bodies of water.
e) Avoid riding at temperatures below 0 °C or above 40 °C.
5) Operating restrictions:
a) Do not exceed the maximum load of 120 kg.
b) Do not use the scooter with damaged electronics, cables or lighting.
c) Do not modify the device or software; use only original parts and accessories.
6) Check before each ride:
a) Check the effectiveness of the brakes and ensure there is no excessive play in the steering wheel and folding mechanism.
b) Ensure that the tyres are inflated in accordance with the manufacturer's recommendations.
c) In the event of unusual noises or vibrations, stop the vehicle immediately and contact the service centre.
7) Operating and maintenance rules:
a) The device should be serviced regularly, every 1,000 kilometres or once a year. b) Natural wear and tear of consumable parts (brakes, bearings, suspension, folding system) is normal and requires periodic replacement.
c) Repairs to the electronics and drive system may only be carried out by an authorised service centre.

Residual risks

Despite the use of protective measures during use, the following hazards may occur:

• risk of falling due to loss of balance or slippery surface,
• risk of collision with other road users,
• risk of burns from drive components or batteries after intensive use,
• risk of electric shock if the electrical system is tampered with incorrectly,
• risk of damage to the device when riding over uneven surfaces or obstacles.

6. Maintenance and service

1) Service inspection every 1,000 kilometres or at least once a year.
2) Check regularly:
a) tyre condition and air pressure,
b) brake efficiency,
c) bearing play,
d) operation of lights.
3) Do not disassemble the battery – this should only be done by an authorised service centre.
4) Do not wash the scooter with water. Use a brush, damp wipes and dedicated cleaning agents for cleaning.
5) After each contact of the scooter with sand, thoroughly clean all moving parts to prevent accelerated wear.
6) In the event of accidental contact with water, immediately switch off the scooter, dry it thoroughly and contact an authorised service centre.
7) Regular lubrication of mechanisms – The folding and suspension mechanisms should be lubricated and adjusted regularly every 2-3 months. Failure to maintain them properly may lead to wear and damage.

7. Storage

1) Store the device at a temperature of 10–40°C and humidity <80%.
2) If the device is not used for a long period of time, charge the battery every 4-6 weeks.

8. Warranty

Warranty period: 24 months.

The warranty does not cover consumable parts: tyres, inner tubes, brake pads, bearings, cables, lights and the folding mechanism.

The warranty shall be void in the event of:

1) modification of the electrical system,
2) use of a non-original charger,
3) damage caused by improper use.

9. Disposal (WEEE / batteries)

PROPER DISPOSAL

(Waste Electrical and Electronic Equipment)

(Applies to the European Union and other European countries with selective collection systems and electronic products)

This symbol on the product indicates that at the end of its useful life, the product should not be disposed of with household waste.

To prevent possible damage to the environment or human health caused by uncontrolled disposal

, these products should be separated from other types of waste and recycled in a responsible manner and the materials reused.

For more information on where and how to safely recycle as a domestic user, please contact the retailer

where you purchased this product or your local authority.

Business users should contact their supplier and check the terms of their purchase agreement. This product and its electronic accessories should not be mixed with other commercial waste for disposal.

(Applicable in the European Union and other European countries with separate battery return systems)

This symbol on the battery, packaging or instructions indicates that the product cannot be disposed of with other household waste after use.

The chemical symbols marked here - Hg, (d or <b) - indicate that the battery contains mercury, cadmium or lead above the levels specified in Directive E 2006/66. If batteries are not disposed of properly, this substance may cause damage to health.

human health or the environment.

To protect the environment and promote the reuse of materials, batteries should be separated from other types of waste and recycled through your local collection system.

Risk of death or serious injury

WARNING - To reduce the risk of injury, the user must read the operating instructions. Whenever you ride this vehicle, you risk injury from loss of control, collisions, and falls. To ride safely, you must read and follow all instructions and warnings in the user manual.

10. Model name and designation

Year of manufacture: 2026

11. Technical specifications

Parameter	Value	Unit
Engine power	600	W
Battery	36/15	V / Ah
Charging voltage	42	V
Maximum speed	20	km/h
Range	70	km
Maximum load	120	kg
Weight	19	kg
Approach angle	20	°
Degree of protection	IP45	IP
Charging time	7-8	h
Noise level	70	dB(A)

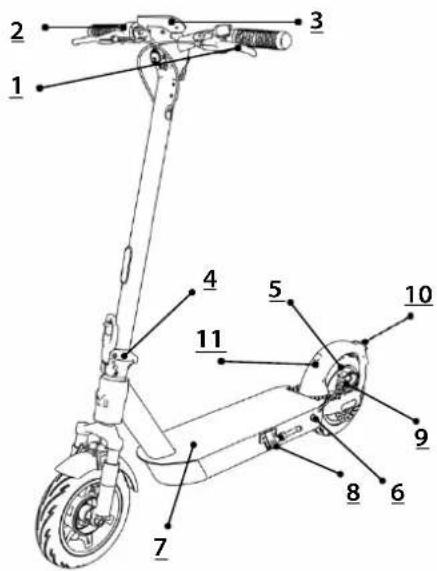

12. Description of the design

1) Brake lever
2) Throttle lever
3) Display
4) Folding mechanism
5) Motor
6) Charging port
7) Deck (driving platform)
8) Foot/leg
9) Brake
10) Mudguard with light
11) Folding hook

1 2 3 4 5 10 9 8 6 7 11

13. Control panel diagram

1) Walking mode

2) Eco mode

3) Drive mode

4) Sport mode

5) Current speed

6) Cruise control

7) Left indicator

8) Right indicator

9) Lights

10) Service

11) Bluetooth

12) Temperature

13) Lock

14) Battery status

15) Unit

5 6 7 8 9 10 11 12 13 4 S D E 80 mph km/h 3 2 1 15 14

14. Model-specific notes

1) Brakes: front drum, rear disc
2) Suspension type: front/rear spring shock absorbers
3) Driving modes: PEDESTRIAN, ECO, DRIVE, SPORT

15. Display error list

E10 – communication error, check the cables and connection of the display with the controller

E57 – high motor temperature, stop the scooter and allow the motor to cool down

E21 - low voltage, charge the battery before continuing to ride

E50 – voltage too high, check the battery condition; contact service if necessary

E11 - MOS system error, diagnostics or controller replacement may be necessary

E16 - problem with Hall sensor, check wiring or contact service

E15 – brake problem, check the brake lever and wiring

E14 - problem with throttle lever, check throttle cable and operation

16. Button functions

Power button

Hold for 1.5 seconds – turn the scooter on/off

2 clicks - change gear (speed mode)
3 clicks – change units km/h ↔ mph
4 clicks - change start mode: zero start non-zero start Brake + throttle
+ 9 clicks – save NFC card

RGB Light button (RGB - function unavailable)

1 press – change ambient light colour

2 presses - turn front and rear lights on/off

Press 3 times – switch off all lights

Horn button

1 press – audible signal

Indicators

Left

Right

Cruise control button

1 click – cruise control activation

EU DECLARATION OF CONFORMITY

DECLARATION NO.: MANUFACTURER

03/11/2025 BAREL POLAND SP. Z O.O. Ul. Kalwaryjska 89, 30-504 Kraków, Poland

BRAND:

MOTUS

We declare under our sole responsibility that all our products: GENERAL

NAME MODELS:

Electric scooter Scooty 10 Pro

SUBJECT OF THE DECLARATION: SERIAL NUMBERS:

Electric scooter with charger included. MS10P26T00001 - MS10P26T99999

The above-mentioned subject of this EU declaration of conformity complies with the relevant requirements of EU harmonisation legislation:

2006/42/EC 2014/30/EU 2011/65/EU (and amending Directive (EU) 2015/86/2009/125/EC (Regulation (EU) 2019/1732) (charger) 2014/53/EU (RED) (Bluetooth 2.4 - 2.4835 GHz <10 dBm) (NFC 13.56 MHz, 0 dBm)

References to the relevant harmonised standards that have been applied, including the date of the standard, or to other technical specifications, including the date of the specification, in relation to which conformity is declared:

EN ISO 12100:2010 EN 17128:2020 - PLEV EN IEC 55014-1:2021 EN IEC 55014-2:2021 EN IEC 61000-3-2:2019 61000-3-3:2013+A1:2

EN 60335-1:2012+A11:2014+A13:2017+A1:2019+A14:2019+A2:2019 EN 62479:2010 EN IEC 63003:2018 EN 60335-2-29:2021 (charger only) EN 50563:2011+A1:2013 (charger only) EN 62233:2008 (charger only)

TECHNICALDOCUMENTATION HAS BEEN COMPLETED BY:

This declaration of conformity is issued under the sole responsibility of the manufacturer.

The technical design process definition for the decision box has been prepared in accordance with Annex VI, Part A 10 and 2003-4250 and located at the address indicated above. At the requested start authority from manufacture and/or designated to which documentation in questions electronic means of communication. The scope includes mechanical parts or instrument and device equipment manufactured by a manufacturer or on technical documentation for the manufactured parts and have issued the required declarations of conformity or other author letters.

On behalf of the manufacturer: BAREL POLAND SP. Z O.O.

Krakow 03.11.2025

Manufacturer:

BAREL POLAND Sp. z o.o.

ul. Kalwaryjska 69

30-504 Krakow

Poland

Service:

RG MEDIA Sp. z o.o.

132 Kolejowa Street

28-500 Kazimierza Wielka

Poland

INHALTSVERZEICHNIS

ÉLIMINATION APPROPRIÉE

1 pression – signal sonore

Clignotants

Gauche

Droite

DÉCLARATION DE CONFORMITÉ UE

NUMÉRO DE

DÉCLARATION :

FABRICANT

03/11/2025

BAREL POLAND SP. Z O.O.

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated placeholder underscores where none should exist in the GT. Hence, the OCR result is inconsistent with the Ground Truth.

Fire users contact their supplier and check the terms of their purchase agreement. This product and its electronic accessories should not be mixed with other commercial waste for disposal.

BYLA SESTAVENA PODLE:

Krzysztof Janik

plutum is not a new, and the kallam is not a new, and the kallam is not a new, and the kallam is not a new, and the kallam is not a new, and the kallam is not a new, and the kallam is not a new, and the kallam is not a new, and the kallam is not a new, and the kallam is not a new, and the kallam is not a new, and the kallum is not a new, and the kallum is not a new, and the kallum is not a new, and the kallum is not a new, and the kallum is not a new, and the kallum is not a new, and the kallum is not a new, and the kallum is not a new, and the kallum is not a new, and the kallum is not a new, and the kallun is not a new, and the kallun is not a new, and the kallun is not a new, and the kallun is not a new, and the kallun is not a new, and the kallun is not a new, and the kallun is not a new, and the kallun is not a new,

V mena wirabou

BAREL POLAND SP. Z O.O.

Krakov

03.11.2025

Výrobca:

BAREL POLAND Sp. z o.o.

Kalwaryjska 69

30-504 Kraków

Pol'sko

Služba:

RG MEDIA Sp. z o.o.

Kolejowa 132

28-500 Kazimierza Wielka

Pol'sko

CUPRINS

Documental laboratory department, research and development of the research and information in the study of 2017, paper A for Creative 2018/2019.
