USER MANUAL YT-83081 Yato

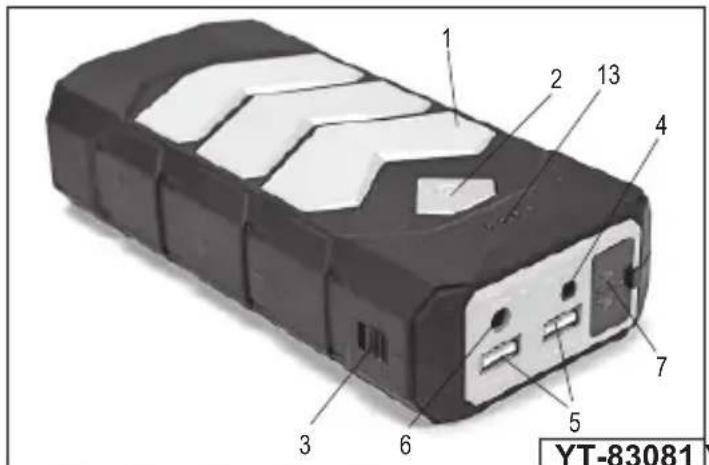

Labeled photo of electrical components including power source, capacitors, and wires with numbered parts

1 2 13 4 7 5 6 3 YT-83081

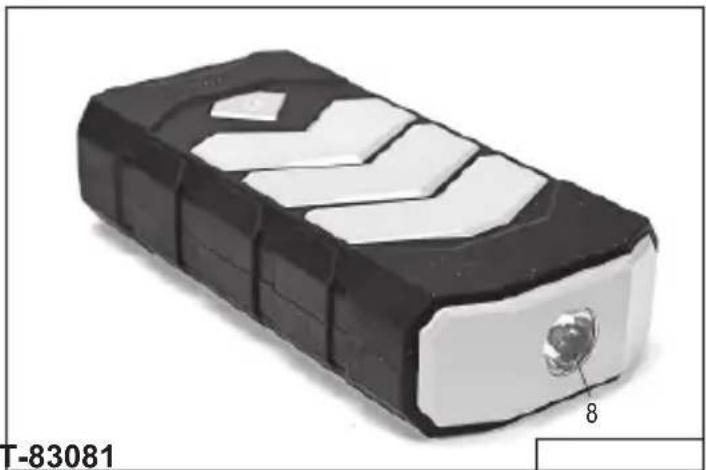

3D rendered object resembling a battery or sensor with black and white sections, labeled T-83081 and marked with number 8 (no readable text or symbols beyond label)

PL

1. housing
2. switch
3. switch lock
4. inlet slot
5. outlet USB slot
6. outlet DC slot
7. starting slot
8. LED diode
9. starting wires
10. mains charger
11. vehicle charger
12. mobile appliance charging cable
13. battery charge indicator

DE

Read the operating instruction

This symbol indicates that waste electrical and electronic equipment (including batteries and storage cells) cannot be disposed of with other types of waste. Waste equipment should be collected and handed over separately to a collection point for recycling and recovery, in order to reduce the amount of waste and the use of natural resources. Uncontrolled release of hazardous components contained in electrical and electronic equipment may pose a risk to human health and have adverse effects for the environment. The household plays an important role in contributing to reuse and recovery, including recycling of waste equipment. For more information about the appropriate recycling methods, contact your local authority or retailer.

WYPOSAŻENIE PRODUKTU

PRODUCT CHARACTERISTICS

Multi-function starting device is a portable battery device that allows emergency start of a vehicle equipped with 12V electrical system. Thanks to additional slots it also allows charging other devices that usually can be charged through USB port. Efficient and light-weight batteries of high capacity provide high product mobility, as well as fast charging of other portable devices.

Before using the product, please read this manual and keep it.

The supplier does not assume any liability for damages resulting from failure to follow safety regulations and recommendations specified in this manual.

PRODUCT ACCESSORIES

The product is delivered complete and does not require assembly. The product is supplied with: starting wires, cable for charging of portable devices (plugs: mini USB, micro USB, lighting, 30 contact-making), mains charger and plug for charging a product from 12 V car electrical system.

GENERAL SAFETY CONDITIONS

Safety instructions for use

Before each use, make sure that the product is not damaged. Any damage to the housing in the form of e.g. cracks, dents or broken elements disqualifies the product from further use. Pay particular attention to the condition of the cables and wires attached to the product. If the wires and cables show damaged insulation, the plugs will bear traces of any damage, cracks, bends, etc. they should not be used. If any damage is found, please contact the manufacturer's service.

Charging safety instructions

Note! Prior to charging make sure that the product's body, wires and plugs are not cracked and damaged. It is forbidden to use a product which is damaged.

The product is adapted to charging only through a charger supplied. It is forbidden to apply other charge method than by means of charger supplied.

Charging may be carried out only in closed and dry room protected against an access of unauthorised persons, children in particular. It is forbidden to carry out charge procedure without permanent supervision of an adult person. If it is necessary to leave the room where charge is being carried out, charging should be interrupted by disconnecting charger from the product and mains. If smoke, suspected odour etc. is getting out from the product, charge should be immediately stopped and a charger disconnected. The product may require charge before its first use. Li-Po batteries (lithium polymer) do not show the so-called “memory effect” which allows charging them at any time. However it is recommended to discharge the battery during normal operation and then charge it to full capacity. If due to the nature of work it is not possible to deal with the battery this way each time, than it must be done at least every couple or several work cycles. Under no circumstances it is allowed to discharge the battery by shorting the electrodes as this causes irreversible damages! It is also not allowed to check the battery charge by shorting electrodes and checking the sparking.

Only wires supplied with the product may be used for starting. It is forbidden to use other wires and modify wires supplied with the product. While starting, a current of high intensity is transmitted by wires. Improperly chosen or modified wires may lead to electric shock, fire, scalding or other injuries.

Starting wires and other cables should be connected only for the time of using the product. Do not store the product with cables connected to it. This may cause a short-circuit and lead to product damage, electric shock or fire, even to explosion.

EN

Battery storage

To prolong the lifetime of the battery it is necessary to ensure proper storage conditions. Battery can withstand approx. 500 “charging - discharging” cycles. A battery must be stored in the temperature range from 0 to 30°C with 50% relative humidity. To store the battery longer, it must be charged to approx. 70% of its capacity. In case of longer storage time it is required to charge the battery periodically. It is not recommended to allow the excessive discharge of the battery as this shortens its service life and may cause irreversible damage. During its storage, a battery shall gradually discharge due to its current leakage. Process of spontaneous discharge depends on storage temperature, the higher temperature, the faster discharge process. In case of improper storage of a battery, it may result in leakage of electrolyte. In the event of leakage it must be protected by means of neutralizing agent, in case of a contact of electrolyte with eyes, they should be rinsed with plenty of water and then it is required to seek immediate medical advice. It is forbidden to use the tool with damaged battery. In case of complete wear of battery, it should be delivered to a specialist service point dealing in management of this type of waste.

Transport of batteries

Pursuant to legal regulations, lithium-polymer batteries are treated as dangerous goods. Tool user may transport the tool with a battery and batteries alone by land. No additional conditions must be met. If the transport is commissioned to a third party (for example shipment by courier service), it is necessary to comply with regulations regarding the transport of dangerous goods. Before the shipment please contact in this matter any person with relevant qualifications. It is forbidden to transport any damaged batteries. For the duration of transport the dismantled batteries must be removed from the tool, uncovered contacts should be protected, e.g. by covering with insulation tape. Batteries should be protected in the packaging in such a way as to prevent them from displacing inside the packaging during transport. Also local regulations regarding transport of dangerous goods should be complied with.

PRODUCT HANDLING

Product preparation to work

Product should be unpacked, and all packaging components should be removed. It is recommended to keep the packaging that may be used for product transport.

Press the switch, diodes will light up, which allows determining the battery approximate charge level. The bigger number of lighting diodes the higher level of battery charge.

No diodes lighting up indicates that the product is completely discharged.

Diodes go down automatically, within a short time after pressing the button.

Note! YT-83081 product has the selector of a switch lock. It should be moved before pressing the switch.

Lock position is not important in case of using the product as a starting device. It is important in case of using the product in other applications. You will find detailed description in later part of this manual.

Before using the product it should be charged. To do this use the charger supplied with the product. The plug of charger cable should be connected to a slot indicated as "INPUT/WEJŚCIE" and then the charger itself should be connected to mains slot.

When charging the battery pack, diodes will light up showing the approximate progress of charging. First, with pulsating light, then constant light. The end of charging process will be indicated by the lighting up of all LEDs.

Disconnect the charger from a mains socket and then disconnect the charger cable from the slot of the product.

The product is ready for use.

The product may also be charged using 12 V car electric system. For this purpose, use the vehicle charger fitted with a cable topped off with a plug for product charging.

The process of product charging from the vehicle electric system is carried out the same way as aforementioned charging process by means of a mains charger. Before the start of product charging process from the car electric system, study the documentation supplied with a vehicle.

Note! In the course of product charging it is not possible to take advantage of other product functionalities.

EN

Using the product for starting vehicles

Prepare the product by charging to full capacity.

Connect starting wire clamps to battery terminals. Pay attention to the correct polarity. Clamped indicated by “+” symbol should be connected to battery terminal indicated the same way. Clamped indicated by “-” symbol should be connected to battery terminal indicated the same way.

Connect the plug of starting wires to a slot matching the plug. The shape of a plug allows connecting in just one, proper way. Do not apply excessive force when connecting the plug of starting wires to the product.

Start the vehicle. If a vehicle fails to start within 2 seconds, wait at least 30 seconds before you try again. The brake is indispensable to cool down the product and starting wires.

After a vehicle has started, disconnect the plug of starting wires from the product within 30 seconds, without stopping the engine, and then disconnect starting wire clamps from battery's terminals.

Warning! Due to its lower capacity, YT-83080 product should not be used as a starting device in case of vehicles fitted with engines over 2500 cm ^3 capacity.

Note! The capacity of product's battery allows starting of approx. 20 vehicles.

Using the product to charge mobile devices

Before charging the device, please check in the documentation provided with the device whether charging by means of power banks is allowed.

Connect one of the plugs to the charging slot of the mobile device to be charged.

Connect the second cable plug to one of the USB slots of the product marked with "OUTPUT/WYJŚCIE".

In case of YT-83080 product, charging process starts automatically.

In case of YT-83081 product, charging process starts after unlocking and pressing the switch. Repeated movement of a lock stops charging process.

In the course of charging portable devices, product charging indicator diodes light, indicating the status of charging of product's battery.

The charging process will begin.

Current output of the slot is specified in the technical data table.

In products fitted with many slots it is possible to charge many devices from product's slots at the same time.

After charging is complete, disconnect the plug from the USB slot of the product and then from the device being charged.

The product has a battery of the capacity specified in the technical data table, which indicates that it may fully charge only devices with a smaller battery capacity than the battery of the product.

Connecting for charging a device fitted with a battery with a higher capacity than the product's battery will not allow the battery of the device to be fully charged.

In the course of charging, portion of energy of the product's battery is lost due to the heat release. This is a normal phenomenon that makes it impossible to assume that a product will fully charge a device with the same battery capacity as the product's battery.

Using the product's flashlight.

The product is fitted with LED diode that may be used as a flashlight providing additional lighting of a small surface or as a signalling light. Diode lights up after pressing and holding down a switch for approx. 2 seconds. In case of YT-83081 product, first the switch should be unlocked.

Diode is switched off after pressing and holding down a switch for approx. 2 seconds.

Pressing the switch when the diode is lighting will change the lighting mode in the following sequence: continuous light, flashing, alarm flashing, switching off.

While alarm flashing the diode emits SOS signal encoded in Morse alphabet.

When the diode is lighting, also product charging indicator's diodes light, indicating the status of charging of product's battery.

Product maintenance

The product does not require any special maintenance procedures. The product housing should be cleaned using a soft

EN

dry cloth. Do not immerse the product in water or any other liquid. Prevent the product slots from soiling. In case of dirt penetration into the slot, try to blow it out with a compressed air jet at a pressure not higher than 0.3 MPa. Do not use hard objects to clean slots, this may cause damage to the slot or short circuit.

Storage and transport of product

The product should be stored in contained, shaded places, where temperature does not exceed the range specified in the table, and relative humidity is below 90%.

The product should be transported taking into account recommendations specified in point: "Transport of batteries".

TECHNICAL DATA

Parameter Measuring unit Value
Catalogue number YT-83080 YT-83081
Starting rated voltage [V d.c.] 12 12
Starting rated current [A] 200 200
Starting peak current [A] 400 400
Starting time [s] 2	2
Interval (break time)	[s] 30 30
USP slot output voltage	[V d.c.]	5	5
Max. USB slot output current	[A] 2	2
DC slot output voltage	[V d.c.]	-	12
Max. DC slot output current	[A] - 3.5
Input voltage	[V d.c.] 14 14
Input current	[A] 1	1
Battery rated voltage	[V d.c.]	3.7	3.7
Battery capacity	[Ah]	7.5	9
Battery energy	[Wh]	27.75	33.3
Battery type		Li-Po Li-Po
Operating temperature	[°C]	0–35	0–35
Storage temperature [	°C]	0–50	0–50
Charging time	[h] 2	3
Weight	[kg]	0.21	0.34
Charger
Input rated voltage [V~]	110-240 110-240
Rated frequency	[Hz] 50/60 50/60
Output rated voltage	[V d.c.] 14 14
Output rated current:	[A] 1	1
