Your new KOMBIFIX car seat is designed to protect your baby in the car. This is an ‘i-Size’ restraint system. It is suitable, in accordance with ECE Regulation 129/04, for general use in vehicles with the ‘i-Size’ system.

It can be used in vehicle seats declared as ‘i-Size’ (check vehicle instructions for use) and vehicles compatible with ISOfix class A, B, B1, C or D (see compatibility list on website: www.janeworld.com).

In case of doubt, please consult your retailer, or go to the website: www.janeworld.com It is very important that you read these instructions carefully before using the KOMBIFIX for the first time. Make sure that all those who will ever use it are also familiar with its correct installation and use. It has been found that a significant percentage of car seat users do not install the seat correctly, understanding the instruction manuals and applying what they say correctly is as important to safety as the seat itself.

You can consult these instructions by scanning the QR code below:

QR code image containing encoded data, no visible human-readable text

3. WARNINGS

INDEX

This child restraint system has been approved under Regulation 129 for children of between 40 cm and 105 cm in height.

1. This is an i-Size Enhanced Child Restraint System. It is approved according to UN Regulation No.129, for use in, i-Size compatible vehicle seating positions as indicated by vehicle manufacturers in the vehicle users' manual.
2. If in doubt, consult either the Enhanced Child Restraint System manufacturer or the retailer.

DO NOT place a rear-facing enhanced infant child restraint on front seat with activated front airbag. Death or serious injury may occur. Please reference vehicle owner's manual for more information.

NEVER leave your child unattended with this enhanced infant child restraint.

This seat is included in UN Regulation 129 and can be installed in all vehicles approved under Regulation 16. It can also be installed in the vehicles included on the list attached to this instruction manual.

The rigid items and plastic parts of an Enhanced Child Restraint System shall be located and installed so that they are not liable to become trapped by a movable seat or in a door of the vehicle during everyday use of the vehicle.

Do not use the safety seat without its cover and without the harness pads.

Protect the child restraint system from direct contact with sunlight, the plastic and metal parts may heat up and burn the child.

Keep the child restraint system away from corrosive liquids, paints or solvents that could damage the product. The child restraint system should be replaced after an accident, even if there are no visible signs of damage. The product may have unseen internal damage that could compromise the child's safety.

Take regular breaks when travelling so the child can get out of the seat and walk around a bit. It is not advisable to travel for more 2 hours at a time without taking a break. This advice is very important for babies.

Make sure that the support leg is always in contact with the vehicle floor, and that the child's harness is correctly fitted and not twisted at all.

Make sure the lap strap is worn low down so that the pelvis is firmly engaged.

Do not make any alterations or additions to the product without the approval of the Type Approval Authority.

INDEX

Follow closely the installation instructions provided by the child restraint manufacturer.

The Enhanced Child Restraint System shall not be used without the cover.

The Enhanced Child Restraint System cover should not be replaced with any other than the one recommended by the manufacturer, because the cover constitutes an integral part of the restraint performance.

Do not leave unsecured luggage or objects on the parce shelf in the vehicle, because in the event of an accident they could cause serious injury to the occupants.

EN

4. LIST OF COMPONENTS

1 2 3 4 5 6 12 13 14 15 7 16 17 18 8

Diagram of a mechanical component with a numbered label (9) pointing to a specific part, no readable text or symbols present.

10

EN

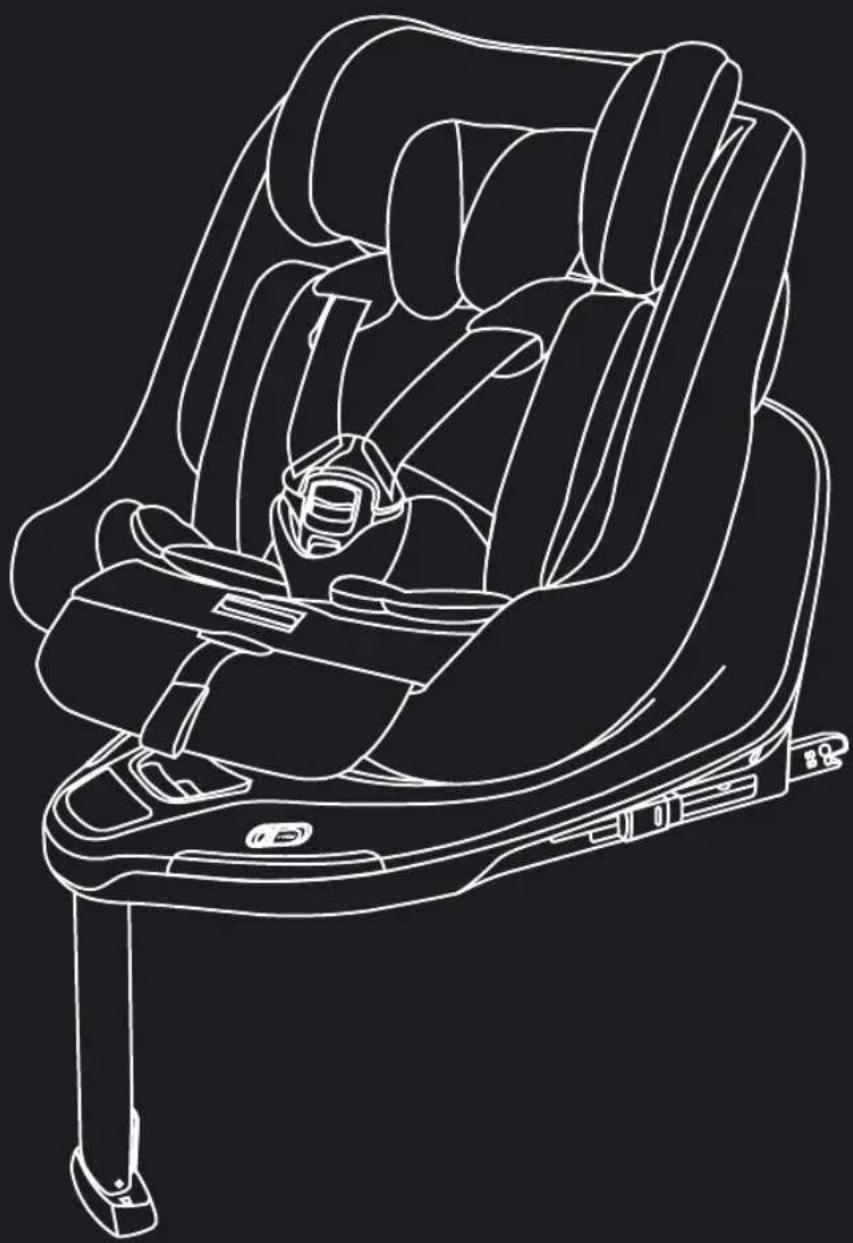

KOMBIFIX

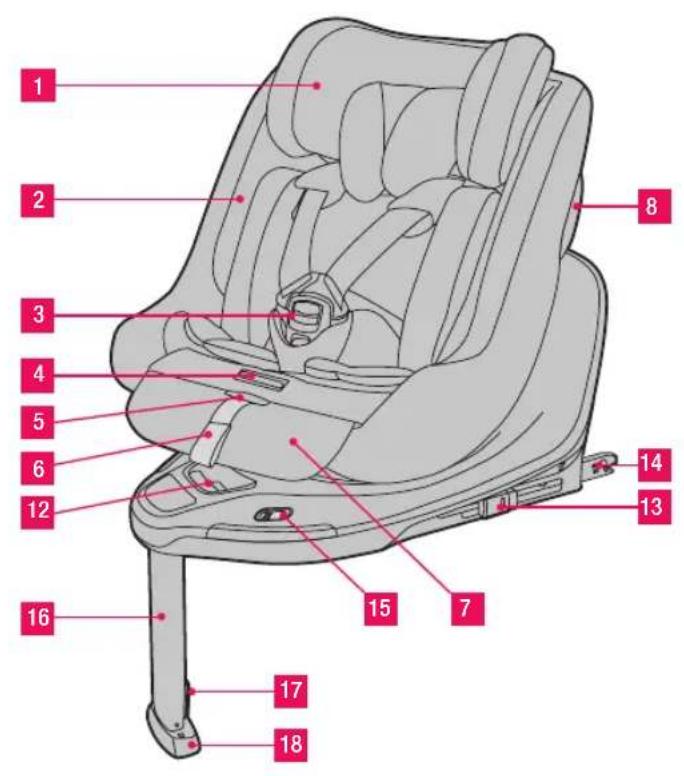

1 Headrest
2 Backrest
3 Buckle button
4 Interior recline adjustment
5 Belt tensioner release lever
6 Belt tensioner strap
7 Seat recline adjustment
8 Side Protection System (SPS)
9 Headrest height adjustment button
10 Reducer cushion
11 Isofix guides

12 360° rotation release button
13 ISOfix adjustment and release button
14 ISOfix arms
15 Rotation limiter lever
16 Anti-rotation leg
17 Anti-rotation leg height adjustment button
18 Leg contact indicator on the ground

5. CONFIGURATIONS

INDEX

ECE R129	Child's Size	Installation Mode	Figure for Instillation	Reference Age	Internal Position	Seat Position
	40cm-105cm/ ≤19.5kg	Rear Facing Mode		0 to 4 years	Position 1-3	The most reclined
	76cm-105cm/ ≤19.5kg	Forward Facing Mode		15 months o 4 years	Upright	Position 1 - 4

EN

6. MISUSE PREVENTION BUTTON

≤15M

>15M

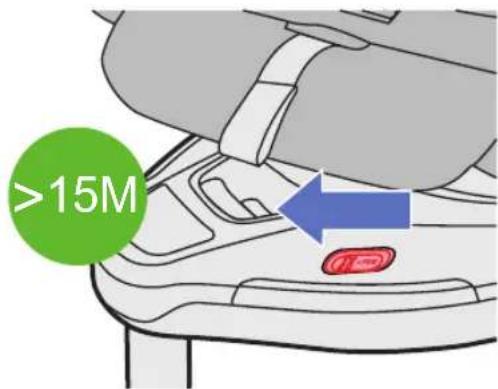

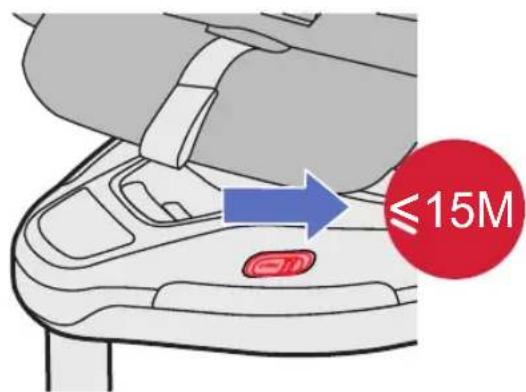

This lever prevents the seat from rotating to the forward-facing position. It's designed to prevent you or other people from inadvertently placing the seat that should be rear-facing in the forward-facing position. The forward-facing position is strongly discouraged for babies under 15 months old. Experts recommend extending the rear-facing position as long as possible.

7. ADJUSTING THE SEAT BELT HEIGHT

Illustration showing three scenarios of a child in a chair with checkmark and cross symbols indicating correct and incorrect responses.

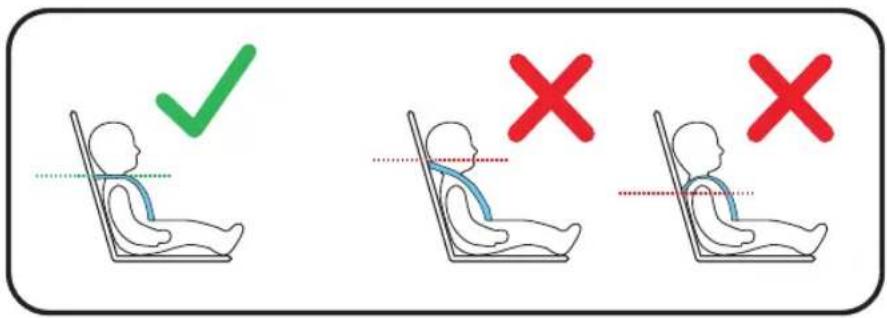

Periodically check that the shoulder belts are at the appropriate height according to the baby's size.

The height of the lower edge of the headrest should be at the same level as the shoulders.

Anatomical diagram of a human torso with labeled parts and directional arrows indicating movement or force.

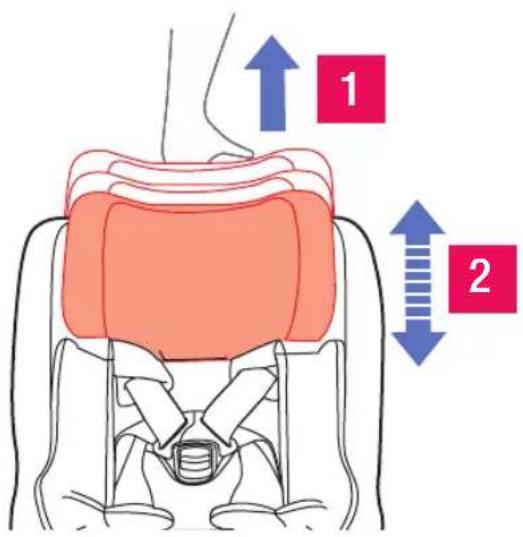

To adjust this height, press the button behind the headrest and pull it to the appropriate position.

When it's at the desired height, release the button and move the headrest to the next locked position.

Ensure it's locked by pulling the headrest up.

8. USING THE REDUCER CUSHION

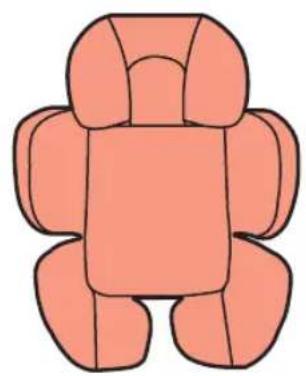

Use the reducer cushion until the baby reaches 75 cm in height.

Illustration of a stylized human figure in a seated posture (no text or symbols)

EN

9. INTERNAL RECLINING

Illustration of a car seat with a hand adjusting the seat area, showing blue and orange color scheme (no text or symbols)

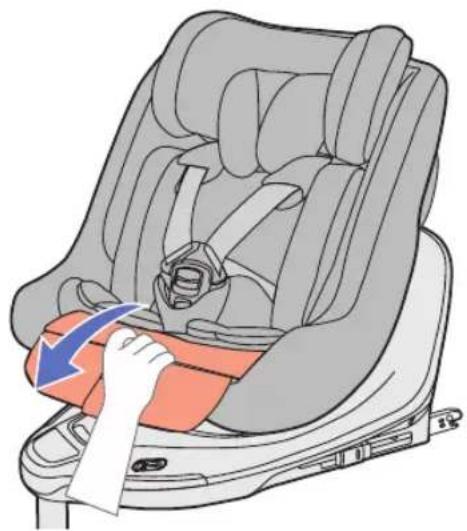

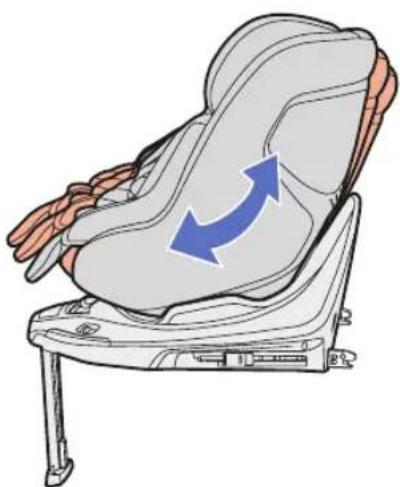

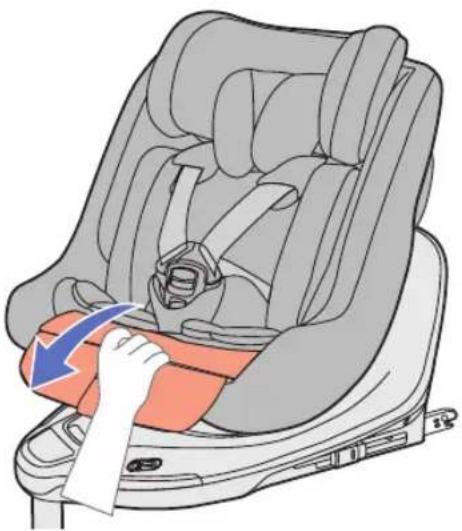

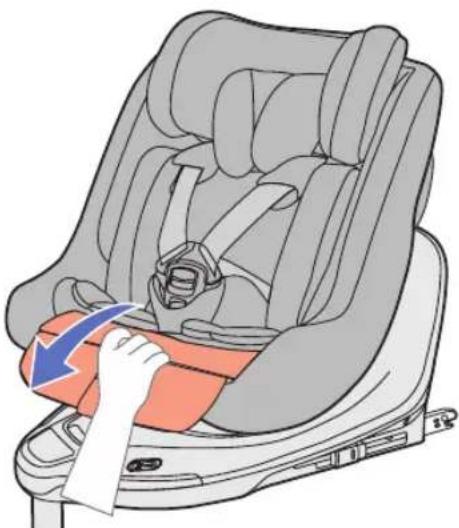

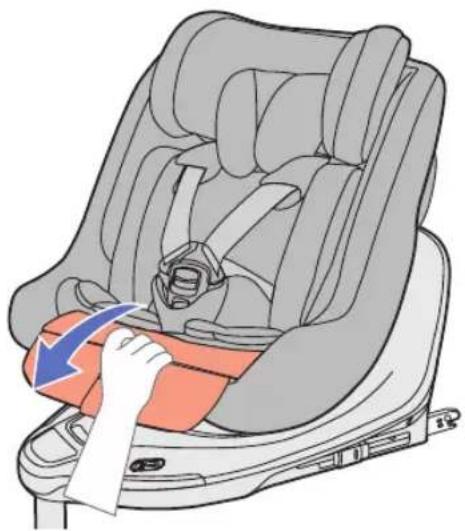

The KOMBIFIX car seat has an internal platform that slides to increase the recline angle for increased comfort for your baby. To adjust it, press the button under the upholstery and slide the platform to the desired position.

10. RECLINING THE SEAT

INDEX

Approved reclining positions depend on the orientation of the chair:

Orientation Image Positions
Rear-facing (40-105 cm) Maximum rec
Forward-facing (76-105 cm) or older than 15 months		1 to 4

Illustration of a baby car seat with a hand adjusting the seatbelt (no text or symbols)

Illustration of a car seat with blue directional arrows indicating movement or force (no text or symbols)

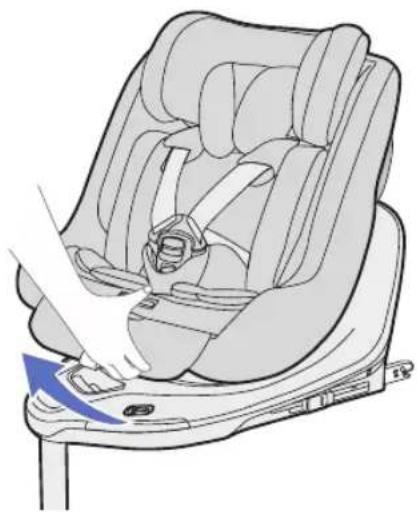

To recline the seat press the lever under the feet (7) and move the chair to the desired position.

11. TURNING THE SEAT

360° PULL

EN

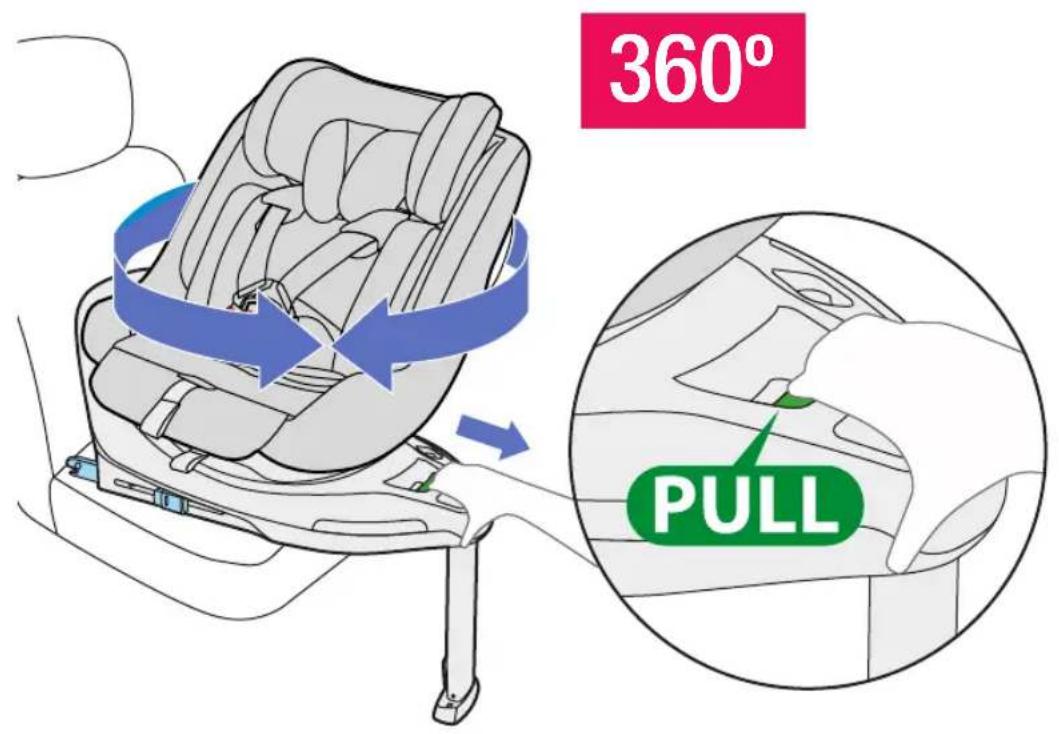

To rotate the seat, press the 360^ Rotation Release Button (12). While holding it down, rotate the seat. The sideways positions make it easier to load and unload the baby from the seat. These positions are not permitted for traveling.

12. INSTALLATION

A. Installing in the car

Diagram showing two orange 3D objects on a vehicle roof with blue directional arrows indicating movement or flow (no text or symbols)

EN

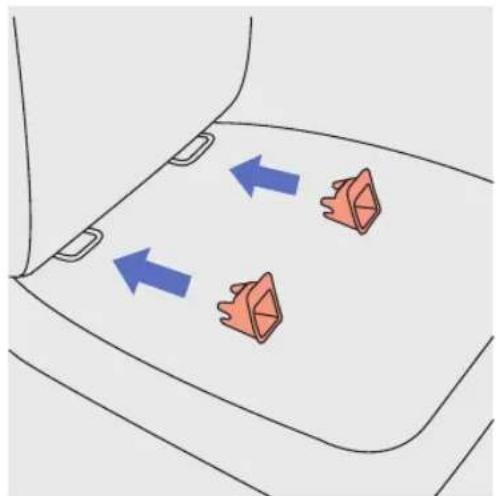

If your car does not have them, fit the ISOfix guides (11) into the ISOfix anchors in your car. They will protect the seat upholstery and help guide the ISOfix connectors of the Kombibase.

Pull!

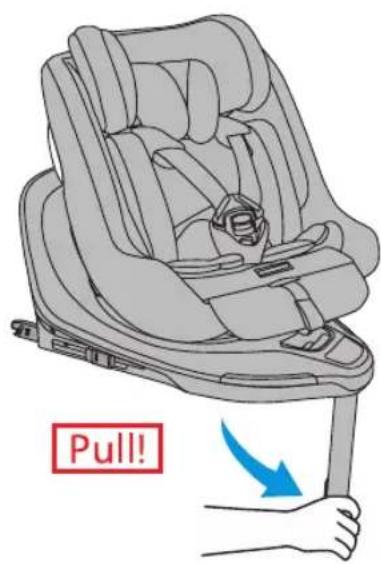

Unfold the support leg (18) from its compartment.

2 1

INDEX

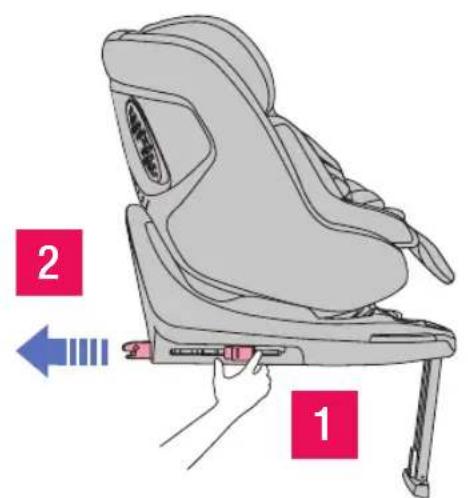

Fully extend the ISOfix connectors (14) by pressing the buttons (13)

EN

CLICK 1 OK 2

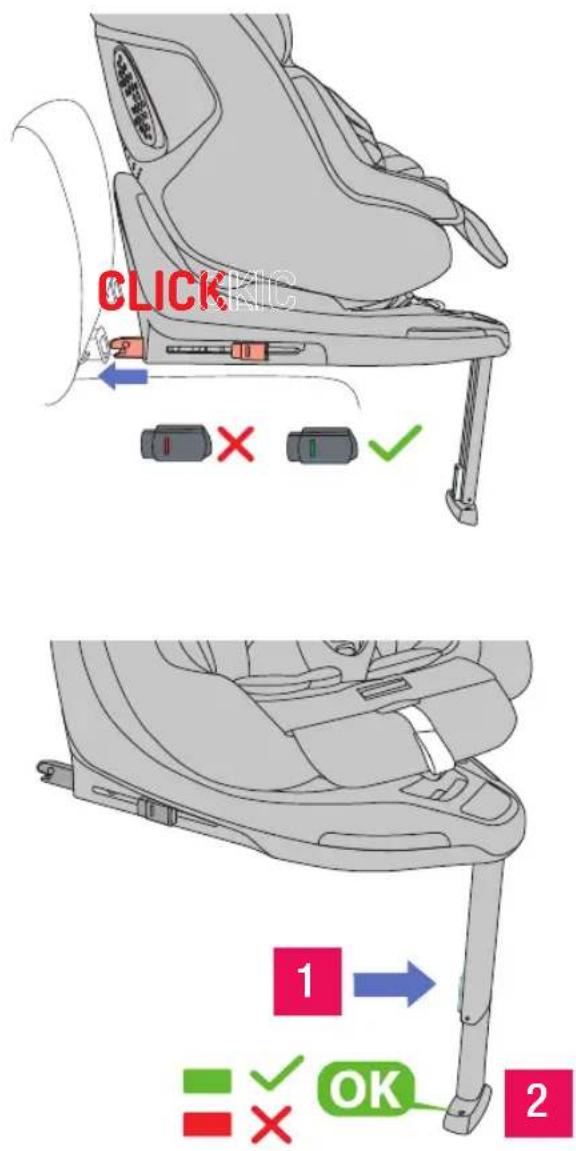

Align the connectors (14) with the ISOfix guides (11) and push until you hear a click. The indicators on the buttons (13) on both sides should turn green. If one or both indicators are red try again. Check that the base is firmly anchored by pulling on it.

To finish, you must extend the Support Leg (18) until it makes contact with the floor of the vehicle. Press the button (19) to unlock the leg and slide it to the floor. Release the button (19) and continue extending until it locks again. If it is supported correctly, two green signals will appear on the indicators on the foot (20).

B. Securing the baby in the KOMBIFIX

1 2

EN

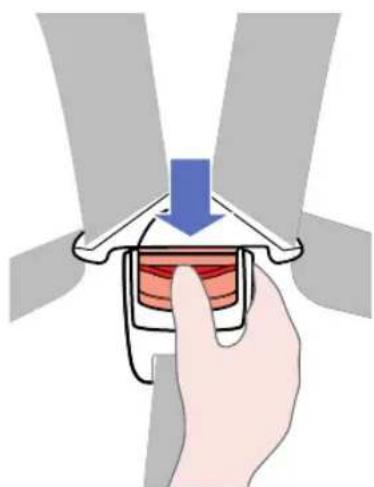

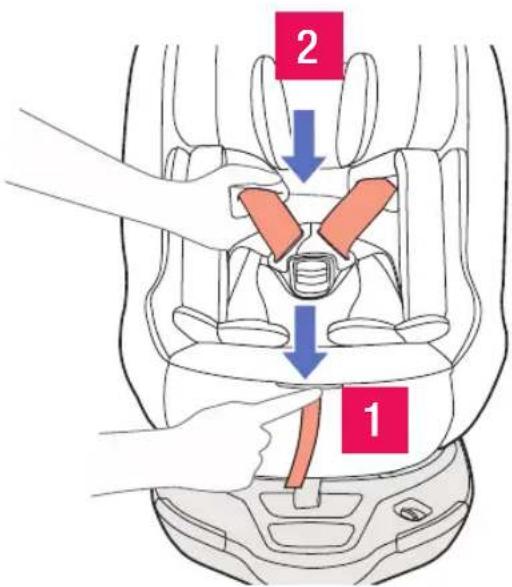

While pressing the seatbelt adjustment button (5) located under the upholstery, pull on the shoulder straps to loosen them.

Illustration of a hand pressing a component with a blue arrow indicating downward motion (no text or symbols)

Unbuckle the buckle (3) by pressing the red button.

1 2

Illustration of a medical procedure showing a hand positioning a device with a blue arrow indicating motion (no text or symbols present)

CLICK

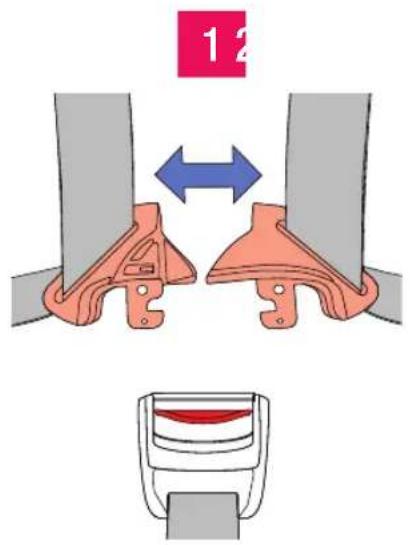

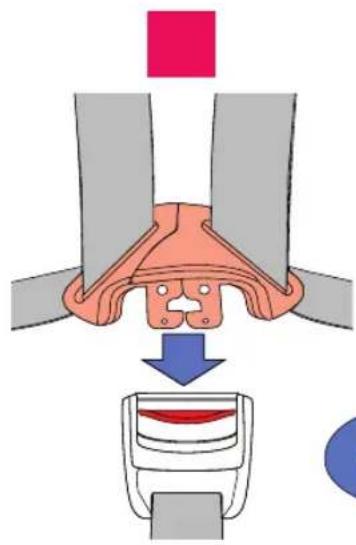

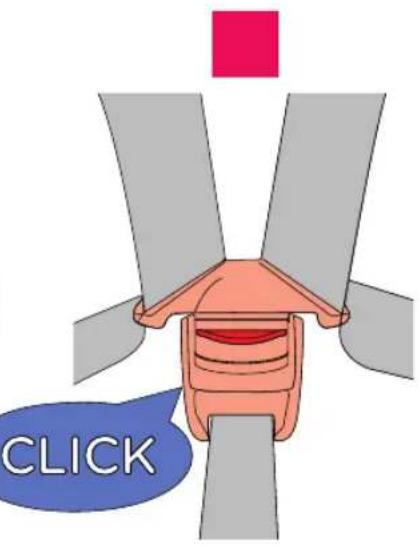

Put the baby in the seat and buckle the harness. First join the ends of the shoulder straps and then insert them into the buckle until you hear a click.

Illustration of a baby car seat with orange straps and a blue arrow indicating force or pressure (no text or symbols)

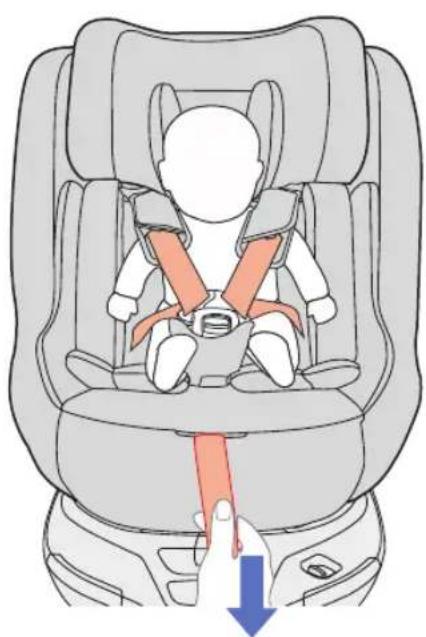

Tighten the harnesses by pulling on the center adjustment webbing (6). Adequate tension is very important for safety, as a maximum you should be able to get two fingers between the belt and the baby.

C. Removing from the car

INDEX

Diagram of car seat assembly with labeled parts and directional arrows indicating seat movement or safety instructions

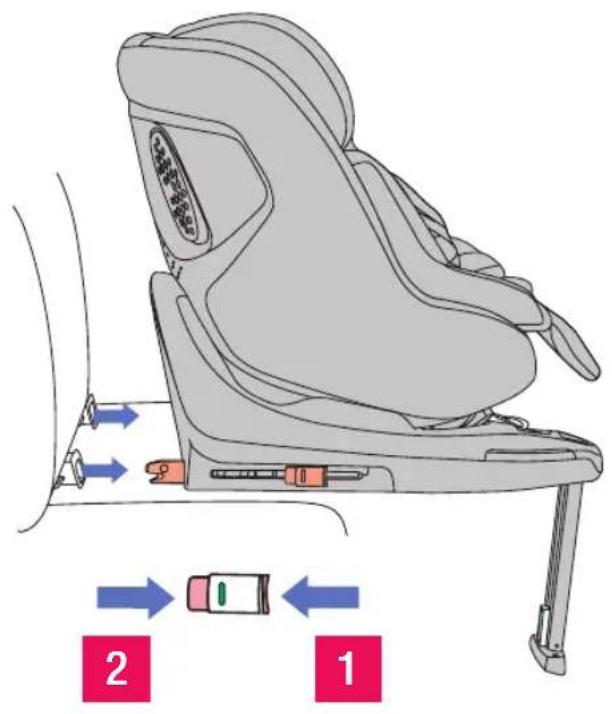

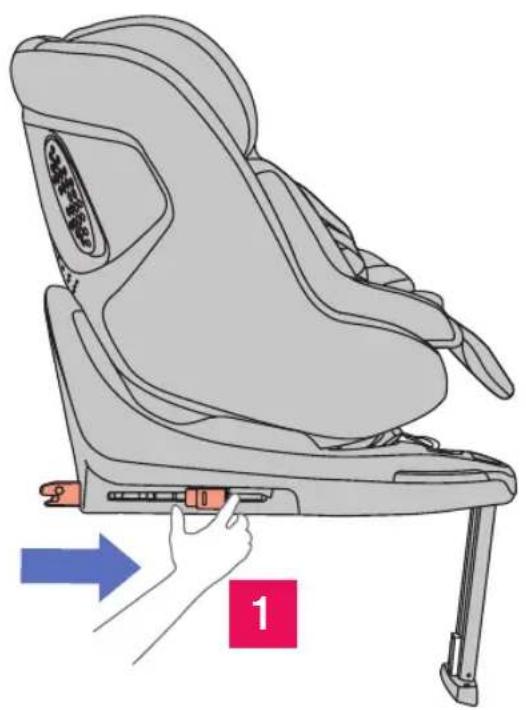

To remove the base, press the buttons (13) on the ISOfix anchors. This button has a safety to prevent accidental tampering. To release it you must press both sides of the button.

Diagram showing a car seat assembly with a hand adjusting the seat, labeled with number 1 and directional arrow.

To make it take up less space, you can completely hide the Isofix anchors inside the base. Finally, shorten the length of the leg and fold it.

13. REMOVING THE UPHOLSTERY

INDEX

You can remove the upholstery to wash it. To do so, follow these steps:

1 Open the buckle and remove the reducer.
2 Remove the belt protectors, two on the shoulder belts and the one protecting the crotch.
3 Remove the headrest cover by removing the fabric around the headrest.
4 Remove the central part of the upholstery.

To re-cover it, follow the steps in reverse.

EN

14. MAINTENANCE

Do not expose the upholstery to sunlight for prolonged periods.

Clean the plastic parts with soap and warm water and then dry all the parts thoroughly.

15. WARRANTY

This item is guaranteed against manufacturing defects as stipulated in the legal Directives and/or regulations in force on guarantees for consumer goods applicable to the European Union and those of the country in which it is marketed.

It is essential to present the purchase invoice or receipt in order to process the guarantee through the seller of the item or, failing that, through the manufacturer.

The guarantee excludes anomalies or faults caused by misuse, non-compliance with the safety regulations and instructions for use and maintenance provided, or due to wear and tear caused by normal use and regular handling of the item.

The label containing the serial number of your model must not be torn off under any circumstances as it contains information relevant to the guarantee.

This compatibility list is valid for the KOMBIFIX baby carrier configuration with the Kombibase base (i-Size Enhanced Child Restraint System). The vehicles listed will be valid as long as they are equipped with ISOFIX anchorages. It is possible that other vehicles are also compatible with KOMBIFIX+Kombibase; however, they have not yet been verified.

For any questions, please consult the seller or the manufacturer of this child restraint system.

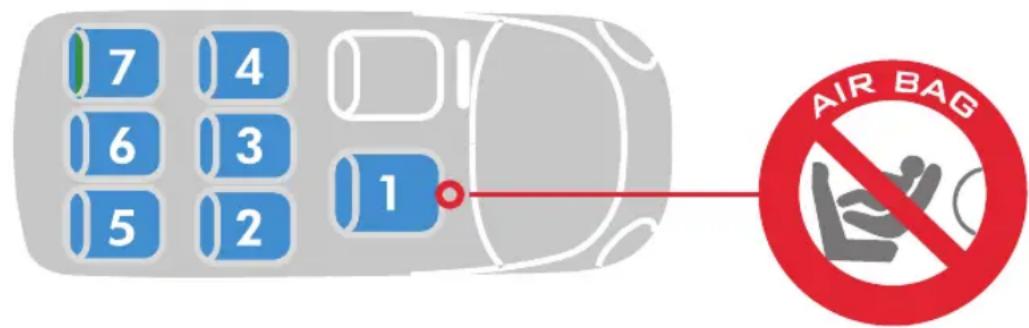

The ISOFIX in the front passenger position (1) is usually optional in some models. However, check the traffic legislation in the country where you are traveling, as this position may be restricted for child safety seats. NOTICE: Do not use on a passenger seat fitted with activated Frontal Airbag.

Installation in rear seats may limit the space available for the occupant in the front seat. Verify with the installed seat whether the remaining space is acceptable or convenient for the person occupying that position.

7 4 6 3 5 2 1 AIR BAG

APPROVED CARS LIST P. 207
