USER MANUAL iXPERT JANE

1 Use for children from 40 to 105 cm 25
Installling the safety seat in the car 25
Changing the direction of the safety seat 26
Fastening the child securely in the safety seat 27
Adjusting the height of the integral straps 27
Removing the seat when installed using ISOFIX 28
2 Reclining the seat 28
INFORMATION ABOUT THE GUARANTEE 29

EN

17

GENERAL INSTRUCTIONS

IXPERT from JANE is a safety seat designed to protect the child in the car from birth up to 105 cm in height (approximately 3,5 years old). The seat has passed the rigorous safety tests of European directive ECE R129/03 also known as "i-size".

The IXPERT safety seat has been approved as "i-size". Therefore, it is completely compatible with the seats in the car that the vehicle manufacturer defines as "i-size". Consult your vehicle manual.

For vehicles that do not have i-size seats, it is very likely that the EXPERT safety seat can be installed on some of the seats, you will find a compatibility list for the IXPERT seat in the "car fitting" of the following website: www.janeworld.com

A high percentage of safety seat users do not install them correctly. Understanding the instruction manuals and following them correctly, is as important for safety as the actual seat. Therefore:

• Read these instructions carefully before using the iXPERT safety seat for the first time.
  Make sure that everyone who is going to use the seat at any time is also familiar with the correct procedure for installation and use.
• Keep the instructions found on the back of the seat, and consult them if you have any questions. You can also find the instructions on our website: www.jancworld.com or you can check them from a Smartphone by scanning the QR code found on the seat itself.

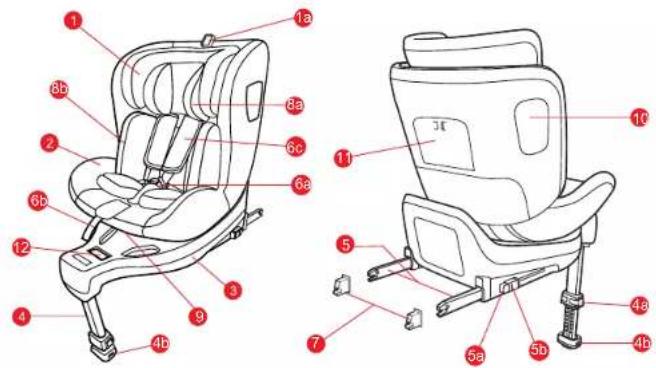

iXPERT SAFETY SEAT PARTS

1 Head
1a Head adjustment ring
2 Seat
3 Base
4 Paw
4a Leg height adjustment
4b Foot with leg status indicator
5 ISOfix anchor
5a ISOfix button
5b ISOfix status indicator
6 Harness

6a Buckle
6b Harness tensioner
6c Shoulder padding
7 ISOFIX qides
8 Reducing cushion
8a Reducer head cushion (up to 75cm)
8b Backrest wedge (up to 75cm)
9 Recline lever
10 Side impact protection
11 Instructions compartment
12 Chair twist release.

MAIN CONFIGURATIONS FOR USE:

iXPERT safety seat Rear facing

EXPERT safety seat Forward facing

from 40 to 105 cm

and maximum weight of 18Kg

installation of theWISCET with a

EXPTX 1000

anti-rotation log

The child is held secure with

5-point names in the past year

from 76 to 105 cm

and maximum weight of 18 Kg

Installation of the

EXPERT seal with a 100% PROFIT

anti-rotation Icg

The child is held secure with

1

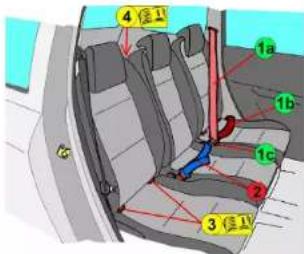

PARTS OF YOUR CAR

1_Three-point seat belt. It consists of two different parts:
1a Shoulder part, which goes from the buckle across the chest and the shoulder.
1b Lap part, which goes over the legs.
1c Buckle.
2. Two-point seat belt.
WARNING. The iXPERT seat must NOT be installed with this type of seat belt.
3_ISOFIX anchors. The anchors are located at the intersection between the seat area and the backrest. Not all vehicle are fitted with these anchor points, check your car manual for more information.
4_Rings for the anti-rotation or top tether strap, not used on the iXPERT safety seat.

FEATURES OF YOUR iXPERT SAFETY SEAT

The IXPERT safety seat has been designed using the latest advances in safety and comfort:

• iXPERT should be installed with ISOFIX. It is fitted with a support leg as an anti-rotation system.
• The height of the shoulder straps is adjusted without having to remove the straps. This action is linked to the headrest that protects the child better in the event of a side impact while supporting the head.
• The seat can be rotated 360^ degrees to install it in the rear or forward facing position and to turn it round to the car door to get the child in and out of the seat more easily.
• The inside of the seat is covered with shock absorbing material.
  It is fitted with adjustable cushion inserts for smaller babies (from 40 to 75~cm
  The seat has ventilation windows.
• The seat can be reclined in 5 different positions.

1 Use for children from 40 to 105 cm

Setting up the iXPERT for use from 40 to 105cm

• To save space, in its original packaging, the iXPERT safety seat comes set up in the rearward facing position and with the anti-rotation leg folded.
• Unfold the anti-rotation leg. (1a)
  Now it is ready for use.

Installing the safety seat in the car

Pull the two ISOFIX anchors (5) fully out by pressing the buttons on each anchor (5a) and sliding them out. (1b)
- In some cars, the ISOFIX anchors are difficult to access or are hidden between the vehicle seat foam. Guides (7) are supplied with the safety seat to make it easier to locate the anchor points, insert them before the next step.
- Guide the anchors towards the axes in your car and press until both sides both sides are locked, two green signals displayed on both buttons (5b) will indicate that they are locked. If one or both the signals are red, try again. (1c)
- Press the base (3) against the backrest of the vehicle seat until it is held firmly in place. (1d)
- Release the leg height lock by pressing the buttons (4b). Extend the leg until it touches the floor of the vehicle. Lift the safety seat until the buttons (4b) lock again, the green signal will be displayed on the base of the leg (4c). (1e)

Changing the direction of the safety seat

The IXPERT safety seat can be used in the rear facing position from birth to 105cm in height, or in the forward facing position from 15 months up to 105cm . The safety seat can rotate 360^ degrees.

It can be locked into 4 different positions:

Forward facing and rearward facing (the only positions suitable for travelling in) and 2 loading positions

To release the swivel feature, pull the lever on the base (12) and turn the seat to the required locking position. (2a)

NOTE: In vehicle without rear seat doors, the swivel is limited for reasons of space between the seat and the sides.

Using the cushion insert.

The iXPERT safety seat comes with some cushion inserts to reduce the inner size of the seat when the baby is small (from 40 to 75~cm ).

Fastening the child securely in the safety seat (from 40 to 105~cm )

• Fit the cushion insert (8) in place if necessary (from 40 to 75cm ).
• Loosen the integral belts by pulling the straps (6) above the buckle while pressing the tightener button (6b). (3a)
• Undo the buckle (6a).
• Place the child in the seat making sure that they are sitting with their back straight against the backrest of the seat. Bring the upper ends of the buckle together. Insert them into the lock and press until you hear them click into place. (3c)
• Pull the tightener strap (6b). Correct belt tension is very important for the child's safety, do not leave the belts slack. (3d)

Adjusting the height of the integral straps

The height of the shoulder strap should be adjusted as the child grows. Check the correct position of the shoulder straps with the child correctly positioned in the seat. The straps should be slightly above the child's shoulders. (4a)

To change the height of the straps, follow the steps below:

• Pull the ring on the top part of the headrest (1a), this will unlock the headrest position. Move the headrest (1) to the right position for the child and release the lever. Move the headrest until you hear the locking click. Pull the headrest to make sure that it is locked in place. (3e)

NOTE: Adjust this height as the child grows

Removing the seat when installed using ISOFIX:

• Release the ISOFIX anchors by pressing both ISOFIX buttons (5a). The signals on the ISOFIX buttons (5b) will turn red.
• Remove the seat. Press the SOFIX anchors (5) to store them inside the base.

2 Reclining the seat

The IXPERT seat is reclined using a lever found underneath the feet (9). It has 5 positions. This action, when the seat is used as a booster seat with backrest, requires the vehicle 3-point seat belt to be adjusted, in this case it should be carried out while the vehicle is stationary.
To recline the seat, pull the lever forwards and slide the seat to the required position. (5a)

INFORMATION ABOUT THE GUARANTEE

• This item is guaranteed against manufacturing defects as stipulated in the legal Directives and/or regulations in force on guarantees for consumer goods applicable to the European Union and those of the country in which it is marketed.
• It is essential to present the purchase invoice or receipt in order to process the guarantee through the seller of the item or, failing that, through the manufacturer.
• The guarantee excludes anomalies or faults caused by misuse, non-compliance with the safety regulations and instructions for use and maintenance provided, or due to wear and tear caused by normal use and regular handling of the item.
• The label containing the serial number of your model must not be torn off under any circumstances as it contains information relevant to the guarantee.
