USER MANUAL YT-82282 Yato

Exterior view of a YATO 3D sawer tool (no text or symbols visible on body)

Labeled diagram of a manual tool with numbered parts including a pusher, cable, and power plug

Two-panel black-and-white photo showing hands using a sawtooth tool to adjust a mechanical component (no text or symbols visible)

Close-up of a hand holding a pair of scissors with a wire, no visible text or symbols

Person using a saw to cut a wooden post (no text or symbols visible)

PL

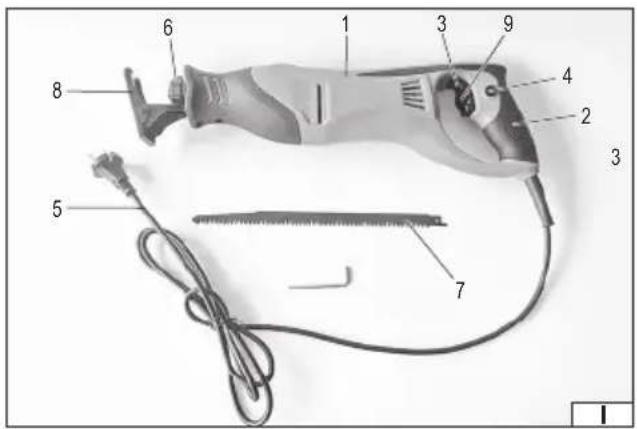

1. casing
2. handle
3. electric switch
4. switch lock
5. power cable with plug
6. blade clamp
7. saw blade
8. foot
9. blade speed regulator

DE

Read the operating instruction

Wear protective goggles

Wear hearing protectors

Second class of insulation

This symbol indicates that waste electrical and electronic equipment (including batteries and storage cells) cannot be disposed of with other types of waste. Waste equipment should be collected and handed over separately to a collection point for recycling and recovery, in order to reduce the amount of waste and the use of natural resources. Uncontrolled release of hazardous components contained in electrical and electronic equipment may pose a risk to human health and have adverse effects for the environment. The household plays an important role in contributing to reuse and recovery, including recycling of waste equipment. For more information about the appropriate recycling methods, contact your local authority or retailer.

A saber saw is an electrical tool designed for cutting wooden and wood-based surfaces, polyethylene or polypropylene boards, and metal using blades appropriately selected for the type of material. Thanks to easy blade replacement that does not require additional tools, the saw allows for wide use in household chores. Correct, reliable, and safe operation of the device depends on proper use, therefore:

Before using the tool, read the entire manual and keep it.

The supplier is not liable for any damage or injury resulting from use of the tool for purposes other than its intended use, failure to observe safety regulations and recommendations in this manual. Use of the tool for purposes other than its intended use also results in loss of the user's rights to the guarantee, as well as for non-conformity with the contract.

EQUIPMENT

The factory packaging should contain: - saber saw

TECHNICAL PARAMETERS

Parameter Unit of measurement Value
Catalogue number YT-82282
Nominal voltage [V~] 220 - 240
Nominal frequency [Hz] 50 - 60
Rated power [W] 710
Rated speed [min]	^-1 0 - 3000
Cutting thickness (max)
- wood [mm] 150
- metals	[mm]	10
Saw blade holder		universal 1/2" (12.7 mm)
Noise level
- sound pressure	[dB(A)]	88 ± 5.0
- power	[dB(A)]	96 ± 5.0
Vibration level (front/rear handle)	[m/s2]	6.03 ± 1.5 / 12.92 ± 1.5
Degree of protection		IPX0
Insulation class		II
Mass	[kg]	2.28

GENERAL POWER TOOL SAFETY WARNINGS

Warning! Please read all safety warnings, illustrations and specifications provided with this power tool. Failure to follow them may result in electric shock, fire or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" used in the warnings refers to all corded and cordless electric power tools.

Workplace safety

Keep your work area clean and well lit. Clutter and poor lighting can cause accidents.

Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or fumes.

Power tools create sparks which may ignite the dust or fumes.

Do not allow children or bystanders into the work area. Loss of concentration can cause loss of control.

Electrical safety

The plug on the electric cord must match the outlet. Do not modify the plug in any way. Do not use any plug adapters with grounded power tools. An unmodified plug that matches the outlet reduces the risk of electric shock.

Avoid body contact with grounded surfaces such as pipes, radiators, and refrigerators. Grounding your body increases the risk of electric shock.

Do not expose power tools to precipitation or moisture. Water or moisture entering a power tool will increase the risk of electric shock.

EN

Do not overload the power cord. Do not use the power cord to carry, pull, or disconnect the plug from the wall outlet. Keep the power cord away from heat, oil, sharp edges, and moving parts. A damaged or entangled power cord increases the risk of electric shock.

When working outdoors, use extension cords designed for outdoor use. Using an extension cord designed for outdoor use reduces the risk of electric shock.

If using a power tool in a damp environment is unavoidable, a residual current device (RCD) should be used as protection against supply voltage. The use of an RCD reduces the risk of electric shock.

Personal safety

Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while tired or under the influence of drugs, alcohol or medication. Even a moment of inattention while operating a power tool can result in serious personal injury.

Use personal protective equipment. Always wear eye protection. The use of personal protective equipment such as dust masks, non-skid safety shoes, hard hats, and hearing protection reduces the risk of serious personal injury.

Prevent accidental starting. Ensure that the power switch is in the "off" position before connecting to power source and/or battery pack, picking up or carrying the power tool. Carrying a power tool with your finger on the switch or energizing a power tool that has the switch in the "on" position can result in serious injury.

Remove any wrench or key that is used to adjust the power tool before turning it on. A wrench or key left attached to a rotating part of the power tool may result in serious injury.

Do not overreach or overextend. Maintain proper posture and balance at all times. This will make it easier to control the power tool in the event of unexpected situations while working.

Dress appropriately. Do not wear loose clothing or jewelry. Keep hair and clothing away from moving parts of the power tool. Loose clothing, jewelry, or long hair can be caught in moving parts.

If devices are provided for the connection of dust extraction or dust collection facilities, ensure that these are connected and used correctly. The use of dust extraction reduces the risk of dust-related hazards.

Don't let the experience gained from frequent use of the tool cause you to become careless and ignore safety rules.

Careless action can cause serious injuries in a split second.

Use and care of power tools

Do not overload the power tool. Use the correct power tool for the selected application. The correct power tool will provide better and safer work when used for the designed load.

Do not use a power tool if the power switch does not turn it on and off. A tool that cannot be controlled with the power switch is dangerous and must be repaired.

Disconnect the plug from the power outlet and/or remove the battery pack if detachable from the power tool before making any adjustments, changing accessories, or storing the tool. Such precautions will prevent the power tool from being switched on accidentally.

Store the tool out of the reach of children, do not allow persons unfamiliar with the power tool or these instructions to use the power tool. Power tools are dangerous in the hands of untrained users.

Maintain power tools and accessories. Check the tool for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. Any damage should be repaired before using the power tool. Many accidents are caused by poorly maintained tools.

Cutting tools should be kept clean and sharp. Properly maintained cutting tools with sharp edges are less likely to bind and are easier to control during operation.

Use power tools, accessories and attachments etc. in accordance with these instructions, taking into account the type and conditions of work. Use of tools for work other than those designed may result in a hazardous situation.

Keep handles and gripping surfaces dry, clean and free from oil and grease. Slippery handles and gripping surfaces do not allow safe operation and control of the tool in hazardous situations.

Repairs

Have your power tool repaired only by authorized service centers, using only original spare parts. This will ensure proper safety of your power tool.

SAFETY WARNINGS FOR RECIPROCATING SAWS

Hold power tools by insulated gripping surfaces when performing an operation where the cutting tool may contact hidden wiring or its own wire. The cutting tool contacting a live wire may make exposed metal parts of the power tool live and could give the operator an electric shock.

Use clamps or other practical methods to securely secure and support the workpiece on a stable platform. Holding the workpiece by hand or pressing it against your body makes it unstable and may lead to loss of control.

PREPARING FOR WORK

Attention! All activities related to the assembly and replacement of saw blades, adjustment and maintenance of the power tool must be carried out with the power supply voltage of the tool switched off, therefore before starting these activities: Remove the plug from the power socket!

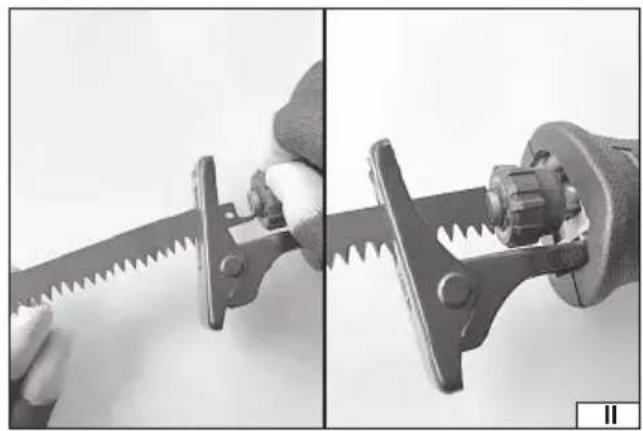

Installing and replacing the saw blade (II)

Check whether the installed saw blade is not damaged, cracked, whether the cutting teeth are not broken, etc. If damage is found, replace the saw blade with a new one.

A blade for wood and wood-based materials has wider-spaced teeth, while a blade for metal and plastic has finer teeth. Select the blade that is right for the job you are planning to do. The blade should be mounted with the teeth facing the bottom of the housing. Note! When installing the saw blade, wear protective gloves. This will reduce the risk of injury.

Turn the spindle clamp and insert the saw blade holder into the spindle slot. Turn the clamp in the opposite direction and make sure that the blade is correctly secured: the clamp returns to its original position, the saw blade cannot be pulled out of the spindle.

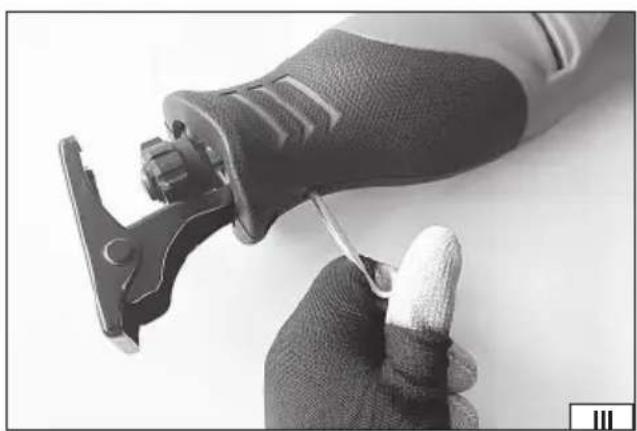

Adjusting the height and angle of the foot (III)

The cutting height can be adjusted by adjusting the foot height. To do this, loosen the two screws located at the bottom of the housing, then set the foot to the desired height and tighten both screws. Make sure that the foot does not change height during operation. The foot allows for smooth adjustment of the skid angle, to do this, tilt it relative to the foot guide. This allows you to change the cutting angle without lifting the foot from the surface of the material being cut.

Setting the blade speed

The saw is equipped with a regulator that allows for smooth regulation of the blade movement speed. The adjustment is done using a knob located on the switch. The arrow marker and the symbols „+” and „-” (or other graphic markings) indicate the direction of rotation of the knob to increase or decrease the speed accordingly.

The speed should be selected experimentally, for example by cutting scrap material. Lower speeds are recommended when cutting plastics or aluminum. The speed should also be reduced if the blade jams during cutting.

USING THE TOOL

Before starting work, make sure that the blade guard is correctly fitted and lowered. Wear eye protection, ear protection and work gloves. Secure the workpiece to the work station, e.g. with clamps, a vice etc. Never hold the material being cut using only your hands or other parts of your body. When cutting, support the material at its edges and near the cutting line. Supports should be placed on both sides of the cutting line so that the blade does not jam in the kerf during cutting. The base must rest on the material being cut with its entire surface during cutting. Connect the dust extraction system to the dust extraction outlet.

Turning the saber saw on and off

At the work site, make sure that the surface is even, stable and free of contamination.

Adopt a confi dent and stable stance.

Hold the tool by the handle. Do not rest the working parts of the tool against any object or item.

Press the switch with your finger and hold it. Check that the blade moves freely and that the tool does not vibrate suspiciously or excessively. There is no smoke or suspicious smell coming from it. If you notice any deviations from correct operation, turn the tool off, disconnect the plug from the mains and take it to an authorised repair centre.

The switch is equipped with a lock that can be used during long-term cutting. With the switch pressed, press the lock button and release the pressure on the switch. The lock is released by pressing the switch.

The tool is switched off after unlocking and releasing the pressure on the switch. After switching off, the blade continues to move for some time.

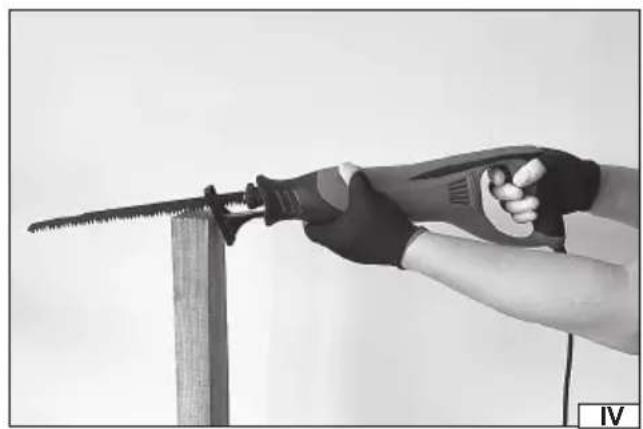

Cutting wood (IV)

Before you start cutting, draw a cutting line with a carpenter's pencil. Then rest the tool on the foot and set blade along the drawn line, then turn on the tool, allow the tool to reach its rated speed and start cutting. Do not apply too much pressure to the shoe and blade when cutting, as this may cause the working tool to break.

Plunge cutting

Note! Plunge cutting can only be performed in soft materials such as softwood or plasterboard. Never perform plunge cutting in metal or other hard materials.

For plunge cutting, use a short blade. Set the speed to maximum. Place the edge of the shoe against the material being cut and turn the tool on. While pressing, allow the blade to plunge into the material until the shoe is fully seated against the material being cut. Continue cutting along the marked line.

When cutting wood, start the cut at a lower speed and increase it as you cut.

EN

Cutting at the edge

Note! For cutting close to the edge, special saw blades with increased flexibility should be used.

It is possible to cut right next to walls, floors and other hard-to-reach places. For example, when cutting pipes. When cutting, make sure that the blade will constantly pass through the entire cross-section of the material being cut. It is forbidden to cut around a wall, this can cause the tool to bounce back towards the operator.

It is recommended to install the saw blade with the blade turned 180 degrees from the normal position. This will provide easier cutting.

Cutting holes

Note! When cutting holes, use blades designed for cutting arcs.

Before starting work, draw a cutting line. Then drill a hole with a drill, insert the saw blade into the hole and start cutting.

Cutting metal

Note! It is important to choose the right type of blade for the type of metal being cut. This will ensure greater safety of work and extend the life of the blade.

When cutting thin sheets of metal. Place it between two pieces of wood. This will give you a smooth cut line and reduce vibrations during operation.

It is recommended to use a coolant suitable for the type of metal. If possible, a thin film of oil should be spread on the area where the saw foot will move. This will make it easier to operate the saw.

Additional notes

The tool must not be overloaded, the temperature of the external surfaces must never exceed 60^ C.

After finishing work, turn off the tool, remove the plug from the electrical outlet and perform maintenance and inspection.

The declared vibration total value has been measured using a standard test method and can be used to compare one tool with another. The declared vibration total value can be used in a preliminary assessment of exposure.

Note! Vibration emission during tool operation may differ from the declared value depending on how the tool is used.

Note! Safety measures to protect the operator must be defined and are based on an assessment of exposure in real-world situations.

conditions of use (including all parts of the operating cycle, such as times when the tool is switched off or idling, and activation times).

MAINTENANCE AND INSPECTIONS

NOTE! Before starting any adjustments, maintenance or servicing, unplug the tool from the power outlet. After finishing work, check the technical condition of the power tool by visually inspecting it and assessing: the body and handle, the electric cable with the plug and bending protection, the operation of the electric switch, the patency of the ventilation slots, the sparking of the brushes, the noise level of the bearings and gears, the start-up and the smoothness of the operation. During the warranty period, the user may not add any power tools or replace any components or parts, as this will void the warranty. Any irregularities observed during the inspection or during work are a signal to carry out repairs at a service point. After finishing work, the housing, ventilation slots, switches, additional handle and covers should be cleaned, for example, with an air jet (with a pressure of no more than 0.3 MPa), a brush or a dry cloth without using any chemicals or cleaning fluids. Clean the tools and handles with a dry, clean cloth.

DE

WERKZEUGMERKMALE

VEILIGHEIDSWAARSCHUWINGEN VOOR RECIPROZAGEN

DEKLARACJA ZGODNOŚCI DECLARATION OF CONFORMITY DECLARATIE DE CONFORMITATE

0625/YT-82282/EC/2025

We declare and guarantee with full responsibility that the following products:

meet requirements of the following European Standards / Technical Specifications:

and fulfill requirements of the following European Directives:

2006/42/WE Machinery and safety elements

2014/30/UE Electromagnetic compatibility (EMC) Directive

Directiva privind compatibilitatea electromagnetică (EMC) (H.G. nr. 487/2016)

2011/65/UE Restriction of the Use of Certain Hazardous Substances

Serial number: concern all serials numbers of item(s) mentioned in this declaration

The person authorized to compile the technical file:
