Product type	Body and nose trimmer
Brand	Sogo
Model	SS-3545
Input voltage	110-240 V~
Adapter	DC 5 V / 1 A (not included)
Power	5 W
Battery type	Lithium-ion 3.7 V, 600 mAh
Charging time	1.5 hours
Battery life	1.5 hours
Cutting lengths	1 mm, 2.2 mm, 3.3 mm, 4.6 mm, 5.9 mm, 12 mm (with combs)
Included accessories	6 guide combs, nose trimmer, cleaning brush, USB cable, oil, charging stand
Blade material	Stainless steel
Water resistance	Rinseable under tap (do not immerse)
Usage	Cordless, rechargeable
Functions	Cutting, shaving, trimming, finishing
Safety	Long press lock (3 seconds)
LED indicator	Remaining battery, charging, lock
Maintenance	Oil the blades regularly, clean with the brush
Weight (estimated)	Approximately 150 g
Dimensions (estimated)	Approximately 15 x 3 x 3 cm

Frequently Asked Questions - SS-3545 Sogo

How to charge the Sogo SS-3545 trimmer?

Use the provided USB cable (type C) to connect the device to a 5V/1A power adapter (not included) or to the charging stand. Charging time is about 1.5 hours. The LED screen displays the battery percentage while charging.

What is the battery life?

The battery life is about 1.5 hours after a full charge. The LED indicator flashes red when the battery is below 15%.

How to clean the trimmer?

Turn off and unplug the device. Remove the guide comb and cutting unit. Use the cleaning brush to remove hair. You can rinse the comb and cutting unit under running water, then dry them thoroughly. Never immerse the main body.

Can I use the trimmer in the shower?

No, the device is not designed for use in the shower. It can be rinsed under the tap (cutting unit and comb), but the main body must not be immersed.

How to lock the device?

Press the on/off button for three seconds to lock the device. The lock icon flashes on the screen. Repeat to unlock.

What accessories are included with the trimmer?

Included accessories are: 6 guide combs (1, 2, 3, 6, 9, 12 mm), a nose trimmer, a cleaning brush, a USB cable, blade oil, and a charging stand.

How to use the guide combs?

Make sure the device is off. Clip the guide comb onto the cutting head. The combs offer lengths from 1 mm to 12 mm. Use the desired comb for an even cut. For a shorter cut, use without the comb.

How to replace the blades?

Detach the cutting unit by gently pulling it. Place the new unit with the hook into the slot on the housing and press until it clicks. Oil the blades after replacement.

What to do if the trimmer does not turn on?

Check that the battery is charged. If the device is locked, unlock it by pressing for 3 seconds. Make sure the cutting unit is properly installed. If the problem persists, contact customer service.

Is the device suitable for pet hair?

No, this product is only intended for human hair (body, nose, beard, neck). Do not use it on animals.

USER MANUAL SS-3545 Sogo

EN Instructions for use

FR Mode d'emploi

Download your manual

Declaration of conformity, Responsibility of Electronic products disposal, Importers Details and After-sales service on the last pages.

1 mm; 2.2 mm; 3.3 mm; 4.6 mm;

5.9 mm; 6.12 mm.

6. CLEANING AND MAINTENANCE

• Always read the instruction book carefully before using. This manual can be downloaded from our web page www.sogo.es
• Keep these instructions for future reference.

2. Safety instructions for the user

! General precautions during the use of electrical equipment

• Do not use the appliance for any other purpose than described in this manual.
• Do not use or store the appliance outdoors.
• Always place the appliance on to the flat and even surface.
• The unit must be used only for the intended purposes. No liability is accepted for damages arising from improper use or wrong handling. Misuse or improper handling may cause problems in the appliance and cause injury to the user.
• This appliance is intended to be used in household and similar applications.
• Ensure that the voltage indicated on the nameplate matches the mains voltage before plugging in the appliance.
• Always remove the plug from the power socket when the appliance is not in use. Do not leave the appliance unattended when switched on.
• Close supervision is necessary

when any appliance is being used by or near children.

• Before cleaning or storing your appliance, always unplug the appliance from the power supply and let it cool down.
• The device is not completely disconnected from the power source, even after it has been turned off. To disconnect it completely, disconnect it from the mains plug.

Restrictions on use to avoid personal injury

• Do not place or operate this appliance near water sources.
• Do not place or operate the appliance and its power cord on or near hot surfaces (e.g., stove plates) or open flames.
• Do not leave the power cord hanging from sharp edges and keep away from hot objects and flames. Do not wind the cord around the appliance and do not bend it.
• Never use accessories that are not recommended by the manufacturer.
• The use of accessories not recommended or sold by the appliance manufacturer may result in fire, electric shock or injury to persons.
• When you want to remove the plug from the wall contact, please do this at the plug itself and not by pulling on the cable or the appliance itself.
• To avoid electric shock, make sure your hands are dry before plugging or unplugging.
• Do not use the device with wet hands, on damp floors, or when the atmosphere is humid, as there is a risk of electric shock.
• Never immerse the appliance or the plug in water or any other liquid. If the appliance falls into water, disconnect it from the mains immediately and take it to an authorized service agent for repair before reusing.
• Do not use the appliance if it has fallen on the floor, if there are visible signs of damage, or if it has a leak.
• Do not use the appliance if the cable or plug is damaged. If the cord is damaged, it must be replaced only by the manufacturer, its service agent, or similarly qualified persons to avoid hazard.
• In case of appliance malfunction, or if it has been damaged in any manner, return the appliance to the nearest authorized service facility for examination, repair, or adjustment.
• Do not immerse the main body, power supply cord, or plug in water or any other liquids. Care should be taken to avoid spillage on the electrical components, power cord, and plug.
• Neither immerse the housing, which contains electrical components and heating elements, in water nor rinse it under the tap.
• Do not let the motor unit, cord or plug get wet to protect against risk of electric shock.

Restrictions on use with children and elders

• Children should be supervised to ensure that they do not play with the appliance.
• Keep the appliance and its cord out of the reach of children. Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
• Do not allow children to use the appliance.
• Appliances can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instructions concerning use of the appliance in a safe way and understand the hazards involved.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless instructed concerning use of the appliance by a person responsible for their safety.

Instructions to follow when using the appliance

If the blade is deformed or damaged, please do not use it again, or it may cause skin irritation. The blade has a fixed life. In order to obtain the best result, we recommend you to replace the blade regularly. - Please do not charge at a place with temperature lower than 0°C (32°F).

(104°F), direct sunlight or near heat or humid source.

• Please use the matching power line.
• Please dry the hair trimmer before charging.
• Store in a dry place to avoid damage.
• Do not pull, twist or bend the power cable.
• Do not trim in the shower.
• This product is not suitable for animal hair or other purposes.
• The appliance has a waterproof sealing ring that provides waterproof function. It can be rinsed under the faucet, but do not soak it in water.

CLEANING AND MAINTENANCE

Kindly refer to the cleaning and maintenance section for details on how to clean electronic equipment.

KEEP AWAY FROM WATER

3. TECHNICAL SPECIFICATIONS

Input voltage: 110-240V~ Adaptor: DC5V/1A (Not included) Power: 5W Battery capacity: 3.7V, 600mAh Charging time: 1.5H Working time: 1.5H

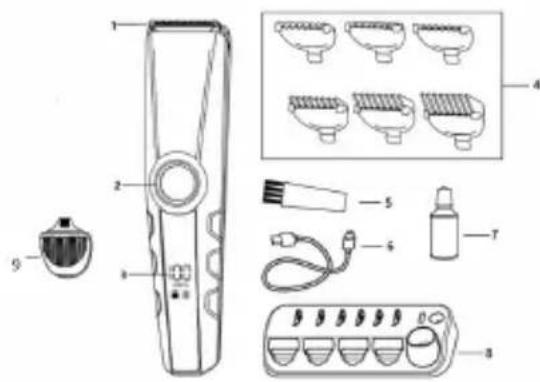

4. PARTS DESCRIPTION

1. Cutting unit
2. On/Off switch
3. LED display
4. Guide comb (1/2/3/6/9/12mm)
5. Cleaning brush
6. USB charging cable
7. Oil
8. Base
9. Sideburn trimmer

5. INSTRUCTIONS FOR USE

Before the first use

Always check the product and all accessories before using. Do not use the product or any accessory if it is damaged, as this may cause injury. Always replace a damaged part with one of the original types.

This product is only for use on body hairs, nose hairs, side burns etc.

Note: This product is for cordless use.

• Use this product for its intended household use as described in this manual.
• For hygienic reasons, the product should only be used by one person.
• Trimming is easier when the skin and hair are dry.
• Be careful when trimming without a comb as the product will trim every hair it touches when it is turned on.
• Use the product to trim, edge or shave facial hair (beard, moustache and sideburns). Shave for a smooth result, trim to obtain a certain length and edge to create perfect edges and sharp lines. Take your time when you first start to use the product. Before using the hair trimmer for the first time, it

must be charged completely. Make sure that the LED display shows full battery charged and the device is switched off during charging.

• The device is equipped with a type C USB charging cable for convenient charging, you can also use the charging base to charge it. When using the charging base to charge, you need to connect the cable to the base. The charging symbol on the display will flash and indicate the amount of power, the charging time is about 1.5 hour, and the operating time is about 1.5 hour.

How to use the device

Unroll the power cable completely. Connect the cable to the adaptor head (suggested with 5V 1A output).

Check that the tension in force in the country where you are corresponds to that indicated on the apparatus.

Connect the apparatus in a correct socket-outlet, (and connected to the ground if the unit is Class I), to avoid any danger.

Disconnect the power source cable before any operation of cleaning of maintenance and accessories assembly.

Never modify the appliance in anyway.

Description of LED Indicator

1. Working: The display will show remaining battery percentage.
2. Press and hold the switch for three seconds to lock the unit, the lock icon starts flashing.
3. Low battery indicator: The red plug icon will start flashing when the battery is less than 15%.
4. While in Charge: The display will show a fixed red plug icon with remaining battery percentage. As soon as it is fully charged, display shows 100.
5. When charged completely: Display light will go off 3 seconds once unit is charged completely.

Operation

1. Before using, place 2 or 3 drops of oil on the blade unit.
2. Use the ON/OFF switch, to switch on or switch off the appliance.
3. The appliance can be used for +/- 90 minutes if the battery is fully charged.
4. The appliance can be used directly with adapter if needed or if no power of battery.
5. Please always use charging adaptor (not included with main unit) with output of DC 5V 1A.

How to use Sideburn trimmer

1. Be careful when you are clipping without comb attachment as when the appliance is turned on it will trim every hair it touches.
2. Tilt the in such a way that only one edge of the trimming touches the hair ends when you shape the contours around the ears.
3. To control the hair shape of the neck or hairline, turn

the and hold it with he trimming pointing downwards.

1. To control the sideburns, turn the appliance and hold it with the trimming pointing downwards.

How to use the Shaver

1. Put the micro shaver attachment on the groomer.
2. Use the narrow micro shaver to shave long contoured edges to remove any stubble while creating
3. a smooth, well-defined beard line. Before using the micro shaver, always check it for wear and damage. If the micro shaver shows signs of wear or damage, do not use it as injury may occur.
4. Do not use the micro shaver until it has been replaced. Gently press the micro shaver onto the skin.
5. Do not press too hard.

How to use the comb attachment

When loading and unloading the comb attachment, please ensure the power switch is in the off status.

Put the comb on the main unit as shown in the reference picture.

Note: There are 6 guide combs with the cutting lengths as below.

1mm; 2.2mm; 3.3mm; 4.6mm;

1. 9mm; 12mm.

6. CLEANING AND MAINTENANCE

Clean the product after every use. Never use scouring pads, abrasive cleaning agents, or aggressive liquids such as gasoline or acetone to clean the product. Do not tap the product or blade against a surface to remove hairs as this may cause damage to the product and blade. If the blade is damaged, replace it immediately. Never dry the blade with a towel or tissue, as this may cause damage.

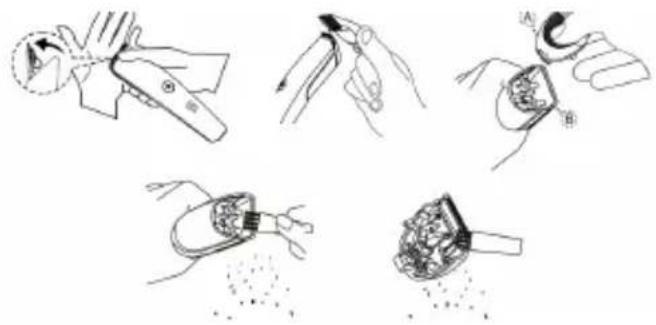

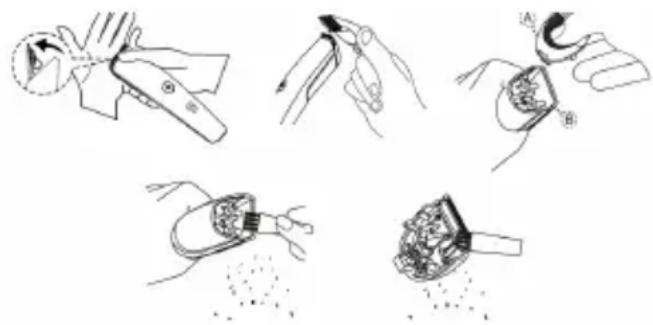

Cleaning the product

WARNING! Before cleaning, always: switch off the appliance, disconnect it, and let it cool.

1. Remove the guide comb and the cutting unit to clean the hair between the top blade and lower blade with the cleaning brush.
2. If necessary, wash the guide comb or the cutting unit under running water.
3. Dry the guide comb or the cutting unit.
4. The cutting unit should be oiled frequently to maintain good cutting performance and ensure a long service life. Put 2 or 3 drops of oil on the cutting unit.
5. To replace the cutting blades, position them with the hook in the slot on the housing and press until they click into place.

STORAGE

Always attach the precision trimming comb to the blade to protect it from damage during travel or storage. Ensure the product is turned off. Remove the cord from the outlet and the product before storing it in a safe, dry location where it will not be crushed, banged, or subject to damage. Do not wrap the cord around the product when storing. Store the cord in a safe location where it will not be cut or damaged. Do not place or store the product where it can fall or be pulled into a tub or sink, water, or other liquid while plugged in.

Disposal of electronic devices

DISPOSAL OF BATTERY-POWERED UNITS

Do not dispose of battery-powered units as normal waste; they must always be recycled properly and in accordance with local municipal laws. You can recycle them by taking them to government-authorised disposal centres or specialised containers found in large supermarkets, electronics or appliance stores, or nearby shopping centres that have such facilities.

1. Important:

CLEANING AND MAINTENANCE

1 mm; 2.2 mm; 3.3 mm; 4.6 mm;

5.9 mm; 6.12 mm.

6. CLEANING AND MAINTENANCE

1 mm; 2.2 mm; 3.3 mm; 4.6 mm;

1. 9 mm; 6. 12 mm.

1 mm; 2.2 mm; 3.3 mm; 4.6 mm;

5.9 mm; 6.12 mm.

6. CLEANING AND MAINTENANCE

1 mm; 2.2 mm; 3.3 mm; 4.6 mm; 5. 9 mm; 6. 12 mm.

6. CLEANING AND MAINTENANCE

1 mm; 2.2 mm; 3.3 mm; 4.6 mm; 5.9 mm; 6.12 mm.

STORAGE

1 mm; 2.2 mm; 3.3 mm; 4.6 mm;

5.9 mm; 6.12 mm.

6. CLEANING AND MAINTENANCE

1 mm; 2.2 mm; 3.3 mm; 4.6 mm;

1. 9 mm; 6. 12 mm.

6. CARE AND MAINTENANCE

Do not use the device

for any purposes other than those described in this manual.

Do not use or store the device outdoors. Always place the device on a flat and level surface. - The device should only be used for its intended purpose. The manufacturer is not responsible for damage caused by improper use or incorrect handling of the device. Improper use or incorrect handling of the device may lead to malfunction and injury to the user. - This device is intended for use in households and similar environments. - Before plugging the device into the mains, make sure that the voltage indicated on the rating plate corresponds to the mains voltage.

mains.

Always unplug the device from the socket when it is not in use. Do not leave the device unattended while it is plugged in. Close supervision is necessary when the device is used by or near children. - Before cleaning or storing the device, always unplug it from the mains and let it cool down. - The device is not completely disconnected from the power source even after it has been switched off. To fully disconnect it, remove the plug from the socket. Do not immerse the device in water or use it near water sources. Do not immerse or use the device near water surfaces (e.g., bathtubs) or near open flames. Do not let the power cord hang over sharp edges and keep it away from hot objects and open flames. Do not wrap the cord around the device and do not bend it. Never use accessories not recommended by the manufacturer. Use of accessories not recommended or not sold by the manufacturer may cause electric shock or injury.

To disconnect the plug from the socket, pull the plug itself, not the cable or the device. To avoid electric shock, make sure your hands are dry before inserting or removing the plug from the socket. Do not use the device with wet hands, on a wet floor, or in conditions of high humidity – there is a risk of electric shock. Never immerse the device, the cord, or the plug in water or any other liquid. If the device falls into water, immediately unplug it from the power supply and take it to an authorized service center for repair before reusing it. Do not use the device if it has fallen, shows signs of damage, or is leaking. Do not use the device if the cable or plug is damaged. In case of damage, to avoid danger, it must be replaced only by the manufacturer, its service agent, or similarly qualified persons. If the device malfunctions or is damaged in any way, return it to the nearest authorized service center for inspection, repair, or adjustment. Do not immerse the base unit, the cord, or the plug in water or other liquids. Be careful

to prevent liquid from coming into contact with electrical components, the cord, and the plug.

Do not immerse the housing, which contains electrical components and heating elements, in water, and do not rinse it under the tap. Do not allow the motor, cord, or plug to get wet to avoid the risk of electric shock.

Restrictions on use of the device by children and persons with reduced capabilities

Children should be supervised to ensure they do not play with the device. Keep the device and its cord out of reach of children. Children must not play with the device. Cleaning and maintenance of the device should not be performed by children without supervision. Do not allow children to use the device. The device can be used by children aged 8 and above, as well as persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge, if they have been given supervision or instruction concerning use of the device in a safe way and understand the hazards involved. This device is not intended for use by persons (including children) with reduced physical, sensory or mental

capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the device by a person responsible for their safety.

Instructions for use that must be followed

If the device is deformed or damaged, do not use it, as this may cause injury.

• The device has a limited service life. For best results, it is recommended to replace the device regularly.

Do not charge the device in places with temperature below 0°C (32°F), under direct sunlight, or near sources of heat. Use the appropriate cord.

• Before charging, dry the hair dryer.

Store in a dry place to avoid damage.

Do not pull, twist, or bend the cord.

He BnKOpncToBvIte TpImep NiDnyWeM.

• Léen Bnpi6 He np3HaueHn dIy CTpnKn igepti TBapnH a6o IHxuX ciJeN.
• Пилад Ma€ BODOHenpoHnKHe yιnlbHOBaIbHe KINbUe,ЯKe 3axuαE BiD BoN, IORO MoXHa npOMBaTn NiД KpaHOM, aIe He

3aHypIOBaTn y BODY.

TPIMATNIODA

JIbWe BID BOIN

3. TEXHIYHI XAPAKTEPNUCTNIK

Bxinda Hanpyra: 110-240 B~

AanTep: DC5V/1A (He BxOINtB Do KOMnneKtY)

NotyXhictb:5BT

EmhictbakymyTota:3,7B,600mA-rod

Yac 3apJxKaHHa:1,5 roDnHn

Yac po6oTu: 1,5 roDInHn

4. DESCRIPTION OF PARTS

1. Figure 1
2. Comb
3. LED indicator
4. Guide comb (1/2/3/6/9/12 mm)
5. USB charging cable
6. Base
7. Trimmer for sideburns

5. OPERATING INSTRUCTIONS

Before first use

Before using, check the device and all accessories. Do not use the device or any accessory if it is damaged, as this may cause injury. Damaged parts should be replaced with original ones.

The device is intended for trimming hair on the head, nose, ears, and sideburns.

Note: The device is intended for dry use only.

-Use the device only for its intended purpose as described in this manual. -For hygiene reasons, the device should be used by only one person. -Trimming should be done only when the skin and hair are dry. -Be careful during trimming without a comb, as the device trims every hair it touches when turned on. Use the device for trimming, cutting, or shaving facial hair (beard, mustache, and sideburns). Shaving ensures a smooth result.

Trimming allows you to get a certain length, while cutting creates ideal edges and clear lines. Do not rush when you start using the device for the first time.

• Before first use of the device, it is necessary to fully charge it. Please note that the indicator will display the full charge level, and the device is ready for use after charging.
• The device can be charged using a USB Type-C cable for manual charging, or you can use a charging base. When charging via the charging base, you need to connect the base cable. The charging indicator on the display will blink and show the charge level. Charging time is approximately 1.5 hours, and operating time is approximately 1.5 hours.

Using the device

Fully unwind the power cable. Connect the cable to the adapter (recommended with 5 V 1 A output).

Check that the voltage in the outlet where you are located matches the rating indicated on the device.

Connect the device to an appropriate outlet (and ground it if the device is Class I) to avoid danger.

Before cleaning, technical maintenance, and installation of accessories, disconnect the power cable from the power source.

Never immerse the device in any liquid.

Description of light indicators

1. Operation: The display shows the battery charge level.
2. Press and hold the switch for three seconds to lock the device; the lock icon will blink.
3. Low battery indicator: A red icon will blink when the battery charge drops below 15%. During charging: The display will show a red icon with the charge level percentage. When charging is complete, the display will show 100%. 5. After full charge: The indicator on the display will turn off 3 seconds after the device is fully charged.

Operation

The battery is discharged.

1. Always use the charging adapter (not included in the kit) with an output power of 5 V, 1 A.

Use the trimmer as a template for sideburns.

1. Be careful when trimming without a comb attachment, as the device may cut each hair too short.
2. Press so that the sides of the trimmer touch the hair roots when you shape the contour around the ears.
3. To control the shape of the hair on the top or back of the head, turn and hold the trimmer facing downward.
4. To control the sideburns, turn the device and hold it facing downward.

Using the beard trimmer

1. Attach the micro-trimming head to the trimmer.
2. Use the narrow micro-trimming head to precisely trim the edges, remove stray hairs, and create
3. a smooth, defined line. Before using the micro-trimming head, check it for damage and wear. If the micro-trimming head shows signs of damage or wear, do not use it, as this may cause injury.
4. Do not use the micro-trimming head until it has been replaced. Carefully press the micro-trimming head onto the device.
5. Do not press too hard.

Using the comb attachment

With the long hair, as shown below.

1 mm; 2. 2 mm; 3. 3 mm; 4. 6 mm;

5. 9 mm; 6. 12 mm

6. Oyuichienhra TA OBCJyROBYAHHH

Clean the blade after each use. Never use abrasive sponges, abrasive cleaners, or aggressive detergents. Do not scrape the blade or blade edge to remove hair, as this can damage the blade and blade edge.

If the blade is damaged, replace it immediately.

Never dry the blade with a towel or cloth, as this can cause damage.

WARNING! Safety precautions: Unplug the device, remove it from the outlet, and let it cool down.

1. Remove the guide comb, rinse the blade block to remove hair between the upper and lower blades using the cleaning brush. 2. If necessary, rinse the guide comb or blade block under running water.
2. Dry the attachment comb or blade block.
3. The blade block should be oiled regularly to maintain good cutting performance and ensure long service life. Apply 2-3 drops of oil to the blade block.
4. After replacing the blades, insert them firmly into the slots on the housing and press until they click into place.

STORAGE

Always attach the blade guard to protect the blade from damage during storage or transportation. Unplug the cord from the outlet and from the device before storing it in a safe, dry place where it will not be crushed, hit, or damaged. Do not wrap the cord around the device during storage. Store the device in a safe place where it will not be pulled or damaged. Do not place or store the device where it can fall or be pulled into a bathtub, sink, water, or other liquid while it is plugged in.

Disposal of electronic devices Disposal of devices that operate on batteries

Do not dispose of battery-operated devices with normal household waste. They must be disposed of properly in accordance with local laws. You can dispose of them by taking them to state recycling centers or special containers that can be found in large supermarkets, electronics or household appliance stores, or near shopping centers where such collection points exist.

1. Important:

1 mm; 2.2 mm; 3.3 mm; 4.6 mm; 5.9 mm; 6.12 mm.

6. CLEANING AND MAINTENANCE

DECLARATION OF CONFORMITY

This device complies with EU Low Voltage Directive 2014/35/EC.

Directive of Electromagnetic Compatibility 2014/30/EU.

Directive 2015/863/EU on the restriction of the use of

certain hazardous substances in electrical.

DECLARATION DE CONFORMITE

This symbol on the product or on the packaging indicates that this product can't be disposed as normal rubbish or household waste. All the electrical, electronic equipment's and battery-operated units must recycle in proper manner and according to the local municipal laws. You can recycle them by taking them to government authorized disposal centres or specialized bins which you can find in any nearby big super markets, electronics or electro domestics products stores or malls who have these types of facilities available.

Designed by: SOGO based on European quality standards

Imported by: Sanysan Appliances S.L, NIF: B98753056, C/ Barcas,

2, 2, 46002 Valencia, Spain

Product manufactured in CHINA.

After-sales service: www.sogosat.com [e-mail]/0034 902 222 161
