SS-3540 - Lawn mower Sogo - Free user manual and instructions

Product type	Body and nose trimmer
Brand	Sogo
Model	SS-3540
Power supply	Rechargeable battery 3.7 V, 600 mAh
Input voltage	110-240 V~
Power adapter	DC 5 V, 1 A (not included)
Power	5 W
Charging time	1.5 hours
Runtime	1.5 hours
Protection rating	IPX7 (immersion up to 1 meter, 30 minutes)
Blade material	Stainless steel
Cutter material	Ceramic
Cutting combs	4 combs: 1.5 / 2.5 / 3.5 / 4.5 mm
Included accessories	Nose hair cutting head, cleaning brush, oil bottle, charging base
Use	Cordless, for body and nose hair
Cleaning	Rinseable under water (cutting head)
Safety	Automatic shutoff in case of overload, replacement blade available
Weight	Approx. 100 g (estimated)
Dimensions (L x W x H)	Approx. 15 x 4 x 3 cm (estimated)

Frequently Asked Questions - SS-3540 Sogo

How to charge the Sogo SS-3540 trimmer?

Make sure the device is turned off. Connect the USB Type-C cable to the device or charging base, then plug the power adapter (not included) into a 100-240 V outlet. The LED indicator shows charging. Full charging takes about 1.5 hours.

Can the trimmer be used in the shower?

No, do not use it in the shower. The device is water-resistant (IPX7) but only for rinsing the cutting head. Never immerse the housing in water.

How to clean the trimmer?

Turn off the device and remove the comb. Blow off the hairs, then rinse the blade and comb under warm water while briefly running the device. Shake off excess water and let air dry. Do not use abrasive cleaners.

What accessories are included?

The trimmer comes with a nose hair cutting head, a cleaning brush, an oil bottle, a charging base, and 4 cutting combs (1.5 / 2.5 / 3.5 / 4.5 mm). The power adapter is not included.

How to change the cutting length?

Turn off the device before inserting a comb. Insert the comb into the stopped part of the housing, then slide it up and down to select the desired length (1.5 to 4.5 mm). Then turn on the device.

Is the trimmer suitable for pet hair?

No, this product is designed only for human hair (body and nose). Do not use on animals.

What to do if the blade is damaged?

Immediately replace the blade with an original part. Do not use the device with a deformed or damaged blade, as this may cause skin irritation.

How long does the battery last?

The battery provides a runtime of about 1.5 hours after a full charge of 1.5 hours. The capacity is 600 mAh.

Can I use the trimmer while plugged in?

No, the device operates only cordlessly on battery. It cannot be used while charging.

How to maintain the blade?

After each use, clean the blade with warm water and let it air dry. Regularly apply a drop of the provided oil to the blade to maintain performance. Do not wipe with a towel.

USER MANUAL SS-3540 Sogo

EN Instructions for use

FR Mode d'emploi

Download your manual

Declaration of conformity, Responsibility of Electronic products disposal, Importers Details and After-sales service on the last pages.

• Always read the instruction book carefully before using. This manual can be downloaded from our web page www.sogo.es
• Keep these instructions for future reference.

2. Safety instructions for the user

! General precautions during the use of electrical equipment

• Do not use the appliance for any other purpose than described in this manual.
• Do not use or store the appliance outdoors.
• Always place the appliance on a flat and even surface.
• The unit must be used only for the intended purposes. No liability is accepted for damages arising from improper use or wrong handling. Misuse or improper handling may cause problems in the appliance and cause injury to the user.
• This appliance is intended to be used in household and similar applications.
• Ensure that the voltage indicated on the nameplate matches the mains voltage before plugging in the appliance.
• Always remove the plug from the power socket when the appliance is not in use. Do not leave the appliance unattended when switched on.
• Close supervision is necessary

when any appliance is being used by or near children.

• Before cleaning or storing your appliance, always unplug the appliance from the power supply and let it cool down.
• The device is not completely disconnected from the power source, even after it has been turned off. To disconnect it completely, disconnect it from the mains plug.

Restrictions on use to avoid personal injury

• Do not place or operate this appliance near water sources.
• Do not place or operate the appliance and its power cord on or near hot surfaces (e.g., stove plates) or open flames.
• Do not leave the power cord hanging from sharp edges and keep away from hot objects and flames. Do not wind the cord around the appliance and do not bend it.
• Never use accessories that are not recommended by the manufacturer.
• The use of accessories not recommended or sold by the appliance manufacturer may result in fire, electric shock or injury to persons.
• When you want to remove the plug from the wall contact, please do this at the plug itself and not by pulling on the cable or the appliance itself.
• To avoid electric shock, make sure your hands are dry before plugging or unplugging.
• Do not use the device with wet hands, on damp floors or when the atmosphere is humid, there is a risk of electric shock.
• Never immerse the appliance or the plug in water or any other liquid. In the event of the appliance falling in water, disconnect immediately from the mains supply and take it to an authorized service agent for repair before reusing.
• Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.
• Do not use the appliance if the cable or plug is damaged. In case the cord is damaged, it must be replaced only by the manufacturer, its service agent or similarly qualified persons in order to avoid hazard.
• In case of appliance malfunction, or if it has been damaged in any manner, return the appliance to the nearest authorized service facility for examination, repair or adjustment.
• Do not immerse the main body, power supply cord or plug in water or any other liquids. Care should be taken to avoid spillage on the electrical components, power cord and plug.
• Neither immerse the housing, which contains electrical components and the heating elements in water, nor rinse it under the tap.
• Do not let the motor unit, cord or plug get wet to protect against risk of electric shock.

Restrictions on use when with children and elders

• Children should be supervised to ensure that they do not play with the appliance.
• Keep the appliance and its cord out of the reach of the children. Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
• Do not allow the children to use the appliance.
• Appliances can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instructions concerning use of the appliance in a safe way and understand the hazards involved.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless instructed concerning use of the appliance by a person responsible for their safety

Instructions to follow when using the appliance

If the blade is deformed or damaged, please do not use it again, as it may cause skin irritation. The blade has a fixed lifespan. For best results, we recommend replacing the blade regularly. - Please do not charge at temperatures below 0°C (32°F).

(104°F), in direct sunlight, or near heat or humid sources.

• Please use the matching power cord.
• Please dry the hair trimmer before charging.
• Store in a dry place to avoid damage.
• Do not pull, twist, or bend the power cord.
• Do not trim in the shower.
• This product is not suitable for animal hair or other purposes.
• The appliance has a waterproof sealing ring and is waterproof, so it can be rinsed under the faucet, but do not soak it in water.

CLEANING AND MAINTENANCE

Please refer to the cleaning and maintenance section for details on how to clean electronic equipment.

3. TECHNICAL SPECIFICATIONS

Input voltage: 110-240V~ Adapter: DC5V/1A (not included) Power: 5W Battery capacity: 3.7V, 600mAh Charging time: 1.5H Working time: 1.5H Protection: IPX7

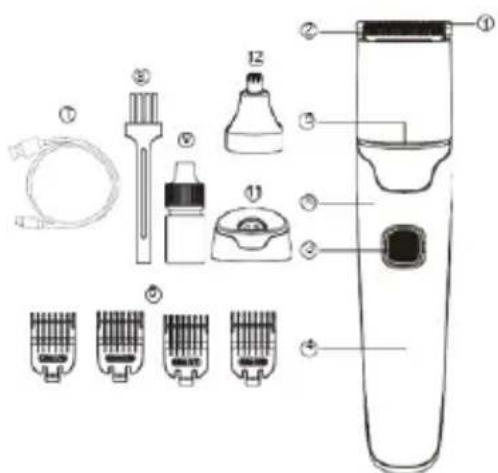

1. PARTS DESCRIPTION
2. Stainless steel blade
3. Ceramic knife
4. ON/OFF switch
5. LED display
6. LED light indicator
7. Cut-guide combs (1.5/2.5/3.5/4.5mm)
8. Type C charging cable
9. Cleaning brush
10. Oil bottle
11. Waterproof sealing ring
12. Charging base
13. Nose hair trimming head

IPx7 protection

This product is provided with an IPX7 waterproof protection, meaning it can withstand immersion in water up to 1 meter deep for up to 30 minutes without damage.

5. INSTRUCTIONS FOR USE

Before the first use

Always check the product and all accessories before using. Do not use the product or any accessory if it is damaged, as this may cause injury. Always replace a damaged part with one of the original types.

This product is only for use on body hairs, nose hairs, side burns etc..

Note: This product is for cordless use. - Use this product for its intended household use as described in this manual. - For hygienic reasons, the product should only be used

by one person.

• Trimming is easier when the skin and hair are dry.
• Be careful when trimming without a comb as the product will trim every hair it touches when it is turned on.
• Use the product to trim, edge or shave facial hair (beard, moustache and sideburns). Shave for a smooth result, trim to obtain a certain length and edge to create perfect edges and sharp lines. Take your time when you first start to use the product.
• Before using the hair trimmer for the first time, it must be charged completely. Make sure that the LED display shows full battery charged and the device is switched off during charging.
• The device is equipped with a type C USB charging cable for convenient charging, you can also use the charging base to charge it. When using the charging base to charge, you need to connect the cable to the base. The charging symbol on the display will flash and indicate the amount of power, the charging time is about 1.5 hour, and the operating time is about 1.5 hour.

How to use the beard Trimmer

• The device has 4 different size combs (1.5/2.5/3.5/4.5 mm).
• Turn off the power when inserting the comb attachment.
• Insert the comb attachment from the cutting blade head into the back of the body buckle. Secure with a slight click.
• Select the comb attachment from top to bottom until you find the appropriate length.
• Point the blade head in the direction of hair growth when cutting.

CHARGING

Charging takes approx. 1.5 hour. Charging or using the product at temperatures below 40°F (4.5°C) or higher than 95°F (35°C) adversely affects the lifespan of the battery. If the product is subjected to a major change in temperature, pressure or humidity, let the product acclimatize for 30 minutes before use.

Charging with the charge adaptor with USB cable

1. Make sure the product is switched off.
2. Insert the small plug into the product charge connector and put the USB cable to an adaptor in any 100-240V AC outlet.
3. After charging, remove the adaptor from the wall outlet and pull the small plug out of the product.

6. CLEANING AND MAINTENANCE

Clean the product after every use. Never use scouring pads, abrasive cleaning agents or aggressive liquids such as gasoline or acetone to clean the product. Do not tap the product or blade against a surface to remove hairs as this may cause damage to the product and blade. If the blade is damaged, replace immediately. Never dry the blade with a towel or tissue, as this may cause damage.

Cleaning the product

1. Turn off the product.
2. Remove the comb from the blade
3. Blow off any hairs that have accumulated on the blade and/or comb.
4. Switch on the product briefly while rinsing the blade with lukewarm water
5. Rinse the comb with lukewarm water.
6. Carefully shake off excess water and let all parts air dry completely.

Note: The blade is fragile. Handle it carefully. Replace the blade immediately if it is damaged.

STORAGE

• Always attach the precision trimming comb on the blade to protect the blade from damage during traveling or storage
• Be sure the product is turned off. Remove cord from outlet and the product before storing it in a safe, dry location where it will not be crushed, banged, or subject to damage.
• Do not wrap cord around the product when storing. Store cord in a safe location where it will not be cut or damaged.
• Do not place or store the product where it can fall or be pulled into a tub or sink, water or other liquid while plugged in.

Disposal of electronic devices

DISPOSAL OF BATTERY-POWERED UNITS

Do not dispose of battery-powered units as normal waste; they must always be recycled properly and in accordance with local municipal laws. You can recycle them by taking them to government-authorised disposal centres or specialised containers found in large supermarkets, electronics or appliance stores, or nearby shopping centres that have such facilities.

1.Important:

He BnKOpncToBvIe npnaIad

Дябдь-якnx iHux zinei, Okpim Tnx, lo OnilcaHi B cboMy nocioHNky.

He BnKopncToBvIte I He 36epiraTe npnilad Ha BiDkPntOMy nobiTpi. 3aBxDn BCTaHOBIOIte npnaHa nlocki i pIBni NOBepxHI. - Прплад поинец ВИКОПСТОВУВАТИССТIЛьКИ 3a ПриЗначеням. ВИробник He Hece ВIDNOВДАЛБНOCtI 3a NOШKOДжЕнHA, ШО ВИнIKПИ BHAСПIDOK HeHaJIeЖHOrO BИKОПСТаHHЯ a6o HeNPaВильHOrO NOВДжЕнHA 3 PrPnIaDOM. HeNpRaBиьHe ВИКОПСТаHHЯ a6o HeHaJIeЖHe ПОВДжЕнHA 3 PrPnIaDOM MOZe ПриЗЗВECTI Do INoTO HeCnPaBHOCTi Ta ТразВмУВанHA KOPINCTUBAчA. - Zei npilad npn3naeHn dIy BnKOpNCTaHHB DOMaShhOBMy roCNoapCTBi Ta iHx NODi6Hnx ciJax. - Першниж увимкуну полад у мереку, посяно наюпся, сю наруга, заоначени на заюдький tabличи, вдноюас нарузіВ

eNeKtpomepexi.

3aBXdN BnMaTe BNkUy 3 PO3eTKn, KOJI npIaH He BnKOpNCTOByEcY. He 3aIIuAaTe yBIMKHeHn npIaH 6e3 HaJy. Пильний Наглад Heo6xidHni, KOJIb 6yDb-ЯКIM npnlaDOM KOpNCTyIOTBcA DiTn a6O nepe6yBaHO TB Nopyu 3 Hm. - Перед чишиеним abo 3бериганням риладу 3аьждn BIDКЛючайte noro BID eLEKtpomepexki Ta daIte ИOMy OXOLOHyTN. - Ppnilad He BiD'edHaHn BID dKepeJa XnBJIeHHr NOBHICTIO, HABITb NiCJr TORO, RaK BiH 6yB BnMKHeHn. Iio6 NOBHicTIO BiD'EDHaTN NoTO, BNTaRHiTb BNlKy 3 PO3eTKI. OqMexKeHnI ΣoI O BnKOpN-CTaHHI dJIyHnKHeHHa TpaBM He po3miiyute Ta He BnKOpNCTOByTe cei npnaI no6n3y dKepeI BOn. He po3miuyei He BnKOpNCToByTe npiaT a noTO uHyp KnBJeHHa rapyHX NOBepxHx (Ha npNKpaI, Pntax) a6o nO6n3y Hnx, a TaKox nO6n3y BiDkPNToro Nolym' He 3aIIuAte UHyp KINBJeHHa 3BnCatN 3 roCTpIX KpaIB i TpMaTe IoIaI BiD rapaYnx PpeImeTiB i IOnyM'a. He HAMOTyIte UHyp HABKOLO npIaNady i He 3rHaTe Noro. Hikon He BnKOpNCTOByIte aKceCyapn, He peKOMeHDoBaHi BnPo6HnKOM. BnKOpncTaHnA kceCyapiB,He peKOMeHDoBaHnx a60 He npOdaHnx BnPo6HnKoMpIaNy,MOKe npN3BeCTn Do nOxEkei,ypaJKeHHa eJeKtpuHm CTpyMOM a6o TpaBMyBaHnAJIoDei.

- When unplugging the plug from the socket, pull the plug itself, not the cable or the device. - To avoid electric shock, make sure your hands are dry before inserting or removing the plug from the socket. Do not use the device with wet hands, on a wet surface, or in conditions of high humidity - there is a risk of electric shock. Never immerse the device or the plug in water or any other liquid. If the device falls into water, immediately turn off the power supply and take it to an authorized service center for repair before reusing it. Do not use the device if it has fallen into liquid, has visible signs of damage, or is leaking. Do not use the device if the cable or plug is damaged. If the cable is damaged, to avoid danger, its replacement must be carried out only by the manufacturer, its service agent, or qualified persons. - If the device malfunctions or has been damaged in any way, return the device to the nearest authorized service center for inspection, repair, or adjustment. Do not immerse the main body, the cord, or the plug in water or other liquids. Be careful

to prevent liquid from getting on electrical components, the cord, and the plug.

Do not immerse the body, which contains electrical components and heating elements, in water, and do not rinse it under a tap. Do not allow the motor, cord, or plug to get wet to avoid the risk of electric shock.

Restrictions on the use of the device by children and persons with reduced capabilities

- Children should be supervised to ensure they do not play with the device. Keep the device and its cord out of reach of children. - Children should not play with the device. - Cleaning and maintenance of the device should not be performed by children without adult supervision. Do not allow children to use the device. - The device can be used by children aged 8 and above, as well as persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge, if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. - This device is not intended for use by persons (including children) with reduced physical, sensory, or mental

capabilities, as well as persons with insufficient experience and knowledge, unless they have received instructions on the use of the device from a person responsible for their safety.

Instructions that they should receive in due course

Do not use the trimmer without the blade guard, as it may cause damage to the skin. The device has a limited service life. For best results, it is recommended to regularly charge the device. Do not charge the device at temperatures below 0°C (32°F), with direct sunlight, or near a heat source. Use the appropriate charger. - Before use, dry the trimmer after washing. Store in a dry place to avoid damage. Do not pull, twist, or bend the power cord. Do not use the trimmer under the shower. - This product is not intended for use on animals or other purposes. - The device has waterproof sealing rings that protect against water, so it can be rinsed under the tap, but not submerged in water.

3. TECHNICAL SPECIFICATIONS

Input voltage: 110-240 V~

Adapter: DC5V/1A (not included in the kit)

Power: 5 W

Battery capacity: 3.7 V, 600 mAh

Charging time: 1.5 hours

Operating time: 1.5 hours

Protection: IP7

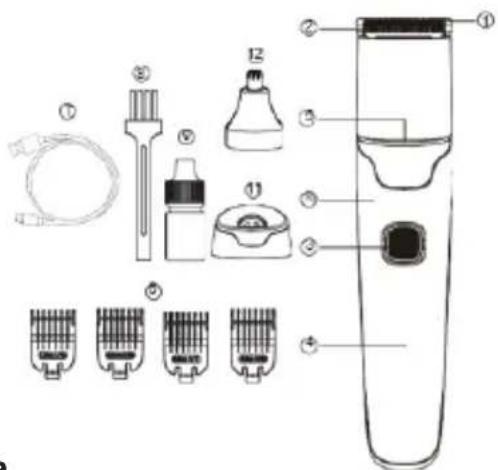

4. DESCRIPTION OF PARTS

1. Stainless steel blade
2. Ceramic blade
3. Switch
4. Light indicator
5. Light indicator
6. Guide combs (1.5/2.5/3.5/4.5 mm) 7. Charging base
7. Charging cable 9. Oil cap
8. Waterproof rubber rings
9. Spare base 12. Nose hair trimmer attachment

3a

The device is protected against water IPX7, which means it can withstand immersion in water up to 1 meter deep for 30 minutes without damage.

5. OPERATING INSTRUCTIONS

Before use

Before using, check the device and all accessories. Do not use the device or any accessory if it is damaged, as this may cause injury. Replace damaged parts with original ones.

The device is intended exclusively for trimming hair on the head, nose hair, and beard.

Note: This device is intended for cordless use.

-Use this device only for its intended purpose as described in this manual. -For safety reasons, the device must be used by only one person. -Trimming should be done only when the hair is dry. -Be careful during trimming without a comb, as the device trims each hair it touches when turned on. Use the device for trimming, cutting, or shaping facial hair (beard, mustache, and sideburns). The fine blade ensures a smooth result; trimming allows you to achieve a certain length, and cutting creates neat edges and clear lines. Do not rush when you start using the device for the first time. -Before using the trimmer, the hair must be completely dry. Make sure that the display shows a full battery charge, and the device is unplugged during charging. -The device is equipped with a USB Type-C charging cable for convenient charging; you can also use a charging base. When charging with the charging base, you need to connect the cable to the base. The charging symbol on the display will light up and show the charge level; charging time is approximately 1.5 hours, and operating time is approximately 1.5 hours.

The trimmer is intended for personal use only. - It is best to perform trimming when the skin and hair are dry. - Be careful during trimming without a comb, as the trimmer cuts each hair it touches when turned on. Use the trimmer for trimming, shaving, or shaping the face (beard, mustache, and sideburns). This ensures a smooth result; trimming allows you to achieve a certain length, while shaving creates ideal edges and clear lines. Do not rush when you start using the trimmer for the first time. - Before first use, the battery must be fully charged. Make sure that the full charge indicator is displayed on the display, and the device is turned off during charging. - The device comes with a USB charging cable for convenient charging; you can also use a charging base. When charging with the charging base, you must connect the cable to the base. The charging symbol on the display will light up and show the charge level; charging time is approximately 1.5 hours, and operating time is approximately 1.5 hours.

Using the trimmer for beard

Attach combs of different sizes (1.5/2.5/3.5/4.5 mm).

Remove the blade from the device before inserting the comb attachment. Insert the comb attachment onto the device head and push it into the front part of the housing. Secure it with a light click. Select the comb attachment with the teeth facing up until you find the correct length. During use, move the head in the direction of hair growth.

CHARGING

Charging takes approximately 1.5 hours. Charging or using the device at temperatures below 40°F (4.5°C) or above 95°F (35°C) negatively affects battery life. If the device is exposed to extreme temperatures, shock, or moisture, let it warm up or cool down for 30 minutes before use.

Charging with the charging adapter and USB cable

1. Turn off the device before charging.
2. Insert the small plug into the charging socket of the device and connect the USB cable to the adapter, then plug the adapter into a 100-240 V wall outlet.

After charging, unplug the adapter from the outlet and remove the small plug from the device.

6. CLEANING AND MAINTENANCE

Clean the device after each use. Never clean the device with abrasive cloths, abrasive cleaning agents, or aggressive liquids such as acetone or alcohol. Do not tap the device or blade against surfaces to remove hair, as this may damage the device and blade. If the blade is damaged, replace it immediately. Never dry the blade with a towel or tissue, as this may cause damage.

Cleaning the device

1. Turn off the device.
2. Remove the comb attachment from the blade.
3. Remove any hair that has accumulated on the blade and/or comb.
4. Briefly turn on the device and rinse the blade under warm water. 5. Rinse the comb with warm water. 6. Carefully shake off excess water and allow all parts to air dry completely.

Note: The blade is sharp. Handle it with care. Replace the blade immediately if it is damaged.

Attach the comb for fine cutting to the device, so that the device is protected from damage during storage or transportation, before the attachment is removed. Disconnect the plug from the socket and from the device before storing it in a safe, dry place, where it will not be pressed, hit, or damaged. Do not wrap the cord around the device for storage. Store the device in a safe place, where it will not be pressed or damaged. Do not place or store the device in a place where it can fall or be pulled into a bathtub, sink, water, or other liquid, while it is connected to the power supply.

Disposal of electronic devices Disposal of devices that operate on batteries

Do not dispose of devices that operate on batteries together with normal household waste; they must be disposed of properly in accordance with local laws. You can dispose of them by taking them to government recycling centers or specialized containers that can be found in large supermarkets, electronics or appliance stores, or shopping centers that have such collection points.

1. Important:

DECLARATION OF CONFORMITY

This device complies with EU Low Voltage Directive 2014/35/EC.

Directive of Electromagnetic Compatibility 2014/30/EU.

Directive 2015/863/EU on the restriction of the use of

certain hazardous substances in electrical.

DECLARATION DE CONFORMITE

This symbol on the product or on the packaging indicates that this product can't be disposed as normal rubbish or household waste. All the electrical, electronic equipment's and battery-operated units must recycle in proper manner and according to the local municipal laws. You can recycle them by taking them to government authorized disposal centres or specialized bins which you can find in any nearby big super markets, electronics or electro domestics products stores or malls who have these types of facilities available.

Designed by: SOGO based on European quality standards

Imported by: Sanysan Appliances S.L, NIF: B98753056, C/ Barcas,

2, 2, 46002 Valencia, Spain

Product manufactured in CHINA.

After-sales service: www.sogosat.com, [e-mail] / 0034 902 222 161
