USER MANUAL SS-3455 Sogo

SOGO Caring lengths can be probably combined to 1.1 mm Glegance CHANGE

Máquina Corta Pelo Recargable Rechargeable Hair Clipper Tondeuse à Cheveux Rechargeable Aparador de Cabelo Recarregável Tagliacapelli ricaricabile Wiederaufladbare Haarschneider

Technical diagram of a hairbrush with labeled parts including brush, comb, and accessories

Illustration of a hand holding an electrical socket connected to a wall-mounted power outlet (no text or symbols)

fig (3)

Simple line drawing of a tool tip and base with no text or symbols

fig (4)

Diagram of a mechanical device with hands operating it, showing internal components and directional arrows (no text or symbols)

fig (5)

Illustration of a hand turning a car with a downward arrow indicating motion (no text or symbols)

fig (6)

Simple line drawing of a refrigerator with vertical panes and a side drawer (no text or symbols)

fig (7)

"8" mm ▲ mm

fig (8)

ON ↑ ON

fig (9)

Illustration of a hand holding a tool with a checkmark, no text or symbols present

fig (10)

Hand holding a brush with a circular mark and a prohibition symbol (no text or labels)

fig (11)

Illustration of a hand turning a car with a right-handled arrow (no text or symbols)

fig (12)

Illustration of a hand holding a tool with arrows indicating motion (no text or symbols)

fig (13)
fig (14) fig (15)

Illustration of a hand holding a tool interacting with a mechanical component (no text or symbols visible)

Hand holding a computer monitor with a screwdriver inserted (no visible text or symbols)

Illustration of two hand-drawn figures in a garment, one holding a tool and the other applying a zipper (no text or symbols)

Illustration of two medical forceps inside a circular frame (no text or symbols)

fig (16)

Illustration of a hand holding a small electronic device with multiple steps shown in sequence (no text or symbols present)

• This manual can also be downloaded from our web page www.sogo.es
• If the blade is deformed or damaged, please do not use it again, or it may cause skin irritation.
• The blade has fixed life. In order to obtain best result, we recommend you to replace the blade regularly.
• Please do not charge at the place with temperature lower than 0 oC (104 oF), direct sunlight or near heat or humid source.
• Please use the matching power line.
• Please dry the hair trimmer before charging.
• Keep the hair trimmer far away from water source, keep your hands dry during the course of charging.
• When you unplug the power cord from AC power supply, pulling too hard may damage the appliance.
• Store in the dry place as to avoid damage.
  · Do not pull, twist or bend the power cable.
  · Do not twist the power cord firmly to the

appliance.

• Do not trim in the shower.
• The hair trimmer cannot use water or other liquids to clean, this product is not waterproof.
• This product is not suitable for animal hair or other purposes.
• Put it to the place out of reach of children.
• Keep the instruction to safe place.
• Please contact the authorized after-sale service for any maintenance and damage question.
• Children under 8 is not allowed to use this product, or the person with physiological disorder or mental disease or lack of experience shall be supervised to operate this products, and shall be informed of relevant dangers.
• Children shall not play with products.
• Children shall not clean and repair this product without supervision.
  Keep the equipment dry when you no longer use.
• Before removing the battery, you must

unplug the power cord, make sure the product has been disconnected, otherwise it will likely cause electric shock.

- Safely dispose the battery.

Technical diagram of a hairbrush with labeled parts including brush, comb, and vial

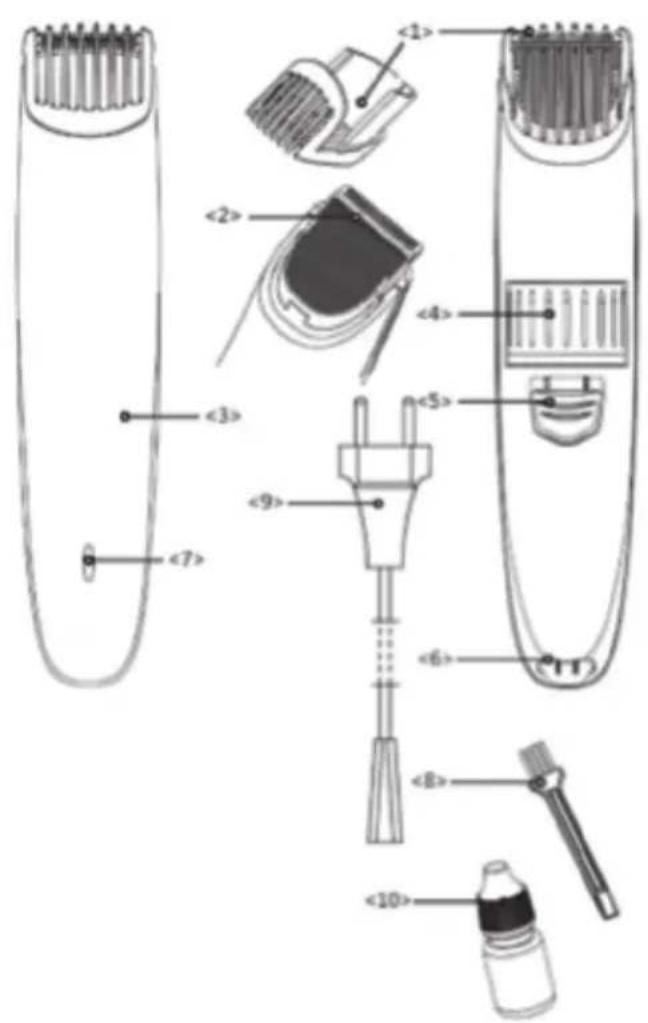

PART LIST

1. Position comb
2. Blade
3. Body
4. Regulator
   5.ON/OFF Switch
5. Power port
6. Chargue indicator
7. Cleaning brush
8. Power line
9. Lube

fig (1)

OFF OFF

fig (2)

Illustration of a hand holding an electrical plug next to a wall-mounted socket (no text or symbols)

fig (3)

Simple line drawing of a tool tip interacting with a clip (no text or symbols)

fig (4)

Diagram of a mechanical device with hands operating it, showing internal components and directional arrows (no text or symbols)

fig (5)

Illustration of a hand turning a car with a downward arrow indicating motion (no text or symbols)

fig (6)

Simple line drawing of a refrigerator with a side panel and a cup (no text or symbols)

fig (7)

"8" mm ▲ mm

fig (8)

ON ↑ ON

fig (9)

Illustration of a hand holding a tool with a checkmark, no text or symbols present

fig (10)

Hand holding a brush with a circular mark and a prohibition symbol (no text or labels)

fig (11)

Illustration of a hand turning a car with a right-handled arrow (no text or symbols)

fig (12)

Illustration of a hand holding a tool with arrows indicating direction (no text or symbols)

fig (13)
fig (14) fig (15)

Illustration of a hand using a tool to cut a cylindrical object with internal components (no text or symbols visible)

Illustration of a hand holding a computer with a screwdriver inserted (no text or symbols visible)

Line drawing of two hand positions: one holding a tool, the other holding a clip (no text or symbols)

Illustration of two medical forceps inside a circular frame (no text or symbols)

fig (16)

Illustration of a hand holding a small electronic device with multiple steps of assembly (no text or symbols)

Stop to use the hair trimmer if it has low power, charge it for 8 hours, the shaver could be used for about 35 - 40 minutes after fully charged.

Recommendation : the hair trimmer can continue to use about 35 - 40 minutes after fully charged, but we recommend you charge the hair trimmer when continuous use for 30 minutes or you feel the reduction in the power, you should not wait for the unit to be completely discharged to recharge, it helps to extend the life of the hair trimmer.

Attention during the charging course:

· Never use this hair trimmer in the bathroom or shower room.
- Charge the appliance in a location where it will not be exposed to direct sunlight or other heat sources, at temperature of 5oC to 35oC.
- Plug the power line into a household main socket where there is no moisture and handle it with dry hands.
· Do not damage or deform the power line, do not place heavy objects on the power line.
- Do not use the appliance if the power line or power cord is worn, or if the power cord do not fit snugly in the hair trimmer coupling.

Charging the appliance:

• Push the switch to "OFF" to turn off the hair trimmer (fig 1).
• Plug the power line into household main socket (fig 2).
• Plug the power line into the power port of the hair trimmer (fig 3).
• When the charge connection is normal, the hair trimmer indicating light turns on, the charge indicating light must turn on during the course of charge. If the light fails to turn on, please try again and make sure normal charge.
• Please remove the power line after 8 hours charge.

Attention: when you make first charge or the hair trimmer is out of use over 3 month, please charge for 16 hours.

HOW TO USE

Please read the safety instruction carefully before using our hair trimmer.

• Push the switch to "OFF" to turn off the hair trimmer (fig 1).
• Please check and make sure the blade is not damaged or have other foreign matters.
• Please apply the oil at the blade before each use (fig 4).
• Please attach the position comb to the hair trimmer (fig 5).
• Adjust the position comb according to your desire (fig 6, fig 7).
• Push the switch to "ON" to turn on the hair trimmer (fig 8, fig 9).
• Please turn off the hair trimmer after using (fig 10).

Important: Please do not use the hair trimmer in an inverted position, this can cut hair too deeply!

Trimming without position comb

Trimming your hair without an attachment will trim hair length to approx. 0.5 mm, you have to first remove the attachment combs (fig 11)

Important: Do not press firmly while trimming, this may damage your scalp.

HOW TO CLEAN

Pay attention to following points before cleaning:

• Ensure the hair trimmer is turned off and the power cord is cut off.
• Please clean the hair trimmer surface with wet cloth, do not use cleaner or chemical substance.
  · Wipe the hair trimmer surface with dry cloth, do not use blower or other dry heat exchange.
  · The hair trimmer should not be cleaned by immersing into water.

Explanation on cleaning

• Push the switch to "OFF" to turn off the hair trimmer (fig 1).
  · Take off the position comb (fig 11).
• Hold the main body, place your thumb against the blades and then push them away from the main body (fig 12).
• Brush off any trimmed hair beneath the blade (fig 13).
• Brush off any trimmed hair from the blade (fig 14).
• Put the blade back in place after cleaning. (fig 15)

COMMENTS

- Service life of the blade: supposed the hair trimmer is used 4 times every month, and each time 20 minutes, the service life is 2 years.

Attention:

• If you feel the blade has become dull during the course of trimming, (hair pulling feeling), you need to replace the blade.
  · We recommend you clean the mustache hair bits in the blade with brush, or it may cause service life reduce of the blade or bad effect.
  · Whether or not you use the hair trimmer all the time, please charge and discharge at least once every 6 month to prolong the service life of battery.

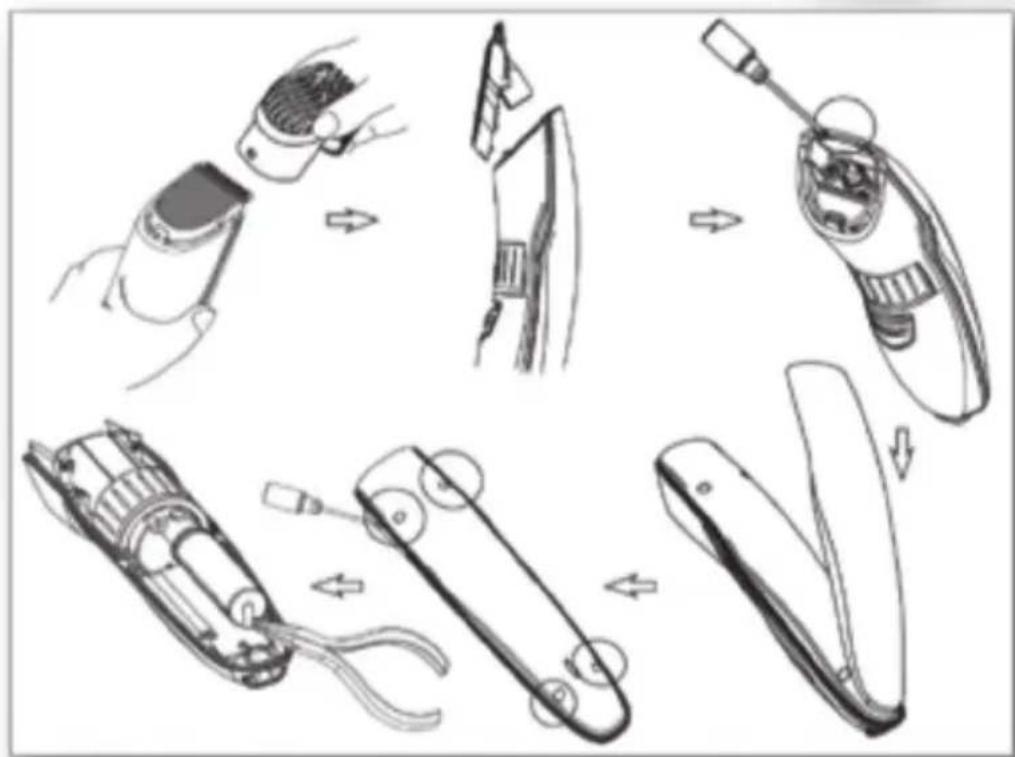

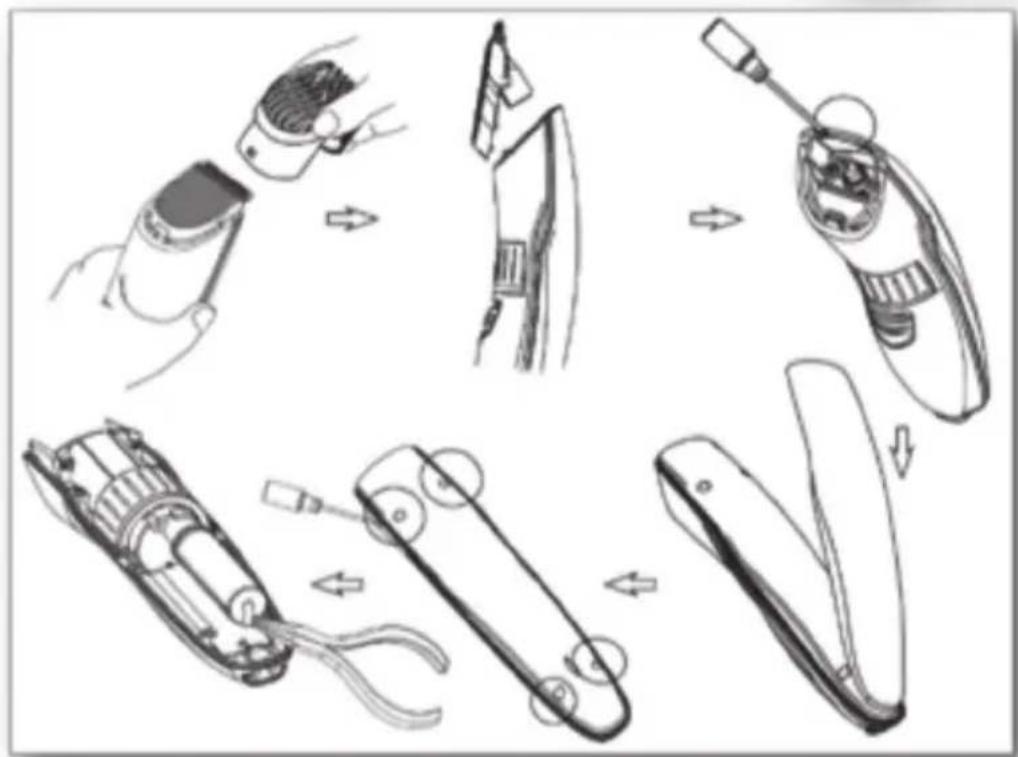

Important: please remove the battery when you discard the product (fig 16).

TECHNICAL SPECIFICATION

Model: SS-3455

Description: RECHARGEABLE HAIR CLIPPER

Input of Clipper: DC 6V 100Ma

Input of power line: AC 220-240V \~ 50Hz

AVERTISSEMENT

Technical diagram of a hairbrush and brush tool with numbered parts labeled from 1 to 10

DESCRIPTION DES PIÈCES

Illustration of a hand holding an electrical plug next to a wall-mounted socket (no text or symbols)

fig (3)

Simple line drawing of a tool tip interacting with a clip (no text or symbols)

fig (4)

Diagram of a mechanical device with hands operating it, showing internal components and directional arrows (no text or symbols)

fig (5)

Illustration of a hand turning a car with a downward arrow indicating motion (no text or symbols)

fig (6)

Simple line drawing of a refrigerator with a side panel and a cup (no text or symbols)

fig (7)

"8" mm ▲ mm

fig (8)

ON ↑ ON

fig (9)

Illustration of a hand holding a tool with a checkmark, no text or symbols present

fig (10)

Hand holding a brush with a circular mark and a prohibition symbol (no text or labels)

fig (11)

Illustration of a hand turning a car with a right-handled arrow (no text or symbols)

fig (12)

Illustration of a hand holding a tool with arrows indicating motion (no text or symbols)

fig (13)
fig (14) fig (15)

Illustration of a hand using a tool to cut a cylindrical object with internal components (no text or symbols visible)

Hand holding a computer monitor with a screwdriver inserted (no visible text or symbols)

Line drawing of a hand holding a tool, showing a close-up of the blade and handle (no text or symbols)

Illustration of two medical forceps inside a circular frame (no text or symbols)

fig (16)

Exploded view diagram of a hairless device showing internal components and assembly steps (no text or labels)

EXPLICATION SUR CHARGE

Technical diagram of a hairbrush with labeled parts including comb, brush, and accessories

DESCRIÇÃO DAS PEÇAS

Illustration of a hand holding an electrical socket connected to a wall-mounted power outlet (no text or symbols)

fig (3)

Simple line drawing of a tool tip and base with no text or symbols

fig (4)

Diagram of a mechanical device with hands operating it, showing internal components and directional arrows (no text or symbols)

fig (5)

Illustration of a hand turning a car with a downward arrow indicating motion (no text or symbols)

fig (6)

Simple line drawing of a refrigerator with vertical panes and a side drawer (no text or symbols)

fig (7)

"8" mm ▲ mm

fig (8)

ON ↑ ON

fig (9)

Illustration of a hand holding a tool with a checkmark, no text or symbols present

fig (10)

Hand holding a brush with a circular mark and a prohibition symbol (no text or labels)

fig (11)

Illustration of a hand turning a car with a right-handled arrow (no text or symbols)

fig (12)

Illustration of a hand holding a tool with arrows indicating motion (no text or symbols)

fig (13)
fig (14) fig (15)

Illustration of a hand using a tool to cut a cylindrical object with internal components (no text or symbols visible)

Hand holding a computer monitor with a screwdriver inserted (no visible text or symbols)

Line drawing of a hand holding a tool, showing a close-up of the blade and handle (no text or symbols)

Illustration of two medical forceps inside a circular frame (no text or symbols)

fig (16)

Exploded view diagram of a hairless device showing internal components and assembly steps (no text or labels)

EXPLICAÇÃO DE CARGA

Technical diagram of a hairbrush with labeled parts including comb, brush, and accessories

Illustration of a hand holding an electrical socket connected to a wall-mounted power outlet (no text or symbols)

fig (3)

Simple line drawing of a tool tip interacting with a small object (no text or symbols)

fig (4)

Diagram of hands operating a device with arrows indicating direction (no text or symbols present)

fig (5)

Illustration of a robotic arm interacting with a car, showing motion and force (no text or symbols)

fig (6)

Simple line drawing of a refrigerator with a door and side panel (no text or symbols)

fig (7)

"8" mm

fig (8)

ON ↑ ON

fig (9)

Illustration of a hand holding a brush with a checkmark (no text or symbols present)

fig (10)

Illustration of a hand holding a brush with a circular symbol and a prohibition sign (no text or symbols present)

fig (11)

Illustration of a hand turning a car with an arrow indicating motion (no text or symbols)

fig (12)

Illustration of a hand holding a tool with arrows indicating direction (no text or symbols)

fig (13)
fig (14) fig (15)

Illustration of a hand using a tool to cut a cylindrical object with internal components (no text or symbols visible)

Illustration of a hand holding a computer with a screwdriver inserted (no text or symbols visible)

Line drawing of two hand positions: one holding a tool, the other holding a clip (no text or symbols)

Illustration of two medical forceps inside a circular frame (no text or symbols)

fig (16)

Illustration of a hand holding a small electronic device with multiple steps of assembly (no text or symbols present)

SPIEGAZIONE SULLA RICARICA

Technical diagram of a hairbrush and brush tool with numbered parts labeled 1 to 10

fig (1)

OFF OFF

fig (2)

Illustration of a hand holding an electrical socket connected to a wall-mounted power outlet (no text or symbols)

fig (3)

Simple line drawing of a tool tip interacting with a small object (no text or symbols)

fig (4)

Diagram of hands operating a device with arrows indicating direction (no text or symbols present)

fig (5)

Illustration of a robotic arm interacting with a car, showing motion and force (no text or symbols)

fig (6)

Simple line drawing of a refrigerator with a door and side panel (no text or symbols)

fig (7)

"8" mm

fig (8)

ON ↑ ON

fig (9)

Illustration of a hand holding a tool with a checkmark (no text or symbols present)

fig (10)

Illustration of a hand holding a brush with a circular symbol and a prohibition sign (no text or symbols present)

fig (11)

Illustration of a hand turning a car with an arrow indicating motion (no text or symbols)

fig (12)

Illustration of a hand holding a tool with arrows indicating direction (no text or symbols)

fig (13)
fig (14) fig (15)

Illustration of a hand using a tool to cut a cylindrical object with internal components (no text or symbols visible)

Illustration of a hand holding a computer with a screwdriver inserted (no text or symbols visible)

Line drawing of a hand holding a tool, showing two views (no text or symbols)

Illustration of two pliers and a screwdriver inside a circular frame (no text or symbols)

fig (16)

DECLARATION OF CONFORMITY

This device complies with Low Voltage Directive 2014/35/EC, Electromagnetic Compatibility Directive 2014/30/EU, Directive 2011/65/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

DÉCLARATION DE CONFORMITÉ

This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorised waste agent for the selective collection of waste electrical and electronic equipment (WEEE)

Imported by:

Sanysan Appliances S.L, NIF:

B98753056,

C/ Barcas 2, 2

46002 Valencia, Spain

Product made in P.R.C. - Designed

by SOGO based on the European

Quality Standards

Customer Service: www.sogosat.com

/ [e-mail] / 0034 902

222 161
