USER MANUAL Bolero DressCode Dry 3150V CECOTEC

Two white circular kitchen appliances against a solid teal background, no visible text or symbols.

Safety instructions 13

1. Parts and components 116
2. Before use 116
3. Installation 116
4. Operation 118
5. Cleaning and maintenance 119
6. Troubleshooting 120
7. Recycling of electrical and electronic equipment 121
8. Copyright 121
9. Simplified EU Declaration of Conformity 121

SOMMAIRE

EN • The coding in this manual is generic and applies to all code variants of the appliance.

Read the following instructions carefully before using the appliance. Keep this instruction manual for future reference or new users.

Symbol	Type Meaning
	WARNING Risk of serious injury or death
	RISK OF ELECTRIC SHOCK D	Dangerous voltage
	FIRE Warning: Risk of fire/	flammable materials
	CAUTION Risk of injury or	damage to property
	IMPORTANT/NOTE Information	tion on the correct operation of the system
	Read the instructions
	Hot surface

• This user manual contains information on safety and important instructions related to the use and maintenance of the appliance. Take all the time you need to read this user manual before using the appliance and keep it in case you need to check it in the future or for new users.

• Each dryer has been tested by a quality control before commercialisation, guaranteeing its conditions of use.

• The warnings contained in this instruction manual do not cover all possible risks that may occur. Caution and care must be exercised during installation, maintenance and operation of the dryer.

• This symbol means: CAUTION! Risk of fire.

- Children under 3 years old must stay away, unless they are supervised.

• This appliance is intended for domestic use only and is not suitable for use in commercial establishments such as bars, restaurants, farms, hotels, motels, and offices.
• Use this appliance only for clothes whose care label specifies they are suitable for dryer.
• Cecotec is not liable for damage caused by improper use or transport.
• The appliance must only be installed and repaired by Cecotec's Official Technical Support Service or by an authorised repair agent. Cecotec is not liable for damage caused by repairs by unauthorised personnel.
• WARNING: Never spray or pour water inside the dryer to clean it. There is a risk of electric shock.
• Do not let any animal near the dryer.
• Fabric softeners or similar products should be used according to the manufacturer instructions.
• Remove all the objects from the pockets: lighters, matches, etc.
• The appliance should not be installed behind a lockable door, a sliding door or a hinged door on the opposite side of the dryer door in such a way as to prevent the dryer door from being fully opened.
• WARNING: Keep ventilation openings in the appliance housing or built-in structure clear of obstruction.

• Install the dryer on a flat and stable surface.

• Do not install the tumble dryer in rooms with humidity, such as bathrooms, or outdoors.

• Run the dryer in an environment free from dust with good air ventilation.
• Once the dryer is installed, the connections must remain intact. When installing the tumble dryer, ensure the rear surface is not pressed against any objects (tap, socket, etc.).
• The operating temperature of the dryer ranges from 5 °C to 35 °C. When operating at temperatures outside this range, the operation may be adversely affected, and the appliance may be damaged. If the room temperature is below 0 °C, the dryer may be damaged by freezing.
• Be careful when transporting the tumble dryer. Always wear safety gloves.
• Do not place the dryer on the power cable.
• Do not place hot and heavy objects on top of the dryer.
• Do not misuse it, do not stand, sit or place any heavy object on the door of the dryer.
• Do not attempt to open the door while the dryer is in operation as there is a risk of burns. Do not leave the door open, as it could cause accidents.
• The tumble dryer door must only be opened after the drying programme has been completed. Do not force the controls.
• The dryer must only be used for its intended purpose as described in this manual.
• Do not use the tumble dryer if any parts are missing or broken or if any protections or panel have been removed.
• Do not touch the plug with your hands wet. Always pull the plug to disconnect the appliance, otherwise you may suffer an electric shock.
• Do not use the dryer with wet hands or wet bare feet.
• Unplug the dryer if it will not be used for a considerable

period of time and during installation, maintenance, cleaning and repair work. Failure to do so may damage the dryer.

• The socket must always be accessible after the installation.
• Check the power cable regularly for visible damage. If the power cord is damaged, it must be replaced by Cecotec's Official Technical Support Service or similar qualified personnel to avoid risks.

- A damaged cord/plug may cause a fire or electric shock. When damaged, it must be replaced. This should only be carried out by qualified personnel, Cecotec or the after-sales service, in order to avoid danger.

- To prevent any risk of fire or electric shock, do not use extension leads, multi-socket adapters or adapters to connect the dryer to the mains.

- When the dryer is in operation, do not unplug the power cable. When not in use, it is advisable to disconnect the plug, do not pull the power cable. Do not touch the power cable or plug with wet hands.

- This appliance can be used by children aged 8 and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge, as long as they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance of this appliance should not be carried out by children without supervision.

- Keep the packaging material out of the reach of children.

- Do not let unattended children come near the machine. Children could get trapped inside the appliance, which could lead to death.

- Keep children away from the machine while in use. The surface becomes extremely hot and could cause damage in the skin.

• Keep the cleaning material out of the reach of children. If detergent or cleaning materials are swallowed or come into contact with your skin or eyes, poisoning and irritation may occur.
• Do not allow children to seat or climb on or inside the product.

Product safety

- Due to the risk of fire, NEVER introduce in the dryer the following garments:

• Do not load unwashed garments.
• Garments that have been stained with substances such as cooking oil, acetone, alcohol, petrol, paraffin, stain removers, turpentine, waxes or wax removers, must be washed in hot water with an extra amount of detergent before tumble drying.
• Cleaning cloths and mats containing residues of flammable cleaning agents, acetone, gases, petrol, gasoline, stain removers, turpentine, waxes, wax removers, dry cleaning solvents or chemicals.
  o Garments with residues of hairspray, nail varnish remover and similar substances.
  o Garments that have been used for cleaning with industrial chemicals (as in chemical cleaning).
  o Garments containing parts or accessories with any type of foam, sponge, rubber or rubber-like material, such as latex foam sponges, shower caps, waterproof fabrics, custom-made clothing and foam pillows.
  o Garments with padding or damaged parts (pillows or jackets). Foam released from these garments could cause a fire during the drying process.

- Using the dryer in environments containing flour or coal dust may cause an explosion.

• Wet clothes can only be dried in the tumble dryer after being spin-dried, i.e., they must not be dripping water that could drip onto electrical components and damage the tumble dryer, causing a potential hazard.
• It is not advisable to load woollen fabrics or garments or leather materials. Fleece and leather can be damaged, and wool can shrink and lose shape.
• Do not dry garments whose care labels show: do not tumble dry, hang to dry, drip dry, dry at room temperature.
• Try to distribute garments evenly within the drum to facilitate drying and avoid noise.
• It is advisable to use garments of similar fabrics in each drying cycle.
• When the tumble dryer is in operation, do not use flammable sprays nearby. If a gas leak occurs, do not connect or disconnect the plug or switch on the appliance.
• Do not store cigarettes, lighters, dry ice or other flammable and/or explosive materials inside the tumble dryer.
• ATTENTION: Underwear with metal reinforcements should not be put in the dryer. Damage to the dryer may occur if the metal reinforcements become detached or lost during drying.

Correct use

• ATTENTION: Make sure that no animals enter the dryer. Check the interior of the dryer before use.
• CAUTION: Never stop the dryer before the end of the drying cycle unless all items are quickly removed and spread out to dissipate the heat.

• WARNING: the appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off.

• CAUTION: Overheating of the laundry inside the dryer may occur if you cancel the programme or in case of an electrical failure during the operation of the dryer. This heat concentration may cause combustion, so ensure laundry is promptly removed from the dryer to spread out and dissipate heat.

• Operate the appliance only for domestic use and for drying fabrics labelled as suitable for tumble drying. Any use other than that for which it is intended is prohibited.
• In case of commercial use, the warranty will be void.
• Do not lean or sit on the dryer door. The dryer could tip over.
• CAUTION: Never operate the dryer without the filter or with a damaged filter.
• You must not allow lint to accumulate around the tumble dryer.

INSTRUCTIONS DE SÉCURITÉ

1. Knob
2. Door
3. Front cover
4. Filter assembly
5. Housing
6. Filter grille
7. Back cover
8. Exhaust hose
9. Power cord
10. Support feet

Note:

The graphics in this manual are schematic representations and may not exactly match the product.

2. BEFORE USE

• This appliance comes in a packaging designed to protect it during transport. Remove the appliance from its box. You can keep the original box and other packaging materials in a safe place to prevent damage to the appliance if you need to transport it in the future. If you wish to dispose of the original packaging, make sure all items are recycled properly.
• Check that all parts and components are included and in good condition. If any of them are missing or damaged, please contact Cecotec's Official Technical Support Service immediately.

Box content:

• Tumble dryer
• Exhaust hose
• Instruction manual

- Do not remove the product's serial number in order to keep proper traceability if technical assistance is required.

3. INSTALLATION

- If it is necessary to move the tumble dryer, do so while keeping it in an upright position at all times.

• Open the accessories bag and ensure all included accessories are present.

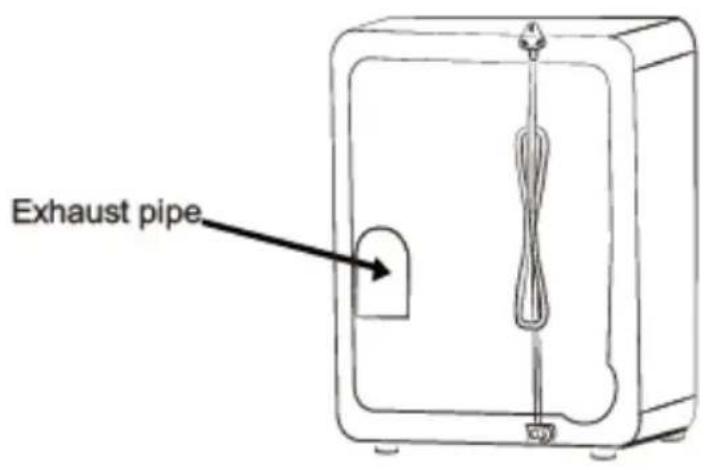

• Install the exhaust hose. Fig. 2

Installation location

• For convenience, place the tumble dryer near the washing machine.
• During drying, the dryer generates heat and moisture; try to dissipate them as quickly as possible to prevent condensation. Install it in a well-ventilated room or near a window.
• The tumble dryer must be situated in a clean location. Ensure there are no obstructions (papers, debris, etc.) near the air inlet at the rear.
• Place the appliance on a firm, level surface to minimise vibrations and noise. Check whether there is clearance between the feet and the floor. Do not remove the feet.
• Do not place blankets or ropes on the floor, as these could generate heat that interferes with the tumble dryer's operation.

Important tips

• The temperature of the hot air generated by the dryer can reach 60 °C; do not install the dryer on surfaces that cannot withstand high temperatures.
• The ambient operating temperature should be ≥ 5 ^ and ≤ 35 ^ , as it affects the working efficiency.
• To avoid overheating, there must be no obstructions in the dryer.

Electrical warnings

• The tumble dryer must be earthed.
• Before drying, check that the supply voltage corresponds to the voltage indicated on the nameplate of the appliance.
• The yellow/green conductor must be connected to the terminal marked with the letter E on the grounding symbol ⏻

Warning: Inserting a cut plug into an electrical outlet poses a safety hazard (risk of electric shock). Dispose of the cut plug safely.

Permanent connection

• For a permanent connection, install a double-pole switch between the dryer and the mains supply.
• Never disconnect the grounding conductor (yellow/green) by means of the switch.

First use

• Make sure that the electrical connections comply with the installation instructions.
• Make sure that no packaging remains inside the product.
• Before the first use, put some damp cloths in the drum and run a 30-minute drying cycle. There may be dust inside a new dryer.

ENGLISH

4. OPERATION

Setting the drying time

Select the desired time within the selected zone.

- Cold air drying zone (blue colour): operation with cold air only.

- Hot air drying zone (grey colour): hot air operation. Before finishing, the device automatically performs a cooling section with cold air.

In the following table you can see the recommended times depending on the weight of the clothes you wish to dry:

Laundry weight Drying time (not including cold air drying time)
2.5 kg 190 minutes
2 kg 155 minutes
1.5 kg 120 minutes
1 kg 100 minutes
0,5 kg 60 minutes

End of drying

- If you wish to remove items during drying and the inside of the drum is very hot, cool the items before removing them.

- After drying, fibre garments can accumulate static electricity due to friction. A slight shock may be felt when they are removed. This is normal.

Switch-off

- Switch off the power after drying is complete.

Drying tips before inserting the laundry

- Do not tumble dry the following items: especially delicate garments such as net curtains; wool; silk; fabrics with metallic trims; nylon stockings/tights; bulky materials such as anoraks, blankets, duvets, sleeping bags, down quilts; or any items containing rubber foam or materials similar to rubber foam.

- Always follow the instructions on the garment care labels.

- Close pillowcases and pillowcases with their zippers to prevent small items of clothing from getting trapped inside.

- Closes hooks, zippers, hooks, and ties belts and apron straps. Classify the laundry according to the type of fabric and the degree of drying required.

- Avoid overdrying to reduce wrinkles and save energy.

ENGLISH

• Avoid drying dark garments together with light items that release lint (e.g. towels), as they may attract lint.
• The laundry should be thoroughly spun before tumble drying.
• It is recommended that easy-care garments (e.g., shirts) undergo a brief spin-drying beforehand.
• Knitted textiles (e.g. knitted underwear) may shrink slightly during drying. Do not overwrite them.
• To avoid static charges at the end of drying, use fabric softener in the wash or a specific conditioner for tumble dryers.
• Remove the laundry when the dryer has finished drying.
• If any garment remains damp after the cycle, program a short post-drying time, at least 30 minutes. This is especially necessary for garments with several layers (e.g., collars, pockets, etc.).
• Make sure that no metal objects are left in the wash (e.g. hairpins, safety pins, pins).
• Fasten pillowcases; close zips, hooks and press studs; tie up belts or long ribbons.
• To avoid entanglements:
  o Close zippers, fasten duvet covers and tie loose ties or ribbons (e.g. from aprons).
  Turn garments with double-layer fabrics inside out (e.g., in anoraks with cotton lining, the cotton should be facing out) to promote drying.
• Empty pockets and remove any objects such as lighters and matches.

General requirements

• Cotton and linen: the drum can be adequately filled.
• Synthetic fibres: the amount of garments should not exceed half of the drum capacity.
• Silk and wool: the quantity of garments should not exceed one quarter of the drum capacity.

5. CLEANING AND MAINTENANCE

- Ensure the power supply is switched off before any maintenance or cleaning operations.

Cleaning the exterior

• Use only soap and water to clean the exterior of the dryer and dry it thoroughly.
• Important: Do not use alcohol, thinners or similar products to clean the dryer.

Cleaning the door

- Periodically clean the inside of the door to remove lint accumulated in the groove around the filter.

Cleaning the filters

Clean the filter assembly after each use. Fig. 3

ENGLISH

1. Insert your fingers into the 4 openings around the centre of the filter cover and remove it.
2. Remove the filter assembly.
3. Cleaning:

- Filter: use a soft brush or water to remove dirt.

- Rear filter: after removal, use a soft brush to remove lint, or use a vacuum cleaner or water to remove dirt.

Note: the rear filter washed with water may wrinkle.

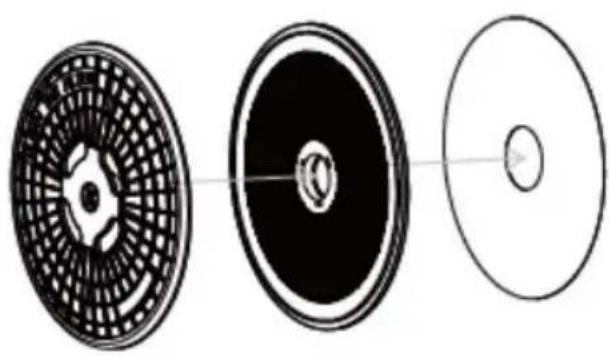

1. Reinstallation:

Reassemble in this order, aligning with the central shaft: cotton filter – filter – filter cover. Make sure that the centre concave part of the filter cover and the centre convex part of the filter fit correctly.

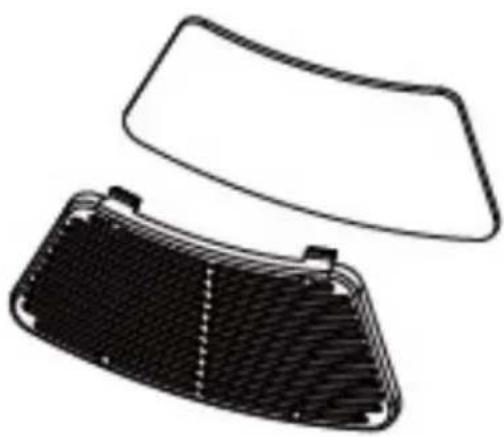

The front cotton filter should be cleaned at least once a month. Fig. 4

1. Grasp the lower end of the front filter screen with some force, push it up and pull it out.
2. Remove the cotton filter from the front filter, remove dirt with a vacuum cleaner or with water; ensure the filter is completely dry and reinstall it in the tumble dryer.

Make sure the cotton filter is clean so that the dryer operates normally and improves drying efficiency.

6. TROUBLESHOOTING

Some failures are due to lack of simple maintenance or inspection and can be resolved without technical personnel. Please read the following malfunctions and solutions carefully before contacting Cecotec's Official Technical Support Service.

Errors Possible causes Solutions
The knob does not work.	The dryer is not connected to the power socket.	Connect the dryer to the power supply.
The drum does not rotate.	There is no power in the socket.	Check the socket.
	The dryer is not connected to the power socket.	Connect the dryer to the power supply.
	The door is open. Close the door.
No hot air comes out. The knob is in the cold air position.		Turn the knob to the hot air position.
Clothes do not dry. The front and rear filters are not clean.		Clean the front and rear filters.
Clothes are excessively damp. Spin dry clothes properly before loading them into the tumble dryer.
Excess clothing. Reduce the load of laundry.

7. RECYCLING OF ELECTRICAL AND ELECTRONIC EQUIPMENT

This symbol indicates that, according to the applicable regulations, the product and/or battery must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the batteries/accumulators and take them to a collection point designated by the local authorities.

For detailed information on how to properly dispose of electrical and electronic equipment and/or the corresponding batteries, consumers should contact their local authorities.

Information regarding national packaging recycling systems and their marking can be found on our website.

Compliance with the above guidelines will help protecting the environment.

8. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The content of this publication may not, either in part or in its entirety, be reproduced, stored in a retrieval system, transmitted or distributed by any means (electronic, mechanical, photocopying, recording or similar) without prior authorisation from CECOTEC INNOVACIONES, S.L.

9. SIMPLIFIED EU DECLARATION OF CONFORMITY

CE Cecotec Innovaciones hereby declares that this appliance complies with the essential requirements and other relevant provisions of the regulations applicable in the European Union. This appliance has been designed, manufactured and tested in compliance with required safety and quality standards. The full text of the EU Declaration of Conformity can be found on the following website: https://cecotec.es/es/information/declaration-of-conformity

FRANÇAIS

1. PIÈCES ET COMPOSANTS

Image 1:

6. PROBLEEMOPLOSSING

Line drawing of a rectangular washing machine with a circular vent and side buttons (no text or symbols)

Exhaust pipe

Fig./Img./Abb./Afb./Rys.2

Three circular diagrams showing different types of mechanical or optical components, with no visible text or symbols.

Fig./Img./Abb./Afb./Rys. 3

Two types of plastic heat exchanger or cover case designs, one with a flat lid and the other with mesh insulation (no text or symbols)

Fig./Img./Abb./Afb./Rys. 4

www.cecotec.es
