USER MANUAL Bolero DressCode Dry 10355 CECOTEC

Front view of a white washing machine with a circular front panel and digital display (no visible text or symbols)

Front view of a modern washing machine with a circular vent and control panel (no visible text or symbols)

bolero

Safety instructions 16

1. Parts and components 138

2. Before use 138

3. Installation 138

4. Laundry preparation 140

5. Operation 141

6. Cleaning and maintenance 145

7. Troubleshooting 147

8. Technical specifications 148

9. Disposal of old electrical and

electronic appliances 148

1. Technical support and warranty 149

2. Copyright 149

3. Simplified EU Declaration of Conformity 149

SOMMAIRE

EN · The coding in this manual is generic and applies to all code variants of the appliance.

Symbol	Type Meaning
	WARNING Risk of serious injury or death
	RISK OF ELECTRIC SHOCK	Dangerous voltage
	FIRE	Warning: risk of fire/flammable materials
	ATTENTION	Risk of injury or damage to property
	IMPORTANT/ NOTE	Information on the correct operation of the system
	Read the instructions
	Hot surface

• This user manual contains information on safety and important instructions related to the use and maintenance of the device. Take all the time you need to read this user manual before using the device and keep it in case you need to check it in the future or for new users.
• This section contains safety instructions to help protect you against the risk of personal injury or property damage. Failure to follow these instructions will invalidate the guarantee.
• It is your responsibility to make sure every user is informed about the warnings and precautions stated in this instruction manual.

• Each dryer has been tested by a quality control before commercialisation, guaranteeing its conditions of use.

• The warnings contained in this instruction manual do not cover all possible risks that may occur. Caution and care must be exercised during installation, maintenance and operation of the dryer.

• Always comply with the advice and warnings contained in this manual.
• Children under 3 years old must stay away, unless they are supervised.
• This dryer is suitable for indoor domestic use only. In case of commercial use, the warranty will be void.
• Do not install nor store the dryer outdoors.
• Use this appliance only for clothes whose care label specifies they are suitable for dryer.
• Cecotec is not responsible for damage caused by incorrect transport or use.
• Do not allow floor coverings to obstruct ventilation openings.
• Installation and repair of the appliance must only be carried out by Cecotec or an authorised repair agent.
• Cecotec is not liable for damage caused by repairs by unauthorised personnel.
• WARNING: Never spray or pour water inside the dryer to clean it. There is a risk of electric shock.
• Leave at least 3 cm of space between the side and rear panels of the product and above the product if the appliance is placed under a worktop.
• If assembly/disassembly of the installation under a worktop is necessary, this must be carried out by an authorised service technician.
• Before installation, check the product for visible damage. Never install nor operate a damaged product.
• Do not let any animal near the dryer.

• Fabric softeners or similar products should be used according to the manufacturer instructions.

• Remove all the objects from the pockets: lighters, matches, etc.

• The appliance should not be installed behind a lockable door, a sliding door or a hinged door on the opposite side of the dryer door in such a way as to prevent the dryer door from being fully opened.
• WARNING: Keep the ventilation openings in the housing of the appliance or in the built-in structure free of obstructions.
• Before contacting the local authorised service provider for the installation of the dryer, check the information in the user manual to make sure that the electrical installation and water connection are available. If they are not, you can call a qualified electrician and plumber to make the necessary adjustments.
• The preparation of the dryer location is the responsibility of the customer, as well as the electrical and sewage installation. Before installation, check the dryer for any damage. If it is damaged, do not install it. Damaged appliances may be a risk for your health.

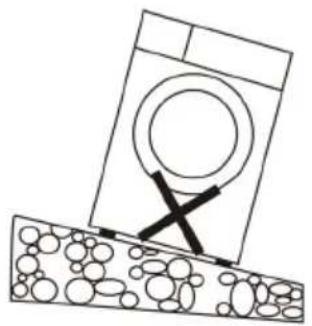

• Install the dryer on a flat and stable surface.
• Run the dryer in an environment free from dust with good air ventilation.
• You should not reduce the space between the dryer and the floor with objects like carpets, wood or cloths.
• Do not block the ventilation grids on the base of the dryer.
• Once the dryer is installed, the connections must remain intact. When installing the dryer, make sure that the rear surface is not resting on something (a tap, a socket, etc.).

• The operating temperature of the dryer ranges from +5 °C to +35 °C. When operating at temperatures outside this range, the operation may be adversely affected, and the appliance may be damaged.

• If the room temperature is below 0 °C, the dryer may be damaged by freezing.

• Be careful when transporting the appliance, as it is really heavy. Always wear safety gloves.
• Always install the appliance against a wall.
• The rear part of the appliance must be installed against a wall.
• Install the appliance on a stable surface, use a spirit level to check it is completely stable. If it is not stable enough, adjust the feet until it is firm. Repeat the same process every time you relocate the appliance.
• Do not place the dryer on the power cable.
• Do not place hot and heavy objects on top of the dryer.
• Use the provided hoses, do not reuse old hoses.
• Do not misuse it, do not stand, sit or place any heavy object on the door of the dryer.
• Do not attempt to open the door while the dryer is in operation as there is a risk of burns. Do not leave the door open, as it could cause accidents.
• The tumble dryer door can only be opened after the drying programme has been completed. Do not force the door to open.
• The dryer must only be used for its intended purpose as described in this manual.
• Do not use the tumble dryer if any parts are missing or broken or if any protections or panel have been removed.
• The appliance should not be powered by an external switching device, such as a timer. It should not be connected to a circuit that is regularly switched on and off by some kind of drive.

• Always use an approved socket outlet that is capable of carrying a current greater than 10A.

• Do not touch the plug with your hands wet. Always pull the plug to disconnect the appliance, otherwise you may suffer an electric shock.

• Do not use the dryer with wet hands or wet bare feet.
• Connect the dryer to a grounded, fuse-protected outlet. The installation of an earthed socket must be carried out by a qualified electrician. Cecotec is not responsible for any damage or loss resulting from the use of the dryer without earthing as required by local regulations.
• Make sure that the mains voltage matches the voltage stated on the product marking.
• Unplug the dryer if it will not be used for a considerable period of time and during installation, maintenance, cleaning and repair work. Otherwise, it could damage the dryer.
• The socket must always be accessible after the installation.
• For safety reasons, it is recommended to disconnect the plug after the programme has finished.
• Check the power cable regularly for visible damage.
• A damaged cord/plug may cause a fire or electric shock. When damaged, they must be replaced. This should only be carried out by qualified personnel, Cecotec or the after-sales service, in order to avoid danger.
• To prevent any risk of fire or electric shock, do not use extension leads, multi-socket adapters or adapters to connect the dryer to the mains.
• When the dryer is in operation, do not unplug the power cable. When not in use, it is advisable to disconnect the plug, do not pull the power cable. Do not touch the power cable or plug with wet hands.
• This appliance can be used by children aged 8 and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge, as long as

they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance of this appliance should not be carried out by children without supervision.

- Do not let unattended children come near the appliance.

- Children could get trapped inside the appliance, which could lead to death.

- Do not allow children to touch the appliance while it is in operation. The surface becomes extremely hot and could cause damage in the skin.

- Keep the packaging material out of the reach of children.

- If detergent or cleaning materials are swallowed or come into contact with your skin or eyes, poisoning and irritation may occur.

- Keep the cleaning material out of the reach of children. Electric products are dangerous for children.

- Keep children away from the appliance while in use.

- To prevent children from interrupting the drying cycle, you can activate the child lock to prevent any changes to the programme in progress.

- Do not allow children to seat or climb on or inside the product.

- Due to the risk of fire, NEVER introduce in the dryer the following garments:

o Unwashed clothes in the dryer.

o Garments that have been stained with substances such as cooking oil, acetone, alcohol, petrol, paraffin, stain removers, turpentine, waxes or wax removers should be washed with hot water and an extra amount of detergent before drying in the dryer.

o Cleaning cloths and mats containing residues of flammable cleaning agents, acetone, gases, petrol,

gasoline, stain removers, turpentine, waxes, wax removers, dry cleaning solvents or chemicals.

o Garments with traces of hairspray, nail polish remover and similar substances.
o Garments that have been used for cleaning with industrial chemicals (as in chemical cleaning).
o Garments containing parts or accessories with any type of foam, sponge, rubber or rubber-like material, such as latex foam sponges, shower caps, waterproof fabrics, custom-made clothing and foam pillows.
o Garments with padding or damaged parts (pillows or jackets). Foam released from these garments could cause a fire during the drying process.

- Using the dryer in environments containing flour or coal dust may cause an explosion.

- Wet laundry may be dried in the tumble dryer only after it has been spun dry, i.e. no water should drip onto the electrical parts as this may damage the tumble dryer causing a potential hazard.

- When the tumble dryer is in operation, do not use flammable sprays nearby. If a gas leak occurs, do not connect or disconnect the plug or switch on the appliance.

- Do not store cigarettes, lighters, dry ice or other flammable and/or explosive materials inside the tumble dryer.

- ATTENTION: Underwear with metal reinforcements should not be put in the dryer. Damage to the dryer may occur if the metal reinforcements become detached or lost during drying.

- ATTENTION: Never stop the dryer before the end of the drying cycle unless all items are quickly removed and spread out to dissipate the heat.

- ATTENTION: Make sure that no animals enter the dryer. Check the interior of the dryer before use.

• ATTENTION: Overheating of the laundry inside the dryer may occur if you cancel the programme or in case of an electrical failure during the operation of the dryer. This concentration of heat can cause combustion, so be sure to activate the ventilation programme to cool it down or quickly remove the laundry from the dryer to hang it out to dissipate the heat.
• Use the dryer only for domestic use and for drying fabrics labelled as suitable for drying. Any use other than that for which it is intended is prohibited.
• In case of commercial use, the warranty will be void.
• This appliance is intended for indoor use only and should be placed on a flat and stable surface.
• Do not lean or sit on the dryer door. The dryer could tip over.
• In order to maintain a temperature that does not damage the laundry (e.g. to prevent the laundry from burning), a cooling process is started after the drying process. The programme ends after it. Always remove the laundry immediately at the end of the programme.

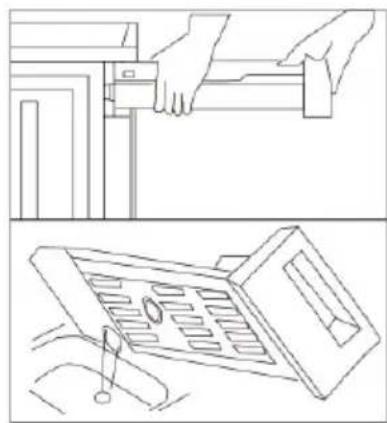

• ATTENTION: Never use the dryer without the lint filter or with damaged lint filter.
• You must clean the lint filters after every use as indicated in the "Lint filter cleaning" section.
• The lint filters must be dried every time you clean them with water. Wet filters can cause a malfunction during the drying process.
• You should not allow lint to accumulate around the dryer or in the drum (not applicable to those appliances for outdoor ventilation of the building).

• IMPORTANT: The space between the dryer and the floor must not be reduced by objects such as carpets, wood or panelling, otherwise it will not be possible to ensure sufficient air intake to the appliance.

• Do not install the dryer in rooms with a risk of freezing. Freezing temperatures adversely affect the performance of the dryer. Condensed water freezing in the pump and hose can cause damage.

• ATTENTION: You cannot install a washing machine on the dryer. Pay attention to the following warnings to place the dryer on the washing machine.

o ANENTION: The dryer can only be placed on washing machines with the same or higher capacity.
To use the dryer on top of a washing machine, you must place a fixing element between the two appliances (NOT INCLUDED). The fixing element must be placed by an authorised service provider.
o Place the products on a stable floor with this load capacity.

- FIRE: R290

• Risk of fire and damage! This appliance contains environmentally friendly but flammable R290 refrigerant gas. Keep open flames and sources of fire away from the appliance.
• Refrigerant must be disposed of professionally, as it may cause eye injury or ignition. Make sure the refrigeration-circuit pipes are not damaged before disposing of them correctly. When disposing of the appliance, only dispose of it at an authorised waste-disposal facility. Do not expose to flame.

INSTRUCTIONS DE SÉCURITÉ

1. Condensation water tank
2. Drum
3. Lint filter
4. Power cord
5. Control panel
6. Door
7. Ventilation grille
8. Lower filter

NOTE:

The graphics in this manual are schematic representations and may not exactly match the device.

2. BEFORE USE

• This appliance is packaged in a way as to protect it during transport. Take the appliance out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place to prevent damage to the appliance if you need to transport it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the Official Cecotec Technical Support Service immediately.

Box content

• Dryer
• Shoe drying accessory
• Instruction manual

- Do not remove the serial number of the appliance in order to keep a correct traceability of it in case of assistance.

3. INSTALLATION

Suitable location for installation

- For convenience, it is recommended to install the dryer next to or near the washing machine.

• Avoid installing the dryer in a place where dust tends to accumulate, as excess dirt may block the ventilation grilles of the appliance.
• Remove all packaging from the dryer and then place it on a flat, stable surface. Do not install it on carpets or stands. Fig. 2
• During installation, adjust the feet of the tumble dryer until it is firmly placed on the floor. Do not place objects that may reduce the space between the dryer and the floor, such as carpets or boards, as heat build-up may affect the proper operation of the appliance.
• Leave a minimum space of 5 cm between the dryer and the wall or other furniture.

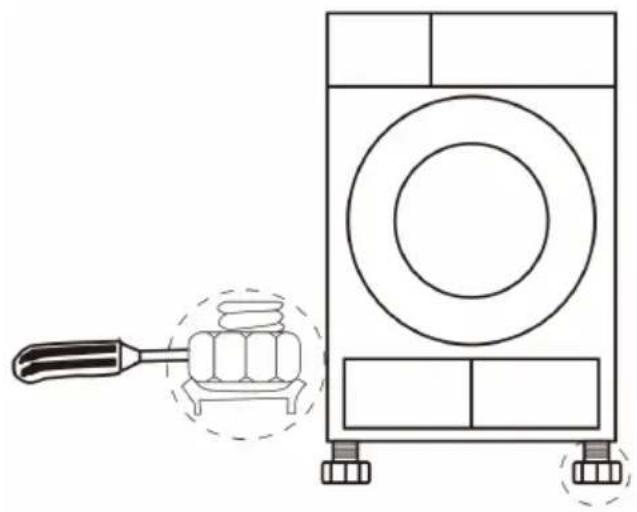

Levelling

Fig. 3

• Turn the dryer feet to adjust the height and level the appliance. To do this, tilt the appliance slightly to one side.
• You can also use the holes in the feet to turn and adjust them using a screwdriver.

Note: Use a screwdriver with a diameter of less than 4.5 mm.

Mains connection

1. Make sure that the mains voltage matches the technical specifications of the dryer.
2. Do not use universal plugs, multi-socket adaptors or extension cords.

First use

Note: After transporting the dryer, place it in an upright position and let it stand for 2 hours before switching it on. Before using it for the first time, make sure that it is correctly installed and clean the inside of the drum:

1. Put several rags in the drum.
2. Plug the appliance into a mains socket and press the power button to start it.
3. Select the Time Dry programme and press the start/pause button.
4. Once the programme is over, follow the instructions in the "Cleaning and Maintenance" section to clean the lint filter.

Attaching the accessories

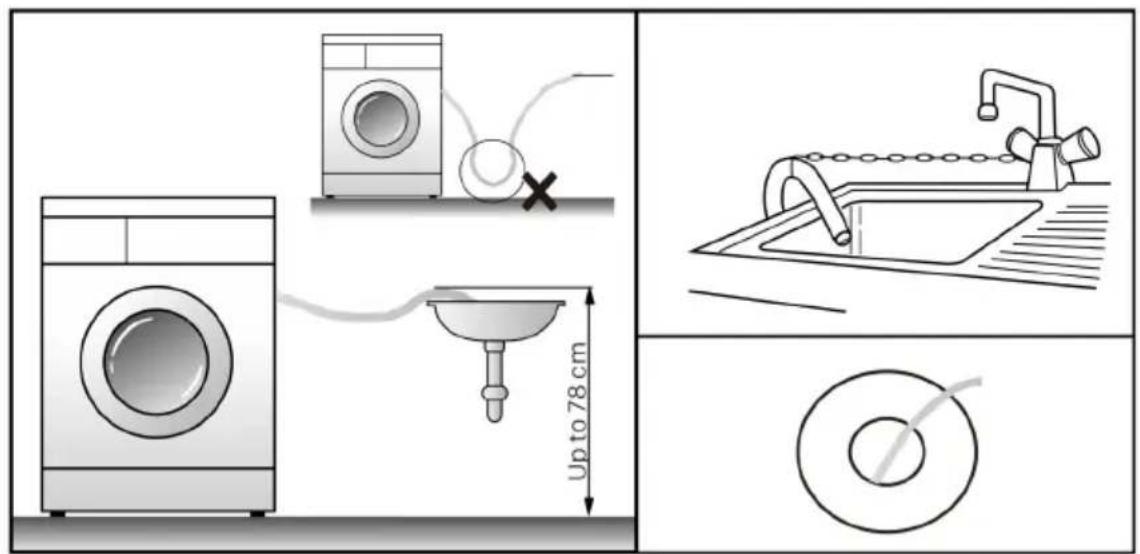

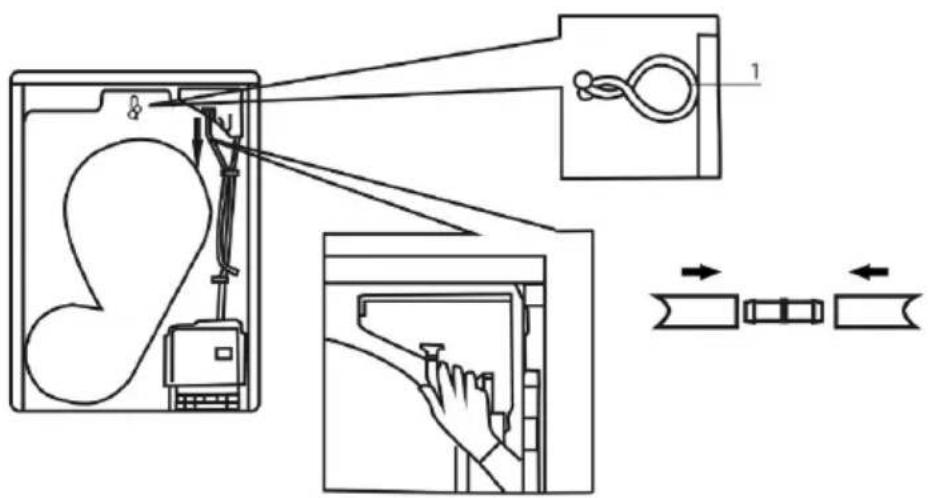

Drain hose connection

Fig. 4-5

If the dryer does not have an external water outlet or the drain hose is not installed, make sure to empty the condensation water tank manually on a regular basis.

1. Remove the drain hose from the back of the dryer.
2. Connect one end of the drain hose to the dryer.
3. Fix it with the clamp.

ENGLISH

1. Connect the other end of the drain hose to the sewer or sink (be sure not to bend it). Warning: Make sure that the pipeline is not clogged.

Fig. 4 key:

1. Buckle

Scented dryer sheets (not included)

1. Open the door and remove the lint filter. Then open the filter housing and put in a scented dryer sheet.
2. Close the filter housing and put it back in place.

Steel bracket (place it when selecting a timed programme)

- This accessory facilitates shoe drying. To install it, insert the corresponding part of the accessory into the upper slot of the drum (as shown in figure 6).

Plastic bracket (place it when selecting a timed programme)

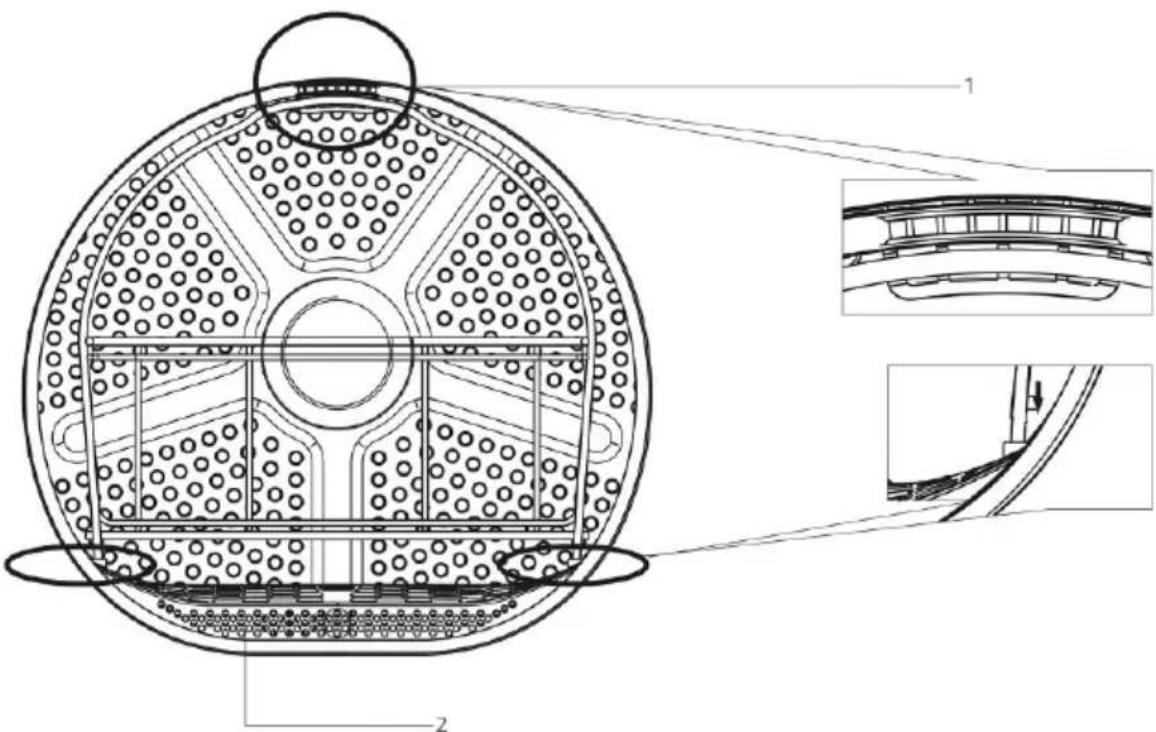

Fig. 6

- The plastic bracket is used to separate the garments and is placed on top of the steel bracket.

Fig. 6 key:

1. Front bracket slot
2. Filter

4. LAUNDRY PREPARATION

Practical tips on drying clothes

• Unfold and separate rolled garments before putting them in the tumble dryer. Spin the laundry well in the washing machine before putting it in the dryer. A higher spinning speed shortens the drying cycle time and reduces energy consumption.
• To speed up the drying process, shake the laundry before putting it in the dryer. Close zips, fasten clasps and hooks, button up loose shirts, tie fabric belts, etc. To prevent the buttons on the clothes from rattling when they hit the drum, turn the clothes inside out before putting them into the dryer.
• Clean the lint filter before starting the dryer.
• To avoid damaging the clothes, follow the drying instructions on the garment labels and check which programmes are suitable for each type of fabric.

• To achieve an even drying result, sort the laundry according to the type of fabric and do not dry items of different material thickness, dryness level or residual moisture content at the same time.

• If you need to dry small loads of laundry, it is recommended to select a timed programme which allows you to adjust the drying time.

• If you are going to tumble dry your clothes, it is recommended to use fabric softener when washing them.
• Some thicker and heavier garments (jeans, large towels, etc.) are more difficult to dry due to the characteristics of the fabric.

5. OPERATION

Step 1: Before drying

1. Plug in the dryer.
2. Load the laundry into the drum.
3. Close the door.

Step 2: Starting a drying cycle

1. Press the power button to switch on the washing machine.
2. Select a drying programme.
3. Select a function.
4. Press the start/pause button to start the drying cycle.

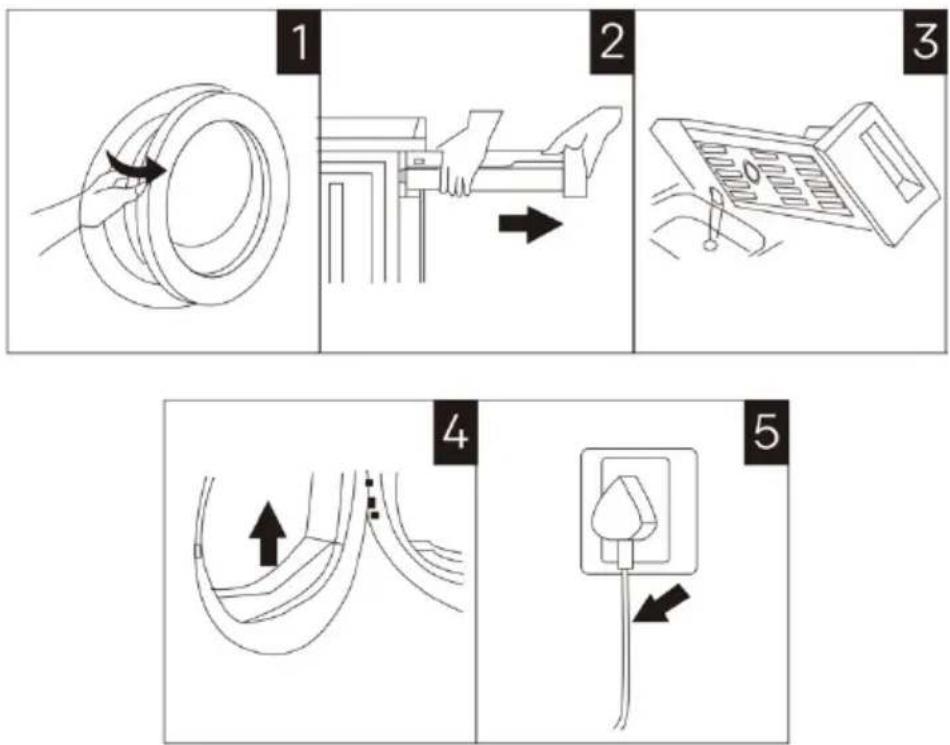

Step 3: End of a drying cycle

Fig. 7

When the drying programme is finished, the dryer will beep and "END" will appear on the display.

1. Open the door and take the laundry out.
2. Remove the condensation water tank.
3. Empty the condensed water from the tank.
4. Clean the lint filter.
5. Unplug the dryer.

Note:

When the drying programme is finished, the dryer will beep and "END" will appear on the display. If you do not remove the laundry 5 minutes after the end of the drying cycle, the dryer will activate the Anti-crease function automatically. The dryer will switch off automatically once the Anti-crease process is over. If you open the door when "End" appears on the display, the dryer will switch off automatically with a beep sound.

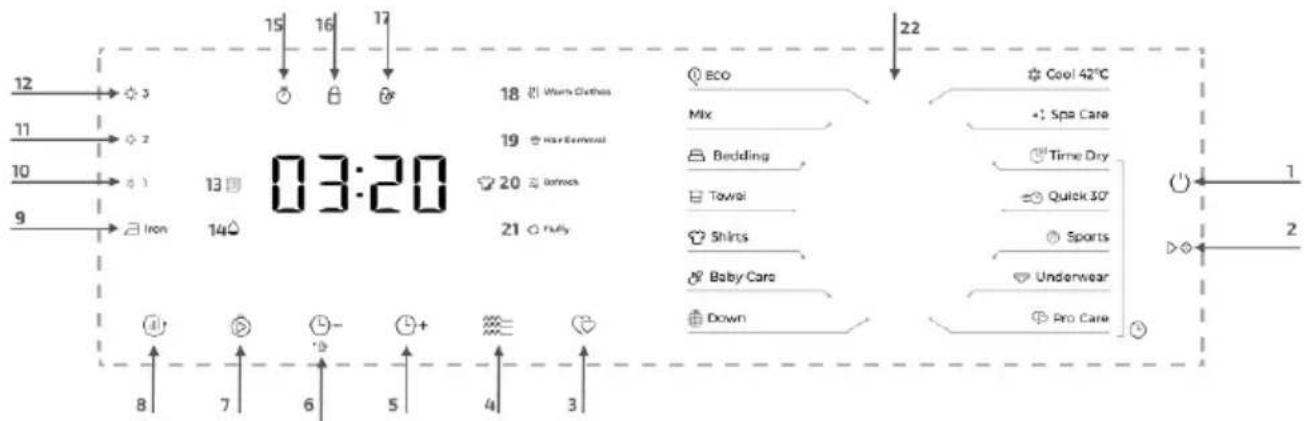

Control panel: functions and programmes

Fig. 8 key:

1. Power button

ENGLISH

1. Start/pause button
2. Pro Care function icon
3. Anti-crease function icon
4. Time increase icon
5. Time decrease / KidLock icon
6. Delay Start icon
7. Dryness level icon
8. Iron dryness level indicator light (easy ironing)
9. Dryness level 1 indicator light (dry)
10. Dryness level 2 indicator light (cupboard dry)
11. Dryness level 3 indicator light (extra dry)
12. Filter cleaning warning indicator light
13. Condensation water tank full warning indicator light
14. Timed programme indicator light
15. Door lock indicator light
16. KidLock indicator light
17. Warm Clothes additional function indicator light
18. Hair Removal additional function indicator light
19. Refresh additional function indicator light
20. Fluffy additional function indicator light
21. Programme knob

Power button:

Press this button to switch on/off the appliance.

Start/Pause button:

Press this button to start or pause the washing cycle.

Dryness level:

Press this icon to select the desired dryness level. Each programme has different dryness level settings. In timed programmes, the dryness level cannot be selected.

The dryer has 4 dryness levels: Iron (easy ironing), leaves clothes slightly damp to prevent over-drying and creases, 1 (dry), 2 (cupboard dry) and 3 (extra dry).

Delay Start:

1. After selecting the drying programme, press this icon to activate the Delay Start function.
2. Press it repeatedly to set the time you want the drying cycle to start.
3. Press the start/pause button to confirm the settings.
4. Once the countdown starts, only the start/pause button and the power button will be available.

Time increase and decrease icons:

Allow you to adjust the drying time of the laundry. Each programme has different drying time settings. In some of them, the drying time cannot be adjusted.

Anti-crease function

• Automatic activation: if you do not remove the laundry at the end of the drying programme, the dryer will activate the Anti-crease function automatically to prevent it from creasing.
• Manual activation: press and hold Anti-crease function icon for 3 seconds to activate this function manually. When this function is activated, the drum rotates at regular 10-minute intervals for 180 minutes.

Pro Care function:

Select the Pro Care programme with the programme knob, then press the corresponding icon to activate it.

The Pro Care programme has 4 additional functions: Warm Clothes, Hair Removal, Refresh and Fluffy.

KidLock:

Activate this function to prevent children from interrupting the programme or tampering with the appliance accidentally.

When the drying cycle is running, press and hold the time decrease icon for a few seconds to activate the KidLock function. The corresponding indicator light will light up and stay on until you deactivate it.

To deactivate the KidLock, press and hold the time decrease icon for a few seconds. The corresponding indicator light will turn off.

When this function is activated, the panel controls will be locked.

Filter cleaning warning indicator light:

Indicates that the lint filter is dirty and should be cleaned.

Condensation water tank full warning indicator light:

Indicates that the condensation tank is full and should be emptied.

Stop&Go function: add clothes to the washing machine mid-cycle

During the drying cycle, press the start/pause button to interrupt the programme. This way, you can open the door and add or remove laundry from the dryer.

Automatic drying function

This function features a series of sensors in the drum. If, at the end of the programme, these sensors detect residual moisture in the laundry, the drying cycle is not stopped. Instead, the appliance calculates and adds additional time.

ENGLISH

This new extra time will be shown on the display and its duration will depend on several factors, such as the amount of laundry, type of fabrics, previous spin speed, etc.

Once the sensors detect that the laundry is completely dry, the cycle will stop. This may happen before the additional time is completely over.

Thanks to this function, an optimal drying result is achieved, with no trace of moisture, while ensuring efficient energy consumption.

Drying programmes

Programme Max. load Description
ECO 10 kg For drying cotton garments.
Mix 5 kg For drying mixed cotton and synthetic fabrics.
Bedding 5 kg For drying bed linen and heavy loads such as sheets.
Shirts 1 kg For drying shirts and blouses.
Baby Care 1 kg For drying baby clothes.
Down 1.5 kg For drying down coats or feather-filled duvets.
Cool 42°C 3 kg For drying silk fabrics and other garments that cannot withstand high temperatures.
Spa Care ≤3 kg Programme that sterilises the laundry during drying, eliminating bacteria.
Time Dry -- Timed drying programme.
Quick 30' Few garments 30-minute timed programme for drying laundry quickly.
Sports Few garments Timed programme for drying sportswear and polyester fabrics.
Underwear Few garments Timed programme for drying underwear.
Warm Clothes Few garments Timed programme that allows you to warm up your clothes and make them comfortable.
Hair Removal Few garments Timed programme to remove lint from garments.
Refresh Few garments Timed programme to eliminate unpleasant odours from clothes.
Fluffy Few garments Timed programme for drying loose items without using heat.

Note:

• The programmes above are only recommendations for use. Users can select the drying programmes that best suit their needs. If the laundry is not completely dry, you can select a timed programme to continue drying the laundry.
• Please note that when selecting a timed programme, the humidity sensors will not detect the residual moisture of the load automatically. If the laundry is still damp after the programme has finished, you can repeat the programme or select a timed programme to adjust the drying time until the laundry is completely dry.
• When drying large fabrics, such as bed sheets and curtains, it is possible that they may pile up during the drying cycle. If this happens, stop the programme, take out the laundry, shake it out and then put it back into the dryer to finish the drying cycle.
• Before putting down-filled jackets or coats in the tumble dryer, be sure to turn them inside out.
• The actual drying time of the programme may vary depending on the room temperature and humidity, the type of fabric, the weight of the load and the degree of residual moisture of the laundry after the spinning phase. The dryer is equipped with humidity sensors that detect the residual moisture content of the load and therefore automatically adjusts the drying time. The time shown on the display will change as the drying cycle progresses, which is normal.
• When you select a timed programme, the corresponding indicator light will light up on the display to indicate the setting. After the drying time is up, the indicator light will turn off.

6. CLEANING AND MAINTENANCE

Emptying the condensation water tank

Fig. 9

Warning:

- After each drying cycle, it is recommended to empty the condensation water tank. When the tank is full, the drying programme will stop and the corresponding indicator light will light up. After emptying the tank, press the start/pause button to resume the drying programme.

- The condensed water is not drinkable.

- Do not use the dryer without the condensation water tank.

1. Hold the tank with both hands and pull it out to remove it.
2. Pour out the condensed water.
3. Put the tank back in place.

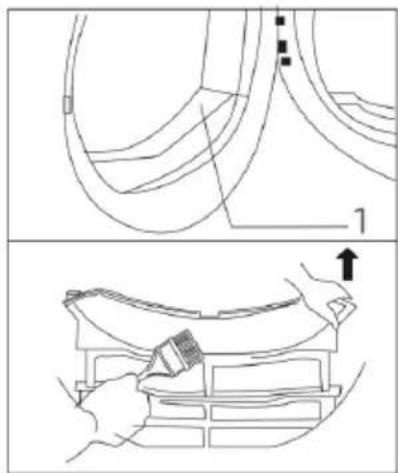

Lint filter cleaning

Fig. 10

1. Open the door.

ENGLISH

1. Remove the filter from the compartment.
2. Open the filter housing.
3. Wipe off the lint with a damp cloth.
4. Put the filter back in place.

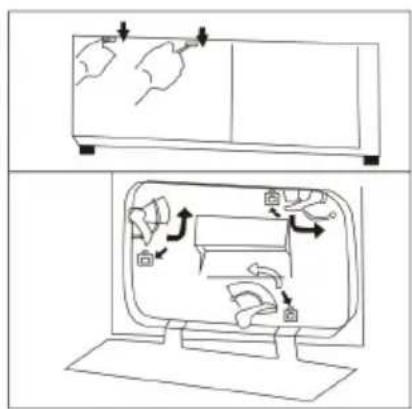

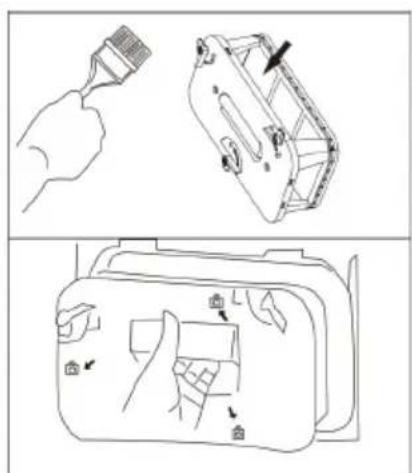

Lower filter cleaning

Fig. 11

1. Open the maintenance cover to gain access to the lower filter.
2. Turn the tabs.
3. Remove the lower filter.
4. Clean the lint accumulated on the filter with a soft brush.
5. Put the filter back in place. Make sure the filter is completely dry before reinstalling it.

Warning:

• Lint build-up on the lower filter may hinder air circulation, which will increase drying time and energy consumption.
• Do not operate the dryer without the lower filter.
• Clean the lower filter after each use.

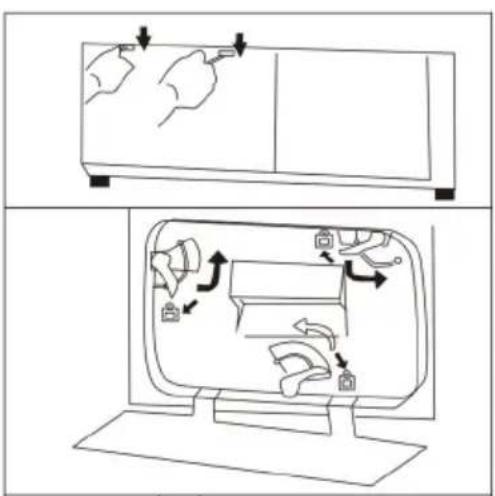

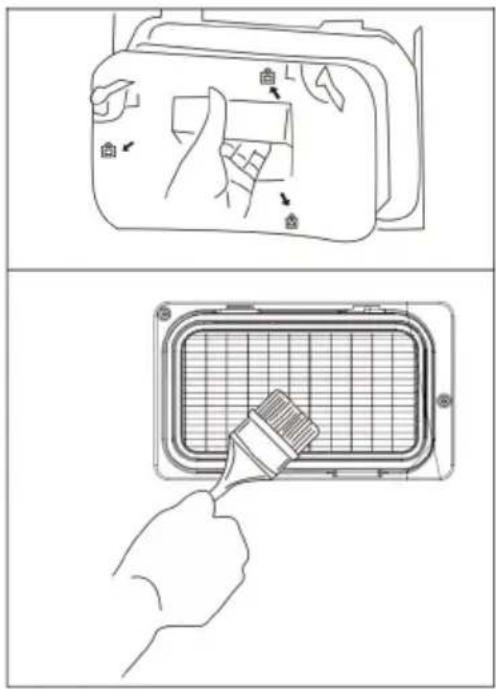

Heat exchanger cleaning

Fig. 12

It is recommended to clean the heat exchanger once a month.

1. Open the maintenance cover.
2. Turn the tabs and remove the lower filter to gain access to the heat exchanger.
3. Clean the heat exchanger with a soft brush.
4. After cleaning, put the heat exchanger and lower filter back in place and close the tabs. Finally, replace the maintenance cover.

Note:

• Avoid using excessive force during cleaning. Otherwise, it could get damaged.
• Be sure to unplug the dryer before cleaning.

Drum cleaning

Warning:

• Be sure to unplug the dryer before cleaning.
• Clean the surface of the dryer with a damp cloth. Do not use solvents or abrasive cleaning agents, as this may damage the housing.

• Do not spray water directly on the dryer.

• Clean the door, especially the inner glass.

• Clean the door gasket.

• Clean the drum humidity sensors.
• Clean accumulated lint from the ventilation grilles.
• Before starting the dryer, dry all parts with a soft cloth.

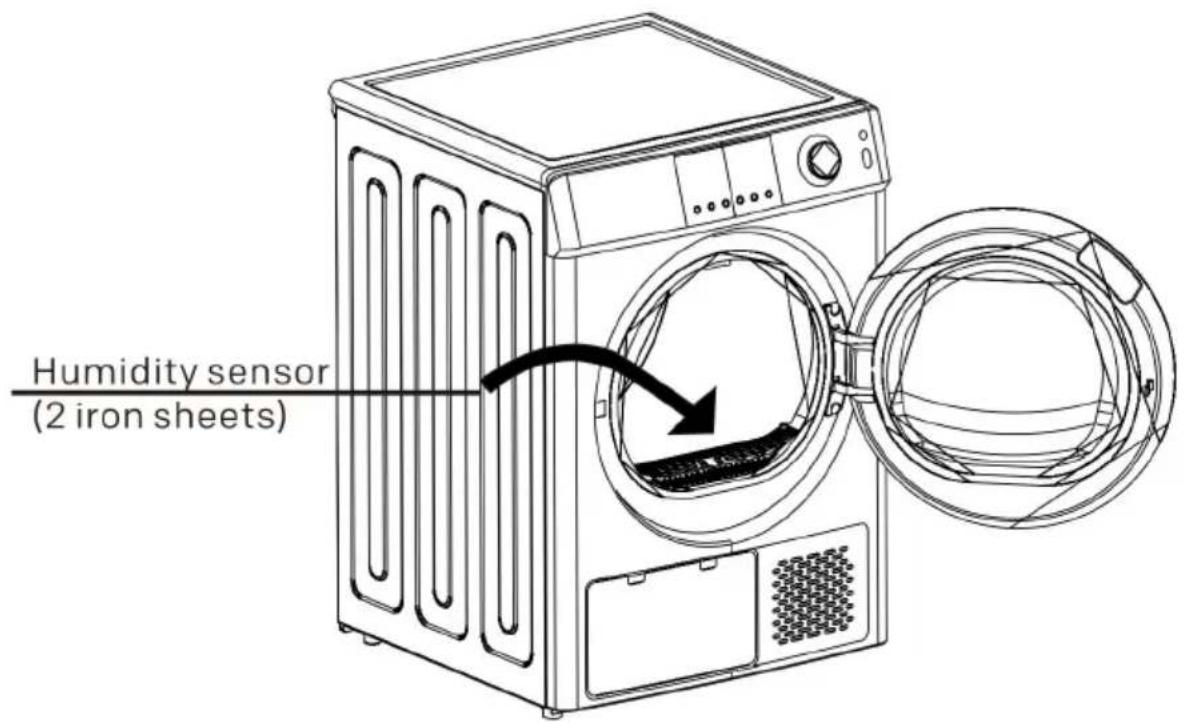

Note: The humidity sensors are located inside the drum. Do not clean the drum with corrosive detergents or scratch the humidity sensors. Fig. 13

7. TROUBLESHOOTING

Error code	Cause Solution
OE The condensation water tank is full, or the drain pump is not working properly.		If the problem is not fixed after emptying the condensation water tank, please contact the official Cecotec Technical Support Service.
dE The door is not properly closed.		If the problem is not fixed after closing the door correctly, please contact the official Cecotec Technical Support Service.
LE The lint filter is dirty, or the motor is blocked.		If the problem is not fixed after cleaning the lint filter, please contact the official Cecotec Technical Support Service.
HE Compressor failure		Unplug the appliance and contact the official Cecotec Technical Support Service.
tE1 Temperature sensor failure (obstructed ventilation grille)
tE2 Temperature sensor failure (heat exchanger overheating)
SE Humidity sensor failure

Note:

• If the indicator light comes on during dryer operation, check if the condensation water tank is full. If so, empty it and restart the dryer. If not, switch on the dryer directly.
• If the indicator light comes on during dryer operation, check if the lint filter and the lower filter are full of lint. If so, clean them and restart the dryer. If not, switch on the dryer directly.

ENGLISH

Problem Solution
The display does not switch on.	Check that there has not been a power failure. Check that the power cable is properly connected.
The dryer does not start.	Make sure the loading door is properly closed. Make sure to select a drying programme and press the start/pause button.
The door opens by itself.	Make sure to pull the handle and press the door to close it. Check that the laundry load does not exceed the maximum recommended capacity.
The laundry comes out wet or the drying cycle takes too long.	Clean the lint filter and the lower filter. Select a suitable drying programme. Make sure that the ventilation grille is not obstructed.

Any repair work must be carried out by an authorised professional technician.

Before contacting the official Cecotec Technical Support Service, please check whether you can solve the problem yourself or whether it is due to a different usage problem.

8. TECHNICAL SPECIFICATIONS

Product reference: EU01_111268 / EU01_111269

Product: Bolero DressCode Dry 10355 / Bolero DressCode Dry 10355 Steel

Rated capacity: 10 kg

Rated power: 850 W

Waterproof rating: IPX4

Rated voltage: 220-240V\~

Rated frequency: 50 Hz

Refrigerant gas: R290 (120 g)

Technical specifications may change without prior notification to improve product quality.

Made in China | Designed in Spain

9. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the appliance and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

10. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions and deadlines established by the applicable regulations.

Repairs should be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

11. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

12. SIMPLIFIED EU DECLARATION OF CONFORMITY

CE Cecotec Innovaciones hereby declares that this appliance complies with the essential requirements and other relevant provisions of the regulations applicable in the European Union. This appliance has been designed, manufactured and tested to meet the required safety and quality standards. The full text of the EU Declaration of Conformity can be found on the following website: https://cecotec.es/es/information/declaration-of-conformity

FRANÇAIS

1. PIÈCES ET COMPOSANTS

Img. 1

7. PROBLEEMOPLOSSING

Nominal Kapasite: 10,0 kg

Nominal güç 850 W

Technical diagram of a washing machine with numbered parts for identification

Fig./Img./Abb./Afb./Rys.1

Simple line drawing of a washing machine on a platform with a cross symbol indicating the weight (no text or labels)

Simple line drawing of a washing machine with a cross symbol on a surface (no text or labels)

Simple line drawing of a washing machine with a cross symbol on the floor, no text or symbols present.

Fig./Img./Abb./Afb./Rys.2

Line drawing of a washing machine with a screwdriver and base mount (no text or symbols)

Fig./Img./Abb./Afb./Rys. 3

Diagram illustrating a medical procedure with labeled components and directional arrows indicating steps

Fig./Img./Abb./Afb./Rys. 4

Up to 78 cm

Fig./Img./Abb./Afb./Rys. 5

Technical diagram of a circular mechanical component with labeled parts and cross-sectional views

Fig./Img./Abb./Afb./Rys. 6

Diagram illustrating five steps of a cable installation procedure, showing wire rolling, lifting, pressing, winding, and mounting installation.

Fig./Img./Abb./Afb./Rys. 7

Fig./Img./Abb./Afb./Rys. 8

Line drawing showing a hand operating a mechanical component and a close-up of a device with a handle (no text or symbols)

Fig./Img./Abb./Afb./Rys. 9

Technical diagram showing two steps of a mechanical assembly: top panel with ring and pin, bottom panel with hand holding a tool and arrow indicating motion.

Fig./Img./Abb./Afb./Rys.10

Technical diagram showing hand tool application and assembly steps with labeled components

Fig./Img./Abb./Afb./Rys. 11

Diagram illustrating hand tool application on a TV screen, showing action sequence and movement arrows

Diagram showing two steps of cleaning a device with labeled components and a hand holding a brush.

Fig./Img./Abb./Afb./Rys. 12

Humidity sensor (2 iron sheets)

Fig./Img./Abb./Afb./Rys. 13

www.cecotec.es
