USER MANUAL LBD 1880 AL-KO

Line drawing of an Alko air gun with no visible text or symbols on the body

Inhaltsverzeichnis

Deutsch 6

English....19

Nederlands 31

Français....43

Español 56

Italiano....68

Slovenščina 80

Hrvatski....92

Српски....103

Polski 116

Česky 129

Slovenská 140

Magyar 152

Dansk 164

Svensk....175

Norsk 186

Suomi 197

Eesti 208

Lietuvių 219

Latviešu 231

Român 243

български 255

Русский 268

Україна....282

© 2025

AL-KO KOBER GROUP Kötz, Germany

This documentation or excerpts therefrom may not be reproduced or disclosed to third parties without the express permission of the AL-KO KOBER GROUP.

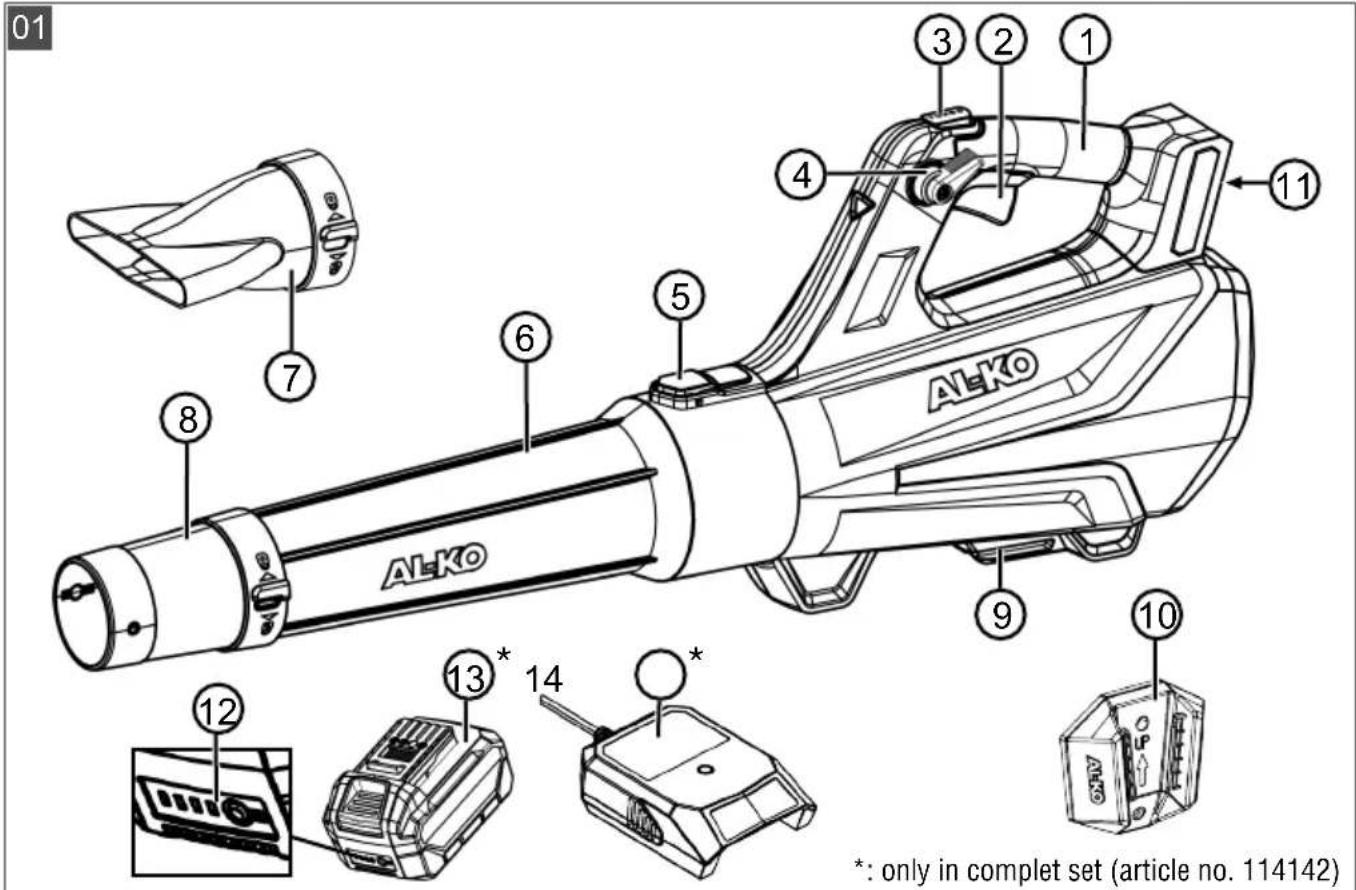

01 ALKO 3 2 1 4 11 8 6 5 9 10 12 13* 14 * * *: only in complet set (article no. 114142)

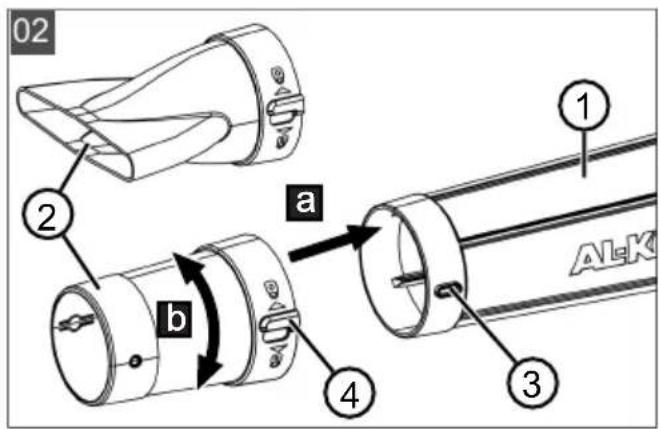

02 1 2 a b 4 3 ALK

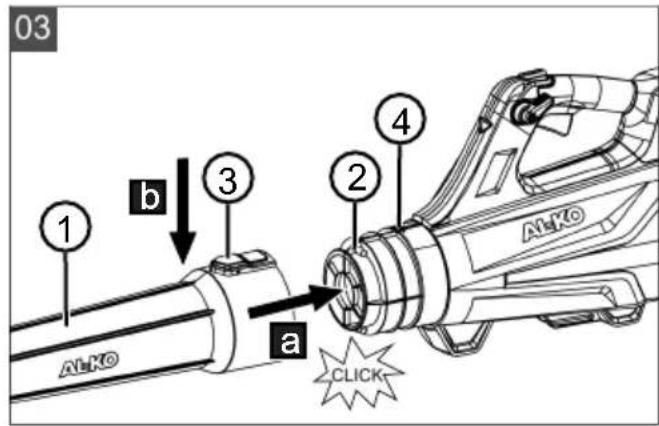

03 1 b 3 2 4 a ALKO CLICK

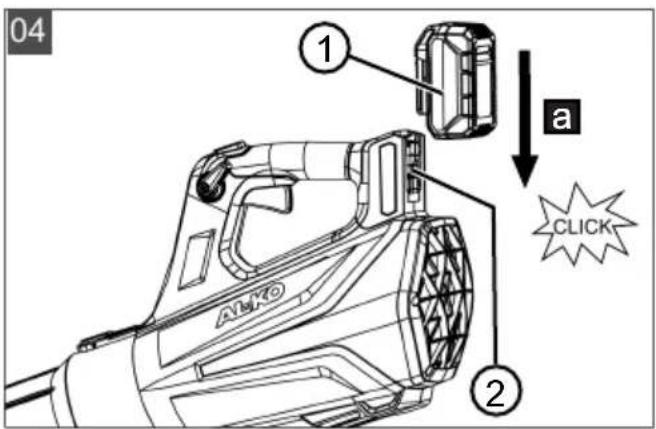

04 ① a CLICK ②

05 ① a ②

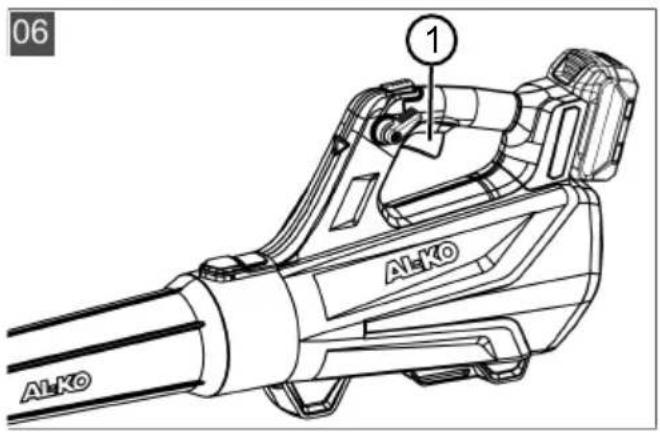

06 1 ALKO ALKO

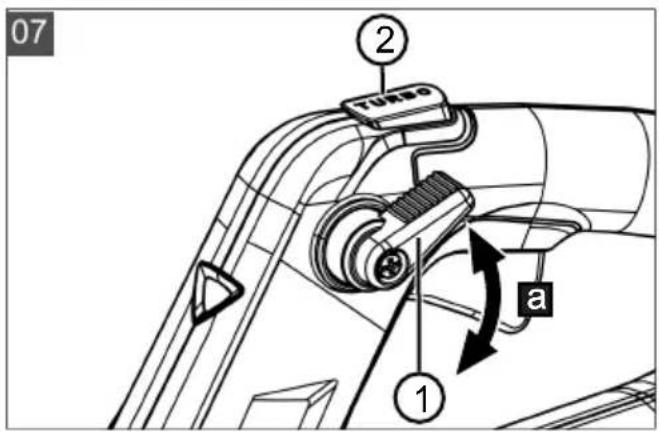

07 ② TURBO a ①

	LBD 1880
Order number			1141421x battery 18 V, B50.6 Li (2,5 Ah)1x charger 18/36 V, C40.6 Li (1,0 A)
Order number		114141
Battery	Lithium-lon batteries18 V: 2,0 Ah | 2,5 Ah18/36 V: 4,0/2,0 Ah | 5,0/2,5 Ah | 8,0/4,0 Ah
Dimensions	87 x 20 x 33 cm
Gross weight of machine without battery	2,4 kg
Blowing speed of airflow	max. 130 km/hmax. 520 m3/h
Sound pressure level	L_pA = 80,3 dB(A), K= 3,0 dB(A) *

LBD 1880

L_wA = 94,03 dB(A), K = 0,44 dB(A) *

0,93 m/s ^2 , K = 1,5 m/s ^2 *

Vibration level at handle

*: Refer to technical data section.

1 Safety instructions.... 19

1.1 General electrical machine safety warnings 19

1.1.1 Work area safety 19

1.1.2 Electrical safety 20

1.1.3 Personal safety.... 20

1.1.4 Electrical machine use and care . 20

1.1.5 Battery machine use and care..... 21

1.1.6 Service 21

1.2 Garden blower, garden vacuum and garden blower/vacuum safety warnings 21

1.3 Vibration load.... 22

1.4 Noise pollution 22

1.5 Safety notes for rechargeable battery and charger.... 22

2 About these operating instructions...... 23

2.1 Symbols on the title page 23

2.2 Legends and signal words.... 23

3 Product description 23

3.1 Designated use.... 23

3.2 Possible foreseeable misuse.... 23

3.3 Residual dangers.... 24

3.4 Safety and protective devices...... 24

3.5 Symbols on the appliance.... 24

3.5.1 Safety signs.... 24

3.5.2 Operating signs 24

3.6 Product overview (01).... 24

3.7 Scope of supply 25

4 Installation.... 25

4.1 Fitting the blowing tubes (02)...... 25

4.2 Fitting the lower blowing tube (03)..... 25

5 Start-up 25

5.1 Charging the rechargeable battery .... 25

5.2 Inserting and removing the rechargeable battery (04, 05).... 25

6 Operation.... 25

6.1 Switching the appliance ON and OFF (06, 07)....26

6.2 Checking the charge status of the rechargeable battery 26

7 Working behaviour and working technique.... 26

8 Maintenance and care 26

9 Help in case of malfunction 26

10 Transport 27

11 Storage.... 28

11.1 Storing the appliance 28

11.2 Storing the rechargeable battery and charging unit.... 28

12 Disposal.... 28

13 Technical data 29

14 After-Sales/Service.... 29

15 Information on the Declaration of Confor- mity 29

16 Warranty 29

1 SAFETY INSTRUCTIONS

1.1 General electrical machine safety warnings

WARNING! Read all safety warnings, instructions, illustrations and specifications provided with this machine. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

■ Save all warnings and instructions for future reference.

The term "machine" in the warnings refers to your mains-operated (corded) machine or battery-operated (cordless) machine.

1.1.1 Work area safety

- Keep work area clean and well lit. Cluttered or dark areas invite accidents.

- Do not operate machines in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Ma-

chines create sparks which may ignite the dust or fumes.

- Keep children and bystanders away while operating a machine. Distractions can cause you to lose control.

1.1.2 Electrical safety

■ Machine plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) machines. Unmodified plugs and matching outlets will reduce risk of electric shock.
- Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
- Do not expose machines to rain or wet conditions. Water entering a machine will increase the risk of electric shock.
- Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the machine. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
- When operating a machine outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
If operating a machine in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

1.1.3 Personal safety

■ Stay alert, watch what you are doing and use common sense when operating a machine. Do not use a machine while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating machines may result in serious personal injury.
■ Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
■ Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the machine.

Carrying machines with your finger on the switch or energising machines that have the switch on invites accidents.

■ Remove any adjusting key or wrench before turning the machine on. A wrench or a key left attached to a rotating part of the machine may result in personal injury.
- Do not overreach. Keep proper footing and balance at all times. This enables better control of the machine in unexpected situations.
■ Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
Do not let familiarity gained from frequent use of machines allow you to become complacent and ignore machine safety principles. A careless action can cause severe injury within a fraction of a second.

1.1.4 Electrical machine use and care

• Do not force the machine. Use the correct machine for your application. The correct machine will do the job better and safer at the rate for which it was designed.
• Do not use the machine if the switch does not turn it on and off. Any machine that cannot be controlled with the switch is dangerous and must be repaired.
  ■ Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the machine before making any adjustments, changing accessories, or storing machines. Such preventive safety measures reduce the risk of starting the machine accidentally.
  ■ Store idle machines out of the reach of children and do not allow persons unfamiliar with the machine or these instructions to operate the machine. Machines are dangerous in the hands of untrained users.
• Maintain machines and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the machine's operation. If damaged, have the

machine repaired before use. Many accidents are caused by poorly maintained machines.

• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
  Use the machine, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the machine for operations different from those intended could result in a hazardous situation.
• Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the machine in unexpected situations.

1.1.5 Battery machine use and care

■ Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
■ Use machines only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
- When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
■ Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
- Do not use a battery pack or machine that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
- Do not expose a battery pack or machine to fire or excessive temperature. Exposure to fire or temperature above 130°C may cause explosion.
■ Follow all charging instructions and do not charge the battery pack or machine

outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

1.1.6 Service

• Have your machine serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the machine is maintained.
  ■ Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

1.2 Garden blower, garden vacuum and garden blower/vacuum safety warnings

(a) Do not use the machine in bad weather conditions, especially when there is a risk of lightning. This decreases the risk of being struck by lightning.
(b) Thoroughly inspect the area for wildlife where the machine is to be used. Wildlife may be injured by the machine during operation.
(c) Thoroughly inspect the area where the machine is to be used and remove all stones, sticks, wires, bones, and other foreign objects that can ricochet, be thrown, or otherwise cause injury or damage during operation. Thrown objects can increase the risk of personal injury.
(d) Wear eye protection and ear protection. Adequate protective equipment will reduce the risk of personal injury.
(e) While operating the machine, always wear non-slip and protective footwear. Do not operate the machine when barefoot or wearing open sandals. This reduces the risk of injury to the feet.
(f) While operating the machine, always wear long trousers. Exposed skin increases the risk of injury from debris.
(g) Do not wear loose fitting clothing or articles such as scarves, strings, chains, ties, etc., that could get drawn into the air inlets. Tie back or cover long hair to make sure it does not get drawn into the air inlets. If any of these items are drawn into the air inlets, it can increase the risk of personal injury.
(h) Keep bystanders away while operating the machine. Thrown debris can increase the risk of personal injury.

(i) Never point the blower nozzle in the direction of people or pets or in the direction of windows. Use extra caution when blowing debris near solid objects, such as trees, automobiles and walls that can cause debris to ricochet. Thrown objects can damage property and increase the risk of personal injury.
(j) Do not use the machine to blow anything that is burning or smoking, such as cigarettes, matches or hot ashes. These ignition sources may increase the risk of fire.
(k) Do not touch the fan while still in motion. Turn off the machine, wait until the fan stops and unplug the machine, before removing any part that may give access to the fan. This reduces the risk of injury from moving parts.
(I) When clearing jammed material or servicing the machine, make sure the switch is off. Unexpected starting of the machine while clearing jammed material or servicing may result in serious personal injury.

1.3 Vibration load

WARNING! Danger due to vibration. The actual magnitude of the vibration emissions during the use of the appliance may deviate from that stated by the manufacturer. Observe the following influencing factors before or during use:

Is the appliance being used as intended?
Is the material being processed in the proper manner?
Is the appliance in a proper condition of use?

The noise and vibrations of the appliance can increase due to improper use and maintenance. This leads to damage of the health. In this case, immediately switch off the appliance and have it repaired by an authorised service workshop.

The degree of stress due to vibration depends on the work to be performed or on the use that the appliance is put to. Estimate the stress and plan appropriate work breaks. This considerably reduces stress due to vibration over the entire working time.

■ Extensive use of the appliance exposes the operator to vibrations, which can lead to circulatory issues ("white fingers"). To avoid this risk, wear gloves and keep your hands warm. If any symptoms of "white fingers" occur, immediately consult a physician. These symptoms include: Numbness, loss of feeling, tingling, itching, pain, reduced muscular

strength, changes in the colour or condition of the skin. Normally these conditions affect the fingers, hands or pulse. The risk increases at low temperatures.

Take long breaks during your working day so you can recover from the noise and the vibrations. Plan your work in such a way that the use of appliances that generate strong vibrations is spread over several days.
If you notice an unpleasant sensation or discoloration of the skin on your hands when using the appliance, stop work immediately. Take sufficient work breaks. Without sufficient breaks, a hand/arm vibration syndrome can occur.
- Minimise your risk of being exposed to vibrations. Maintain the appliance according to the instructions in the operating instructions.
If the appliance is used frequently, contact your dealer to purchase anti-vibration accessories (e.g. handles).
- Avoid working with the appliance at temperatures below 10 °C. Define how the vibration load can be limited in a work plan.

1.4 Noise pollution

A certain level of noise exposure from this appliance is inevitable. Carry out noisy work at approved and specified time periods.
- Observe rest periods as necessary and restrict the duration of the work to a minimum.
For your personal protection and protection of persons in the vicinity, appropriate hearing protection must be worn.
■ National and/or regional regulations may restrict the use of this device at certain times of the day.

1.5 Safety notes for rechargeable battery and charger

■ Remove the battery from the appliance before charging.
- Insert the battery into the appliance with the correct polarity.
■ Remove the battery from the appliance before putting it into storage for an extended period.
- Do not short-circuit the terminals of the appliance or battery.

Operating instructions

Please observe the safety instructions for the battery and charger in the separate operating instructions:

■ Operating instructions 443998: Batteries
■ Operating instructions 443999: Chargers

2 ABOUT THESE OPERATING INSTRUCTIONS

The German version is the original operating instructions. All additional language versions are translations of the original operating instructions.
- Keep these operating instructions in a safe place at all times so that they can be consulted if you need any information about the appliance.
■ Only pass on the appliance to other persons together with these operating instructions.
■ Comply with the safety and warning information in these operating instructions.

2.1 Symbols on the title page

Symbol Meaning

It is essential to read through these operating instructions carefully prior to starting operation. This is essential for safe working and trouble-free handling.

Operating instructions

Handle Li Ion rechargeable batteries with care! In particular, observe the notes on transport, storage and disposal in these operating instructions!

This product conforms to the applicable European Directives, and a conformity evaluation procedure for these Directives has been carried out.

2.2 Legends and signal words

⚠️ DANGER! Denotes an imminently dangerous situation which will result in fatal or serious injury if not avoided.

WARNING! Denotes a potentially dangerous situation which can result in fatal or serious injury if not avoided.
CAUTION! Denotes a potentially dangerous situation which can result in minor or moderate injury if not avoided.

IMPORTANT! Denotes a situation which can result in material damage if not avoided.

NOTE Special instructions for ease of understanding and handling.

3 PRODUCT DESCRIPTION

These operating instructions describe a hand-operated, battery-powered leaf blower.

All batteries (Bxxx Li) and chargers (Cxxx Li) from the system can be used.

IMPORTANT! Danger of damage to the appliance and battery. If the appliance is operated with unsuitable batteries, both the device and the batteries may be damaged.

- Operate the appliance only with the specified rechargeable batteries.

NOTE Further information can be found in the operating instructions for the batteries and chargers from the system. ALV018V/36V BATTERY 2 VOLTAGES

3.1 Designated use

This battery-powered leaf blower is designed for private use. It can be used for:

■ Blowing away and collecting leaves, grass, dirt and refuse.

Only work with the appliance when it is fully assembled.

This appliance is intended solely for use in non-commercial applications. Any other use as well as unauthorised conversions or modifications are regarded as contrary to the intended use and will result in voiding of the warranty as well as loss of conformity; the manufacturer will thus decline any responsibility for damage and/or injury suffered by the user or third parties.

3.2 Possible foreseeable misuse

The tool is designed neither for commercial use in public parks and sports facilities, nor for use in farming and forestry.

3.3 Residual dangers

Even during correct use of the appliance, there is always a certain residual risk that cannot be excluded. Depending on the use, the following potential risks can be derived from the type and construction of the appliance:

■ Throwing out of cuttings, soil and small stones.
■ Inhalation of cuttings particles if no breathing protection is worn.
■ Damage to the hearing if no hearing protection is worn.

3.4 Safety and protective devices

WARNING! Risk of injury. Defective and disabled safety and protective devices can result in serious injury.

■ Have any defective safety and protective devices repaired.
■ Never disable safety and protective devices.

3.5 Symbols on the appliance

3.5.1 Safety signs

Symbol Meaning

Pay special attention when handling this appliance!

Read the operating instructions before starting operation!

Wear eye and ear protectors!

Do not reach into the fan.

Risk of objects being thrown out!

Keep bystanders away!

Symbol Meaning

Danger due to rotating parts

Protect the appliance from rain and moisture!

3.5.2 Operating signs

Symbol Meaning

Turbo button for operation in Turbo mode

Operating symbol for lower blowing tube:

• Padlock closed: Fix lower blowing tube.
  Padlock open: Loosen lower blowing tube.

3.6 Product overview (01)

No. Component

1 Handle

2 ON/OFF switch

3 Turbo button

4 Locking lever

5 Locking button

6 Upper blowing tube

7 Lower blowing tube with flat nozzle, for precision work

8 Lower blowing tube with round nozzle, for large areas

9 Slide rail for wall bracket

10 Wall bracket

11 Battery holder

12 Charge status display on the battery

13* Battery*

14* Charger*

*: Included in the complete set (Article No. 114142)

3.7 Scope of supply

The items listed here are included in the standard scope of supply. Check that all items are present:

No. Component

1 Cordless leaf blower

2 Upper blowing tube

3 Lower blowing tube with flat nozzle, for precision work

4 Lower blowing tube with round nozzle, for large areas

5 Operating instructions

6 Wall bracket

7* Battery*

8* Charger*

*: Not included in the scope of supply of the individual appliance, but part of the complete set.

4 INSTALLATION

WARNING! Danger if assembly is not carried out completely! Use of an incompletely assembled appliance can result in serious injury.

• Operate the appliance only when it is fully assembled!
• Do not insert the battery into the appliance until it is fully assembled!

4.1 Fitting the blowing tubes (02)

Fitting the blowing tubes

1. Align upper blowing tube (02/1) with lower blowing tube (02/2) as follows:
   ■ Cam (02/3) of the upper blowing tube and cam guide (02/4) in the lower blowing tube must be aligned on both sides.
2. Push the blowing tubes completely into one another (02/a).
3. Turn the lower blowing tube in the direction of the closed padlock (02/b).

Removing the blowing tubes

1. Turn the lower blowing tube in the direction of the open padlock(02/b).
2. Pull the lower blowing tube off the upper blowing tube.

4.2 Fitting the lower blowing tube (03)

Fitting the lower blowing tube

1. Align lower blowing tube (03/1) with fitting (03/2) of the leaf blower so that locking button (03/3) and cam (03/4) are aligned with one another.
2. Push the lower blowing tube onto the fitting of the leaf blower until it engages (03/a).

Removing the lower blowing tube

1. Press (03/b) and hold locking button (03/3).
2. Pull the lower blowing tube off the fitting of the leaf blower.

5 START-UP

5.1 Charging the rechargeable battery

Observe the temperature range for charging, see technical data.

i NOTE For detailed information, see the separate operating instructions for the rechargeable battery and the charger:

■ Operating instructions 443998: Batteries
■ Operating instructions 443999: Chargers

5.2 Inserting and removing the rechargeable battery (04, 05)

IMPORTANT! Danger of damage to the rechargeable battery. If the rechargeable battery is left in the appliance after use, it may damage the rechargeable battery.

• Immediately after use, pull the rechargeable battery out of the appliance and store in a frost-protected area.
  ■ Only insert the rechargeable battery in the appliance immediately before starting work.

Inserting the battery

1. Push battery (04/1) into battery slot (04/2) until it engages (04/a).

Removing the battery

1. Press and hold the release button (05/1) on the battery (05/2).
2. Pull out the battery (05/a).

6 OPERATION

WARNING! Risk of injury due to detaching appliance parts. Appliance parts detaching during operation can lead to serious injury.

■ Before switching on the appliance, check that all appliance parts are firmly attached.

6.1 Switching the appliance ON and OFF (06, 07)

CAUTION! Risk of injury and damage to property. Persons or animals can be injured and soiled by the air jet and blown away material.

It is essential to make sure that the air jet and blown away material does not negatively affect persons or animals or damage objects.
Note the wind direction.

NOTE Never work against the wind to ensure that you and persons behind you are not soiled.

Switching on the appliance

1. Stand securely.
2. Press ON/OFF switch (06/1).
3. With the leaf blower operating, turn locking lever (07/1) upward for continuous operation (07/a).

Increasing the blowing speed

1. Press and hold the turbo button (07/2). The appliance blows stronger.
2. Release the turbo button. The appliance blows normally again.

Switching off the appliance

1. Turn locking lever (07/1) downwards(07/a).
2. Release ON/OFF switch (06/1). The appliance turns off.

6.2 Checking the charge status of the rechargeable battery

The charge status display is located on the battery.

NOTE For detailed information, see the separate operating instructions for the rechargeable battery and the charger:

■ Operating instructions 443998: Batteries
■ Operating instructions 443999: Chargers

7 WORKING BEHAVIOUR AND WORKING TECHNIQUE

■ Angle the machine forwards slightly, and walk forwards slowly.
- Sweep the machine to the right and left in order to blow away the leaves.
- Do not overload the appliance during work.
■ After use, remove the rechargeable battery and check the appliance for damage.

8 MAINTENANCE AND CARE

• Do not get the machine wet or expose it to moisture. Do not spray with water.
  ■ Remove the rechargeable battery and check the appliance for damage each time after use.
  ■ Regularly check the machine is in good working order.
• Check the appliance's electrical contacts for corrosion, clean with a fine wire brush if necessary and then spray with a contact spray.

9 HELP IN CASE OF MALFUNCTION

CAUTION! Risk of injury. Sharp-edged and moving appliance parts can lead to injury.

■ Always wear protective gloves during maintenance, care and cleaning work!

NOTE For malfunctions that are not listed in this table or that you cannot resolve yourself, please contact our customer service.

Malfunction Cause Remedy
Appliance does not blow. Attachment blocked. Clean the attachment.
	Intake grille blocked. Clean the intake grille.
Motor does not start. Rechargeable battery is flat. Charge the rechargeable battery.
	Rechargeable battery missing or rechargeable battery not seated correctly.	Insert the rechargeable battery correctly.
	Rechargeable battery is too cold or too hot.	Warm up the rechargeable battery slightly or allow it to cool down.
	The ON/OFF switch is not set to "OFF" and the rechargeable battery has been removed.	Set the ON/OFF switch to "OFF" and wait for 3 seconds. Then switch on the appliance.
Motor keeps cutting out. Air speed regulator is defective.		Contact one of the manufacturer's service centres.
Motor cuts out. Motor protection switch has tripped.		Wait until the motor protection switch switches the appliance on again.
	Ventilation slots soiled. Clean the appliance.
Rechargeable battery operating time is significantly shorter.	Rechargeable battery discharged because it has not been used for some time.	Charge the rechargeable battery.
	The service life of the rechargeable battery has expired.	Replace the rechargeable battery. Only use genuine accessories from the manufacturer.
Rechargeable battery cannot be charged.	Rechargeable battery contacts are dirty.	Contact one of the manufacturer's service centres.
	Rechargeable battery or charging unit is defective.	Order spare parts. Contact one of the manufacturer's service centres.
	Rechargeable battery is too hot.	Allow the battery to cool down.

10 TRANSPORT

Perform the following measures before transporting the appliance:

1. Switch off the appliance.
2. Remove the battery from the appliance.
3. Pack the battery properly (see below).

NOTE The nominal energy of the rechargeable battery is more than 100 Wh. Therefore, observe the following transport instructions.

The Li-ion rechargeable battery contained in the appliance is subject to the hazardous goods law, but can be transported under simplified conditions:

The rechargeable battery can be transported on public roads by the private user without further conditions provided it is packaged for retail sale and the transport serves personal purposes.
■ Commercial users who carry out the transport in connection with their main activity (e.g. delivery from and to building sites, or

demonstrations) can also take advantage of this simplification.

In both cases, it is essential to take the mandatory precautions mentioned above to prevent any leakage of the contents. In other cases, it is essential to comply with the regulations of the hazardous goods law. In the case of non-compliance, severe penalties can be imposed on the sender and possibly the transporter.

Additional notes on transport and shipment

■ Only transport or send the li-ion rechargeable battery in an undamaged condition.
For transporting the rechargeable battery, only use the original cardboard box or a suitable hazardous goods cardboard box (not required for rechargeable batteries with a nominal energy less than 100 Wh).
■ Tape off exposed rechargeable battery contacts to avoid a short circuit.
- Secure the rechargeable battery against shifting in the packaging to avoid damage to the rechargeable battery.

■ Ensure the correct marking and documentation of the shipment for transport or shipping (e.g. by parcel service or freight forwarding).
- Check in advance that transport with the selected service provider is possible and indicate the shipment.

We recommend involving a hazardous goods specialist in preparation of the shipment. Also heed any further national regulations.

11 STORAGE

11.1 Storing the appliance

■ Thoroughly clean the appliance after each use and – if present – attach all covers.
■ Perform the required maintenance works.
■ Store the appliance in a dry, lockable place out of the reach of children.

Carry out the following jobs before intervals in work lasting for longer than 30 days:

■ Thoroughly clean the appliance and store it in a dry place.

11.2 Storing the rechargeable battery and charging unit

NOTE For detailed information, heed the separate operating instructions for the rechargeable battery and for the charging unit.

12 DISPOSAL

Only for EU countries:

According to the European Directive 2012/19/EU on Waste Electrical and Electronic Equipment and its implementation into national law, chargers that are no longer usable must be collected separately and disposed of in an environmentally friendly manner.

If disposed incorrectly, waste electrical and electronic equipment may have harmful effects on the environment and human health, due to the potential presence of hazardous substances.

Information on the German Electrical and Electronic Equipment Act

Electrical and electronic appliances do not belong in household waste, but should be collected and disposed of separately!

■ Used batteries or rechargeable batteries that are not installed permanently in the old appli-

ance must be removed before disposal. Their disposal is regulated by the battery law.

• Owners or users of electrical and electronic appliances are obliged by law to return them after use.
  ■ The end user bears personal responsibility for deleting his personal data from the old appliance to be disposed of.

The symbol of the crossed-through rubbish bin means that electrical and electronic appliances may not be disposed of in the household rubbish.

Electrical and electronic appliances can be handed in at the following places at no charge:

■ Public service disposal or collection points (e.g. municipal building yards)
■ Points of sale of electrical appliances (stationary and online) if dealers are obliged to take them back or offer this voluntarily.

These statements only apply to appliances that are installed and sold in the countries of the European Union and are subject to European Directive 2012/19/EU. Different provisions may apply to the disposal of electrical and electronic appliances in countries outside the European Union.

Information on the German Battery Act (BattG)

■ Used batteries and rechargeable batteries do not belong in household waste, but should be collected and disposed of separately.

For safe removal of batteries or rechargeable batteries from the electrical appliance and for information on their type or chemical system, follow the further information within the operating or installation instructions.
- Owners or users of batteries and rechargeable batteries are obliged by law to return them after use. Return is limited to the handover of customary household quantities.

Used batteries can contain harmful substances or heavy metals that can cause damage to the environment and human health. Reuse of the used batteries and use of the resources contained therein contributes to the protection of these two essential commodities.

The symbol of the crossed-through rubbish bin means that batteries and rechargeable batteries may not be disposed of in household rubbish.

In addition, if the symbol Hg, Cd or Pb appears under the rubbish bin, this stands for the following:

■ Hg: Battery contains more than 0.0005 % mercury
Cd: Battery contains more than 0.002 % cadmium
■ Pb: Battery contains more than 0.004 % lead
Rechargeable batteries and batteries can be handed in at the following places at no charge:
■ Public service disposal or collection points (e.g. municipal building yards)
■ Points of sale of batteries and rechargeable batteries
■ Disposal points of the common take-back system for the used batteries of appliances
■ Disposal point of the manufacturer (if not a member of the common take-back system)

These statements apply only to rechargeable batteries and batteries that are sold in the countries of the European Union and that are subject to European Directive (EU) 2023/1542. Different provisions can apply to the disposal of rechargeable batteries and batteries in countries outside the European Union.

Only for United Kingdom:

According to The Waste Electrical and Electronic Equipment Regulations 2013 (SI 2013/3113) (as amended), products that are no longer usable must be collected separately and disposed of in an environmentally friendly manner.

13 TECHNICAL DATA

Technical data: see table of technical data at the beginning of these operating instructions.

* Notes on vibration emission and noise emission values:

The vibration emission and noise emission values given were measured according to a

standardised test method and can be used to compare one machine with another.

The vibration emission and noise emission values given can also be used for an initial assessment of the exposure (vibration exposure level).
The vibration emission and noise emission values may differ from the given values during actual use of the machine, depending on how the machine is used.
- Observe the safety precautions in the Safety chapter. Try to keep the vibration load as low as possible. Exemplary measures for reducing the vibration load are the wearing of gloves when using the machine and limitation of the working time. All parts of the operating cycle must be taken into account (e.g. times when the machine is switched off and those in which it is switched on but is running without load).

14 AFTER-SALES/SERVICE

In the event of questions of warranty, repair or spare parts, please contact your nearest AL-KO Service Centre. These can be found on the Internet at:

www.alko-garden.com/service-contacts

Further information on spare parts can be found at:

www.alko-garden.com/spareparts

15 INFORMATION ON THE DECLARATION OF CONFORMITY

We hereby declare, as the exclusively responsible party, that this product in its marketed form meets the requirements of the harmonised EU Directives, EU safety standards and the product-specific standards. The Declaration of Conformity forms part of the operating instructions and is included with the machine.

16 WARRANTY

We will remedy any material or manufacturing defects discovered in the device during the statutory period of limitation for claims for defects by repair or replacement at our discretion. The period of limitation is determined in each case by the law of the country in which the device was purchased.

Our warranty promise applies only if:

■ These operating instructions are observed
■ The device is handled correctly
■ Original spare parts have been used

The warranty becomes void in the case of:

■ Unauthorised repair attempts
■ Unauthorised technical modifications
■ Use for other than the intended purpose

The warranty does not include:

■ Paint damage attributable to normal wear
■ Wear parts that are marked with a box xxxxxx (x) on the spare parts card

The warranty period commences with the purchase by the first end user. The date on the proof of purchase is decisive. In the event of a warranty claim, please contact your dealer or the nearest authorised customer service centre with this declaration and the original proof of purchase. This declaration does not affect the purchaser's statutory claims for defects against the vendor.

VERTALING VAN DE ORIGINELE GEBRUIKERSHANDLEIDING

Inhoudsopgave

3 PRODUCTOMSCHRIJVING

ALKO 18 V/36 V 1BATTERY 2VOLTAGES

14 SERVISNA SLUŽBA/SERVIS

14 Kundeservice/service .....174

14 Kundeservice/service .....196

7 ARBEIDSFREMTREDEN OG ARBEIDSTEKNIKK

8 VEDLIKEHOLD OG PLEIE

Imported by: AL-KO Gardentech UK Ltd, Murray way, Wincanton, Somerset, BA9 9RS / UK | [phone]

[e-mail] | www.alko-garden.uk
