USER MANUAL PGS 500 B2 PARKSIDE

User manual Translation of the original instructions

FR BE

MEULEUSE DROITE

GB/IE User manual Page 49

List of pictograms used . Page 51

Introduction 53

Intended use. Page 53
Scope of delivery . 53
Parts list . 54
Technical data. Page 54

General safety instructions . Page 57

General power tool safety warnings . Page 57
Straight grinder safety warnings. Page 60
Vibration and noise reduction. Page 69
Behaviour in emergency situations. Page 70
Residual risks . Page 70

First set-up of the product. Page 71

Unpacking the product. Page 71
Selecting the grinding stone size . Page 71
Removing/inserting the grinding stone/
insert tool . Page 73
Inserting/removing the 3.2 mm collet. Page 74

Operation. Page 75

Switching on/off . Page 75
Setting the rotational speed . Page 76
Grinding . 77

Troubleshooting 79

Cleaning and maintenance . Page 79

Cleaning . 80
Maintenance. Page 80
Repair. Page 81
Storage. Page 81
Transportation. Page 82

Disposal. Page 82

Warranty. Page 83

Warranty claim procedure. . Page 84

Service

EU declaration of conformity . Page 86

List of pictograms used
Read the user manual.
DANGER! – Designating a hazard with high risk, which will result in death or severe injury if not avoided (e.g. risk of suffocation)
WARNING! – Designating a hazard with moderate risk, which can result in death or severe injury if not avoided (e.g. risk of electric shock)
CAUTION! – Designating a hazard with low risk, which could result in minor or moderate injury if not avoided (e.g. risk of scalding)
NOTICE! – Warns of possible damage to property/the product if not avoided (e.g. risk of short circuit)
Danger – risk of electric shock!
Switch off the product and disconnect it from the mains before replacing attachments, cleaning and when not in use.
Protection class II (double insulation)
Wear eye protection!
Wear ear protection!
Wear a dust mask!
~	Alternating current/voltage
n	Rated speed
∅	Diameter
B	Locked
B	Unlocked
□	Safety information Instructions for use
CE	CE mark indicates conformity with relevant EU directives applicable for this product.

STRAIGHT GRINDER

Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intended use

This product is intended for grinding and deburring metal with using appropriate corundum grinding insert tools. The product adapts the speed to suit the material.

The product is not intended for commercial use. Any other use of or modification to the product is deemed to be misuse and carries the risk of serious personal injury.

The manufacturer is not liable for damages caused by an improper use or incorrect operation of this product.

Scope of delivery

WARNING!

The product and the packaging are not children's toys! Children must not play with plastic bags, sheets and small parts! There is a danger of choking and suffocation!

1 Straight grinder
2 Collet 3.2 / 6mm
1 Grinding stone
1 Carrying case
1 User manual

Parts list

Before reading, unfold the pages containing the illustrations and familiarise yourself with all functions of the product.

(Fig. A)

(Fig. B)

1 Speed control dial
2 On/off switch
3 Mains cord with mains plug
4 Ventilation slot
5 Shaft
6 Collet (6 mm) (preinstalled)
7 Clamping nut
8 Spindle lock button

9 Wrench
10 Grinding stone
11 Collet (3.2 mm)
12 Carrying case

Technical data

Straight grinder PGS 500 B2
Model numbers -VDE plug: HG10433 -BS plug: HG10433-BS
Rated voltage: 230 V~, 50 Hz
Rated power consumption: 500 W
Rated speed (n): 4,500–30,000 min	-1
Collet sizes: Ø 3.2 mm	Ø 6 mm
Shaft/clamping nut thread: M14
Max. grinding stone size: Ø 25 mm
Max. cutting wheel size: Ø 25 mm
Protection class:	II/回

NOTE

Only use grinding stor10 designed for rotary speed ≥ 30,000min^-1 (revolutions per minute).

Noise emission value

The measured values have been determined in accordance with EN 60745. The A-rated noise level of the power tool is typically as follows:

Sound pressure level LpA: 74 dB
Uncertainty KpA: 3 dB
Sound power level LWA: 82 dB
Uncertainty KwA: 3 dB

Vibration emission value

Vibration total values (triaxial vector sum) determined according to EN 60745:

Vibration a_h: 0.709 m/s²
Uncertainty K: 1.5 m/s²

The values apply for the work mode surface grinding. Other applications may have different vibration emission values.

NOTE

The specified hand-arm vibration value is based on sanding with an abrasive sheet. Different applications may result in different values.
The noise and vibration values were determined according to EN 60745-1 and EN 60745-2-23.
The specified vibration value was measured on the basis of a standard test method and can be used to compare any kind of power tools.
The specified vibration value can also be used for the initial evaluation of exposure.

WARNING!

Depending on how you use the power tool, the actual vibration values may deviate from the specified values.
Take measures to protect yourself against vibrations.
Take into account the entire work process, i.e. also times when the power tool is operated without load or switched off. Appropriate measures include the regular maintenance and care of the power tool and its attachments, keeping your hands warm, regular breaks and well planned work processes.

WARNING!

Wear hearing protection!

General safety instructions

General power tool safety warnings

WARNING!

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

Work area safety

1) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
2) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
3) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

Electrical safety

1) The mains plug of the power tool must fit into the socket. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

2) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
3) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
4) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
5) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
6) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

Personal safety

1) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
2) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
3) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power

source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

4) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
5) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
6) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
7) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

Power tool use and care

1) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
2) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
3) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

4) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
5) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
6) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
7) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

Service

1) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

• Straight grinder safety warnings

WARNING!

Dust from materials such as metal can be harmful to your health.
Contact with or inhaling this type of dust can present a danger to the user or persons nearby.

WARNING!

Wear safety glasses and a dust mask!

Safety warnings common for grinding operations

1) This power tool is intended to function as a grinder. Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
2) Operations such as sanding, wire brushing, polishing or cutting-off are not recommended to be performed with this power tool. Operations for which the power tool was not designed may create a hazard and cause personal injury.
3) Do not use accessories which are not specifically designed and recommended by the tool manufacturer. Just because the accessory can be attached to your power tool, it does not assure safe operation.
4) The rated speed of the accessory must be at least equal to the maximum speed marked on the power tool. Accessories running faster than their rated speed can break and fly apart.
5) The outside diameter and the thickness of your accessory must be within the capacity rating of your power tool. Incorrectly sized accessories cannot be adequately guarded or controlled.

6) The arbour size of wheels, sanding drums or any other accessory must properly fit the spindle or collet of the power tool. Accessories that do not match the mounting hardware of the power tool will run out of balance, vibrate excessively and may cause loss of control.
7) Mandrel mounted wheels, sanding drums, cutters or other accessories must be fully inserted into the collet or chuck. If the mandrel is insufficiently held and/or the overhang of the wheel is too long, the mounted wheel may become loose and be ejected at high velocity.
8) Do not use a damaged accessory. Before each use inspect the accessory such as abrasive wheels for chips and cracks, sanding drum for cracks, tear or excess wear, wire brush for loose or cracked wires. If power tool or accessory is dropped, inspect for damage or install an undamaged accessory. After inspecting and installing an accessory, position yourself and bystanders away from the plane of the rotating accessory and run the power tool at maximum no-load speed for 1 minute. Damaged accessories will normally break apart during this test time.
9) Wear personal protective equipment. Depending on application, use face shield, safety goggles or safety glasses. As appropriate, wear dust mask, hearing protectors, gloves and workshop apron capable of stopping small abrasive or workpiece fragments. The eye protection must be capable of stopping flying debris generated by various operations. The dust mask or respirator must be capable of filtrating particles generated by your operation. Prolonged exposure to high intensity noise may cause hearing loss.

10) Keep bystanders a safe distance away from work area. Anyone entering the work area must wear personal protective equipment. Fragments of workpiece or of a broken accessory may fly away and cause injury beyond immediate area of operation.
11) Hold the power tool by insulated gripping surfaces only, when performing an operation where the cutting tool may contact hidden wiring or its own cord. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
12) Always hold the tool firmly in your hand(s) during the start-up. The reaction torque of the motor, as it accelerates to full speed, can cause the tool to twist.
13) Use clamps to support workpiece whenever practical. Never hold a small workpiece in one hand and the tool in the other hand while in use. Clamping a small workpiece allows you to use your hand(s) to control the tool. Round material such as dowel rods, pipes or tubing have a tendency to roll while being cut, and may cause the bit to bind or jump toward you.
14) Position the cord clear of the spinning accessory. If you lose control, the cord may be cut or snagged and your hand or arm may be pulled into the spinning accessory.
15) Never lay the power tool down until the accessory has come to a complete stop. The spinning accessory may grab the surface and pull the power tool out of your control.
16) After changing the bits or making any adjustments, make sure the collet nut, chuck or any other adjustment devices are securely tightened. Loose

adjustment devices can unexpectedly shift, causing loss of control, loose rotating components will be violently thrown.

17) Do not run the power tool while carrying it at your side. Accidental contact with the spinning accessory could snag your clothing, pulling the accessory into your body.
18) Regularly clean the power tool's air vents. The motor's fan will draw the dust inside the housing and excessive accumulation of powdered metal may cause electrical hazards.
19) Do not operate the power tool near flammable materials. Sparks could ignite these materials.
20) Do not use accessories that require liquid coolants. Using water or other liquid coolants may result in electrocution or shock.

Further safety instructions for all operations - Kickback and related warnings

Kickback is a sudden reaction to a pinched or snagged rotating wheel, sanding band, brush or any other accessory. Pinching or snagging causes rapid stalling of the rotating accessory which in turn causes the uncontrolled power tool to be forced in the direction opposite of the accessory's rotation.

For example, if an abrasive wheel is snagged or pinched by the workpiece, the edge of the wheel that is entering into the pinch point can dig into the surface of the material causing the wheel to climb out or kick out. The wheel may either jump toward or away from the operator, depending on direction of the wheel's movement at the point of pinching. Abrasive wheels may also break under these conditions.

Kickback is the result of power tool misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below.

1) Maintain a firm grip on the power tool and position your body and arm to allow you to resist kickback forces. The operator can control kickback forces, if proper precautions are taken.
2) Use special care when working corners, sharp edges etc. Avoid bouncing and snagging the accessory. Corners, sharp edges or bouncing have a tendency to snag the rotating accessory and cause loss of control or kickback.
3) Do not attach a toothed saw blade. Such blades create frequent kickback and loss of control.
4) Always feed the bit into the material in the same direction as the cutting edge is exiting from the material (which is the same direction as the chips are thrown). Feeding the tool in the wrong direction causes the cutting edge of the bit to climb out of the work and pull the tool in the direction of this feed.
5) When using grinding stone or compatible type of accessories, always have the work securely clamped. These wheels will grab if they become slightly canted in the groove, and can kickback. When a cut-off wheel grabs, the wheel itself usually breaks. When a rotary file, high-speed cutter or tungsten carbide cutter grabs, it may jump from the groove and you could lose control of the tool.

Additional safety instructions for grinding and cutting-off operations - Safety warnings specific for grinding and abrasive cutting-off operations:

1) Use only wheel types that are recommended for your power tool and only for recommended applications. For example: do not grind with the side of a cut-off wheel. Abrasive cut-off wheels are intended for peripheral grinding, side forces applied to these wheels may cause them to shatter.
2) For threaded abrasive cones and plugs use only undamaged wheel mandrels with an unrelieved shoulder flange that are of correct size and length. Proper mandrels will reduce the possibility of breakage.
3) Do not "jam" a cut-off wheel or apply excessive pressure. Do not attempt to make an excessive depth of cut. Overstressing the wheel increases the loading and susceptibility to twisting or snagging of the wheel in the cut and the possibility of kickback or wheel breakage.
4) Do not position your hand in line with and behind the rotating wheel. When the wheel, at the point of operation, is moving away from your hand, the possible kickback may propel the spinning wheel and the power tool directly at you.
5) When wheel is pinched, snagged or when interrupting a cut for any reason, switch off the power tool and hold the power tool motionless until the wheel comes to a complete stop. Never attempt to remove the cut-off wheel from the cut while the wheel is in motion otherwise kickback may occur. Investigate and take corrective action to eliminate the cause of wheel pinching or snagging.

6) Do not restart the cutting operation in the workpiece. Let the wheel reach full speed and carefully re-enter the cut. The wheel may bind, walk up or kickback if the power tool is restarted in the workpiece.
7) Support panels or any oversized workpiece to minimize the risk of wheel pinching and kickback. Large workpieces tend to sag under their own weight. Supports must be placed under the workpiece near the line of cut and near the edge of the workpiece on both sides of the wheel.
8) Use extra caution when making a "pocket cut" into existing walls or other blind areas. The protruding wheel may cut gas or water pipes, electrical wiring or objects that can cause kickback.

Additional safety and working instructions

Always wear protective goggles when working with the product.
Use protective gloves, sturdy and non-slip footwear and an apron.
- Remove the mains plug from the mains socket before making any adjustments to the product.
- Do not connect the product to the mains socket unless it is switched off.
Always keep the mains cord out of the operating area of the product. Always route the mains cord away from the product towards the rear.
The tool spindle continues to run after the product has been switched off. Do not put the product down until it has come to a complete standstill.
- Do not reach into the danger zone of the product while it is running.

Use only tools whose permissible speed rating is at least as high as the highest idling speed of the product.

Check grinding tools before use. The grinding tool must be properly fitted and rotate freely. Perform a trial run for at least 30 seconds without any load. Do not use damaged, non-circular or vibrating grinding tools.

Grinding metals creates flying sparks. Make sure that no one is put at risk. Because of the fire hazard, make sure there are no flammable materials in the vicinity (flying spark area). Do not use a dust extractor.

Always hold the product so that sparks or grinding dust fly away from the body.

The clamping nut must be tightened before the product is put into operation.

Under the influence of extreme external electromagnetic interference, temporary speed fluctuations may occur.

The workpiece being machined must be clamped if it is not held in place by its own weight.

Never guide the workpiece onto the grinding tool by hand.

Make sure that the grinding tool is fitted according to the manufacturer's instructions.

The dimensions of the grinding tool must be appropriate for the product.

Always work only with the intended working surface of the accessory tool.

Firmly clamp the workpiece you are working on. Never hold a small workpiece in one hand and the product in the other while you are using it. Always hold the product by the designated handles.

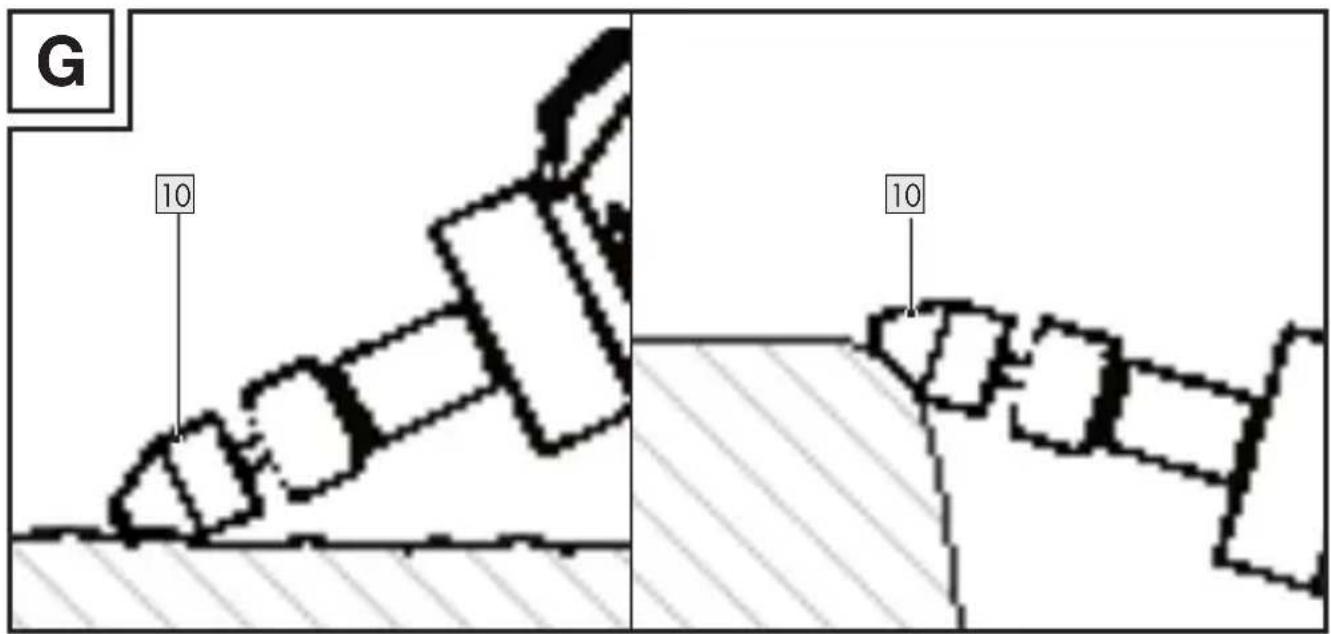

Guide the product onto the workpiece. Apply moderate pressure when working and do not push the accessory tool into the material.

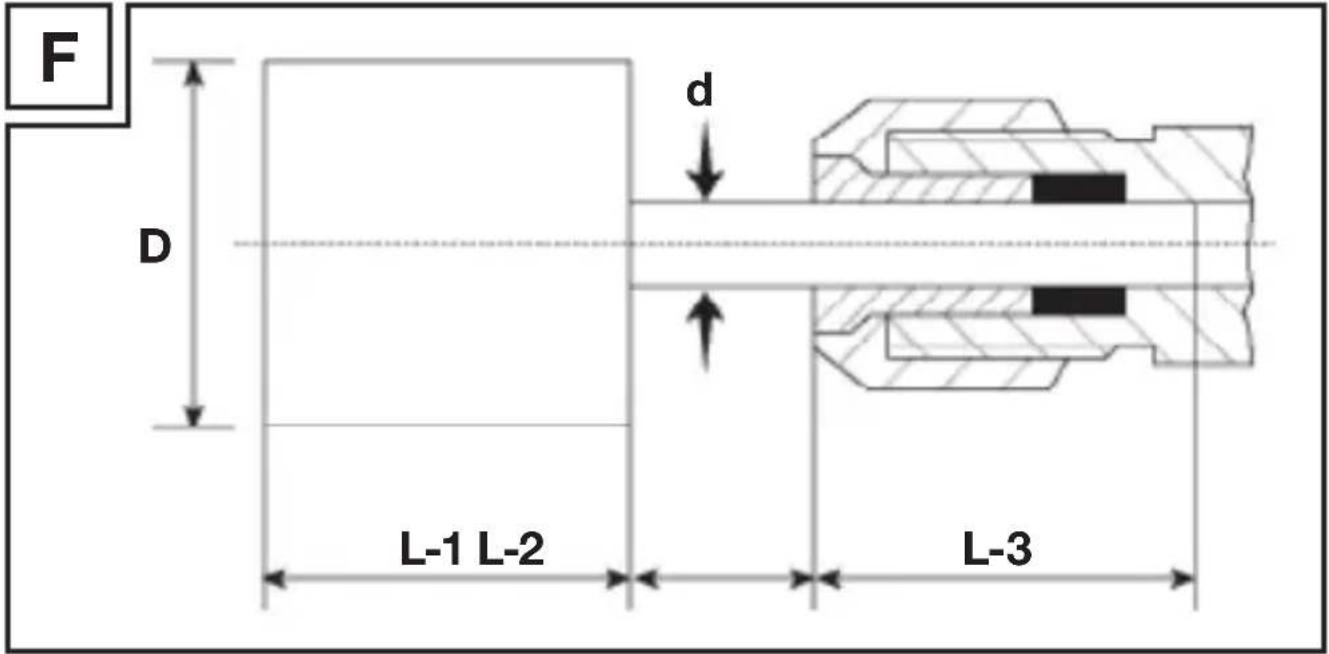

The maximum permissible protrusion length of the grinding stone mandrel is 10mm .
Only use a grinding stone with a maximum mandrel length of 40~mm .
Always hold the tool with both hands to ensure having sufficient stability and security of operations.
If the grinding stone's mandrel diameter is 3.2mm , the recommended maximum outer diameter of the grinding stone head to be used is 15mm .
If the grinding stone's mandrel diameter is 6mm , the recommended maximum outer diameter of the grinding stone head to be used is 25mm .

Vibration and noise reduction

To reduce the impact of noise and vibration emission, limit the time of operation, use low-vibration and low-noise operating modes as well as wear personal protective equipment.

Take the following points into account to minimise the vibration and noise exposure risks:

Only use the product as intended by its design and these instructions.
Ensure that the product is in good condition and well maintained.
Use correct accessory tools for the product and ensure they are in good condition.
- Keep tight grip on the handles/grip surface.
- Maintain this product in accordance with these instructions and keep it well lubricated (where appropriate).

Plan your work schedule to spread any high vibration tool use across a longer period of time.

Behaviour in emergency situations

Familiarise yourself with the use of this product by means of this instruction manual. Memorise the safety warnings and follow them to the letter. This will help to prevent risks and hazards.

Always be alert when using this product, so that you can recognise and handle risks early. Fast intervention can prevent serious injury and damage to property.

• Switch the product off and disconnect it from the mains if there are malfunctions. Have the product checked by a qualified professional and repaired, if necessary, before you operate it again.

Residual risks

Even if you are operating this product in accordance with all the safety requirements, potential risks of injury and damage remain. The following dangers can arise in connection with the structure and design of this product:

Health defects resulting from vibration emission if the product is being used over long periods of time or not adequately managed and properly maintained.

Injuries and damage to property due to broken accessory tools or the sudden impact of hidden objects during use.

Danger of injury and property damage caused by flying objects.

NOTE

This product produces an electromagnetic field during operation! This field may under some circumstances interfere with active or passive medical implants! To reduce the risk of serious or fatal injury, we recommend persons with medical implants to consult their doctor and the medical implant manufacturer before operating this product!

- First set-up of the product

Unpacking the product

1. Take the product out of the packaging and remove all packaging materials and plastic wrappings.
2. Check to make sure that all listed parts are included (see "Scope of delivery").
3. Check whether the product and all parts are in good condition, if any damage or defect is detected, do not use the product, but follow the procedure described in chapter "Warranty".

- Selecting the grinding stone size

(Fig. F)

NOTE

Using cylindrical shape is for illustration purpose for different types of grinding stone heads.

Value Explanation

D Outermost diameter of the grinding stone head

L-1 Length of the grinding stone head

d Diameter of the mandrel

L-2 Protrusion length that is measured between the bottom side of the grinding stone head and the clamping nut

L-3 Clamping length of the grinding stone mandrel

d DL-1	L-2 L-3
(mm)
3.2 ≤ 15	5-20		max. 10 min. 10
6	12-16 25-50
	20 10-40
	25 10-35

Check and read the manufacturer's recommendation and instructions about the grinding stone or compatible insert tools.
The maximum permissible protrusion length (L-2) is 10mm .
Whenever possible, insert the complete length of the grinding stone's mandrel into the collet chuck.
Ensure that the clamping length (L-3) is at least 10mm .
- Only use a grinding stone or compatible insert tool with a maximum mandrel length (L-2 + L-3) of 40~mm .
□ If the grinding stone's or compatible insert tool's mandrel diameter is 3.2mm , the recommended maximum outer diameter of the grinding stone head is 15mm .
□ If the grinding stone's or compatible insert tool's mandrel diameter is 6mm , the recommended maximum outer diameter of the grinding stone head is 25mm .

- Removing/inserting the grinding stone/ insert tool

(Fig. C, D)

WARNING!

Switch off the product and disconnect it from the mains before replacing attachments, cleaning and when not in use.

Removing the grinding stone/insert tool

1. Press and hold the spindle lock button 8.

2. Turn the wrench in a direction to loosen the clamping nut.

3. Pull the grinding stone 10 in direction a to remove the grinding stone from the shaft 5.
4. Release the spindle lock button 8.

Inserting the grinding stone/insert tool

1. Insert the grinding stone 10 or a compatible insert tool in direction b into the shaft 5.
2. Press and hold the spindle lock button 8.
3. Turn the wrench in direction to tighten the clamping nut.
4. Release the spindle lock button 8.

- Inserting/removing the 3.2 ~mm collet

(Fig. C, E)

Inserting the collet

1. Press and hold the spindle lock button 8.
2. Turn the wrench in direction to loosen the clamping nut.
3. When the clamping nut 7 is loose: Use your hand to completely unthread the clamping nut from the shaft 5 .
4. Remove the collet (6 mm) 6 from the shaft 5
5. Release the spindle lock button 8
6. Insert collet (3.2 mm) into collet (6 mm) until it is completely embedded.
7. Insert the assembly of collet (3.2 mm) [11] and collet (6 mm) [6] into the shaft [5].

8. Use your hand to thread the clamping nut 7 in clockwise direction into the shaft 5 .

9. Now you can insert a grinding stone with a mandrel diameter of 3.2 mm .

Removing the collet

1. Reverse the steps of inserting the collet until the clamping nut 7 is completely removed from the shaft 5 .
2. Remove the assembly of collet (3.2 mm) [11] and collet (6 mm) [6].
3. Remove collet (3.2 mm) 11 from collet (6 mm) 6.
4. Insert the collet (6 mm) 6 into the shaft 5.
5. Use your hand to thread the clamping nut 7 in clockwise direction into the shaft 5.
6. Now you can insert a grinding stone with a mandrel diameter of 6mm .

Operation

WARNING!

Switch off the product and disconnect it from the mains before replacing attachments, cleaning and when not in use.

Switching on/off

(Fig. A)

NOTE

The rotating direction of the grinding std10 can be read off the arrow engraved on the front of the product.

NOTE

▶ Trial run: Always carry out a trial run without a load before carrying out your first procedure as well as after every tool change. Switch the product off immediately if the tool is not rotating smoothly, if considerable vibration occurs, or if you hear abnormal noises.

Insert the mains plug 3 into a mains socket.
□ Switching on: Bring the on/off switch 2 into I position.
□ Switching off: Bring the on/off switch 2 into 0 position.

Setting the rotational speed (Fig. A)

WARNING!

Do not exceed the specified maximum speed. Select suitable accessories for the appropriate speed (see following table).

NOTE

The work result depends on the speed, the type of material and the contact pressure. Carry out tests on test pieces to determine the optimum settings.

• Set the speed control dial 1 to a position between 1 and 6. The following table shows the approximate output speed depending on the speed level set:

Pos. *	Accessories min			-1 **
1	Syntheticbrush Metal brush	Drill bit Polishing attachment	Grinding bit Abrasive belt Milling bit Engravingbit Grinding disc Cutting disc	4,500
2 9,000
3	9,000 - 000			14,000
4 - 1
5 24,000
6 30,000

Grinding

• Pos.: Position of the speed control dial 1 ** min -1: Output speed (revolutions per minute)

NOTE

Before you begin, plan your work. Determine the area that needs to be ground and the shape you want to achieve.
- Secure the workpiece to prevent it from moving or shifting during the grinding process.
If you need to grind a specific angle, use a jig or template to guide the product. This ensures accuracy and consistency in your work.
Periodically check your progress to ensure that you are grinding the material evenly and achieving the desired shape or surface. If necessary, make adjustments to your technique or the grinding stone 10 you are using.
Run the product at a low speed, and gradually increase the speed to the desired level. Starting slowly helps you get a feel for the product and how it responds to your movements.
Apply light pressure on the grinding std10 while you use the product. Excessive pressure can cause the grinding stone to wear down quickly and reduce its effectiveness.
Move the product in a circular motion while holding the grinding stone [10] against the material you are working on, to get an even grind. Avoid grinding in one spot for too long, as it can create an uneven surface.
Hold the product at an angle to achieve a smooth and even surface. Avoid grinding straight on, as this can create marks or grooves in the material.

1. Wait until the grinding stone 10 attains full speed.
2. Apply the grinding stone 10 carefully to the workpiece.
3. Move the product slowly to obtain a good finish.

Troubleshooting

Problem Possible cause Solution
The product does not work.	The motor is defective.	Have the product repaired by a qualified specialist.
	The product is overheated.	Allow the product to cool down completely.
The performance of the product is poor.	The ventilation slots 4 are clogged with dust and debris.	Clean the product (see “Cleaning”).
	The grinding stone 10 is worn down.	Replace the grinding stone 10.

- Cleaning and maintenance

WARNING!

Switch off the product and disconnect it from the mains before replacing attachments, cleaning and when not in use.

Cleaning

NOTE

Do not use chemical, alkaline, abrasive or other aggressive detergents or disinfectants to clean this product as they might be harmful to its surfaces.
Never allow fluids to get into the product.
The product must always be kept clean, dry and free from oil or grease. Remove debris from it after each use and before storage.
Regular and proper cleaning will help ensure safe use and prolong the life of the product.

Clean the product with a dry cloth. Use a soft brush for areas that are hard to reach.
In particular clean the ventilation slots 4 after every use with a cloth and soft brush.

The ventilation slots must always be clear.

Maintenance

Check the product and accessories (e.g. tools) for wear and damage before and after each use. Replace them with new ones if necessary. Observe the technical requirements (see "Technical data").

Replacement parts/accessories

• Compatible replacement parts for this product can be purchased at www.Optimex-Shop.com.
• Please have the order number ready for your order. Orders can only be placed and processed online.

Part Order number
6 Collet (6 mm) 99948599203
7 Clamping nut 99948599202
9 Wrench 99948599204
10 Grinding stone 99948599205
11 Collet (3.2 mm) 99948599201

□ If you are not sure where you can purchase compatible parts, please contact the Lidl Service Hotline.

Repair

WARNING! Risk of injury!

If the mains cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

This product does not contain any parts that can be repaired by the user. Contact an authorised service centre or a similarly qualified person to have it checked and repaired.

Storage

• Switch off the product. Let the product cool down.

Clean the product (see "Cleaning").

Store the product and its accessories in a dark, dry, frost-free, well-ventilated place.

□ Always store the product in a place that is inaccessible to children.

The ideal long term storage (longer than 3 months) temperature is between +10^ and +30^ with a relative humidity of max. 60% .
Store the product in its carrying case 12.

- Transportation

• Switch off the product. Let the product cool down.
  □ Transport the product in its carrying case 12.
• Protect the product from any heavy impact or strong vibrations which may occur during transportation in vehicles.
• Secure the product to prevent it from slipping or falling over.

Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

ve the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7:plastics/20-22: paper and fibreboard/80-98: composite materials.

Product:

The product and packaging materials are recyclable and are subject to extended producer responsibility.

Dispose them separately, following the illustrated Info-tri (sorting information), for better waste treatment.

The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

to protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of material or manufacturing defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. The warranty period begins on the date of purchase. Keep the original sales receipt in a safe location as this document is required as proof of purchase.

Any damage or defects already present at the time of purchase must be reported without delay after unpacking the product.

Should the product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or

replace it – at our choice – free of charge to you. The warranty period is not extended as a result of a claim being granted. This also applies to replaced and repaired parts.

This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty covers material or manufacturing defects. This warranty does not cover product parts subject to normal wear and tear, thus considered consumables (e.g. batteries, tubes, cartridges), nor damage to fragile parts, e.g. switches or glass parts.

Warranty claim procedure

So that your request can be processed quickly, please observe the following instructions:

For all inquiries, please have the receipt and item number (IAN 485992_2501) ready as proof of purchase.

The article number can be taken from the identification label on the product, engraving on the product, the front cover of your manual (at the bottom left), or the sticker on the back or bottom of the product.

If malfunctions or other defects arise, first contact the service department indicated below by phone or email.

You can then send a product recorded as defective to the communicated service address postage-free, making sure to enclose proof of purchase (receipt) and information on the details of the defect and when it occurred.

You can download and view this and numerous other manuals at parkside-diy.com. This QR code takes you directly to parkside-diy.com. Choose your country and use the search screen to search for the operating instructions. Entering the item number (IAN) 485992_2501 takes you to the operating instructions for your item.

Service

GB Service Great Britain

Tel.:[phone]

E-Mail: [e-mail]

IE Service Ireland

Tel.:[phone]

E-Mail: [e-mail]

EU declaration of conformity

WAARSCHUWING! Verwondingsgevaar!

Ae aae eae aeae aee aee aee aee aeae aeae aeae aeae aeae aeae aeae aeae aeae aeae aeae aeae aeae aeae aeae aeae aeae aeae aeae aeae aeae aeae aeae aeae aeae aeae aeae aeae aeae aeae aeae aeae aeae aeae aeae aeae aeae aeae aeae aeae aeae aeae aeae aeae aeae aeae aeae aeae aeae aeae ae ee

Sodium / ammonium bromide

H2O2/AlCl3transferring

100% (100%) H2SO4

100% (100%) H2O2

100% (100%) H2SO4

100% (100%) H2O2

100% (100%) H2SO4

100% (100%) H2SO4

100% (100%) H2SO4

100% (100%) H2SO4

100% (100%) H2SO4

100% (100%) H2SO4

100% (100%) H2SO4

H2SO4

a 100000000000000000000000000000000000000000000000000000

Italian / wonafishmab rizwirk

###

A mizraa danaenrredi hagponn: Omm GmB & Co. KG

Aepnneae aennn ennnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nannn nannn nannn nannn nannn nannn nannn nannn nannn nannn nannn nannn nannn nannn nannn nannn nannn nannn nannn nannn nannn nannn nannn nannn nannn nannn nannn nannn

1

OWIM GmbH & Co. KG

Stiftsbergstraße 1

74167 Neckarsulm

GERMANY

Model No.: HG10433

Version: 07/2025

IAN 485992_2501
