Introduction

Congratulations on the purchase of your new device. With it, you have chosen a high quality product.

During production, this equipment has been checked for quality and subjected to a final inspection. The functionality of your equipment is therefore guaranteed.

The operating instructions constitute part of this product. They contain im-nt information on safety, use and dis-

Before using the product, familiarise yourself with all of the operating and safety instructions. Use the product only as described and for the applications specified.

Keep this manual safely and in the event that the product is passed on, hand over all documents to the third party.

Proper use

The lathe is intended for processing wood using a suitable turning tool.

Any other use not expressly approved in the present instruction manual can damage the device and thus present a substantial risk for the user.

The device is intended to be used by do-it-yourselfers. It was not designed for heavy commercial use. The warranty is void in the case of commercial use.

The device is intended for use by adults.

Children and people who are not familiar with these instructions must not use the device. The use of the device in the rain or a damp environment is prohibited. The manufacturer is not liable for damage caused by improper use or incorrect operation.

General description

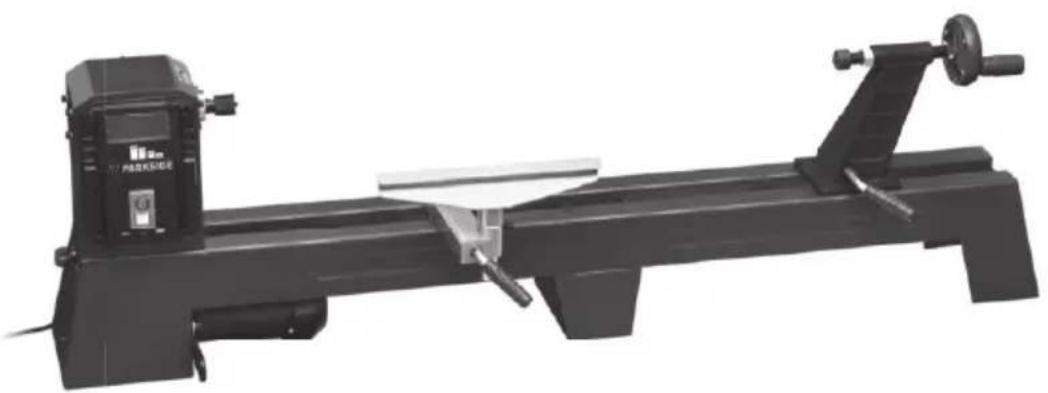

An illustration of the most important functional components can be found on the front and the back fold-out pages.

Scope of delivery

Carefully remove the device from the packaging and check whether all the parts listed below are present and complete:

• Wood Lathe (two-part)
• Face plate
• Tailstock
• Tool table (two-part)
  • 2 lathe chisel (1x straight, 1x hollow)
• 2 x open-ended spanners
• Allen key
• Mounting material:
• 6 hexagon bolts, 6 clamping disks, 6 washers, 6 nuts
• 3 screws, 3 clamping disks, 3 washers
• Instruction manual

Dispose of the packaging material properly.

Overview

1 4-edge lathe point

2 Tool table

2.1 Screw, height adjustment
2.2 Bottom part of tool table
3.1 Rail with motor unit

3.2 Rail

4 Locknut
5 Tailstock
6 Handwheel
7 Foot

8 Lever, tailstock
9 Lever, tool table

10 On switch
11 Off switch
12 Allen key
13 Face plate
14 Lathe chisel, straight
15 Lathe chisel, hollow
16 Open-ended spanner
17 Screws with clamping disk, washer and nut
18 Hexagon bolts with clamping disk, washer and nut

19 Drive shaft

20 Locking screw

21 Gear cover
22 Retaining screw
23 Motor unit
24 Lever, motor unit
25 Drive pulley 26 V-belt
27 Locking switch

Description of functions

The lathe is intended for processing pieces of wood. The clamped workpieces can be rotated at three different speeds.

Please refer to the descriptions below for information on how the operating elements work.

Technical data

Wood Lathe ......PDB 100 B1

Rated voltage U 230-240 V\~

Rated frequency....50 Hz

Rated consumption

P....400 W (S6* 15%)

P_0 300 W (S1**)

Idle speed

n_0 ......890/1260/1760/2600 min ^-1

Protection class ....I

Protection type IPXO

Spindle head thread....M18

Weight (with accessories,

complete)...... approx. 20,5 kg

Max. workpiece length ..... 1000 mm

Max. workpiece diameter .....350 mm

Sound pressure level

(L_pA) 71 dB(A); K_pA = 3 dB

Sound power level ( L_WA )

measured....84 dB(A); K_WA=3 dB

* Operating mode S6 15%: Continuous operation with intermittent load (cycle time 10 min). In order not to heat the motor more than permitted, the motor may only be operated for 15% of the cycle time with the stated nominal power and must then continue running for 85% of the cycle time without a load.

**Operating mode S1: Continuous operation with constant load

Levels of noise were determined according to the norms and regulations in the declaration of conformity.

The specified total vibration value and the stated noise emission value have been measured according to a standardised test method and can be used to compare one power tool with another.

The specified total vibration value and the stated specified noise emission value can also be used for a provisional assessment of the load.

Warning:

The vibration and noise emissions may deviate from the specified values during actual use of the power tool, depending on how the power tool is being used and, in particular, what kind of material is being worked on.

Safety measures for the protection of the operator are to be determined that are based on an estimate of the actual vibration load under the real operating conditions (for this, all parts of the operating cycle are to be taken into account, for example, times in which the power tool is turned off, and those during which it is turned on but running without a load).

Safety information

CAUTION! The following basic safety precautions must be observed while using electric tools to protect against electric shock, injury and risk of fire. Please read all instructions before using this electric tool and keep the safety instructions in a safe place.

This section describes the basic safety rules when working with the device.

Graphical symbols

Symbols on the device:

Caution!

Read the instruction manual carefully.

Caution! If the mains connection cable is damaged or cut through, immediately pull the plug from the socket.

Wear eye protection.

Wear ear protection.

Wear respiratory protection.

Do not use as a step.

Do not wear long hair uncovered. Use a hair net.

GB MT

Do not expose the device to moisture.

Thread socket

Direction of spindle rotation

Speed settings

Table for selecting the speed

Electrical devices must not be disposed of with domestic waste.

Symbols used in the instruction manual:

Hazard symbol with information on the prevention of personal injury or property damage.

Hazard symbol with information on damage prevention.

Pull out the mains plug.

Advisory symbol with information on how to best use the device.

General Safety Directions for Power Tools

WARNING! Read all safety notices, instructions, illustrations and technical data that have been provided with this power tool. Omissions in the compliance with safety directions and instructions can cause electrical shock, fire and/or severe injuries.

Retain all safety directions and instructions for future use.

The term „power tool“ in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool).

1) WORK AREA SAFETY

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.

b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) ELECTRICAL SAFETY

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never

use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts.

Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operation of the power tool in a damp environment is unavoidable, please use a residual current circuitry. The use of a residual current circuitry reduces the risk of an electric shock.

3) PERSONAL SAFETY

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention white operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising

power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g) If dust extraction and collection devices can be installed, make sure that these are connected and used correctly. Use of dust collection can reduce dust-related hazards.

h) Do not allow yourself to be lulled into a false sense of security and do not disregard the safety rules for power tools, even if you are familiar with the power tool after using it many times. Careless action can lead to serious injuries within a fraction of a second.

4) POWER TOOL USE AND CARE

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Remove the plug from the wall socket and/or remove the rechargeable battery before you change the device's settings, change accessory parts or put away the power tool. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Look after the power tool and application tool carefully. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grip surfaces dry, clean and free from oil and grease. Slippery handles and grip surfaces do not permit safe operation and control over the power tool in unexpected situations.

5) SERVICE
a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Safety instructions for working with the lathe

• When lathing, use a suitable external extraction system to prevent damage to your health.
• Clean the lathe and work station immediately after working to prevent dust from spreading and slip hazards.
• Secure the workpiece between the tailstock and the 4-edge lathe centre without applying too much pressure.

Excessive clamping pressure can deform the workpiece and cause it to come out of the clamp when rotating.

Excessive clamping pressure can cause motor start-up problems.

• Only use original lathe chisels. Only work with sharp lathe chisels.
• Place the lathe on a solid surface (e.g. a work bench) and connect the lathe to the surface.
• Keep hands away from the rotating workpiece.
• When selecting the workpiece, pay attention to branches, knots or cracks; they are at a risk of bursting. Use wood without cracks, knots or large branches.

Additional safety instructions

- If the mains cable of this device is damaged, it must be replaced by the manufacturer or their customer service or by a similarly qualified person in order to avoid hazards.

Assembly instructions

B Assembling the lathe

1. Slide the tool table (2) onto the rail with motor unit (3.1).
2. Slide the tailstock (5) for the tool table (2) onto the rail with motor unit (3.1). Pull up to check whether the tailstock (5) and the tool table (2) have been inserted correctly.
3. Fix the tailstock by pressing the lever (8) downwards.
4. Connect the rail with motor unit (3.1) and the rail (3.2) without motor unit.
5. Join the two rails using the three screws with clamping disk and washer (17).

If it is difficult to move the tool table (2) or the tailstock (5), re-adjust the washer on the bottom side using an open-ended spanner or a ratchet (AF 19).

A Setting up the lathe

1. Place the lathe on a solid surface.
2. Bolt the lathe to the surface. Use the two holes in the three feet (7).
3. You can use the supplied hexagon bolts (18) for this.
4. Place the washer and the clamping disk on the hexagon bolt (18). See illustration A.
5. Bolt the lathe to the surface using the hexagon bolt, washer, clamping disk and nut (18).

D Installing/changing the workpiece mounts

Switch off the device and unplug the mains plug.

Mounting the 4-edge lathe centre

1. If necessary, loosen the face plate (13). Hold the drive shaft (19) using the open-end spanner (16) and remove the face plate (13) from the drive shaft (19).
2. Hold the drive shaft (19) with the open-end spanner (16).
3. Tighten the 4-edge lathe centre (1) onto the drive shaft using a second open-end spanner (16).

For lathing e.g. bowls or pots, you have to use the face plate (13) instead of the 4-edge lathe centre point (1).

Mounting the face plate

1. If necessary, loosen the 4-edge lathe centre (1). Place the two open-end spanners (16) on the drive shaft (19) and the 4-edge lathe centre (1), then remove the 4-edge lathe centre (1).
2. Hold the drive shaft (19) with the open-end spanner (16).
3. Tighten the face plate (13) onto the drive shaft (19).

Operation

E Selecting the speed

The mains plug must not be plugged in when adjusting the speed.

Selecting the right speed:

• First, select a low speed for new workpieces.
  Increase the speed the bigger the workpiece.
• The right speed depends on multiple factors, such as the material, diameter, length and size. Generally:
  For harder woods, workpieces that are

GB MT

not round, long workpieces with a large diameter, choose a low speed.

- When choosing the speed, use the following table as a guide:

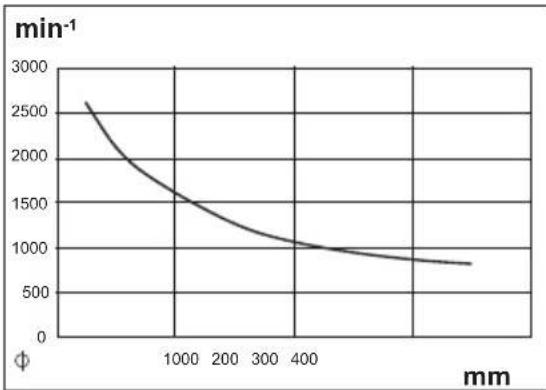

The workpiece diameter is indicated on the X-axis. The Y-axis represents the speed.

Start with the diameter of the workpiece and follow it upwards vertically, then read the speed where the vertical line meets the curve.

1. Loosen the two locking screws (20) on the two gear covers (21).
2. Open the gear covers (21).
3. Loosen the retaining screw (22) on the motor unit using the Allen key (12).
4. Using the lever (24), lift the motor unit (23) to release the load on the V-belts (26).
5. Tighten the retaining screw (22) on the motor unit (23).
6. Place the V-belt (26) on the desired notch on the drive pulley (25) to reach the specified speed:

The V-belt must be on the same notch of both the upper and lower drive pulley.

The two gear covers (21) are equipped with a locking switch (27). The locking switches (27) are automatically actuated when closing the gear covers (21). If the gear cover (21) is not closed correctly, the device cannot be switched on.

1. Loosen the retaining screw (22) and lower the lever with the motor unit to clamp the V-belt.
2. Tighten the retaining screw (22).
3. Close the gear covers (21). Attach the gear covers (21) with the locking screws (20).

Securing the workpiece

A Secure with 4-edge lathe centre (1) and tailstock (5)

1 Draw a diagonal line on both ends of the workpiece to locate the centre.
The centre is the place where the two lines meet. Place a centring hole where the 4-edge lathe and tailstock should be positioned on the workpiece. This ensures a better hold.
2. Cut an approx. 2 mm deep saw cut along the diagonals to give the 4-edge lathe centre (1) a better grip.
3. Place the removed 4-edge lathe centre (1) at the centre of the workpiece.
Lightly tap the 4-edge lathe centre (1) into the workpiece using a mallet (not included in the scope of delivery). Make sure to protect the thread of the 4-edge lathe centre (1) e.g. with a wooden board.
4. Remove the 4-edge lathe centre (1) from the workpiece.
5. Next, (re)attach the 4-edge lathe centre (1) to the device.

Refer to the section "Installing/ changing the workpiece mounts" for more on how to assemble and disassemble the 4-edge lathe centre.

1. Place the workpiece on the 4-edge lathe centre (1).

Make sure to meet the notch with the 4-edge lathe centre (1) as otherwise secure clamping cannot be ensured.

1. Open the lever (8) of the tailstock.

2. Slide the tailstock towards the 4-edge lathe centre (1) almost up to the workpiece to clamp it.

3. Fix the tailstock by pressing the lever (8) downwards.

4. For fine adjustment, use the handwheel (6).

5. Fix the position of the handwheel using the locknut (4).

Securing with the face plate (13)

1. Hold the drive shaft (19) with the open-end spanner (16).

2. Remove the face plate (13) from the drive shaft (19).

3. Fix the workpiece to the face plate (13) using wood screws (not included in the scope of delivery).

Risk of injury! The wood screws must be placed so that you do not accidentally expose them using the tool when processing the workpiece.

1. Hold the drive shaft (19) with the open-end spanner (16).

2. Tighten the face plate (13) with mounted workpiece onto the drive shaft (19).

Adjusting the tool table

Risk of injury! Make sure the tool table is fixed properly and is unable to come loose during operation.

Fixing/loosening the tool table

1. The tool table (2) is fixed by pressing the lever (9) downwards.

2. The tool table (2) is loosened by pressing the lever (9) upwards. You can now move the tool table.

Tool table height adjustment

1. Loosen the screw (2.1) on the bottom part of the tool table (2.2).

2. Set the desired height.

3. Fix the tool table (2) by tightening the screw (2.1).

Switching on/off

1. Connect the device to the mains voltage supply.

Switching on:

1. To start the device, press the on/off switch (10).

Switching off:

1. To stop the device, press the off switch (11).

Pull out the mains plug if you are leaving the device unattended or if you have finished working.

Working instructions

- Read sufficient specialised literature before beginning to work.

- When selecting the workpiece, pay attention to branches, knots, cracks etc. You could lose control of the tool, which can result in serious injuries.

Cracked workpieces can burst during turning. Risk of injury!

- Before processing, cut the workpiece into form as much as possible.

- Pay attention to the maximum workpiece length and maximum workpiece diameter! You will find them in the technical data.

- The workpiece must be fixed at the centre; workpieces that run uneven have an effect on the machine service life.

- Only use tools suitable for turning.

- Never stand in the flight path of the workpiece.

- Before beginning your work, make sure the mains plug is unplugged then check the following by turning manually:

- Is the workpiece fixed?

- Does the workpiece come into contact with the tool table?

• Always begin with a low speed, increasing gradually.

- Do not introduce the tool to the workpiece until it has reached the set speed.

Remove blockages

Switch off the device and unplug the mains plug.

Clean any dust and chips from the device to remove any blockages.

Cleaning/maintenance

Have any work that is not described in these instructions performed by an authorised customer service centre. Only use original parts.

Before any maintenance or cleaning work, turn off the machine, unplug the mains plug and wait for the workpiece to come to a standstill. There is a risk of personal injury

General cleaning and maintenance work

Never spray down the device with water. There is a risk of electric shock.

• Always keep the device clean. Use a brush or cloth for cleaning, but do not use any cleaning agents or solvents.

- Check the covers and protective devices for damage and correct fit. Replace these if necessary.

- Every 10 hours of operation, check the V-belt for wear or any damage.

Storage

Store the device in a dry and dustproof location and out of reach of children.

Transport

Switch off the device and unplug the mains plug. There is a risk of injury.

Caution! Hot surface. There is a risk of burns. Only transport

the machine when the motor unit (E 23) has cooled down completely.

If possible, carry the lathe together with another person.

When transporting the lathe, grab it at the external feet (7), the rail with motor unit (3.1) and the rail (3.2).

Disposal / Environmental protection

The device, accessories and packaging should be properly recycled.

Electrical devices must not be disposed of with domestic waste.

• Take the device to a recycling plant. The plastic and metal parts used on your device can be properly sorted according to materials and grades and efficiently recycled. Please contact our service centre for more information.
  • We will dispose of any defective devices that you send to us free of charge.

Guarantee

Dear Customer,

This equipment is provided with a 3-year guarantee from the date of purchase. In case of defects, you have statutory rights against the seller of the product. These statutory rights are not restricted by our guarantee presented below.

Terms of Guarantee

The term of the guarantee begins on the date of purchase. Please retain the original receipt. This document is required as proof of purchase.

If a material or manufacturing defect occurs within three years of the date of purchase of this product, we will repair or replace – at our choice – the product for you free of charge. This guarantee requires the defective equipment and proof of purchase to be presented within the three-year period with a brief written description of what constitutes the defect and when it occurred.

If the defect is covered by our guarantee, you will receive either the repaired product or a new product. No new guarantee period begins on repair or replacement of the product.

Guarantee Period and Statutory Claims for Defects

The guarantee period is not extended by the guarantee service. This also applies for replaced or repaired parts. Any damages and defects already present at the time of purchase must be reported immediately after unpacking. Repairs arising after expiry of the guarantee period are chargeable.

Guarantee Cover

The equipment has been carefully produced in accordance with strict quality guidelines and conscientiously checked prior to delivery.

The guarantee applies for all material and manufacturing defects. This guarantee does not extend to cover product parts that are subject to normal wear and may therefore be considered as wearing parts (e.g. 4-edge lathe point, V-belt, Lathe chisel) or to cover damage to breakable parts (e.g. switches).

This guarantee shall be invalid if the product has been damaged, used incorrectly or not maintained. Precise adherence to all of the instructions specified in the operating

manual is required for proper use of the product. Intended uses and actions against which the operating manual advises or warns must be categorically avoided. The product is designed only for private and not commercial use. The guarantee will be invalidated in case of misuse or improper handling, use of force, or interventions not undertaken by our authorised service branch.

Processing in Case of Guarantee

To ensure quick handling of you issue, please follow the following directions:

• Please have the receipt and identification number (IAN 380536_2110) ready as proof of purchase for all enquiries.
• Please find the item number on the rating plate.
• Should functional errors or other defects occur, please initially contact the service department specified below by telephone or by e-mail. You will then receive further information on the processing of your complaint.
• After consultation with our customer service, a product recorded as defective can be sent postage paid to the service address communicated to you, with the proof of purchase (receipt) and specification of what constitutes the defect and when it occurred. In order to avoid acceptance problems and additional costs, please be sure to use only the address communicated to you. Ensure that the consignment is not sent carriage forward or by bulky goods, express or other special freight. Please send the equipment inc. all accessories supplied at the time of purchase and ensure adequate, safe transport packaging.

Repair Service

For a charge, repairs not covered by the guarantee can be carried out by our service branch, which will be happy to issue a cost estimate for you.

We can handle only equipment that has been sent with adequate packaging and postage.

Attention: Please send your equipment to our service branch in clean condition and with an indication of the defect.

Equipment sent carriage forward or by bulky goods, express or other special freight will not be accepted.

We will dispose of your defective devices free of charge when you send them to us.

Service-Center

GB Service Great Britain
Tel.: [phone]
E-Mail: [e-mail]
IAN 380536_2110

MT Service Malta

Tel.: [phone]

E-Mail: [e-mail]

IAN 380536_2110

Importer

Please note that the following address is not a service address. Please initially contact the service centre specified above.

Spare parts/accessories

You can get spare parts and accessories from www.grizzlytools.shop

If you have issues ordering, please use the contact form. If you have any other questions, contact the service centre (see page 32).

Position manual	instruction	Position exploded drawing	Name	Order no.
E 21		16,18,19		Gear	cover
E 21		77-80		Gear	cover
		83-86		Tool set
A 12	84	Allen key
A 13		83		Face plate
A 14/15	86	Lathe chisel
A 16	85	Open-ended spanner	91095912
		34	Tailstock centre	91095913
E 26		48		V-belt	91095914

Troubleshooting

Problem	Possible cause	Troubleshooting
Lathe does not rotate	Not connected to mains	Plug in the power plug
	Drive cover(s) (E 21) not connected properly	Properly connect drive cover(s) so the lock switch (E 27) is actuated
Bad cutting quality	Improper rotating speed	Set speed (see “Selecting the speed”)
	Tool blunt	Sharpen/replace tool
Excessive vibrations	Workpiece not correctly clamped	Make sure the workpiece is sitting correctly (see “Securing the workpiece”)
	Workpiece unbalanced	Cut workpiece until balanced

Table des matières

Introduction ......32

Service-Center......63

Importeur 63

Service-Center....78

Importer 78

Service-Center....92

Dovozce....92

Service-Center......106

Dovozca....106

Service-Center....120

Importør 120

n_0.890/1260/1760/2600 ford./perc ^-1

HU

Pooblaščeni serviser:

Tel.: [phone]

E-Mail: [e-mail]

(Birotehnika, Hodošček Renata s.p., Lendavska ULICA 23, 9000 Murska Sobota)

Garancijski list

	Translation of the original EC declaration of conformity
We hereby confirm that the Wood LathePDB 100 B1 seriesSerial number000001 - 028000conforms with the following applicable relevant version of the EU guidelines:
2006/42/EC • 2014/30/EU • 2011/65/EU* & (EU) 2015/863
In order to guarantee consistency, the following harmonised standards as well as national standards and stipulations have been applied:
EN 62841-1:2015 • EN ISO 12100:2010EN 55014-1:2017/A11:2020 • EN 55014-2:2015EN 61000-3-2:2014 • EN 61000-3-3:2013 • EN IEC 63000:2018EN IEC 61000-3-2:2019 • EN 61000-3-3:2013/A1:2019
This declaration of conformity is issued under the sole responsibility of the manufacturer:
CE Grizzly Tools GmbH & Co. KGStockstädter Straße 2063762 GroßostheimGermany30.03.2022	Christian FrankDocumentation Representative

Translation of the original EC declaration of conformity

* The object of the declaration described above satisfies the provisions of Directive 2011/65/EU of the European Parliament and the Council of 8 June 2011 on limiting the use of certain harmful substances in electrical and electronic appliances.

FSC www.fsc.org MIX Paper from responsible sources FSC® C172179

FSC www.fsc.org MIXTE Papier issu de sources responsables FSC® C172179
