USER MANUAL 219997 Hendi

READ MANUAL

GB: Read user manual and keep this with the appliance.

GB: For indoor use only.

Simple line drawing of a wine glass with a fork (no text or symbols)

Symbol of a trash bin with crossed lines indicating no waste or discharge, enclosed in a rectangular frame (no text or labels)

CE

HEAVY

GB: NOTE: This manual is translated from original English manual using AI and machine translations.

Simple diagram showing a vertical rod labeled 6 and a hanging circle labeled 5, with a small object on the left (no text or symbols)

200 250 225 200 175 150 125 100 4 3

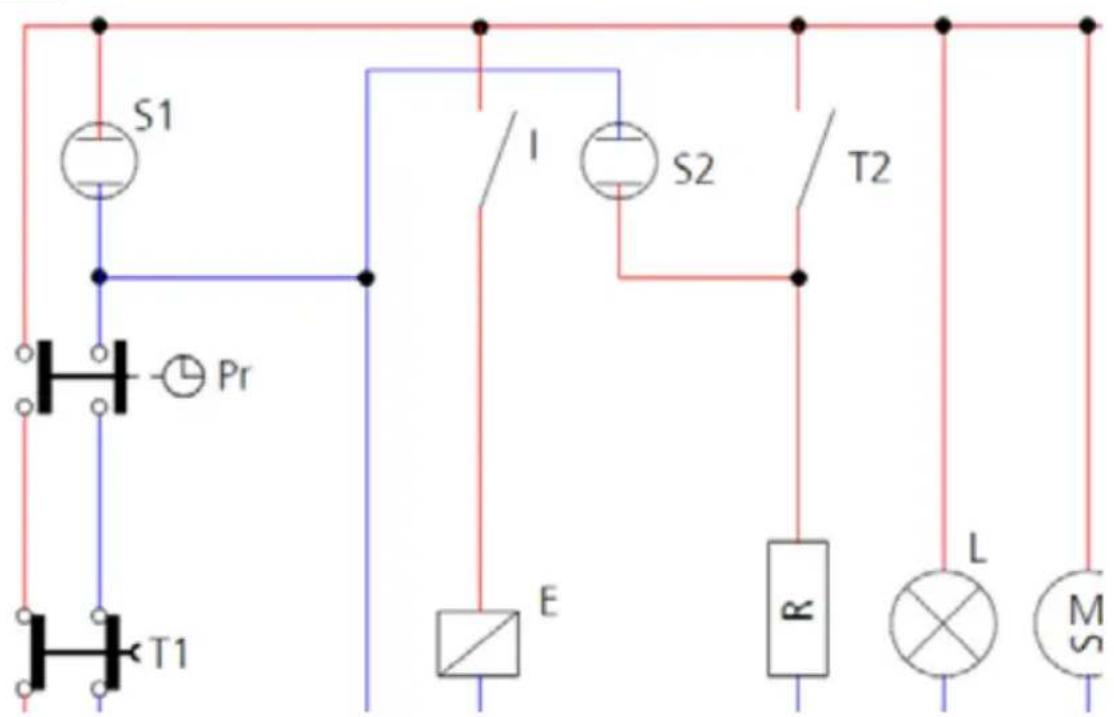

2A
219997

S1 Pr T1 I S2 T2 E R L M

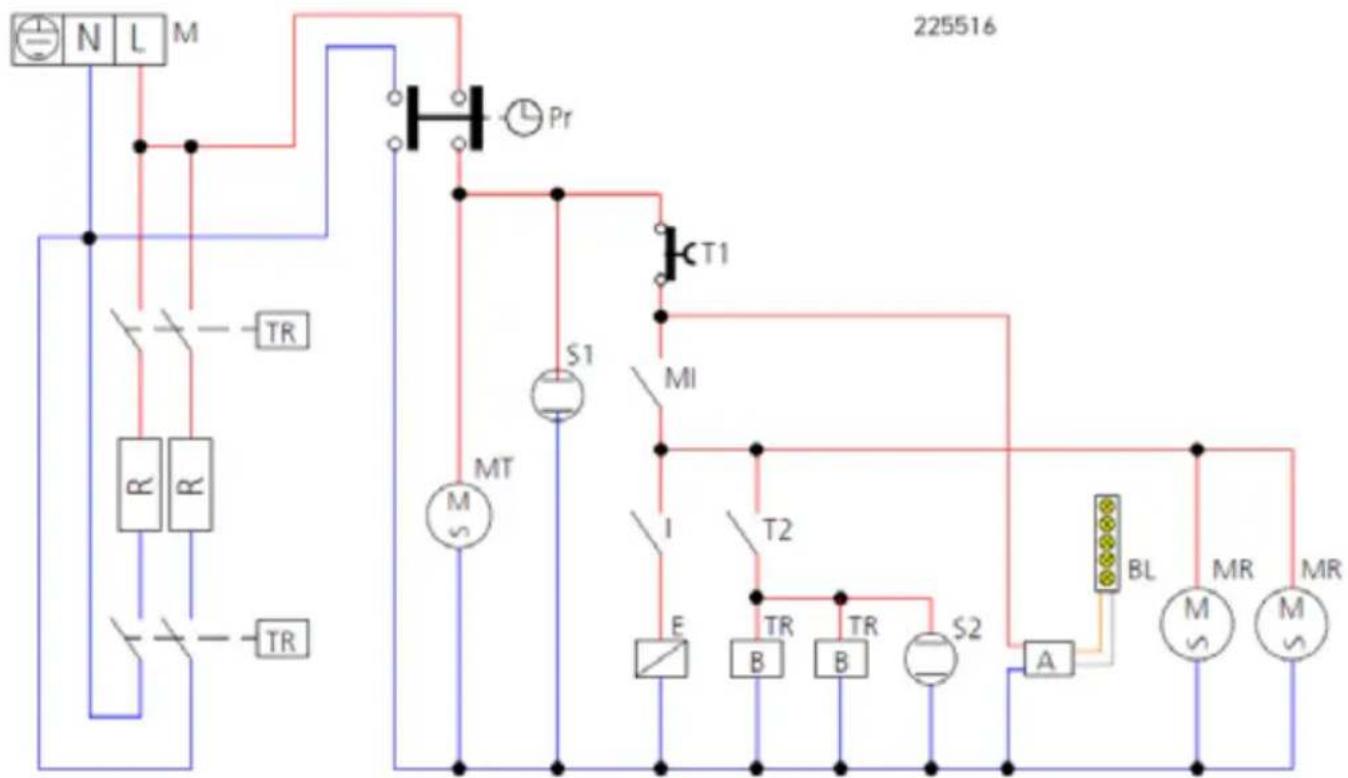

2B

225516 N L M Pr TR R R TR S1 MT MI T2 E B B S2 A BL MR MR M S

GB: Technical specifications / DE: Technische Angaben / NL: Technische gegevens / PL: Dane techniczne / FR: Données techniques / IT: Parametri di base / RO: Parametrii de bază / GR: Bašukéç paráµetrot / HR: Tehnički podaci / CZ: Technická specifikace / HU: Můszaki adatok / UA: Texníční характеристики / EE: Tehnilised andmed / LV: Tehniskás specifikacijas / LT: Techninés specifikacijos / PT: Especificações técnicas / ES: Especificaciones técnicas / SK: Technické špecifikácie / DK: Technical specifications / FI: Tekniset tiedot / NO: Tekniske spesifikasjoner / SI: Tehnične specifikacije / SE: Tekniska specifikationer / BG: Texнически спецификации / RU: Texнические данные

A 21	9997 225516
B 220-240 V ~ 50 Hz
C 3,2	kW 6,4 kW
D	I
E	IPX4
F 4 x	429x345 mm 4 x 600x400 mm
G 1,5	kg 2 kg
H 100-260°C
I 120 min
J 450	x390x335 mm 665x450x375 mm
K 590	x709x589 mm 784x754x634 mm
L 34,2 kg	58 kg

A: GB:Item no. / DE:Art.-Nr. / NL:Artikelnr. / PL:Nr pozycji / FR:N° d'article / IT:N. articolo / RO:Nr. articolului/ GR:Aρ. είδους / HR:Broj stavke / CZ:Položka č. / HU:Cikkszám / UA:Hомер елемента / EE:Artikli nr / LV:Vienums Nr. / LT:Prekès Nr. / PT:Item n.o / ES:N.o de artículo / SK:Č. položky / DK:Varenr. / FI:Kohteen nro / NO:Varenr. / SI:Št. izdelka / SE:Art.nr / BG:Hомер на елемент / RU:Hомер позиции
B: GB: Rated voltage and frequency / DE: Nennspannung und Frequenz / NL: Nominale spanning en frequentie / PL: Znamionowe napięcie i częstotliwość / FR: Tension et fréquence nominales / IT: Tensione e frequenza nominali / RO: Tensiune nominală și frecvență / GR: Ovojaotikn táon kai ouxvótnta / HR: Nazivni napon i frekvencija / CZ: Jmenovité napětí a frekvence / HU: Névleges feszültség és frekvencia / UA: Номінальна напруга та частота / EE: Nimipinge ja -sagedus / LV: Nominālais spriegums un frekvence / LT: Vardinė jtampa ir dažnis / PT: Tensão e frequência nominais / ES: Tensión y frecuencia nominales / SK: Menovité napätie a frekvencia / DK: Nominel spænding og frekvens / FI: Nimellisjännite ja -taajuus / NO: Nominell spenning og frekvens / SI: Nazivna napetost in frekvenca / SE: Märkspänning och frekvens / BG: Номинално напрежение и честота / RU: Номинальное напряжение и частота
C: GB: Rated input power / DE: Nenneingangsleistung / NL: Nominaal ingangsvermogen / PL: Znamionowa moc wejściowa / FR: Pu-issance d'entrée nominale / IT: Potenza nominale in ingresso / RO: Putere nominală de intrare / GR: Ovopaotikn ioxuç eiuóbou / HR: Nazivna ulazna snaga / CZ: Jmenovitý vstupní výkon / HU: Névleges bemeneti teljesítmény / UA: Номінальна вхідна потужність / EE: Nimisisendvõimsus / LV: Nominālā ieejas jauda / LT: Vardinė jėjimo galia / PT: Potência de entrada nominal / ES: Potencia de entrada nominal / SK: Menovitý vstupný výkon / DK: Nominel indgangseffekt / FI: Nimellistuloteho / NO: Nominell inngangseffekt / SI: Nazivna vhodna moč / SE: Märkineffekt / BG: Номинална входяща мощност / RU: Номинальная входная мощность
D: GB: Protection class (Class) / DE: Schutzklasse (Klasse) / NL: Beschermingsklasse (klasse) / PL: Klasa ochrony (klasa) / FR: Classe de protection (classe) / IT: Classe di protezione (classe) / RO: Clasă de protectie (clasă) / GR: Kláon prostaociaç (katnyopia) / HR: Klasa zaštite (klasa) / CZ: Trída ochrany (trída) / HU: Védelmi osztály (osztály) / UA: Klas zahesty (klac) / EE: Kaitseklass (klass) / LV: Aizsardzības klase (klase) / LT: Apsaugos klasè (klasè) / PT: Classe de proteção (classe) / ES: Clase de protección (clase) / SK: Trieda ochrany (trieda) / DK: Beskyttelsesklasse (klasse) / FI: Suojausluokka (luokka) / NO: Beskyttelsesklasse (klasse) / SI: Razred zaščite (razred) / SE: Skyddsklass (klass) / BG: Klas na защитa (Klas) / RU: Klacc защиты (klacc)
E: GB: Waterproof protection rating / DE: Wasserdichtigkeitsschutzklasse / NL: Beschermingsgraad tegen water / PL: Klasa wodoodporności / FR: Indice de protection étanche / IT: Grado di protezione impermeabile / RO: Clasificare protecție impermeabilă / GR: Baθμός αδιάβροχης προστασίας / HR: Vodootporna zaštita / CZ: Odolnost proti vodě / HU: Vízálló védelmi besorolás / UA: Рейтинг водонепроникності / EE: Veekindluse kaitseaste / LV: Üdensnecaurlaidības klase / LT: Apsaugos nuo vandens klase / PT: Classificação de proteção à prova de água / ES: Grado de impermeabilidade / SK: Stupeň ochrany proti vode / DK: Vandtæt beskyttelsesklassificering / FI: Vedenpitävä suojausluokitus / NO: Vanntett beskyttelsesklassifisering / SI: Stopnja zaščite pred vodorom vode / SE: Vattentät skyddsklassning / BG: Клас на водоустойчивост / RU: Рейтинг водонепроницаемости
F: GB: Capacity / DE: Kapazität / NL: Capaciteit / PL: Pojemność / FR: Capacité / IT: Capacità / RO: Capacitate / GR: Хөрптікотніа / HR: Kapacitet / CZ: Kapacita / HU: Kapacitás / UA: Місткість / EE: Mahutavus / LV: Efektivităte / LT: Pajègumas / PT: Capacidade

/ ES:Capacidad / SK:Kapacita / DK:Kapacitet / FI:Tilavuus / NO:Kapasitet / SI:Zmogljivost / SE:Kapacitet / BG: Kapaçitet / RU:Вместимость
G: GB:Max. load per tray / DE:max. Beladung pro Tablett / NL:Maximaal lading per lade / PL:Maks. obciążenie na tace / FR:Max. charge par plateau / IT:Massimo carico per vassoio / RO:Max. încărcare pe tavă / GR:Mėyiotn. forrtio ová ðioko / HR:Maks. opterećenje po ladici / CZ:Max. zatížení na zásobník / HU:Max. töltet tálcánként / UA:Maks. завантаження на лоток / EE:Max laadi-mine salve kohta / LV:Maks. ielāde uz paplāti / LT:Maks. apkrova viename dékle / PT:máx. carga por bandeja / ES:máx. carga por bandeja / SK:Max. zaťaženie na zásobník / DK:Maks. fyld pr. bakke / FI:Max. kuorma per lokero / NO:Maks. belastning per brett / SI:maks. obremenitev na pladenj / SE:Max. last per bricka / BG:Maks. зареждане на тава / RU:Mаксимум. нагрузka на лоток
H: GB: Temperature settings / DE: Temperatureinstellungen / NL: Temperatuur instellingen / PL: Ustawienia temperatury / FR: Paramètres de température / IT: Impostazioni di temperatura / RO: Setäri de temperaturä / GR: Puθμίσεις θερμοκρασίας / HR: Postavke temperature / CZ: Nastavení teploty / HU: Hőmérséklet beállítások / UA: Налаштування температури / EE: Temperatuuri seaded / LV: Temperatüras iestatījumi / LT: Temperatūros nustatymai / PT: Configurações de temperatura / ES: Ajustes de temperatura / SK: Nastavenie teploty / DK: Temperaturindstillinger / FI: Lämpötila-asetukset / NO: Temperaturinnstillinger / SI: Nastavitve temperature / SE: Temperaturinställningar / BG: / RU: Настройки температуры
I: GB:Time settings (Min.) / DE:Zeit-Einstellungen (Min.) / NL:Tijd-instellingen (Min.) / PL:Ustawienia czasu (Min.) / FR:Paramètres de temps (Min.) / IT:Impostazioni ora (Minuti) / RO:Setări de timp (Min.) / GR:Puθμίσεις ώρας (Ελάχ.) / HR:Postavke vremena (Minuta) / CZ:Nastavení času (Min.) / HU:Időbeállítások (Min.) / UA:Налаштування часу (Шахти) / EE:Kellaaja seaded (Mins) / LV:Laika iestatījumi (Min.) / LT:Laiko nuostatos (Min.) / PT:Definições de hora (Min.) / ES:Ajustes de tiempo (Min.) / SK:Nastavenia času (Min.) / DK:Tidsindstillinger (Min.) / FI:Aika-asetukset (Minuuttia) / NO:Tidsinnstillinger (Minutter) / SI: Časovne nastavitve (Min) / SE:Tidsinställningar (Min) / BG: Настройки за време (Минути) / RU:Настройки времени (Мин.)
J: GB:Internal dimensions / DE:Innenmaße / NL:Interne afmetingen / PL:Wymiary wewnętrzne / FR:Dimensions internes / IT:Dimensioni interne / RO:Dimensiuni interioare / GR:Eσωτερικές διαστάσεις / HR:Unutarnje dimenzije / CZ:Vnitřní rozměry / HU:-Belső méretek / UA:Внутрішні розміри / EE:Sisemised mõõdud / LV:lekšëjie izmēri / LT:Vidiniai matmenys / PT:Dimensões internas / ES:Dimensiones internas / SK:Vnútorné rozmery / DK:Indvendige dimensioner / FI:Sisämitat / NO:Innvendige mål / SI:Notranje mere / SE:Innermålt / BG:Вътрешни размери / RU:Внутренние размеры
K: GB:Dimensions / DE:Abmessungen / NL:Afmetingen / PL:Wymiary / FR:Dimensions / IT:Dimensioni / RO:Dimensiuni / GR:Diastoeis / HR:Dimenzije / CZ:Rozměry / HU:Méretek / UA:Pozmíri / EE:Mõõtmed / LV:Izmēri / LT:Matmenys / PT:Dimensões / ES:Dimensiones / SK:Rozmery / DK:Mål / FI:Mitat / NO:Mål / SI:Mere / SE:Mått / BG:Размери / RU:Размеры
L: GB:Net weight / DE:Nettogewicht / NL:Nettogewicht / PL:Waga netto / FR:Poids net / IT:Peso netto / RO:Greutate netă / GR:Kaθαρὸ βάρος / HR:Neto težina / CZ:Čistá hmotnost / HU:Nettó tömeg / UA:Bara нетто / EE:Netokaal / LV:Neto svars / LT:Grynasis svoris / PT:Peso líquido / ES:Peso neto / SK:Čistá hmotnosť / DK:Nettovægt / FI:Nettopaino / NO:Nettovekt / SI:Neto teža / SE:Nettovikt / BG:Нетно тегло / RU:Вес нетто
GB: Remark: Technical specification is subjected to change without prior notification.
DE: Anmerkung: Die technische Spezifikation kann ohne vorherige Ankündigung geändert werden.
NL: Opmerking: De technische specificatie zijn onderworpen aan wijzigingen zonder voorafgaande kennisgeving.
PL: Uwaga: Specyfikacja techniczna może zostać zmieniona bez powiadomienia.
FR: Remarque: La spécification technique peut être modifiée sans notification préalable.
IT: Osservazione: Le specifiche tecniche sono soggette a modifiche senza preavviso.
RO: Observatie: Specificația tehnică se poate modifica fără notificare prealabilă.
GR: Σημείωση: Οι τεχνικές προδιαγραφές μπορούν να αλλάξουν χωρίς προειδοποίηση.
HR: Napomena: Tehničke specifikacije podložne su promjenama bez prethodne obavijesti.
CZ: Poznámka: Technická specifikace se může změnit bez předchozího upozornění.
HU: Megjegyzés: A műszaki adatok előzetes értesítés nélkül változhatnak.
UA: Зауваження: Технічні характеристики можуть змінюватися без попереднього повідомлення.
EE: Märkus: Tehnilisi andmeid võidakse muuta ilma eelneva teavitamiseta.
LV: Piezīme: Tehniskās specifikācijas var tikt mainītas bez iepriekšēja brīdinājuma.
LT: Pastaba: Techninė specifikacija gali būti keičiama be išankstinio jspėjimo.
PT: Observação: As especificações técnicas estão sujeitas a alterações sem notificação prévia.
ES: Observación: Las especificaciones técnicas están sujetas a cambios sin previo aviso.
SK: Poznámka: Technické špecifikácie podliehajú zmenám bez predchádzajúceho oznámenia.
DK: Bemærkning: Tekniske specifikationer kan ændres uden forudgående varsel.
FI: Huomautus: Teknisiä tietoja voidaan muuttaa ilman ennakkoilmoitusta.
NO: Merknad: Teknisk spesifikasjon kan endres uten forhåndsvarsel.
SI: Opomba: Tehnične specifikacije se lahko spremenijo brez predhodnega obvestila.
SE: Anmärkning: Tekniska specifikationer kan ändras utan föregående meddelande.
BG: Забележка: Техническите спецификации подлежат на промяна без предварително уведомление.
RU: Примечание. Технические характеристики могут быть изменены без предварительного уведомления.

Dear Customer,

Thank you for purchasing this Hendi appliance. Read this user manual carefully, paying particular attention to the safety regulations outlined below, before installing and using this appliance for the first time.

Safety instructions

• Only use the appliance for the intended purpose it was designed for, as described in this manual.
• The manufacturer is not liable for any damage caused by incorrect operation and improper use.

- DANGER! RISK OF ELECTRIC SHOCK! Do not attempt to repair the appliance by yourself. Do not immerse the electrical parts of the appliance in water or other liquids. Never hold the appliance under running water.

- NEVER USE A DAMAGED APPLIANCE! Check the electrical connections and cord regularly for any damage. When damaged, disconnect the appliance from the power supply. Any repairs should only be carried out by a supplier or qualified person to avoid danger or injury.

- WARNING! When positioning the appliance, route the power cable safely if necessary to avoid unintentional pulling, being damaged, coming into contact with the heating surface, or causing a tripping hazard.

- WARNING! As long as the plug is in the socket the appliance is connected to the power supply.

- WARNING! ALWAYS switch off the appliance before disconnecting from the power supply, cleaning, maintenance or storage.

- Only connect the appliance to an electrical outlet with the voltage and frequency mentioned on the appliance label.

- Do not touch the plug/electrical connections with wet or damp hands.

- Keep the appliance and electrical plug/connections away from water and other liquids. If the appliance falls into water, remove the power supply connections immediately. Do not use the appliance until it has been checked by a certified technician. Failure to follow these instructions will cause life threatening risks.

- Connect the power supply into an easily accessible electrical outlet so you can disconnect the appliance immediately in case of emergency.

- Make sure the cord does not come in contact with sharp or hot objects and keep it away from open fire. Never pull the power cord to unplug it from the socket, always pull the plug instead.

• Never carry the appliance by its cord.
• Never try to open the housing of the appliance yourself.
• Do not insert objects into the housing of the appliance.
• Never leave the appliance unattended during use.
• This appliance should be operated by trained personnel in kitchen of the restaurant, canteens or bar staff, etc.
• This appliance should not be operated by persons with reduced physical, sensory or mental capabilities, or persons that have a lack of experience and knowledge.
• This appliance should, under any circumstances, not be used by children.
• Keep the appliance and its electrical connections out of reach of children.

- Never use accessories or any extra devices other than those supplied with the appliance or recommended by the manufacturer. Failure to do so could pose a safety risk to the user and could damage the appliance. Only use original parts and accessories.

- Do not operate this appliance by means of an external timer or remote-control system.

- Do not place the appliance on a heating object (gasoline, electric, charcoal cooker, etc.).

- Do not cover the appliance in operation.

- Do not place any objects on top of the appliance.

- Do not use the appliance near any open flames, explosive or flammable materials. Always operate the appliance on a horizontal, stable, clean, heat-resistant and dry surface.

- The appliance is not suitable for installation in an area where a water jet could be used.

- Leave a space of at least 20 cm around the appliance for ventilation during use.

- WARNING! Keep all ventilation openings on the appliance free from obstruction.

Special safety instructions

- Do not use the appliance to prepare food or liquids in a closed container as the container may explode.

- No foods containing easily flammable substances must be cooked, such as alcohol-based foods; self-combustion phenomena might occur leading to fires and explosions in the cooking chamber.

- ATTENTION! The appliance must be installed under exhaust hood to ensure all steam and other vapour produced during work run freely.

- CAUTION! RISK OF BURNS! HOT SURFACES! The temperature of the accessible surfaces are very high during use. Touch only the control panel, handles, switches, timer control knobs or temperature control knobs, etc.

- CAUTION! RISK OF BURNS! Pay attention to handling food containers during and after cooking: they might be very hot. Wear appropriate protective thermal clothing to prevent burns.

- During operation, with the door open, do not remove the fan cover; do not touch the moving fans and resistors which are still hot.

- WARNING! To avoid scalding, do not use loaded containers with liquids or cooking goods that become fluid by heating in shelves positioned at levels higher than 1.6m above the floor.

- WARNING! When opening the door of the cooking compartment, hot steam can come out.

- Do not overload the interior shelves. The maximum load is mentioned in "Technical specification".

- The appliance must be connected to an equipotential system the effectiveness of which must be suitably assessed according to applicable regulations. This connection must be set up between appliances through the suitable terminal which is marked with the symbol ⏚. The equipotential conductor must have a minimum section of 2,5 mm ^2 .

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- The new hose-sets supplied with the appliance are to be used and that old hose-sets should not be reused.

• Always connect appliance to potable water supply.
- Do not use the door handle to move the appliance (possible glass breakage).

Intended use

• This appliance is intended to be used for professional use, also for commercial applications, for example in kitchens of restaurants, canteens, hospital and in commercial enterprises such as bakeries, butcheries, etc., but not for continuous mass production of food
• The appliance is designed for only for cooking food (for all types of baking of pastries, baked goods and food): fresh and frozen; for reconditioning chilled and frozen food, for steam cooking meats, fish and vegetables, etc. Any other use may lead to damage to the appliance or personal injury.
• Operating the appliance for any other purpose shall be deemed a misuse of the device. The user shall be solely liable for improper use of the device.

Grounding installation

This appliance is classified as protection class I and must be connected to a protective ground. Grounding reduces the risk of electric shock by providing an escape wire for the electric current.

This appliance is fitted with a power cord with grounding plug or electrical connections with grounding wire. The connections must be properly installed and grounded.

Control panel

(Fig.1 on page 3)

1. Timer indicator
2. Timer knob
3. Thermostat indicator
4. Temperature setting knob
5. Automatic humidification indicator
6. Humidification control switch

Electric connection

(Fig.2A-B on page 3)

- In the permanent connection to the mains, a protective pole switch must be installed between the appliance and the mains with minimum opening between the contacts of over-voltage category III (4000V), sized for the load and complying with applicable regulations (automatic circuit breaker).

- The protective pole switch used for the connection must be easily accessible when appliance is installed.

Water connection

• Maximum water temperature should not exceed 30^ C.
- The water pressure must be between 100 and 200kPa (1-2 bar). if the pressure exceeds 2 bar, install a pressure reducer upstream of the appliance. If pressure is lower than 1 bar use the pump to raise the pressure value.
- Water hardness should be between 0,5°f and 3°f. Appliance must be installed with water softener to reduce limescale formation.
- Water drain must be connect through an adequate trap. If drain pipe is conveyed to an open floor drain distance between pipe and discharge point should have at leats 25-30 mm. Wall-mounted discharge is also allowed as long as the drain pipe maintains the steady slope of 4 - 5% .

Preparation before use

• Remove all protective packaging and foil or tapes.
• Check that the device is in good condition and with all accessories. In case of incomplete or damaged delivery, please contact the supplier immediately. In this case, do not use the device.
• Clean the accessories and the appliance before use (See ==> Cleaning & Maintenance).
• Make sure the appliance is completely dry.
• Place the appliance on a horizontal, stable and heat resistant surface that is safe against water splashes. Level appliance by adjustable feet. Do not disassemble the feet.
• Keep the packaging if you intend to store your appliance in the future.
• Keep the user manual for future reference.

NOTE! Due to manufacturing residues, the appliance may emit a light odor during the first few uses. This is normal and does not indicate any defect or hazard. Make sure the appliance is well ventilated. It is recommended to run an empty cycle for 40/50 minutes at a temperature of 220/230°C. In this way all unpleasant yet fully normal smells due to heating the thermal insulation enveloping the cooking chamber and the silicone used for its external sealing are dissipated.

Operating instructions

• ATTENTION! Avoid prolonged permanence on the steel surfaces of foods containing acidic substances (lemon juice, vinegar, salt, etc.) which cause corrosion deterioration.
• Preheat the appliance every time before cooking to achieve top performance.
• Avoid adding salt to food in the cooking chamber.

User manual

• To switch the appliance on turn timer knob (1.2) into ∞ position (continuous cycle) or for desire time up to 120 min. Timer indicator (1.1) will light up on green.
• Set desire temperature by the tempearture control knob (1.4). Thermostat indicator (1.3) will light up on orange; when the thermostat reach setted temperature inside chamber, indicator will light off and light up again if tempearure descreas below setted one.
• To generate steam during cycle, press the humidification control switch (1.6). Steam will be generated as long as the button is pressed. When humidification is active indicator (1.5) is light up on orange.
• During the appliance is operated always chamber's internal light is on.
• To turn the appliance off wait until time will counts off or turn timer knob into off position (0) manually.

Cleaning & maintenance

• ATTENTION! Always disconnect the appliance from the power supply and cool down before storage, cleaning & maintenance.
• Do not use water jet or steam cleaner for cleaning and do not push the appliance under the water as the parts will get wet and electric shock might be resulted.
• If the appliance is not kept in a good state of cleanliness, this can adversely affect the life of the appliance and result in a dangerous situation.
• Food residues should be regularly cleaned and removed from

the appliance. If the appliance is not cleaned properly, it will reduce its lifespan and may result in a dangerous condition during use.

Manual cleaning

• Clean the cooled exterior and interior surface with a cloth or sponge slightly dampened with a mild soap solution.
• For reasons of hygiene, the appliance should be cleaned before and after use.
• Avoid water contacting the electrical components.
• Never immerse the appliance in water or other liquids.
• Never use aggressive cleaning agents, abrasive sponges, or cleaning agents containing chlorine. Do not use steel wool, metallic utensils, or any sharp or pointed objects for cleaning. Do not use petrol or solvents!
• No parts are dishwasher safe.
• Clean fan with appropriate descaling detergents to ensure creating limescales.
• Remove door gasket and wash it separately with warm soapy water, then rinse and dry with soft cloth.

Semi-automatic cleaning

• Apply a suitable detergent to the chamber walls, fan covers and the inner door glass. Leave for about 20 minutes.
• Set the temperature to about 100-120°C and the humidity level to position 5. Set the time to 15 minutes.
• After the cycle is finished, open the door and wait for the appliance to cool down. Rinse with water.
• To dry the chamber, set the cycle to 10 minutes and the temperature to about 180 - 200^ (repeat the cycle if necessary).
  • After cleaning, leave the door slightly open.

Maintenance

• Check the operation of the appliance regularly to prevent serious accidents.
• If you see that the appliance is not working properly or that there is a problem, stop using it, switch it off and contact the supplier.
• All maintenance, installation and repair work must be carried out by specialised and authorised technicians, or recommended by the manufacturer.

Transportation and Storage

• Before storage, always make sure that the appliance has been disconnected from the power supply and completely cooled down.
• Store the appliance in a cool, clean and dry place.
• Never place heavy objects on the appliance as this could damage it.
• Do not move the appliance while it is under operation. Disconnect the appliance from power supply when moving and hold it at the bottom.
• Special care must be taken when moving or transporting the machine due to its heavy weight. With at least 2 persons or using a cart. Move the machine slowly, carefully, and never incline more than 45^ .

Troubleshooting

If the appliance does not function properly, please check the below table for the solution. If you are still unable to solve the problem, please contact the supplier/service provider.

Problems Possible cause Possible solution
Appliance does not work (all indicators light off).	Faulty connection to the power mains.	Check connection to the power mains.
	Lack of voltage. Restore the power supply voltage.
	Safety thermal protection activated.	Restart thermal protection.
Cooking cycle set - appliance does not work.	Door open. Close the door properly.
	Door sensor damaged.	Contact with technical service.
Humidity / steam production does not work.	Faulty water connection.	Check connection to the water mains.
	Closed water valve. Open the valve.
	Obstructed water inlet filter.	Clean the filter.
	Damaged water inlet solenoid valve.	Contact with technical service.
Door closed. Steam escape through the gasket.	Gasket mounted not properly.	Check gasket assembly.
	Damaged gasket. Contact with technical service.
	Handle adjusted incorrectly.	Contact with technical service.
Non evenly cooking.	One of the motor is faulty or operates at low speed.	Contact with technical service.
	The motors do not reverse direction.	Contact with technical service.
	Heating element faulty.	Contact with technical service.
Internal light does not work.	Lamp damaged. Replace the lamp.
Safety thermal protection activated continuously.	Damaged thermal protection.	Contact with technical service.
	Control thermostat damaged.	Contact with technical service.

Warranty

Any defect affecting the functionality of the appliance which becomes apparent within one year after purchase will be repaired by free repair or replacement provided the appliance has been used and maintained in accordance with the instructions and has not been abused or misused in any way. Your statutory rights are not affected. If the appliance is claimed under warranty, state where and when it was purchased and include proof of purchase (e.g. receipt).

In line with our policy of continuous product development we reserve the right to change the product, packaging and documentation specifications without notice.

Discarding & Environment

When decommissioning the appliance, the product must not be disposed of with other household waste. Instead, it is your responsibility to dispose to your waste equipment by handing it over to a designated collection point. Failure to follow this rule may be penalized in accordance with applicable regulations on waste disposal. The separate collection and recycling of your waste equipment at the time of disposal will help con-

serve natural resources and ensure that it is recycled in a manner that protects human health and the environment.

For more information about where you can drop off your waste for recycling, please contact your local waste collection company. The manufacturers and importers do not take responsibility for recycling, treatment and ecological disposal, either directly or through a public system.

DEUTSCH

39100 Bolzano (BZ), Italy

Tel: [phone]

Email: [e-mail]

HENDI GmbH

Ehring 15

1201, 12/F Exchange Tower

33 Wang Chiu Road, Kowloon Bay, Hong Kong

Tel: [phone]

Email: [e-mail]

HENDI Romania S.R.L.

Str. Sânzienei FN, DE 305

507075, Ghimbav, Braşov, Romania

Tel: [phone]

Email: [e-mail]

Find HENDI on internet:

www.hendi.com

www.facebook.com/HendiToolsforChefs

https://www.linkedin.com/company/hendi-tools-for-chefs/

www.youtube.com/HendiEquipment

GB: Changes, printing and typesetting errors reserved.
