BEFORE USING THIS DEVICE, PLEASE CAREFULLY READ THIS USER GUIDE AND KEEP IT FOR FUTURE REFERENCE.

Getting started

• Take the device out of the box.
- Remove all the packaging from the product.
- Place the packaging inside the box or dispose of it safely in compliance with the waste sorting instructions shown on the outside.

Safety warnings and notice

You must read and understand all the instructions before using this device. The warranty will not apply if damage is caused by failure to follow the instructions.

1. Never remove the device casing.
2. Never place this device on top of other electrical equipment.
3. Protect the power cable from being stepped on or pinched, particularly at the plugs, sockets, and the point where it exits the device. Make sure that the power rating corresponds to the voltage shown on the rating plate at the rear of the device. Always pull the plug from the socket when disconnecting from the mains. Never pull on the cable. Ensure you have completed all the other connections before connecting the mains plug.
4. Only use attachments/accessories that are recommended by the manufacturer.
5. Entrust all device repairs to qualified repairers. Repair is needed when the s been damaged in any fashion, and in particular:

- If the power cable is damaged;

- In the event of a liquid spill or objects being inserted into the device;

- If the device is exposed to rain or humidity;

- If the device is not working normally;

- Or if the device has been dropped or impacted.

1. The series panel is located on the bottom of the device.

2. Never block the air vents.

3. Make sure that you have enough space for ventilation. Place the product on a stable surface.

4. This device must be used in a moderate climate, away from direct sunlight, naked flames or sources of heat, heaters, cookers or any other devices (including amplifiers) that generate heat. Do not install near a heat source.

5. The batteries (battery pack or inserted batteries) must not be exposed to excessive heat, such as sunshine, fire, etc.

6. Always unplug the appliance before cleaning it. Never lubricate any part of this device. Clean it using a soft cloth. Do not use abrasive products or harsh cleaners.

7. Ensure that you always have easy access to the power cable, plug or adapter to disconnect this device from the mains if necessary.
8. Do not use this device near water. It must not be dripped on or splashed. Do not use this device in a damp or wet environment.
9. Disconnect this device in the event of a storm, or if you intend not to use it for a long period of time.
10. This device can be used by children aged 8 and over, and by persons with a physical or sensory disability, learning difficulties or a lack of experience and knowledge, provided they are supervised or have received instructions on the safe use of the device, and understand the risks involved. Children must not play with the device or power cable (risk of strangulation). Children must not clean or maintain the device without supervision.
11. This device must only be supplied with very low safety voltage corresponding to the marking on the device.
12. The battery should be removed from the device before disposal. The device must be disconnected from the power supply when removing the battery.
13. The appliance must be placed at least 20 cm from the human body when in use.
14. This device is intended for household use only; do not use outdoors.

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN ATTENTION RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR

The lightning bolt symbol within an equilateral triangle alerts users to the presence of dangerous uninsulated voltages inside the device that may present a risk of electric shock.

The exclamation mark inside a triangle indicates the presence of important operating and maintenance (repair) instructions in the literature accompanying the device.

Class II material
Direct current
Alternating current
For indoor use only

Contents of the box

Check and identify the contents of your box:

• Device
• Remote control
• Mains power cord
• User guide

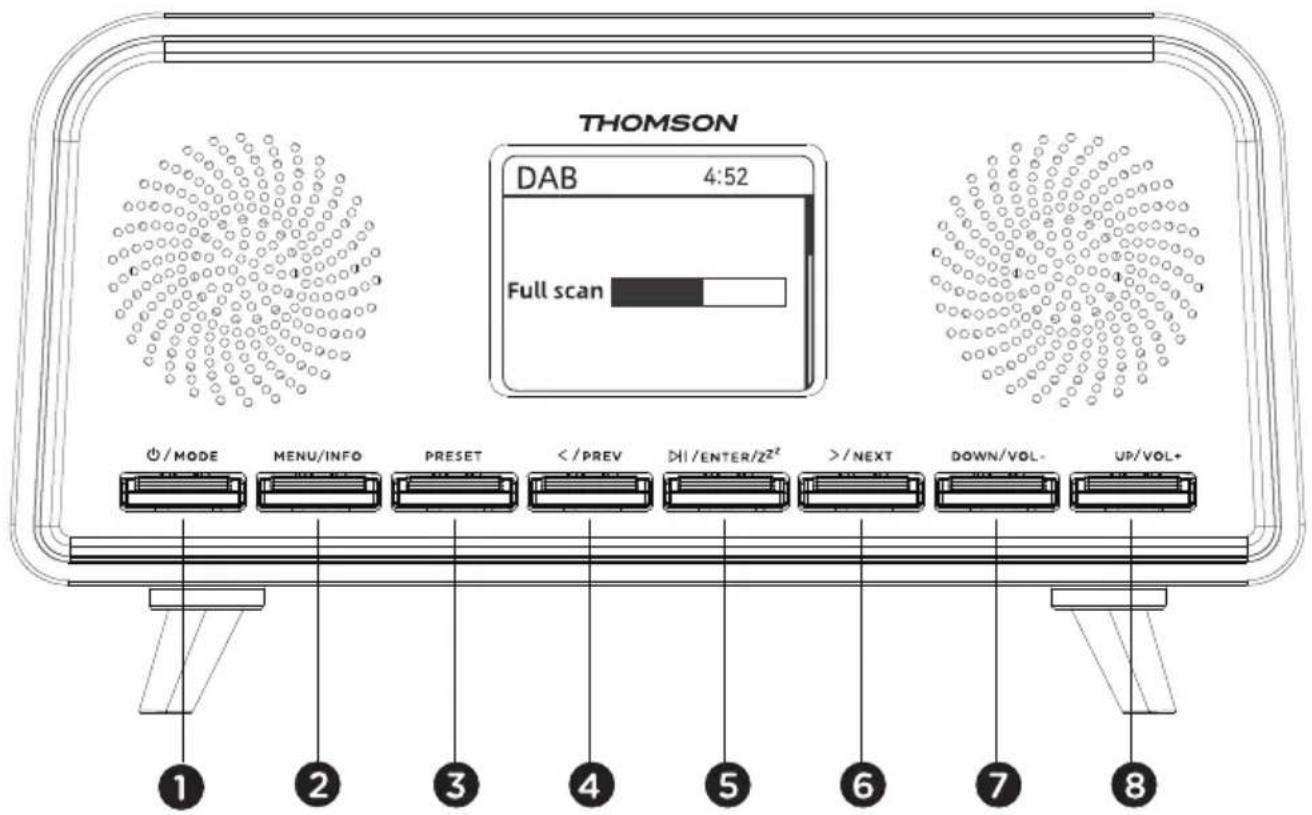

Description of parts

THOMSON DAB 4:52 Full scan ○/MODE MENU/INFO PRESET < /PREV DHI/ENTER/ZZ² >/NEXT DOWN/VOL- UP/VOL+ ① ② ③ ④ ⑤ ⑥ ⑦ ⑧

Controls

1. Standby/Mode
2. Menu/Info
3. Preset stations
4. < / Previous
5. Play/Input/Snooze

6. / Next

7. Down/Vol -
8. Up/Vol+

Product na me: DAB/FM radio wlt h Bluetooth Producti on date: April 2025 Model nu mber: RT850 DABBT Power inp ut: 9.0V =2.0 A USB outp ut: 5.0 V =0.3A DAB Frequ ency: 174-240 MH z FM Frequen cy: 88.8-1 08MHz Serial n umber: Ma de in Chi na BI GB EN I NT ER ACTIVE 39 6-46 6, ru e de la, Voyotte-CRT2 59273 F r at tn, F ra nce www.bigben.e u Li ne in DC In 9.0V =2.0 A US B Play 5.0V =0.3 A ⑨ ⑩ ⑪

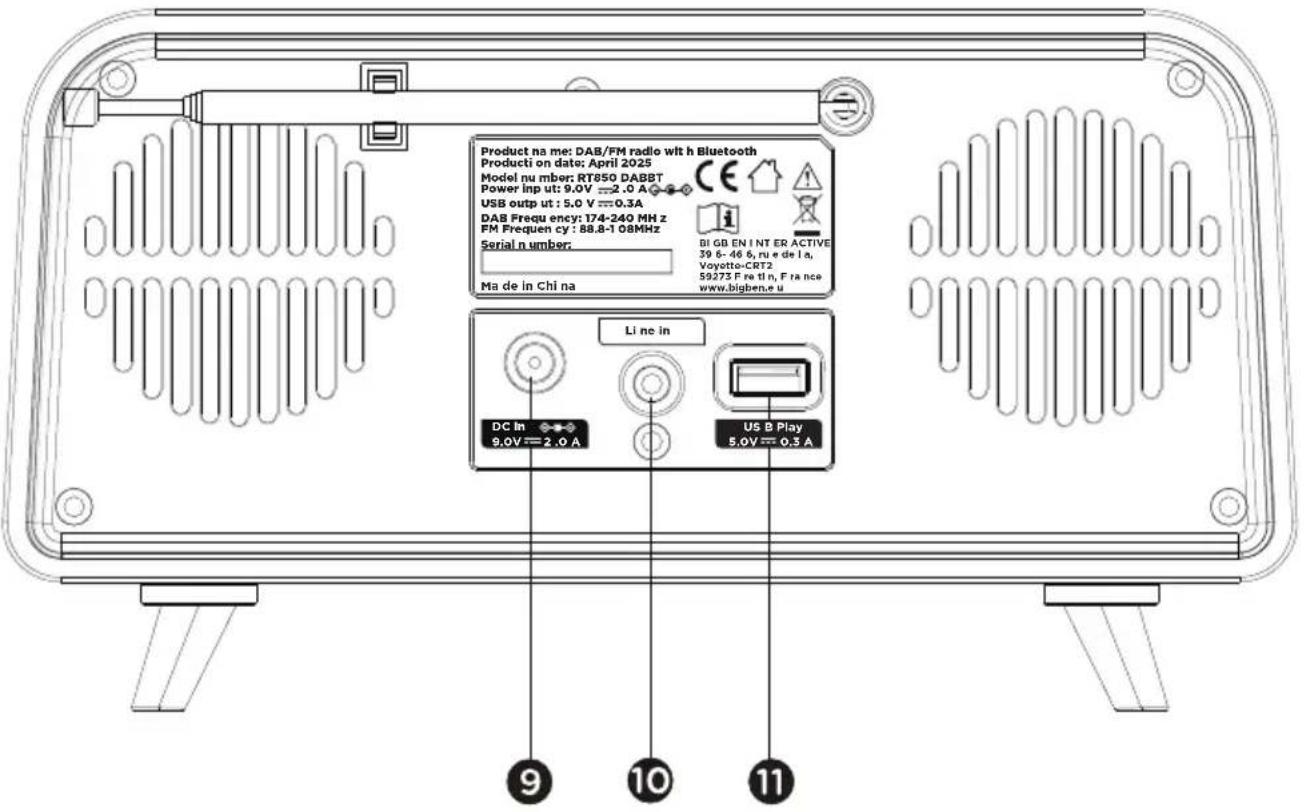

Inputs/Outputs

1. Power inlet port

2. Aux-in port

3. USB port

Control functions

1. Power: Briefly press this button to switch the device on and press and hold this button to switch the device off.

Modes: DAB - FM - BT - USB - AUX

1. Menu: Press and hold to access the settings in DAB mode.

Info: Access more information about the station.

1. Preset stations: Access previously saved radio stations.

2. “</ Prev" button:

3. Briefly press this button to go back to the previous track when in Bluetooth mode.

4. Press and hold this button to scroll through the FM stations (from high frequency to low frequency).

5. Lets you go back when listening to radio stations in FM mode.

6. "▷II/Enter/z ^z " button: Play/Pause/Input button

7. Press this button once to start playback in Bluetooth, USB or FM/DAB mode.

8. Press and hold this button for longer than 2 seconds to carry out an automatic FM/DAB search.

9. Press to activate the Snooze function when the alarm is set

10. "> / Next" button:

11. Briefly press this button to skip to the next track.

12. Press and hold this button to scroll through FM stations (from low to high frequency)
13. Lets you move forward when listening to radio stations in FM mode.

7. "Down/Volume-" button:

- Press this button to scroll down through menu items or the station list. The active element appears in inverted text (dark characters on a light background). Press "OK" to select the active element.

- Press this button to decrease the volume.

8. "Up/Volume+" button:

- Press this button to scroll up through menu items or the station list. The active element appears in inverted text (dark characters on a light background). Press "OK" to select the active element.

- Press this button to increase the volume.

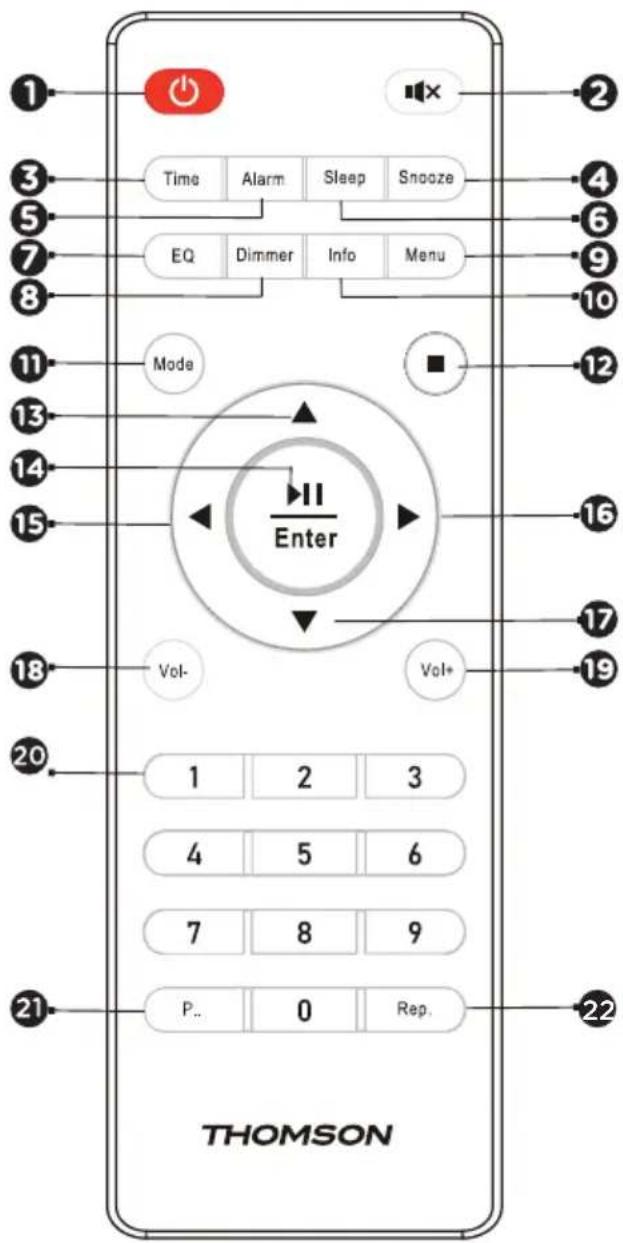

Remote control

1 2 3 4 5 6 7 8 EQ Dimmer Info Menu Mode 11 Enter 12 13 14 15 16 17 18 Vol- Vol+ 20 1 2 3 4 5 6 7 8 9 P.. 0 Rep. 21 THOMSON

1. Power button

2. Mute

3. Setting the time

4. Alarm repeat (Snooze)

5. Setting the alarm

6. Sleep

7. Equaliser mode

8. Dimmer switch

9. Menu

10. Info

11. Mode

12. Stop playback

13. Up

14. Play/Pause/Input

15. Previous

16. Next

17. Down

18. Volume down

19. Volume up

20. Digital keys

21. Preset stations

22. Repeat

Automatic standby

When playing an audio file from a connected device, the device automatically goes into standby if:

• You don't press any buttons for 10 minutes;
• The connected accessory has not transmitted any audio data for 10 minutes.

Operation

Press the POWER button to turn the device ON or OFF.

Volume adjustment

Press the Volume + button to increase the volume and the Volume - button to reduce the volume. Check the screen display, which should confirm the volume adjustment.

Mute function

Press the MUTE button on the remote control. The volume is muted and the icon appears on the LCD screen. Press this button again to cancel the Mute function.

Sleep function timer

1. Press the SLEEP button on the remote control several times to set the duration of this function to 15/30/45/60/90 minutes. This function is useful for falling asleep to music at night.
2. If you want to disable sleep mode, press the SLEEP BUTTON button repeatedly to select OFF. The Sleep mode will then be cancelled.

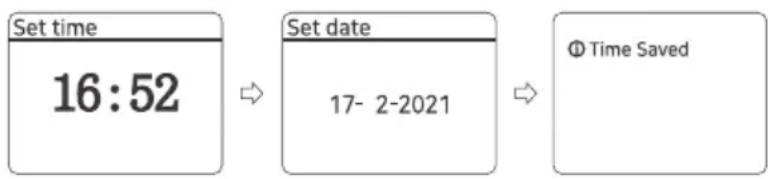

Setting the time

Press the "Time" button on the remote control and the time will start flashing.

Press ▲/▼ to set the hours number, then press ▶/▼ Enter to confirm. The minutes will start flashing.

Press ▲/▼ to set the minutes number, then press ▶/▼ Enter to confirm. The day will start flashing.

Press ▲/▼ to set the day number, then press ▶/▼ Enter to confirm. The month will start flashing.

Press ▲/▼ to set the month number, then press ▶/▼ Enter to confirm. The year will start flashing.

Press ▲/▼ to set the year number, then press ▶/▼ Enter to confirm. The time and date will then be saved.


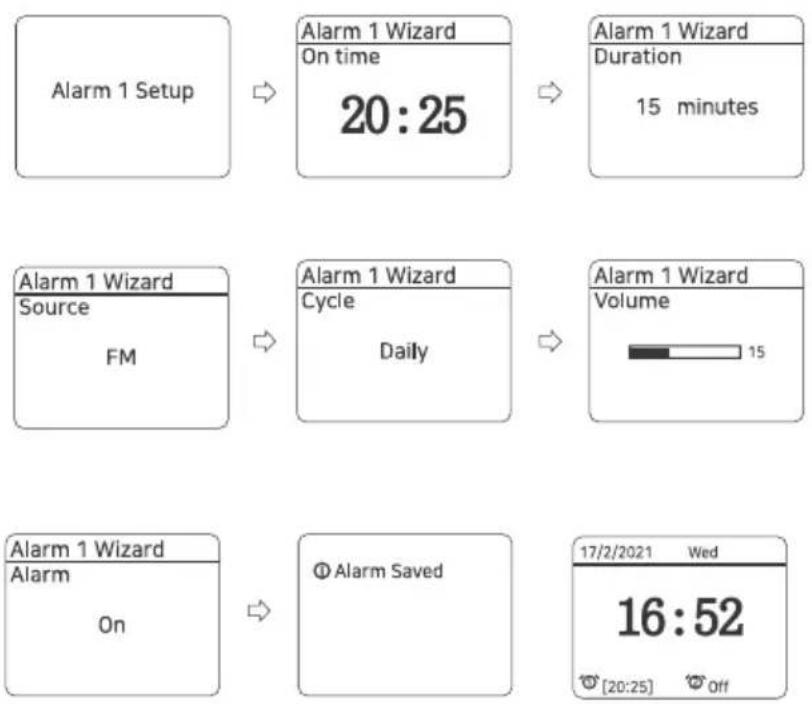

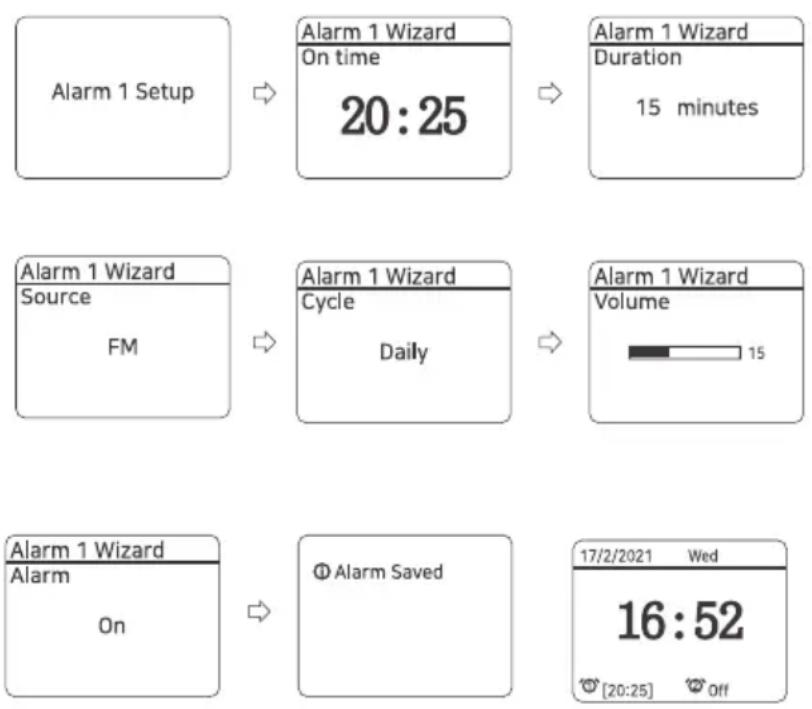

Setting the alarm

1. Press the "Alarm" button on the remote control, then ▲/▼, and select "Alarm 1 Setup" or "Alarm 2 Setup". Press ▶/Enter to confirm.
2. Press ▲/▼ to set the alarm time, then press ▶/Enter to confirm it.
3. Press ▲/▼ to set the alarm duration (90, 60, 45, 30, 15), then press ▶/Enter to confirm it.
4. Press ▲/▼ to set the alarm source (alarm sound, USB, FM, DAB), then press ▶/Enter to confirm it.

5. Press ▲/▼ to set the alarm cycle (weekday, weekend, single alarm, daily alarm), then press ▶/Enter to confirm.

6. Press ▲/▼ to set the alarm duration (90, 60, 45, 30, 15), then press ▶/Enter to confirm it.

7. Press ◀/▶ to adjust the alarm volume, then ▶/Enter to confirm it.
8. Press ◀/▶ to enable/disable the alarm, then press ▶/▶ Enter to save the alarm.
9. When the alarm sounds, press the Power button to dismiss it.

Alarm repeat (Snooze)

1. When the alarm sounds, it can be snoozed for approximately 9 minutes, but pressing the “▶/Enter / zz” button or by pressing the “SNOOZE” button once on th remote control.
2. The alarm will automatically sound again after approximately 9 minutes.
3. To disable this function, press the "POWER" button once.

Use

DAB radio mode

Carefully extend the telescopic aerial.

Press the POWER button to turn on the device, which will automatically switch to DAB mode.

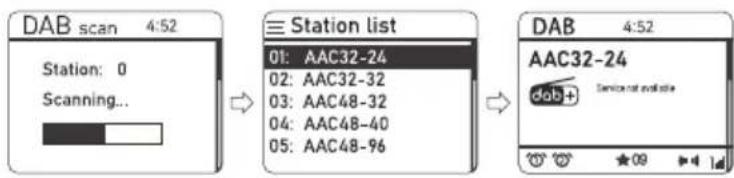

Automatic search

1. Press the "MODE" to selected DAB Mode (if the device isn't already in DAB mode). If this is the first time the device has been used in DAB mode, it will automatically begin an automatic search for available stations. (If DAB mode has been used previously, the device will automatically select the station you were last listening to)
2. Hold down the ▶/Enter button to start an automatic search for available stations. During the search, a progress bar will be displayed at the bottom of the screen to indicate how the process is progressing.
3. Press < / > to view the list of saved stations. The number of the saved station will be displayed at the bottom of the LCD screen (e.g. ☆9).

DAB scan 4:52 Station: 0 Scanning... Station list 01: AAC32-24 02: AAC32-32 03: AAC48-32 04: AAC48-40 05: AAC48-96 DAB 4:52 AAC32-24 dab+ Service not available

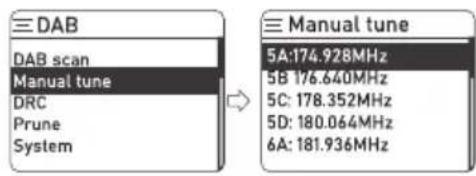

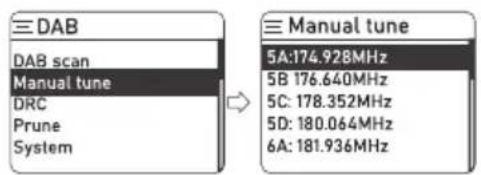

Manual search

1. Press the "Menu" button on the device to access the DAB settings.
2. Press the ▲ or ▼ buttons to select "Manual tune", then press the ▶/Enter button to access the service menu.
3. Press ▲ or ▼ to set the required station. The graph will show the signal strength.
4. Press MENU to exit the search function.
5. If no stations are found, make sure that the aerial is fully extended and test the signal by carrying out another automatic search in a different location.

≡DAB DAB scan Manual tune DRC Prune System → ≡ Manual tune 5A:174.928MHz 5B 176.640MHz 5C: 178.352MHz 5D: 180.064MHz 6A: 181.936MHz

DRC (Dynamic Range Control) function

The DRC (Dynamic Range Control) function is a technology used to enhance quite sounds in a noisy environment.

1. In DAB mode, press the ▲ or ▼ button to select "DRC". Press the ▶/Enter button to confirm. A "*" will be displayed in the top-right corner of the screen.

"DRC off": The DRC function is disabled, DRC will not be taken into account.

“DRC low”: The DRC level is set to half the output level.

“DRC high”: The DRC level corresponds exactly to the output level.

Deleting stations that are no longer available from the list

In DAB mode, press ▲ or ▼ to display the "Prune" sub-menu. Press the ▶/Enter button to select the "Prune" option.

System (DAB)

In DAB mode, press < or > to display the "System" sub-menu. Press the ▶/Enter button to access the system settings sub-menu.

Equaliser

In the DAB menu, press ▲ or ▼ to select the "Equaliser" sub-menu. Press the ▶/Enter button to confirm. A "*" will be displayed for the selected EQ mode in the top-right corner of the screen.

Language

In DAB mode, press ▲ or ▼ to access the language selection. Press the ▶/Enter button to confirm.

The default source language is English. A "*" will be displayed for the selected language in the top-right corner of the screen. Users can choose between "English", "Deutsch", "Italiano", "Français", "Nederlands", "Espanol", and "Polski".

Reset to factory settings

In the DAB menu, press ▲ or ▼ to select the "Factory reset" sub-menu. Press the ▶/Enter button to confirm it. If you want to reset the device to factory settings, press ▲ or ▼ until "YES" is highlighted on the screen, then press.

Your radio will be completely reset. All of the preset stations and station lists will be erased.

Software version

In the DAB menu, press ▲ or ▼ to view the DAB software version. Press "Menu". The display will return to normal.

*If no actions are carried out for 30 seconds, the display will return to normal.

Preset stations

1. Recalling preset stations

In DAB mode, press the "Preset" button. "Preset Recall" will appear. Then, press ▲ or ▼ to listen to a station previously saved in the memory. Press ▷/Enter to confirm tuning in to this station.

Please note: If you press the "Preset" button without having any stations saved, "Empty preset" will show on the screen.

Preset Recall 01: AAC32-24 02: AAC32-32 03: AAC48-32 04: AAC48-40 05: AAC48-96

2. Saving preset stations

You can save your favourite DAB stations in the preset station memory. You can save up to 50 stations in your radio's memory. Preset stations will be saved by your radio in the event of a powercut.

The process for saving and using preset stations is as follows for DAB mode:

In DAB mode, select the required frequency range. Hold down the PRESET button until you reach the station you want, as described above. 3. Press ▲ or ▼ to select the preset number under which you want to save the station. Press ▶/Enter to confirm.


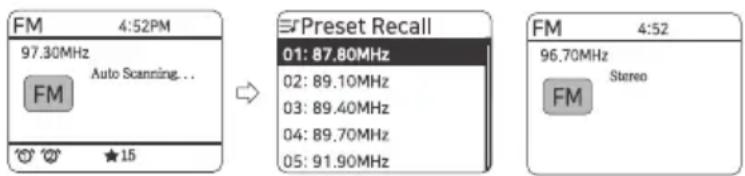

FM radio

Carefully extend the telescopic aerial until fully deployed.

Automatic search for all available radio stations:

In FM radio mode, press and hold the "/Enter" button to start the automatic search function. When the search finds a sufficiently strong radio signal, the station will be automatically saved. When the end of the frequency range is reached, the device will play the first station saved. Press "▲"/ "▼" on the remote control to navigate between and select saved radio stations.

Automatic search for the previous or next radio station:

Press and hold the “Next” button or the “Prev” button for 2 seconds. The radio will carry out a search and will automatically top when it finds a station with sufficient signal strength.

1. Press PRESET to access the preset radio stations.
2. Press ▲ or ▼ to select the saved station and listen to the radio.

FM 4:52PM 97.30MHz Auto Scanning... FM ★15 → Preset Recall 01: 87.80MHz 02: 89.10MHz 03: 89.40MHz 04: 89.70MHz 05: 91.90MHz FM 4:52 96.70MHz Stereo FM

Manual search

1. Press < or > to list to a radio station. Every time you press the frequency adjustment button, the frequency increases or reduces by 50 kHz.
2. Once you have found a station that you want to save, press and hold the PRESET button. "Preset store" (Saving preset stations) and the station number will appear on the screen.
   Press ▲ or▼ to select the station, then press ▷/ENTER to confirm and save the current station.
3. Press PRESET to access and listen to saved radio stations.
4. Press ▲ or ▼ to select the saved station and listen to the radio.

Menu

1. Search settings

In FM mode, press MENU to access the FM menu settings, then press < / > to select "Scan setting". Then, press ENTER to select the sensitivity setting:

≡FM Scan setting Audio setting System ≡Scan setting All stations Strog stations only

• All stations: 15 dB
  • Stations with a strong signal only: \~19 dB

2. Audio settings

• Stereo allowed
• Forced mono

3. System (FM system): Same settings as the DAB system.

Preset stations

1. Recalling preset stations (station selection): Press PRESET to listen to the station saved in the memory.

Preset Recall 01: 87.80MHz 02: 89.10MHz 03: 89.40MHz 04: 89.70MHz 05: 91.90MHz

1. Saving preset stations (station selection):

You can store your favourite FM stations in the preset station memory. You can save up to 50 stations in your radio's memory. Preset stations will be saved by your radio in the event of a powercut.

The process for saving preset stations and using them is the same as in DAB mode. In FM mode, select the required frequency range. Press PRESET to view the saved stations. Press ▲ or ▼ to listen to the station you want, as explained above. Then, press ENTER to select the preset number under which you want to save the station.

Bluetooth mode

You need to carry out several steps to connect your mobile phone:

1. Activate Bluetooth on your mobile phone (refer to the instructions for your phone).
2. Press the POWER button ⏻ to switch on the device, then press the MODE button multiple tomes, until the "Bluetooth" symbol appears on the LCD screen. It will then be ready to be paired automatically.
3. Using your mobile phone, search for the Bluetooth device called "RT850DABBT".
4. You phone will detect "RT850DABBT" and will give you the option of pairing with it.
   Pair with the device using the password "0000" (if required). Once the connection is made, "Connected" will appear on the LCD screen.

Automatic connection to your phone

Pairing is only necessary when you first use the appliance with the phone. Once the device has been paired with the phone, it will connect to the device automatically when it is turned on and when Bluetooth is activated on the phone. The next time you turn on the device, it will automatically connect to the mobile phone it was last connected to.

Press and hold the ▷/ENTER button to disable the Bluetooth function.

Playing from a Bluetooth device

Once the Bluetooth has been paired, press the ▷ button to play. Press the < or > button to switch to the previous or next track. To pause or play the audio output, press the ▷ button again.

Music playback via USB

This device was designed with the latest USB technical innovations. However, given the wide selection of USB storage devices available on the market, we cannot guarantee full compatibility with every peripheral device. For this reason, in rare cases, you may experience issues when trying to play files from USB storage devices. This is not due to a device malfunction.

1. Press the button multiple times until "USB" appears on the screen.
2. Connect a USB storage drive directly to the USB port. The screen will briefly display the number of folders and then the total number of tracks. Playback will start automatically after a few seconds.

PLEASE NOTE:

• Always connect a USB storage drive directly to the USB port to avoid any malfunction.
• The USB port is not designed for charging external devices.
• Important! Please note: Change the device mode before removing the USB storage device.

USB 4:52PM Play F2/3 T23/28 1:36 [No Id3] → USB 4:52PM Play F2/3 T23/28 1:36 Title There For the Architectural Remix Album There For You

Music playback via the Aux-in jack port

Aux-in jack port

1. Press the POWER button multiple times to select the Aux-In mode. "Aux-In" will be displayed on the LCD screen.
2. Connect the AUX connection cable to the output jack of your personal media player (for example, a portable MP3 player) and the Aux-in jack port.
3. Start playback from your personal player.

Device technical specifications

Type	Technical specifications	Type	Technical specifications
Extended-range loudspeaker	3" (5 W) x 2 Wireless frequency	2,402-2,480 MHz
Speaker peak power	30 W FM frequency 88.8–108 MHz
RMS power 10W	DAB frequency 174,928–239,200 MHz
Energy consumption	0.6 W Bluetooth version	5.0
Input power 100–230 V, 50/60 Hz		Transmission range	10 m
Speaker resistance	4 Ω EIRP 2.75 dBm

Speaker frequency	60 Hz–20 KHz Inputs/Outputs	DAB, FM, Bluetooth, Line-in, USB,
S/B ratio ≥ 80dB Distortion <1%
Bluetooth pairing name	RT850DABBT Dimensions 225 x 100 x 127 mm

Please note: The maximum connection range is approximately 10 metres. Place your Bluetooth speaker as close as possible to the device to avoid the connection being disrupted.

The device may turn off in an environment with electrostatic discharge. The user must then recharge the battery and reset the device.

Environmental protection

Your product has been designed and manufactured using high-quality materials and components that can be recycled and reused.

Attention should be drawn to the environmental aspects of battery disposal.

When the crossed-out wheelie bin symbol appears on a product, it means that the product is covered by European Directive 2002/96/EC. Please find out about the local sorting and collection system for electrical and electronic products. Please act according to local rules and do not dispose of your old products in your household waste. By ensuring this product is disposed of correctly, you are helping to prevent potentially negative consequences for the environment and human health.

Additional information

• When the device is not transmitting audio output for a certain amount of time, it will automatically go into standby mode to save energy. It can be switched on by using the power selector again.
• If an incoming call is received while the RT850DABBT system is connected to your mobile phone during music playback, the music will immediately pause when you answer the call, and start again once the call is finished (depending on the type of mobile phone, playback may sometimes stay paused after the end of the call).
• The word Bluetooth ^® , the brand and logo are registered trademarks owned by Bluetooth SIG, Inc., and any use of such marks by Bigben Interactive is under licence. All other brands and trade names are the property of their respective owners.
• THOMSON is a trademark of Talisman Brands, Inc. used under licence by Bigben Interactive.
• This product is manufactured and sold under the responsibility of Bigben Interactive.
• THOMSON and the THOMSON logo are trademarks operated under licence by Bigben Interactive – for further information, please visit: www.thomson-brand.com.
• All other products, services, corporate names, trademarks, trade names, product names and logos referenced herein are the property of their respective owners.

Declaration of conformity

- Bigben Interactive hereby declares that the RT850DABBT electrical radio equipment is compliant with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following web address: www.bigben.fr/support

Warranty

This product is guaranteed by Bigben for a period of 2 years from the date of purchase, except in countries of the European Economic Area, which offer a longer warranty period. We recommend that you keep your receipt for any claims. The warranty covers breakdowns due to defective material, a missing element or manufacturing defect. In this case, contact our technical support. For any problem with a defective product, contact your point of purchase with your receipt. The warranty does not cover problems of improper use.

SUPPORT

For any technical problem, please contact [e-mail].

Our Support Team is also available by chat via www.bigben-interactive.co.uk/support/from Monday to Friday 9.00am till 6.00pm (GMT+1).

Made in China

Manufactured by BIGBEN INTERACTIVE SA

396–466, Rue de la Voyette

CRT2 - FRETIN

CS 90414

59814 LESQUIN Cedex - France

www.bigben.eu

Fabricant : Bigben Interactive FRANCE

396-466, rue de la Voyette - CRT2

59273 Fretin, France

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

OTHERS, from Monday to Friday - 9.00 am - 6.00 pm

Ajuste de la Alarma

DAB scan 4:52 Station: 0 Scanning... ≡ Station list 01: AAC32-24 02: AAC32-32 03: AAC48-32 04: AAC48-40 05: AAC48-96 → DAB 4:52 AAC32-24 Service not available

Búsqueda manual

≡ System SW version → ≡ SW version OM23D02-V2.0.24.D AB5010-09

≡FM Scan setting Audio setting System ≡Scan setting All stations Strog stations only

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

OTHERS, from Monday to Friday - 9.00 am - 6.00 pm

Two triangular warning symbols: a lightning bolt symbol and an exclamation mark, commonly used in safety or hazard prevention contexts.

DAB scan 4:52 Station: 0 Scanning... ≡ Station list 01: AAC32-26 02: AAC32-32 03: AAC48-32 04: AAC48-40 05: AAC48-96 → → DAB 4:52 AAC32-24 dab+ Service not available

Ricerca manuale

≡ System SW version → ≡ SW version OM23D02-V2.0.24.D AB5010-09

≡FM Scan setting Audio setting System ≡Scan setting All stations Strog stations only

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

OTHERS, from Monday to Friday - 9.00 am - 6.00 pm

MANUAL DE INSTRUÇÕES

ANTES DE UTILIZAR ESTE APARELHO, LEIA ATENTAMENTE ESTE MANUAL DE INSTRUÇÕES E GUARDE-O PARA CONSULTA FUTURA.

DAB scan 4:52 Station: 0 Scanning... ≡ Station list 01: AAC32-24 02: AAC32-32 03: AAC48-32 04: AAC48-40 05: AAC48-96 → DAB 4:52 AAC32-24 dab+ Service of available ★09 ▶4 1d

Pesquisa manual

Função DRC (Dynamic Range Control)

FM Scan setting Audio setting System Scan setting All stations Strog stations only

• «Stereo allowed» (Estéreo permitido)
• «Forced mono» (Mono forçado)

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

OTHERS, from Monday to Friday - 9.00 am - 6.00 pm

DAB scan 4:52 Station: 0 Scanning... Station list 01: AAC32-24 02: AAC32-32 03: AAC48-32 04: AAC48-40 05: AAC48-96 DAB 4:52 AAC32-24 dab+ Service not available

Manuelle Suche

≡FM Scan setting Audio setting System ≡Scan setting All stations Strog stations only

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

OTHERS, from Monday to Friday - 9.00 am - 6.00 pm

DAB scan 4:52 Station: 0 Scanning... Station list 01: AAC32-24 02: AAC32-32 03: AAC48-32 04: AAC48-40 05: AAC48-96 DAB 4:52 AAC32-24 dab+ Service not available

Handmatig zoeken

≡ System SW version → ≡ SW version OM23D02-V2.0.24.D AB5010-09

Voorkeurzenders

≡FM Scan setting Audio setting System ≡Scan setting All stations Strog stations only

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

OTHERS, from Monday to Friday - 9.00 am - 6.00 pm

www.bigben.fr/support (Chatbot) & support @bigben.fr

www.bigben.eu

THOMSON

PL

RT850DABBT

BLUETOOTH/DAB/FM/WEJŚCIE AUDIO

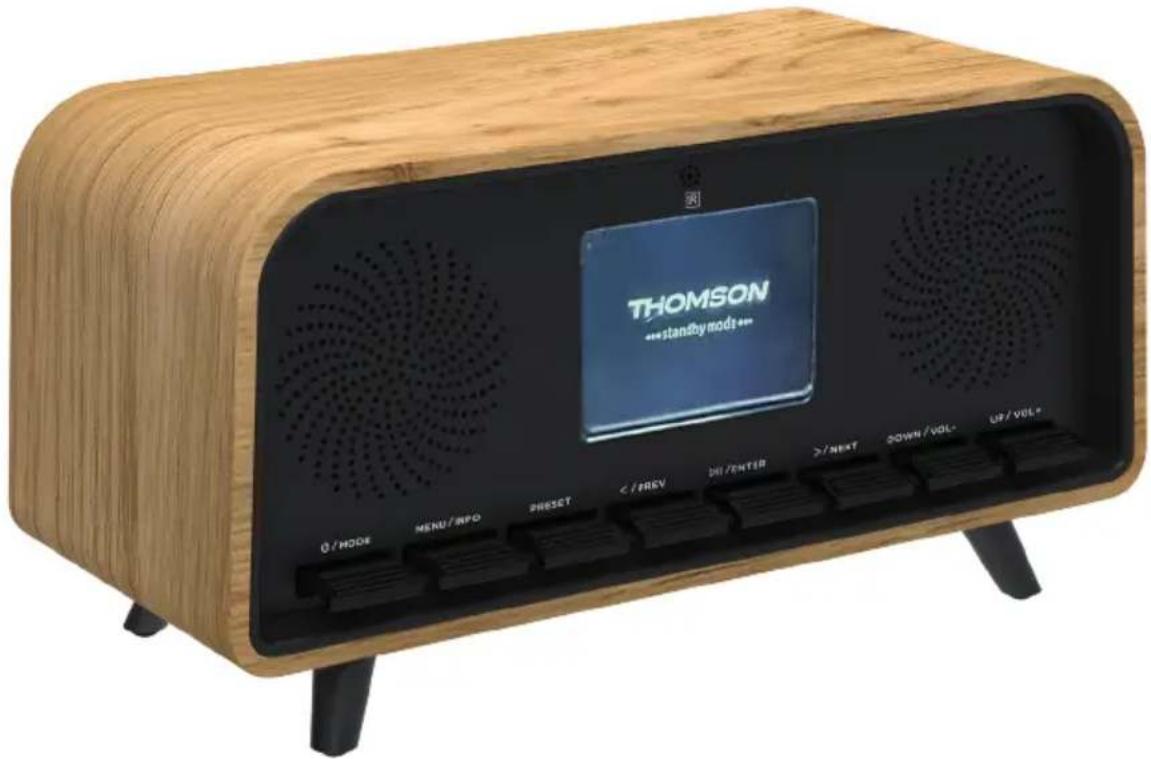

THOMSON ---standby mode--- 0 / MODE MENU/RPO PRESET C / FREE DEL CENTER >/NEXT DOWN/VOL+ UP/VOL+

INSTRUKCJA OBSŁUGI

Ustawianie budzika

DAB scan 4:52 Station: 0 Scanning... ≡ Station list 01: AAC32-24 02: AAC32-32 03: AAC48-32 04: AAC48-40 05: AAC48-96 → → DAB 4:52 AAC32-24 dab+ Service not available

Wyszukiwanie ręczne

≡ System SW version → ≡ SW version OM23D02-V2.0.24.D AB5010-09

≡FM Scan setting Audio setting System ≡Scan setting All stations Strog stations only

BT 4:52 Connected

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

OTHERS, from Monday to Friday - 9.00 am - 6.00 pm

Inställning av larm

DAB scan 4:52 Station: 0 Scanning... Station list 01: AAC32-24 02: AAC32-32 03: AAC48-32 04: AAC48-40 05: AAC48-96 DAB 4:52 AAC32-24 Service not available

Manuell sökning

FM Scan setting Audio setting System Scan setting All stations Strog stations only

BELGIQUÉ, [e-mail]

NEDERLAND, [e-mail]

OTHERS, from Monday to Friday - 9.00 am - 6.00 pm

Hälytysasetus

DAB scan 4:52 Station: 0 Scanning... Station list 01: AAC32-24 02: AAC32-32 03: AAC48-32 04: AAC48-40 05: AAC48-96 DAB 4:52 AAC32-24 dab+ Service not available

Manuaalinen haku

≡ System SW version → ≡ SW version OM23D02-V2.0.24.D AB5010-09

FM 4:52PM 97.30MHz Auto Scanning ... FM ★15 → Preset Recall 01: 87.80MHz 02: 89.10MHz 03: 89.40MHz 04: 89.70MHz 05: 91.90MHz FM 4:52 96.70MHz Stereo FM

Manuaalinen haku

≡FM Scan setting Audio setting System ≡Scan setting All stations Strog stations only

• "Stereo allowed" (stereo sallittu)
• "Forced mono" (pakotettu mono)

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

OTHERS, from Monday to Friday - 9.00 am - 6.00 pm

www.bigben.fr/support (Chatbot) & support @bigben.fr

www.bigben.eu

THOMSON

DA

RT850DABBT

BLUETOOTH/DAB/FM/LYDINDGANG

THOMSON ---standby mode--- 0 / MODE MENU/RPO PRESET C / FREE DEL CENTER >/NEXT DOWN/VOL+ UP/VOL+

BETJENINGSVEJLEDNING

F∅R DU BRUGER DETTE APPARAT, SKAL DU LÆSE DENNE BETJENINGSVEJLEDNING OMHYGGELIGT OG GEMME DEN TIL SENERE BRUG.

DAB scan 4:52 Station: 0 Scanning... Station list 01: AAC32-24 02: AAC32-32 03: AAC48-32 04: AAC48-40 05: AAC48-96 DAB 4:52 AAC32-24 dab+ Service not available

Manuel søgning

≡FM Scan setting Audio setting System ≡Scan setting All stations Strog stations only

• »Stereo allowed« (Stereo tilladt)

• »Forced mono« (Tvungen mono)

• System (FM-system): samme indstillinger som for DAB-systemet.

Forudindstillede stationer

AT AFLEVERE I FORRETNING

AT AFLEVERE PÅ CONTAINER AFFALDSPLADS

eller

Fabricant : Bigben Interactive FRANCE

396-466, rue de la Voyette - CRT2

59273 Fretin, France

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

OTHERS, from Monday to Friday - 9.00 am - 6.00 pm

www.bigben.fr/support (Chatbot) & support @bigben.fr

www.bigben.eu

THOMSON

NO

RT850DABBT

BLUETOOTH/DAB/FM/LYDINNGANG

THOMSON ---standby mode--- 0 / MODE MENU/RPO PRESET C / FREE INT CENTER >/NEXT DOWN/VOL- UP/VOL+

BRUKSANVISNING

LES DENNE BRUKSANVISNINGEN N∅YE F∅R DU TAR PRODUKTET I BRUK OG TA VARE PÅ DEN SLIK AT DEN ER TILGJENGELIG HVIS DU FÅR BRUK FOR DEN IGJEN.

Stille inn alarm

DAB scan 4:52 Station: 0 Scanning... Station list 01: AAC32-24 02: AAC32-32 03: AAC48-32 04: AAC48-40 05: AAC48-96 DAB 4:52 AAC32-24 dab+ Service not available

Manuelt søk

≡FM Scan setting Audio setting System ≡Scan setting All stations Strog stations only

• «Stereo allowed» (stereo tillatt)
• «Forced mono» (tvunget mono)

1. System (FM-system): samme innstillinger som DAB-systemet.

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

OTHERS, from Monday to Friday - 9.00 am - 6.00 pm

www.bigben.fr/support (Chatbot) & support @bigben.fr

www.bigben.eu

THOMSON

CS

RT850DABBT

BLUETOOTH/DAB/FM/AUDIO VSTUP

THOMSON ---standby mode--- 0 / MODE MENU/RPO PRESET C / FREE DEL CENTER >/NEXT DOWN/VOL+ UP/VOL+

NÁVOD K POUŽITÍ

PŘED POUŽITÍM TOHOTO ZAŘÍZENÍ SI POZORNĚ PŘEČTĚTE TENTO NÁVOD K POUŽITÍ A USCHOVEJTE JEJ PRO BUDOUCÍ POUŽITÍ.

Nastavení budíku

DAB scan 4:52 Station: 0 Scanning... Station list 01: AAC32-24 02: AAC32-32 03: AAC48-32 04: AAC48-40 05: AAC48-96 DAB 4:52 AAC32-24 dab+ Service not available

Ruční vyhledávání

≡FM Scan setting Audio setting System ≡Scan setting All stations Strog stations only

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

OTHERS, from Monday to Friday - 9.00 am - 6.00 pm

www.bigben.fr/support (Chatbot) & support @bigben.fr

www.bigben.eu

THOMSON

RT850DABBT

BLUETOOTH/DAB/FM/ AUDIO BEMENET

THOMSON ---standby mode--- 0 / MODE MENU/RPO PRESET C / FREE INT CENTER >/NEXT DOWN/VOL- UP/VOL+

HASZNÁLATI ÚTMUTATÓ

A KÉSZÜLÉK HASZNÁLATA ELÖTT KÉRJÜK, FIGYELMESEN OLVASSA EL EZT AZ ÚTMUTATÓT ÉS ÖRIZZE MEG KÉSÖBBI HASZNÁLATRA.

DAB scan 4:52 Station: 0 Scanning... Station list 01: AAC32-24 02: AAC32-32 03: AAC48-32 04: AAC48-40 05: AAC48-96 DAB 4:52 AAC32-24 dab+ Service not available

Kézi keresés

≡ System SW version → ≡ SW version OM23D02-V2.0.24.D AB5010-09

≡FM Scan setting Audio setting System ≡Scan setting All stations Strog stations only

Two black-and-white symbols: a recycling triangle and a trash can with a dot (no text or labels)

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

OTHERS, from Monday to Friday - 9.00 am - 6.00 pm

Postavljanje alarma

1. Pritisnite gumb „Alarm” na daljinskom upravljaču, zatim pritisnite ▲/▼ i odaberite „Alarm 1 Setup” (Postavljanje alarma 1) ili „Alarm 2 Setup” (Postavljanje alarma 2). Pritisnite ▶/Enter za potvrdu.
2. Pritisnite ▲/▼ zatim postavite vrijeme alarma ▶/Enter za potvrdu.

3. Pritisnite ▲/▼ za postavljanje trajanja alarma (90, 60, 45, 30, 15), zatim na ▶/Enter za potvrdu.

4. Pritisnite ▲/▼ za postavljanje izvora alarma (melodija zvona, USB, FM, DAB), zatim pritisnite ▶/Enter za potvrdu.

5. Pritisnite ▲/▼ za postavljanje ciklusa alarma (radni dan, vikend, jednokratni alarm, dnevni alarm), zatim ▶/Enter za potvrdu.
6. Pritisnite ▲/▼ za postavljanje trajanja alarma (90, 60, 45, 30, 15), zatim na ▶/Enter za potvrdu.
7. Pritisnite ◀/▶ za podešavanje glasnoće alarma, zatim pritisnite ▶/Enter za potvrdu.
8. Pritisnite ◀/▶ za aktiviranje/deaktiviranje alarma, zatim uključite ▶/Enter za snimanje alarma.
9. Kada se alarm oglasi, pritisnite gumb Power da biste ga zaustavili.

Ponavljanje alarma (Snooze)

1. Kada se alarm oglasi, može se obustaviti na razdoblje od otprilike 9 minuta pritiskom na tipku „►/Enter/” z4h jednim pritiskom na tipku „SNOOZE” (Odgoda) na daljinskom upravljaču.
2. Alarm će se automatski ponovno oglasiti nakon približno 9 minuta.
3. Za isključivanje ove značajke pritisnite „POWER” (Napajanje).

Upute za korištenje

DAB radio način rada

DAB scan 4:52 Station: 0 Scanning... ≡ Station list 01: AAC32-24 02: AAC32-32 03: AAC48-32 04: AAC48-40 05: AAC48-96 → → DAB 4:52 AAC32-24 dab+ Service not available

Ručno pretraživanje

1. Pritisnite tipku „Menu” na uređaju za pristup DAB postavkama.
2. Pritisnite gumbe ▲ Ili ▼ odaberite „Manual tune” (Ručno podešavanje), zatim na gumb ▶/Enter za pristup izborniku usluga.
3. Pritisnite ▲ Ili ▼ za postavljanje željene postaje. Grafikon će pokazati snagu signala.
4. Pritisnite MENU za izlaz iz funkcije pretraživanja.
5. Ako nije pronađena nijedna postaja, provjerite je li antena potpuno izvučena i testirajte prijem izvođenjem nove automatske pretrage s drugog mjesta.

≡DAB DAB scan Manual tune DRC Prune System → ≡ Manual tune 5A:176.928MHz 5B 176.640MHz 5C: 178.352MHz 5D: 180.064MHz 6A: 181.936MHz

DRC (Dynamic Range Control) funkcija

DRC (ili Dynamic Range Control) je tehnologija koja se koristi za bolje slušanje tihih zvukova u bučnom okruženju.

1. U DAB načinu rada pritisnite tipke ▲ Ili ▼ za odabir „DRC”. Pritisnite tipku ▶/Enter za potvrdu. U gornjem desnom kutu zaslona pojavit će se „*”.

„DRC off“: funkcija DRC je deaktivirana, DRC se ne uzima u obzir.

FM 4:52PM 97.30MHz Auto Scanning ... FM ★15 → Preset Recall 01: 87.80MHz 02: 89.10MHz 03: 89.40MHz 04: 89.70MHz 05: 91.90MHz FM 4:52 96.70MHz Stereo FM

Ručno pretraživanje

1. Pritisnite < ili > za slušanje postaje. Svaki put kada pritisnete gumb za podešavanje, frekvencija će se povećati ili smanjiti za 50 kHz.
2. Kada pronađete stanicu koju želite spremiti, pritisnite i držite gumb PRESET (Unaprijed postavljene postaje). Na zaslonu će se pojaviti „Preset store” (Pohrana unaprijed postavljenih postaja) i broj postaje. Pritisnite ▲ ili▼ za odabir postaje, zatim na ▷/ENTER za potvrdu i spremanje trenutne postaje.
3. Pritisnite PRESET za pristup i slušanje spremljenih radio postaja.
4. Pritisnite ▲ Ili▼ za odabir spremljene postaje i slušanje radija.

Izbornik

1. Parametri pretraživanja.

U FM načinu rada pritisnite IZBORNIK i unesite postavke FM izbornika, zatim pritisnite < / > za odabir „Scan setting” (Parametri pretraživanja). Zatim pritisnite ENTER za odabir postavke osjetljivosti:

≡FM Scan setting Audio setting System ≡Scan setting All stations Strog stations only

• Sve postaje: \~15 dB
- Samo postaje s jakim signalom: \~19 dB

1. Audio postavke

• „Stereo allowed" (Stereo dopušten)
• „Forced mono" (forsiran mono)

1. Sustav (FM sustav): Iste postavke kao DAB sustav.

BT 4:52 Connected

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

OTHERS, from Monday to Friday - 9.00 am - 6.00 pm

www.bigben.fr/support (Chatbot) & support @bigben.fr

www.bigben.eu
