USER MANUAL WS902DUO THOMSON

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPANA, [e-mail]

Tel.: [phone]

Safety warning and notice 12

Contents of the box 14

Description of parts 14

Discover your remote control 15

Troubleshooting

Warning about batteries 17

Technical specifications of the device 18

Care for the environment 19

Additional information 19

Declaration of conformity 19

Warranty 20

Getting started

Take the appliance out of the box.
- Remove all the packaging from the product.
- Place the packaging inside the box or dispose of it safely in compliance with the waste sorting instructions shown on the product packaging.

Safety warning and notice

You must read and understand all the instructions before using this appliance. The warranty will not apply if damage is caused by failure to follow the instructions.

1. Never remove the appliance casing.
2. Never place this appliance on top of other electrical equipment.

3. Protect the power cord from being stepped on or pinched, particularly at the plugs, sockets, and the point where it exits the appliance. Make sure that the power voltage corresponds to the voltage shown on the rating plate at the rear of the appliance. Always pull the plug from the socket when disconnecting from the mains. Never pull on the cord. Ensure you have completed all the other connections before connecting the mains plug.

4. Only use attachments/accessories that are recommended by the manufacturer.

5. Entrust all appliance repairs to qualified repairers. Repair is needed when the appliance has been damaged in any fashion, and in particular:

6. if the power cord is damaged;

7. in the event of a liquid spill or objects being inserted into the appliance;
8. if the appliance is exposed to rain or dampness;
9. if the appliance does not operate normally;

10. or if the appliance has been dropped or impacted.

11. The series panel is located on the bottom of the appliance.

12. Never block the air vents.
13. Make sure you have enough space for ventilation. Place the product on a stable surface.
14. This device must be used in a moderate climate, away from direct sunlight, naked flames or heat, heating devices, cookers or any other devices (including amplifiers) that generate heat. Do not install near a heat source.
15. The batteries (battery pack or inserted batteries) must not be exposed to excessive heat, such as sunshine, fire, etc.

16. Always unplug the device before cleaning it. Never lubricate any part of this appliance. Clean it with a soft cloth. Do not use abrasive products or harsh cleaners.

17. Ensure that you always have easy access to the power cord, plug or adapter to disconnect this appliance from the mains if necessary.

18. Do not use this appliance near water. It must not be dripped on or splashed. Do not use this appliance in a damp or wet environment.
19. Disconnect this appliance in the event of a storm or if you are not going to use it for a long period of time.
20. This appliance can be used by children aged 8 and over, and by persons with a physical or sensory disability, learning difficulties or a lack of experience and knowledge, provided they are supervised or have received instructions on the safe use of the appliance, and they understand the risks involved. Children must not play with the appliance or power cord (risk of strangulation). Children must not clean or maintain the appliance without supervision.
21. This device must only be supplied with very low safety voltage corresponding to the marking on the device.
22. The battery should be removed from the device before disposal. The device must be disconnected from the power supply when removing the battery.
23. The product must be at a minimum distance of 20cm from the human body in operation.
24. This device is for household use only; do not use outdoors.

The lightning bolt symbol within an equilateral triangle alerts users to the presence of dangerous uninsulated voltages inside the device, that may present a risk of electric shock.

The exclamation mark inside a triangle indicates the presence of important operating and maintenance (repair) instructions in the literature accompanying the appliance.

Class II material
Direct current
Alternating current	~
For indoor use only

Contents of the box

• Main appliance
  Remote control
• User manual
• 3.5 mm to 2 × RCA cable
• Optical cable
  Power cable
• RCA to RCA cable

Description of parts

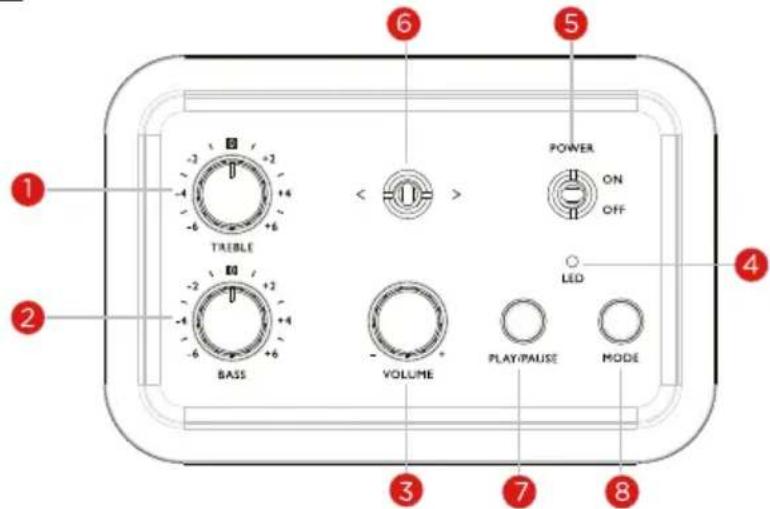

1. Treble control
2. Bass control
3. Master volume
4. LED indicator
5. On/Off switch
6. Previous track / Next track
7. Play/Pause
8. Mode (Source)

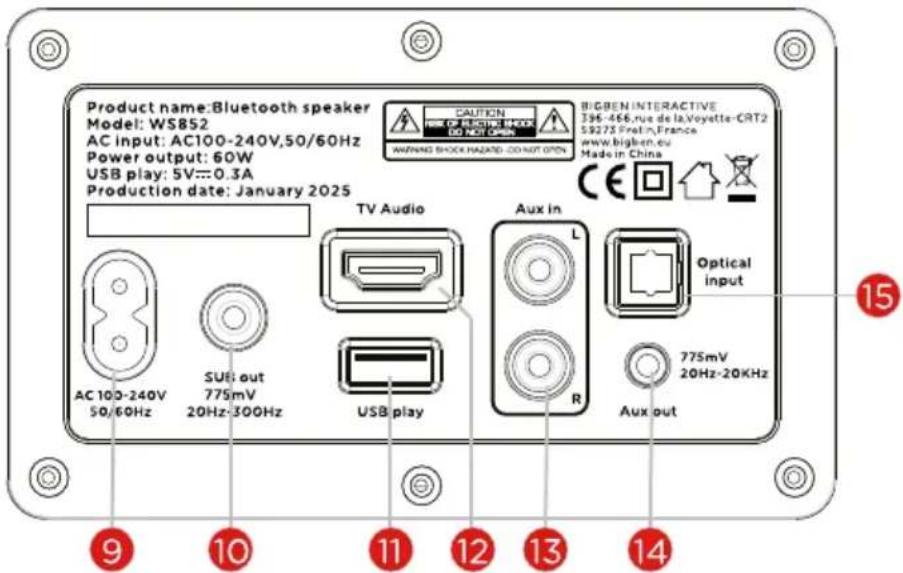

9. Power port
10. Connect a subwoofer
11. USB input port
12. TV Audio input port
13. Auxiliary input port (RCA)
14. Auxiliary output
15. Optical input port

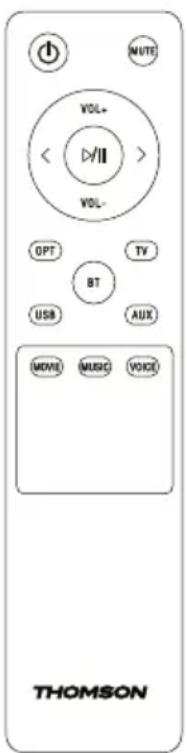

Discover your remote control

	Power button	MUTE	Write/Interrupted
VOL+	Waste collection	VOL-	Reduce the volume
<	Previous track	>	Next track
	Play/Pause	OPT	Optical mode
TVUSB	TV mode		USB mode
BT	Bluetooth Mode
AUX	Airplane mode	MOVIE	Movie mode
MUSIC	Music mode	VOICE	Voice mode

Auxiliary input

1. Press the "Mode" button to select an auxiliary input. The indicator light turns blue.
2. Use the appropriate RCA cable to connect an audio source to the speaker.
3. Play music from your connected device and adjust the volume on your device or by turning the "Volume" button.

TV Audio input

1. Connect the TV AUDIO on the speaker to the TV out port of the TV with a High speed cable.
2. Select the "GREEN" LED indicator by pressing the "TV" button on the remote or press the "Mode" button.
3. Set the TVs audio output to "PCM". (More information on PCM page).

USB input

1. Insert a USB drive into the USB A port on the rear.
2. Select the "PURPLE" LED indicator by pressing the "USB" button on the remote. Or press the "Mode" button.
3. The maximum size of USB media for MP3 playback should not exceed 32GB.

Optical input

1. Press the "Mode" button to select the optical input. The indicator turns light white.
2. Use the appropriate optical cable to connect an audio source to the speakers.
3. Play music from your connected device and adjust the volume on your device or by turning the "Volume" button.

Bluetooth operation

1. Select the "BLUE" LED indicator by pressing the "BT" button on the remote, or press the "Mode" button.
2. Go to setup section on your source device (mobile phones, tablets, etc) and search for nearby Bluetooth device to find "WS852" in the list.
3. Pair your device with "WS852".
4. Play the audio tracks on your device and adjust the volume according to preference.
5. Press and hold the "Mode" button to disconnect the Bluetooth.

Note: The maximum connection range is approximately 10 metres. Place your Bluetooth speaker as close as possible to the device to avoid any interference with the connection.

Setting the electronic control module (PCM) on your TV

If there is no sound from TV or Speaker when all cables are connected properly and the LED indicator light is correct (Optical or digital connection), adjust your TV settings as below:

1. Press the "Menu" button on the TV remote control.
2. Select "Audio Settings".
3. Select "Advanced Audio" - some TVs may not have an "Advanced Audio" menu and instead display a list of audio settings.
4. Select "Audio Output Mode" or "Digital Audio Output Mode".
5. Select "PCM" as the audio output mode.
6. Press "OK" to save the settings

Digital audio output settings may differ by brand, so please check your TV's instruction manual.

Auxiliary output

You can add external speaker to WS852 by plugging in a 3.5mm jack cable to the auxiliary output on back panel. This will output the sound to another speaker.

Subwoofer output

You can add external active subwoofer to WS852 by using the subwoofer output. It will reinforce low frequency.

Troubleshooting

Problem Solution
No sound Check that the	power indicator is ON.
	Try increasing the volume with the central control knob or the remote control.
	Make sure the audio cables are securely connected and the input is properly set to the speakers.
	Check if there is an output signal from the audio source.
Unable to connect via Bluetooth	Make sure the speaker is set to Bluetooth mode. Bluetooth may not be paired correctly, so repeat the procedure.
	Disconnect any Bluetooth device by pressing and holding the “Mode” button.
The WS852 bookshelf speaker does not turn on.	The effective Bluetooth transmission range is 10 metres; remember not to exceed this range.
	Try connecting another Bluetooth device.
	Check that the unit is properly connected to the mains and the mains socket is switched on.

Warning about batteries

This product contains one or more batteries.
- Use batteries correctly to prevent any injury or fire caused by a leak, overheating, explosion, erosion or other damage.
- Keep new and used batteries out of the reach of children or any vulnerable person. Stop using the device if the battery compartment does not close properly.
- If the liquid from an alkaline battery comes into contact with the skin and/or eyes, rinse immediately with fresh water and consult a physician.
If an alkaline battery leaks, wipe up the liquid with a cloth and replace the battery with a new one.
- Do not swallow batteries. If swallowed, a battery can cause severe internal burns in 2 hours and can cause death. If batteries are swallowed, contact a poison centre immediately and consult a physician.
- Use AA Ni-MH, alkaline or lithium batteries.
- Do not charge these batteries. Charging non-rechargeable batteries causes gas and/or heat emissions that can cause explosions and/or fires.
- Do not use different types of batteries or a mixture of new and old batteries.
- Insert the batteries according to the correct polarity (+ and -).
- Do not put the same battery poles in contact with each other.
- Remove dead batteries quickly. There is a risk of the battery exploding if it is not replaced correctly or if the appliance is unused for a period of time.
- Replace the battery with an identical or equivalent model.
- The batteries (or battery pack) must not be exposed to excessive heat, such as sunlight, fire, etc.

• Do not heat batteries or dispose of them in fire or water.
• Do not use metal pliers or metal objects such as the point of a pen or tweezers to remove batteries. Avoid deforming, crushing or piercing batteries.
• Do not disassemble the batteries.
• Cover the ends of the batteries with tape to prevent explosions and combustion when these are scrapped.
• Scrap batteries in an environmentally friendly way
• Do not dispose of batteries in ordinary household waste.
• Be sure to comply with the local regulations in force when scrapping batteries.

Technical specifications of the device

Type Specifications	Type Specifications
Broadband loudspeaker	4" (30 W) x 2 Tweeter	1.25" (5 W) x 2
Peak power 60 W Wireless frequency 2,402 -		2,480 MHz
RMS power 60 W Bluetooth version 5.3
S/B ratio ≥80 dB ERIF	-2.6dBm
Power consumption 0	09W Distortion	< 1%
Power supply	AC100-240V, 50/60Hz	Speaker frequency	45 Hz - 20K Hz
Speaker impedance	4Ω/woofer, 4Ω/tweeter	Input	Bluetooth, LINE(RCA), TV Audio, Optic, USB
Output	AUX out, Sub out TransmissiOn range 10 m
Bluetooth pairing name	WS852	Dimensions 455 x 150	x 170 mm

Your product has been designed and manufactured using high-quality materials and components that can be recycled and reused.

Attention should be drawn to the environmental aspects of battery disposal.

When the crossed-out wheelie bin symbol appears on a product, it means that the product is covered by European Directive 2002/96/EC. Please find out about the local sorted collection system for electrical and electronic products. Please act according to local rules and do not dispose of your old products in your household waste. By ensuring this product is disposed of correctly, you are also helping to prevent potentially negative consequences for the environment and human health.

Additional information

• When the appliance does not transmit audio output for a certain amount of time, it will automatically go into standby mode to save energy. It can be switched back ON by using the POWER selector
• If an incoming call is received while the WS852 system is connected to your mobile phone during music playback, the music will immediately pause when you answer the call and resume after the call ends. Depending on the mobile phone, playback may sometimes stay paused after the end of the call.
• The word Bluetooth® the brand and logo are registered trademarks owned by Bluetooth SIG, Inc., and any use of such marks by Bigben Interactive is under licence. All other brands and trade names are the property of their respective owners.
• THOMSON is a trademark of Talisman Brands, Inc. used under licence by Bigben Interactive.
• This product is manufactured and sold under the responsibility of Bigben Interactive.
• THOMSON and the THOMSON logo are trademarks operated under licence by Bigben Interactive – for more information: www.thomson-brand.com.
• All other products, services, corporate names, trademarks, trade names, product names and logos referenced herein are the property of their respective owners.

Declaration of conformity

• Bigben Interactive hereby declares that the WS852 type radio equipment complies with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www/bigben-interactive.co.uk/support/

Warranty

This product is guaranteed by Bigben for a period of 2 years from the date of purchase, except in countries of the European Economic Area, which offer a longer warranty period. We recommend that you keep your receipt for any claims. The warranty covers breakdowns due to defective material, a missing element or manufacturing defect. In this case, contact our technical support. For any problem with a defective product, contact your point of purchase with your receipt. The warranty does not cover problems of improper use.

SUPPORT

For any technical problem, please contact [e-mail]. Our Support Team is also available by chat via www/bigben-interactive.co.uk/support/ from Monday to Friday 9.00am till 6.00pm (GMT+1).

Made in China

Manufactured by BIGBEN INTERACTIVE SA

396-466, Rue de la Voyette CRT2

59273 FRETIN - France

www/bigben.eu

Fabricant: Bigben Interactive FRANCE

396, Rue de la Voyette, C.R.T. 2, Fretin,

CS90414-59814 Lesquin Cedex, France
